XY-AUTO FD9212ah User manual
Double Din Car Stereo
Desktop
1 XY-AUTO
XY-AUTO
Home Page ..................................................2
Drop-down Menu .......................................3
Table of Contens
OPERATING MANUAL
Modol: FD9212ah
APPS
Navigation ..................................................5
Music ..........................................................6
Video ..........................................................7
Radio ..........................................................8
BT ...............................................................9
Sound Effects ............................................11
Car Settings ..............................................12
AUX ...........................................................17
File Manager .............................................18
Sound Recorder ........................................19
Play Store ..................................................19
Chrome ......................................................20
ZLINK .......................................................21
APPS
" "power," "home," " vol+," "vol-," "return.
If you want other meanings,you can set them in "touch settings" or
"panel physical key learning" in "factory settings".
01. Click to return directly to the home page
02. Click to hide the top icon, click again to restore
03. Click to view background apps and optionally clear
04. Click to return to the previous page
05. Click to directly enter the car settings page
06. Click to browse all apps
07. Click to enter the navigation page
08.Five fingers long press the screen to calibrate the device touch
01.The top of the desktop appears in turn:
XY-AUTO
一、Home Page
1. Page Introduction:
2. Function Introduction:
3. Control Panel:
2 XY-AUTO
Home Page,BT,Hide Icons,Background ,Return
XY-AUTO
1.Function Introduction:
Touch the screen and drag down to pop up a
drop-down menu, drag up to hide the menu
01.WiFi, click to turn on / off, tap and hold to enter the WiFi operation interface
02.BT, click to turn on / off, tap and hold to enter the Bluetooth operation interface
03.Hotspot, click to turn on / off, tap and hold to enter the Hotspot operation interface
04.Screenshot, save to file manager picture classification
05.CarAmplifier, click to turn on / off
06.Screen off, click to turn off ,Click again to turn on
07.Car setting, click to directly enter the car setting interface
08.Clean-up, click to clear device garbage
09.OPTICAL, click to turn on / off
10.Click to move the icon position on the drop-down bar interface
11.Click to directly enter Android settings. You can set WiFi, Bluetooth,
applications and notifications, display, sound, storage, security and location
information, account, accessibility, system, etc.
二、Drop-down Menu
3 XY-AUTO
XY-AUTO
一、Navigation
Click navi to enter the "Google
Maps" operation page
•If there is no map data in the memory
card, it will prompt to download and
enter the map management page after
confirming the download.
1.App Preparation:
01. Navigation software installation:
•Network installation (need
to connect to the network)
steps: click [Play Store]---
search for the navigation
name---download and
install.
•Manual installation: Copy
the U disk/SD card device
with navigation, etc., and
connect it to the car’s USB--
Open [File Manager]--Find
the corresponding USB port
and map and click to install.
4 XY-AUTO
02. Select the navigation application:
•Before entering the navigation, you need
to select the navigation application, open
[Car Settings] -[Navigation] - select
Google maps (you can also choose whether
to start or not).
XY-AUTO
1.Function Introduction:
01.You need to add an account when you log in for
the first time
02.Click the red box to enter the corresponding page
to set
5 XY-AUTO
XY-AUTO
• This operation is effective when the machine has SD
card or USB interface and corresponding media files
Return to the home interface
Return to the previous page
Play circularly
Last song
Next song
Pause
Play
Sound Effects
Playlist
二、Local Music
Click "Local Music" to enter the operation page
•keys Operation Instructions:
01.Playlist：Songs, Folders,
Artists, Search, Favorites
02.Play Mode：Single cycle、
List cycle、Random play
03.Sound Effects: Rock、
Classic、Jazz、Popand other
playback sound effects,
can also be customized
04. Play Selection: Access the audio U disk/SD card---Open
[File Manager]---Check the audio file and click [Copy]---
Switch to "Local Music"---"insidefiles" folder---Click Paste,
and finally restart the car
6 XY-AUTO
XY-AUTO
三、Video
Click "Video" to enter the operation page
•This operation is effective when the machine has SD
card or USB interface and corresponding media files
Return to the previous page
Sound Effects
Last
Next
Pause
Play
Screen ratio selection
Soft-hard switch
Play mode switch
•keys Operation Instructions：01.Sound Effects: Rock、Classic、Jazz、
Popand other playback sound effects,can also
be customized
02.Screen Ratio：full-screen、4:3、16:9
03.Play Mode：dual screen display、
picture in picture
04.Play Selection：Click "All" to select SD /
U disk (audio files must be included,
otherwise no content will be displayed when
switching Udisk directory)
7 XY-AUTO
XY-AUTO
•FM / AM band can store 40 effective platforms respectively
四、Radio
Click "Radio" to enter the operation page
•Buttons Operation Instructions：
Return to the home interface
Return to the previous page
Search up
Search down
Last
Next
DX It only receives short-range
and local signal stations
LOC It can receive foreign and local
radio stations
01.Sound Effects: Rock、
Classic、Jazz、Popand other
playback sound effects,can also
be customized
02.Search Stations: Search up /
down for stations, and the search
will be terminated for each
station found
03.Auto Save：Click "Auto
save " to clear all station storage
records and perform automatic
search function
04.FM/AM：Click FM/AM to switch between the two
bands FM:88.0MHz-108.0MHz/AM:522KHz-1620KHz
05.Abbreviation：ST:Stereo switch for FM radio
TP/TA：Traffic procedure / traffic announcement (traffic
news detection and automatic switching)
AF:Automatic switching frequency
PTY:Program type display and search
9 XY-AUTO
8 XY-AUTO
XY-AUTO
• Not Connected: When entering the bluetooth interface, there
is no connected device display, click the dial button on the
bluetooth interface, etc., it will prompt "please connect to HFP"
Browse device name, PIN code, and Bluetooth data service
capabilities.
Yellow highlight means selected
"connect" the list on the right：
Search ,Connect,Disconnect,Delete pairing record
五、BT
Click "BT" to enter the operation page
01.Pairing steps：
•Turn on the BT of the mobile phone--enter the pairing interface--click
the search device on the car machine--click the name of the device to be
paired (such as CarBT1 in the picture), the phone will pop up a PIN code
box--enter the PIN code on the setting page to complete the connection
02.Play bluetooth music：
•When playing bluetooth music, open the mobile phone music
application to operate the up/down/pause/continue playback functions
(Playing Bluetooth music requires both A2DP and AVRCP connections)
9 XY-AUTO
XY-AUTO
03.Call：
After successful pairing, you can dial
directly through the mobile phone or
enter the phone number directly on the
dialing panel
Dial the number on the phonebook
Dial the last call number
04.Phonebook：
After successful pairing, you can dial
the phone directly or enter the phone
number directly on the dial panel
Dial the currently selected contact
Update contacts synchronously and
click stop update again
•Phonebook -- download button -- confirm "whether to allow access to contact
information", the car will synchronize mobile phone contacts (please do not
operate arbitrarily during the process)
05.History：
call dial missed calls
Dial the current number
Synchronously update the call log, click
again to stop updating
Click to switch the call sound from the car
terminal/mobile terminal
10 XY-AUTO
XY-AUTO
1. Sound Effects Home Page:
Multiple sound effects types provide choice + customization.
By adjusting electrical signals of different frequencies to
compensate and modify various sound sources, sound fields
or speaker effects
(Note: Hi-Fi, rock and other buttons can be turned on/off with
one key)
六、Sound Effects
Click "Sound Effects" to enter the operation page
2. Sound Field Settings：
Click to enter the sound field setting, the default is centered
(meaning balanced sound output), if you drag the node to the main
driving position, the sound will focus on the main driving area
output
11 XY-AUTO
XY-AUTO
七、Car Settings
01.Device Port
02.System Info
03.Factory Settings
04.Car Settings
05.Android Settings
06.Volume Settings
07.Brightness
08.Navigation
09.GPS Detection
10.Steering Wheel Learn
11.Logo Settings
12.Other Settings
02.System Info：
Contains information such as version, memory, storage, resolution, etc.
①Click "Default Settings" to restore the factory settings
②Android upgrade/MCU upgrade, upgrade the Android/MCU
software to the highest version
③Click "Device Information" to view the SN code of the machine
1.Page Content:
12 XY-AUTO
XY-AUTO
03.Factory Settings：
Factory Settings are provided for factory use only
04.Car Settings：
The original car is set according to the protocol
box company provides the agreement to set the
original carfeatures are:
①Set the basic body and detailed information
②Operate the main unit with the original car
panel keys and panel knobs
③Display air conditioning information and radar
informationetc. (Note:The original car set
function in accordance with the agreement to
complete)

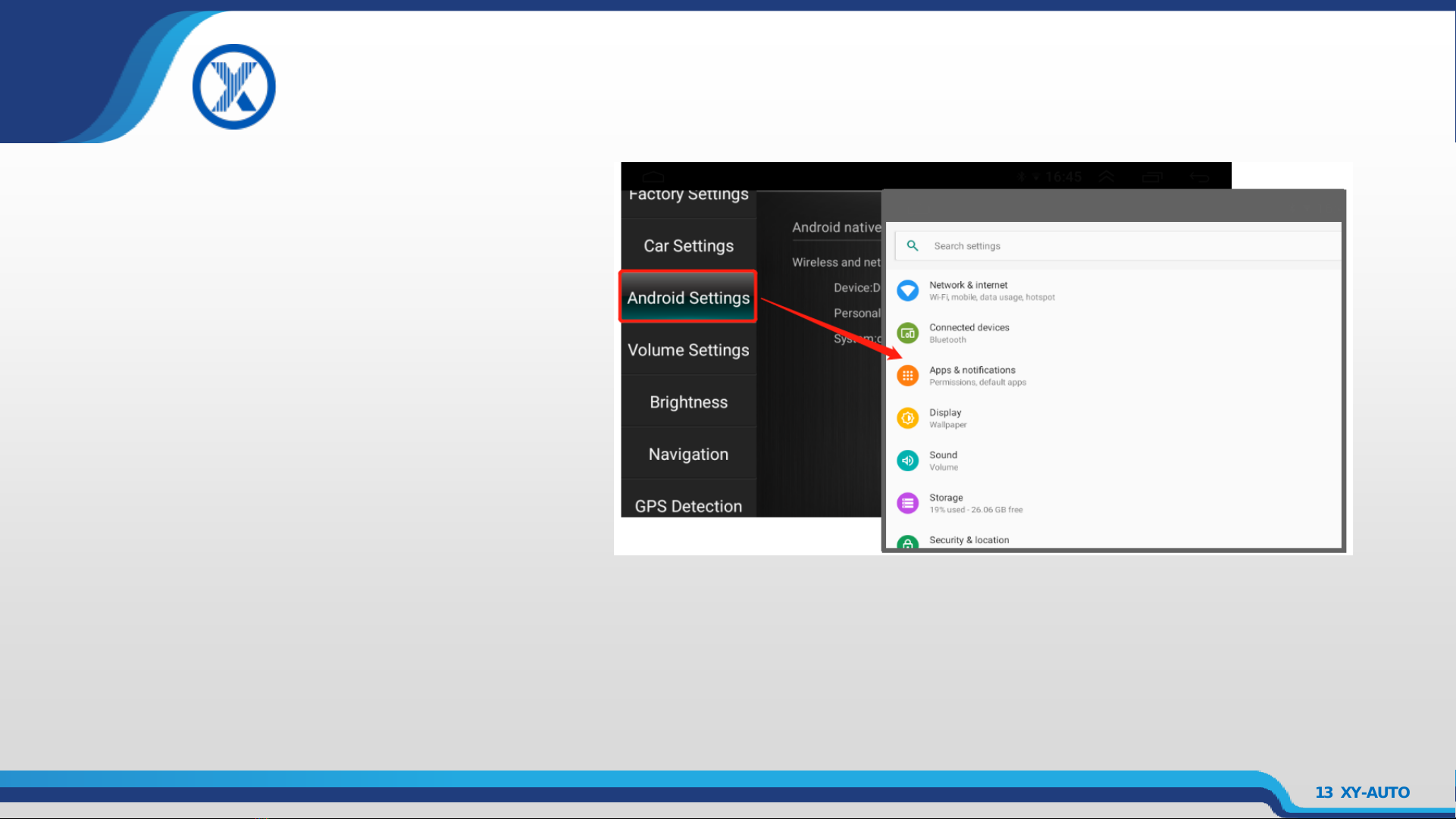

05.Android Settings：
①Wireless and Network:WLAN,SIM card,Traffic usage,More optionsns
②Device:Display,Application prompt tone,Storage device and USB,Memory
③Personal:Location,Security,Account,Language and Input,Reset
④System:Date and Time,Accessibility,On-Board Platform
13 XY-AUTO
XY-AUTO

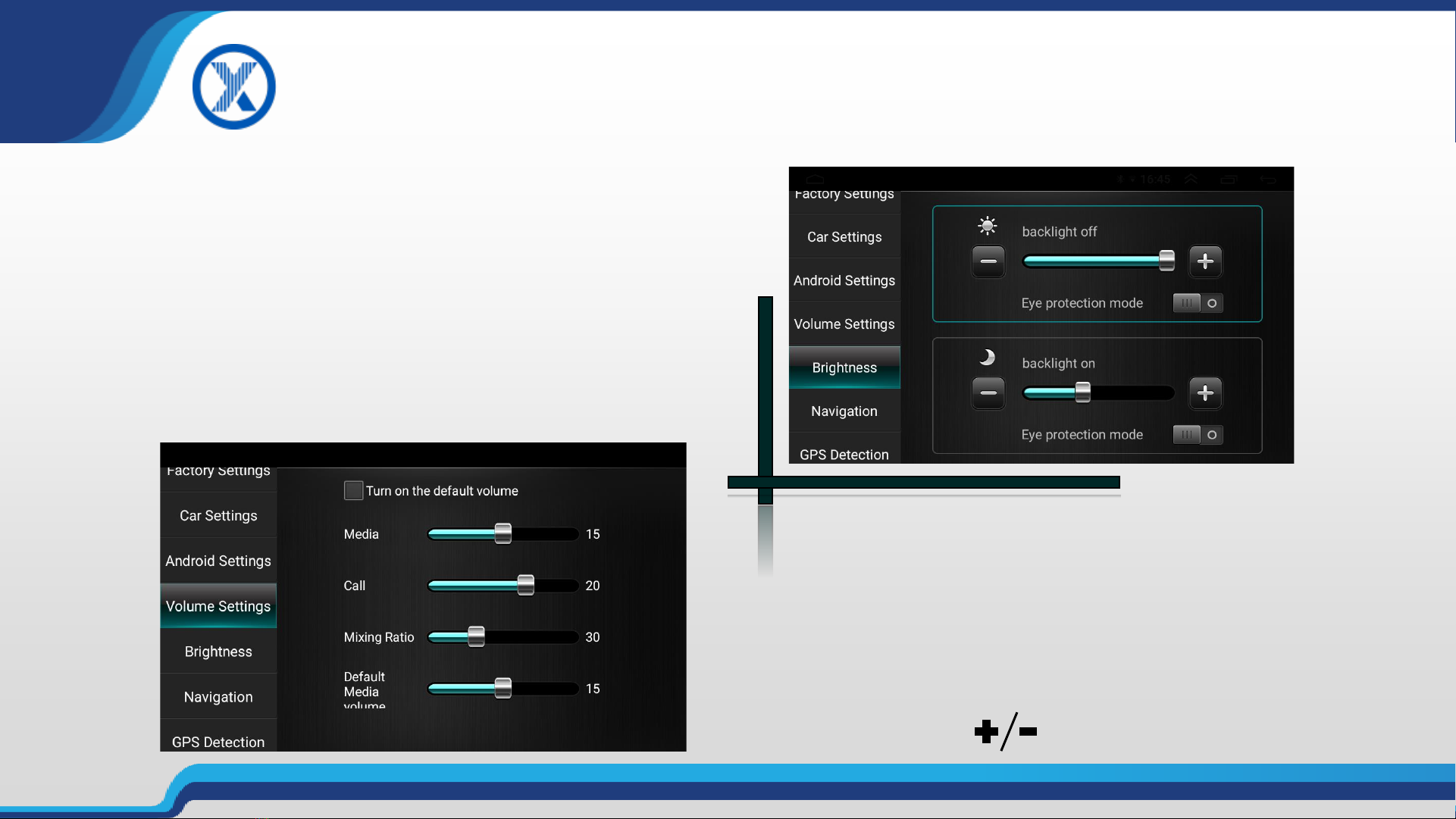

06.Volume Settings:
Option to use default media volume
①Set current media volume
②Set current call volume
③Set the mix ratio
④Set default media volume
07.Brightness：
Option to use default media brightness
①Set the backlight level when the lights are off/on
②Set whether to turn on the eye protection mode when
the lights are turned off/on
（Note: Click " " to adjust）
14 XY-AUTO
09.GPS Detection：
①View related GPS information,Click to restart GPS
XY-AUTO
08.Navigation：Optional navigation app
①Setting: whether to boot start and whether to always ask
10.Steering Wheel Learn：
①Press any button on the steering wheel, the interface will
display Please long press a direction button, if you do not
press the button on the steering wheel for a certain period
of time, the learning will fail
②Click on the screen to learn the function of docking
③Press the corresponding function button on the steering
wheel:Repeat steps 1-3 in sequence until all control buttons
on the steering wheel are learned
Note: Click to clear all keys for learning
If you perform a "system reset" operation in "factory
mode settings", please relearn the steering wheel before
using
Realization conditions of this function:
1. It is applicable to the steering wheel of the original vehicle in
non-bus control mode
2. The original car steering wheel buttons must be voltage input
control mode
15 XY-AUTO
XY-AUTO
11.Logo Settings：
①Logo Set：The selected logo file as the
boot logo
②Animation：The selected animation as the
boot animation
12.Other Settings：
①Float Bar switch
②Hand Brake setting check switch
③Screen is set to landscape mode switch
④Reversing mute switch
16 XY-AUTO
XY-AUTO
八、AUX
Click "AUX" to enter the operation page
2. Function Introduction:
01.When there is no video input, the interface
displays: click to enter
02.Click return to the previous page
03.When the signal is connected, the video
screen is displayed
1. Page Content:
17 XY-AUTO
XY-AUTO
Click "File Manager" to enter the operation page
九、File Manager 2. Function Introduction:
•A powerful and simple resource management software
to classify and manage music, video, gallery, applications
and documents; Find target resources efficiently.
•App installation, file copying, copying, deleting,
creating, information viewing, cutting and other functions
use are available.
•Real-time reminders of memory conditions to avoid
system freezes and reduced usability. At the same time, it
also supports external device operation, U disk, SD card,
etc.
1. Page Content:
18 XY-AUTO
03.Click to start/pause recording
04.After recording, click to discard / save the recording
05.Click to select the recording file
XY-AUTO
1.Function Introduction:
01.Click to select the
recording quality (High,
Medium, Low)
02.The pointer in the middle
of the page changes with
the volume
十、Sound Recorder
Click "Sound Recorder" to enter the operation page
十一、Play Store
Click "Play Store" to enter the operation page
Various popular car machine applications can
be downloaded for free
19 XY-AUTO
Table of contents
