Xylem FLYGT MRM 01 User manual

Installation, Operation,
and Maintenance Manual
MRM 01

Table of Contents
1 Introduction and Safety..............................................................................................................2
1.1 Introduction.......................................................................................................................... 2
1.2 Safety terminology and symbols........................................................................................2
1.3 User safety.............................................................................................................................3
1.4 End of life product disposal................................................................................................3
1.5 Spare parts............................................................................................................................4
1.6 Warranty................................................................................................................................4
1.7 Support..................................................................................................................................4
2 Transportation and Storage...................................................................................................... 5
2.1 Inspect the delivery..............................................................................................................5
2.2 Storage guidelines...............................................................................................................5
3 System Description.....................................................................................................................6
3.1 Product design..................................................................................................................... 6
3.2 Usage.....................................................................................................................................6
4 Mechanical Installation.............................................................................................................. 7
4.1 Install the unit on a DIN rail.................................................................................................7
5 Electrical Installation...................................................................................................................8
5.1 Do not install in an explosive zone.................................................................................... 8
5.2 Connect the unit...................................................................................................................9
5.3 Replace CAS with MRM and MAS......................................................................................9
6 System Setup.............................................................................................................................11
6.1 Set up the MAS base unit..................................................................................................11
6.1.1 Activate the communication alarm...........................................................................11
6.1.2 Set up a MAS relay module....................................................................................... 11
6.1.3 Set the DIP switches................................................................................................... 12
7 Technical Reference.................................................................................................................14

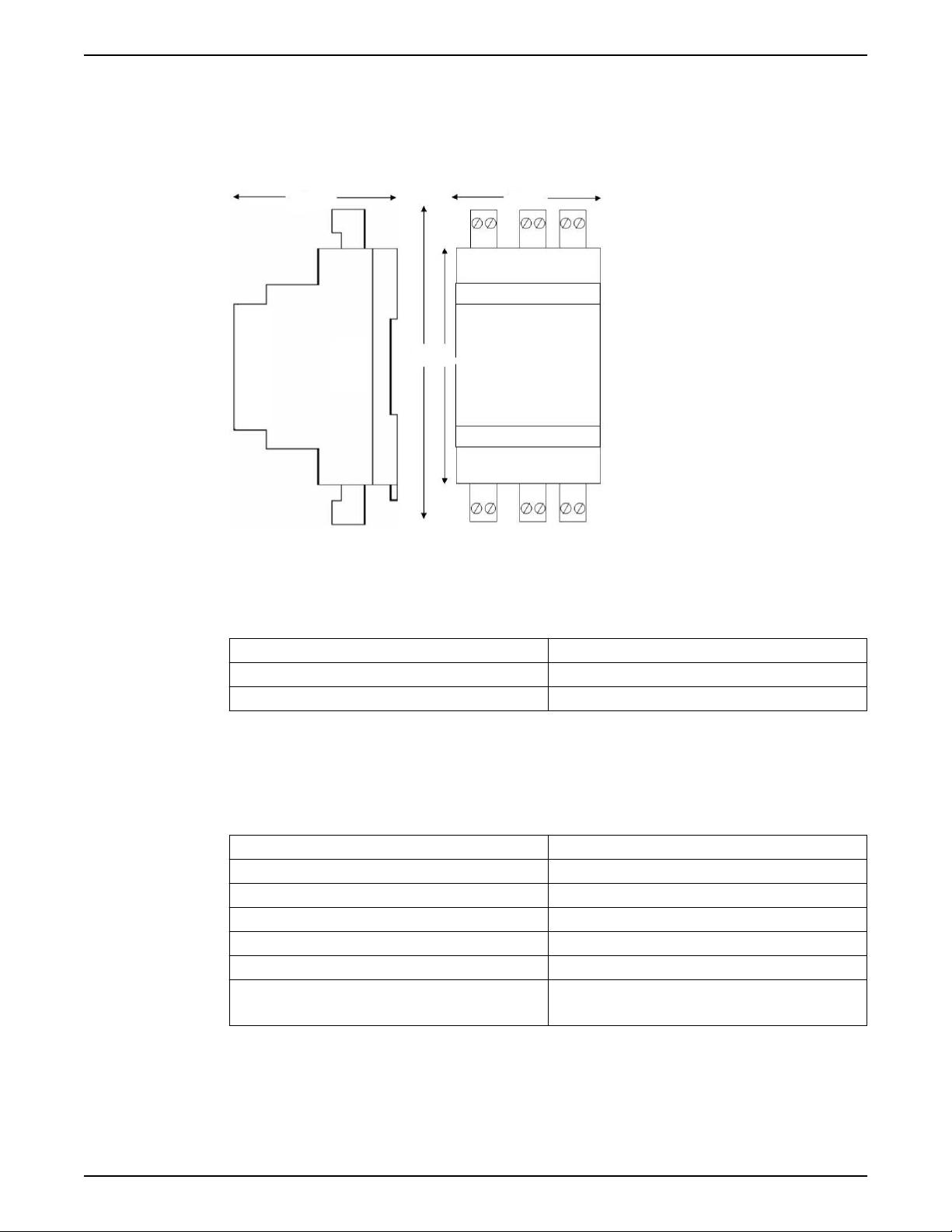

7.1 Dimensions......................................................................................................................... 14
7.2 Environmental requirements............................................................................................14
7.3 IP-rating...............................................................................................................................14
7.4 Electrical data..................................................................................................................... 14
7.5 Approvals............................................................................................................................14

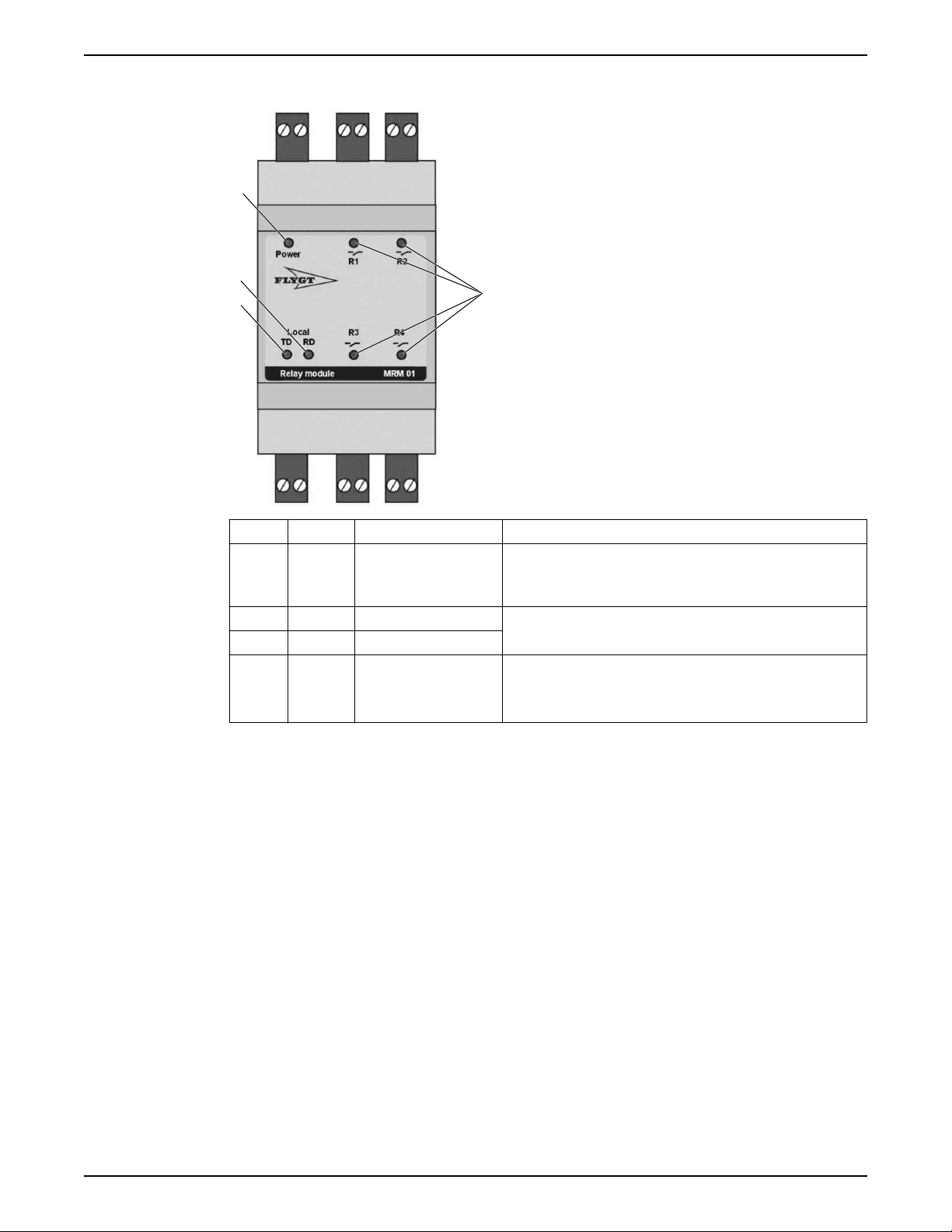

7.6 The LED functions..............................................................................................................15
Table of Contents
MRM 01 Installation, Operation, and Maintenance Manual 1

1 Introduction and Safety
1.1 Introduction
Purpose of the manual
The purpose of this manual is to provide necessary information for installation, operation,
and maintenance of the unit.
Read and keep the manual
Save this manual for future reference, and keep it readily available at the location of the
unit.
CAUTION:
Read this manual carefully before installing and using the product. Improper use of the
product can cause personal injury and damage to property, and may void the warranty.
The equipment, and its functioning, may be impaired if used in a manner not specified by
the manufacturer.
Intended use
WARNING:
Operating, installing, or maintaining the unit in any way that is not covered in this manual
could cause death, serious personal injury, or damage to the equipment and the
surroundings. This includes any modification to the equipment or use of parts not
provided by Xylem. If there is a question regarding the intended use of the equipment,
please contact a Xylem representative before proceeding.
1.2 Safety terminology and symbols
About safety messages
It is extremely important that you read, understand, and follow the safety messages and
regulations carefully before handling the product. They are published to help prevent
these hazards:
• Personal accidents and health problems
• Damage to the product and its surroundings
• Product malfunction
Hazard levels
Hazard level Indication
DANGER:
A hazardous situation which, if not avoided, will result in
death or serious injury
WARNING:
A hazardous situation which, if not avoided, could result
in death or serious injury
CAUTION:
A hazardous situation which, if not avoided, could result
in minor or moderate injury
1 Introduction and Safety
2 MRM 01 Installation, Operation, and Maintenance Manual

Hazard level Indication
NOTICE:
Notices are used when there is a risk of equipment
damage or decreased performance, but not personal
injury.
Special symbols
Some hazard categories have specific symbols, as shown in the following table.
Electrical hazard Magnetic fields hazard
Electrical Hazard: CAUTION:
1.3 User safety
Introduction
All government regulations, local health and safety directives must be observed.
Prevent danger due to electricity
All danger due to electricity must be avoided. Electrical connections must always be
carried out in compliance with the following:
• The standard connections shown in the product documentation that is delivered
together with the product
• All international, national, state, and local regulations. (For details, consult the
regulations of your local electricity supplier.)
For more information about requirements, see sections dealing specifically with electrical
connections.
Power lock-out
DANGER: Electrical Hazard
Before starting work on the unit, make sure that the unit and the control panel are isolated
from the power supply and cannot be energized. This applies to the control circuit as well.
Qualification of personnel
WARNING: Electrical Hazard
Risk of electrical shock or burn. A certified electrician must supervise all electrical work.
Comply with all local codes and regulations.
All work on the product must be carried out by certified electricians or Xylem authorized
mechanics.
Xylem disclaims all responsibility for work done by untrained, unauthorized personnel.
1.4 End of life product disposal
Handle and dispose of all waste in compliance with local laws and regulations.
1 Introduction and Safety
MRM 01 Installation, Operation, and Maintenance Manual 3

EU only: Correct disposal of this product — WEEE Directive on waste electrical and electronic equipment
WS009973A
This marking on the product, accessories or literature indicates that the product should
not be disposed of with other waste at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Waste from electrical and electronic equipment can be returned to the producer or
distributor.
EU only: Correct disposal of batteries in this product
WS009974A
This marking on the battery, manual or packaging indicates that the batteries in this
product should not be disposed of with other waste at the end of its working life. Where
marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not
properly disposed of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material re-use, please separate batteries
from other types of waste and recycle them through your local, free battery return system.
1.5 Spare parts
CAUTION:
Only use the manufacturer’s original spare parts to replace any worn or faulty
components. The use of unsuitable spare parts may cause malfunctions, damage, and
injuries as well as void the warranty.
1.6 Warranty
For information about warranty, see the sales contract.
1.7 Support
Xylem only supports products that have been tested and approved. Xylem does not
support unapproved equipment.
1 Introduction and Safety
4 MRM 01 Installation, Operation, and Maintenance Manual

2 Transportation and Storage
2.1 Inspect the delivery
Inspect the package
1. Inspect the package for damaged or missing items upon delivery.
2. Note any damaged or missing items on the receipt and freight bill.
3. File a claim with the shipping company if anything is out of order.
If the product has been picked up at a distributor, make a claim directly to the
distributor.
Inspect the product
1. Remove packing materials from the product.
Dispose of all packing materials in accordance with local regulations.
2. Inspect the product to determine if any parts are damaged or missing.
3. If applicable, unfasten the product by removing any screws, bolts, or straps.
For your personal safety, be careful when you handle nails and straps.
4. Contact your sales representative if anything is out of order.
2.2 Storage guidelines
Storage location
The product must be stored in a covered and dry location free from heat, dirt, and
vibrations.
NOTICE:
Protect the product against humidity, heat sources, and mechanical damage.
NOTICE:
Do not place heavy weights on the packed product.
2 Transportation and Storage
MRM 01 Installation, Operation, and Maintenance Manual 5

3 System Description
3.1 Product design
The MRM 01 is an optional part of the MAS. One or up to eight MRMs can be connected
to the MAS base unit through RS-485 Modbus. This enables the MAS to communicate
individual alarms on the separate monitoring channels to relays and LEDs on one or more
MRMs.
The pump sensors are connected to the MAS base unit, and it is the base unit that
monitors the pump and detects unhealthy conditions. The individual alarms are
transmitted to LEDs and relays on the MRM.
The configuration of what alarm that triggers which relay on which MRM is done through
the MAS embedded webpages. Sensor configuration, alarm limits, and more settings are
also done through the webpages.
If no settings are done, then the MAS and one MRM are preconfigured to replace a CAS,
see Replace CAS with MRM and MAS (page 9).
3.2 Usage
Monitoring system and relay module as spare part for CAS
A MAS that is complemented with an MRM enables separate indication and relay output
for each monitoring channel in the same way a CAS does. It makes the monitoring system
fully compliant as a CAS replacement.
How to make a strict CAS replacement using the MAS base unit and an MRM is described
in Replace CAS with MRM and MAS (page 9).
Language independent monitoring functions
A language independent monitoring solution for large pumps is obtained by using a MAS
base unit and letting two or more MRMs replace the text screen of the operator panel. The
LEDs on the relay modules make it possible to distinguish between alarm channels. The
output relays can be connected to, for example, control panel lamps. The configuration is
done by using the MAS embedded webpages.
PLC communication
It is possible to use several relays as an alternative to serial communication between the
monitoring system and a PLC. Up to eight MRMs can be set up to transmit alarms. The
configuration is done by using the MAS embedded webpages.
3 System Description
6 MRM 01 Installation, Operation, and Maintenance Manual

4 Mechanical Installation
4.1 Install the unit on a DIN rail
WS009306A
1. Hook the lip at the back of the unit onto the top of the DIN rail.
2. Press the unit down until the rail clip snaps into place.
4 Mechanical Installation
MRM 01 Installation, Operation, and Maintenance Manual 7

5 Electrical Installation
Precautions
Before starting work, make sure that the safety instructions in the chapter Introduction and
Safety (page 2) have been read and understood.
DANGER: Electrical Hazard
Before starting work on the unit, make sure that the unit and the control panel are isolated
from the power supply and cannot be energized. This applies to the control circuit as well.
DANGER: Electrical Hazard
All electrical equipment must be grounded (earthed). Test the ground (earth) lead to
verify that it is connected correctly and that the path to ground is continuous.
WARNING: Electrical Hazard
Risk of electrical shock or burn. A certified electrician must supervise all electrical work.
Comply with all local codes and regulations.
WARNING: Electrical Hazard
There is a risk of electrical shock or explosion if the electrical connections are not correctly
carried out, or if there is fault or damage on the product. Visually inspect equipment for
damaged cables, cracked casings or other signs of damage. Make sure that electrical
connections have been correctly made.
CAUTION: Electrical Hazard
Prevent cables from becoming sharply bent or damaged.
External switch
This product cannot be used as an emergency stop device.
An external switch or circuit breaker must be provided near the installation to enable the
pump to be isolated from the power supply.
5.1 Do not install in an explosive zone
NOTICE:
Do not use this unit in environments that may contain flammable/explosive or chemically
aggressive gases or powders.
5 Electrical Installation
8 MRM 01 Installation, Operation, and Maintenance Manual

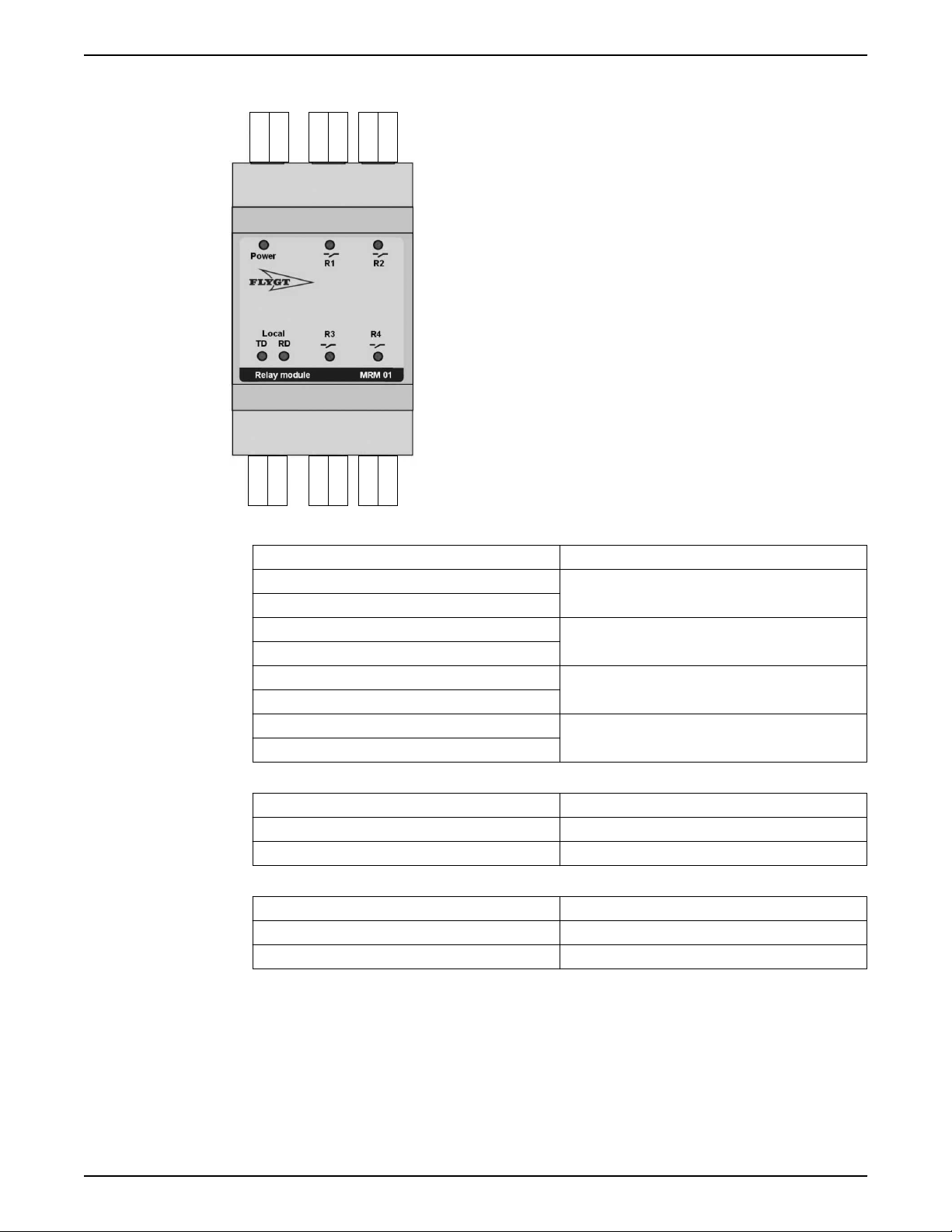

5.2 Connect the unit
123456
789101112
WS010007A
1. Connect the relay outputs.
Terminal Description
3 Output relay 1: 5 A, 250 VAC
4
1 Output relay 2: 5 A, 250 VAC
2
9 Output relay 3: 5 A, 250 VAC
10
7 Output relay 4: 5 A, 250 VAC
8
2. Connect the Modbus communication.
Terminal Description
11 Modbus/ RS-485 (B) to MAS terminal 38
12 Modbus/ RS-485 (A) to MAS terminal 37
3. Connect the power supply.
Terminal Description
5 Power supply: 24 VAC or 24 VDC
6 Ground
5.3 Replace CAS with MRM and MAS
1. Install the MRM 01 and MAS base unit according to Install the unit on a DIN rail (page
7).
2. Connect the CAS inputs and outputs to the MAS base unit and MRM 01.
5 Electrical Installation
MRM 01 Installation, Operation, and Maintenance Manual 9

CAS description CAS terminal MAS base unit terminal
CAS A: Liquid level sensor (Stator
housing)
17 13
18 14
CAS B: Oil flow or liquid level sensor 19 15
20 14
Reset 22 22
23 23
RUN (used only together with the oil
flow sensor)
24 24
25 23
CAS C: Winding over temperature
protection
26 1
27 2
Pt100 sensor 28 8
29 4
Option to read Pt100 temperature
value
31 20
32 21
CAS Σ: Output for remote indication
24 V / max 2 VA
8 31
9 32
Interlock contact, Max 240 V / 4 A 11 27
12 28
CAS description CAS terminal MRM 01 terminal
CAS A: Output for remote indication
24 V / max 2 VA
1 3
2 4
CAS B: Output for remote indication
24 V / max 2 VA
3 1
2 2
CAS C: Output for remote indication
24 V / max 2 VA
4 9
5 10
CAS D: Output for remote indication
24 V / max 2 VA
6 7
7 8
3. Connect the Modbus communication between the MAS base unit and the MRM 01.
MAS base unit MRM 01
Description Terminal Description Terminal
Local, RS-485 (A) (Modbus
master)
37 Modbus/ RS-485 (A) 12
Local, RS-485 (B) (Modbus
master)
38 Modbus/ RS-485 (B) 11
4. Connect the power supply to the MAS base unit and the MRM 01.
CAS description CAS terminal MAS base unit terminal MRM 01 terminal
24 VAC supply 14 25 5
16 26 6
5 Electrical Installation
10 MRM 01 Installation, Operation, and Maintenance Manual

6 System Setup
6.1 Set up the MAS base unit
A computer is connected to the MAS base unit via a web browser.

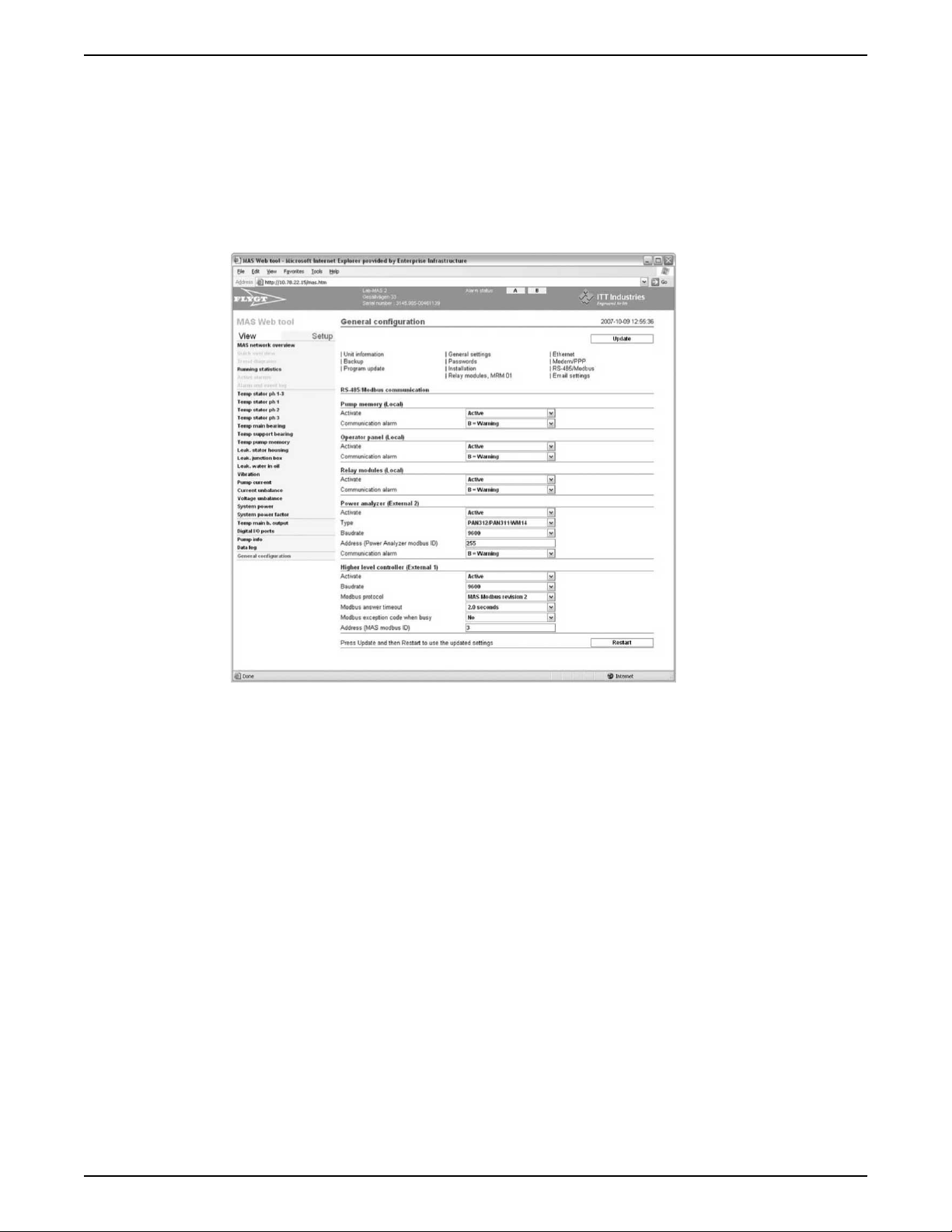

6.1.1 Activate the communication alarm
WS009564A
1. Click Setup > General configuration > RS-485/Modbus.
2. Set the Communication alarm status for Relay modules (Local) to On.
3. Click Update.
6.1.2 Set up a MAS relay module
1. Make sure that the communication with the relay modules is turned on.
2. Click Setup > General configuration > Relay Modules, MRM 01.
6 System Setup
MRM 01 Installation, Operation, and Maintenance Manual 11

WS009574A
3. Select Activate.
4. Select the monitoring channels for the four relays on the module.
5. Select the Action priority for each relay, that is, if the relay communicates an A-alarm or
a B-alarm on the specified monitoring channel.
6. Repeat the settings for all the connected Relay modules.
7. Click Update.
6.1.3 Set the DIP switches
WS010010A
1
2 3
1. Slits for removing the front cover
2. Switch 1–4: Relay function
3. Switch 5–8: Module address
6 System Setup
12 MRM 01 Installation, Operation, and Maintenance Manual

1. Open the front cover with a small screwdriver.
2. Set the individual relay functions.
Condition Action
Relay closes when there is an alarm. The DIP switches are off by default. No action is needed.
Relay opens when there is an alarm. Set DIP switch to ON.
3. Set the address of the relay module.
WS010011A
6 System Setup
MRM 01 Installation, Operation, and Maintenance Manual 13

7 Technical Reference
7.1 Dimensions
1 2
34
WS009999A
1. 60 mm (2.4 in)
2. 53 mm (2.1 in)
3. 116 mm (4.6 in)
4. 86 mm (3.4 in)
7.2 Environmental requirements
Parameter Value
Operating temperature -20°C to +60°C (-4°F to 140°F)
Operating humidity Relative humidity, non-condensing: 85%
7.3 IP-rating
IP 20
7.4 Electrical data
Parameter Value
Supply voltage 24 V AC or DC
Frequency 45 Hz to 65 Hz
Supply voltage tolerance ±10%
Supply dropout 50 ms without function disruption
Four relays 5 A, 250 VAC, normally opened
Power consumption 24 VDC maximum: 3 VA
24 VAC maximum: 6 VA
7.5 Approvals
• CE
• CSA/US
7 Technical Reference
14 MRM 01 Installation, Operation, and Maintenance Manual

7.6 The LED functions
WS010009A
1
2
4
3
Number LED Function Description
1 Power Power and
communication
indication
Blinking = communication error with the MAS base unit
Lit = power is on and communication with the MAS base unit is
established
3 RD Receive data RS-485 or Modbus communication with MAS base unit
2 TD Transmit data
4 R1–R4 Relay status of four
individual channels
LEDs are lit or blinking when the related relay is active.
Blinking = alarm
Lit = OK or acknowledged
7 Technical Reference
MRM 01 Installation, Operation, and Maintenance Manual 15

Xylem |’zīləm|
1) The tissue in plants that brings water upward from the roots
2) A leading global water technology company
We’re a global team unified in a common purpose: creating innovative solutions
to meet our world's water needs. Developing new technologies that will improve
the way water is used, conserved, and re-used in the future is central to our work.
We move, treat, analyze, and return water to the environment, and we help
people use water efficiently, in their homes, buildings, factories and farms. In
more than 150 countries, we have strong, long-standing relationships with
customers who know us for our powerful combination of leading product brands
and applications expertise, backed by a legacy of innovation.
For more information on how Xylem can help you, go to xyleminc.com
Refer to www.xylemwatersolutions.com/contacts/ for contact details of your local sales and service
representative.
Xylem Water Solutions Global
Services AB
361 80 Emmaboda
Sweden
Tel: [phone]
Fax: [phone]
http://tpi.xyleminc.com
Visit our Web site for the latest version of this document
and more information
The original instruction is in English. All non-English
instructions are translations of the original instruction.
©2015 Xylem Inc
897406_3.0_en-US_2016-02_IOM.MASMRM01
