XZENT X-402 User manual
Bedienungsanleitung
2-DIN Naviceiver X-402
XZENT by ACR AG · Bohrturmweg 1 · Bad Zurzach · Switzerland
www.xzent.com
USER MANUAL
X-402
Manual 402_de_en.indd 1 08.08.16 13:38
2
ABOUT THIS MANUAL
This manual contains important information and warnings about the operation of this XZENT unit.
Please store it in a place where you have access later on.
REMOTE CONTROL 4
X402-HDMI FRONT PANEL HARD KEYS 6
MAIN MENU 7
FM/AM TUNER MODE 8
FM/AM TUNER Operation Buttons 8
FM/AM Tuner Setup (PopUp) 9
DAB TUNER MODE 10
USB / Disc / IPod MODE 12
BT MODE 16
Front-Rear-Camera MODE 20
SETUP MODE 21
Note 1.The descriptions and other content shown in this manual may deviate from the real device.
2.Pictures shown in this manual and some HMI screenshots may deviate from the real unit.
3.Specifications and technical design of this device model are necessarily subject to
change without notice.
CONTENT
Manual 402_de_en.indd 2 08.08.16 13:38
3
nRead the instructions entirely. Heed all warnings. Follow the instructions.
nRetain this manual. Whoever will use the unit should have access to this manual.
nThis unit is designed to be functional in vehicles with 12 V DC battery and negative ground.
nDo not operate the unit in any other way than described in this manual. Failure to follow the in-
structions as provided may void your warranty.
nDo not disassemble or alter the unit in any way because this will void your warranty. Do not
attempt to repair or to service the unit yourself, but contact an authorized XZENT dealer instead.
nUse only original accessories which are designed and manufactured for the unit, otherwise you
will risk damage. Install the unit according to the mounting instructions by using the supplied
mounting accessories. Acceleration forces during accidents can be huge. Incorrectly mounted
devices pose a serious risk for the driver and passengers during an accident.
nProtect the unit from water and other liquids that could enter the housing. A short circuit or even
a fire could result.
nTo prevent a short circuit, never insert any metallic object (such as coins or metal tools) into the
unit.
nBefore you replace a defective fuse try to find the cause for the short circuit. Pay attention to the
cables of the power supply! If the short circuit does not result from a failure of the power supply
or wiring, you can replace the defective fuse with a new one (of identical value). If the short-
circuit persists, contact an authorized XZENT dealer.
nWhen connecting to any other device, read the user‘s guide for compatibility and notes on
electrical connections. Do not try to connect incompatible products.
nBe careful not to drain the car battery while using the unit when the car engine is turned off.
Because the unit consumes a considerable amount of energy and the battery will be charged
only while the engine is running, it might happen that the battery will discharge to a point
where it is not possible to start the engine anymore.
nAccording to the law in different European countries, driving with monitors showing movies
in the viewing range of the driver is not allowed, because the driver might get distracted from
traffic. Please respect the traffic regulations of your country or you may face legal penalties in
case of accidents or even lose your insurance coverage. Pay attention to the playback volume
inside your vehicle since you are required to notice exterior warning sounds like police sirens etc..
nDon‘t expose the unit to hard impacts. A mechanical or electrical malfunction of the unit could
be the result.
nThis unit utilizes a laser of class 1 category. Performance of procedures other than those
specified herein may result in hazardous exposure to coherent light. Do not open covers and
do not attempt to repair anything by yourself. Refer servicing to qualified personnel.
nShould any problems or questions occur during the installation, please consult your XZENT
dealer/importer.
SAFTY INFORMATION
Manual 402_de_en.indd 3 08.08.16 13:38
4
REMOTE CONTROL
Manual 402_de_en.indd 4 08.08.16 13:38
5
Operation buttons
1. POWER Device ON/OFF
2. EJECT Eject disc
3. MUTE Mute/Un-mute audio output
4. SRC Change sources
5. KEYPAD DVD input track/chapter/title
6. VOL+ Increase volume
7. VOL– Decrease volume
8. INFO Show DVD info
9. SRCH DVD input track/chapter/title
10. STOP/BAND Stop DVD/change radio band
11. SEL Open EQ
12. ESC Close DVD menu
13. MENU Open main menu
14. PIC No function
15. REPEAT A-B No function
16.OK Play/Pause;conrminDVDmenu
17. DIRECTION BUTTONS Move cursor in DVD menu
18. TITLE Open DVD menu
19. ROOT Open DVD menu
20. REPEAT DVD repeat track/chapter/title
21. SKIP NEXT Media player: jump to next track/chapter/title
Tuner: jump to next preset station
22. SKIP PREVIOUS Media player jump to previous track/chapter/title
Tuner: jump to previous preset station
23. FAST REVERSE DVD fast reverse
24. FAST FORWARD DVD fast forward
25. AUDIO Change DVD audio language
26. ZOOM No function
27. ANGLE Change DVD viewing angle
28. SUB-T Change DVD subtitle
Manual 402_de_en.indd 5 08.08.16 13:38
6

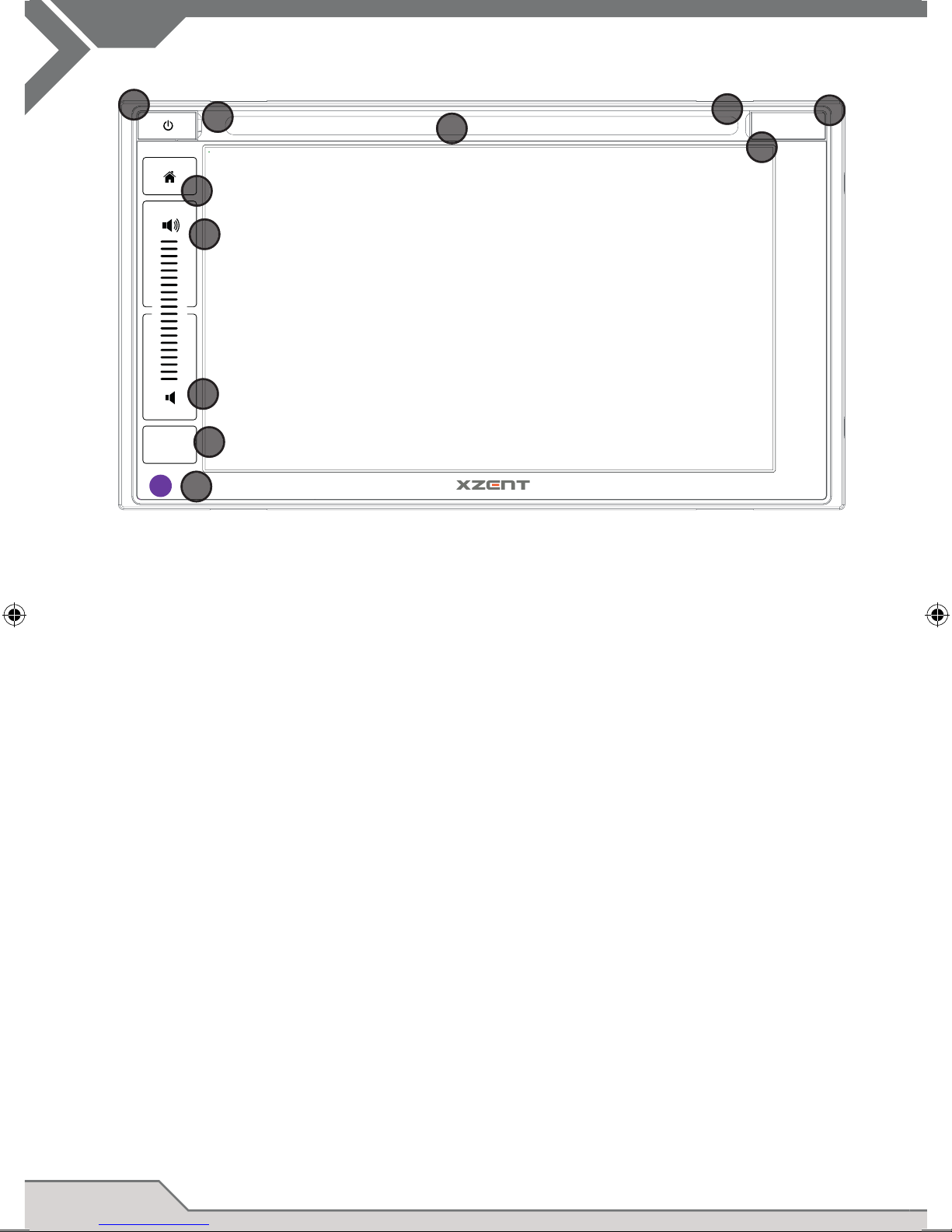

Operation Buttons/ touch-area Buttons:
1. Power: Long Press to turn OFF/ON device
Short Press to Mute device
2. Home: Short Press to enter MAIN MENU, Long Press to enter NAV Menu
3. Volume “+” Press to Volume UP
4. Volume “-”: Press to Volume DOWN
5. HDMI: Press to enter in SOURCE HDMI
6. POWER RESET: Press to perform a reset
Various:
A Disc Slot
B. Built-In Mic
C. Infrared sensor
D NAV Card micro SD
E Disc indicator LED (dual L/R)
X402-HDMI FRONT PANEL HARD KEYS
MAP
HDMI
1
2
BA
3
4
5
C
E
D
6
Manual 402_de_en.indd 6 08.08.16 13:38
7
Enter Source Menu
2) Front panel key Tap on Home- button to enter Source Menu
Fix- MAIN MENU Operation buttons left area
A Date/Clock- Time Tap to open Full-screen with Date and Clock- Time, Tap and hold
to enter TFT-Standby. Longpress to display clock in full screen.
B. Day/Night Tap to toggle TFT brightness Day / Night / Auto
MAIN MENU Operation buttons area
Slide on touchscreen left or right to change the displayed page
Press on the page indicators to change the displayed page
1. Navigation Tap to enter Navigation source
2. FM/AM Tuner Tap to enter FM/AM Tuner source
3. DAB Tuner Tap to enter DAB Tuner source
4. Bluetooth Tap to enter BT source
5. USB Tap to enter USB source
6. DISC Tap to enter Disc source
7. iPod Tap to enter iPod source
8. HDMI Tap to enter HDMI source
9. AV Tap to enter AV source
10. Rear CAMERA Tap to enter Camera source
11. Demo Tap to enter Demo source
12. Setup Tap to enter Setup source
MAIN MENU
A
B
1
3
5
2
4
6
A
B
7
9
11
8
10
12
Manual 402_de_en.indd 7 08.08.16 13:38
8
FM/AM TUNER Operation buttons
1. Switch DAB/FM Tap to change between FM/DAB directly
2. BAND Tap to switch radio band (FM1 > FM2 > FM3 > AM1 > AM2)
Band= Shows active Band
3. Scala Slide Scala left or right to scan for next Station
4. Preset Tap to select Preset
Tap & hold to save current frequency as Preset
5. Tuner Setup Tap to open pop up for Tuner settings
6. PREV/ Adjust down Long- press to scan previous available station
Tap to adjust frequency 50 kHz down
7. NEXT/Adjust up Long- press to scan next available station
Tap to adjust frequency 50 kHz up
8. Key- pad Tap to open Key- pad and set Frequency directly
9. RDS-text TaptoopenRDS-texteld,radiotext,ifavailable
Information fi elds
10. Source Info Show the active source
11. Clock Time Shows clock time, sync with GPS signal
FM/AM TUNER MODE
1
3
5
2
4
6
44
444
78 9
1110
13
Manual 402_de_en.indd 8 08.08.16 13:38
9

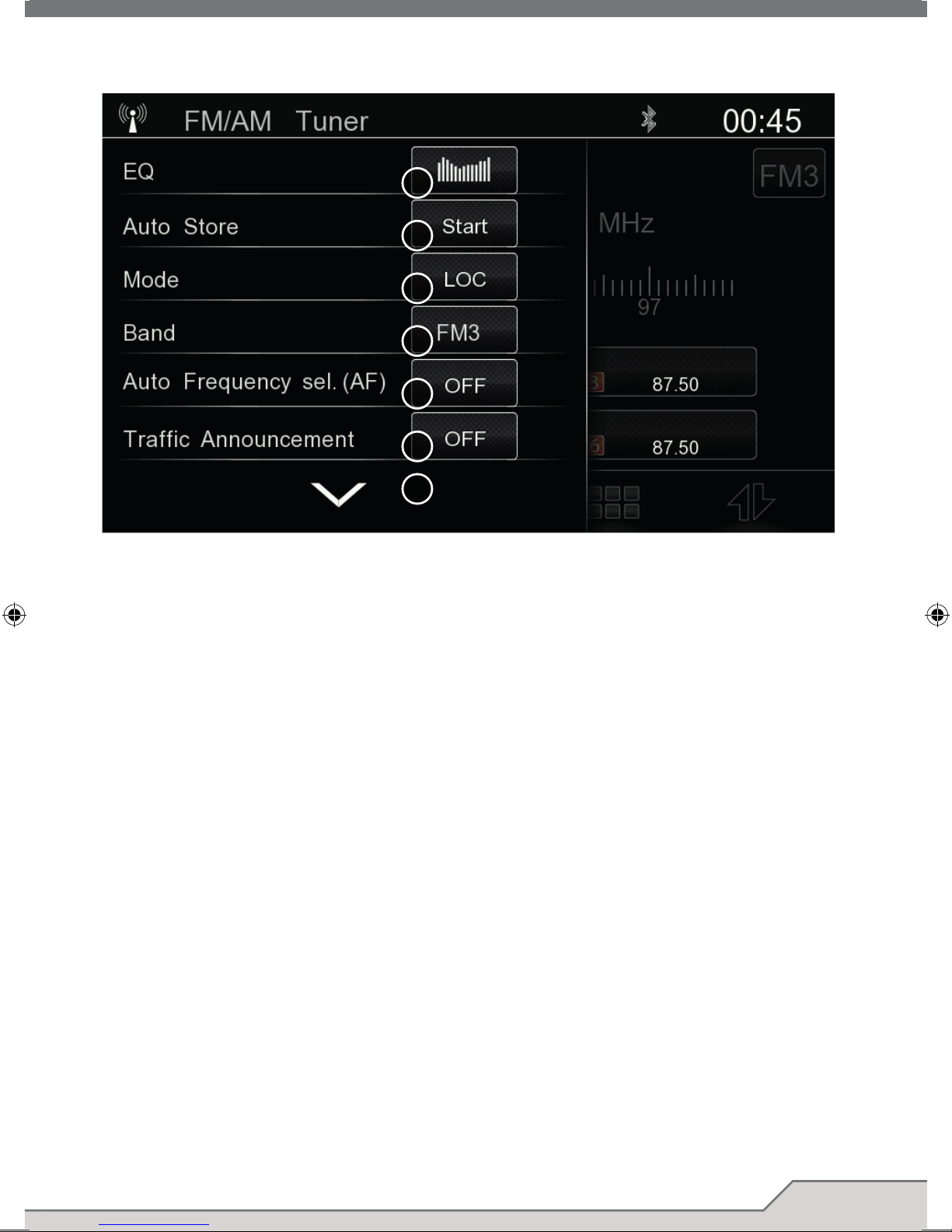

FM/AM Tuner Setup (PopUp)
1. EQ Tap on EQ to enter in Equalizer
2. Auto Store Tap on Start to Auto store preset buttons
3. Mode Tap to switch between LOC/DX
4. Band Tap to switch radio band (FM1 > FM2 > FM3 > AM1 > AM2)
5. AF Tap to turn off/on AF function
6. TA Tap to turn on/off TA function
7. close Tap to hide Tuner Setup
Note:
nSelected and active items are highlighted in orange.
nThis unit features an RDS tuner. RDS is a system which transmits data on top of the FM radio
signal. Availability and content of the RDS data depend on the respective broadcast station
and its signal strength. RDS does, for example, transmit alternative frequencies, which allow
for frequency changes without user interaction. AM band doesn´t support any RDS function.
nYou need to have the AF function activated in order to use the RDS functionality and features.
1
3
5
2
6
4
7
Manual 402_de_en.indd 9 08.08.16 13:38
10
DAB TUNER MODE
DAB TUNER Operation buttons
1. Switch DAB/FM Tap to change between FM/DAB directly
2. Preset Tap to select Preset
Tap & hold to save current station as Preset
3. DAB Setup Tap to open pop up menu for DAB settings
4. PREV/ Adjust down Tap to play previous Station in same Ensemble
Long- press to jump to previous available Ensemble
5. NEXT/Adjust up Tap to play next Station in same Ensemble
Long- press to jump to next available Ensemble
6. DAB-List Short press to see scan result list
Long press to start comfort scan
7. DLS-text TaptoopenDLS-texteld,radiotext,ifavailable
Information fi elds
8. Source Info Show the active source
9. Clock Time Shows clock time, sync with GPS signal
10. Signal Quality Show: Black= No Antenna/ Signal
Red= bad reception> No Audio or many dropouts
Orange= reception> some audio dropouts may occure
Green= Good reception>
11. Slideshow Show Picture of Station; if available
12. Ensemble Active Folder of DAB channel> 8C=DR Deutschland
13. Played Station Shows station name and radio text of Ensemble from 12.
1
12
3
13
2
4
22
222
56 7
98
11
10
Manual 402_de_en.indd 10 08.08.16 13:38
11

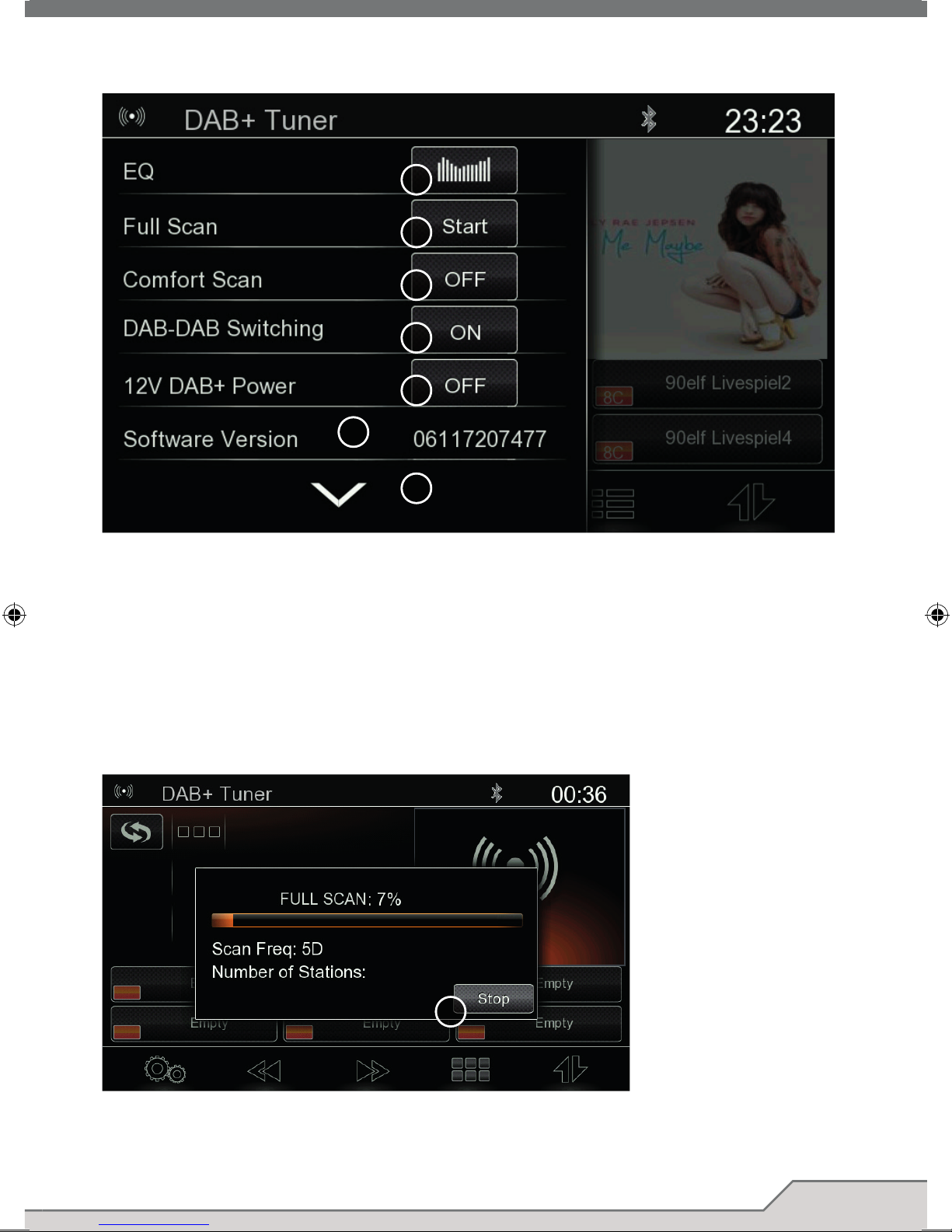

DAB Tuner Setup (PopUp)
1. EQ Tap on EQ to enter in Equalizer
2. Full Scan EQ Tap on start to perform a full band scan of DAB Band
3. ComfortScan TaptosetComfortScanON/OFF(FullbandscanonrstenterofDAB)
4. DAB-DAB following Tap to set Service Following ON/OFF (DAB to DAB-only if available)
5. DAB Power Tap to set Phantom- power of DAB ON/OFF (12V DC)
6. Close Tap to hide DAB Setup
Information fi elds
7. Version Show Version of DAB-Firmware
Full Scan (PopUp)
1. Cancel Tap to cancel Full Scan function
1
3
5
2
6
4
7
1
Manual 402_de_en.indd 11 08.08.16 13:38
12
USB/ Disc- Audio/ Video; iPod- Audio Operation Buttons
1. Progress bar Tap to jump to playtime (only in USB/ Disc possible)
2. Media Setup Tap to open pop up menu for Media settings
3. PREV Tap to jump to previous track
4. PLAY/PAUSE Tap to pause/continue playback
5. NEXT Tap to jump to next track
6. LIST Taptoshowlelistmode
Information fi elds
7. Source Info Show the active source
8. Cover Art Shows the cover of Album from active Track if available
9. Clock Time Shows clock time, sync with GPS signal
10. ID3 Show ID3 from active Track
11. Track info Show active Track time (left current playtime; Middle current
Track No.; right total playtime)
USB / DISC / IPOD MODE
1
23 4 5 6
7
8
10
9
1
23 4 5 6
79
11 11
Manual 402_de_en.indd 12 08.08.16 13:38
13
USB/ Disc- Audio/ Video; iPod- Audio Setup (PopUp)
1. EQ Tap on EQ to enter in Equalizer
2. Key- pad Tap to open Key- pad and set Track number directly
3. Shuffle Taptoturnon/offshufflefunction(shufflefolderAllOFF)
4. RepeatT Tap to toggle repeat (single > folder >All> OFF)
5. Close Tap to hide USB Setup
USB/-Audio/ Video List; Disc Audio List
1. Quick Select Scroll Numbers/ letters up or down, Press the number/ letter to jump
directlytotherstFilenamewiththesameletter.
2. Folder Tap on Icon to jump one Folder Up at USB (jump out of active Folder;
Level Up)
3. File Tap line to start track (audio or video)
Tap and scroll up/ down to scroll the list
4. Audio TaponIcontoopenlistofAudioles/Mode
5. Video TaponIcontoopenlistofVideoles/Mode
6. Key- pad Tap to open Key- pad and set Track number directly
7. List Tap to hide list
1
3
5
2
4
1
35
2
4
6
7
Manual 402_de_en.indd 13 08.08.16 13:38
14

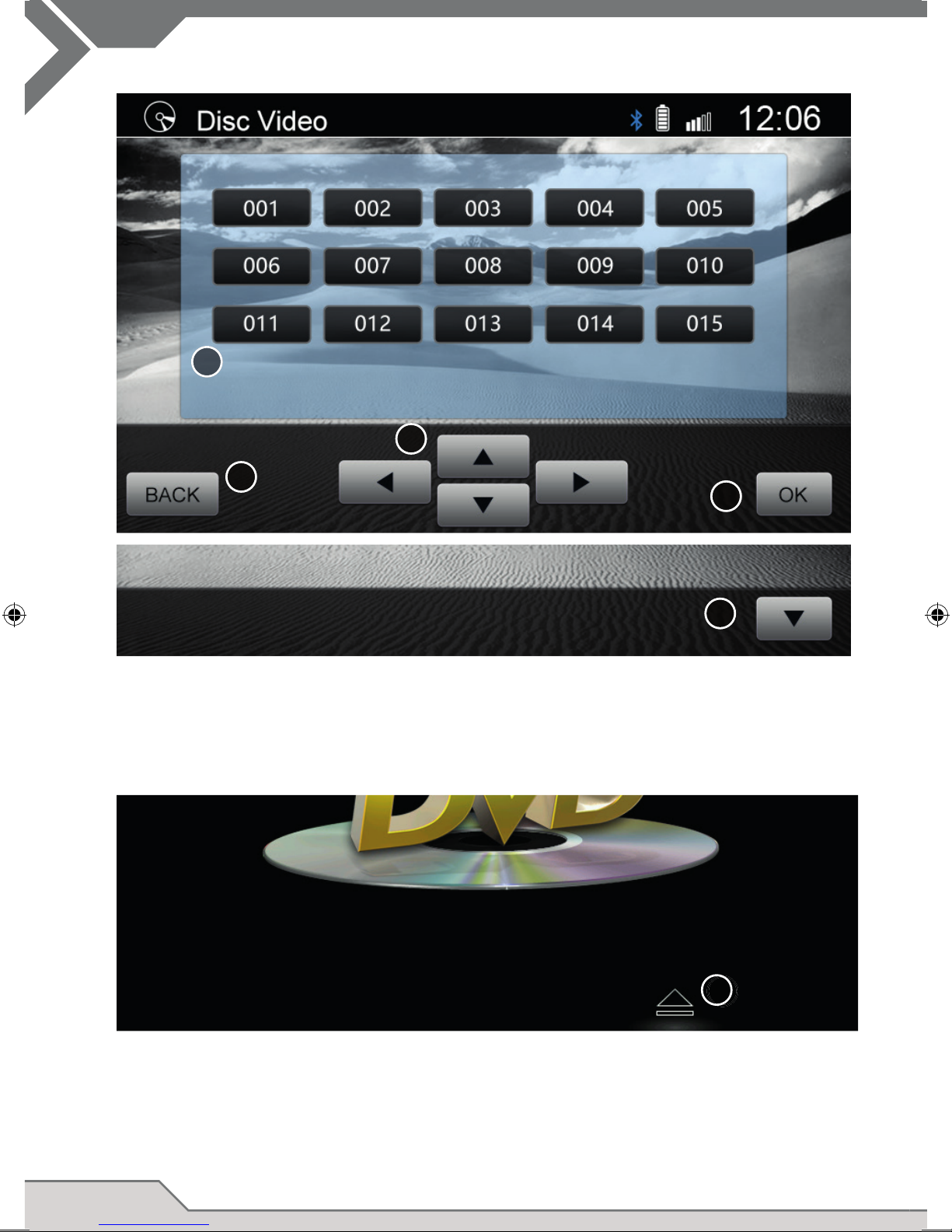

Disc Video Menu
1. Title Search Press the number/ letter directly to play File directly
2. Open/ Close Tap to Open/ close the control bar
3. Arrow Tap to move the marker in the Video Menu up/ Down or left/ right
4. Back Tap to hide Video Menu
5. OK Tap to play select File in List
Disc Video Eject
6. Eject Tap on icon to eject Disc (also available in disc controll bar)
Note:
Press the reset pin on front panel to eject the disc in case of malfunction
USB / DISC / IPOD MODE
3
4
5
1
2
6
Manual 402_de_en.indd 14 08.08.16 13:38
15
after Load Factory
after connect B+ to Device
IPod-Audio List
1. Quick Select Scroll Numbers/ letters up or down, Press the number/ letter to jump
directlytotherstFilenamewiththesameletter.
2. Folder Tap on Icon to jump one Folder Up at Ipod (jump out of active Folder;
Level Up)
3. File Tap line to start track (audio or video)
Tap and scroll up/ down to scroll the list
4. Playlists Tap to sort list and show all Playlists
5. Artists Tap to sort list and show all Artists
6. Songs Tap to sort list and show all Songs
7. Albums Tap to sort list and show all Albums
8. Key- pad Slide to the second page and tap to open Key- pad and set Track
number directly
9. Close Tap to hide list
1
3
5
8
4
6
7
9
2
Manual 402_de_en.indd 15 08.08.16 13:38
16

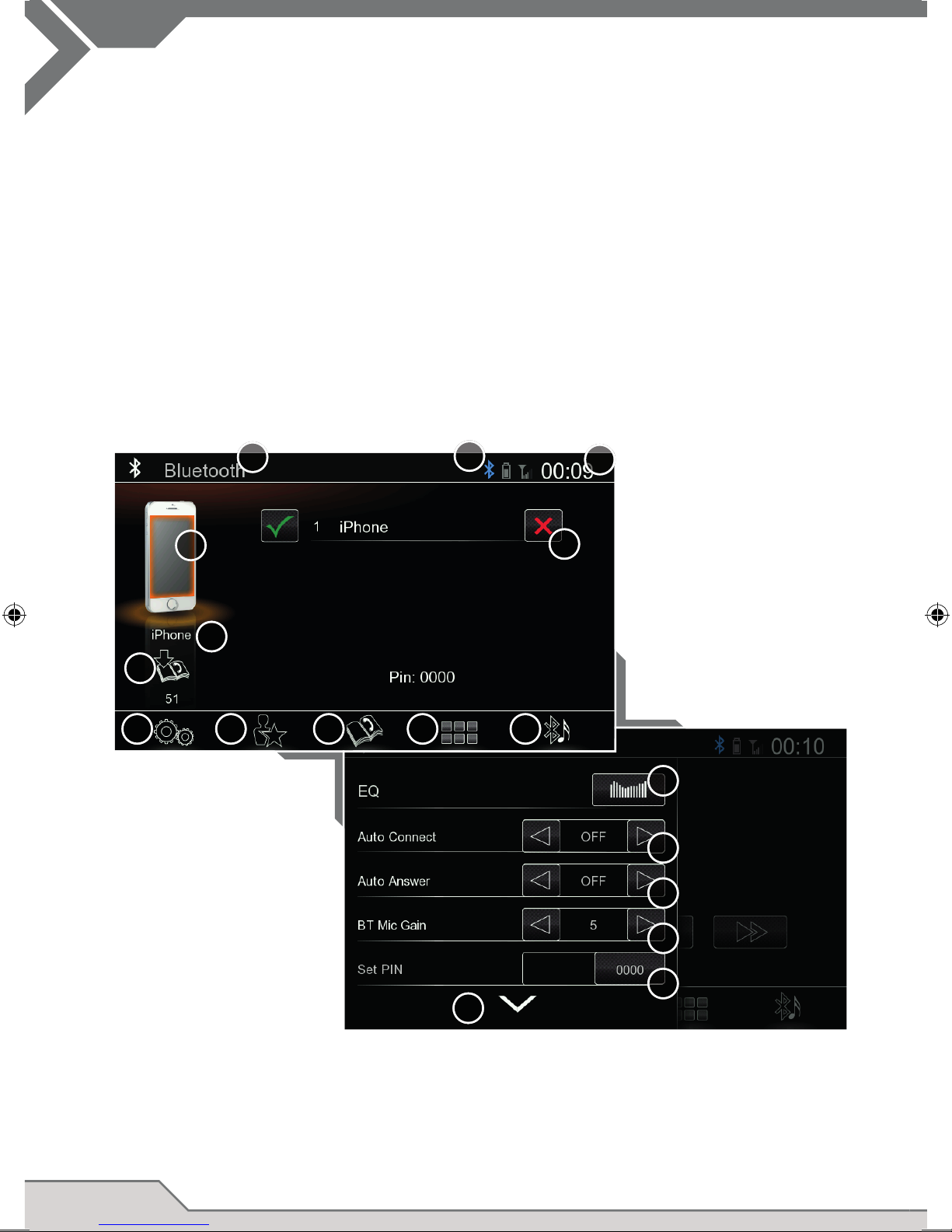

BT Operation Buttons
1. Phone Tap to show Device-manager list of paired Phones or of Phone
witch are connected
2. Sync. Phonebook Tap to start synchronisation of Phonebook manually
3. BT Setup Tap to open pop up menu for BT settings
4. Favourite Tap to show favourite mode if not already active
5. Phonebook/Call Log Tap to enter Phonebook- list mode
6. Keypad Tap to open keyboard to dial a number
7. Media Ctr. Tap to open and start A2DP playback/ Media Ctr.
8. Delete Tap to delete Phone from pairing list
Information fi elds
9. Source Info Show the active source
10. Infoeld ShowsifamobilephoneisconnectedandsomeMobileinformation
11. Clock Time Shows clock time, sync with GPS signal
12. Active Phone Name Show the name of the active phone
BT Setup (PopUp)
1. EQ Tap open EQ mode
2. Auto Connect Tap to set Auto Connect ON/OFF
3. Auto Answer Tap to set Auto Answer ON/OFF
4. MIC Gain Tap left or right arrow to set MIC Gain (MIC Gain)
5. Pin Set Tap open Key-pad to set Pin
6. Close Tap to hide BT Setup
BT MODE
5
2
3
4
6
910 11
12
1
2
3 4 5 6 7
8
1
Manual 402_de_en.indd 16 08.08.16 13:38
17

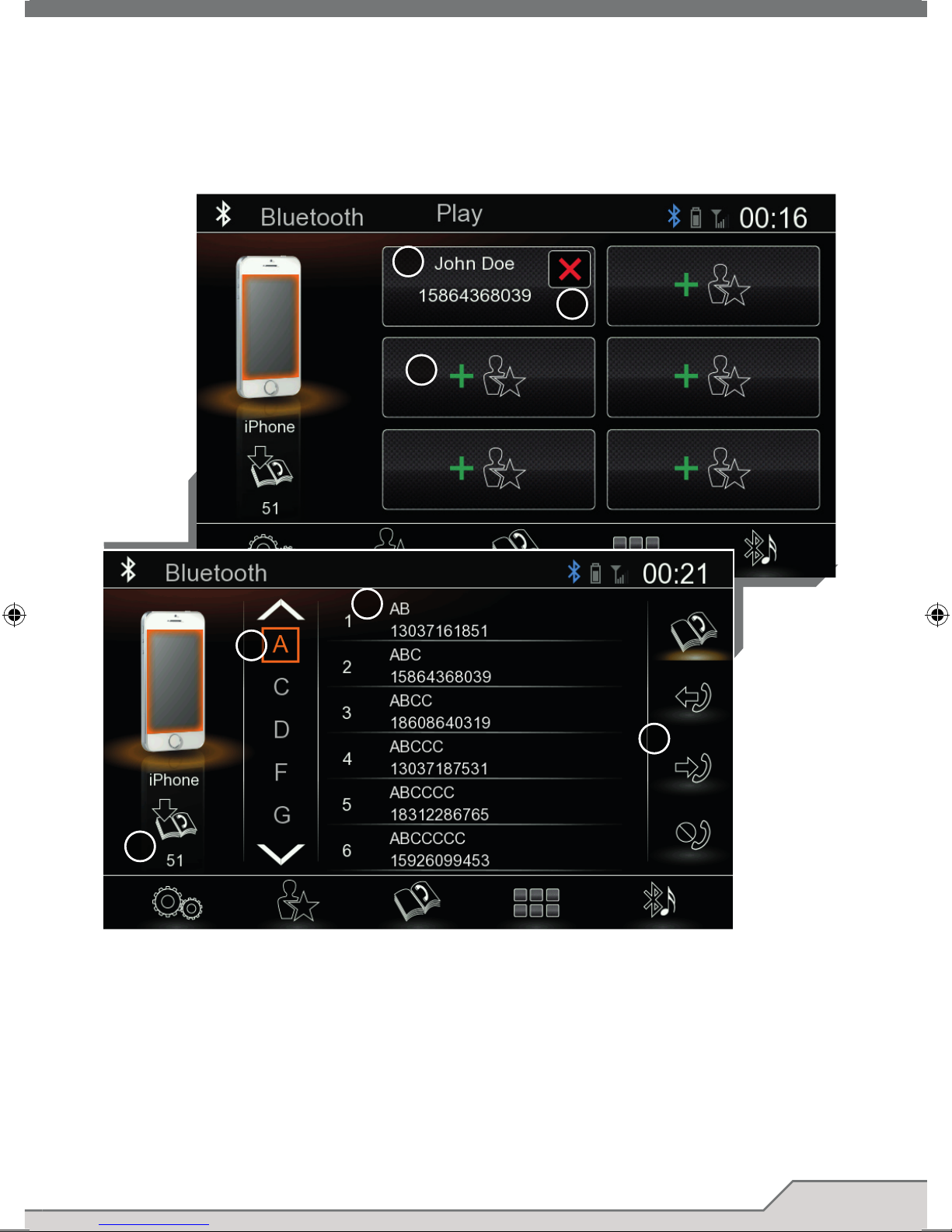

Favorite screen
1. Add “+” Tap on Button to add Favorite from Phonebook
2. Delete “X” Tap on to delete Favorite
3. Favorite Tab on Favorite to start call out
Phonebook- list screen
1. Quick Select Scroll Numbers/ letters up or down, Press the number/ letter to jump
directlytotherstFilenamewiththesameletter
2. Phonebook- list Tap on / Scroll to search Contact in list
3. Call log Tab on Phonebook./ Dialed/ Received/ Missed to change list
Information fi elds
4. Infoeld Showssynchronisation-stateofPhonebookfrommobile
1
3
2
1
3
2
4
Manual 402_de_en.indd 17 08.08.16 13:38
18

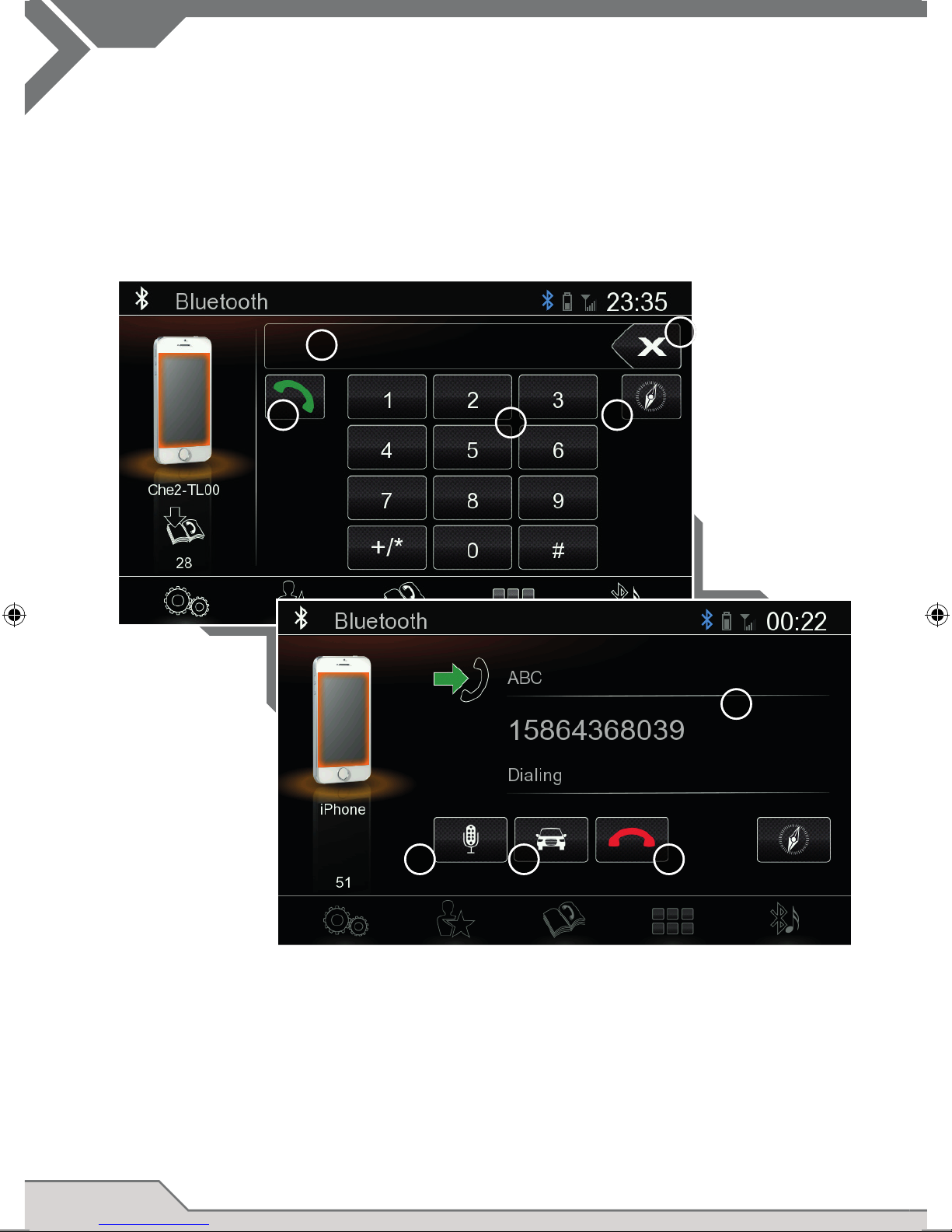

Keypad screen
1. Number / Delete keys Tap to input 0~9 or *, +, # (star, plus, pound)
Tap to delete last input
2. Accept call Tap to accept/make call
3. NAV Tap to switch to Navigation directly (only if Nav- SD-card is inside)
Information fi elds
4) Number area info Shows number witch you input by keypad
Active call screen
1. Microphone Tap to Mute / Unmute internal microphone
2. Discrete Tap to switch active call to mobile phone
3. End call Tap to end call
Information fi elds
4. Call info Shows call status, number or contact name if available
BT MODE
1
2 3
4
1 2 3
4
1
Manual 402_de_en.indd 18 08.08.16 13:38
19
A2DP/ BT- Music Operation Buttons
1. Settings Tap to open settings popup
2. PREV Tap to play previous track
3. PLAY/PAUSE Tap to pause/continue playback
4. NEXT Tap to play next track
Information fi elds
5. ID3 Show ID3 from active Track if supported by phone
1
2 3 4
5
Manual 402_de_en.indd 19 08.08.16 13:38
20
Front-Rear-Camera Operation buttons
1. Switch Front/Rear Tab to change between Front/Rear- Camera directly
Information fi elds
2. Clock Time Shows clock time, sync with GPS signal
Note:
Front camera must be selectet in setup
FRONT-REAR-CAMERA MODE
1
2
Manual 402_de_en.indd 20 08.08.16 13:38
Table of contents
Languages:
Other XZENT Car Navigation System manuals
