MODEL: SS857XCET
ECLIPSE COLOR IP
USER MANUAL
ECLIPSE COLOR IP
SS857

1
1 PRODUCT
1.1 TECHNICAL SPECIFICATIONS
Type
SS857XCET
LED colors
250W RGBW LED
Power
250W
Voltage Range
AC100~240V,50/60Hz
Protection
IP65
Operation Temperature
-20℃~45℃

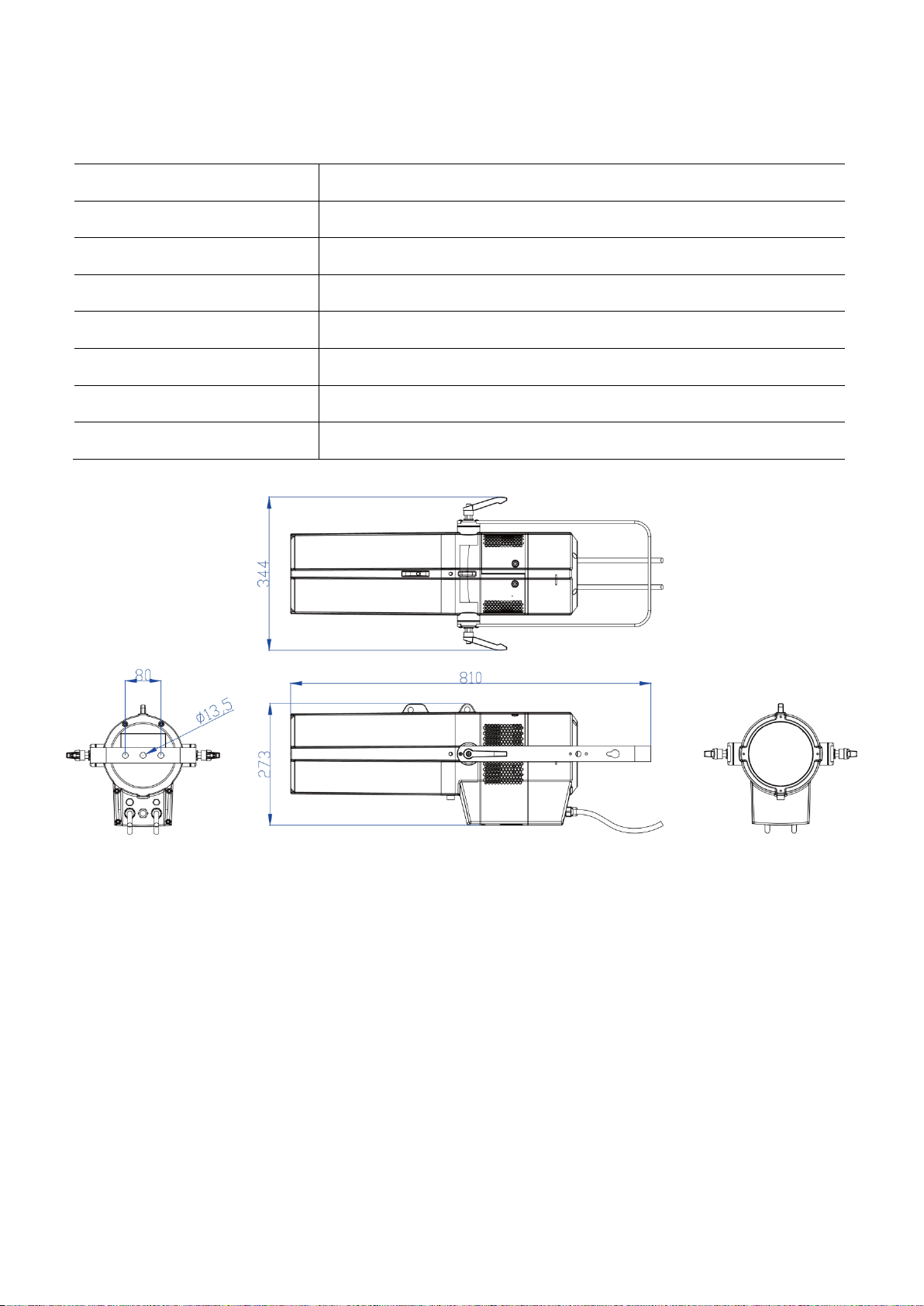

Dimensions
810X344X273mm
Weight
16kg

2
1.2 Safety Notes
IMPORTANT
．．．．．．．．．
This product must be installed by a qualified professional.
In order to maintain this condition and to ensure a safe operation, it is absolutely necessary
for the user to follow the safety instructions and warning notes
The manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorized modification to the device.
CAUTION!
．．．．．．．．
Make sure that the available voltage is not higher than stated on the rear panel.
Do not touch the power cables if your hands are wet.
The earth wire must always be connected to the ground. Therefore it is essential to connect
the yellow/green conductor to earth.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the
device and the power-cord from time to time. The electric connection, repairs and servicing
must be carried out by a qualified employee.
Always disconnect power input cable to completely remove power from unit when not in use
or before cleaning or servicing the fixture.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
The surface of the product’s casing can reach up to 70°C (158°F) during operation. Avoid
contact by persons and materials. Do not install the product in a location where there is a risk
of accidental contact. Allow the product to cool for at least 10 minutes before handling.
For replacement use lamps and fuses of same type and rating only.
Please protect the fixture and avoid destroy during transport and installation. If there is any
damage to the coating, the shell may be corroded.
When hanging lamps and lanterns, it is necessary to verify that facilities and hooks can bear
at least 10 times the weight of lamps and lanterns.
Fix the safety rope at the correct holes only. Only operate the fixture after having checked
that the housing is firmly closed and all screws are tightly fastened.
The maximum ambient temperature 45°C must never be exceeded. Do not operate the
product if the ambient temperature (Ta) exceeds 45°C (115°F).
E
．
lectrical
．．．．．．．．．
W
．
arning
．．．．．．
The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person

3
2 INSTALLATION
2.1MOUNTING
UPRIGHT
．．．．．．．
For overhead use, always install a safety cable that can hold at least 10 times the weight of
the fixture.
For overhead installation, the fixture must be always secured with a safety wire that can bear
at least 10 times the weight of the fixture；Secure the fixture with a safety cable through the
rear safety eye as shown.
Ensure that the structure (truss) to which you are attaching the fixture is secure

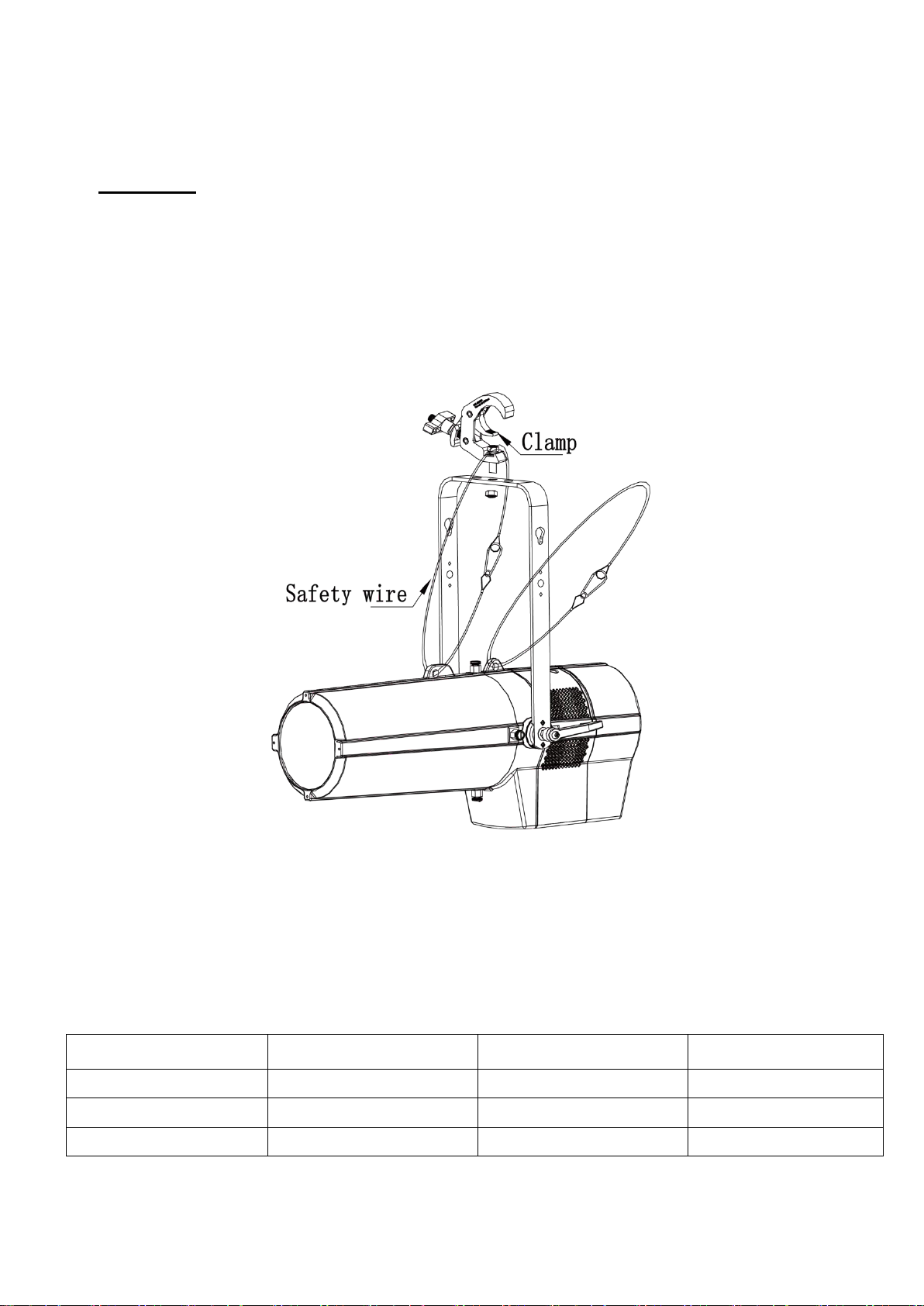

Hanging layout
2.2 POWER CONNECTIONS
This product has an auto-ranging power supply that can work with an input voltage range of
100–240 VAC, 50/60 Hz. AC Plug
Connection
Wire (U.S.
Wire(Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green

4
2.3 Data network requirements
Connect the DMX512 controller to the units in series. A DMX 512 data link is required in
order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data
input and output.
Each unit has 13 DMX channels so the DMX Addresses should increase by increments of 1，
(Nx1)+1，(Nx2)+1，(Nx3)+1...
Any DMX address in the range from 001 to 512 may be used.

5
3 FUNCTIONS AND SETTINGS
3.1 DISPLAY OPERATION
MENU：Used to access the menu or to return a previous menu option;
ENTER：Used to select and store the current menu or confirm the current function value or
option within a menu;
UP：Navigates downwards through the menu list and increases the numeric value when in a
function;
DOWN：Navigates upwards through the menu list and decreases the numeric value when in
a function；
3.2 Menu Map
STATIC
RED
0-255
Combine [RED][GREEN][BLUE][WHITE]
[ZOOM] [FOCUS] [GOBO]to create an infinite
range of colors(0-255).
Set the value of the [STROBE](0-25Hz).
GREEN
0-255
BLUE
0-255
WHITE
0-255
ZOOM
0-255
FOCSU
0-255
GOBO
0-255
STROBE
0-25
ADDRESS
001-512（default001）
Set the DMX ADDRESS
RUN MODE
DMX（default）
[DMX] Using the DMX 512 controller to
control.[SLAVE] Master--Slave operation.
SLAVE
PERSONALITY
HSIC
Use the menu to select desired channel mode
SIMPLE
COLOR MODE 8BIT（default）
COLOR MODE 16BIT
AUTO
PROGRAM
PR.01
Programs [CUSTOM 1] to [CUSTOM 2] are
fully pre-programmed and can be edited in
[EDIT] mode.
PR.02
EDIT
PROGRAM
01-02
SCENE
01-10
RED
0-255
Enter the [EDIT] mode to edit the custom
programs [PROGRAM01] to [PROGRAM2].
Each custom program has 30 scenes that can
be edited.
Fade transition time, time 0-255 unit is second,
fade time setting should be less than time
setting.
After editing the program, Play in AUTO.
GREEN
0-255
BLUE
0-255
WHITE
0-255
ZOOM
0-255
FOCSU
0-255
STROBE
0-25
TIME
0-255
FADE
0-255
UPLOAD
****
SEND
Select [UPLOAD] to upload the custom programs
SETTING
****
RESET
****
RESET
Restore factory settings
DIMMER
DIM4（default）
Dimming curves DIM1 (fast) to DIM4 (slow)；
OFF
DMX
SAVE（default）
Hold after loss of DMX signal

6
ERROR
BLACK
Blackout after loss of DMX signal
PERFORM
LIVE（default）
Automatic rotation of fan
POWER
Fast rotation of fan，all power
STUDIO
Fan mode low speed
DISP KEY
ON（default）
Press menu for 5 seconds to input up, down,
up ,down
OFF
DISP TIME
ON
Display backlight always on
10s
Turns off display backlight after 10s/30s
/2min of inactivity
30s（default）
2min
ZF
CONTROL
ON
Power on can be controlled zoom and focus
OFF
Power on can not be controlled zoom and focus
WDMX
RESET
YES
Wireless DMX reset
NO
SIGNAL
XLRDMX
XLRDMX and WDMX mode select
WDMX
INFO
FIXTURE HOURS
Hours of fixture use
VERSION
Software versions
RDM
UID
Check fixture's ID
LABEL
ECLIPSE COLOR IP
Check fixture's LABEL
CCT
1800K
Preset color temperatures
2200K
2700K
3000K
3200K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
8000K
10000K
PRESET COLOR
COLOR 1
Preset colour （See Annex I for details）
COLOR 2
...
COLOR 24
All passwords of this product are <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>)

7
4 USING A DMX512 CONTROLLER
4.1 DMX CONTROL
HSIC
(8CH)
Value
Function
CH.1
0-255
INTENSIYT
CH.2
0-255
HUE
CH.3
0-255
HUE FINE
CH.4
0-255
SATURATION
CH.5
CCT
0-9
NO FUNCTION
10
1800K
25
2200K
40
2700K
55
3000K
70
3200K
85
4000K
100
4500K
115
5000K
130
5600K
145
6000K
160
6500K
175
7000K
190
8000K
205
10000K
255
10000K
CH.6
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM SLOD TO FAST (0-25Hz)
100-109
NO FUNCTION
110-179
THUNDER STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
CH.7
GOBO ROTATION
0-9
NO FUNCTION
10-145
GOBO ADJUST THE ANGLE (0 —> 360°)
146-150
STOP ROTATION
151-200
CLOCKWISE (SPEED 1 —> 100%)
201-205
STOP ROTATION

8
206-255
COUNTERCLOCKWISE (SPEED 1 —> 100%)
CH.8
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-200
RESERVED
201-210
ALL RESET
211-220
ZOOM、FOCUS、GOBO RESET
221-255
RESERVED
SIMPLE
（9CH）
COLOR MODE
Value
Function
8BIT
（12CH）
16BIT
（17CH）
CH.1
CH.1
CH.1
0-255
MASTER DIMMER
--
--
CH.2
0-255
MASTER DIMMER FINE
CH.2
CH.2
CH.3
0-255
RED
--
--
CH.4
0-255
RED FINE
CH.3
CH.3
CH.5
0-255
GREEN
--
--
CH.6
0-255
GREEN FINE
CH.4
CH.4
CH.7
0-255
BLUE
--
--
CH.8
0-255
BLUE FINE
CH.5
CH.5
CH.9
0-255
WHITE
--
--
CH.10
0-255
WHITE FINE
--
CH.6
CH.11
PRESET COLOR
0-10
NO FUNCTION
11-255
PRESET COLOR（See Annex I for details）
--
CH.7
CH.12
CCT
0-9
NO FUNCTION
10
1800K
25
2200K
40
2700K
55
3000K
70
3200K

9
85
4000K
100
4500K
115
5000K
130
5600K
145
6000K
160
6500K
175
7000K
190
8000K
205
10000K
255
10000K
CH.6
CH.8
CH.13
0-255
ZOOM
CH.7
CH.9
CH.14
0-255
FOCUS
CH.8
CH.10
CH.15
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM SLOD TO FAST (0-25Hz)
100-109
NO FUNCTION
110-179
THUNDER STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
--
CH.11
CH.16
GOBO ROTATION
0-9
NO FUNCTION
10-145
GOBO ADJUST THE ANGLE (0 —> 360°)
146-150
STOP ROTATION
151-200
CLOCKWISE (SPEED 1 —> 100%)
201-205
STOP ROTATION
206-255
COUNTERCLOCKWISE (SPEED 1 —> 100%)
CH.9
CH.12
CH.17
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-200
RESERVED
201-210
ALL RESET
211-220
ZOOM、FOCUS、GOBO RESET
221-255
RESERVED

10
Annex 1
PRESET COLOR
Value
Color Names
x
y
0-10
NO FUNCTION
11-15
RESERVE
Loving Amber
0.407
0.321
COLOR 1
16-20
R40
Light Salmon
0.499
0.321
COLOR 2
21-25
L24
Scarlet
0.561
0.296
COLOR 3
26-30
L164
Flame Red
0.659
0.302
31-35
RESERVE
Easy White
0.389
0.344
36-40
RESERVE
Warm Peach
0.448
0.353
COLOR 4
41-45
L08
Dark Salmon
0.498
0.347
COLOR 5
46-50
L25
Sunset Red
0.566
0.359
51-55
RESERVE
Medium Bastard Amber
0.37
0.335
COLOR 6
56-60
L237
CID(To Tungsten)
0.43
0.365
COLOR 7
61-65
R321
Soft Golden Amber
0.477
0.406
COLOR 8
66-70
L652
Urban Sodium
0.535
0.399
71-75
RESERVE
LCT Yellow(Y1)
0.34
0.363
COLOR 9
76-80
L765
LEE Yellow
0.389
0.412
COLOR 10
81-85
L513
Ice And A Slice
0.38
0.447
86-90
RESERVE
Spring Yellow
0.41
0.502
91-95
RESERVE
LEE Plus Green
0.324
0.388
96-100
RESERVE
CalColor 30 Green
0.318
0.44
101-105
RESERVE
Fern Green
0.234
0.543
COLOR 11
106-110
L90
Dark Yellow Green
0.184
0.641
111-115
RESERVE
LEE Fluorescent3600K
0.286
0.37
COLOR 12
116-120
R92
Tuiquoise
0.235
0.36
121-125
RESERVE
Kelly Green
0.185
0.459
126-130
RESERVE
Forest Green
0.162
0.496
131-135
RESERVE
Cosmetic Aqua Blue
0.3
0.318
COLOR 13
136-140
L728
Steel Green
0.256
0.302
COLOR 14
141-145
L117
Steel Blue
0.223
0.278
COLOR 15
146-150
L354
Special Steel Blue
0.173
0.265
151-155
RESERVE
Paler Lavender
0.284
0.284
COLOR 16
156-160
L501
New Colour Blue
0.246
0.249
COLOR 17
161-165
L174
Dark Steel Blue
0.204
0.205
166-170
RESERVE
Daylight Blue
0.159
0.158
171-175
RESERVE
Pale Lavender
0.288
0.254
176-180
RESERVE
Surprise Pink
0.24
0.183
COLOR 18
181-185
L142
Pale Violet
0.209
0.148
186-190
RESERVE
Perfect Lavender
0.177
0.07
191-195
RESERVE
Light Pink
0.335
0.289
COLOR 19
196-200
L794
Pretty'n Pink
0.335
0.251
COLOR 20
201-205
L328
Follies Pink
0.335
0.18
206-210
RESERVE
Magical Magenta
0.327
0.138
211-215
RESERVE
Pale Rose
0.35
0.318
COLOR 21
216-220
L127
Smokey Pink
0.397
0.265
COLOR 22
221-225
L192
Flesh Pink
0.41
0.237
226-230
RESERVE
Special Rose Pink
0.465
0.193
231-235
RESERVE
Moroccan Pink
0.378
0.324
COLOR 23
236-240
L157
Pink
0.457
0.272
COLOR 24
241-245
R332
Cherry Rose
0.489
0.295
246-250
RESERVE
Cool LED Bright Pink
0.57
0.263
251-255
NO FUNCTION
