Yale PURBD51SS1 User manual

Instruction Manual
Model:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
AND OPERATING INSTRUCTIONS. KEEP THIS MANUAL IN A SECURE LOCATION.
PURBD51SS1

2
IMPORTANT SAFETY INSTRUCTIONS
•Read all instructions before using the appliance.
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
•Children should be supervised to ensure that they do not
play with the appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•WARNING: When positioning the appliance, ensure the
supply cord is not trapped or damaged.
•WARNING: Do not locate multiple portable socket-outlets
or portable power supplies at the rear of appliance.
•WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
•WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•This appliance is intended to be used in household and
similar applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;

3
–catering and similar non-retail applications.
•Plug into a grounded 3-prong outlet. Do not remove
grounding prong, do not use an adapter, and do not use an
extension cord.
•It is recommended that a separate circuit, serving only your
appliance, be provided. Use receptacles that cannot be
turned off by a switch or pull chain.
•Never clean appliance parts with flammable fluids. These
fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance
operations, make sure the power line of the unit is
disconnected.
•Do not connect or disconnect the electric plug when your
hands are wet.
•Unplug the appliance or disconnect the power before
cleaning or servicing. Failure to do so can result in electrical
shock or death.
•Do not attempt to repair or replace any part of your
appliance unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified
technician.
•Do not store or use gasoline or any other flammable vapors
and liquids in the vicinity of this or any other appliance. The
fumes can create a fire hazard or explosion.
•Use two or more people to move/install the refrigerator.
Failure to do so can result in back or other injury.
•To ensure proper ventilation for your appliance, the front of
the unit must be completely unobstructed. Choose a
well-ventilated area with temperatures above 50°F (10°C)
and below 100°F (38°C). This unit must be installed in an
area protected from the elements, such as wind, rain, water
spray or drips.
•The appliance should not be located next to ovens, grills or
other sources of high heat.
•The appliance must be installed with all electrical

4
connections in accordance with state and local codes.A
standard electrical supply (115V AC 60 Hz), properly
grounded in accordance with the National Electrical Code
and local codes and ordinances, is required.
•Do not kink or pinch the power supply cord of the appliance.
•The fuse (or circuit breaker) size should be 15 amps or
higher.
•It is important for the appliance to be leveled in order to
work properly. You may need to make several adjustments
to level it.
•Although the unit has been tested at the factory, due to
transit and storage, you should clean the appliance before
use.
•Do not use alcohol-based, solvent-based cleaning agents
or abrasives on the interior. These cleaners may damage or
discolor the interior.
•Do not use this apparatus for other than residential
purposes.
•This appliance is CFC- and HFC-free and contains small
quantities of Isobutane (R600a) which is environmentally
friendly, but flammable. It does not damage the ozone layer,
nor does it increase the greenhouse effect. Care must be
taken during transportation and setting up of the appliance
that no parts of the cooling system are damaged. Leaking
coolant can ignite and may damage the eyes.
•In the event of any damage:
ￚAvoid open flames and anything that creates a spark,
ￚDisconnect from the electrical power line,
ￚAir the room in which the appliance is located for several
minutes, and Contact the Service Department for advice.
•The more coolant there is in an appliance, the larger the
room it should be installed in. In the event of a leakage, if
the appliance is in a small room, there is the danger of
combustible gases building up. For every ounce of coolant,
at least 325 cubic feet of room space is required. The

5
amount of coolant in the appliance is stated on the data
plate on the back of the appliance. It is hazardous for
anyone other than an authorized Service Person to carry
out servicing or repairs to this appliance.
•Take serious care when handling, moving, and using the
appliance to avoid either damaging the refrigerant tubing or
increasing the risk of a leak.
•Replacing component parts and servicing shall be done by
factory authorized service personnel so as to minimize the
risk of possible ignition due to incorrect parts or improper
service.
•WARNING: Risk of child entrapment. Before you throw
away your old refrigerator or freezer:
◼Take off the doors.
◼Leave the shelves in place so that children may not easily
climb inside. And make sure the coolant circuit,
particularly the heat exchanger at the back/bottom of the
unit is not damaged.
•The recycle symbol on the product or its
packaging indicates that this product is not to be
handled as normal household waste and it is to
be taken to a recycling collection point for
electrical and electronic goods.
•The appliance must be positioned so that the plug is
accessible after installed.

6
- SAVE THESE INSTRUCTIONS -
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
•Remove the exterior and interior packing.
•Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will
reduce the possibility of a malfunction in the cooling system from handling during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
•Install the handle on the left side of the door using the screws that are provided.
Avoid use of abrasive products and never use alcohol!
Installation of Your Appliance
•This appliance is designed for free standing or built-in (fully recessed) installation.
•Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level your appliance,
adjust the front leveling legs at the bottom.
•Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight
may affect the acrylic coating and heat sources may increase electrical consumption. Extremely cold ambient
temperatures may also cause the unit not to perform properly.
•Avoid locating the unit in moist areas.
•Plug the appliance into an exclusive, properly installed and grounded wall outlet. Do not under any circumstances
cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding
should be directed toward a certified and authorized products service center.
•This appliance is intended to be installed in a space between two units.
The minimum space required is:
600mm wide × 615mm deep × 865mm high
Please note: When the product is installed, there should be a small ventilation gap between the top of the unit and
the underside of any fitting above (6mm or 1/4").
•The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevents overloading
house wiring circuits that could cause a fire hazard from overheating. Never unplug the appliance by pulling on
the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to
damage the power cord.
Installation of the Handle
To install the handle, please follow these instructions:
•Carefully pull the door gasket (seal) away from the door in the area where the handle will be attached.
•Place the handle over the screw holes on the outside of the door and attach it with the screws that have been
provided. Tighten the screws.
•Press the door gasket back into its groove.

7
Anti-Tip Bracket Installation
To reduce the risk of tipping the appliance by
abnormal usage or improper loading, the
appliance must be secured by properly installing
the anti-tip device packed with the appliance.
1. Place the anti-tip bracket on the floor as
shown in the figure to the right.
2. Mark the locations of the 8 holes of the anti-tip
bracket on the floor.
3. Use a 11/50” masonry drill bit and insert
plastic anchors.
4. Secure the anti-tip bracket to the floor, using
screws.
5. Slide appliance into position, and make sure
the leg engages the anti-tip bracket.
The measurements for the anti-tip bracket installation are illustrated below:
NOTE: If the appliance is relocated, the bracket must be removed and installed in the new location.
Carbon Filter
A built-in carbon filter protects your wines by acting as a natural barrier against
harmful odors. The carbon filter should be replaced every 9-12 months
depending on the unit’s exposure level to odor. If the unit is placed in a kitchen,
regular replacement every three months is ideal.
Remove the carbon filter by turning counterclockwise to unlock from rear panel.

8
Panel Installation
Overlay Panel Dimension:
Door Panel Width
23.43”
Door Panel Height
29.76”
Door Panel Depth
3/4" max
Same Panel For Top & Bottom Drawers

9
Required Tools:
⚫Phillips Screwdriver
⚫1/8" Drill Bit
See pages 8 for overlay panel dimensions before installing.
For easy overlay installation, refrigerator door removal is required.
1. Open the drawer and detach the front drawer panel by removing ten
Phillips screws. (See image 1). Save all these screws for later
reinstallation.
2. Remove drawer gasket and handle.
3. Lay stainless steel panel face-down on a safe solid surface and detach
the front drawer panel by removing fourteen Phillips screws. (See
image 2). Save all these screws for later reinstallation.
4. Place the new overlay panel under the drawer body and fix it with
clamps to ensure that the two remain aligned and do not move. The
clamp ensures the overlay panel and drawer stay aligned with each
other while installing. Once panel is clamped in place, pilot holes may
be drilled into the panel from the rear side of the drawer (See image 3).
5. Secure overlay panel to drawer panel using appropriate size screws.
6. Reattach drawer gasket by pressing and snapping back into place in
gasket channel.
7. Reattach drawer panel front to the drawer using ten screws.
8. Reattach handle front to the drawer using appropriate size screws.
1
2
3

10
OPERATING YOUR APPLIANCE
Recommended temperatures for Chilling Wine:
Red Wines: 15 ~ 18°C (59 ~ 64.4°F)
Dry / White Wines: 9 ~ 14°C (48.2 ~ 57.2°F)
Sparkling Wines: 5 ~ 8°C (41 ~ 46.4°F)
•The appliance should be placed where the ambient temperature is between 10~38°C (50~100°F). If the ambient
temperature is above or below this range, the performance of the unit may be affected. Placing your unit in
extreme cold or hot conditions may cause interior temperatures to fluctuate.
•Connect power cord to a properly grounded outlet.
•This appliance is equipped with Memory IC –should there be a power interruption, unit will auto recover at last
setting.
Control Panel:
Smart control mode
⚫When the door is opened, inner light automatically start up and inner fan stop working.
⚫When the door is closed, inner light automatically shut down.
⚫Door ajar alarm: When the door is opened more than 5 minutes, will send out alarming sound, compressor and
outer fan will stop working.
Force Quit the Smart control mode
Press and hold the buttons and simultaneously for 5 seconds, the small dot in the upper left corner of the
LED will bright.
⚫After quit the Smart control mode, the alarm will not sound when the door is open for more than 5 minutes.
Notice: The interior light can only be controlled by pressing the button.
⚫Press and hold the buttons and simultaneously for 5 seconds to re-enter the Smart control mode.
Setting the temperature Control
•Adjustable temperature: 1°C to 18°C (34°F to 65°F)
•Set the desired temperature by pressing the corresponding buttons, to increase or to decrease. Each
press is in 1-degree increment. Once released, set temperature will flash for approximately 5 seconds then revert
back to display the internal temperature.
•To view your set temperature, press either the or button once and LED display will flash set
temperature for 5 seconds.
•The appliance has the capability to display temperature in either Celsius or Fahrenheit. To change the
temperature scale, press and hold both buttons simultaneously for approx. 3 seconds.
Note: The temperature inside may vary slightly depending on whether or not the interior bulb is ON or OFF and
where the bottles are located (upper/middle or lower section).

11

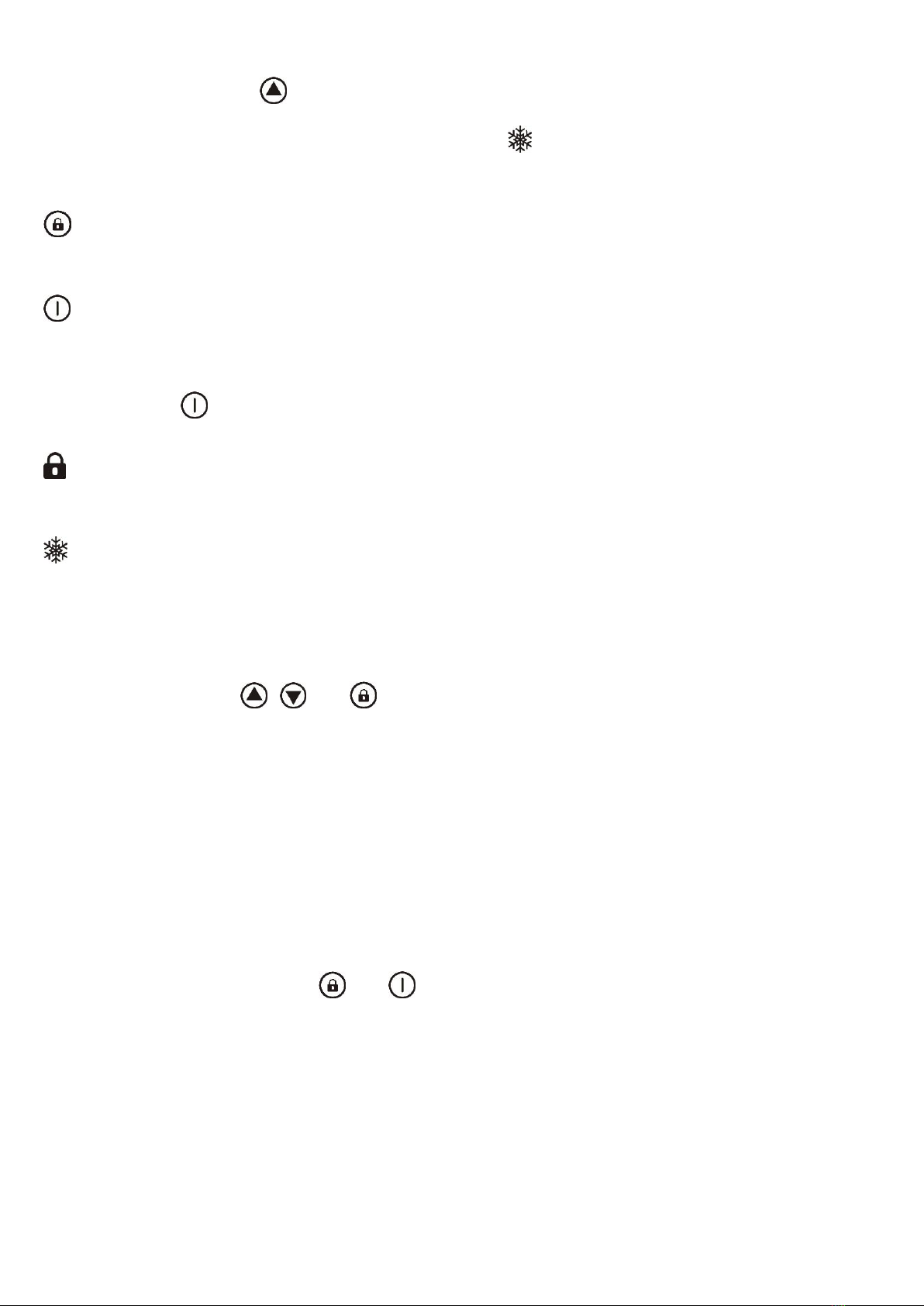

ECO mode:
•Press and hold the button for 3 seconds, it can enter or exit ECO mode.
•In this mode, the interior LED light, the compressor indicator and the temperature value on the display panel
will be turned off and the °will illuminate on the upper left corner of °C / °F.
LOCK
•Press and hold for 3 seconds to lock or unlock the control panel.
ON/OFF Power / Mute
•To turn the appliance on or off, press and hold the ON/OFF button for 3 seconds.
•When the door is open more than 5 minutes, will send out alarming sounds. Compressor and outer fan will stop
working. Press one time alarm will be closed, the digital tube twinkle, until the door closed.
LOCK
If illuminated, indicates the control panel is locked.
RUN
When unit’s compressor is running, this indicator light will illuminate to signify that cooling mode is currently in
operation.
Demo mode
•Press and hold buttons , and simultaneously for 10 seconds, it can enter or exit demo mode.
•In this mode, the display panel can operate settings, but the temperature is fixed display 12°C (54°F), all fans, the
compressor does not start.
Defrosting
•The unit defrosts automatically in normal operating conditions.
•The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in the drainage
channel behind the rear wall of the unit, and flows through the drainage hole into the drip tray by the compressor
where it evaporates.
•However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or high humidity
location. If this frost pattern does not clear within 24 hours, your unit will require manual defrosting.
Mandatory defrost mode: Press the and at one time for 10 seconds，enter the compulsory defrost mode.

12
Sabbath mode
•Press and hold buttons and at the same time for at least 5 seconds to enter or exit Sabbath mode. In
this mode, LED will display "Sb". This mode turns off the displays, interior light and prevents them from turning on
again. Normal cooling operations will still take place. The compressor and the fan work normally.
•When the cabinet power off, it will not automatically exit Sabbath mode, and it will keep Sabbath mode
when power on again. The Sabbath Mode will automatically turn off after 96 hours.
Temperature Alarm Function
If the internal temperature ≥30°C (86°F) for 2 hours, the high temperature alarm will be activated, the LED will display
"HH", the buzzer will sound continuously, the cooling system continues to work. The display return to normal until the
high temperature conditions is relieved.
If the internal temperature is <0°C (32°F) for 1 hour, the low temperature alarm will be activated, the LED will display
"LL", the buzzer will sound continuously, the cooling system will stop working. The display return to normal until the
low temperature is relieved.
NOTE:
•It is normal that the cabinet shows “HH” or “LL” from time to time. If it occurs frequently or lasts for a long time, you
can restart the unit by unplugging it, then re-plugging after 5 minutes. If the problem occurs again after restarting,
please contact customer service.
•Before reconnecting the power, wait 3 to 5 minutes. Otherwise you could damage your appliance. If you attempt
to start the appliance before the end of this time delay, the appliance will not turn on.
•If you turn on the appliance for the first time or after a restart, or after it has been out of operation for a long time,
there may be a temperature difference between the temperature inside the appliance and that on the LED display.
This is a normal event caused by the duration of the activation period. Leave the appliance turned on for several
hours and the temperatures will stabilize during operation.

13
CARE AND MAINTENANCE
Cleaning Your Appliance
1. Turn off the power, unplug the appliance, and remove all items.
2. Wash the inside surfaces with a warm water and baking soda solution. The solution should consist
of about 2 tablespoons of baking soda to a quart of water.
3. Wring excess water out of the sponge or cloth when cleaning the area of the controls or any
electrical parts.
4. Wash the exterior of the cooler with a warm solution of mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
Power Failure
Most power failures are corrected within a few hours. If your power is going to be off for a longer
period of time, you need to take the proper steps to protect your contents.
Transporting Your Appliance
If you need to move your appliance once the box has been discarded:
1. Securely tape down all loose items inside your appliance.
2. Turn the adjustable legs up to the base to avoid damage.
3. Be sure the appliance stays secure in the upright position during transportation. Also protect the
outside of the appliance with a blanket or similar item.
Energy-Saving Tip
The appliance should be located in the coolest area of the room, away from heat-producing
appliances and out of direct sunlight.

14
PROBLEMS WITH YOUR APPLIANCE
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance does
not operate.
•The unit defrosts automatically in normal
operating conditions.
•The appliance is turned off.
•Tripped circuit breaker or a blown fuse.
•Connect the appliance.
•Switch on the appliance.
•Switch on the circuit breaker or
replace the fuse.
Appliance is not
cold enough.
•The temperature is not set correctly.
•The ambient temperature could require a
lower temperature setting.
•The condenser is too dirty.
•The ventilation opening is blocked or too
dusty.
•Check the set temperature.
•Set a lower temperature.
•Clean the condenser when
necessary.
•Clear the obstructions and wipe off
the dust.
Appliance turns
itself on and
off frequently.
•The room temperature is higher than
average.
•A large number of bottles has been
added to the unit.
•Put the appliance in a cooler place.
•Leave the appliance to work for a
while until the set temperature has
been reached.
The light does
not work.
•Appliance is not connected to a power
supply.
•Tripped circuit breaker or a blown fuse.
•The light was switched off on the control
panel.
•Connect the appliance.
•Switch on the circuit breaker or
replace the fuse.
•Switch on the light.
Vibrations
•The appliance is not properly level.
•Level the appliance with the
adjustable feet.
The appliance
seems to make
too much noise.
The rattling noise may come from the flow of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your
appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls may
cause popping and crackling noises.
•The appliance is not properly level.
•Level the appliance with the
adjustable feet.
Display “E1”,
“E2”.
•“E1” or “E2” indicates that the air
temperature sensor has failed.
•Call for service.
NOTE: This appliance is intended to be used exclusively for the storage and display of wines in
restaurants, hotels, bars and other commercial settings.
