4En
◆Full-stage balanced signal transmission achieves the ultimate in CD
reproduction
◆Full-stage balanced signal transmission beginning with the DAC
◆Exclusive Yamaha loading mechanism with superior quietness
◆Independent power supplies with digital and analog completely
separated
◆Pure Direct
◆Left-right symmetrical design with rigid, stable construction
◆Super sound from Super Audio CDs
■Supplied accessories
Please check that you have received all of the following parts.
• AC power cable
• Remote control
• Batteries (AA, R6, UM-3) (×2)
• Audio pin cable
• Safety brochure
■About this manual
•yindicates a tip for your operation.
• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In
case of differences between the manual and the product, the product has priority.
• The color of images in this manual may vary from the original.
• Read the safety brochure before using this unit.
Contents
Controls and functions.......................................................................................................................................... 6
Connections.......................................................................................................................................................... 14
Specifications ....................................................................................................................................................... 18

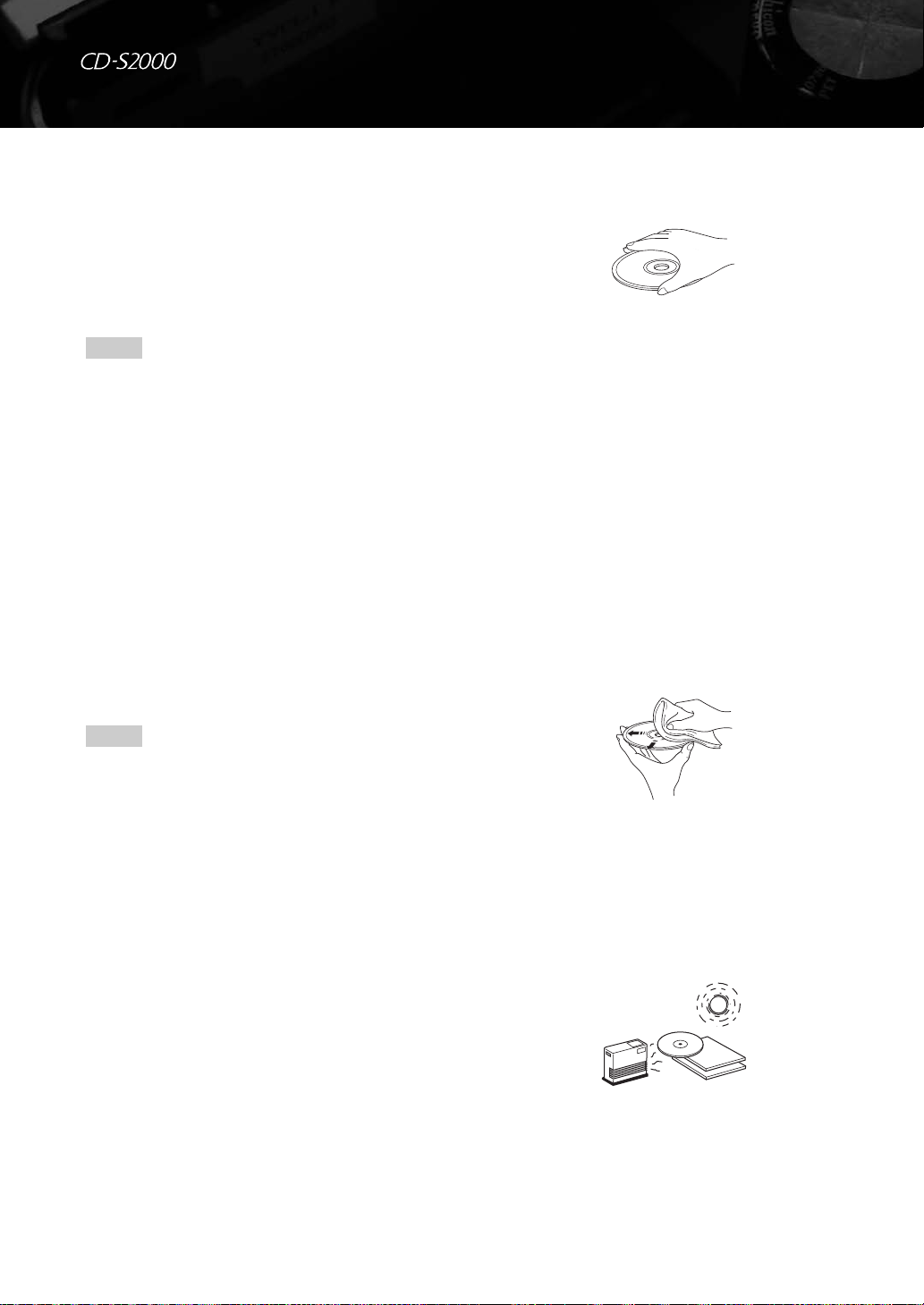

Playable disc format............................................................................................................................................ 19
Troubleshooting................................................................................................................................................... 21
01EN_CD-S2000_RTL.book Page 4 Wednesday, February 4, 2009 4:42 PM
Black process 45.0° 240.0 LPI

CONTROLS AND FUNCTIONS
5En
Controls and functions
In this chapter, you will learn the controls and functions of CD-S2000.

6En
Controls and functions
■Front panel
1POWER
Press upward or downward to turn on or off this unit.
y
The POWER indicator above lights up when this unit is turned
on.
2Remote control sensor
Receives signals from the remote control.
3SA-CD/CD
Switches the playback layer of a hybrid SA-CD between
SA-CD and CD.
y
• The SA-CD/CD indicator above lights up when the SA-CD
layer is selected.
• This setting is retained even if you turn off this unit.
4PURE DIRECT
Turns on the PURE DIRECT mode to improve audio
quality.
When this unit is in the PURE DIRECT mode:
• The PURE DIRECT indicator above lights up.
• The digital output is turned off.
• The front panel display is turned off.
y
• The least indicators and messages are still displayed in the front
panel display.
• Press again to turn off the PURE DIRECT mode.
• This setting is retained even if you turn off this unit.
5Disc tray
Loads a disc.
POWER
OFF
ON SA-CD/CD PURE DIRECT
312 4 5

7En
6(Open/Close)
Opens or closes the disc tray.
y
You can also close the disc tray by:
• pressing (Play) on the front panel or on the remote control
or by pressing the front edge of the disc tray gently.
• pressing a numeric button on the remote control.
7(Skip/Search backward),
(Skip/Search forward)
: Skips to the next track.
: Skips back to the beginning of the current track.
(twice): Skips to the previous track.
Press and hold or to search backward/
forward.
y
Each time you press and hold or , the search
speed increases by 4 levels.
8(Play)
Starts playback.
9(Pause)
Pauses playback. Press or to resume playback.
0(Stop)
Stops playback.
APlayback status indicator
BDisc type indicator
CTime display mode indicator
DPlayback mode indicator
EMulti-information display
ALLOFFRANDOM
REMAINTOTALTRACK
SREPPROGWMAMP3SA-CD
09876
AB C D E
See pages 20 for more information on MP3/WMA
playback.
English

8En
Controls and functions
■Rear panel
1BALANCED OUT jacks
2ANALOG OUT jacks
3OPTICAL DIGITAL OUT jack
4COAXIAL DIGITAL OUT jack
COAXIALOPTICAL
BALANCED OUT
OUTPUT
ANALOG OUT
RLL R
BALANCED OUT
DIGITAL OUT
21
43
See page 14 for connection information.

9En
5VOLTAGE SELECTOR
(Asia and General models only)
The VOLTAGE SELECTOR on the rear panel of this unit
must be set for your local main voltage BEFORE plugging
the AC power cable into the AC wall outlet.
See page 16 for further information.
6AC IN
Use this inlet to plug in the supplied power cable.
See page 16 for connection information.
7Foot
The feet of this unit include built-in spikes. Using the
spikes can reduce the effect of vibrations on the set. When
using the spikes, remove the magnet foot by pulling it.
When using the feet’s built-in spikes, the spikes may scratch the
shelf or floor on which this unit is installed. Use the supports
when placing this unit on expensive furniture, etc.
y
If this unit is unstable, you can adjust the foot height by rotating
it.
AC IN
VOLTAGE
SELECTOR
5 6 7
(Asia and General models)
Caution
Spike
English

10En
Controls and functions
■Remote control 1Infrared signal transmitter
Sends infrared signals to this unit.
2SA-CD/CD
Switches the playback layer of a hybrid SA-CD between
SA-CD and CD.
y
• The SA-CD/CD indicator on the front panel lights up when the
SA-CD layer is selected.
• This setting is retained even if you turn off this unit.
3DIMMER
Selects brightness level for the front panel display. Each
time you press DIMMER, the brightness level changes in
the following order:
Max (brightest) →Level 1 (default) →Level 2 →Level 3
(darkest) →Max
y
This setting is retained even if you turn off this unit.
4Numeric buttons
Use to select a track directly.
This operation is ineffective for MP3 or WMA discs.
5REPEAT
Repeats playback of a single track or all tracks. Each time
you press REPEAT during playback, the repeat playback
mode changes as follows:
• REP S (single repeat playback): On reaching the end of
the current track, playback repeats from the beginning
of the current track.
• REP ALL (all repeat playback): On reaching the end of
the last track, playback repeats from the beginning of
the first track.
This operation is ineffective for MP3 or WMA discs.
6(Search backward), (Search forward)
Searches tracks backward/forward.
y
Each time you press or , the search speed increases by 4
levels.
7(Skip backward), (Skip forward)
: Skips to the next track.
: Skips back to the beginning of the current track.
(twice): Skips to the previous track.
98
0
7
654
321
RANDOMREPEAT PROGRAM
CLEARENTER
DISPLAYDIMMER
CD
OPEN/CLOSEPURE DIRECTSA-CD/CD
E
3
2
1
G
F
D
C
B
A
0
9
8
6
5
4
7
Note
Note
