Yamaha CD-S3000 User manual

U
Printed in Malaysia ZK20370
© 2013 Yamaha Corporation
OWNER’S MANUAL
MODE D’EMPLOI
Compact Disc Player
Lecteur Compact Disc

A Living Tradition in Sound
A piano comes into this world through the perfect synergy of advanced technical
skill and artistry. Such a piano can create sound that truly reflects the player’s
feelings.
The final stage in piano production is called “voicing”. It is here that the
instrument is given its soul.
A highly skilled expert concentrates his mind and sensitivity on the sound of each
key, finely adjusting the dynamic feel of the hammers, bringing the tone and
vibrancy of all 88 keys together perfectly; a truly stunning achievement.
It is a quality of sound that can only be determined by an astute, sensitive ear. We
apply this very same concept to the manufacture of our audio products. The
technician performs exhaustive listening tests and every component is considered,
in order to finally achieve the ideal sound.
Yamaha’s tradition of audio quality stretches back over 125 years, and continues to
live on in all Yamaha products today.

Excellence in Audio Achievement
First HiFi System introduced in 1920
We introduced numerous HiFi components
(turntables, FM/AM tuners, integrated
amplifiers, preamplifiers, power amplifiers
and speakers) in 1955 - 1965.
Natural Sound Speaker Series introduced
in 1967
NS-20 Monitor Speaker
CA-1000 Integrated Amplifier
Featuring A-Class operation, the CA-1000 set
the standard for integrated amplifiers.
NS-690 Natural Sound Speaker
NS-1000M Monitor Speaker
A truly legendary speaker still revered by HiFi
enthusiasts.
B-1 Power Amplifier
An innovative power amp that used vertical FETs in all
stages.
C-2 Control Amplifier
Received top prize at the Milan International Music
and HiFi Show.
NS-10M Studio Monitor Speaker
Became of the most popular studio monitors
in the world.
A-1 Integrated Amplifier
PX-2 Turntable
Yamaha’s first straight arm turntable.
B-6 Power Amplifier
Pyramid-shaped power amplifier.
GT-2000/L Turntab le
First CD Player (CD-1) introduced in 1983
B-2x Power Amplifier
MX-10000 Power Amplifier and
CX-10000 Control Amplifier
Redefined the capabilities of separate components.
AX-1 Integrated Amplifier
GT-CD1 CD Player
MX-1 Power Amplifier and
CX-1 Preamplifier
Soavo-1 and Soavo-2 Natural Sound
Speaker Systems
A-S2000 Stereo Amplifier and
CD-S2000 Super Audio CD Player
NP-S2000 Network Player
English

4En
◆Full-stage balanced signal transmission beginning with the DAC
achieves the ultimate in CD reproduction
◆Independent power supplies with digital and analog completely
separated
◆Exclusive Yamaha loading mechanism and high precision CD drive
◆Left-right symmetrical design with rigid, stable construction
◆Pure Direct
◆Super sound from Super Audio CDs
◆Heavy feet with newly-developed antivibration spikes
◆DSD playback via 192 kHz, 24-bit USB DAC
■Supplied accessories
Please check that you have received all of the following parts.
• Power cable
• Remote control
• Batteries (AAA, R03, UM-4) (×2)
• Stereo pin cable
• SAFETY BROCHURE
■About this manual
•yindicates a tip for your operation.
• The color of images in this manual may vary from the original.
• Read the “SAFETY BROCHURE” before using this unit.
Contents
Controls and functions.......................................................................................................................................... 6
Connections.......................................................................................................................................................... 18
Playback of music files stored on a PC.............................................................................................................. 22
Specifications ....................................................................................................................................................... 26
Playable disc format............................................................................................................................................ 27
Troubleshooting................................................................................................................................................... 29

CONTROLS AND FUNCTIONS
5En
Controls and functions
In this chapter, you will learn the controls and functions of CD-S3000.

6En
Controls and functions
■Front panel (pages 6 to 9)
1STANDBY/ON/OFF switch
Turns on or off this unit.
STANDBY/ON (upper position):
In this position, you can select STANDBY or ON,
using the pCD key on the remote control.
OFF (lower position):
The power of this unit is turned off.
• When you turn on this unit, it will take a few seconds
before this unit can reproduce sound.
• If this unit is not operated for 30 minutes with no audio
signal detected, it goes to STANDBY mode (page 15).
• If you disconnect the power cable from the AC outlet and
connect it again when this unit is in STANDBY mode, the
power of the unit is turned on (page 20). If the unit is not to
be operated for a long time, set the STANDBY/ON/OFF
switch to OFF.
2STANDBY/ON indicator
Lit brightly:
Shows that the power of the unit is ON. In this
condition, you can switch the unit to STANDBY mode
using the pCD key on the remote control.
Lit dimly:
Shows that the unit is in STANDBY mode. In this
condition, press the pCD key on the remote control
to turn on the unit.
Off:
Shows that the power of the unit is OFF. In this
condition, you can turn on the unit using the
STANDBY/ON/OFF switch only.
STANDBY/ON
OFF
PURE DIRECT
SA-CD CD
SOURCE LAYER
LAYER
USB
OPTICAL COAXIAL DISC
SA-CD HYBRID TRACK TOTAL REMAIN PROG SHUFFLE REP OFF SALL A-B
SOURCE
2 41 3 5 7 8 6
Notes

7En
3PURE DIRECT key
Turns on the PURE DIRECT mode to improve audio
quality.
When this unit is in the PURE DIRECT mode:
• No signal is output from the DIGITAL OUT
(OPTICAL and COAXIAL) jacks on the rear panel
(page 10).
• The least indicators and messages appear on the
front panel display.
y
• Press this key again to turn off the PURE DIRECT mode.
• This setting is retained even if you turn off this unit.
4PURE DIRECT indicator
Lights when the PURE DIRECT mode is turned on.
5SOURCE key
Selects the audio source to be played back. Each time
you press this key, the audio source is switched.
y
The audio source setting is retained even if you turn off this
unit.
6SOURCE indicators
The indicator of the audio source selected with the
SOURCE key lights.
7LAYER key
Switches the playback layer of a hybrid Super Audio
CD between SA-CD and CD while playback is
stopped (page 27).
y
This setting is retained even if you turn off this unit.
When SA-CD layer is selected, audio signals are output only
from the BALANCED OUT and ANALOG OUT jacks.
8LAYER indicators
The indicator of the layer selected with the LAYER
key lights.
Note
(coaxial digital input) (optical digital input)
English

8En
Controls and functions
■Front panel (pages 6 to 9)
9Disc tray
Loads a disc.
0(Open/Close) key
Opens or closes the disc tray.
y
The disc tray also closes automatically when you press:
• the (Play) key on the front panel or on the remote
control.
• the front edge of the disc tray gently.
• a numeric button on the remote control.
A(Skip/Search backward) key
Press the key once to skip back to the beginning of the
current track.
Press it twice to skip to the beginning of the previous
track.
Press and hold it to search backward.
(Skip/Search forward) key
Press the key once to skip to the next track.
Press and hold it to search forward.
B(Play) key
Starts playback.
C(Pause) key
Pauses playback. Press the or key to resume
playback.
D(Stop) key
Stops playback.
STANDBY/ON
OFF
PURE DIRECT
SA-CD CD
SOURCE LAYER
LAYER
USB OPTICAL COAXIAL DISC
SA-CD HYBRID TRACK TOTAL REMAIN PROG SHUFFLE REP OFF SALL
SOURCE
GF
9 0
HI JEK

9En
ERemote control sensor
Receives signals from the remote control.
y
The remote control transmits a directional infrared beam.
Be sure to aim the remote control directly at the remote
control sensor on the front panel of this unit during operation.
FDisplay
The brightness can be adjusted with the DIMMER key
on the remote control (page 12).
G(playback) / (pause) indicator
Lights in the playback/pause mode.
HDisc type indicator
Indicates the type (SA-CD/CD/HYBRID) of the disc
in the disc tray.
ITime display mode indicator
Indicates the time display mode of the display. Change
the mode by pressing the DISPLAY key on the remote
control (page 13).
JPlayback mode indicator
Indicates the current playback mode.
PROG: Program playback (page 14)
SHUFFLE: Shuffle playback (page 13)
REP OFF: Repeat playback off (page 12)
REP S: Single repeat playback (page 12)
REP ALL: All repeat playback (page 12)
KInformation display
AB C D
3030 Approximately 6 m (20 ft)
See page 28 for more information on MP3/WMA
playback.
Elapsed time of the current track
Remaining time of the
current track
Total remaining time of the
disc
English

10 En
Controls and functions
■Rear panel
1BALANCED OUT jacks (male)
2ANALOG OUT jacks
3DIGITAL IN USB jack (Type B)
4DIGITAL IN OPTICAL jack
5DIGITAL IN COAXIAL jack
6DIGITAL OUT OPTICAL jack
7DIGITAL OUT COAXIAL jack
While playing the Super Audio CD layer, the audio signals are
output only from the BALANCED OUT and ANALOG OUT
jacks.
8SYSTEM CONNECTOR
Use this connector to connect a product testing device
for servicing.
9REMOTE IN/OUT jacks
Use these jacks to connect an external component for
remote operation.
For details on the connection, see page 21.
0AC IN inlet
Use this inlet to plug in the supplied power cable.
See page 20 for connection information.
SYSTEM CONNECTOR REMOTE
IN OUT
BALANCED OUT DIGITAL IN
COAXIAL
DI
OPTICOPTICALUSB
ANALOG OUT BALANCED OUT
GND +HOT
- COLD
2
3
1
AC IN
8
0
3 4 5
9
1 2
See page 18 for connection information.
Note

11 En
AFoot
The feet of this unit include built-in spikes. Using the
spikes can reduce the effect of vibrations on the set.
When using the spikes, remove the transport tape, then
remove the magnet foot by pulling it.
When using the feet’s built-in spikes, the spikes may scratch
the shelf or floor on which this unit is installed. Use the
magnet feet or appropriate supports when placing this unit on
expensive furniture, etc.
y
If this unit is unstable, you can adjust the foot height by
rotating it.
COAXIAL
DIGITAL OUT
OPTICAL
A
6 7
Caution
Spike
Transport
tape Magnet
foot
English

12 En
Controls and functions
■Remote control
1Infrared signal transmitter
Sends infrared signals to this unit.
2pCD key
Turns this unit ON or switches it to STANDBY mode.
For details on STANDBY, see “Front panel” (page 6).
3OPEN/CLOSE key
Opens or closes the disc tray.
4pAMP key
Turns the Yamaha amplifier ON or switches it to
STANDBY mode.
Some Yamaha amplifiers cannot be controlled with the
pAMP key of this remote control.

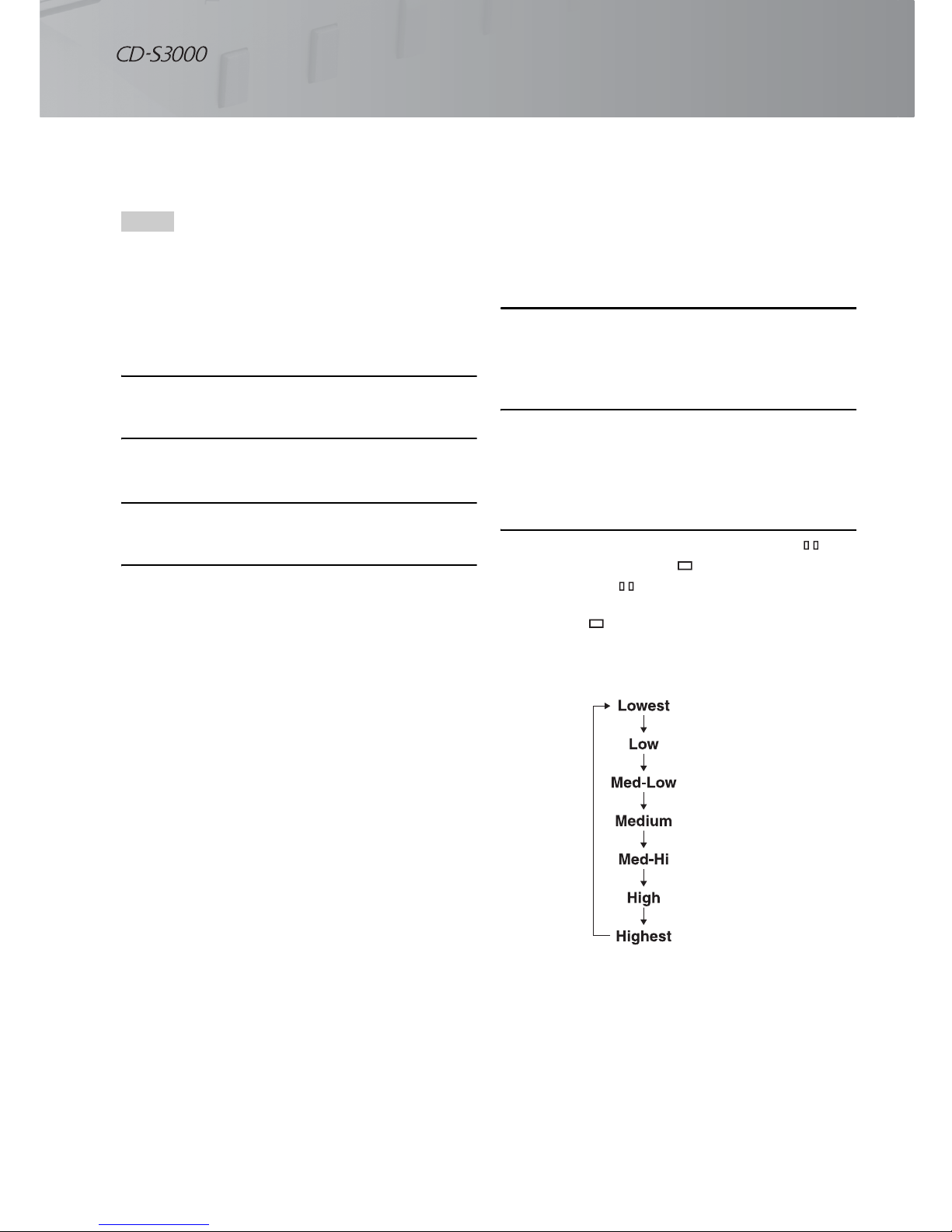

5DIMMER key
Selects the brightness level for the front panel display.
Each time you press the DIMMER key, the brightness
level changes in the following order:
y
This setting is retained even if you turn off this unit.
6Numeric buttons
Use to select a track directly.
This operation is ineffective for MP3 or WMA discs.
7REPEAT key
Repeats playback of a single track or all tracks. Each
time you press the REPEAT key during playback, the
repeat playback mode changes as follows:
This operation is ineffective for MP3 or WMA discs.
PROGRAM key
Turns on or off the program playback mode. See
“Program playback” (page 14).
1
2
B
A
@
5
3
7
4
6
C
D
8
9
AMP CD OPEN/CLOSE
DIMMER PURE DIRECT
2
5
8
DISPLAY
13
INPUT
4
6
79
ENTER0 CLEAR
PROGRAMREPEAT SHUFFLE
MUTE
SOURCE LAYER
VOLUME
Note
Note
Note
Max (brightest) Level 1 (default)
Level 2Level 3 (darkest)
(repeat playback off): Repeat
playback is cancelled.
(single repeat playback): On reaching
the end of the current track, playback repeats
from the beginning of the current track.
(all repeat playback): On reaching
the end of the last track, playback repeats from
the beginning of the first track.

13 En
SHUFFLE key
Plays tracks on the disc in random order (shuffle
playback).
• This operation is ineffective for MP3 or WMA discs.
• The shuffle playback mode is cancelled when playback is
stopped or the disc is ejected.
8(Search backward) key
(Search forward) key
Searches tracks backward/forward.
(Pause) key
Pauses playback. Press the or key to resume
playback.
(Play) key
Starts playback.
(Skip backward) key
Press the key once to skip back to the beginning of the
current track.
Press it twice to skip to the beginning of the previous
track.
(Skip forward) key
Press the key once to skip to the next track.
(Stop) key
Stops playback.
9SOURCE key
Selects the audio source to be played back. Each time
you press this key, the audio source is switched.
y
The audio source setting is retained even if you turn off this
unit.
0PURE DIRECT key
Turns on the PURE DIRECT mode to improve audio
quality.
When this unit is in the PURE DIRECT mode:
• The PURE DIRECT indicator lights.
• No signal is output from the DIGITAL OUT
(OPTICAL and COAXIAL) jacks on the rear panel
(page 10).
• The least indicators and messages appear on the
front panel display.
y
• Press this key again to turn off the PURE DIRECT mode.
• This setting is retained even if you turn off this unit.
ADISPLAY key
Switches the time display. Each time you press the
DISPLAY key during playback, the time display
changes as follows:
BENTER key
Confirms a track number entered when you are
programming tracks.
CLEAR key
Erases the last programmed track when this unit is in
the program editing mode. See “Program playback”
(page 14).
y
To erase all programmed tracks, press the CLEAR key while
programmed playback is stopped.
CLAYER key
Switches the playback layer of a hybrid Super Audio
CD between SA-CD and CD while playback is
stopped (page 27).
y
This setting is retained even if you turn off this unit.
When SA-CD layer is selected, audio signals are output only
from the BALANCED OUT and ANALOG OUT jacks.
DYamaha amplifier operation keys
Operates the Yamaha amplifier.
Refer to the owner’s manual of your amplifier for
details.
Some Yamaha amplifiers cannot be controlled with the keys
of this remote control.
Notes
(coaxial digital input) (optical digital input)
Note
Note
See page 28 for more information on MP3/WMA
playback.
Elapsed time of the current track
Remaining time of the
current track
Total remaining time of the
disc
English

14 En
Controls and functions
■Program playback
In the program playback mode, you can play back tracks
in a programmed sequence.
• This operation is ineffective for MP3 or WMA discs.
• The programmed tracks are erased in the following cases:
– when the disc is ejected
– when this unit is turned off or goes to STANDBY mode
– when an audio source other than the disc is selected
– when the playback layer of a hybrid Super Audio CD is
switched between SA-CD and CD
1Press PROGRAM while playback is stopped.
This unit is set to the program editing mode.
2Select a track by using the numeric buttons
and press ENTER.
3Repeat step 2 to program the next track.
You can program up to 24 tracks.
4Press the p(Play) key.
Playback starts from the beginning of the
programmed sequence.
■Setting the DPLL (Digital Phased Lock
Loop) bandwidth
The audio DAC (ES9018) of this unit employs DPLL to
generate accurate clock signals synchronized with the
clock of the input digital audio signal. The 7-step DPLL
bandwidth setting gives the unit tolerance for fluctuation
of the clock of the input digital signal and adjustment of
the accuracy of the operating clock in the DAC.
1Press SOURCE to select the audio source to
be played back.
The DPLL bandwidth can be set for each audio
source, respectively.
2Within 5 seconds after selecting the audio
source, press ENTER.
The unit enters the setting mode, and the DPLL
bandwidth currently set appears on the information
display.
3Select the DPLL bandwidth using the
(pause) key and the (stop) key.
Each time the (pause) key is pressed, the
bandwidth changes in the following order. If you
press the (stop) key, it changes in reverse order.
Notes
(default)

15 En
4Press ENTER.
The setting value flashes for 3 seconds, then the unit
resumes to normal mode.
To cancel the setting, press CLEAR.
• As the DPLL bandwidth setting value approaches “Lowest,” the
accuracy of the operating clock in the DAC improves, but the
unit may be susceptible to a change in the clock of the external
component. The sound from such a component may more easily
skips.
• As the DPLL bandwidth setting value approaches “Highest,”
the accuracy of the operating clock in the DAC deteriorates, but
the unit is far less susceptible to a change in the clock of the
external component, and the sound from such a component
hardly skips.
■Setting the AUTO POWER STANDBY
function
The AUTO POWER STANDBY function can be set to
ON or OFF. When set to ON, if the unit is not operated for
30 minutes with no audio signal detected, it automatically
goes to STANDBY mode. When set to OFF, the unit does
not go to STANDBY mode automatically.
1Open the disc tray and remove any currently-
loaded disc from the unit.
Skip step 1 to 3 if “NO DISC” appears on the
information display.
2Close the disc tray.
3Press SOURCE to select “DISC” as the audio
source.
“NO DISC” appears on the information display.
4Press and hold the (Stop) key or (Play)
key on the front panel for about 2 seconds to
switch the setting.
(Stop) key: The AUTO POWER STANDBY
function switches to ON, and
“AutoSTBY ON” appears on the
information display.
(Play) key: The AUTO POWER STANDBY
function switches to OFF, and
“AutoSTBY OFF” appears on the
information display.
• The default setting for the AUTO POWER STANDBY function
is ON.
• This setting is retained even if you turn off this unit.
Notes
Notes
English

16 En
Controls and functions
■Installing batteries in the remote control
1Remove the battery compartment cover.
2Insert the two batteries (AAA, R03, UM-4)
according to the polarity markings (+ and -)
on the inside of the battery compartment.
3Reinstall the battery compartment cover.
2
1
3

Connections
In this section, you will make connections between CD-S3000 and your amplifier.

18 En
Connections
SYSTEM CONNECTOR REMOTE
IN OUT
BALANCED OUT DIGITAL IN
COAXIALOPTICALUSB
ANALOG OUT BALANCED OUT
GND +HOT
- COLD
2
3
1
AC IN
If your amplifier is equipped with XLR
balanced input jacks,
we recommend balanced connection
for optimum audio performance.
When the SA-CD layer is played, the
audio signals are output only from the
BALANCED OUT and ANALOG OUT
jacks.
XLR balanced cable
Stereo pin cable
Amplifier

19 En
LINK CONTROL
IN
DIGITAL IN
COAXIAL COAXIAL
DIGITAL OUT
OPTICALOPTICALUSB
UT BALANCED OUT
AC IN
Coaxial digital cable
Optical digital cable
USB cable (Type B)
PC Component equipped with a
digital output (PCM) jack
Only PCM signals can be input to the DIGITAL IN
(OPTICAL/COAXIAL) jacks of this unit. For details on
the supported PCM signals, see page 26.
Note
Coaxial digital cable
Optical digital cable
AV receiver equipped with a
digital input jack
English

20 En
Connections
■Connecting to the BALANCED OUT
jacks
Connect your amplifier with the XLR balanced input
jacks. The pin assignments for these jacks are shown
below. Refer to the owner’s manual supplied with your
amplifier and verify that its XLR balanced input jacks are
compatible with the pin assignments.
When connecting, be sure to match the pins and insert the
connector of the “female” XLR balanced cable. When
disconnecting, pull out the “female” XLR balanced cable
while pressing down the latch lock on the plug.
■Connecting the power cable
Plug the power cable into the AC IN inlet when all
connections are complete, and then plug in the power
cable to the AC outlet.
1: ground 2: hot
3: cold
“Female” XLR connector “Male” XLR connector
Latch lock
T
E
OUT
DIGITAL IN
COAXIAL
DIGI
T
OPTICALOPTICALUSB
AC IN
Supplied power cable
to an AC outlet
Rear panel of CD-S3000
