Yamaha DVD-S1700 User manual
.YAMAHA
DVD AUDIONIDEO SA-CD PLAYER
LECTEUR DE DVD AUDIONIDEO SA-CD
DVD-S1700
OWNER'S
MANUAL
MODE·D'EMPLOI
.YAMAHA
NATURAL
SOUND
DVD
AUDIO/VIDEO
SA-CD
PlAYER
DVD·S1700
[rr===,
eY2====@8====;:~
I]
c
~
I I I I
~
@
rnJo§@
AUDIONIDEO
SUPERAUDIO CD
(DIGITAL
VIDEO)
.YAMAHA
DVD AUDIONIDEO SA-CD PLAYER
LECTEUR DE DVD AUDIONIDEO SA-CD
DVD-S1700
OWNER'S
MANUAL
MODE·D'EMPLOI
.YAMAHA
NATURAL
SOUND
DVD
AUDIO/VIDEO
SA-CD
PlAYER
DVD·S1700
[rr===,
eY2====@8====;:~
I]
c
~
I I I I
~
@
rnJo§@
AUDIONIDEO
SUPERAUDIO CD
(DIGITAL
VIDEO)

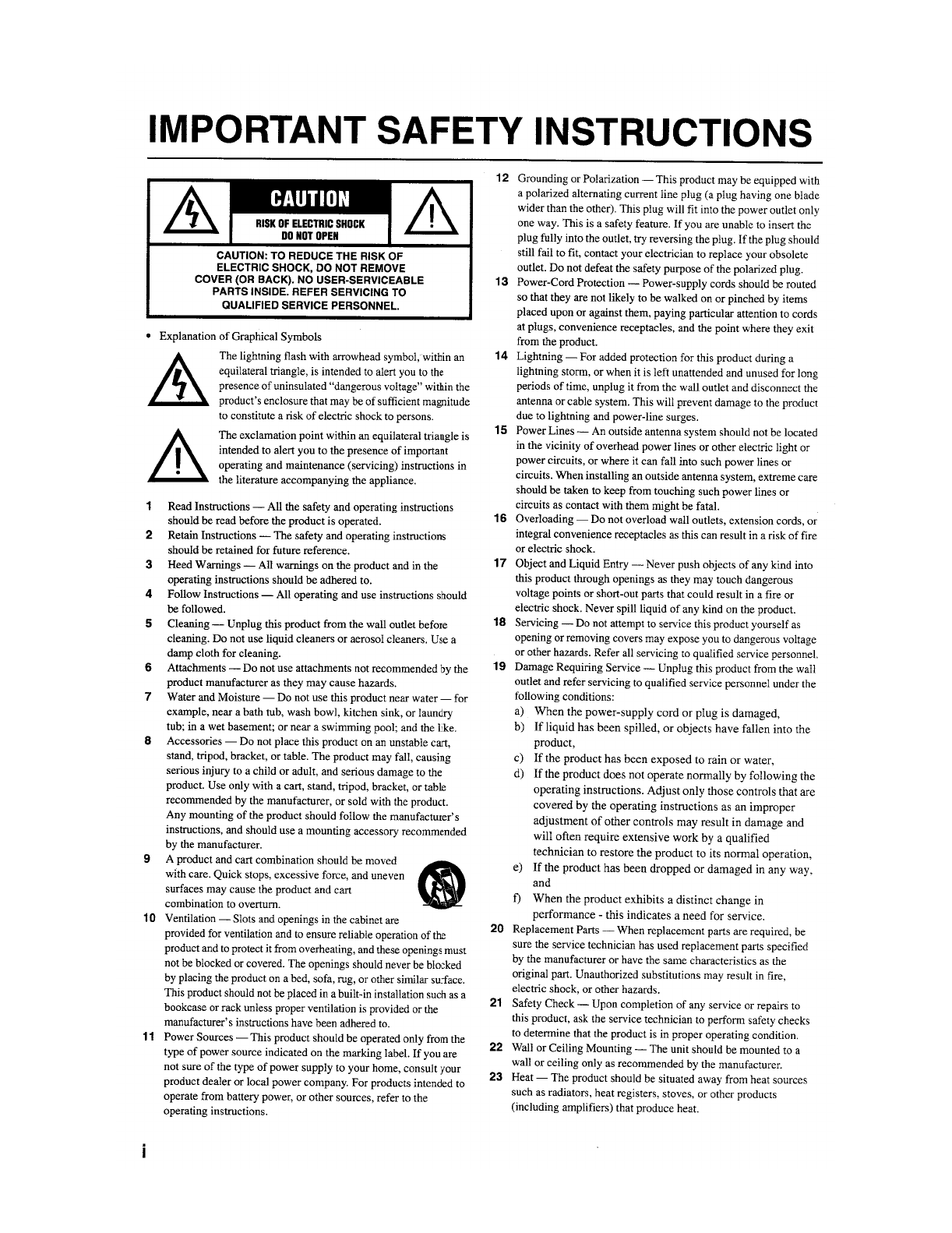

IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO
NOT
REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
12 Grounding
or
Polarization -This product may be equipped with
apolarized alternating current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This is asafety feature.
If
you are unable to insert the
plug fully into the outlet, try reversing the plug.
If
the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet.
Do
not defeat the safety purpose
of
the polarized plug.
13
Power-Cord Protection -Power-supply cords should be routed
so
that they are not likely to
be
walked on
or
pinched by items
placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit
from the product.
14
Lightning -For added protection for this product during a
lightning storm,
or
when
it
is left unattended and unused for long
periods
of
time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will preventdamage to the product
due to lightning and power-line surges.
15 PowerLines -An outside antenna system should not be located
in the vicinity
of
overhead power lines or other electric light
or
power circuits,
or
where it can fall into such power lines
or
circuits. When installing an outside antenna system, extreme care
should
be
taken to keep from touching such power lines
or
circuits as contact with them might be fatal.
16 Overloading -Do not overload wall outlets, extension cords,
or
integral convenience receptacles as this can result in arisk
of
fire
or
electric shock.
17
Object and Liquid Entry -Never push objects
of
any kind into
this product through openings as they may touch dangerous
voltage points
or
short-out parts that could result in afire
or
electric shock. Never spill liquid
of
any kind on the product.
18 Servicing -Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
19
Damage Requiring Service -Unplug this product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
a)
When
the
power-supply
cord
or
plug
is
damaged,
b)
If
liquid
has
been
spilled,
or
objects
have
fallen into
the
product,
c)
If
the
product
has
been
exposed
to
rain
or
water,
d)
If
the
product
does
not
operate
normally
by
following
the
operating
instructions.
Adjust
only
those
controls
that
are
covered
by
the
operating
instructions
as
an
improper
adjustment
of
other
controls
may
result
in
damage
and
will
often
require
extensive
work
by
a
qualified
technician
to
restore
the
product
to
its
normal
operation,
e)
If
the
product
has
been
dropped
or
damaged
in
any
way,
and
f)
When
the
product
exhibits
a
distinct
change
in
performance
-this
indicates
a
need
for service.
20
Replacement Parts -When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer
or
have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock,
or
other hazards.
21
Safety Check -Upon completion
of
any service
or
repairs to
this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
22
Wall
or
Ceiling Mounting -The unit should be mounted to a
wall or ceiling only as recommended by the manufacturer.
23 Heat -The product should be situated away from heat sources
such
as
radiators, heat registers, stoves,
or
other products
(including amplifiers) that produce heat.
4
9
5
2
3
6
7
Read Instructions -All the safety and operating instructions
should
be
read before the product is operated.
Retain Instructions -
The
safety and operating instructions
should be retained for future reference.
Heed Warnings -All warnings on the product and in the
operating instructions should
be
adhered to.
Follow Instructions -All operating and use instructions should
be
followed.
Cleaning-Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
Attachments -
Do
not use attachments not recommended by the
product manufacturer as they may cause hazards.
Water and Moisture -
Do
not use this product near water-for
example, near abath tub, wash bowl, kitchen sink,
or
laundry
tub; in awet basement;
or
near aswimming pool; and the like.
Accessories -
Do
not place this product on
an
unstable cart,
stand, tripod, bracket,
or
table. The product may fall, causing
serious injury to achild
or
adult, and serious damage to the
product. Use only with acart, stand, tripod, bracket,
or
table
recommended by the manufacturer,
or
sold with the product.
Any mounting
of
the product should follow the manufacturer's
instructions, and should use amounting accessory recommended
by
the manufacturer.
Aproduct and cart combination should
be
moved
with care. Quick stops, excessive force, and uneven
surfaces
may
cause the product and cart
combination to overturn.
10
Ventilation -Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of
the
product and
to
protect it from overheating, and these openings must
not be blocked or covered. The openings should never be blocked
by placing the product on abed, sofa, rug, or other similar surface.
This product should not be placed in abuilt-in installation such as a
bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
11
Power Sources -This product should be operated only from the
type
of
power source indicated on the marking label.
If
you are
not sure
of
the type
of
power supply to your home, consult your
product dealer or local power company. For products intended to
operate from battery power,
or
other sources, refer to the
operating instructions.
8
•Explanation
of
Graphical Symbols
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the
presence
of
uninsulated "dangerous voltage" within the
product's enclosure that may be
of
sufficient magnitude
to
constitute arisk
of
electric shock to persons.
The
exclamation point within an equilateral triangle is
intended to alert you to the presence
of
important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO
NOT
REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
12 Grounding
or
Polarization -This product may be equipped with
apolarized alternating current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This is asafety feature.
If
you are unable to insert the
plug fully into the outlet, try reversing the plug.
If
the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet.
Do
not defeat the safety purpose
of
the polarized plug.
13
Power-Cord Protection -Power-supply cords should be routed
so
that they are not likely to
be
walked on
or
pinched by items
placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit
from the product.
14
Lightning -For added protection for this product during a
lightning storm,
or
when
it
is left unattended and unused for long
periods
of
time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will preventdamage to the product
due to lightning and power-line surges.
15 PowerLines -An outside antenna system should not be located
in the vicinity
of
overhead power lines or other electric light
or
power circuits,
or
where it can fall into such power lines
or
circuits. When installing an outside antenna system, extreme care
should
be
taken to keep from touching such power lines
or
circuits as contact with them might be fatal.
16 Overloading -Do not overload wall outlets, extension cords,
or
integral convenience receptacles as this can result in arisk
of
fire
or
electric shock.
17
Object and Liquid Entry -Never push objects
of
any kind into
this product through openings as they may touch dangerous
voltage points
or
short-out parts that could result in afire
or
electric shock. Never spill liquid
of
any kind on the product.
18 Servicing -Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
19
Damage Requiring Service -Unplug this product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
a)
When
the
power-supply
cord
or
plug
is
damaged,
b)
If
liquid
has
been
spilled,
or
objects
have
fallen into
the
product,
c)
If
the
product
has
been
exposed
to
rain
or
water,
d)
If
the
product
does
not
operate
normally
by
following
the
operating
instructions.
Adjust
only
those
controls
that
are
covered
by
the
operating
instructions
as
an
improper
adjustment
of
other
controls
may
result
in
damage
and
will
often
require
extensive
work
by
a
qualified
technician
to
restore
the
product
to
its
normal
operation,
e)
If
the
product
has
been
dropped
or
damaged
in
any
way,
and
f)
When
the
product
exhibits
a
distinct
change
in
performance
-this
indicates
a
need
for service.
20
Replacement Parts -When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer
or
have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock,
or
other hazards.
21
Safety Check -Upon completion
of
any service
or
repairs to
this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
22
Wall
or
Ceiling Mounting -The unit should be mounted to a
wall or ceiling only as recommended by the manufacturer.
23 Heat -The product should be situated away from heat sources
such
as
radiators, heat registers, stoves,
or
other products
(including amplifiers) that produce heat.
4
9
5
2
3
6
7
Read Instructions -All the safety and operating instructions
should
be
read before the product is operated.
Retain Instructions -
The
safety and operating instructions
should be retained for future reference.
Heed Warnings -All warnings on the product and in the
operating instructions should
be
adhered to.
Follow Instructions -All operating and use instructions should
be
followed.
Cleaning-Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
Attachments -
Do
not use attachments not recommended by the
product manufacturer as they may cause hazards.
Water and Moisture -
Do
not use this product near water-for
example, near abath tub, wash bowl, kitchen sink,
or
laundry
tub; in awet basement;
or
near aswimming pool; and the like.
Accessories -
Do
not place this product on
an
unstable cart,
stand, tripod, bracket,
or
table. The product may fall, causing
serious injury to achild
or
adult, and serious damage to the
product. Use only with acart, stand, tripod, bracket,
or
table
recommended by the manufacturer,
or
sold with the product.
Any mounting
of
the product should follow the manufacturer's
instructions, and should use amounting accessory recommended
by
the manufacturer.
Aproduct and cart combination should
be
moved
with care. Quick stops, excessive force, and uneven
surfaces
may
cause the product and cart
combination to overturn.
10
Ventilation -Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of
the
product and
to
protect it from overheating, and these openings must
not be blocked or covered. The openings should never be blocked
by placing the product on abed, sofa, rug, or other similar surface.
This product should not be placed in abuilt-in installation such as a
bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
11
Power Sources -This product should be operated only from the
type
of
power source indicated on the marking label.
If
you are
not sure
of
the type
of
power supply to your home, consult your
product dealer or local power company. For products intended to
operate from battery power,
or
other sources, refer to the
operating instructions.
8
•Explanation
of
Graphical Symbols
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the
presence
of
uninsulated "dangerous voltage" within the
product's enclosure that may be
of
sufficient magnitude
to
constitute arisk
of
electric shock to persons.
The
exclamation point within an equilateral triangle is
intended to alert you to the presence
of
important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
FCC INFORMATION (for US customers)
1.
IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets
FCC
requirements. Modifications
not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2.
IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/
ssupplied with this product MUST
be
used. Follow all installation instructions. Failure to follow instructions could void your
FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in
FCC
Regulations, Part
15
for Class "B"
digital devices.
Compliance with these requirements provides areasonable level
of
assurance that your use
of
this product in aresidential
environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio
frequencies and,
if
not installed and used according to the instructions found
in
the users manual, may cause interference harmful
to
the operation
of
other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur
in all installations.
If
this product
is
found to
be
the source
of
interference, which can
be
determined by turning the product
"OFF" and "ON", please try
to
eliminate the problem by using one
of
the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/so
In the case
of
radio or TV interference, relocatelreorient the antenna.
If
the antenna lead-in
is
300 ohm ribbon lead, change the
lead-in to coaxial type cable.
If
these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type
of
product.
If
you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., 6660 Orangethorpe Ave.
Buena Park, CA90622.
The above statements apply ONLY to those products distributed by Yamaha Corporation
of
America or its subsidiaries.
We Want
You
Listening For ALifetime
YAMAHA
and
the Electronic Industries Association's Consumer Electronjcs Group want
you
to
get
the
most out of your
equipment
by
playing it
at
asafe level. One that lets the sound come through loud
and
clear without annoying blaring or distortion
-and, most importantly, without affecting your sensitive hearing.
Since hearing damage from loud sounds
is
often undetectable until it
is
too
late, YAMAHA and the Electronic Industries
Association's Consumer Electronics Group recommend
you
to
avoid prolonged exposure from excessive volume levels.
CLASS 1LASER PRODUCT
LASER KLASSE 1PRODUKT
LUDKAN
1LASERLAITE
KLASS 1LASER APPARAT
PRODUIT LASER DE CLASsE 1
For Customer Use:
Read carefully the information located at the rear panel
of
this
unit and enter below the Serial No. Retain this information for
future reference.
Model No.
Serial No. _
CAUTION
Use
of
controls or adjustments or performance
of
procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION-VISIBLE
AND
INVISIBLE
LASER
RADIATION
WHEN
OPEN.
DO
NOT
STARE
INTO
BEAM
OR
VIEW
DIRECTLY
WITH
OPTICAL
INSTRUMENTS.
AVERTISSEMENT
L'utilisation de commandes
et
l'emploi de reglages ou de
methodes autres que ceux decrits ci-dessous, peuvent entrainer
une exposition aun rayonnement dangereux.
DANGER
This unit emits visible laser radiation when open. Avoid direct
eye exposure to beam.
When this unit is plugged into awall outlet, do not place your
eyes close to the opening
of
the disc tray and other openings or
look inside.
DANGER
Risque d'exposition au laser en cas d'ouverture. Eviter toute
exposition au faisceau.
Lorsque cet appareil est branche ala prise de courant, ne pas
approcher les yeux de I'ouverture du plateau changeur et des
autres
au
vertures pour regarder aI'interieur.
ii
FCC INFORMATION (for US customers)
1.
IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets
FCC
requirements. Modifications
not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2.
IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/
ssupplied with this product MUST
be
used. Follow all installation instructions. Failure to follow instructions could void your
FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in
FCC
Regulations, Part
15
for Class "B"
digital devices.
Compliance with these requirements provides areasonable level
of
assurance that your use
of
this product in aresidential
environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio
frequencies and,
if
not installed and used according to the instructions found
in
the users manual, may cause interference harmful
to
the operation
of
other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur
in all installations.
If
this product
is
found to
be
the source
of
interference, which can
be
determined by turning the product
"OFF" and "ON", please try
to
eliminate the problem by using one
of
the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/so
In the case
of
radio or TV interference, relocatelreorient the antenna.
If
the antenna lead-in
is
300 ohm ribbon lead, change the
lead-in to coaxial type cable.
If
these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type
of
product.
If
you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., 6660 Orangethorpe Ave.
Buena Park, CA90622.
The above statements apply ONLY to those products distributed by Yamaha Corporation
of
America or its subsidiaries.
We Want
You
Listening For ALifetime
YAMAHA
and
the Electronic Industries Association's Consumer Electronjcs Group want
you
to
get
the
most out of your
equipment
by
playing it
at
asafe level. One that lets the sound come through loud
and
clear without annoying blaring or distortion
-and, most importantly, without affecting your sensitive hearing.
Since hearing damage from loud sounds
is
often undetectable until it
is
too
late, YAMAHA and the Electronic Industries
Association's Consumer Electronics Group recommend
you
to
avoid prolonged exposure from excessive volume levels.
CLASS 1LASER PRODUCT
LASER KLASSE 1PRODUKT
LUDKAN
1LASERLAITE
KLASS 1LASER APPARAT
PRODUIT LASER DE CLASsE 1
For Customer Use:
Read carefully the information located at the rear panel
of
this
unit and enter below the Serial No. Retain this information for
future reference.
Model No.
Serial No. _
CAUTION
Use
of
controls or adjustments or performance
of
procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION-VISIBLE
AND
INVISIBLE
LASER
RADIATION
WHEN
OPEN.
DO
NOT
STARE
INTO
BEAM
OR
VIEW
DIRECTLY
WITH
OPTICAL
INSTRUMENTS.
AVERTISSEMENT
L'utilisation de commandes
et
l'emploi de reglages ou de
methodes autres que ceux decrits ci-dessous, peuvent entrainer
une exposition aun rayonnement dangereux.
DANGER
This unit emits visible laser radiation when open. Avoid direct
eye exposure to beam.
When this unit is plugged into awall outlet, do not place your
eyes close to the opening
of
the disc tray and other openings or
look inside.
DANGER
Risque d'exposition au laser en cas d'ouverture. Eviter toute
exposition au faisceau.
Lorsque cet appareil est branche ala prise de courant, ne pas
approcher les yeux de I'ouverture du plateau changeur et des
autres
au
vertures pour regarder aI'interieur.
ii
CAUTION:
READ
THIS
BEFORE
OPERATING
THIS
UNIT.
WARNING
TO
REDUCE
THE
RISK
OF
FIRE
OR
ELECTRIC
SHOCK,
DO
NOT
EXPOSE
THIS
UNIT
TO RAIN
OR
MOISTURE.
LASER SAFETY
This unit employs alaser.
Due
to possible eye injury, only a
qualified service person should remove the cover
or
attempt
to service this device.
FOR CANADIAN CUSTOMERS
To
prevent electric shock, match wide blade
of
plug to
wide slot and fully insert.
This Class Bdigital apparatus complies with Canadian
ICES-003.
The
unit is not disconnected from the AC power source as
long as it is connected to the wall outlet, even
if
this unit
itselfis turned off. This state is called the standby mode. In
this state, this unit is designed to consume avery small
quantity
of
power.
Semiconductor laser GaAIAs
650
nm
(DVD)
790
nm
(VCD/CD)
1.45
mW
(DVD)
1.13
mW
(VCD/CD)
60 degrees
Beam
divergence
Output Power
LASER
Type
Wave length
15
Be
sure to read the "TROUBLESHOOTING" section on
common operating errors before concluding that this unit
is faulty.
16
Before moving this unit, press STANDBY/ON to set the
unit in standby mode, then disconnect the AC power plug
from the wall outlet.
17 Install this unit near the AC outlet and where the AC
power plug
can
be reached easily.
18
The batteries shall not be exposed to excessive heat such
as sunshine, fire
or
the like.
To assure the finest performance, please read this manual
carefully. Keep it in asafe place for future reference.
2Install this unit in awell ventilated, cool, dry, clean place
~
away from direct sunlight, heat sources, vibration,
dust, moisture,
or
cold. In acabinet, allow about 2.5
cm
(l
inch)
of
free space all around this unit for adequate
ventilation.
3Locate this unit away from other electrical appliances,
motors, or transformers to avoid humming sounds.
4
Do
not expose this unit to sudden temperature changes
from cold to hot,
nor
locate this unit in an environment
with high humidity (i.e., a
room
with ahumidifier) to
prevent condensationinside this unit, which may cause an
electrical shock, fire, damage to this unit, and/or personal
injury.
5Avoid installing this unit in alocation where foreign
objects may fall onto this unit or where this unit
may
be
exposed to liquid dripping or splashing. On the top
of
this
unit, do not place:
-Other components, as they may cause damage and/
or discoloration
on
the surface
of
this unit.
-Burning objects (i.e., candles), as they may cause
fire, damage to this unit, and/or personal injury.
-Containers with liquid in them, as they may fall,
spilling the liquid and causing an electrical shock to
the user and/or damage to this unit.
6
Do
not cover this unit with anewspaper, tablecloth,
curtain, etc.
in
order not to obstruct heat radiation.
If
the
temperature inside this unit rises, it may cause fire,
damage to this unit, and/or personal injury.
7
Do
not plug
in
this unit to awall outlet until all
connections are complete.
8
Do
not operate this unit upside-down.
It
may overheat,
possibly causing damage.
9
Do
not use excessive force
on
switches, knobs and/or
cords.
10
When disconnecting the power cord from the wall outlet,
grasp the plug; do not pull the cord.
11
Do
not clean this unit with chemical solvents; this might
damage the finish. Use aclean, dry cloth.
12 Use only the voltage specified on this unit. Using this unit
with ahigher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury.
YAMAHA will not be held responsible for any damage
resulting from use
of
this unit with avoltage other than as
specified.
13
Do
not attempt to modify
or
fix this unit. Contact
qualified YAMAHA service personnel when any service
is needed.
The
cabinet should never be opened for any
reason.
14
When
not planning to use this unit for long periods
of
time (i.e., vacation), disconnect the AC power plug from
the wall outlet.
iii
CAUTION:
READ
THIS
BEFORE
OPERATING
THIS
UNIT.
WARNING
TO
REDUCE
THE
RISK
OF
FIRE
OR
ELECTRIC
SHOCK,
DO
NOT
EXPOSE
THIS
UNIT
TO RAIN
OR
MOISTURE.
LASER SAFETY
This unit employs alaser.
Due
to possible eye injury, only a
qualified service person should remove the cover
or
attempt
to service this device.
FOR CANADIAN CUSTOMERS
To
prevent electric shock, match wide blade
of
plug to
wide slot and fully insert.
This Class Bdigital apparatus complies with Canadian
ICES-003.
The
unit is not disconnected from the AC power source as
long as it is connected to the wall outlet, even
if
this unit
itselfis turned off. This state is called the standby mode. In
this state, this unit is designed to consume avery small
quantity
of
power.
Semiconductor laser GaAIAs
650
nm
(DVD)
790
nm
(VCD/CD)
1.45
mW
(DVD)
1.13
mW
(VCD/CD)
60 degrees
Beam
divergence
Output Power
LASER
Type
Wave length
15
Be
sure to read the "TROUBLESHOOTING" section on
common operating errors before concluding that this unit
is faulty.
16
Before moving this unit, press STANDBY/ON to set the
unit in standby mode, then disconnect the AC power plug
from the wall outlet.
17 Install this unit near the AC outlet and where the AC
power plug
can
be reached easily.
18
The batteries shall not be exposed to excessive heat such
as sunshine, fire
or
the like.
To assure the finest performance, please read this manual
carefully. Keep it in asafe place for future reference.
2Install this unit in awell ventilated, cool, dry, clean place
~
away from direct sunlight, heat sources, vibration,
dust, moisture,
or
cold. In acabinet, allow about 2.5
cm
(l
inch)
of
free space all around this unit for adequate
ventilation.
3Locate this unit away from other electrical appliances,
motors, or transformers to avoid humming sounds.
4
Do
not expose this unit to sudden temperature changes
from cold to hot,
nor
locate this unit in an environment
with high humidity (i.e., a
room
with ahumidifier) to
prevent condensationinside this unit, which may cause an
electrical shock, fire, damage to this unit, and/or personal
injury.
5Avoid installing this unit in alocation where foreign
objects may fall onto this unit or where this unit
may
be
exposed to liquid dripping or splashing. On the top
of
this
unit, do not place:
-Other components, as they may cause damage and/
or discoloration
on
the surface
of
this unit.
-Burning objects (i.e., candles), as they may cause
fire, damage to this unit, and/or personal injury.
-Containers with liquid in them, as they may fall,
spilling the liquid and causing an electrical shock to
the user and/or damage to this unit.
6
Do
not cover this unit with anewspaper, tablecloth,
curtain, etc.
in
order not to obstruct heat radiation.
If
the
temperature inside this unit rises, it may cause fire,
damage to this unit, and/or personal injury.
7
Do
not plug
in
this unit to awall outlet until all
connections are complete.
8
Do
not operate this unit upside-down.
It
may overheat,
possibly causing damage.
9
Do
not use excessive force
on
switches, knobs and/or
cords.
10
When disconnecting the power cord from the wall outlet,
grasp the plug; do not pull the cord.
11
Do
not clean this unit with chemical solvents; this might
damage the finish. Use aclean, dry cloth.
12 Use only the voltage specified on this unit. Using this unit
with ahigher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury.
YAMAHA will not be held responsible for any damage
resulting from use
of
this unit with avoltage other than as
specified.
13
Do
not attempt to modify
or
fix this unit. Contact
qualified YAMAHA service personnel when any service
is needed.
The
cabinet should never be opened for any
reason.
14
When
not planning to use this unit for long periods
of
time (i.e., vacation), disconnect the AC power plug from
the wall outlet.
iii
CONTENTS
INTRODUCTION 3
Playable
disc
formats 3
DVD region codes 3
Patent information 4
Cleaning
discs
4
Supplied accessories 4
FUNCTIONAL OVERVIEW 5
Front panel. 5
Front panel display........................................ 6
Rear panel.. 7
Remote control...... 8
CONNECTIONS 10
General notes on
connections..
10
Audio
connections 10
Connecting astereo amplifier................
10
Connecting an AV reeeiver with 5.1chi
digital inputjacks 10
Video connections
11
Connecting the power cable
12
GETTING STARTED 13
Step 1: Inserting batteries
into
the
remote
control.
13
Using the remote control
13
Step 2: Turning on the power.............•.......
13
Step 3: Setting aTV type 14
Step 4: Setting alanguage preference
15
Setting the OSD (On-Screen Display)
language
15
Setting the audio, subtitle and disc menu
languages
15
DISC OPERATION
16
Basic operation 16
Pausing playback
16
Selecting atrack/chapter 16
Searching backward/forward
17
Repeat playback... 17
Repeating playback
17
Repeating asection (except DVD-Audiol
MP3IWMNJPEG)
17
Random playback
(except DVD/DivXlSA-CD) 17
Program playback (CD) 18
Disc menu operation (DVDNCD/SVCO) 18
Using the DVD menu
18
Using the Video CD playback control (PBC)
menu (VCD/SVCD)
19
On-screen
display
(050)
menu
(DVDNCD/SVCD/SA·CD) 19
Using the OSD menu (DVDNCD/SVCD/CD)
19
Displaying text information (SA-CD) 20
Zooming pictures (DVD·VideoNCD/SVCD/
DivXlJPEG) 20
Viewing angles (DVD-Video)
21
Audio and Subtitle languages (DVe·Video)
21
Selecting an audio language
21
Selecting asubtitle language
21
DivX external subtitlefiles
21
Changing pages (DVO·Audio)
21
Group/File selection (DVD·Audio/DivXl
MP3IWMAlKodak picture CD)..••......••.•.•.. 22
Selecting agroup (DVD-Audio) 22
Selecting afile in a folder (DivXIMP3/WMAI
Kodak picture CD) 22
Bonus
group
playback (DVD·Audio)
22
Changing the playbackarea and layer
(SA·CD)
22
Multimedia file playback
(MP3IWMAlDivXlJPEG)
23
Displaying the thumbnail screen (JPEG)
23
Rotating pictures (JPEG)
23
1En
CONTENTS
INTRODUCTION 3
Playable
disc
formats 3
DVD region codes 3
Patent information 4
Cleaning
discs
4
Supplied accessories 4
FUNCTIONAL OVERVIEW 5
Front panel. 5
Front panel display........................................ 6
Rear panel.. 7
Remote control...... 8
CONNECTIONS 10
General notes on
connections..
10
Audio
connections 10
Connecting astereo amplifier................
10
Connecting an AV reeeiver with 5.1chi
digital inputjacks 10
Video connections
11
Connecting the power cable
12
GETTING STARTED 13
Step 1: Inserting batteries
into
the
remote
control.
13
Using the remote control
13
Step 2: Turning on the power.............•.......
13
Step 3: Setting aTV type 14
Step 4: Setting alanguage preference
15
Setting the OSD (On-Screen Display)
language
15
Setting the audio, subtitle and disc menu
languages
15
DISC OPERATION
16
Basic operation 16
Pausing playback
16
Selecting atrack/chapter 16
Searching backward/forward
17
Repeat playback... 17
Repeating playback
17
Repeating asection (except DVD-Audiol
MP3IWMNJPEG)
17
Random playback
(except DVD/DivXlSA-CD) 17
Program playback (CD) 18
Disc menu operation (DVDNCD/SVCO) 18
Using the DVD menu
18
Using the Video CD playback control (PBC)
menu (VCD/SVCD)
19
On-screen
display
(050)
menu
(DVDNCD/SVCD/SA·CD) 19
Using the OSD menu (DVDNCD/SVCD/CD)
19
Displaying text information (SA-CD) 20
Zooming pictures (DVD·VideoNCD/SVCD/
DivXlJPEG) 20
Viewing angles (DVD-Video)
21
Audio and Subtitle languages (DVe·Video)
21
Selecting an audio language
21
Selecting asubtitle language
21
DivX external subtitlefiles
21
Changing pages (DVO·Audio)
21
Group/File selection (DVD·Audio/DivXl
MP3IWMAlKodak picture CD)..••......••.•.•.. 22
Selecting agroup (DVD-Audio) 22
Selecting afile in a folder (DivXIMP3/WMAI
Kodak picture CD) 22
Bonus
group
playback (DVD·Audio)
22
Changing the playbackarea and layer
(SA·CD)
22
Multimedia file playback
(MP3IWMAlDivXlJPEG)
23
Displaying the thumbnail screen (JPEG)
23
Rotating pictures (JPEG)
23
1En
CONTENTS
Menu overview 24
Setup menu operation 25
General setup menu 26
Selecting
DVD~Audio
mode 26
Selecting SA-CD mode 26
Setting the OSD language 26
Restricting playback with parental control 26
Changing the parental password 26
Setting the screen saver 27
Setting the auto power function 27
Setting the sleep timer.. 27
Resetting the system ;27
Displaying the DivX® VOD registration code
27
Audio setup menu 28
Setting the analog output 28
Setting the digital output.. 28
Setting the LPCM output 28
Setting the night listening mode 28
Speaker setup menu 29
Setting speaker sizes 29
Setting speaker distances 29
Setting speaker levels 30
Setting the SA-CD configuration 30
Setting the cut-offfrequency (SA-CD only) 30
Video setup menu
31
Setting the TV display , ,
31
Setting the TV type............................................
31
Selecting the black level
(U.S.A. and Canada models only)
31
Selecting the closed caption
(U.S.A. and Canada models only). 32
Setting the still mode 32
Selecting the progressive scan function 32
Switching the SCART video out
(U.K. and Europe models only)
33
Adjusting picture settings
33
HDMI setup menu 33
Setting the HDMI video 33
Selecting the wide screen format 34
Selecting the DVI output range 34
Setting the HDMI audio 35
DISC setup menu 35
Selecting the default audio/subtitle/
DVD menu language
35
Selecting an angle mark display
35
Selecting the PBC (playback control) function 35
Setting the duration for aslide show
35
2En
CONTENTS
Menu overview 24
Setup menu operation 25
General setup menu 26
Selecting
DVD~Audio
mode 26
Selecting SA-CD mode 26
Setting the OSD language 26
Restricting playback with parental control 26
Changing the parental password 26
Setting the screen saver 27
Setting the auto power function 27
Setting the sleep timer.. 27
Resetting the system ;27
Displaying the DivX® VOD registration code
27
Audio setup menu 28
Setting the analog output 28
Setting the digital output.. 28
Setting the LPCM output 28
Setting the night listening mode 28
Speaker setup menu 29
Setting speaker sizes 29
Setting speaker distances 29
Setting speaker levels 30
Setting the SA-CD configuration 30
Setting the cut-offfrequency (SA-CD only) 30
Video setup menu
31
Setting the TV display , ,
31
Setting the TV type............................................
31
Selecting the black level
(U.S.A. and Canada models only)
31
Selecting the closed caption
(U.S.A. and Canada models only). 32
Setting the still mode 32
Selecting the progressive scan function 32
Switching the SCART video out
(U.K. and Europe models only)
33
Adjusting picture settings
33
HDMI setup menu 33
Setting the HDMI video 33
Selecting the wide screen format 34
Selecting the DVI output range 34
Setting the HDMI audio 35
DISC setup menu 35
Selecting the default audio/subtitle/
DVD menu language
35
Selecting an angle mark display
35
Selecting the PBC (playback control) function 35
Setting the duration for aslide show
35
2En
U.K.
Europe
Asia
Korea
Australia
China
DVD region codes
•CD-R(W), DVD-R(W) and DVD+R(W) cannot be played
unless finalized.
•Copyright-protected
WMA
files cannot be played with this
unit.
•Some discs cannot be played depending on the recording
conditions, such as the PC environment and application
software. The characteristics and condition
of
some discs;
materials, scratches, curvature, etc., may result in playback
failure.
•Be sure to use only CD-R(W), DVD-R(W) and DVD+R(W)
discs made by reliable manufacturers.
•Do not use any non-standard shaped discs (heart-shaped, etc.).
•Do not use discs with tape, seals, or paste on their surface.
Doing so may damage this unit.
•Do not use discs affixed with labels printed by acommercially
available label printer.
This unit is designed to support the region management
system. Check the regional code number on the DVD disc
package.
If
the number does not match the region code
of
this unit (see the table below or the back
of
this unit), this
unit may be unable to play the disc.
~
AUDIO'"
DVD
.o,a,.ee_*:
r£
rillo~i
t£
rillo~i
Q!.DEO
VIDEO
CD
(DIGITAL
VIDEO
I
~CD
(SUPER
VIDEO
I
~
rillw
rillDm
rillm
~
SUPER
AUDIO
CD
DIGITAL
AUDIO
l;i¥Ntell.m;M
IReWritablel
2Y£~tmDtmD.
DVD+R
DVD+ReWritable DVD+R
DL
•This unit is designed for use with the following discs:
DVD-Video, DVD-Audio, DVD-R, DVD-RW,
DVD+R, DVD+RW, DVD+R DL, Video CD,
SuperVideo CD, SuperAudio CD (SA-CD), Audio CD,
CD-R and CD-RW.
•This unit can play:
-MP3,
WMA
(except copyright-protected WMA) and
picture (Kodak, JPEG) files recorded on CD-R(W)/
DVD-R(W)/DVD+R(W)
-JPEGIISO 9660 format
-Maximum 14 character display
-DivX® disc on CD-R(W)/DVD-R(W)/DVD+R(W)
-Official Div
X®
Certified product
-Plays all versions
of
DivX® video (including
Div
X®
6) with standard playback
of
Div
X®
media
files
INTRODUCTION
Thank you
for
purchasing this unit. This Owner's Manual
explains the basic operation
of
this unit.
Illustrations in this manual are based on the U.K. and
Europe models unless otherwise specified.
Notes contain important information about safety and
operating instructions.
~\¥-:.
indicates atip for your operation.
This manual is printed prior to production. Design and
specifications are subject to change in part as aresult
of
improvements, etc. In case
of
differences between the
manual and the product, the product has priority.
3En
U.K.
Europe
Asia
Korea
Australia
China
DVD region codes
•CD-R(W), DVD-R(W) and DVD+R(W) cannot be played
unless finalized.
•Copyright-protected
WMA
files cannot be played with this
unit.
•Some discs cannot be played depending on the recording
conditions, such as the PC environment and application
software. The characteristics and condition
of
some discs;
materials, scratches, curvature, etc., may result in playback
failure.
•Be sure to use only CD-R(W), DVD-R(W) and DVD+R(W)
discs made by reliable manufacturers.
•Do not use any non-standard shaped discs (heart-shaped, etc.).
•Do not use discs with tape, seals, or paste on their surface.
Doing so may damage this unit.
•Do not use discs affixed with labels printed by acommercially
available label printer.
This unit is designed to support the region management
system. Check the regional code number on the DVD disc
package.
If
the number does not match the region code
of
this unit (see the table below or the back
of
this unit), this
unit may be unable to play the disc.
~
AUDIO'"
DVD
.o,a,.ee_*:
r£
rillo~i
t£
rillo~i
Q!.DEO
VIDEO
CD
(DIGITAL
VIDEO
I
~CD
(SUPER
VIDEO
I
~
rillw
rillDm
rillm
~
SUPER
AUDIO
CD
DIGITAL
AUDIO
l;i¥Ntell.m;M
IReWritablel
2Y£~tmDtmD.
DVD+R
DVD+ReWritable DVD+R
DL
•This unit is designed for use with the following discs:
DVD-Video, DVD-Audio, DVD-R, DVD-RW,
DVD+R, DVD+RW, DVD+R DL, Video CD,
SuperVideo CD, SuperAudio CD (SA-CD), Audio CD,
CD-R and CD-RW.
•This unit can play:
-MP3,
WMA
(except copyright-protected WMA) and
picture (Kodak, JPEG) files recorded on CD-R(W)/
DVD-R(W)/DVD+R(W)
-JPEGIISO 9660 format
-Maximum 14 character display
-DivX® disc on CD-R(W)/DVD-R(W)/DVD+R(W)
-Official Div
X®
Certified product
-Plays all versions
of
DivX® video (including
Div
X®
6) with standard playback
of
Div
X®
media
files
INTRODUCTION
Thank you
for
purchasing this unit. This Owner's Manual
explains the basic operation
of
this unit.
Illustrations in this manual are based on the U.K. and
Europe models unless otherwise specified.
Notes contain important information about safety and
operating instructions.
~\¥-:.
indicates atip for your operation.
This manual is printed prior to production. Design and
specifications are subject to change in part as aresult
of
improvements, etc. In case
of
differences between the
manual and the product, the product has priority.
3En
INTRODUCTION
[][]
IDOLBYI
DIGITAL
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-Dsymbol are trademarks
of
Dolby Laboratories.
rm~
SURROUND
"DTS" and "DTS Digital Surround" are registered
trademarks
of
Digital Theater Systems, Inc.
•When adisc becomes dirty, clean it with acleaning
cloth. Wipe the disc from the center out. Do not wipe in
acircular motion.
•Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic spray
intended for analog records.
DivX, DivXCertified, and associated logos are
trademarks
of
DivX, Inc. and are used under license. Checkyourpackage to make sure it contains the following
items:
IDCDrI
byFAROUD]A
"DCDi" is atrademark
of
Faroudja, adivision
of
Genesis
Microchip, Inc.
"HDMI", the "HDMI" logo and "High Definition
Multimedia Interface" are trademarks or registered
trademark
of
HDMI Licensing LLC.
This product incorporates copyright protection
technology that is protected by method claims
of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use
of
this copyright protection
technology must be authorized by Macrovision
Corporation, and is intendedfor home and otherlimited
viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
4En
Remote
control Batteries (x2)
(AAA, R03, UM-4)
Audio pin cable
Video pin cable
Power cable
INTRODUCTION
[][]
IDOLBYI
DIGITAL
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-Dsymbol are trademarks
of
Dolby Laboratories.
rm~
SURROUND
"DTS" and "DTS Digital Surround" are registered
trademarks
of
Digital Theater Systems, Inc.
•When adisc becomes dirty, clean it with acleaning
cloth. Wipe the disc from the center out. Do not wipe in
acircular motion.
•Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic spray
intended for analog records.
DivX, DivXCertified, and associated logos are
trademarks
of
DivX, Inc. and are used under license. Checkyourpackage to make sure it contains the following
items:
IDCDrI
byFAROUD]A
"DCDi" is atrademark
of
Faroudja, adivision
of
Genesis
Microchip, Inc.
"HDMI", the "HDMI" logo and "High Definition
Multimedia Interface" are trademarks or registered
trademark
of
HDMI Licensing LLC.
This product incorporates copyright protection
technology that is protected by method claims
of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use
of
this copyright protection
technology must be authorized by Macrovision
Corporation, and is intendedfor home and otherlimited
viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
4En
Remote
control Batteries (x2)
(AAA, R03, UM-4)
Audio pin cable
Video pin cable
Power cable
FUNCTIONAL
OVERVIEW
CD
Disc tray
Load adisc in the disc tray.
®STANDBY/ON
Turns on this unit or sets it to the standby mode.
@HDMI indicator
Lights up green when an HDMI component is
recognized by this unit and the HDMI mode is set to
on.
Lights up orange when no HDMI component is
recognized by this unit while the HDMI mode is set to
on.
®AUDIO DIRECT indicator
Lights up when you select the AUDIO DIRECT mode
by pressing AUDIO DIRECT on the remote control.
®Front panel display
Displays playback information
or
settings.
@L:::..
Opens or closes the disc tray.
(J)
I<]<J/<J<:]
Searches backward.*
Moves to the previous chapter
or
track.
®
I>t>JI>I>I
Searches forward.*
Moves to the next chapter or track.
®
[>100
Starts or pauses playback.
@D
Stops playback.
*Press and hold the button for about three seconds.
5En
FUNCTIONAL
OVERVIEW
CD
Disc tray
Load adisc in the disc tray.
®STANDBY/ON
Turns on this unit or sets it to the standby mode.
@HDMI indicator
Lights up green when an HDMI component is
recognized by this unit and the HDMI mode is set to
on.
Lights up orange when no HDMI component is
recognized by this unit while the HDMI mode is set to
on.
®AUDIO DIRECT indicator
Lights up when you select the AUDIO DIRECT mode
by pressing AUDIO DIRECT on the remote control.
®Front panel display
Displays playback information
or
settings.
@L:::..
Opens or closes the disc tray.
(J)
I<]<J/<J<:]
Searches backward.*
Moves to the previous chapter
or
track.
®
I>t>JI>I>I
Searches forward.*
Moves to the next chapter or track.
®
[>100
Starts or pauses playback.
@D
Stops playback.
*Press and hold the button for about three seconds.
5En
FUNCTIONAL OVERVIEW
CD
P.SCAN indicator
Lights up when the progressive scan function is
activated.
®Playback mode indicators
Display the icon for the selected playback mode.
®Decoder indicators
Display the icon for the selected internal decoder.
®MULTI indicator
Lights up when playing the multi-channel audio
source.
6En
®D.MIX indicator (DVD-Audio only)
Lights up when playing the disc that allows down
mixing
of
the multi-channel audio source.
®Disc indicators
Display the icon for the disc type.
(j) Information display
Displays various information such as atitle/chapter/
track number or elapsed playing time.
You
can adjust the brightness
of
the front panel display using
DIMMER on the remote control.
FUNCTIONAL OVERVIEW
CD
P.SCAN indicator
Lights up when the progressive scan function is
activated.
®Playback mode indicators
Display the icon for the selected playback mode.
®Decoder indicators
Display the icon for the selected internal decoder.
®MULTI indicator
Lights up when playing the multi-channel audio
source.
6En
®D.MIX indicator (DVD-Audio only)
Lights up when playing the disc that allows down
mixing
of
the multi-channel audio source.
®Disc indicators
Display the icon for the disc type.
(j) Information display
Displays various information such as atitle/chapter/
track number or elapsed playing time.
You
can adjust the brightness
of
the front panel display using
DIMMER on the remote control.
FUNCTIONAL OVERVIEW
(U.K. and Europe models)
CD
AUDIO OUT (6ch discrete)
jacks
Connect to the 6ch inputjacks
of
your
AV
receiver.
®DIGITAL (COAXIAL)
jack
Connect to the coaxial input
jack
of
your
AV
receiver.
®REMOTE CONTROL (IN/OUT) connectors
Use in custom installations to transmit remote control
signals via cable connections.
®REMOTE CONTROL (RS-232C) terminal
(U.S.A., Canada, Australia, U.K. and Europe
models only)
Use as an expansion terminal for commercial use.
Consult your dealer for details.
®
AV
terminal
(U.K. and Europe models only)
Connect to SCART input terminal
of
your
TV.
®VIDEO OUT (VIDEO)
jack
Connect to the composite video input
jack
of
your
AV
receiver.
(j) MAINS
Connect the supplied power cable.
®AUDIO OUT (MIXED 2CH)
jacks
Connect to the audio inputjacks
of
your
AV
receiveror
stereo system.
®DIGITAL (OPTICAL)
jack
Connect to the optical input
jack
of
your
AV
receiver.
@)
HDMI jack
Connect to the HDMI input
jack
of
your HDMI
component.
@VIDEO OUT (S VIDEO)
jack
Connect to the S-video input
jack
of
your
AV
receiver.
@VIDEO OUT (COMPONENT)
jacks
Connect to the component inputjacks
of
your
AV
receiver.
•Remote control connectors and RS-232C terminal
The REMOTE CONTROL (IN/OUT) connectors and the REMOTE CONTROL (RS-232C) terminal are used in
custom installation.
Do
not connect any cables to these connectors during normal use.
(For U.S.A., Canada, Australia, U.K. and Europe models, keep the RS-232C switch set to
OFF.)
Caution: Do
not
touch
the
inner
pins
of
the
jacks
on
the rear panel
of
this
unit. Electrostatic discharge
may cause permanent damage
to
this
unit.
7En
FUNCTIONAL OVERVIEW
(U.K. and Europe models)
CD
AUDIO OUT (6ch discrete)
jacks
Connect to the 6ch inputjacks
of
your
AV
receiver.
®DIGITAL (COAXIAL)
jack
Connect to the coaxial input
jack
of
your
AV
receiver.
®REMOTE CONTROL (IN/OUT) connectors
Use in custom installations to transmit remote control
signals via cable connections.
®REMOTE CONTROL (RS-232C) terminal
(U.S.A., Canada, Australia, U.K. and Europe
models only)
Use as an expansion terminal for commercial use.
Consult your dealer for details.
®
AV
terminal
(U.K. and Europe models only)
Connect to SCART input terminal
of
your
TV.
®VIDEO OUT (VIDEO)
jack
Connect to the composite video input
jack
of
your
AV
receiver.
(j) MAINS
Connect the supplied power cable.
®AUDIO OUT (MIXED 2CH)
jacks
Connect to the audio inputjacks
of
your
AV
receiveror
stereo system.
®DIGITAL (OPTICAL)
jack
Connect to the optical input
jack
of
your
AV
receiver.
@)
HDMI jack
Connect to the HDMI input
jack
of
your HDMI
component.
@VIDEO OUT (S VIDEO)
jack
Connect to the S-video input
jack
of
your
AV
receiver.
@VIDEO OUT (COMPONENT)
jacks
Connect to the component inputjacks
of
your
AV
receiver.
•Remote control connectors and RS-232C terminal
The REMOTE CONTROL (IN/OUT) connectors and the REMOTE CONTROL (RS-232C) terminal are used in
custom installation.
Do
not connect any cables to these connectors during normal use.
(For U.S.A., Canada, Australia, U.K. and Europe models, keep the RS-232C switch set to
OFF.)
Caution: Do
not
touch
the
inner
pins
of
the
jacks
on
the rear panel
of
this
unit. Electrostatic discharge
may cause permanent damage
to
this
unit.
7En
FUNCTIONAL OVERVIEW
8
En
CD
DIMMER
Selects from three different levels
of
brightness for the
front panel display: medium, low and auto.
For auto setting, brightness is automatically set to low
only during playback.
®HDMI
Switches the HDMI mode on
or
off.
®GROUP
Selects the DVD-Audio group.
®PAGE (+/-)
Selects the DVD-Audio still picture.
®Numeric buttons
(O-g)
Select numbered items in the currently displayed
menu.
®CLEAR
Clear the mode
or
setting.
(j) SETUP
Accesses or exits from the setup menu
of
this unit.
®
STOP(_}
Stops playback.
®PAUSE
(II
)
Pauses playback temporarily.
Frame-by-frame playback.
@SKIP
(~
......
/~~I)
Moves to the previous/next chapter
or
track.
@TOP MENU
Displays the top-level disc menu.
@Cursors
(.~/~
/~/~)
Selects an item in the currently displayed menu.
ENTER
Confirms the menu selection.
FUNCTIONAL OVERVIEW
8
En
CD
DIMMER
Selects from three different levels
of
brightness for the
front panel display: medium, low and auto.
For auto setting, brightness is automatically set to low
only during playback.
®HDMI
Switches the HDMI mode on
or
off.
®GROUP
Selects the DVD-Audio group.
®PAGE (+/-)
Selects the DVD-Audio still picture.
®Numeric buttons
(O-g)
Select numbered items in the currently displayed
menu.
®CLEAR
Clear the mode
or
setting.
(j) SETUP
Accesses or exits from the setup menu
of
this unit.
®
STOP(_}
Stops playback.
®PAUSE
(II
)
Pauses playback temporarily.
Frame-by-frame playback.
@SKIP
(~
......
/~~I)
Moves to the previous/next chapter
or
track.
@TOP MENU
Displays the top-level disc menu.
@Cursors
(.~/~
/~/~)
Selects an item in the currently displayed menu.
ENTER
Confirms the menu selection.
·FUNCTIONAL OVERVIEW
@MENU
Accesses the menu
of
adisc.
®SUBTITLE
Selects the subtitle language.
(@
AUDIO
Selects the audio language or fonnat.
@POWER
(I)
Turns on this unit.
@STANDBY(<!»
Sets this unit to the standby mode.
@AUDIO DIRECT
Switches the video output on or offduring playback.
This function is not available for HDMI output.
During playback in the AUDIO DIRECT mode, the
front panel display goes out.
@MULTII2CH
Selects asound mode: Stereo or Multi-channel.
Changes the SA-CD playback area.
@PROG
Accesses the program setup menu to program disc
tracks or exit from its menu.
®RANDOM
Plays tracks in random order.
@REPEAT
Repeats the chapter, track, title, group or disc.
@A-B
Repeats aspecific segment.
@ENTER
Confinns the menu selection.
@SLOW'SEARCH (
........
,
••
)
Searches backward or forward.
@
PLAy(
....)
Starts playback.
@ON SCREEN
Accesses or exit from the on-screen display (OSD)
menu
of
this unit.
@RETURN
Returns to the previous setup menu.
@ZOOM
Enlarges the video image.
®ANGLE
Selects the DVD camera angle.
",
.:~~
Two ENTER buttons (@ and @) act in the same way.
9En
·FUNCTIONAL OVERVIEW
@MENU
Accesses the menu
of
adisc.
®SUBTITLE
Selects the subtitle language.
(@
AUDIO
Selects the audio language or fonnat.
@POWER
(I)
Turns on this unit.
@STANDBY(<!»
Sets this unit to the standby mode.
@AUDIO DIRECT
Switches the video output on or offduring playback.
This function is not available for HDMI output.
During playback in the AUDIO DIRECT mode, the
front panel display goes out.
@MULTII2CH
Selects asound mode: Stereo or Multi-channel.
Changes the SA-CD playback area.
@PROG
Accesses the program setup menu to program disc
tracks or exit from its menu.
®RANDOM
Plays tracks in random order.
@REPEAT
Repeats the chapter, track, title, group or disc.
@A-B
Repeats aspecific segment.
@ENTER
Confinns the menu selection.
@SLOW'SEARCH (
........
,
••
)
Searches backward or forward.
@
PLAy(
....)
Starts playback.
@ON SCREEN
Accesses or exit from the on-screen display (OSD)
menu
of
this unit.
@RETURN
Returns to the previous setup menu.
@ZOOM
Enlarges the video image.
®ANGLE
Selects the DVD camera angle.
",
.:~~
Two ENTER buttons (@ and @) act in the same way.
9En
CONNECTIONS
Subwoofer
cJ»
~-~-~-~
cJ»
FRONT
CENTER
SUBWOOFER
SURROUND
®
CO
®
CO
Connecting an
AV
receiver with
5.1
chI
digital
input
jacks
•Analog connections
If
you want to reproduce multi-channel Super Audio CD
(SA-CD) and DVD-Audio, connect AUDIO OUT (6ch
discrete)jacks
of
this unit to the corresponding input
jacks
of
your
AV
receiver using commercially available
audio pin cables.
This unit has digital coaxial, digital optical, analog 6ch
discrete, analog mixed 2ch and HDMI output jacks.
Connection depends on the availability
of
audio jacks on
your component.
This
unit
(U.K. and Europe models)
Connecting astereo amplifier
Connect AUDIO OUT (MIXED 2CH)jacks
of
this unit to
the corresponding inputjacks
of
your audio component
(such as astereo amplifier) using the supplied audio pin
cable.
You
can connect asubwoofer to the
SUBWOOFERjack.
Be
sure to
tum
offthis unit and unplug the power supply
cable, before you make
or
change connections.
•Depending on the componentyou want to connect, there
are various ways to make connections. Possible
connections are described below.
•Refer to the manuals supplied with your other
components as necessary to make the best connections.
•Do not connect this unit via your VCR. The video
quality couldbe distorted by the copy protection system.
•Do not connect the audio out
jack
of
this unit to the
phono in
jack
of
your audio system.
Left
speaker Right
speaker
10 En
CONNECTIONS
Subwoofer
cJ»
~-~-~-~
cJ»
FRONT
CENTER
SUBWOOFER
SURROUND
®
CO
®
CO
Connecting an
AV
receiver with
5.1
chI
digital
input
jacks
•Analog connections
If
you want to reproduce multi-channel Super Audio CD
(SA-CD) and DVD-Audio, connect AUDIO OUT (6ch
discrete)jacks
of
this unit to the corresponding input
jacks
of
your
AV
receiver using commercially available
audio pin cables.
This unit has digital coaxial, digital optical, analog 6ch
discrete, analog mixed 2ch and HDMI output jacks.
Connection depends on the availability
of
audio jacks on
your component.
This
unit
(U.K. and Europe models)
Connecting astereo amplifier
Connect AUDIO OUT (MIXED 2CH)jacks
of
this unit to
the corresponding inputjacks
of
your audio component
(such as astereo amplifier) using the supplied audio pin
cable.
You
can connect asubwoofer to the
SUBWOOFERjack.
Be
sure to
tum
offthis unit and unplug the power supply
cable, before you make
or
change connections.
•Depending on the componentyou want to connect, there
are various ways to make connections. Possible
connections are described below.
•Refer to the manuals supplied with your other
components as necessary to make the best connections.
•Do not connect this unit via your VCR. The video
quality couldbe distorted by the copy protection system.
•Do not connect the audio out
jack
of
this unit to the
phono in
jack
of
your audio system.
Left
speaker Right
speaker
10 En
•Digital connections
If
you want to use the Dolby Digital, DTS or MPEG
function on your
AV
receiver, connect DIGITAL
(OPTICAL) <A> or DIGITAL (COAXIAL) <B> or
HOMI
<C>
jack
of
this unit to the corresponding input
jacks
of
your
AV
receiver using acommercially available
digital optical, digital coaxial or HDMI cable.
See
"HDMIjack
<A>" on page 12 about HDMI
connection.
AV
receiver
':::11*'1::::;
•
If
you make aconnection with <A> or <B>, set [Digital Out]
to [All] (see "Setting the digital output" on page 28).
•
If
the audio format
of
the digital output does not match the
capabilities
of
your receiver, the receiver produces adistorted
sound or no sound at all. Make sure to select the appropriate
audio format from the menu screen on the disc.
Pressing AUDIO on the remote control once or more may
change not only the audio languages but also the audio format.
•SA-CD audio signals are not output from DIGITAL
(COAXIAL/OPTICAL) jacks.
•
If
you want to enjoy Dolby Digital, DTS, and MPEG formats,
you must connect this unit to an
AV
receiver that supports
these formats.
ONN
This unit has SCART, composite video, S-video,
component video and HDMI outputjacks.
If
your
AV
receiver has video outputjacks, connect your receiver and
then your
TV
so that you can use one TV for several
different video sources (LD,
VCR
etc.) by simply
switching the input source selector on your receiver.
Use the one that corresponds to the inputjacks on the
component to be connected.
This
unit
(U.K. and Europe models)
AV
receiver
TV
11
En
•Digital connections
If
you want to use the Dolby Digital, DTS or MPEG
function on your
AV
receiver, connect DIGITAL
(OPTICAL) <A> or DIGITAL (COAXIAL) <B> or
HOMI
<C>
jack
of
this unit to the corresponding input
jacks
of
your
AV
receiver using acommercially available
digital optical, digital coaxial or HDMI cable.
See
"HDMIjack
<A>" on page 12 about HDMI
connection.
AV
receiver
':::11*'1::::;
•
If
you make aconnection with <A> or <B>, set [Digital Out]
to [All] (see "Setting the digital output" on page 28).
•
If
the audio format
of
the digital output does not match the
capabilities
of
your receiver, the receiver produces adistorted
sound or no sound at all. Make sure to select the appropriate
audio format from the menu screen on the disc.
Pressing AUDIO on the remote control once or more may
change not only the audio languages but also the audio format.
•SA-CD audio signals are not output from DIGITAL
(COAXIAL/OPTICAL) jacks.
•
If
you want to enjoy Dolby Digital, DTS, and MPEG formats,
you must connect this unit to an
AV
receiver that supports
these formats.
ONN
This unit has SCART, composite video, S-video,
component video and HDMI outputjacks.
If
your
AV
receiver has video outputjacks, connect your receiver and
then your
TV
so that you can use one TV for several
different video sources (LD,
VCR
etc.) by simply
switching the input source selector on your receiver.
Use the one that corresponds to the inputjacks on the
component to be connected.
This
unit
(U.K. and Europe models)
AV
receiver
TV
11
En
CONNECTIONS
•HOMI jack <A>
HDMI (High-Definition Multimedia Interface) provides
high quality digital audio and video on asingle
connection. Connect HDMI
jack
of
this unit to the HDMI
input
jack
of
your
AV
receiver, and then to that
of
your
TV
using acommercially available HDMI cable.
If
your receiver does not have HDMI outputjack, you can
achieve abetter video image by connecting HDMI
jack
of
this unit directly to the HDMI input
jack
of
your
TV.
•
To
output HDMI signals, set the HDMI mode to "on" by
pressing HDMI button on the remote control.
•
You
can use an HDMI-DVI converter cable in order to connect
this unit to HDCP-compatible DVI-D components. In this case,
you need to use another audio connection in addition to this
connection because no audio signals are output.
•Composite video jack <B>
Connect VIDEO OUT (VIDEO)
jack
of
this unit to the
video input
jack
of
your
AV
receiver, and then to that
of
your
TV
using the supplied video pin cable.
•S-video jack <C>
S-video connections achieve aclearer picture than
composite video connections by transmitting video signals
on separate wires for luminance (Y) and chrominance (C).
Connect VIDEO OUT (S VIDEO)
jack
of
this unit to
S-video input
jack
of
your
AV
receiver, and then to that
of
your
TV
using acommercially available S-video cable.
•Component video jacks
<0>
Component video connections achieve higher fidelity
color reproduction than S-video connections by
transmitting video signals on separate wires for luminance
(Y:
green) and chrominance (PB: blue,
PR:
red). Connect
VIDEO OUT (COMPONENT) jacks
of
this unit to the
component inputjacks
of
your
AV
receiver, and then to
those
of
your
TV
using acommercially available
component cable. Observe the color
of
each
jack
when
you make connections.
If
your receiver does not have component outputjacks,
you can achieve abetter video image by connecting the
component outputjacks
of
this unit directly to the
component input jacks
of
your
TV.
12
En
•SCART terminal <E>
(U.K. and Europe models only)
If
your TV has only aterminal for video input, you can
connect the TV directly to this unit.
Connect
AV
terminal
of
this unit to SCART input terminal
of
your
TV
using acommercially available SCART cable.
•Ensure that the "TV" indication on SCART cable is connected
to the
TV
set and "DVD" indication on SCART cable is
connected to this unit.
After all otherconnections are complete, plug the supplied
power cable into MAINS
of
this unit and then plug the
power cable to an AC outlet.
CONNECTIONS
•HOMI jack <A>
HDMI (High-Definition Multimedia Interface) provides
high quality digital audio and video on asingle
connection. Connect HDMI
jack
of
this unit to the HDMI
input
jack
of
your
AV
receiver, and then to that
of
your
TV
using acommercially available HDMI cable.
If
your receiver does not have HDMI outputjack, you can
achieve abetter video image by connecting HDMI
jack
of
this unit directly to the HDMI input
jack
of
your
TV.
•
To
output HDMI signals, set the HDMI mode to "on" by
pressing HDMI button on the remote control.
•
You
can use an HDMI-DVI converter cable in order to connect
this unit to HDCP-compatible DVI-D components. In this case,
you need to use another audio connection in addition to this
connection because no audio signals are output.
•Composite video jack <B>
Connect VIDEO OUT (VIDEO)
jack
of
this unit to the
video input
jack
of
your
AV
receiver, and then to that
of
your
TV
using the supplied video pin cable.
•S-video jack <C>
S-video connections achieve aclearer picture than
composite video connections by transmitting video signals
on separate wires for luminance (Y) and chrominance (C).
Connect VIDEO OUT (S VIDEO)
jack
of
this unit to
S-video input
jack
of
your
AV
receiver, and then to that
of
your
TV
using acommercially available S-video cable.
•Component video jacks
<0>
Component video connections achieve higher fidelity
color reproduction than S-video connections by
transmitting video signals on separate wires for luminance
(Y:
green) and chrominance (PB: blue,
PR:
red). Connect
VIDEO OUT (COMPONENT) jacks
of
this unit to the
component inputjacks
of
your
AV
receiver, and then to
those
of
your
TV
using acommercially available
component cable. Observe the color
of
each
jack
when
you make connections.
If
your receiver does not have component outputjacks,
you can achieve abetter video image by connecting the
component outputjacks
of
this unit directly to the
component input jacks
of
your
TV.
12
En
•SCART terminal <E>
(U.K. and Europe models only)
If
your TV has only aterminal for video input, you can
connect the TV directly to this unit.
Connect
AV
terminal
of
this unit to SCART input terminal
of
your
TV
using acommercially available SCART cable.
•Ensure that the "TV" indication on SCART cable is connected
to the
TV
set and "DVD" indication on SCART cable is
connected to this unit.
After all otherconnections are complete, plug the supplied
power cable into MAINS
of
this unit and then plug the
power cable to an AC outlet.
GETTING
STARTED
.
Using the remote control
Use the remote control within 6 m (20 ft approx.)
of
this
unit and point it toward the remote control sensor.
.
i
within
6m
I(20 ft approx.)
300I
30
0
----=-.:...-I~
1Press the •part and slide the battery
compartment cover off.
2Insert the two supplied batteries (AAA, R03,
UM-4), following the indications (+1-) on the
inside
of
the compartment.
3Slide the cover back until it snaps into place.
•Insert batteries correctly according to the polarity markings
(+/-). The batteries inserted in the opposite direction may leak.
•Replace the exhausted batteries immediately with new ones to
prevent aleakage.
•Remove the batteries from the compartment
if
the remote
control is not used for more than amonth.
•
If
the batteries have leaked, dispose
of
them immediateI
y.
Avoid touching the leaked material or letting it come into
contact with clothing, etc. Clean the battery compartment
thoroughly before installing new batteries.
•Do not use old batteries together with new ones.
•Do not use different types
of
batteries (such
as
alkaline and
manganese batteries) together. Read the packaging carefully as
these different types
of
batteries may have the same shape and
color.
•Dispose
of
the batteries correctly in accordance with your local
regulations.
•Do not spill water or other liquids on the remote control.
•Do not drop the remote control.
•Do not leave or store the remote control in the following types
of
conditions:
-places
of
high humidity, such as near abath
-places
of
high temperature, such as near aheater or stove
-places
of
extremely low temperature
-.
dusty places
1
~1ake
sure that the power cable is connected to
an AC outlet.
2Tum on your TV and
AV
receiver.
3Select the appropriate input source
of
the
AV
receiver connected to this unit. Refer to the
manual supplied with your
AV
receiver for
details.
4Press STANDBY/ON on the front panel or
POWER (I ) on the remote control to tum on
this unit.
...
The front panel display lights up.
5Set the TV to the correct Video IN channel (e.g.,
EXTl/2,
AVl/2,
AUDIONIDEO, etc. Refer to
the manual supplied with your TV for details).
...
The default screen appears on the
TV.
13
En
GETTING
STARTED
.
Using the remote control
Use the remote control within 6 m (20 ft approx.)
of
this
unit and point it toward the remote control sensor.
.
i
within
6m
I(20 ft approx.)
300I
30
0
----=-.:...-I~
1Press the •part and slide the battery
compartment cover off.
2Insert the two supplied batteries (AAA, R03,
UM-4), following the indications (+1-) on the
inside
of
the compartment.
3Slide the cover back until it snaps into place.
•Insert batteries correctly according to the polarity markings
(+/-). The batteries inserted in the opposite direction may leak.
•Replace the exhausted batteries immediately with new ones to
prevent aleakage.
•Remove the batteries from the compartment
if
the remote
control is not used for more than amonth.
•
If
the batteries have leaked, dispose
of
them immediateI
y.
Avoid touching the leaked material or letting it come into
contact with clothing, etc. Clean the battery compartment
thoroughly before installing new batteries.
•Do not use old batteries together with new ones.
•Do not use different types
of
batteries (such
as
alkaline and
manganese batteries) together. Read the packaging carefully as
these different types
of
batteries may have the same shape and
color.
•Dispose
of
the batteries correctly in accordance with your local
regulations.
•Do not spill water or other liquids on the remote control.
•Do not drop the remote control.
•Do not leave or store the remote control in the following types
of
conditions:
-places
of
high humidity, such as near abath
-places
of
high temperature, such as near aheater or stove
-places
of
extremely low temperature
-.
dusty places
1
~1ake
sure that the power cable is connected to
an AC outlet.
2Tum on your TV and
AV
receiver.
3Select the appropriate input source
of
the
AV
receiver connected to this unit. Refer to the
manual supplied with your
AV
receiver for
details.
4Press STANDBY/ON on the front panel or
POWER (I ) on the remote control to tum on
this unit.
...
The front panel display lights up.
5Set the TV to the correct Video IN channel (e.g.,
EXTl/2,
AVl/2,
AUDIONIDEO, etc. Refer to
the manual supplied with your TV for details).
...
The default screen appears on the
TV.
13
En
GETTING STARTED
This unit is compatible with both NTSC and PAL video
formats. Select the color system that matches your
TV.
•Before changing the current
TV
Standard setting, ensure that
your
TV
supports the selected
TV
type system.
•
If
you play an NTSC-formatted disc with the [PAL] setting
or
a
PAL-formatted disc with the [NTSC] setting, the video quality
may deteriorate.
1Press SETUP.
..
The setup menu appears.
2Press
~
I
~
repeatedly to select [VIDEO],
and then press ENTER.
..
[VIDEO] menu appears.
*1: [Black Level] and [Closed Caption] are only for U.S.A. and
Canada models.
*2: [Scart Video Out] is only for U.K. and Europe models.
14 En
3Press
~
I·~·
repeatedly to highlight [TV
Type].
4Press
~
I
~
to select one
of
the options below.
PAL
Select this
if
the connected
TV
is aPAL system
TV.
It
will
change video signals
of
NTSC discs and output them in
PAL format.
NTSC
Select this
if
the connected
TV
is an NTSC system
TV.
It
will change video.signals
of
PAL discs and output them in
NTSC format.
GETTING STARTED
This unit is compatible with both NTSC and PAL video
formats. Select the color system that matches your
TV.
•Before changing the current
TV
Standard setting, ensure that
your
TV
supports the selected
TV
type system.
•
If
you play an NTSC-formatted disc with the [PAL] setting
or
a
PAL-formatted disc with the [NTSC] setting, the video quality
may deteriorate.
1Press SETUP.
..
The setup menu appears.
2Press
~
I
~
repeatedly to select [VIDEO],
and then press ENTER.
..
[VIDEO] menu appears.
*1: [Black Level] and [Closed Caption] are only for U.S.A. and
Canada models.
*2: [Scart Video Out] is only for U.K. and Europe models.
14 En
3Press
~
I·~·
repeatedly to highlight [TV
Type].
4Press
~
I
~
to select one
of
the options below.
PAL
Select this
if
the connected
TV
is aPAL system
TV.
It
will
change video signals
of
NTSC discs and output them in
PAL format.
NTSC
Select this
if
the connected
TV
is an NTSC system
TV.
It
will change video.signals
of
PAL discs and output them in
NTSC format.
You
can select your own preferred language settings. This
unit will automatically switch to your preferred language
for you whenever you load adisc.
If
the language selected
is not available on the disc, the default language
of
the disc
will be used instead. The OSD (On-Screen Display)
language in the system menu will remain once selected.
Setting the OSD (On-Screen Display)
language
1Press SETUP.
...
The setup menu appears.
2Press
.........
1
~
repeatedly to highlight
[GENERAL], and then press ENTER.
...
[GENERAL] menu appears.
3
Press
........
1
~
repeatedly to highlight [OSD
Language].
4Press
~
1
~
to select alanguage.
GETTING STARTED
Setting the audio, subtitle and disc
menu languages
1Press SETUP.
...
The setup menu appears.
2
Press
........
1
~
repeatedly to highlight [DISC],
and then press ENTER.
...
[DISC] menu appears.
3Press
~
1
~
repeatedly to highlight [AUDIO
Language] or [Subtitle Language] or [DVD
Menu Language].
4Press...c 1
~
to select alanguage.
•
To
select the language not in the list:
1Select [Others] under [AUDIO Language] or
[Subtitle Language] or [DVD Menu Language].
2Press ENTER.
3Use the numeric buttons
(O-g)
to enter the
4-digitlanguage code (see "LANGUAGE CODE
LIST" on page 36).
4Press ENTER.
15
En
You
can select your own preferred language settings. This
unit will automatically switch to your preferred language
for you whenever you load adisc.
If
the language selected
is not available on the disc, the default language
of
the disc
will be used instead. The OSD (On-Screen Display)
language in the system menu will remain once selected.
Setting the OSD (On-Screen Display)
language
1Press SETUP.
...
The setup menu appears.
2Press
.........
1
~
repeatedly to highlight
[GENERAL], and then press ENTER.
...
[GENERAL] menu appears.
3
Press
........
1
~
repeatedly to highlight [OSD
Language].
4Press
~
1
~
to select alanguage.
GETTING STARTED
Setting the audio, subtitle and disc
menu languages
1Press SETUP.
...
The setup menu appears.
2
Press
........
1
~
repeatedly to highlight [DISC],
and then press ENTER.
...
[DISC] menu appears.
3Press
~
1
~
repeatedly to highlight [AUDIO
Language] or [Subtitle Language] or [DVD
Menu Language].
4Press...c 1
~
to select alanguage.
•
To
select the language not in the list:
1Select [Others] under [AUDIO Language] or
[Subtitle Language] or [DVD Menu Language].
2Press ENTER.
3Use the numeric buttons
(O-g)
to enter the
4-digitlanguage code (see "LANGUAGE CODE
LIST" on page 36).
4Press ENTER.
15
En
DISC
OPERATION
•Unless otherwise specified, all operations described here are
carried out using the supplied remote control.
•
If
the inhibition icon
((S)
or "Prohibit") appears on the TV
screen when you press abutton, the function for that button is
not available on the current disc or at the current time.
•Depending on the DVD or Video CD disc, some operations
may operate differently or be restricted.
oDo not push on the disc tray orput any objects other than discs
on the disc tray. Doing so may cause the disc unit to
malfunction.
3Press.6.. again to close the disc tray.
...
After recognizing the disc, this unit starts to play
back automatically.
•
If
you press
PLAY
(
~
)when the disc tray is
opened, the disc tray closes and playback starts
automatically.
•Depending on the disc, the disc reading time may
exceed 30 seconds due to the complexity
of
the
directory/file configuration.
4
To
stop playback, press STOP
(.
).
...
"RESUME" appears in the front panel display.
5
To
resll:me
playback, press PLAY
(~).
...
The disc is played back from the last stopping
point.
As long as you do not eject adisc, you can resume playback even
if
you turn off this unit.
Selecting atrack/chapter
Press SKIP
(~
.....
I~~I)
or use the numeric
buttons (0-9) to select atrack/chapter number.
You
can move to the top
of
the currently playing
track/chapter by pressing SKIP
(~
.....
)once, and
move to the previous track/chapter by pressing
SKIP
(~
.....
)twice.
•During repeat playback
of
atrack/chapter, press
SKIP
(~
.....
/~~I)
to replay the same track/
chapter.
6
To
cancel resume mode, press STOP
(.
)
twice.
•It may not be possible to play certain MP3/JPEGIDivXdiscs
due to the configuration and characteristics
of
the disc or the
recording conditions.
•When you
playa
down mix prohibited disc, "NO DOWN
MIX" lights in the front panel display.
Pausing playback
1During playback, press PAUSE (
II
).
...
Playback is paused and the sound is muted.
2Press PAUSE (
II
)again to select the next
picture frame.
3
To
resume normal playback, press PLAY (
~
).
($
•
•
•
1Press.6.. on the front panel to open the disc tray.
2Place adisc in the disc tray
~ith
the printed side
up.
16 En
DISC
OPERATION
•Unless otherwise specified, all operations described here are
carried out using the supplied remote control.
•
If
the inhibition icon
((S)
or "Prohibit") appears on the TV
screen when you press abutton, the function for that button is
not available on the current disc or at the current time.
•Depending on the DVD or Video CD disc, some operations
may operate differently or be restricted.
oDo not push on the disc tray orput any objects other than discs
on the disc tray. Doing so may cause the disc unit to
malfunction.
3Press.6.. again to close the disc tray.
...
After recognizing the disc, this unit starts to play
back automatically.
•
If
you press
PLAY
(
~
)when the disc tray is
opened, the disc tray closes and playback starts
automatically.
•Depending on the disc, the disc reading time may
exceed 30 seconds due to the complexity
of
the
directory/file configuration.
4
To
stop playback, press STOP
(.
).
...
"RESUME" appears in the front panel display.
5
To
resll:me
playback, press PLAY
(~).
...
The disc is played back from the last stopping
point.
As long as you do not eject adisc, you can resume playback even
if
you turn off this unit.
Selecting atrack/chapter
Press SKIP
(~
.....
I~~I)
or use the numeric
buttons (0-9) to select atrack/chapter number.
You
can move to the top
of
the currently playing
track/chapter by pressing SKIP
(~
.....
)once, and
move to the previous track/chapter by pressing
SKIP
(~
.....
)twice.
•During repeat playback
of
atrack/chapter, press
SKIP
(~
.....
/~~I)
to replay the same track/
chapter.
6
To
cancel resume mode, press STOP
(.
)
twice.
•It may not be possible to play certain MP3/JPEGIDivXdiscs
due to the configuration and characteristics
of
the disc or the
recording conditions.
•When you
playa
down mix prohibited disc, "NO DOWN
MIX" lights in the front panel display.
Pausing playback
1During playback, press PAUSE (
II
).
...
Playback is paused and the sound is muted.
2Press PAUSE (
II
)again to select the next
picture frame.
3
To
resume normal playback, press PLAY (
~
).
($
•
•
•
1Press.6.. on the front panel to open the disc tray.
2Place adisc in the disc tray
~ith
the printed side
up.
16 En
