Yamaha Portatone PSR-530 User manual

PORTnTOriE
SERVICE MANUAL
■ CONTENTS (i>^)
BLOCK DIAGRAM {7 U'y'7T'7 V h) . 2
CIRCUT BOARD LAYOUT h).4
DISASSEMBLY PROCEDURE 7
LSI PIN DESCRIPTION (LSlS^^i^^).12
IC BLOCK DIAGRAM (IC7 □ y 711).14
CIRCUIT BOARDS ('>- hMH).15

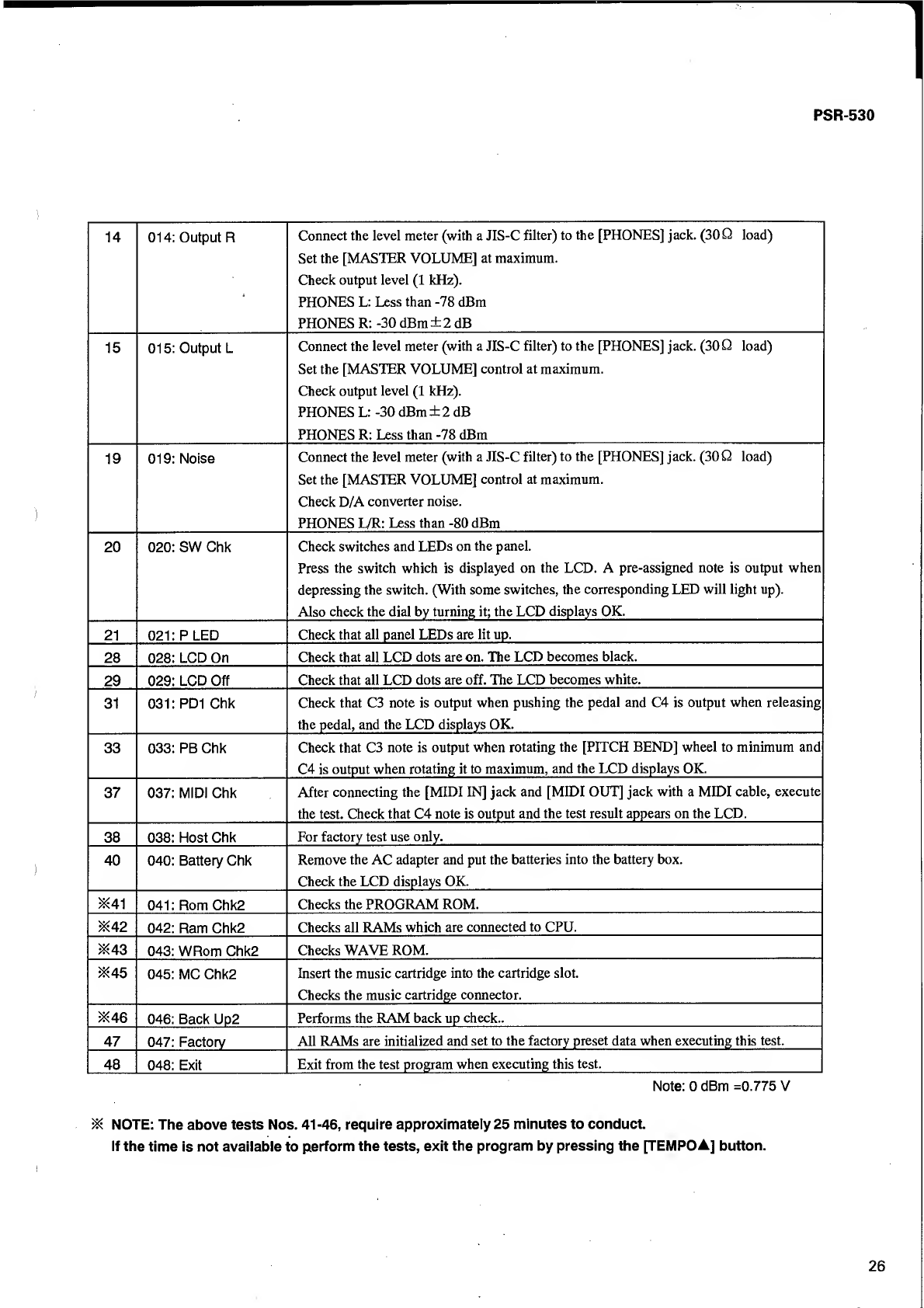

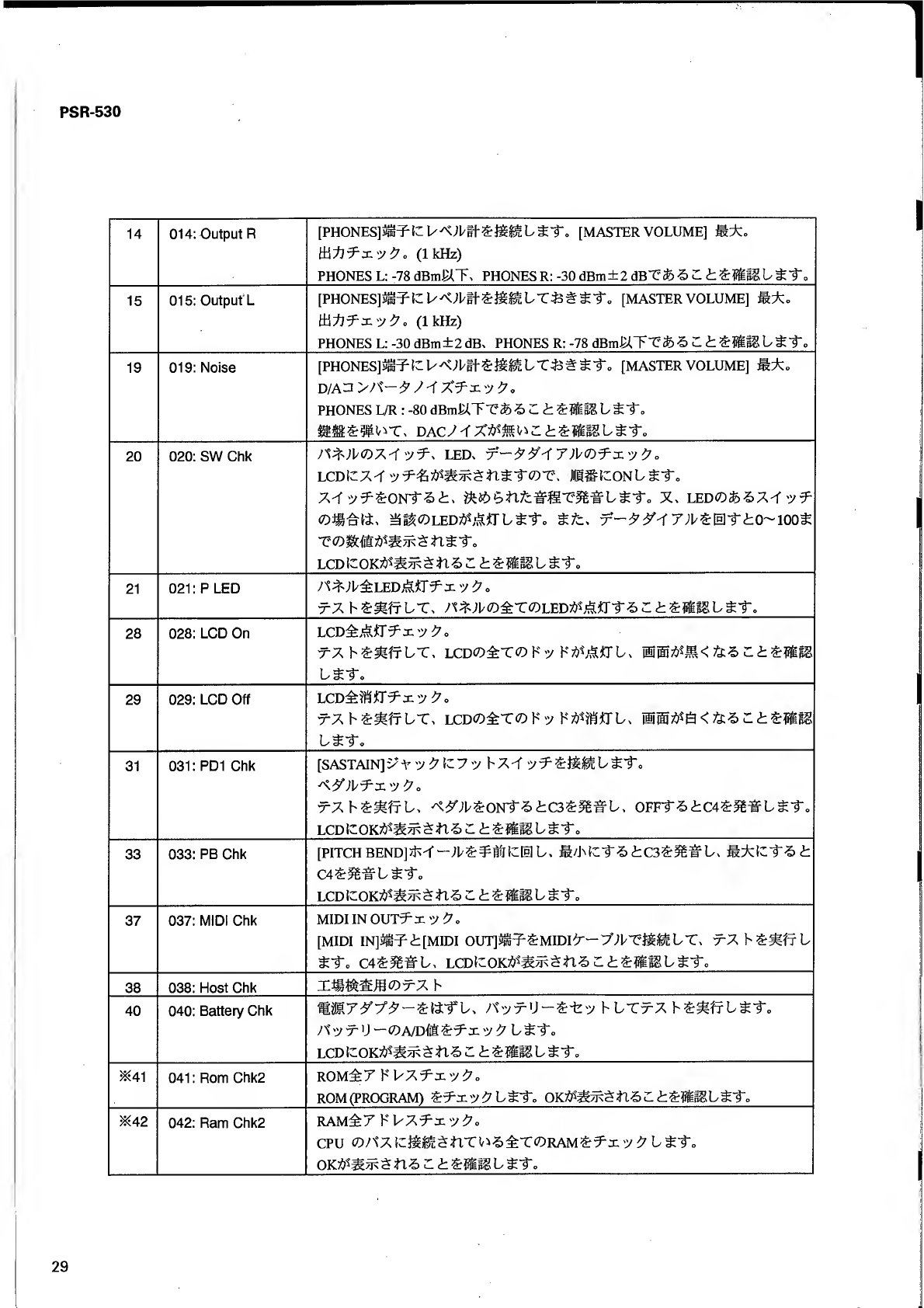

TEST PROGRAM {77 V7°U'7^l^) . 2 5/28
INITIALIZE {WMit) . 2 7/30
SPECIFICATIONS 3 1 / 36
PANEL LAYOUT 7^7 F).32/34
MIDI DATA FORM AT.37
MIDI IMPLEMENTATION CHART.49
PARTS LIST
OVERALL CIRCUIT DIAGRAM (I^HlS^ll)
001590
YAMAHA CORR
HAMAMATSU, JAPAN
2.4K-015 @ Printed in Japan'97.07

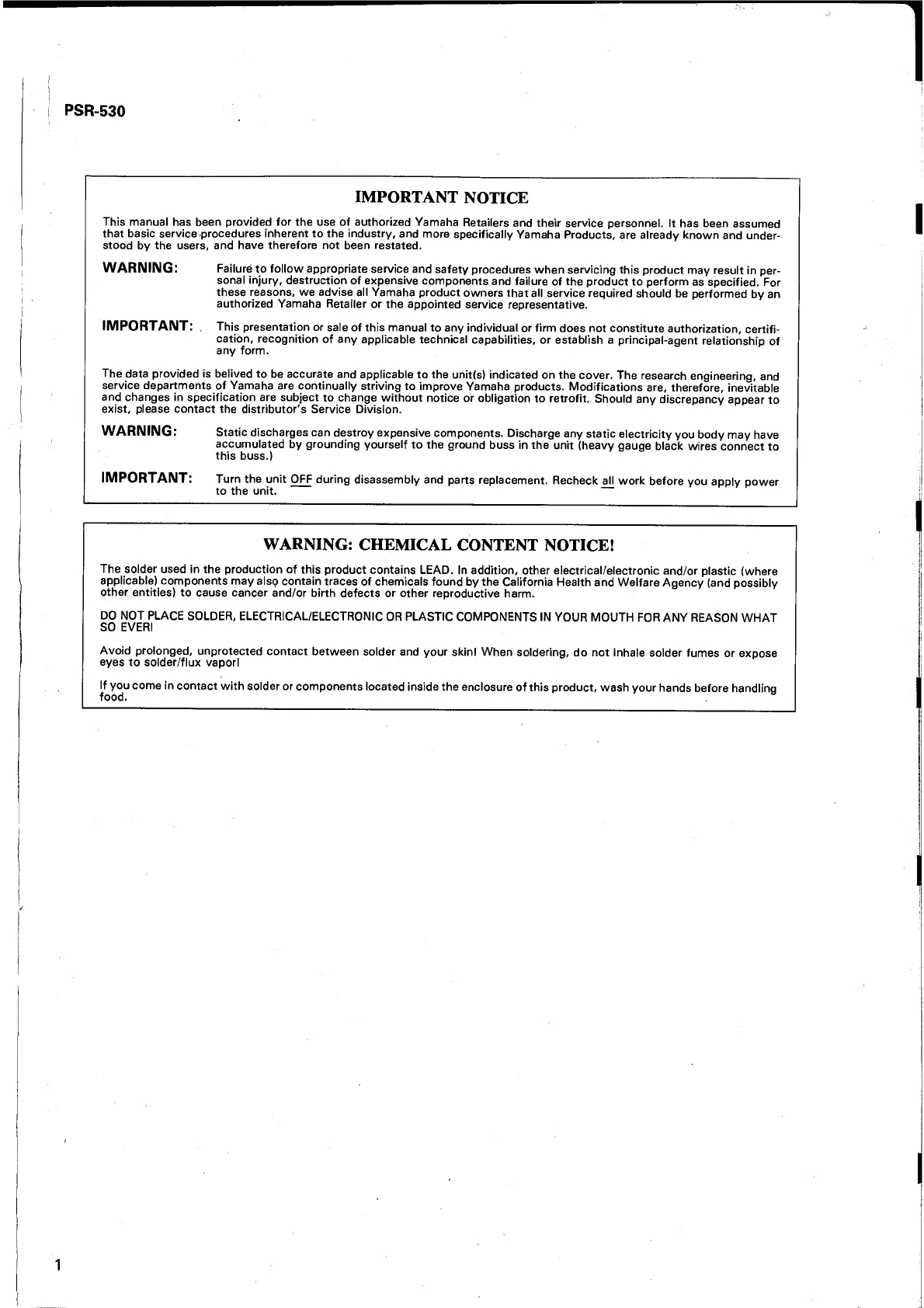

IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service-procedures inherent to the industry, and more specifically Yamaha Products, are already known and under¬
stood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in per¬
sonal Injury, destruction of expensive components and faiiure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certifi¬
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicabie to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitabie
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, piease contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity you body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to
this buss.)
IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used In the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVERI
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.

X
JPfcSj:
PSR-530
PSR-530
BLOCK DIAGRAM v 0 ^^T'p-yh)
ROTARY
ENCODER
I::: i
f=—#
PO[0-7] : LATCH
.. . . 74H0374
O £ ^ ,
-L J- H O
o a o 1=
PC/MAO c
VOLTAGEc
SUSTAINc
IC601
LDCO-7]
LATCH
IH
D-FF
(Main-CPU)
HD6437042E00F
7MHz 2
33.8686
MHz £
HDh J"
PE Cl 3, IS]
!{> LCD-RS
LCOENBL-l
32M ROM
(Main)
PROGRAM
1 L
_ +9V 1
REG g
T-±J
SWPOOM
TC203C060AF
32M ROM
(Wave)
MASTER
VOLUME
IC301
DAG
Ai PD63200
i LINE
i FILTER
MIDI-OUT J
MIDI-IN i
PO/MAO<;
MlDI-OUTc
MIDI-INC
SELECTOR
TRANS- 1
CEIVER S
MC34051
61 KEYS
ICl
HD63B05V0
CPU
N[1t-16^1-26]
IHZI
B[!-7]
'i:—'X IC105
^t30-2l 3: > DECODER
V 74H0139
CS3i=i>
IC201,202
EQUALIZER
M5227P
PHONES
LA4705N k-4
POWER
z AMP. IC701
LEFT
SPEAKER
DM-JK
AM-JK
- MIDI -
IN OUT
-AUX OUT-
L/L-FR R
SUSTAIN
RIGHT
SPEAKER
28CA1-8812040

PSR-530
• WIRING
REF.
NO.
DESTINATION
CONNECTOR
ASSEMBLY
REMARKS PART NO.
AVAILA¬
BILITY
®
AM-CN701
Battery
BATT-AM 2P/L360/800 VY85160
X
@
DM-CN802
MKS2-CN1 DM-MK 6P/L450 VZ60620
X
@
DM-CN602
LCD DM-LCD2 2P/L230 VY85100
X
® AM-CN702
Speaker(L),(R)
SP-UR
4P VZ16230
X
(D
PN(1/5)-CN102
AM.JK(2/2)-CN102 PN-PB
3P/L600
VY85120
X
(D
DM-CN801 DM.JK-CN01
DM-DM.JK 8P/L240 VY85110
X
@
DM-CN601
LCD DM-LCD1 13P/L250 VY85090
X
(D DM-CN701
SW-CN708
DM-SW
5P/L250
VY85020
X
(D
AM-CN704
SW-CN707 AM-SW 10P/L300 VY85040
X
®
AM-CN705
HP-CN706
AM-HP 5P/L600 VY85030
X
DM-CN301
VR-CN303
DM-VR
4P/L360 VY85190
X
AM-CN301
VR-CN302 AM-VR 5P/L250 VY85200
X
®
DM
AM-Earth AM-DM EARTH
1 P/Ll 20 VY85210
X
0
DM-CN502
PN(1/5)-CN100
DM-PN1
13P/L350 VY85070
X
DM-CN501
PN(1/5)-CN101 DM-PN2 10P/L310 VY85080
X
®
PN(1/5)-CN105
PN(3/5)-CN106
PN1 5P/L170 VY85130
X
® PN(1/5)-CN103
PN(2/5)-CN104
PN2 3P/L210 VY85140
X
®
PN(1/5)-CN107
PN(4/5)-CN108 PN3 4P/L120 VY85150
X
®
AM-CN709
AM.JK(1/2)-CN101
AM-AM.JK
9P/L250 VY85050
X
MKS2-CN2
MK-L
12P/L190 VU95890
O -
@
MK-H
MK-L
12P/L215
VU65950
o
®
MKS2-CN3
MK-L
7P/L250 VU65940
o
MKS2-CN4
MK-H 5P/L615 VU65960
o
NOTE : REF. NO. is indicated in the CIRCUIT BOARD LAYOUT figures in page 4 and page 5.
Parts No. 1-19 are not available as spare parts, and parts No.20-23 are available as spare parts.
6

DISASSEMBLY PROCEDURE (^^¥11)
1 Lower Case Assembly
1-1 Remove the battery cover assembly.
1-2 remove the five (5) screws marked [410], four (4)
screws marked [200A] and nine (9) screws marked
[220A], then the lower case assembly can be
removed. (Fig. 1)
1 Ass'y
1-1 n'v-rU-^ll'-Ass'y (0 1)
1-2 [410]®^'V 5 2^ t[200A]COt'V 4 2^i:[220A]®^'.
V 9 T^-7, Ass'y
(0 1 )
Lower case assembly
(T'!r —Ass’y) [220A1
[220A]
)[220A]
[410]; Bind Head Tapping Screw-P 3.0X10 MFZN2Y (EP600270) h
[200]: Bind Head Tapping Screw-P 3.0X25 MFZN2Y (VK228100) -F/U > F P -f h
[220]: Bind Head Tapping Screw-P 3.0X12 MFZN2Y(EP600300) -F-'W > F Pd^-f h
(Fig. 1)
2 DM Circuit Board
2-1 Remove the lower case assembly. (See procedure 1)
2-2 Remove the two (2) screws marked [180B], nine
(9) screws marked [210A], one (1) screw marked
[220B] and remove the shield case (lower). (Fig. 2)
2-3 Remove the five (5) screws marked [210B], two (2)
screws marked [190], then the DM circuit board
can be removed. (Fig. 2 and Fig. 3)
2 DM F
2-1 Ass’y (l
2-2 [ISOB]®^''))^ 2 2^ t [210A]®^'V 9 2^<h[220B]®
(0 2 )
2-3 [210B]®t'V 5 2Ft[190]®^-V 2 DM
( 0 2 , 0 3 )
[180]: Bind Head Tapping Screw-P 3.0X8 MFZN2Y (EP600280) -F/W > F P 3''!' F
[210]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190) -F/t'-T > F B tPd" F
[220]: Bind Head Tapping Screw-P 3.0X12 iVIFZN2Y (EP600300) -F/W>'FP^d'F
(Fig. 2)

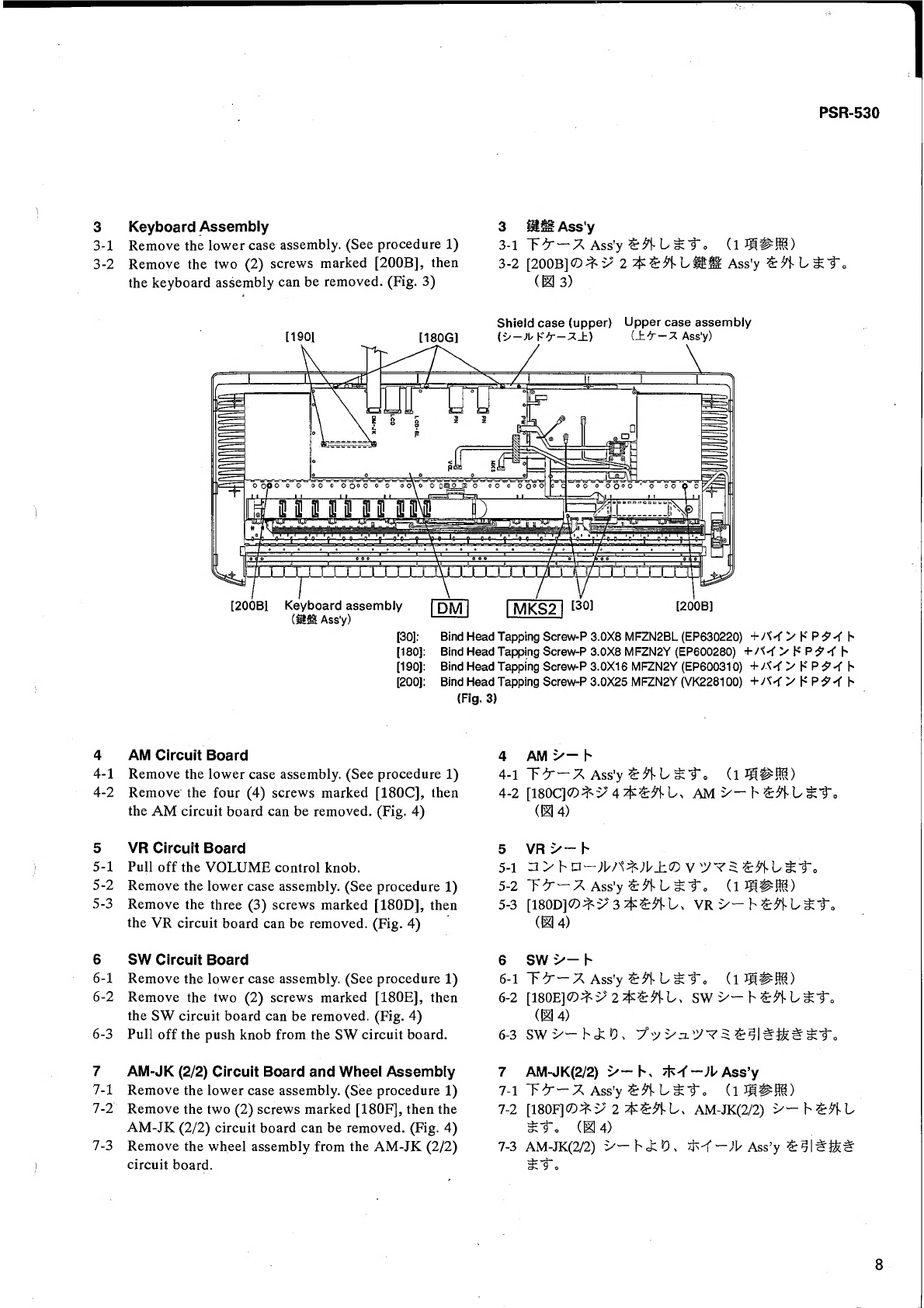

3 K eyboard Assembly
