Yamaha YDRA Owner's manual

LIT-19626-63-15 JC2-F8199-70
Printed in U.S.A
2015-KCC
4 STROKE PERSONAL
ELECTRONIC FUEL
INJECTION GOLF CAR
YDRA
YDRA 4 STROKE EFI GOLF CAR
!
OWNER’S / OPERATOR’S MANUAL
MANUAL DE OPERACION DE YAMAHA
MANUEL D’EXPLOITATION ET D’UTILISATION
BEHUTZER- / BET RIEBSAN LEITUNG
READ THIS MANUAL CAREFULLY!
It contains important safety information.
¡LEA ATENTAMENTE ESTE MANUAL!
Contiene información importante sobre
seguridad.
LIRE CE MANUEL ATTENTIVEMENT!
Il contient des informations de sécurité
importantes.
LESEN SIE DIESE ANLEITUNG AUFMERKSAM!
Sie enthält wichtige Angaben zur Sicherheit.
Yamaha Motor Corporation
800-962-7926
JC2-F8199-70
JC2_F8199_70_cover.qxp_LIT_19626_11_07 cover.qxd 4/4/14 1:20 PM Page 1

JC2_F8199_70_cover.qxp_LIT_19626_11_07 cover.qxd 4/4/14 1:20 PM Page 2

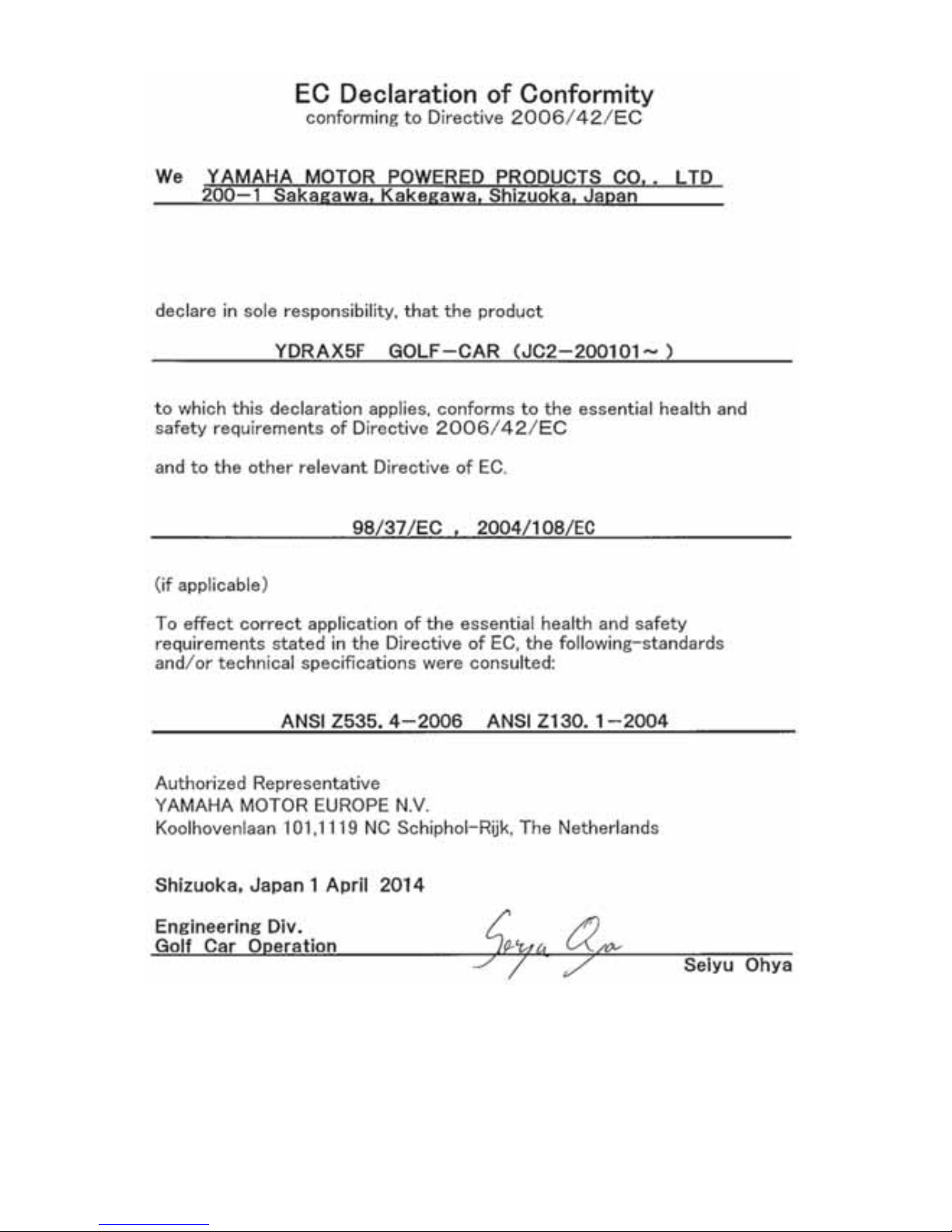

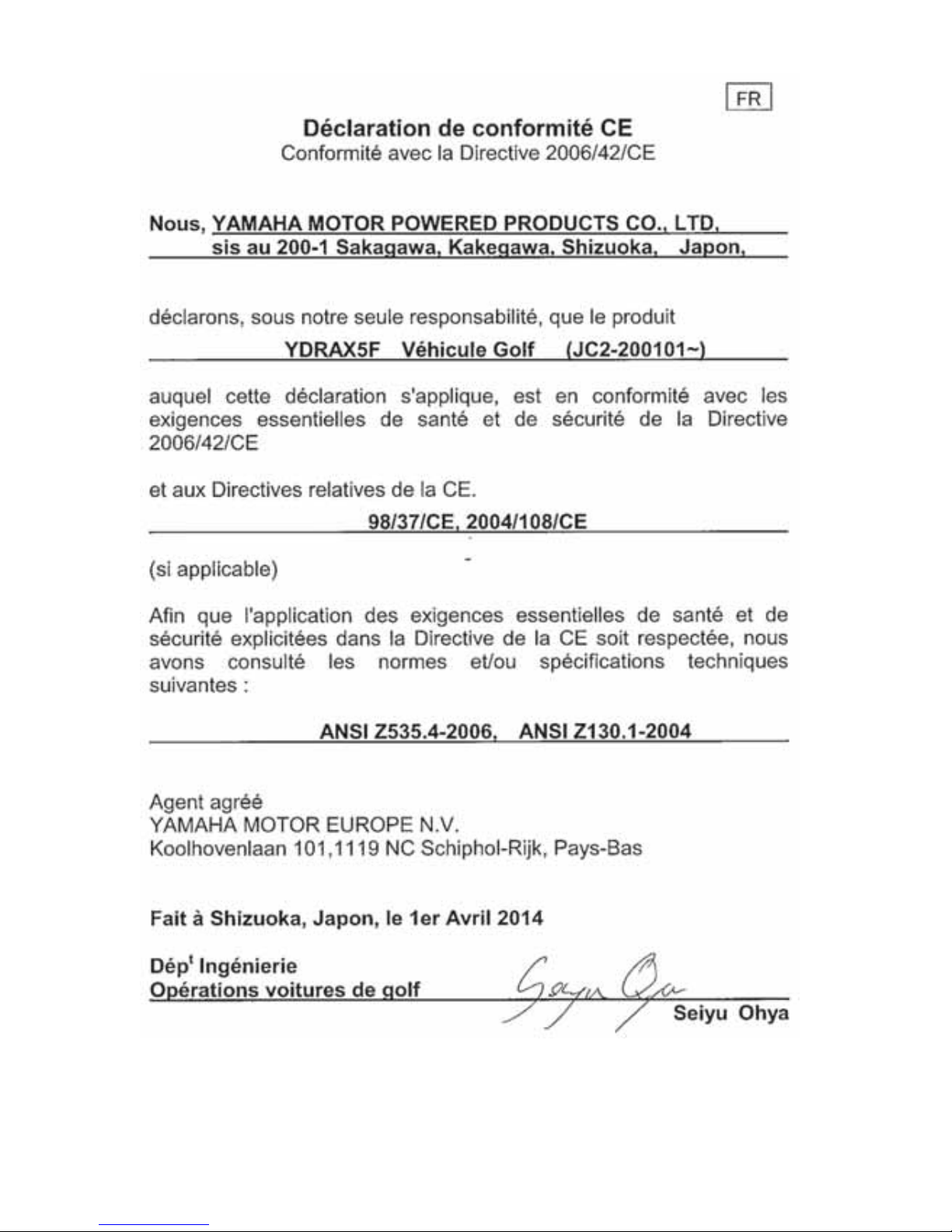

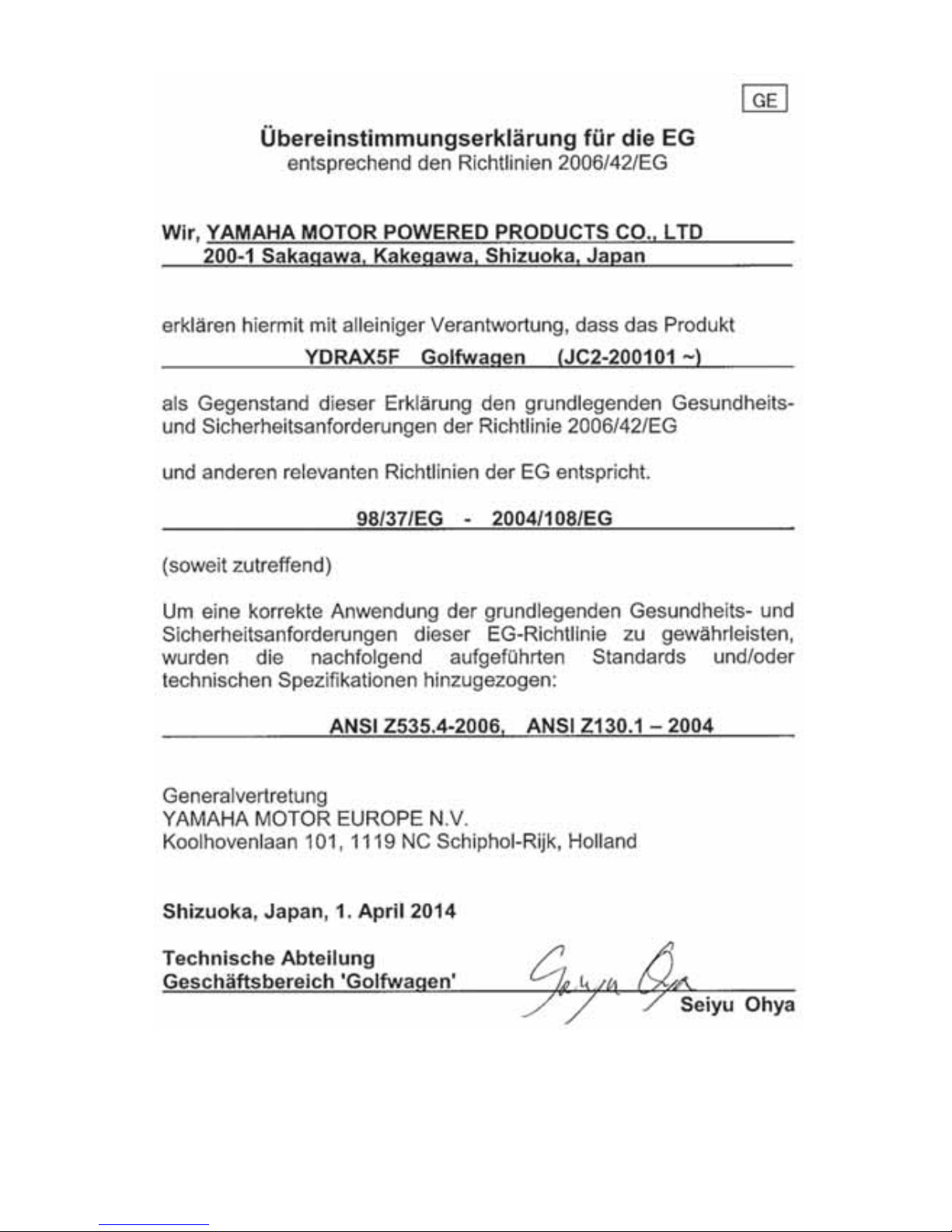

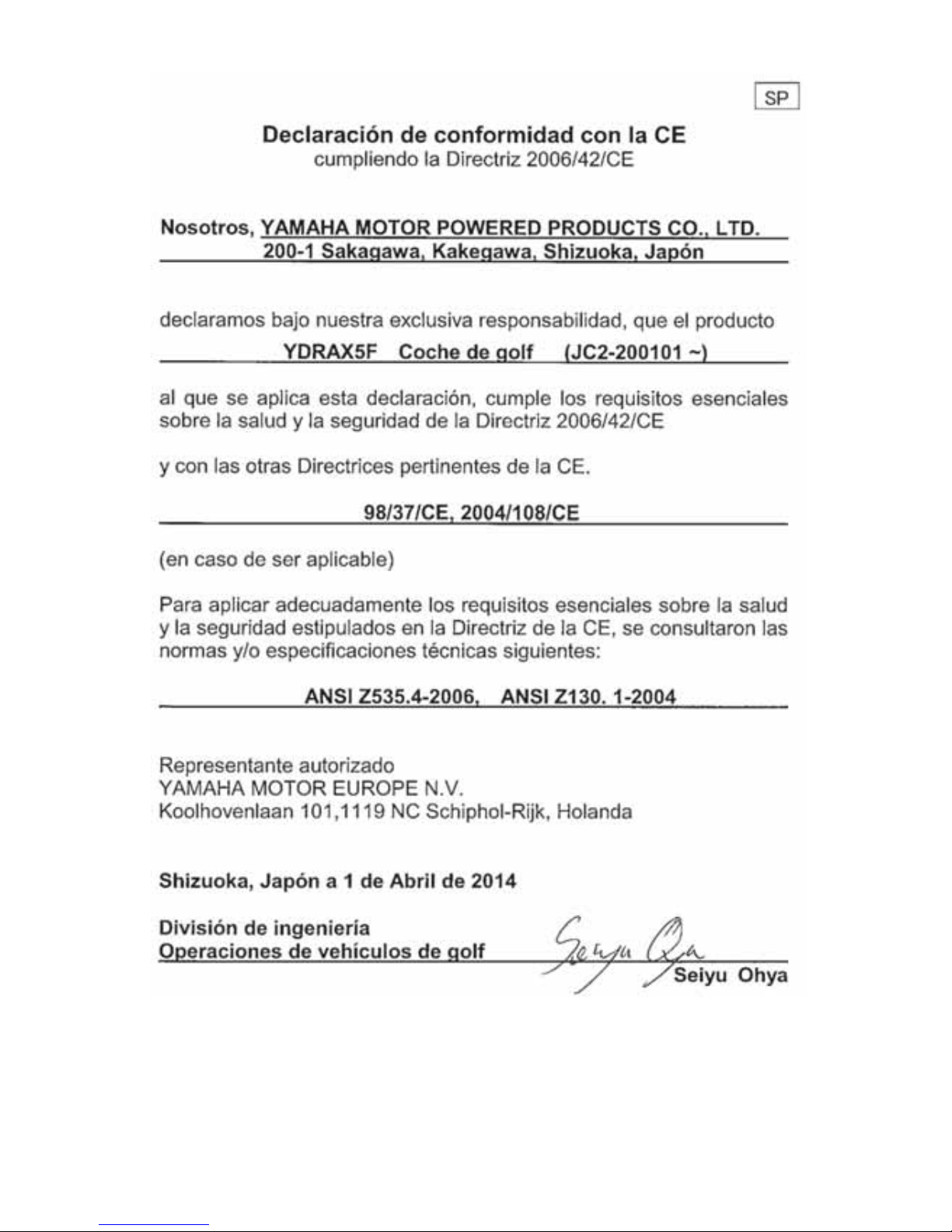

JC2-70_Declaration_pages.qxp_LIT_19626_16_05.qxd 4/3/14 4:01 PM Page 1

JC2-70_Declaration_pages.qxp_LIT_19626_16_05.qxd 4/3/14 4:01 PM Page 2

JC2-70_Declaration_pages.qxp_LIT_19626_16_05.qxd 4/3/14 4:01 PM Page 3

JC2-70_Declaration_pages.qxp_LIT_19626_16_05.qxd 4/3/14 4:01 PM Page 4

INTRODUCTION
Congratulations on your purchase of a
Yamaha Electronic Fuel Injection (EFI)
Golf Car. This manual contains information
you will need for proper operation,
maintenance, and care of your EFI Golf
Car. A thorough understanding of these
simple instructions will help you to obtain
maximum enjoyment from your new
Yamaha.
If you have any questions about the
operation or maintenance of your EFI
Golf Car, please consult a Yamaha
dealer.
Yamaha Motor Corporation USA
YDRA EFI Golf Car
Owner's/Operator's Manual
© 2015 by Yamaha Motor Corporation
USA
1st edition
All rights reserved. Any reprinting
or unauthorized use without the
written permission of
Yamaha Motor Corporation USA
is expressly prohibited.
Printed in U.S.A.
P/N LIT-19626-63-15
¿Habla español? Vea Página iS
Parlez-vous Français? Voir Page iF
Wenn Sie Deutsch, Sprechen, gehen Sie
auf Seite iG
i
JC2
JC2-F8199-70
JC2-F8199-70_ENG.qxp_LIT_19626_00_81.qxd 3/12/15 8:30 AM Page 1

ii JC2
IMPORTANT MANUAL
INFORMATION
TIP
Yamaha continually seeks
advancements in product design
and quality; therefore, while this
manual contains the most current
product information available at the
time of printing, there may be minor
discrepancies between your golf car
and this manual. If you have any
questions concerning this manual,
please consult your Yamaha dealer.
Read and understand this manual
completely before operating your
golf car. This manual should be
considered a permanent part of
your golf car and should remain
with the golf car when resold.
Particularly important information is
distinguished in this manual by the
following notations:
This is the safety alert symbol. It is
used to alert you to potential
personal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury or
death.
A WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
A NOTICE indicates special
precautions that must be taken to
avoid damage to the golf car or
other property.
TIP
A TIP provides key information to
make procedures easier or clearer.
NOTICE
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 2

iii
JC2
1
IMPORTANT LABELS
CONTENTS
1
OPERATOR SAFETY 2
CONTROLS 4
STORAGE 8
SPECIFICATIONS
WIRING
9
MAINTENANCE 7
OPERATION 6
PRE-OPERATION CHECKS 5
SAFETY CONSIDERATIONS 3
10
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 3

1
2
3
4
5
6
7
8
9
10
11
1-1 JC2
7
35
4
Y-2283
1
2
6
1
SAFETY AND INSTRUCTION LABELS
Please read the following labels carefully before operating your golf car,
and promptly replace any labels which become damaged or removed.
Death or serious personal injury can result from failing to read and comply
with the safety instruction labels.
IMPORTANT LABELS
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 4

1
2
3
4
5
6
7
8
9
10
11
IMPORTANT LABELS
1-2
JC2
2
GASOLINE IS HIGHLY FLAMMABLE ANDGASOLINE IS HIGHLY FLAMMABLE AND EXPLOSIVE.EXPLOSIVE. A fire or explosion couldA fire or explosion could causecause SEVERE INJURYSEVERE INJURY oror DEATHDEATH.
Keep heat, sparks, and open flame away from fuel tank and fuel lines. Do not add duel while engine is running or hot. Do not modify fuel system. Services should be performed be dealer or qualified personnel.
L’ESSENCE EST HAUTEMENT INFLAMMABLE ET EXPLOSIVE.
L’ESSENCE EST HAUTEMENT INFLAMMABLE ET EXPLOSIVE. Un incendie ou une explosion peuvent provoquer deUn incendie ou une explosion peuvent provoquer de GRAVES BLESSURES ou la MORTGRAVES BLESSURES ou la MORT.
Eloigner toute source de chaleur, d’étincelles et de
flammes nues du réservoir et des conduites de carburant.
Ne pas ajouter de carburant pendant que le moteur
tourne ou qu’il est chaud.
Ne pas modifier le circuit d’alimentation. Les révisions doivent être effectuées par le
concessionnaire ou par du personnel qualifié.
OPERATION AT HIGHER SPEEDS
OPERATION AT HIGHER SPEEDS COULD CAUSE LOSS OF CONTROLCOULD CAUSE LOSS OF CONTROL THAT COULD RESULT IN SEVERETHAT COULD RESULT IN SEVERE INJURY OR DEATH.INJURY OR DEATH. Do not tamper withDo not tamper with governor to increasegovernor to increase speed.speed.
L’UTILISATION A DES VITESSESL’UTILISATION A DES VITESSES SUPÉRIEURES PEUT ENTRAINER UNE PERTESUPÉRIEURES PEUT ENTRAINER UNE PERTE DE CONTROLE QUI PEUT PROVOQUER DEDE CONTROLE QUI PEUT PROVOQUER DE GRAVES BLESSURES OU LA MORT.GRAVES BLESSURES OU LA MORT. Ne pas altérer le régulateur pourNe pas altérer le régulateur pour
augmenter la vitesse.augmenter la vitesse.
JW1-K8297-01JW1-K8297-01
4
3
Y-1606
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 5

IMPORTANT LABELS
1
2
3
4
5
6
7
8
9
10
11
1-3 JC2
Y-1607d
YEAR OF CONSTRUCTION: 20XX
YAMAHA MOTOR POWERED PRODUCTS CO., LTD.
200-1 SAKAGAWA, KAKEGAWA, JAPAN
MAX. BATTERY WEIGHT: XX kg
MODEL: YDRAXP
MAX. POWER: X.X KW
DRYWEIGHT: XXX kg
JXX-F4236-XX
5
Y-1610
7
Important Emissions Information
Yamaha Golf-Car Company
THIS EQUIPMENT CONFORMS TO 2010 CALIFORNIA EVP REGULATIONS FOR SMALL OFF-
ROAD ENGINES UNDER 13CCR SECTION 2766(D). THIS ENGINE MEETS 2010 CALIFORNIA
EXH EMISSION REGULATIONS AND CONFORMS TO PHASE 2 U.S. EPA REGULATIONS FOR
SMALL OFF-ROAD ENGINES. EMISSIONS COMPLIANCE PERIOD: CATEGORY A (EPA)
EF: XXXXX XXXXXX
DCM: XXX XXXX
THIS ENGINE IS CERTIFIED TO OPERATE ON UNLEADED GASOLINE
DISPLACMENT: XXXcc
EMISSION CONTROL SYSTEM: XX
EVAPORATIVE CODE: XXXXXXXX
MAINTENANCE SPECIFICATIONS ENGINE OIL: SAE 10W30
IGNITION TIMING: 27 BTDC SPARK PLUG GAP: .028-031
NO OTHER ADJUSTMENTS NEEDED
The air index of this engine is 3
02 46 8 10
Most Clean Least Clean
Note: The lower the Air Index, the less Pollution
This engine is certified to be emissions compliant for the following use:
[ ] Moderate (125 hours) [ ] Intermediate (250 hours) [ X ] Extended (1000 hours)
Check owner’s manual for further details.
Y-1599x
6
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 6

1
2
3
4
5
6
7
8
9
10
11
IMPORTANT LABELS
1-4
JC2
Y-910cc
JWX-000000
SERIAL NUMBER
The serial number 1is identified in
the location shown.
TIP
The first three digits of the serial
number are for model identification;
the remaining digits are the unit
production number. Keep a record of
these numbers for reference when
ordering parts from a Yamaha Golf-
Car Company dealer.
The engine serial number 2is
affixed in the location shown.
Y-852
A
3Engine Information
3
Y-2139
Y-851a
THIS ENGINE MEETS **** - **** CALIFORNIA EMISSION REGULATIONS FOR OFF-ROAD ENGINES.
THIS ENGINE CONFORMS TO **(*****.******) U.S. EPA REGULATIONS FOR SMALL NONROAD ENGINES.
2
1
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 7

1
2
3
4
5
6
7
8
9
10
11
2-1 JC2
Y-928bb
Y- 6 8
Yamaha golf cars are designed to be
simple to operate. However, be sure
to observe the following to reduce the
risk of serious injury or death due to
loss of control and other hazards:
BEFORE OPERATING
THE GOLF CAR
lRead this Owner’s/Operator’s
manual and all safety and instruction
labels on the golf car before
operating.
lPerform the pre-operation checks
found in Section 5 of this manual.
lOnly authorized people should drive
the golf car, from the driver’s side
only, and only in designated areas.
lDo not allow more than two
occupants per seat. This golf car is
restricted to two occupants, unless
equipped with a rear seat.
lDo not operate the golf car while
under the influence of alcohol or
drugs; their effect on vision and
judgment make operating a golf car
dangerous.
lDo not operate the golf car on
public streets, roads or highways;
unless allowed by law or the local
regulating authority.
WHILE OPERATING THE
GOLF CAR
lKeep your entire body inside the
golf car, remain seated, and hold on
when the car is in motion.
lDo not start the golf car until all
occupants are seated.
lKeep your hands on the steering
wheel and your eyes on the path
ahead.
OPERATOR SAFETY
!
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 8

1
2
3
4
5
6
7
8
9
10
11
2-2
JC2
OPERATOR SAFETY
!
lUse extra care in congested areas
or when backing up. Always back
up slowly, and watch carefully.
lAvoid starting or stopping abruptly.
lVary the speed of the golf car to
match the terrain.
lAvoid turning the steering wheel
too sharply at higher speeds to
avoid tipping or rolling the vehicle.
lAlways drive slowly straight up or
straight down slopes – never at an
angle to avoid tipping or rolling the
vehicle.
lDo not run the engine indoors.
Exhaust gas is poisonous and
could result in carbon monoxide
poisoning.
lDo not make any modification or
addition which affects capacity or
safe operation, or make any
changes not in accordance with
the owner’s/operator’s manual.
Y-921aa
Y-922aa
Y-923
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 9

1
2
3
4
5
6
7
8
9
10
11
3-1 JC2
Like all machines, golf cars can
cause injury if improperly used or
maintained.
Experience has shown that golf cars
are safe when operated in
accordance with the safety warnings
affixed to every golf car.
DRIVER
QUALIFICATIONS
Allow only authorized people to
operate golf car. It is recommended
that only people who possess a
valid motor vehicle driver’s license
be allowed to operate golf car.
Do not operate golf cars when
under the influence of alcohol or
drugs. Death or serious personal
injury can result from failing to
comply with the safety and
warning instructions affixed to the
golf car.
HAZARD PREVENTION
Drivers should be mindful of road
hazards, and avoid dangerous
situations that may include the
following:
Steep Grades – Where steep
grades exist, restrict golf car to
designated roadway or path, and
descend slowly with foot on the
brake.
Descend steep grades slowly with
foot on brake. Death or serious
personal injury can result from
failing to comply with the safety
and warning instructions affixed to
the golf car.
Sharp Turns, Blind Corners and
Bridge Approaches – Adhere to all
warning signs and take proper
precautions to avoid the hazard.
Wet Areas – Wet grass may cause
a golf car to lose traction and may
affect stability. Vehicle operators
should reduce speed in wet areas or
during periods of inclement weather.
SAFETY CONSIDERATIONS
!
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 10

1
2
3
4
5
6
7
8
9
10
11
3-2
JC2
SAFETY CONSIDERATIONS
!
Loose Terrain – Avoid areas of
loose terrain which may cause a golf
car to lose traction and affect
stability. Take notice of conditions
and reduce speed when driving on
uneven or loose terrain.
Pedestrian Areas – Avoid areas
with pedestrian traffic or congested
areas whenever possible to prevent
accidents. If it is impractical to avoid
these areas, always remember that
pedestrians have the right of way.
When approaching pedestrian or
congested areas always reduce
speed, drive slowly, use caution and
watch for pedestrians.
MAINTENANCE
REQUIRED FOR GOLF
CAR SAFETY
Practice the following to help ensure
the safety of golf car occupants:
lPreventative Maintenance. Per-
form all scheduled maintenance in
accordance with manufacturer’s
recommendations to provide a
safe, properly operating golf car.
lPersonnel. Allow only qualified,
trained and authorized personnel
to inspect, adjust and maintain golf
cars.
lParts and Materials. Use only
replacement parts and materials
recommended by the manufacturer.
lVentilation. Properly ventilate all
maintenance and storage areas in
accordance with applicable fire
codes and ordinances to avoid fire
hazards. Ventilation is required to
remove flammable vapors and
fumes from gasoline powered golf
car storage areas. Ventilation is
also required to remove hydrogen
gas from the golf car storage areas
during the battery charging
process.
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 11

1
2
3
4
5
6
7
8
9
10
11
3-3 JC2
SAFETY CONSIDERATIONS
SAFETY PRECAUTIONS
DURING MAINTENANCE
When performing maintenance,
follow all safety instructions
contained in the manufacturer’s
operation and service manuals, as
well as the following safety
procedures:
lProperly immobilize golf car before
beginning any maintenance to
avoid any unexpected vehicle
movement.
lProperly block chassis before
working underneath golf car to
avoid any unexpected vehicle
movement.
lWhen working on the fuel system
or the battery, do not smoke, or
allow any sparks or open flames
near the vehicle, to avoid any fires
or explosions.
lUse only properly insulated tools
when working around batteries to
avoid electrical shock or damage
to the electrical system.
lMaintain all safety devices includ-
ing brakes, steering mechanisms,
warning devices and governors, in
a safe operating condition. Do not
modify these safety devices as
supplied by the manufacturer.
lAfter each maintenance or repair,
the car must be driven by a
qualified, trained and authorized
person – in an area free of
pedestrian traffic – to ensure
proper operation and adjustment.
lRecord all maintenance performed
in a maintenance record log by
date, name of person performing
maintenance and type of mainte-
nance. Periodically inspect mainte-
nance log to ensure accurate and
complete entries.
lProvide operator comment cards
to assist in identifying non-periodic
maintenance needs for specific
golf cars.
lMaintain, in a legible condition, all
nameplates, warnings and
instructions provided by the
manufacturer.
lIf new nameplates, warnings or
instructions are needed, contact
your Yamaha dealer.
FUEL HANDLING/
STORAGE
Take the following precautions to
ensure maintenance worker safety:
lSupervise the storage and
handling of liquid fuels in
accordance with applicable fire
and safety requirements to avoid
any fires or explosions.
!
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 12

1
2
3
4
5
6
7
8
9
10
11
4-1
JC2
CONTROLS
Y-935c
Y-2284
2
1
5
43
Y-919ee
13
14
12
11
Y-918f
10 9
8
7
6
FEATURES
1Engine/oil
warning light
2Main switch
3Brake pedal
4Parking brake
pedal
5Accelerator
pedal
6Drive select
lever
7Seat
8Front body
9Front tire
aFront bumper
bBattery
cRear body
dRear tire
eRear bumper
fFuel tank
gFuel cap
hE.F.I. fuel
pump
iFuel tank vent
Y-1990e
15
16
18
17
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 13

1
2
3
4
5
6
7
8
9
10
11
4-2 JC2
MAIN SWITCH
The main switch controls the
following items:
“OFF”
The electrical power circuit is
switched off. The key can be
removed only in this position.
“ON”
The electrical power circuit is
switched on. The golf car can be
driven.
ENGINE/OIL WARNING
LIGHT
When the engine oil level falls below an
acceptable level, this light comes on.
If the light comes on, stop the
engine, check the engine oil level
and add oil as necessary. (See
page 5-3.)
When the engine/oil warning light is
flashing while the key is on, there
may be a problem with the fuel
injection system, which may affect
performance, emissions and fuel
economy or cause damage to the fuel
injection system or engine.
If the light is flashing, do not
operate the vehicle. Contact your
Yamaha Service representative to
have the vehicle serviced.
åEngine/oil warning light
NOTICE
NOTICE
OFF
ON
Y-912h
CHECK
OFF
ON
Y-911h
CHECK
OFF
ON
Y-914d
A
CHECK
CONTROLS
JC2-F8199-70_ENG_LIT_19626_00_81.qxd 4/4/14 1:11 PM Page 14
