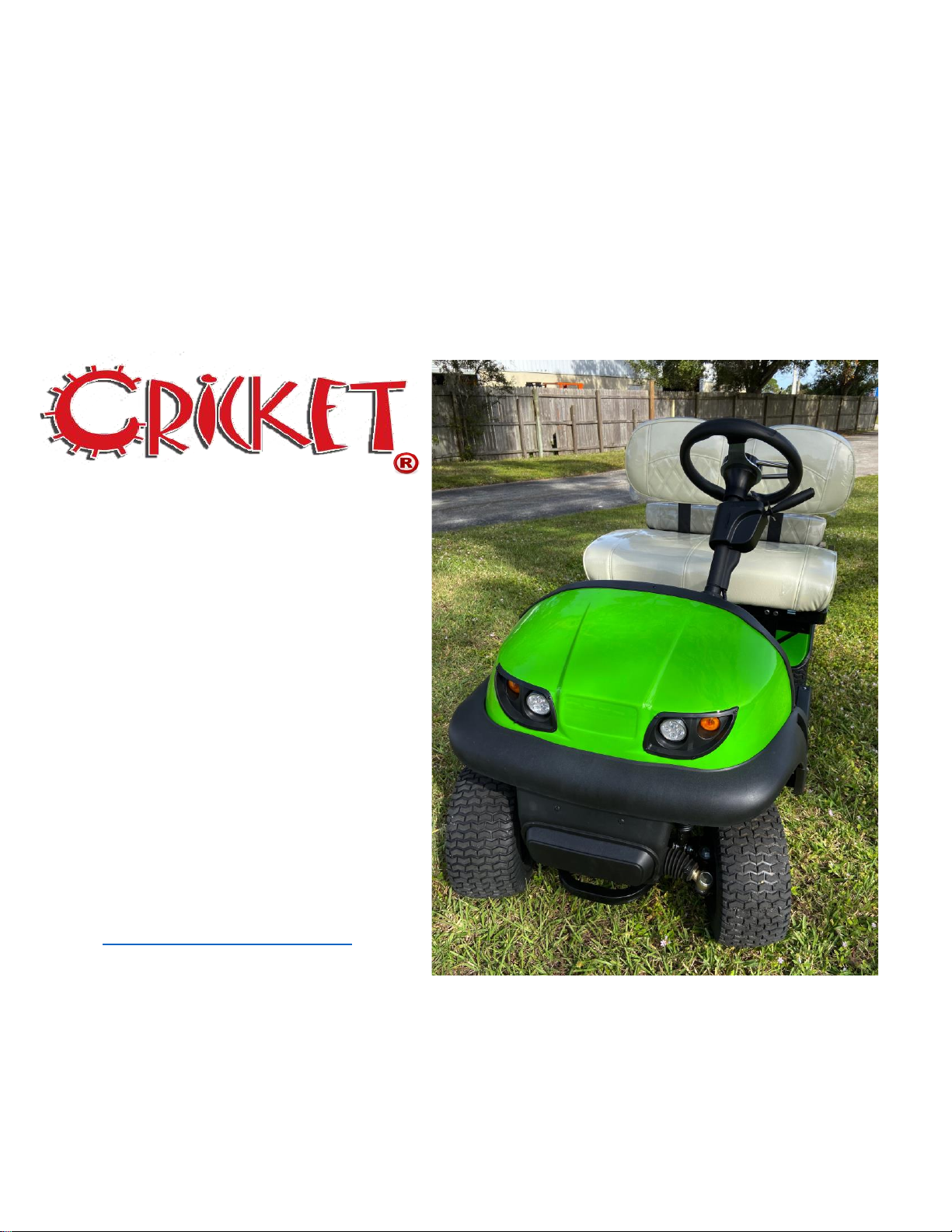

C RICKET© RX5 Grasshopper Model
CRICKET RX5 Grasshopper Model
Electric Sport Vehicle Owner's Manual,
Safety Guide, and Warranty Information
Thank you for the purchase of your new CRICKET RX5 Grasshopper Model Electric Sport
Vehicle. This owner's manual is designed to furnish you with a basic understanding of the
features and operation of this vehicle. Important safety information and information about
special techniques and skills needed to operate and ride your CRICKET RX5 are included,
as well as basic maintenance and inspection procedures, and warranty information.
RX5
Grasshopper
Electric Sports
Vehicle
Cricket Mini Golf Carts
888.RX5-CART
cricketminigolfcarts.com
Cricket Mini Golf Carts reserves the express right to make design adjustments, improvements, or changes without obligation to
make these changes on units previously sold, and the information contained in this publication is subject to change without
notice. Cricket Mini Golf Carts is not responsible for inadvertent errors in this publication, or/or incidental and consequential
damages that result from the use of the material in this publication.

Please consult Cricket Mini Golf Carts at 888.RX5.CART or via email
at [e-mail] if you have any questions regarding
the operation or maintenance of your CRICKET.
For your safety, and the safety of all passengers:
• Please read this addendum and the original CRICKET RX5
owner's manual carefully and completely before operating your
CRICKET. Make sure you understand all instructions.
• Take special notice of all warning and caution notices herein.
• Operate your CRICKET vehicle only after proper training or
instruction.
• No one under 16 years of age should ever operate a CRICKET
electric sport vehicle.
NOTE: Whenever there is any doubt whatsoever about anything
involved with the operation, maintenance, and safe operation of your
CRICKET Electric Sport Vehicle, always call FREE TECHNICAL
SUPPORT at 888-RX5-CART, or e-mail us at
[e-mail]. You can also visit us online where
you will find informational videos, support documentation and our
online store for accessories and parts. cricketminigolfcarts.com

3
Table of Contents
CRICKET RX5 Product Specifications 4
General Information 5
CRICKET Installation and Setup Instructions 7

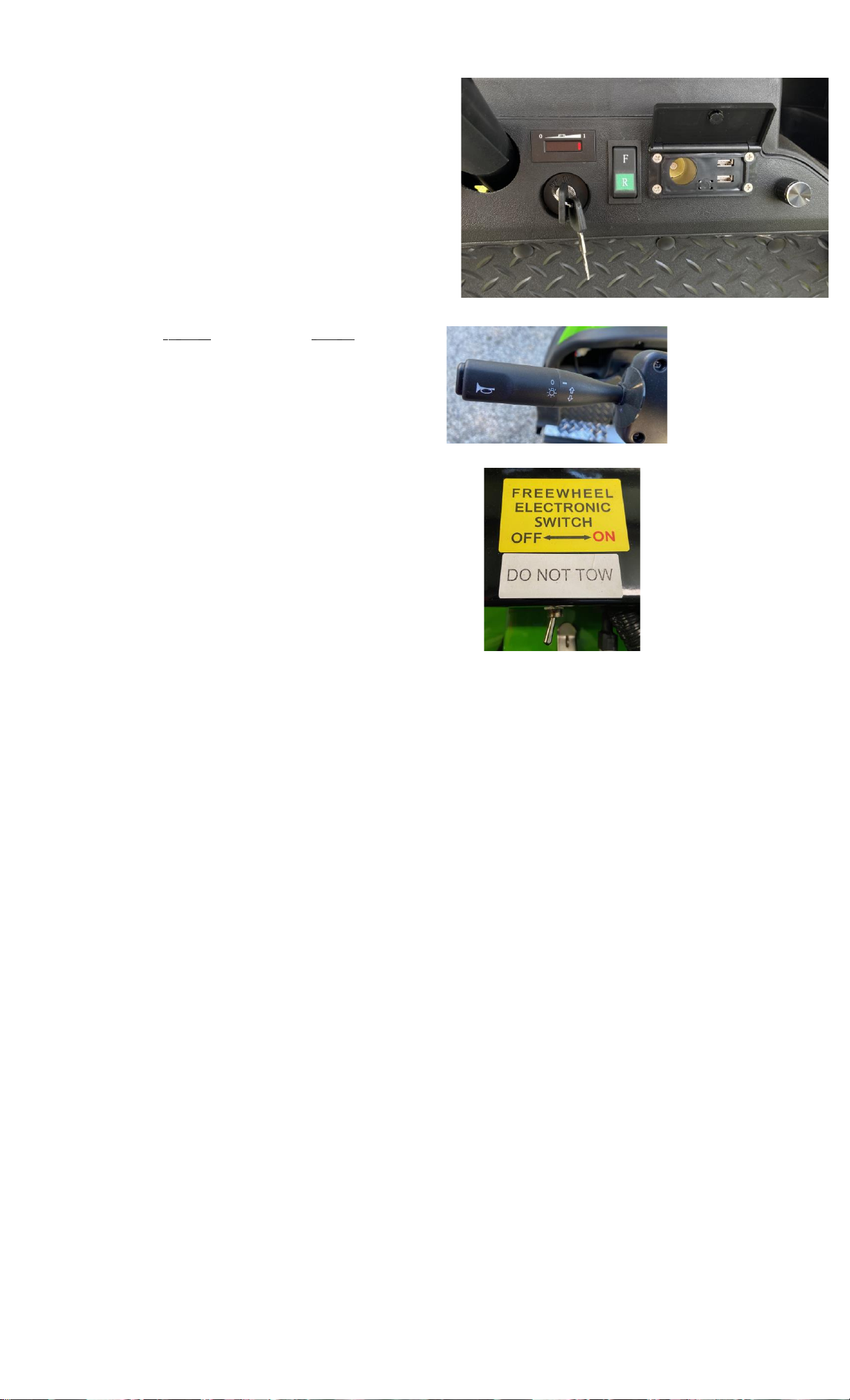

CRICKET RX5 Control Functions 10
CRICKET Operational Instructions, Maintenance, and Adjustments 11
Warranty Information 13

4
CRICKET RX5 Product Specifications
• Model: Double-seat CRICKET RX5 Electric Sport vehicle - Four-wheel,
electric powered.
• Power: Single magnet DC 1,000-watt motor
• Transmission: Direct drive through 16:1 reduction gearbox
• Speed Control: Standard accelerator pedal on left side of floorboard
Directional Control: Forward/Reverse switch conveniently located on
main control
• Maximum Speed: Controlled from 0 to 12 mph in consideration of
congested areas and terrain
• Hill-climbing ability : 1:3 Gradient

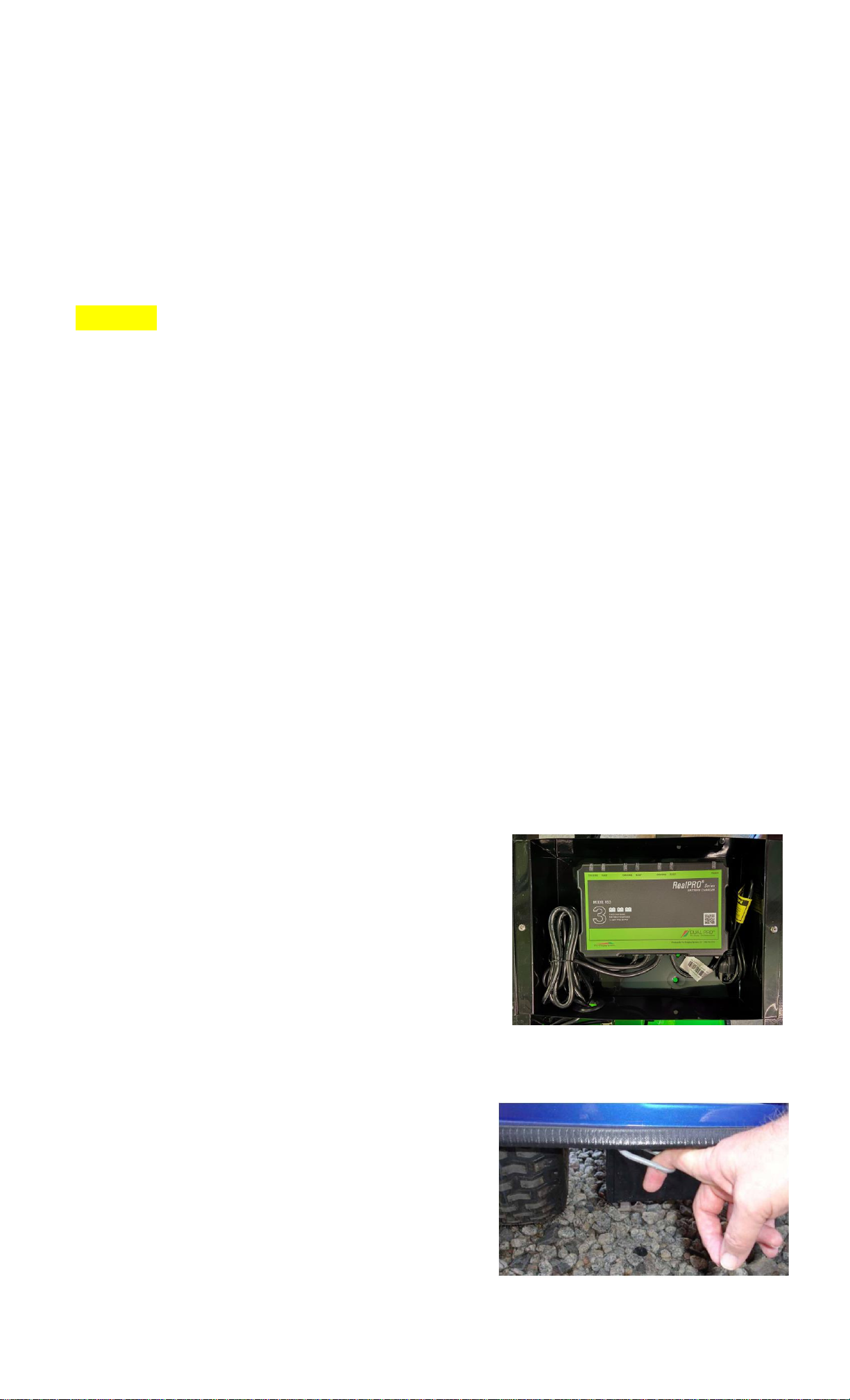

• Battery Charging : Permanent on-board charging unit underneath front
seat Frame: MIG-welded high-tensile steel with corrosion protection
• Body: Molded in polymer-reinforced plastic
• Brakes : Single regenerative electromagnetic braking
• Batteries: 3 heavy-duty glass-mat U1, 12-volt 35-amp\hour in series (36-volt
system) Battery charger: 10-amp, automatic cut-off when fully charged
• Tires: 13" x 6.50 x 6" Tubeless - Recommended air pressure at 12-15
psi Turning Radius: 102"
• Overall Length: With Rear Passenger Step Plate Installed: 78"
• Adjusted Overall Length : For Storage and Transport: 58" (with
floorboard extension removed)
• Overall Width: 32" (including utility box)
• Overall Height: 28" (with seat back removed, steering wheel folded down,
and rear passenger safety bar removed)
• Load Capacity: 600 Ibs.
• Vehicle Curb Weight: 313 Ibs.
NOTICE: CRICKET RX5 specifications, safety, and performance features are
subject to change as we continue to improve the vehicle.

5
General Information
This guide is provided to assist the owner or operator of this CRICKET RX5 in the safe operation and
maintenance of the vehicle.
Safety
General Safety Information
This guide is provided to assist the owner or operator of this Rick's Specialty Vehicles product in the
maintenance and safe operation of the vehicle. The warnings in this manual are not a replacement for good
common sense and safe driving practices. Your Cricket RX5 is designed and manufactured for off-road use. It
does not conform to Federal Motor Vehicle Safety Standards and is not equipped for operation on public streets.
Operators of the Cricket RX5 should have a valid motor vehicle driver's license. No one under 16 years of age
should be allowed to operate a Cricket RX5.
Operating Safety
1. Always use your CRICKET in a responsible manner and maintain the vehicle in safe operating
condition.
2. Always read and observe all warnings and operation instruction labels affixed to the CRICKET vehicle.
3. Always follow all safety rules established in the area where you are operating the CRICKET vehicle.
4. Always use extreme caution when making sharp or blind turns.
5. Always release throttle gradually (rotate forward, away from yourself) to control speed and stability on steep
grades.
6. Do not tow the CRICKET vehicle.
7. Always use extreme caution when traveling:
a. In wet areas
b. In blind spots
c. Along loose terrain
d. On uneven roads
e. In traffic with other vehicles
f. Near pedestrian areas.
Notes, Cautions, and Warnings
The following notations indicate important information. Failure to follow the warnings contained in this owner's
manual could result in serious injury or death.
Conditions should be observed. This provides key information that makes procedures easier and clearer.
CAUTION:CONDITIONS THAT MAY RESULT IN DAMAGE TO THE VEHICLE.SPECIAL PRECAUTIONS
MUST BE TAKEN TO AVOID DAMAGE TO THE VEHICLE.
WARNING:HAZARDOUS CONDITIONS THAT COULD RESULT IN SEVERE INJURY OR DEATH TO THE
MACHINE OPERATOR,BYSTANDER OR A PERSON INSPECTING AND/OR REPAIRING THE VEHICLE.
General Safety Practices
WARNING Steep Grade: In areas where steep grades exist, vehicle operations should be restricted to the
designated vehicle pathways wherever and whenever possible. Such potential hazards should be identified with a
suitable warning giving the following information: "Warning: STEEP GRADE - Ascend or descend slowly and
proceed with due caution.” More than 10 percent is considered steep.
WARNING Wet Areas : Wet grassy areas may cause a vehicle to lose traction and may affect stability. Wet
areas should be chained or roped off to prevent access and potential accidents with injury.
WARNING Sharp Turns, Blind Corners, Bridge Approaches: Sharp turns, blind spots, bridge
approaches and other potentially hazardous areas shall be either chained or roped off to prevent vehicle
operations or identified with a suitable warning to the operator of the nature of the hazard and stating the proper
precautions to be taken to avoid the hazard.

6
WARNING Loose Terrain: Loose terrain may cause a vehicle to lose traction and may affect stability. Areas of
loose terrain should be repaired if possible, or chained or roped off to prevent vehicle operation, or identified by a
suitable warning to operators not to operate vehicles in this area due to lose terrain or possible hazardous conditions.
WARNING Pedestrian Areas: Areas where pedestrians and vehicles interfere shall be avoided whenever
possible by rerouting the vehicle traffic or the pedestrian traffic to eliminate the interference. If elimination of the
interference is not possible or is highly impractical, signs should be erected warning pedestrian traffic and to drive
slowly and use extreme caution.
CAUTION Ventilation: Never charge a vehicle in an area that is subject to flame or spark. Pay particular attention
to natural gas or propane gas water heaters and furnaces.
Safety
On steep hills it is possible for vehicles to coast at greater than normal speeds encountered on a flat surface. To prevent
loss of vehicle control and possible serious injury, speeds should be limited to no more than the maximum speed on
level ground. Limit speed by reducing or eliminating pressure on the accelerator pedal, which engages the automatic
brake function.
Catastrophic damage to the drive train components due to excessive speed may result from driving the vehicle above
specified speed. Damage caused by excessive speed may cause a loss of vehicle control and is costly. This is considered
abuse and will not be covered under warranty.
If the vehicle is to be used in a commercial environment, signs should be used to warn of situations that could result in
an unsafe coasting condition.
Keep this manual as part of the permanent service record in case the vehicle should be resold.
Your CRICKET vehicle is intended for off-road use only. The owner should check local and other applicable laws and
regulations before operating.
WARNING SEVERE INJURY OR DEATH can result if you do not follow these instructions:
•Read this entire manual carefully and follow the operating procedures described.
•Operate a CR1CKET RX5 only if you have had proper training or instruction.
•Follow these age recommendations:
•No one under 16 years of age should operate a CRICKET vehicle or be left without adult supervision.
•Be wary of the safety of passengers and pedestrians.
•Do not operate a CRICKET vehicle on a highway.
•Do not consume alcohol or drugs before, or while operating, this machine.
•Never operate at speeds too fast for your skills or the outdoor conditions. Always operate at a speed that is
suitable for the terrain, visibility and operating conditions, and your experience.
•Never attempt wheelies, jumps, or other stunts.
•Inspect your vehicle every time it is used to make sure it is in safe operating condition. Follow the inspection
and maintenance procedures and schedules described in this manual.
•Always keep both hands on the steering wheel during operation.
•Always drive at slower speeds and be cautious when operating on unfamiliar terrain. Be alert to changing
terrain conditions always when operating a CRICKET vehicle.
•Do not operate your vehicle on excessively rough, slippery or loose terrain until you have learned and practiced
the skills necessary to control the vehicle on such terrain. Be especially cautious of these kinds of terrain.
•Always follow proper procedures for turning as described in this manual. Practice turning at low speeds
before attempting to tum at faster speeds. Do not tum at excessive speed.
•Do not operate the vehicle on hills too steep for the vehicle or for your ability. Practice on smaller hills before
attempting larger ones.
•Always follow safe procedures for climbing hills. Check the terrain carefully before you start up any hill. Never
climb hills with excessively slippery or loose surfaces. Shift your weight forward. Never press down on the
accelerator suddenly. Never go over the top of a hill at high speed.
•Always follow safe procedures for going down hills and for braking on hills. Check the terrain carefully
before you start down any hill. Shift your weight backward. Never go down a hill at high speed. Avoid going
down a hill at an angle that could cause the vehicle to lean sharply to one side. Go straight down the hill

7
wherever possible.
•Always follow proper procedures for crossing the side of a hill as described in this manual. Avoid hills with
excessively slippery or loose surfaces. Shift your weight to the uphill side of the vehicle. Never attempt to turn
the vehicle around on any hill until you have mastered the turning technique on level ground. Avoid crossing the
side of a steep hill if possible.
•Use proper procedures if you stall or roll backwards when climbing a hill. To avoid stalling, use proper gear and
maintain a steady speed when climbing a hill. If you stall or roll backwards, follow the special procedure for
braking. Dismount on the uphill side or to a side if pointed straight uphill. Turn the vehicle around and remount.
•Always check for obstacles before operating in a new area.
•Never attempt to operate over large obstacles, such as large rocks or fallen trees.
•Be careful when skidding or sliding. Learn to safely control skidding or sliding by practicing at low speeds and
on level, smooth terrain. On extremely slippery surfaces, such as ice, go slowly and be very cautious in order to
reduce the chance of skidding or sliding out of control.
•Never operate a CRICKET in fast-flowing water or excessively deep waters. Contact with water may affect the
batteries and may reduce stopping ability. Test your stopping ability after leaving water by removing pressure
from accelerator pedal rapidly several times in a row.
•Always use the size and type tires specified in this manual.
•Always maintain proper tire pressure as described in this manual. (8-15 PSI)
•Never modify a CR1CKET vehicle through improper installation or use of accessories.
•Never exceed the stated load capacity for a vehicle, Cargo should be properly distributed and securely attached.
Reduce speed and follow sound procedures for carrying cargo or pulling a trailer. Allow greater distance for
braking.
CRICKET Installation and Setup Instructions
Once you have safely and completely removed your vehicle from its shipping crate, you are ready to perform the basic
installation and set-up procedures prior to the initial operation of your new CRICKET RX5.
*You may dispose of the protective barrier.

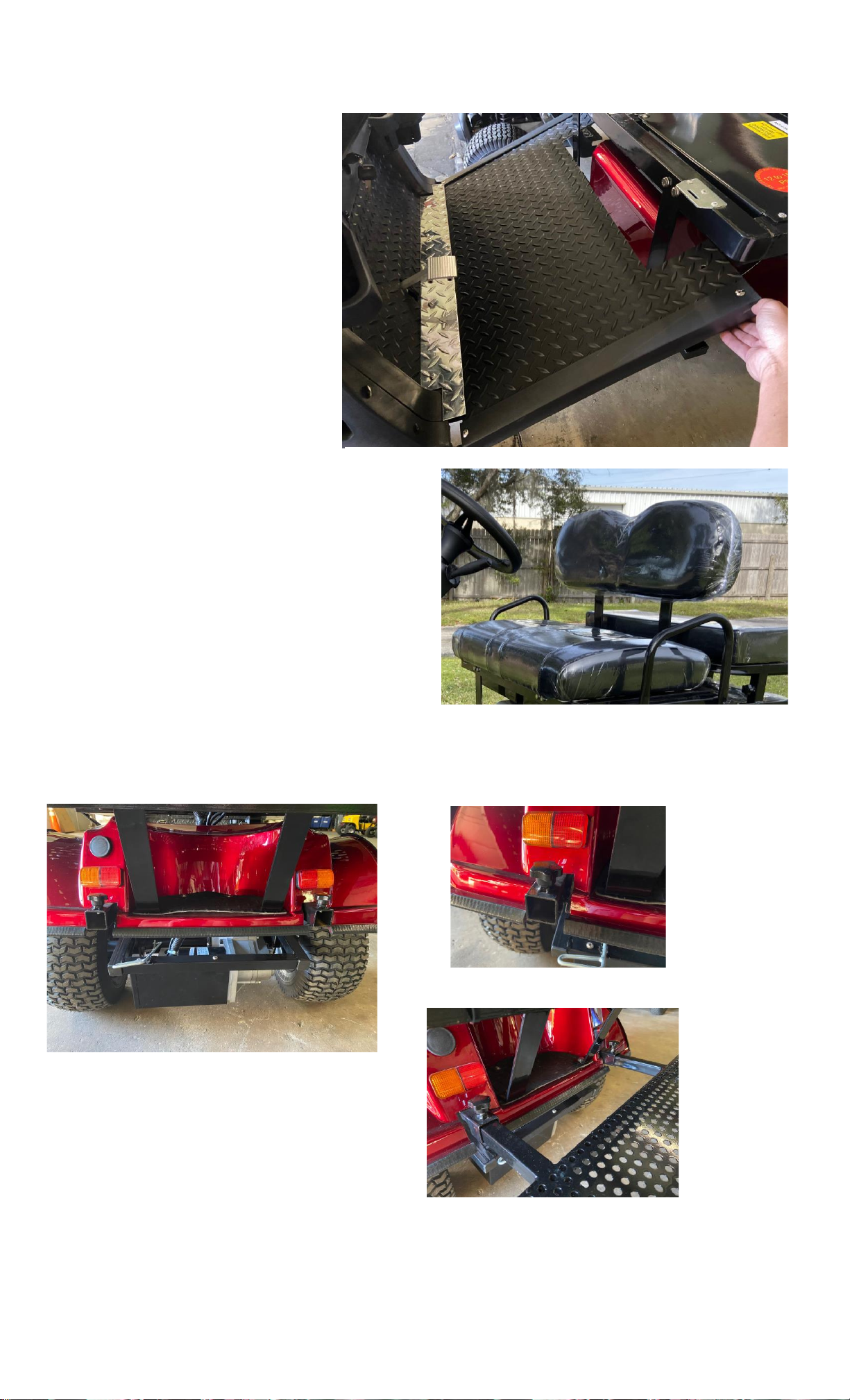

1. Unpack the CRICKET Vehicle
1.1. Remove all packing material including the rear step plate and the front seat from the CRIKCET. Set these items
aside until needed.
2. Install the Steering Shaft

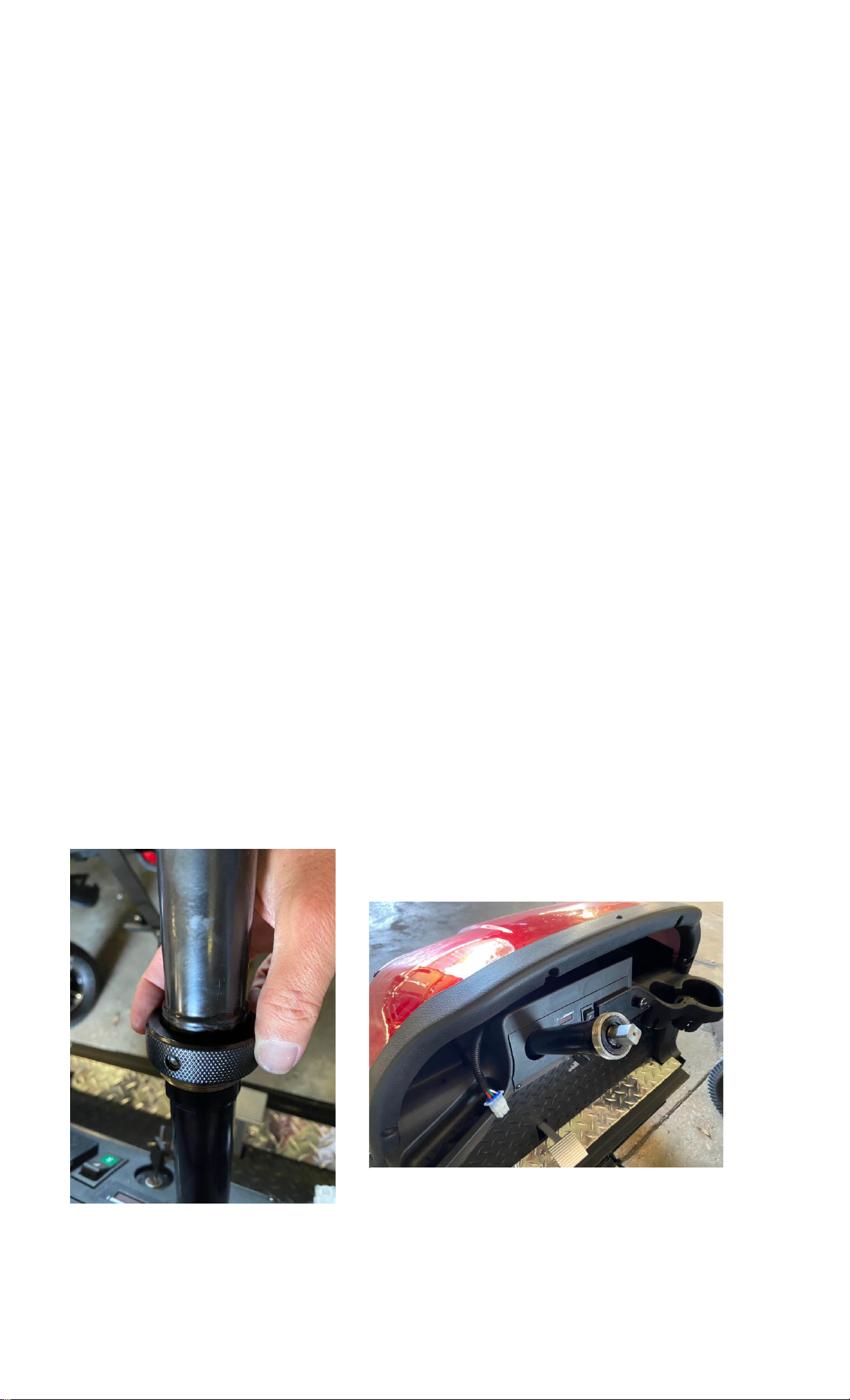

2.1. Make sure the steering wheel in the correct orientation for driving straight and the front wheels are pointing
straight. Line up the square pin (Fig. 2.1.1) on the lower shaft with the upper shaft and slide the two shafts
together. Then tighten the large nut on the upper shaft until tight. (Fig. 2.1.2)
Figure 2.1.2 RX5 Steering Shaft Nut
Figure 2.1.1 RX5 Lower Steering Shaft

8

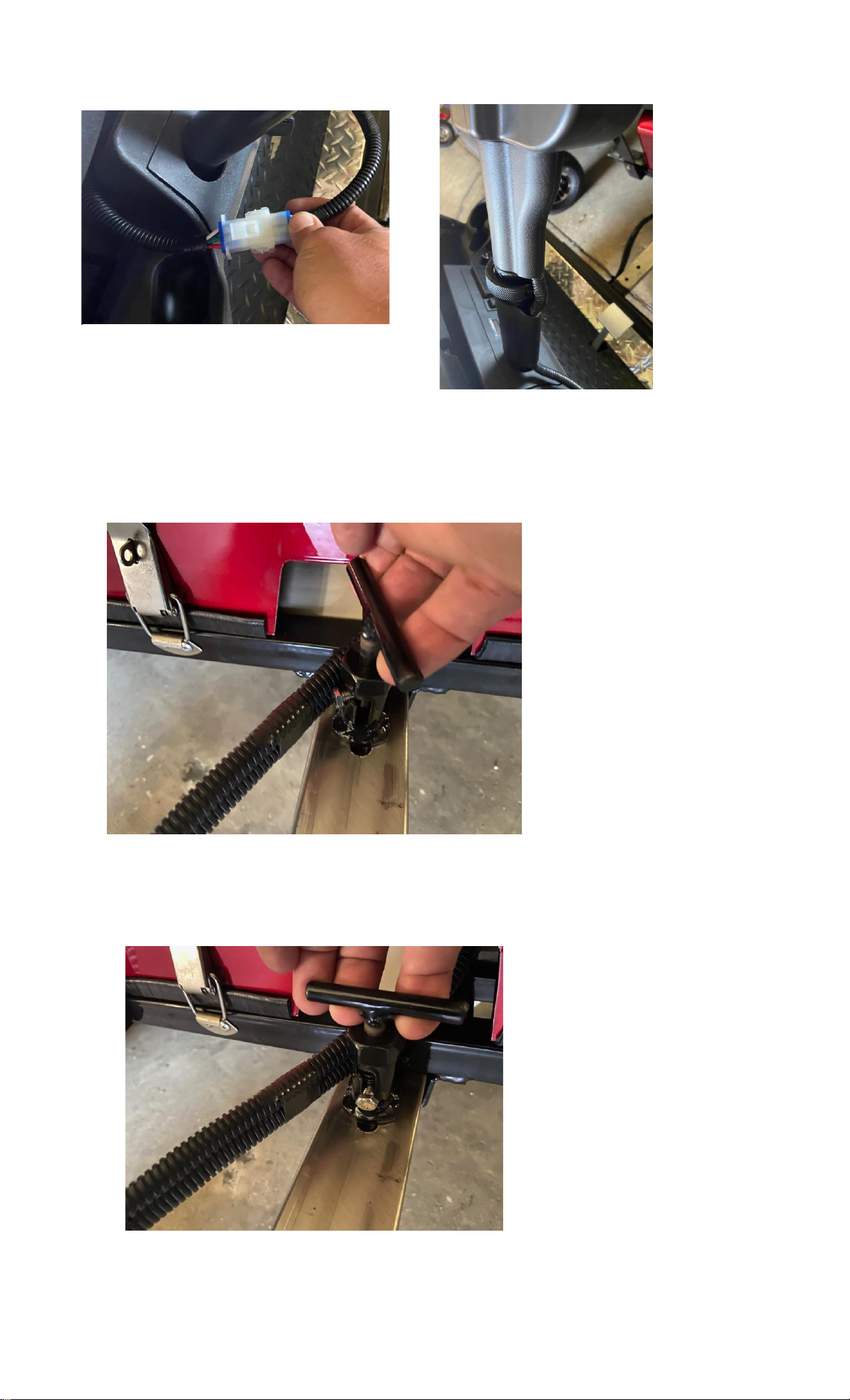

2.2. Connect the wiring harness to the open connector located inside the front dash on the drivers’ side of the dash.
(Fig. 2.2.1)
2.3. Install wiring harness clips on the steering shaft. (Fig 2.2.2)
3. Install the Floorboard Extension
3.1. Use your hand to pull up on the spring-loaded T-Lever in the center of the permanent floorboard. Turn the lever
clockwise until it locks open. (Fig. 3.1.1)
3.2. Gently pull or push the vehicle chassis front end forward until it stops. Then lift and turn the T-Lever
counterclockwise and lock the chassis into position. You might need to slightly adjust the two chassis once the T-
Lever is lowered for it to “click” into lock. Check that the lever is locked. (Fig 3.2.1)
Figure 2.2.1 RX5 Wiring Harness Connector
Figure 2.2.2 RX5 Wiring Harness
Clips
Figure 3.1.1 RX5 T-Lever Released
Figure 3.2.2 RX5 T-Lever Locked

9
3.3. Remove the floorboard knobs from both sides of the chassis, located just under the front seat on the frame.
3.4. Slide the floorboard extension into position by angling it in toward the front of the CRICKET. Check that the Key is
in the “OFF” position and you may need to depress the throttle pedal slightly to get the floorboard to clear.
3.5. Slide the floorboard extension
underneath the stainless-steel flash
plate of the permanent floorboard
assembly. (Fig 3.5.1)
3.6. Make sure both sides of the
floorboard extension are lined up
and securely fitted underneath the
front stainless-steel flash plate and
into the black plastic tabs on the
front body.
3.7. Install but do not tighten one of the
floorboard knobs located on the
chassis under the front seat, then
install the second knob. You may
need to slightly move the floorboard
in order to line up with the threaded
holes for the knobs. Once both knobs
are installed tighten them down to
secure the floorboard in place.
4. Install Front Seat Back Rest
4.1. Gently guide both seat back support arms into the
metal slots located behind the front seat. Install the
small knobs into the threaded inserts on the rear of
the metal slots to secure the seat back.

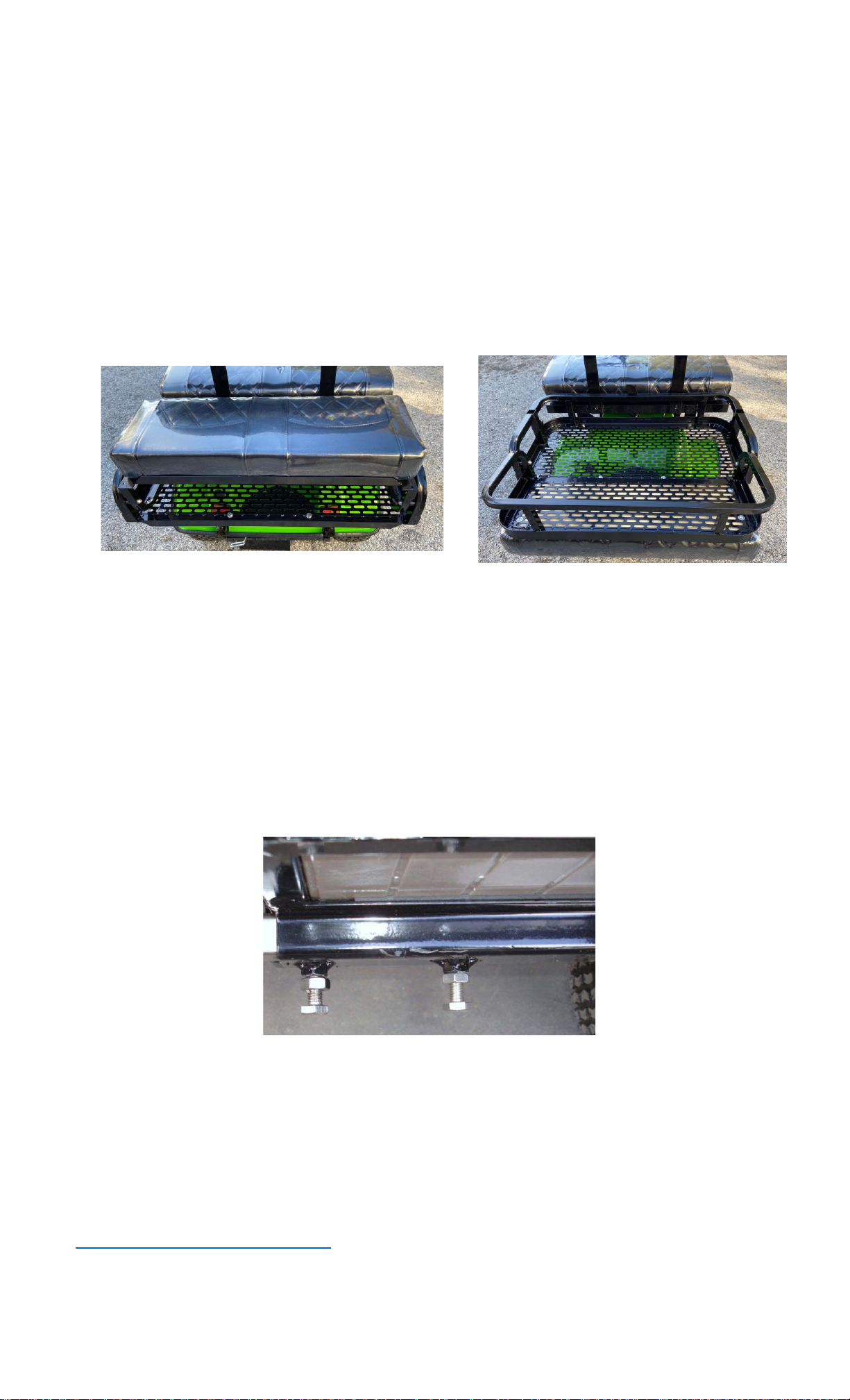

5. Install Rear Passenger Step Plate
5.1. Loosen both locking nuts located below the back
seat and rear carrier rack. (Fig. 5.1.1)
5.2. Insert both step plate bars into the rear chassis
frame tubing and gently guide both bars into the
tubes. Check that the step plate bars are all the way in and that the knobs are tightened securely. (Fig 5.2.1 and
5.2.2)
Figure 3.5.1 RX5 Floorboard Installation
Figure 5.2.1
Figure 5.1.1
Figure 5.2.2
Figure 4.1.1

10
RX5 Turn Signal Lever
RX5 Freewheel Electronic Switch
CRICKET RX5 Control Functions
RX5 Controls
Key Switch Functions:
ON: One click of key clockwise activates power and
makes engine ready for operation. One more click clock-
wise turns on the headlight and taillights.
OFF: With the key in the OFF position, all electrical
circuits are switched off. The key may now be removed.
Charge Meter:
CHARGE: "I" signifies full charge. "0" signifies no
charge.
Directional Toggle Switch:
Up (F) for forward - Down (R) for reverse.
Rheostat Speed Control:
Use this knob to adjust the maximum speed of the
cart. Turn clockwise for full speed and turn
counterclockwise to limit the maximum speed.
Turn Signal / Head Lights:
The turn signals are activated with the level on the
steering shaft. To turn on the head lights twist the
knob on the turn signal lever.
Freewheel Electronic Switch:
Located under the front seat use this switch to
disengage the brake. Under normal operation this
switch is “OFF”. NOTE: When this switch is in the
“ON” Position the CRICKET will not drive.
Entering the Vehicle
All passengers (including driver) must always be seated while the CRICKET vehicle is in use.
Turning the Vehicle On
Switch the key switch to the “On” Position and select the desired direction (Forward or Reverse).
Driving the Vehicle
After making the desired directional selection, depress the floorboard-mounted accelerator pedal with your right
foot to engage the vehicle's power train. Always be aware of surrounding terrain and use caution. Judge speed
accordingly. Be cautious when encountering loose or wet terrain. Do not attempt steep grades.
Stopping the Vehicle
Slow down by gradually lifting your right foot offthe accelerator pedal. Once you reach zero forward speed, the
automatic electronic braking system turns your CRICKET off.
Turning the Vehicle Off
After taking your right foot completely from the accelerator pedal and automatically stopping the vehicle, switch
the key to the Off position.
Exiting the Vehicle
Once the vehicle has come to a complete stop, and the key switch is turned to the Off position, all passengers may
carefully exit the vehicle. Never attempt to exit the vehicle while it is still moving. This could lead to severe
injury.
Storing the Vehicle
Store your CRJCKET vehicle with the key switch in the Off position. Do not store vehicle for more than one day
with the battery charger hooked up.
RX5 Dash Panel
