Yamaha 2011 YZF-R1B User manual

DIC183
YZF-R1B
OWNER’S MANUAL
Read this manual carefully before operating this vehicle.
1KB-28199-20
[English (E)]

EAU46090
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
U1KB20E0.book Page 1 Monday, August 8, 2011 1:35 PM

INTRODUCTION
EAU10102
Welcome to the Yamaha world of motorcycling!
As the owner of the YZF-R1B, you are benefiting from Yamaha’s vast experience and newest technology regarding the de-
sign and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YZF-R1B. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur-
rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
EWA10031
Please read this manual carefully and completely before operating this motorcycle.
U1KB20E0.book Page 1 Monday, August 8, 2011 1:35 PM

IMPORTANT MANUAL INFORMATION
EAU10133
Particularly important information is distinguished in this manual by the following notations:
*Product and specifications are subject to change without notice.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICE
TIP
U1KB20E0.book Page 1 Monday, August 8, 2011 1:35 PM

IMPORTANT MANUAL INFORMATION
EAU10200
YZF-R1B
OWNER’S MANUAL
©2011 by Yamaha Motor Co., Ltd.
1st edition, August 2011
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
U1KB20E0.book Page 2 Monday, August 8, 2011 1:35 PM

TABLE OF CONTENTS
LOCATION OF IMPORTANT
LABELS .............................................1-1
SAFETY INFORMATION ..................2-1
DESCRIPTION ..................................3-1
Left view ..........................................3-1
Right view ........................................3-2
Controls and instruments.................3-3
INSTRUMENT AND CONTROL
FUNCTIONS .......................................4-1
D-mode (drive mode) ......................4-1
Immobilizer system .........................4-1
Main switch/steering lock ................4-3
Indicator lights and
warning lights ..............................4-4
Multi-function meter unit .................4-9
Handlebar switches ......................4-18
Clutch lever ...................................4-19
Shift pedal .....................................4-20
Brake lever ...................................4-20
Brake pedal ..................................4-21
Traction control system ................4-21
Fuel tank cap ................................4-23
Fuel ...............................................4-24
Fuel tank breather hose and
overflow hose ............................4-25
Catalytic converter ........................4-26
Seats ............................................4-26
Helmet holder ...............................4-28
Storage compartment ................... 4-28
Rider footrest position .................. 4-29
Rear view mirrors ......................... 4-29
Adjusting the front fork .................4-30
Adjusting the shock absorber
assembly ................................... 4-32
Luggage strap holders ................. 4-34
Sidestand ..................................... 4-34
Ignition circuit cut-off system ........ 4-35
FOR YOUR SAFETY –
PRE-OPERATION CHECKS ............. 5-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 6-1
Starting the engine ......................... 6-1
Shifting ........................................... 6-2
Tips for reducing fuel
consumption ............................... 6-3
Engine break-in .............................. 6-3
Parking ........................................... 6-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 7-1
Owner’s tool kit ............................... 7-2
Periodic maintenance chart for
the emission control system ....... 7-3
General maintenance and
lubrication chart .......................... 7-4
Removing and installing
cowlings ...................................... 7-8
Checking the spark plugs ............ 7-10
Engine oil and oil filter cartridge ... 7-11
Coolant ........................................ 7-14
Air filter element ........................... 7-17
Checking the engine idling
speed ........................................ 7-17
Checking the throttle grip free
play ........................................... 7-18
Valve clearance ........................... 7-18
Tires ............................................. 7-18
Cast wheels ................................. 7-21
Adjusting the clutch lever free
play ........................................... 7-21
Checking the brake lever free
play ........................................... 7-22
Brake light switches ..................... 7-22
Checking the front and
rear brake pads ........................ 7-23
Checking the brake fluid level ...... 7-23
Changing the brake fluid .............. 7-25
Drive chain slack .......................... 7-25
Cleaning and lubricating
the drive chain .......................... 7-26
Checking and lubricating
the cables ................................. 7-27
Checking and lubricating
the throttle grip and cable ......... 7-27
Checking and lubricating
the brake and shift pedals ........ 7-28
Checking and lubricating
the brake and clutch levers ...... 7-28
U1KB20E0.book Page 1 Monday, August 8, 2011 1:35 PM

TABLE OF CONTENTS
Checking and lubricating
the sidestand .............................7-29
Lubricating the swingarm pivots ...7-29
Checking the front fork .................7-30
Checking the steering ...................7-30
Checking the wheel bearings .......7-31
Battery ..........................................7-31
Replacing the fuses ......................7-33
Replacing a headlight bulb ...........7-34
Tail/brake light ..............................7-35
Replacing a turn signal light
bulb ...........................................7-36
Replacing the license plate light
bulb ...........................................7-36
Auxiliary light ................................7-37
Supporting the motorcycle ............7-37
Troubleshooting ............................7-38
Troubleshooting charts .................7-39
MOTORCYCLE CARE AND
STORAGE ..........................................8-1
Matte color caution .........................8-1
Care ................................................8-1
Storage ...........................................8-4
SPECIFICATIONS .............................9-1
CONSUMER INFORMATION...........10-1
Identification numbers ..................10-1
Motorcycle noise regulation
(for Australia) ............................10-2
U1KB20E0.book Page 2 Monday, August 8, 2011 1:35 PM

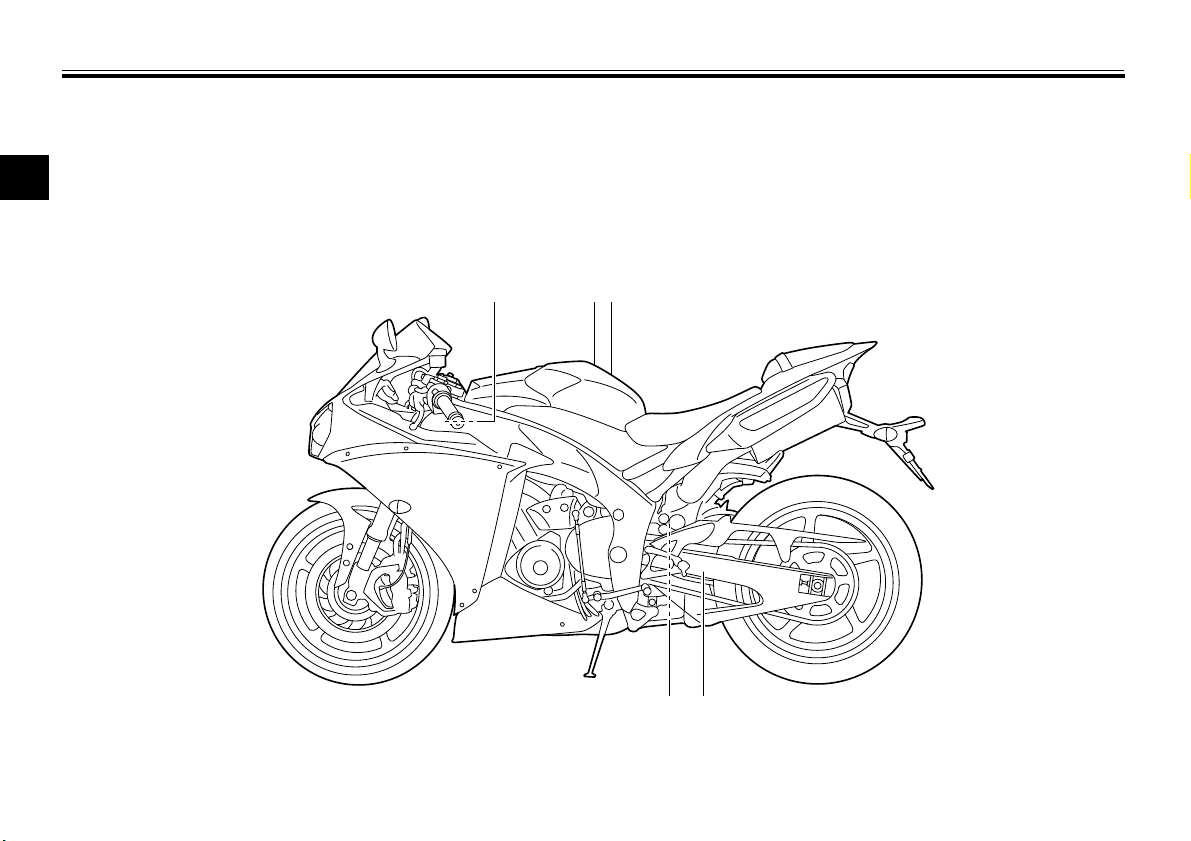

LOCATION OF IMPORTANT LABELS
1-1
1
EAU10384
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
2 31
54
U1KB20E0.book Page 1 Monday, August 8, 2011 1:35 PM

LOCATION OF IMPORTANT LABELS
1-2
1
STATIONARY NOISE TEST INFORMATION
TESTED 103 dB(A) AT 6250 r/min
SILENCING SYSTEM : YAMAHA
IDENTIFICATION : 14B-5
14B-6
14B-2118G-20
TIRE INFORMATION
Cold tire normal pressure should be set
as follows.
• Up to 90 kg (198 lbs) load
FRONT
REAR
: 250 kPa, {2.50 kgf/cm²}, 36 psi
: 290 kPa, {2.90 kgf/cm²}, 42 psi
• 90kg (198 lbs) ~ maximum load
FRONT
REAR
: 250 kPa, {2.50 kgf/cm²}, 36 psi
: 290 kPa, {2.90 kgf/cm²}, 42 psi
14B-21668-00
4AA-22259-40
Use PREMIUM unleaded gasoline with
min. 95 octane(RON).
2S3-2817K-00
14
2
3
5
U1KB20E0.book Page 2 Monday, August 8, 2011 1:35 PM

2-1
2
SAFETY INFORMATION
EAU10289
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:
●Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.
●Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
●Obtain qualified training in safe
and proper riding techniques.
●Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.
●This motorcycle is designed to car-
ry the operator and a passenger.
●The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
• Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.
●Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
• Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified opera-
tors.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your motorcycle
where there is no traffic until you
have become thoroughly famil-
iar with the motorcycle and all of
its controls.
●Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
