Yamaha Diversion XJ600N User manual

4BR-28199-E6
OWNER’S MANUAL
XJ600S

R/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-
EAU00001
Welcome to the Yamaha world of motorcycling!
As the owner of a XJ600S/XJ600N, you are benefiting from YamahaÕs vast experience
in and newest technology for the design and the manufacture of high-quality products,
which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all your
XJ600S/XJ600NÕs advantages. The ownerÕs manual does not only instruct you in how
to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself
and others from trouble and injury.
In addition, the many tips given in this manual will help to keep your motorcycle in the
best possible condition. If you have any further questions, do not hesitate to contact
your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!
INTRODUCTION

L/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-
EAU00005
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY
IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to
the motorcycle operator, a bystander or a person inspecting or repairing the
motorcycle.
A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
NOTE: A NOTE provides key information to make procedures easier or clearer.
lThis manual should be considered a permanent part of this motorcycle and should remain with it
even if the motorcycle is subsequently sold.
lYamaha continually seeks advancements in product design and quality. Therefore, while this
manual contains the most current product information available at the time of printing, there may
be minor discrepancies between your motorcycle and this manual. If there is any question con-
cerning this manual, please consult your Yamaha dealer.
CAUTION:
IMPORTANT MANUAL INFORMATION

R/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-
EW000002
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS
MOTORCYCLE.
IMPORTANT MANUAL INFORMATION

L/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-
EAU00008
XJ600S/XJ600N
OWNERÕS MANUAL
© 1999 by Yamaha Motor Co., Ltd.
1st Edition, April 1999
All rights reserved. Any reprinting or
unauthorized use without the written
permission of Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.

EAA30002
R
TABLE OF CONTENTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-TOC.-
1 GIVE SAFETY THE RIGHT OF WAY
2 DESCRIPTION
3 INSTRUMENT AND CONTROL FUNCTIONS
4 PRE-OPERATION CHECKS
5 OPERATION AND IMPORTANT RIDING POINTS
6 PERIODIC MAINTENANCE AND MINOR REPAIR
7 MOTORCYCLE CARE AND STORAGE
8 SPECIFICATIONS
9 CONSUMER INFORMATION
INDEX

/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-TOC.-

R
GIVE SAFETY THE RIGHT OF WAY
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-1TOC.-
GIVE SAFETY THE RIGHT OF WAY................................................. 1-1

L
1-1
GIVE SAFETY THE RIGHT OF WAY
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-1.frame
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and freedom.
However, they also impose certain limits, which you must accept; even the best motorcycle does not ig-
nore the laws of physics.
Regular care and maintenance are essential for preserving your motorcycleÕs value and operating condi-
tion. Moreover, what is true for the motorcycle is also true for the rider: good performance depends on be-
ing in good shape. Riding under the influence of medication, drugs and alcohol is, of course, out of the
question. Motorcycle riders Ð more than car drivers Ð must always be at their mental and physical best.
Under the influence of even small amounts of alcohol, there is a tendency to take dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and passengers.
Always wear a complete motorcycle suit (whether made of leather or tear-resistant synthetic materials
with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet. Optimum protective wear,
however, should not encourage carelessness. Though full-coverage helmets and suits, in particular, cre-
ate an illusion of total safety and protection, motorcyclists will always be vulnerable. Riders who lack criti-
cal self-control run the risk of going too fast and are apt to take chances. This is even more dangerous in
wet weather. The good motorcyclist rides safely, predictably and defensively Ð avoiding all dangers, in-
cluding those caused by others.
Enjoy your ride!
EAU00021

R
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2TOC.-
Left view (XJ600S) ............................................................................. 2-1
Right view (XJ600S)........................................................................... 2-2
Controls/Instruments (XJ600S) .......................................................... 2-3
Left view (XJ600N)............................................................................. 2-4
Right view (XJ600N) .......................................................................... 2-5
Controls/Instruments (XJ600N).......................................................... 2-6

L
2-1
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame
Left view (XJ600S)
EAU00026
1. Fuel cock (page 3-13)
2. Helmet holder (page 3-15)
3. Fuse box (page 6-26)
4. Luggage strap holders (page 3-16)
5. Seat lock (page 3-14)
6. Rear shock absorber spring
preload adjusting ring (page 3-15)
7. Shift pedal (page 3-10)

R
2-2
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame
Right view (XJ600S)
8. Tail/brake light (page 6-17)
9. Storage compartment (page 3-15)
10. Seat (page 3-14)
11. Fuel tank (page 3-11)
12. Headlight (page 6-27)
13. Rear brake pedal (page 3-11)

L
2-3
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame
Controls/Instruments (XJ600S)
14. Clutch lever (page 3-9)
15. Left handlebar switches (page 3-7)
16. Starter (choke) Ò Ó (page 3-14)
17. Speedometer (page 3-6)
18. Tachometer (page 3-7)
19. Right handlebar switches (page 3-9)
20. Front brake lever (page 3-10)
21. Throttle grip (page 6-12)
22. Main switch (page 3-1)

R
2-4
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame
Left view (XJ600N)
1. Steering lock (page 3-3)
2. Fuel cock (page 3-13)
3. Helmet holder (page 3-15)
4. Fuse box (page 6-26)
5. Luggage strap holders (page 3-16)
6. Seat lock (page 3-14)
7. Rear shock absorber spring preload
adjusting ring (page 3-15)
8. Shift pedal (page 3-10)

L
2-5
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame

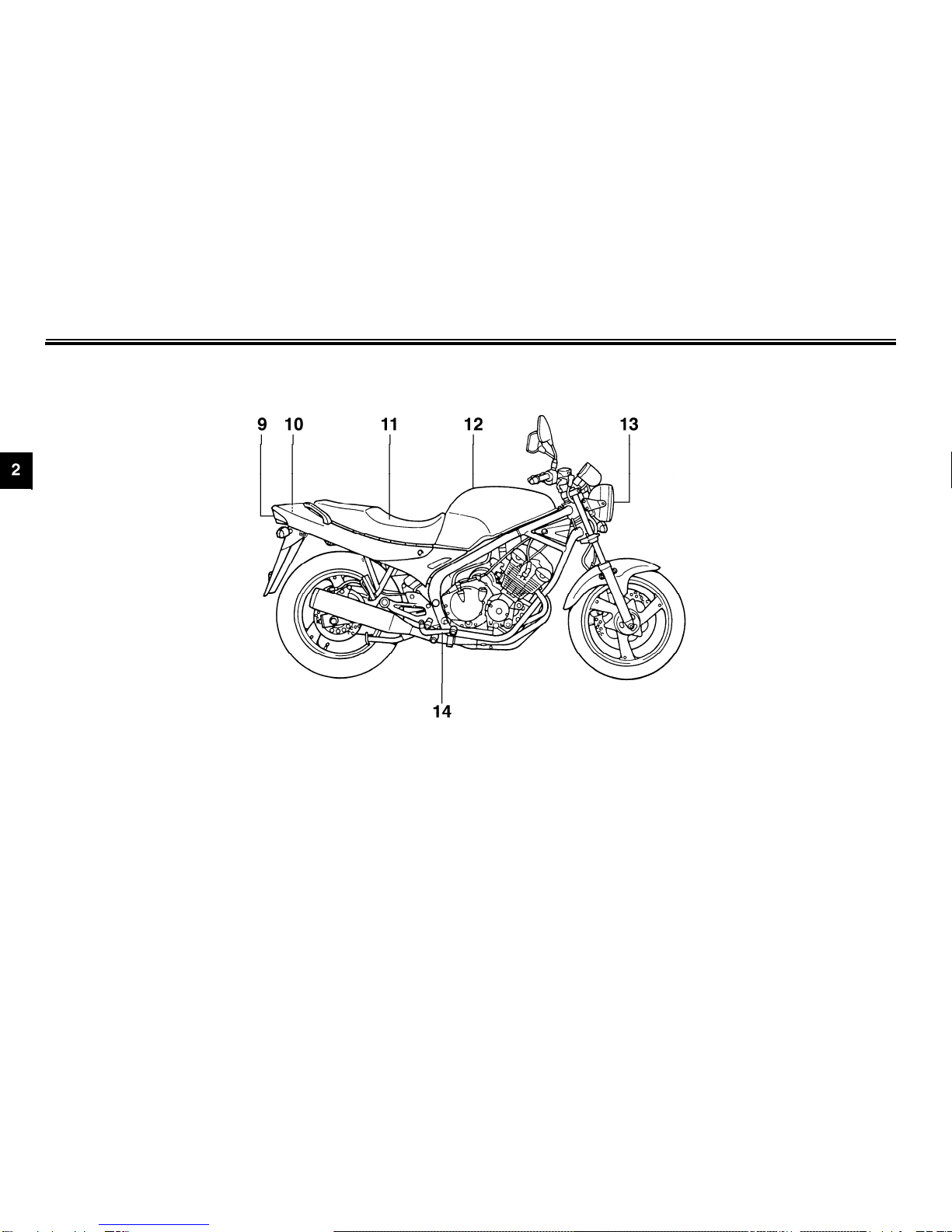

Right view (XJ600N)
9. Tail/brake light (page 6-17)
10. Storage compartment (page 3-15)
11. Seat (page 3-14)
12. Fuel tank (page 3-11)
13. Headlight (page 6-27)
14. Rear brake pedal (page 3-11)

R
2-6
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame
Controls/Instruments (XJ600N)
15. Clutch lever (page 3-9)
16. Left handlebar switches (page 3-7)
17. Starter (choke) Ò Ó (page 3-14)
18. Speedometer (page 3-6)
19. Tachometer (page 3-7)
20. Right handlebar switches (page 3-9)
21. Front brake lever (page 3-10)
22. Throttle grip (page 6-12)
23. Main switch (page 3-1)

/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-2.frame

R
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-3TOC.-
Main switch......................................................... 3-1
Steering lock (for XJ600N) ................................ 3-3
Indicator lights .................................................... 3-3
Oil level indicator circuit check ........................... 3-5
Speedometer (for XJ600S)................................. 3-6
Speedometer (for XJ600N) ................................ 3-6
Tachometer ........................................................ 3-7
Handlebar switches ............................................ 3-7
Clutch lever ........................................................ 3-9
Shift pedal ........................................................ 3-10
Front brake lever .............................................. 3-10
Rear brake pedal .............................................. 3-11
Fuel tank cap ....................................................3-11
Fuel...................................................................3-12
Fuel tank breather hose (for Germany only).....3-12
Fuel cock...........................................................3-13
Starter (choke) Ò Ó .........................................3-14
Seat...................................................................3-14
Helmet holders..................................................3-15
Storage compartment .......................................3-15
Rear shock absorber adjustment......................3-15
Luggage strap holders ......................................3-16
Sidestand ..........................................................3-17
Sidestand/clutch switch operation check ..........3-17

L
3-1
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-3.frame
EAU00027
EAU00028

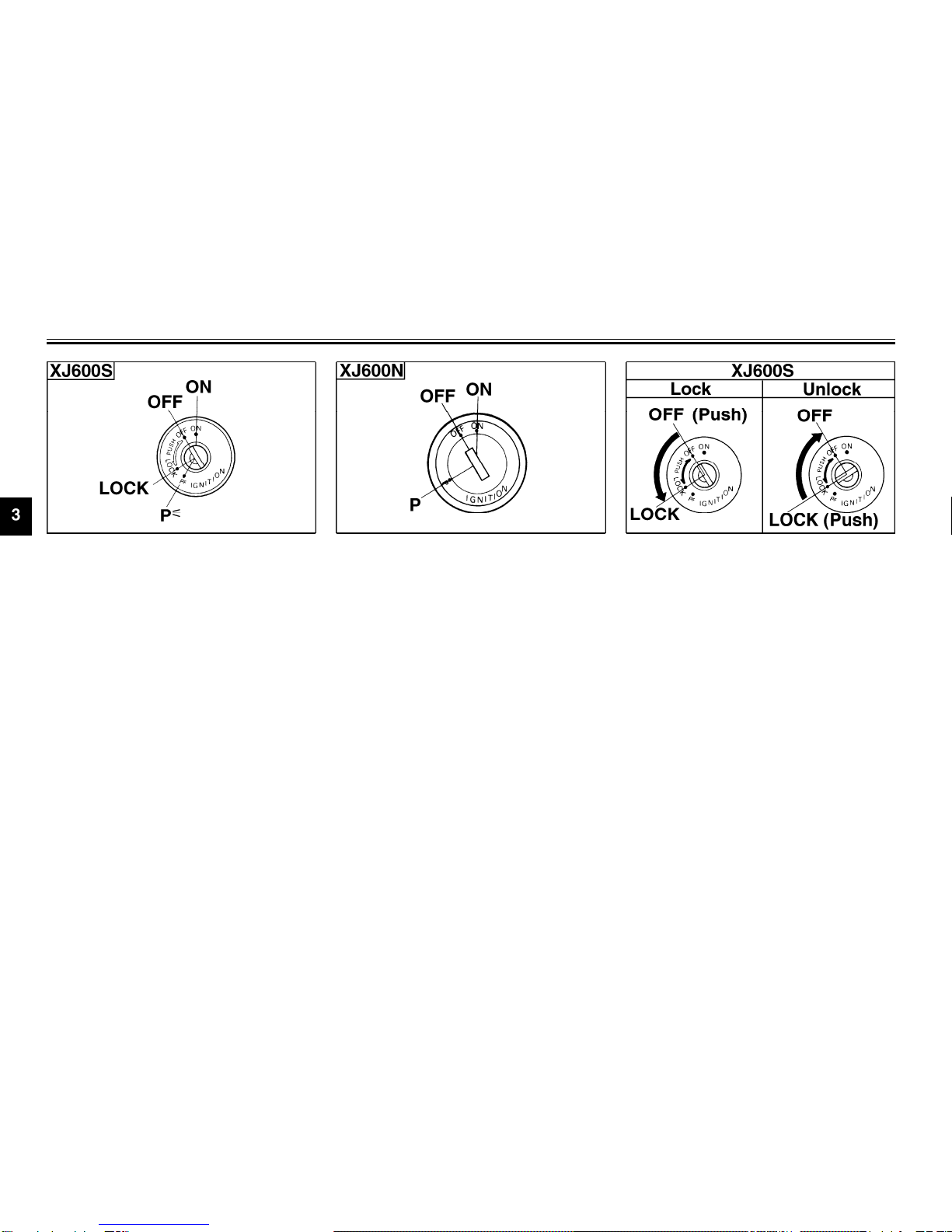

Main switch
The main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK (for XJ600S)
The steering is locked in this position
and all electrical circuits are switched
off. The key can be removed in this po-
sition. To lock the steering, turn the
handlebars all the way to the left. While
pushing the key into the main switch,
turn it from ÒOFFÓ to ÒLOCKÓ and re-
move it. To release the lock, turn the
key to ÒOFFÓ while pushing.

R
3-2
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-3.frame

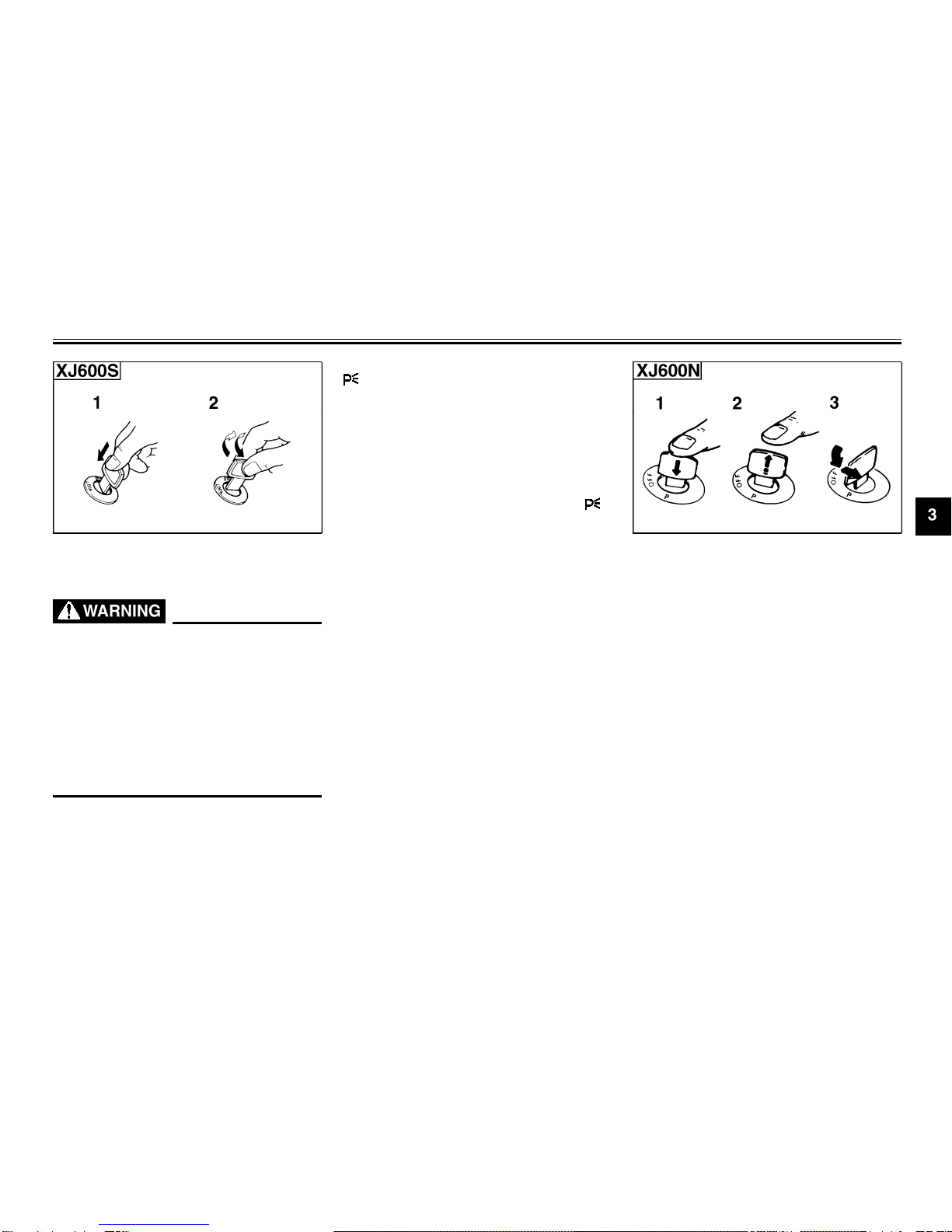

1. Push
2. Turn
EW000016
Never turn the key to ÒOFFÓ or
ÒLOCKÓ when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to ÒOFFÓ or
ÒLOCKÓ.
EAU01590
(Parking) (for XJ600S)
The steering is locked in this position,
and the taillight and auxiliary light come
on but all other circuits are off. The key
can be removed in this position.
To use the parking position, first lock
the steering, then turn the key to Ò Ó.
Do not use this position for an extend-
ed length of time as the battery may
discharge.
1. Push
2. Release
3. Turn
EAU00055
P (Parking) (for XJ600N)
The taillight and auxiliary light come on
but all other circuits are off. With the
key at ÒOFFÓ, push it into the main
switch and release it. Then turn it coun-
terclockwise to ÒPÓ, and remove it. (Do
not use this position for an extended
length of time as the battery may dis-
charge.) To cancel the parking, turn the
key clockwise.
