IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations.
This is the safety alert symbol. It is used to alert you to potential person-
al injury hazards. Obey all safety messages that follow this symbol to
avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICE
TIP
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

EAS20091
HOW TO USE THIS MANUAL
This manual is intended as a handy, easy-to-read reference book for the mechanic. Comprehensive
explanations of all installation, removal, disassembly, assembly, repair and check procedures are laid
out with the individual steps in sequential order.

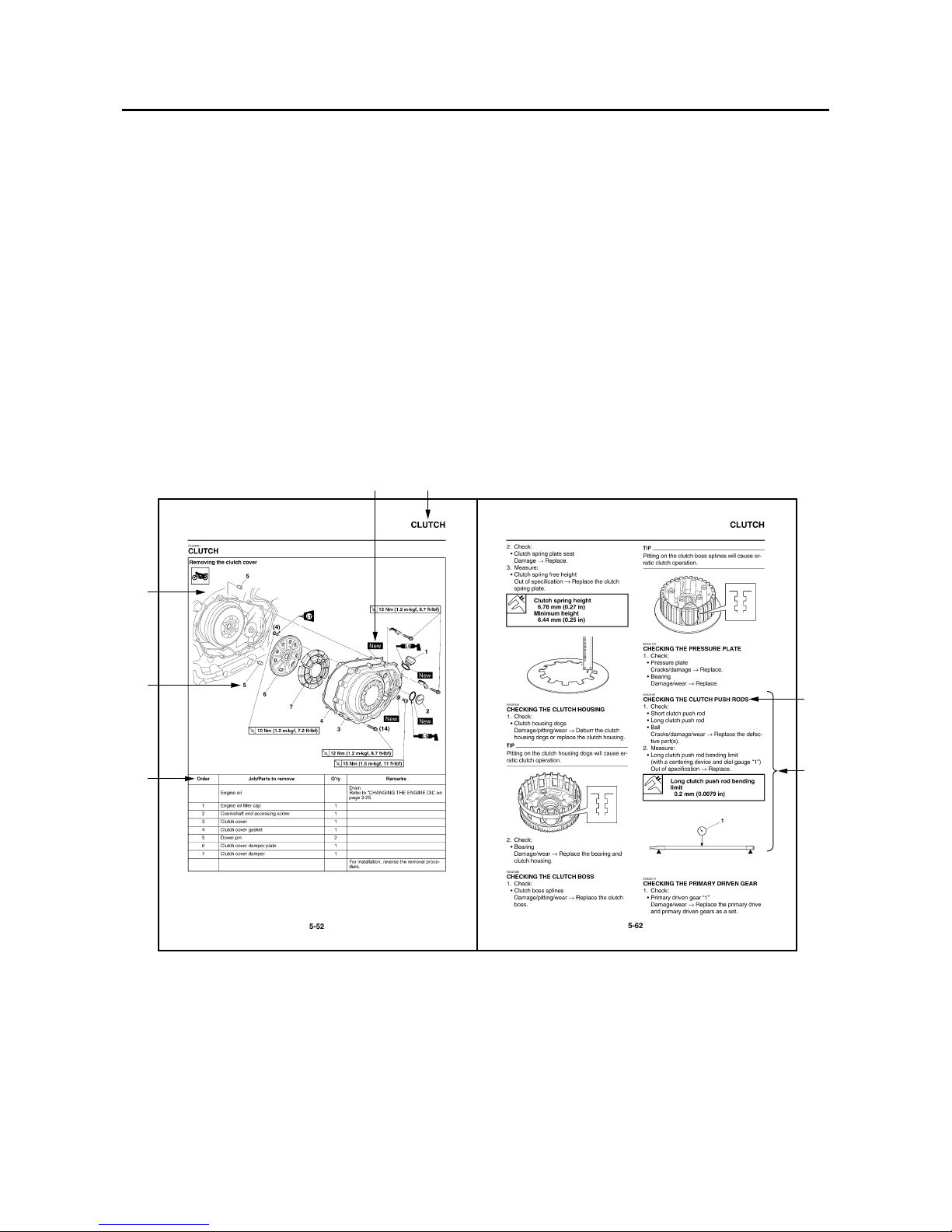

• The manual is divided into chapters and each chapter is divided into sections. The current section title
“1” is shown at the top of each page.
• Sub-section titles “2” appear in smaller print than the section title.
• To help identify parts and clarify procedure steps, there are exploded diagrams “3” at the start of each
removal and disassembly section.
• Numbers “4” are given in the order of the jobs in the exploded diagram. A number indicates a disas-
sembly step.
• Symbols “5” indicate parts to be lubricated or replaced.
Refer to “SYMBOLS”.
• A job instruction chart “6” accompanies the exploded diagram, providing the order of jobs, names of
parts, notes in jobs, etc.
• Jobs “7” requiring more information (such as special tools and technical data) are described sequen-
tially.
1
7
3
4
6
2
5
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

EAS20101
SYMBOLS
The following symbols are used in this manual for easier understanding.
T
IP
The following symbols are not relevant to every vehicle.
SYMBOL DEFINITION SYMBOL DEFINITION
Serviceable with engine mounted Gear oil
Filling fluid Molybdenum disulfide oil
Lubricant Brake fluid
Special tool Wheel bearing grease
Tightening torque Lithium-soap-based grease
Wear limit, clearance Molybdenum disulfide grease
Engine speed Silicone grease
Electrical data Apply locking agent (LOCTITE®).
Engine oil Replace the part with a new one.
G
M
BF
B
T
R
.
.
LS
M
S
LT
ENew
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

EAS20110 TABLE OF CONTENTS
GENERAL INFORMATION 1
SPECIFICATIONS 2
PERIODIC CHECKS AND
ADJUSTMENTS 3
CHASSIS 4
ENGINE 5
COOLING SYSTEM 6
FUEL SYSTEM 7
ELECTRICAL SYSTEM 8
TROUBLESHOOTING 9
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

1
GENERAL INFORMATION
IDENTIFICATION ............................................................................................1-1
VEHICLE IDENTIFICATION NUMBER .....................................................1-1
MODEL LABEL.......................................................................................... 1-1
FEATURES......................................................................................................1-2
OUTLINE OF THE FI SYSTEM................................................................. 1-2
FI SYSTEM................................................................................................1-3
YCC-T (Yamaha Chip Controlled Throttle)................................................1-4
OUTLINE OF THE UBS ............................................................................1-6
OUTLINE OF THE ABS........................................................................... 1-10
ABS COMPONENT FUNCTIONS ...........................................................1-15
UBS AND ABS OPERATION .................................................................. 1-20
ABS SELF-DIAGNOSIS FUNCTION....................................................... 1-24
ABS WARNING LIGHT AND OPERATION.............................................1-26
OUTLINE OF THE TCS (Traction Control System).................................1-28
INSTRUMENT FUNCTIONS ...................................................................1-31
IMPORTANT INFORMATION ....................................................................... 1-37
PREPARATION FOR REMOVAL AND DISASSEMBLY.........................1-37
REPLACEMENT PARTS......................................................................... 1-37
GASKETS, OIL SEALS AND O-RINGS ..................................................1-37
LOCK WASHERS/PLATES AND COTTER PINS ...................................1-37
BEARINGS AND OIL SEALS ..................................................................1-38
CIRCLIPS ................................................................................................1-38
BASIC SERVICE INFORMATION.................................................................1-39
QUICK FASTENERS...............................................................................1-39
ELECTRICAL SYSTEM...........................................................................1-40
SPECIAL TOOLS ..........................................................................................1-44
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

IDENTIFICATION
1-1
EAS20130
IDENTIFICATION
EAS20140
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number “1”is stamped
into the right side of the frame.
EAS20150
MODEL LABEL
The model label “1”is affixed to the frame under
the rider seat. This information will be needed to
order spare parts.
1
1
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-2
EAS20170
FEATURES
EAS30340
OUTLINE OF THE FI SYSTEM
The main function of a fuel supply system is to provide fuel to the combustion chamber at the optimum
air-fuel ratio in accordance with the engine operating conditions and the atmospheric temperature. In
the conventional carburetor system, the air-fuel ratio of the mixture that is supplied to the combustion
chamber is created by the volume of the intake air and the fuel that is metered by the jet used in the
respective carburetor.
Despite the same volume of intake air, the fuel volume requirement varies by the engine operating con-
ditions, such as acceleration, deceleration, or operating under a heavy load. Carburetors that meter the
fuel through the use of jets have been provided with various auxiliary devices, so that an optimum air-
fuel ratio can be achieved to accommodate the constant changes in the operating conditions of the en-
gine.
As the requirements for the engine to deliver more performance and cleaner exhaust gases increase,
it becomes necessary to control the air-fuel ratio in a more precise and finely tuned manner. To accom-
modate this need, this model has adopted an electronically controlled fuel injection (FI) system, in place
of the conventional carburetor system. This system can achieve an optimum air-fuel ratio required by
the engine at all times by using a microprocessor that regulates the fuel injection volume according to
the engine operating conditions detected by various sensors.
The adoption of the FI system has resulted in a highly precise fuel supply, improved engine response,
better fuel economy, and reduced exhaust emissions.
2,3
1
5,6,7,8
911
18
17 15,16 14 13 12
10
4
1. Engine trouble warning light
2. Ignition coils
3. Spark plugs
4. Intake air temperature sensor
5. Throttle position sensor
6. Accelerator position sensor
7. Intake air pressure sensor
8. Throttle servo motor
9. Fuel injectors
10.Fuel pump
11.Lean angle sensor
12. Rear wheel sensor
13. Coolant temperature sensor
14.Crankshaft position sensor
15. O2sensor #1
16. O2sensor #2
17. Battery
18.ECU (engine control unit)
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-3
EAS23P1100
FI SYSTEM
The fuel pump delivers fuel to the fuel injector via the fuel filter. The pressure regulator maintains the
fuel pressure that is applied to the fuel injector at 324 kPa (3.24 kgf/cm², 47.0 psi). Accordingly, when
the energizing signal from the ECU energizes the fuel injector, the fuel passage opens, causing the fuel
to be injected into the intake manifold only during the time the passage remains open. Therefore, the
longer the length of time the fuel injector is energized (injection duration), the greater the volume of fuel
that is supplied. Conversely, the shorter the length of time the fuel injector is energized (injection dura-
tion), the lesser the volume of fuel that is supplied.
The injection duration and the injection timing are controlled by the ECU. Signals that are input from the
throttle position sensor, accelerator position sensor, coolant temperature sensor, lean angle sensor,
crankshaft position sensor, intake air pressure sensor, intake air temperature sensor, rear wheel sensor
and O2sensors enable the ECU to determine the injection duration. The injection timing is determined
through the signals from the crankshaft position sensor. As a result, the volume of fuel that is required
by the engine can be supplied at all times in accordance with the driving conditions.
1
14
15
B
13
12
11
10
16
9
A
28
3
C6
54
7
#1 #2
1. Fuel pump
2. Injector
3. ECU (engine control unit)
4. Throttle position sensor
5. Accelerator position sensor
6. Rear wheel sensor
7. Lean angle sensor
8. O2sensor
9. Catalytic converter
10.Coolant temperature sensor
11.Crankshaft position sensor
12.Intake air pressure sensor
13. Throttle body
14.Air filter case
15.Intake air temperature sensor
16.Throttle servo motor
A. Fuel system
B. Air system
C. Control system
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-4
EAS23P1098
YCC-T (Yamaha Chip Controlled Throttle)
Mechanism characteristics
Yamaha developed the YCC-T system employing the most advanced electronic control technologies.
Electronic control throttle systems have been used on automobiles, but Yamaha has developed a fast-
er, more compact system specifically for the needs of a sports motorcycle. The Yamaha-developed
system has a high-speed calculating capacity that produces computations of running conditions every
1/1000th of a second.

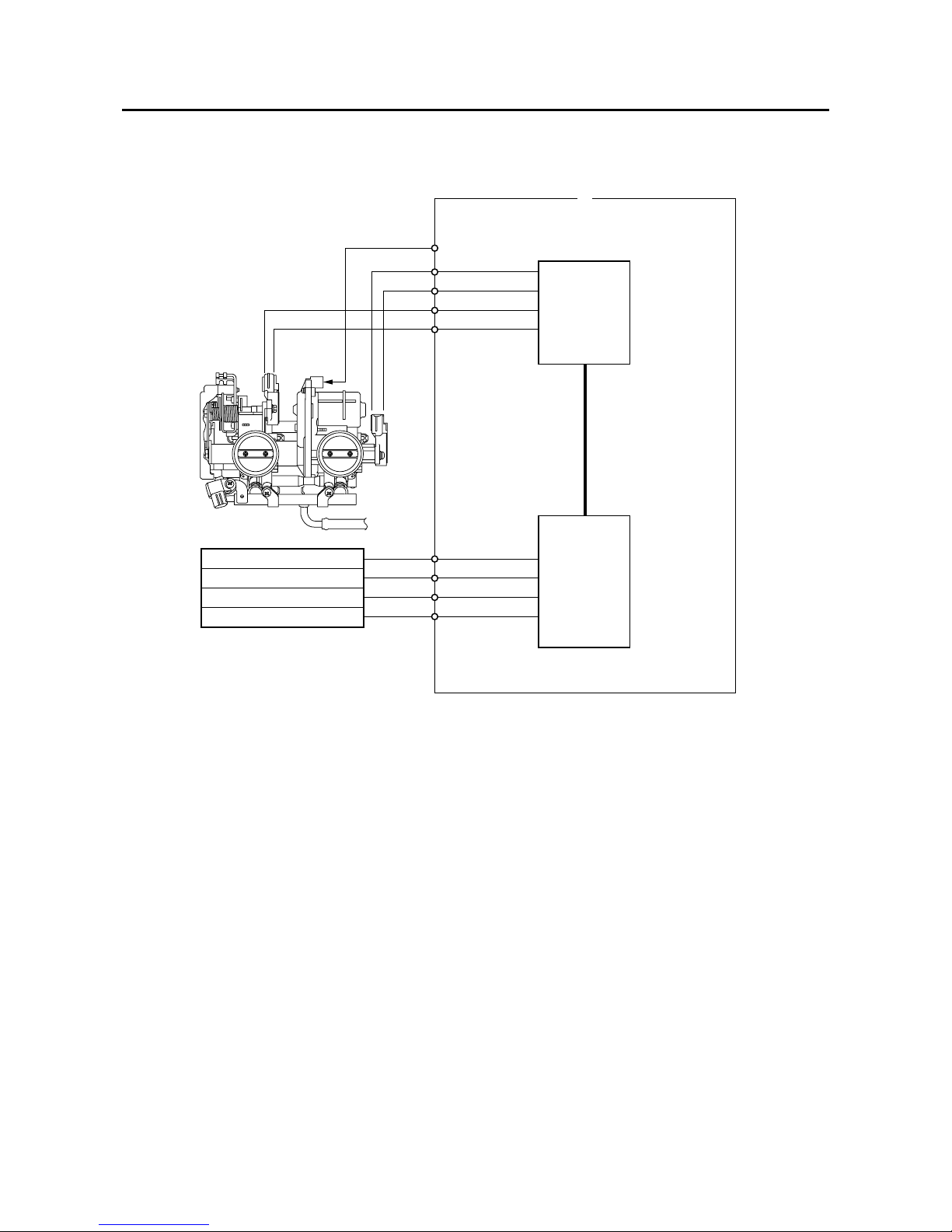

The YCC-T system is designed to respond to the throttle action of the rider by having the ECU instan-
taneously calculate the ideal throttle valve opening and generate signals to operate the motor-driven
throttle valves and thus actively control the intake air volume.
The ECU contains two CPUs with a capacity about five times that of conventional units, making it pos-
sible for the system to respond extremely quickly to the slightest adjustments made by the rider. In par-
ticular, optimized control of the throttle valve opening provides the optimum volume of intake air for
easy-to-use torque, even in a high-revving engine.
Aims and advantages of using YCC-T
•Increased engine power
By shortening the air intake path, higher engine speed is possible →Increased engine power.
•Improved driveability
Air intake volume is controlled according to the operating conditions →Improved throttle response to
meet engine requirement.
Driving force is controlled at the optimal level according to the transmission gear position and engine
speed →Improved throttle control.
•Engine braking control
Due to the throttle control, optimal engine braking is made possible.
•Simplified idle speed control (ISC) mechanism
The bypass mechanism and ISC actuator are eliminated →A simple mechanism is used to maintain
a steady idle speed.
•Reduced weight
Compared to using a sub-throttle mechanism, weight is reduced.
4
3
2
1
1. Accelerator position sensor
2. Throttle servo motor
3. Throttle position sensor
4. Throttle valves
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-5
YCC-T system outline
7
8
9
10
11
5
6
4
3
2
1

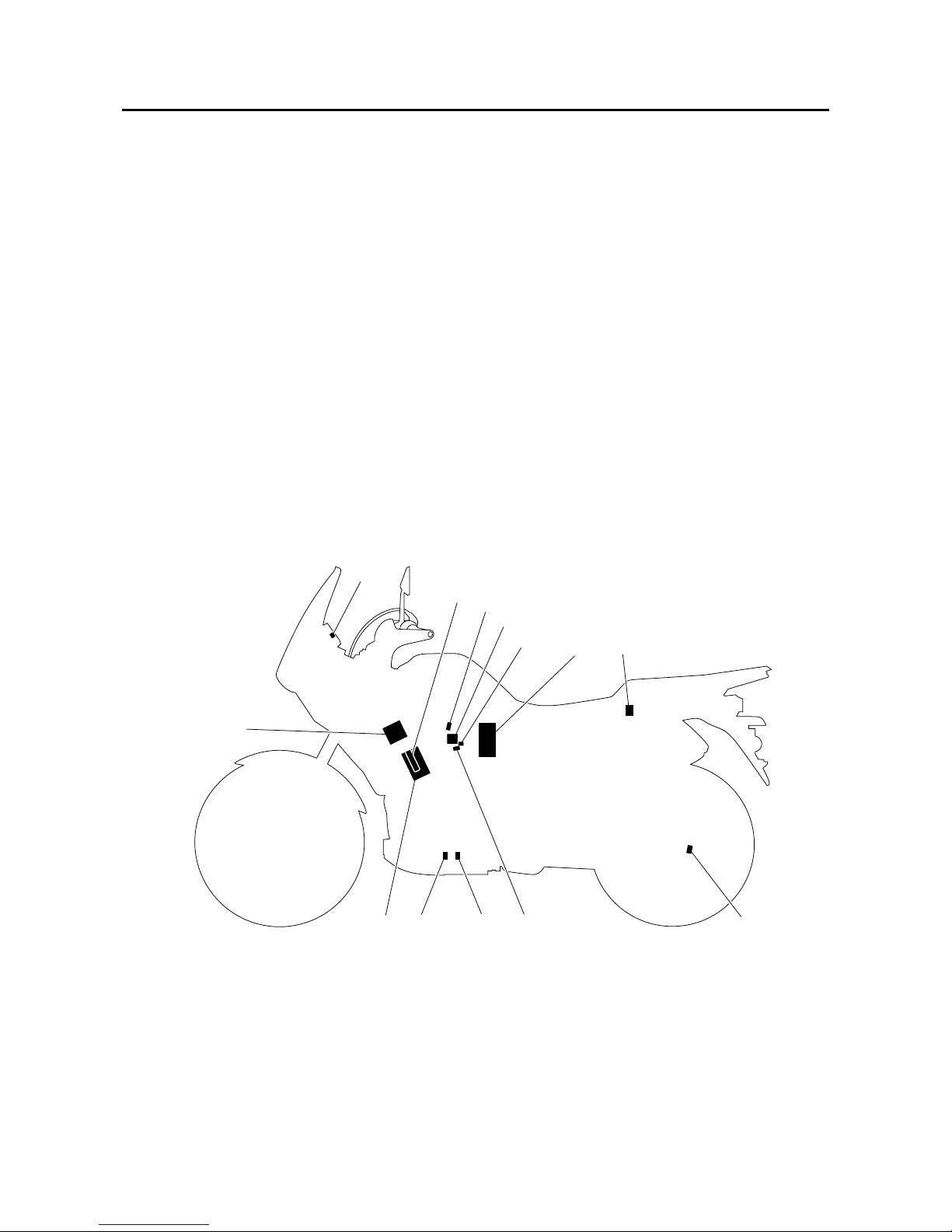

1. Throttle position sensor
2. Throttle servo motor
3. Accelerator position sensor
4. ECU (engine control unit)
5. YCC-T CPU
6. FI CPU
7. Sensor input
8. Neutral switch
9. Crankshaft position sensor
10.Rear wheel sensor
11.Coolant temperature sensor
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-6
EAS23P1060
OUTLINE OF THE UBS
This model is equipped with a unified brake system (UBS) that operates the rear brake when the brake
lever is squeezed.
When the brake lever is squeezed, the rear brake force is controlled electronically according to the
brake lever input (hydraulic pressure) and vehicle speed (deceleration). During tandem riding or when
the vehicle is carrying a heavy load, the rear brake force generated by the UBS is higher to increase
vehicle stability.
If the brake pedal is operated before the brake lever, the UBS will not operate. However, if the brake
pedal is operated while the UBS is operating, the UBS will continue to operate until the brake pedal
input exceeds the rear brake force generated by the UBS. Then, the rear braking will switch to rider
control.
T
IP
If the brakes are operated while the vehicle is traveling at low speeds, the UBS will only generate a
small brake force.

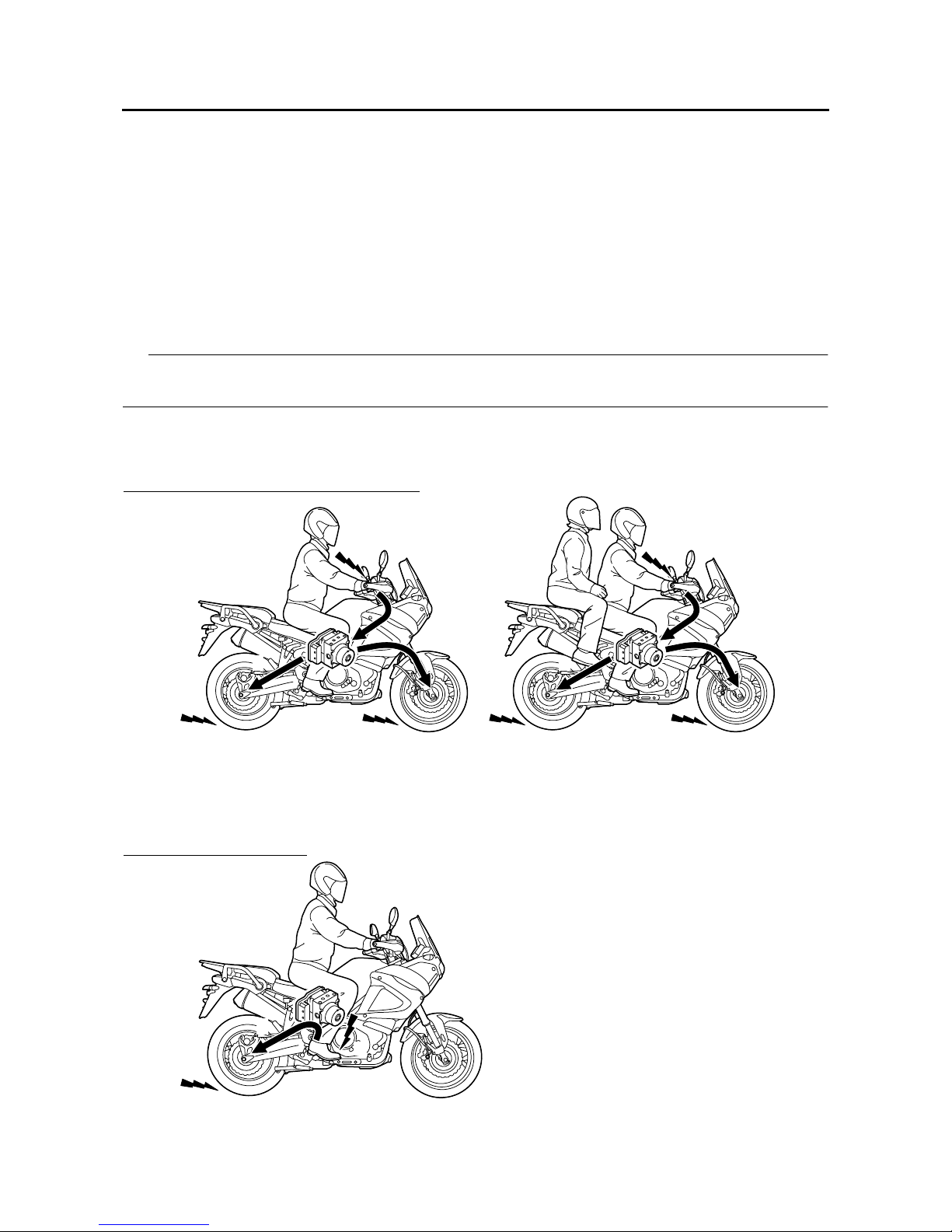

UBS operation
•Brake lever input only: Front braking and rear braking with hydraulic pump (with UBS operation)
Brake lever only operated (UBS operation)
•Brake pedal input only: Rear braking (without UBS operation)
Brake pedal only operated
a. Input
b. Automatic pressurization (normal)
a. Input
c. During tandem riding or when carrying a load
d. Automatic pressurization (high)
a
b
ca
d
a. Input
b. No automatic pressurization
b
a
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-7
•Brake lever input and brake pedal input: Front braking and rear braking (with and without UBS oper-
ation)
Brake lever and brake pedal both operated

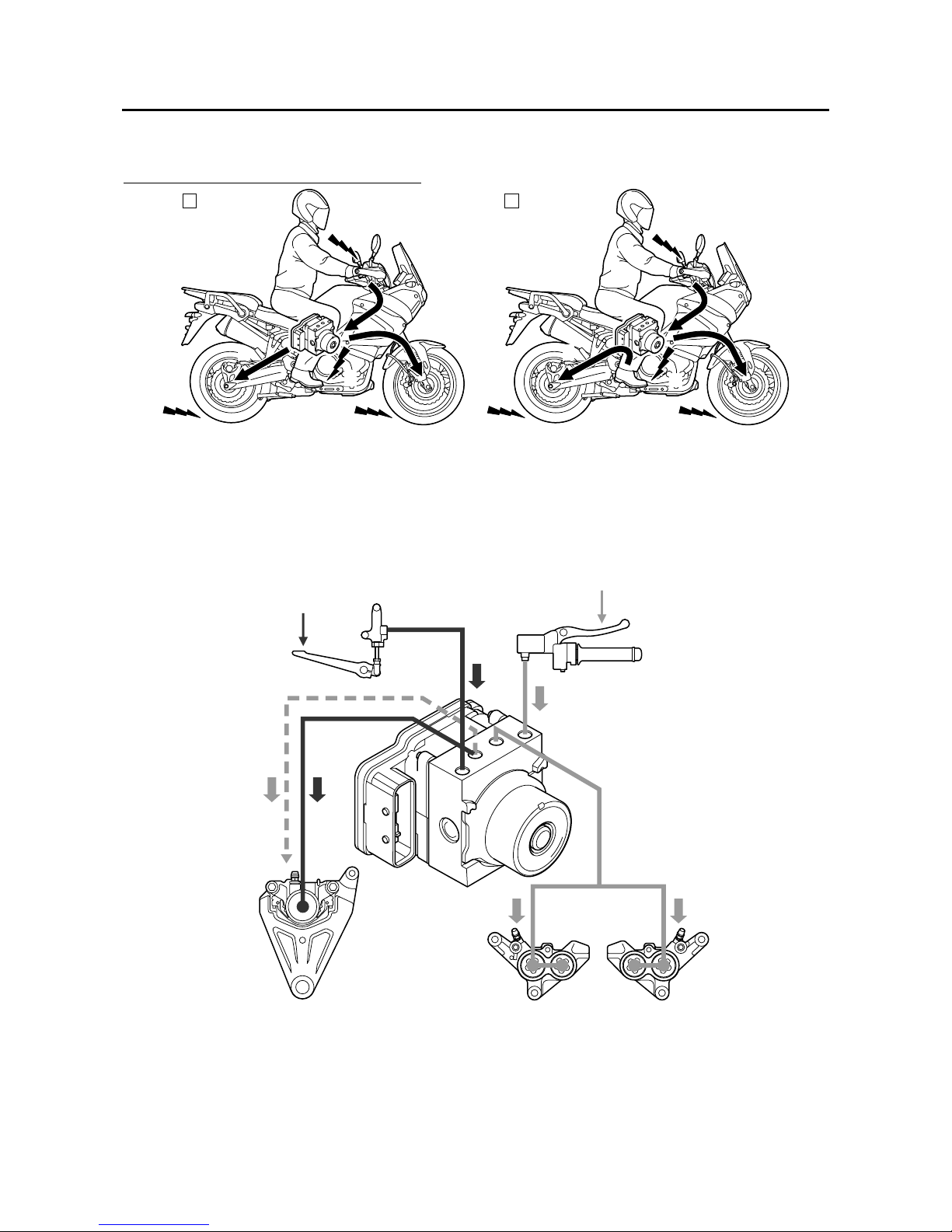

UBS diagram
A. Brake lever is operated before brake pedal
a. First input
b. Second input
c. Brake fluid is automatically pressurized until the
second input exceeds the automatic
pressurization
B. Brake pedal is operated before brake lever
a. First input
b. Second input
d. No automatic pressurization
a
b
c
a
d
b
A B
a
a2
1
b
b
c
b b
b3
6
54
1. Rear brake master cylinder
2. Front brake master cylinder
3. Hydraulic unit assembly (ABS ECU)
4. Right front brake caliper
5. Left front brake caliper
6. Rear brake caliper
a. Input
b. Pressurization
c. Pressurization (hydraulic pump pressurization
by UBS)
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-8
When the brake lever is squeezed, the front brake master cylinder pressure sensor in the hydraulic unit
detects the hydraulic pressure. The ABS ECU calculates the appropriate rear brake force according to
the detected hydraulic pressure and sends a signal to the rear brake hydraulic pump. The hydraulic
pump pressurizes the rear brake caliper using electronic control to operate the rear brake.
T
IP
•If the brake pedal is depressed while the brake lever is being squeezed, the brake pedal may feel hard
due to the operation of the UBS, but this does not indicate a malfunction.
•If the rider squeezes the brake lever while resting their foot on the brake pedal, a vibration can be felt
at the brake pedal due to the operation of the UBS, but this does not indicate a malfunction.
NOTICE
ECA23P1054
• The UBS does not operate before the vehicle starts off.
• If the vehicle is stopped by operating the brake lever only, the brake force due to the operation
of the UBS will be maintained while the brake lever is squeezed. However, if the brake lever is
released, then squeezed again, the UBS will not operate.
NOTICE
ECA23P1055
• The unified brake system is a system to assist the brake operation. However, both the brake
lever and the brake pedal must be operated for maximum braking effect.
• Because the balance between the front brake calipers and the rear brake caliper in the unified
brake system is determined electronically, be sure to use the specified brake pads.
• Each set of brake pads should be checked individually and replaced if necessary.

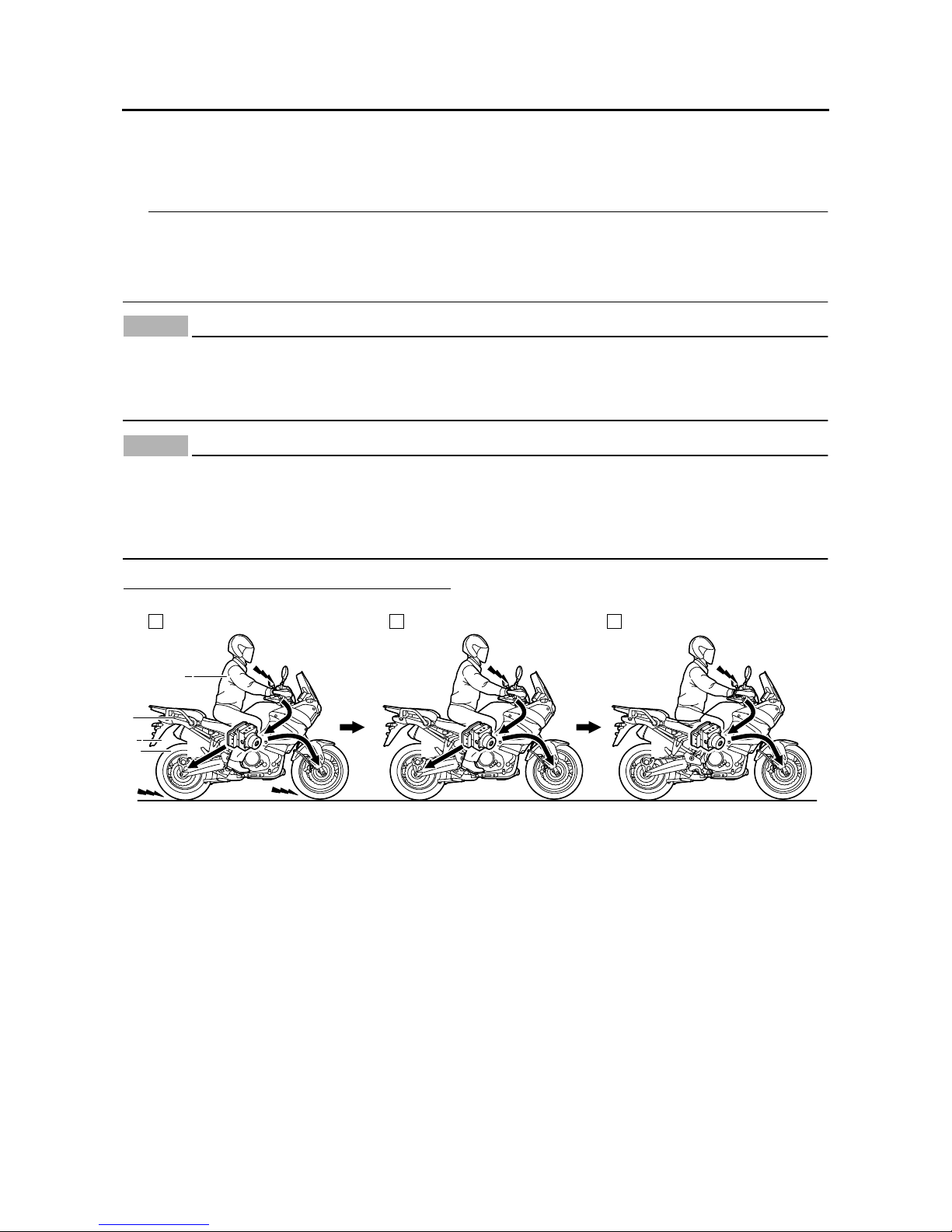

When vehicle is stopped using brake lever only
UBS hydraulic pressure map
The appropriate hydraulic pressure is distributed according to the load being carried by the vehicle. See
figure “A”.
The coefficient is set according to the vehicle speed when the brake input starts and remains constant
until the brake input stops. When the brakes are operated continuously to slow the vehicle, the coeffi-
cient (UBS brake force) does not decrease together with the vehicle speed. See figure “B”.
A. Deceleration
a. Input
b. Automatic pressurization
B. Vehicle stopped
c. Input maintained
d. Pressurization maintained
C. Brake lever released, then
squeezed again, after vehicle
stops
e. Brake lever released, then
squeezed again
f. No automatic pressurization
eac
bd f
A B C
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-9
a
e
c
b
d
A
0
20
40
60
80
100
120
140
f
h
g
B
a. Hydraulic pressure distribution
b. Rear brake output (bars)
c. Front brake input (bars)
d. Rider only
e. When carrying the maximum load
f. Vehicle speed coefficient
g. Coefficient (%)
h. Speed (km/h)
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-10
EAS23P1061
OUTLINE OF THE ABS
1. This model is equipped with the latest, advanced type of ABS, which has improved feeling during
operation and smoother braking than previous ABS brakes. The ABS ECU detects the hydraulic
pressure using the pressure sensors and controls the pressure linearly using continuously variable
adjustments to obtain the appropriate pressure when the wheels have a tendency to lock or accord-
ing to the operation input (hydraulic pressure) from the brake lever or brake pedal.
2. If the wheels have a tendency to lock during brake lever input, brake pedal input, or UBS control, the
ABS will operate.
3. The hydraulic unit assembly, which is the main component of the ABS, is centrally located on the
vehicle to increase mass centralization.

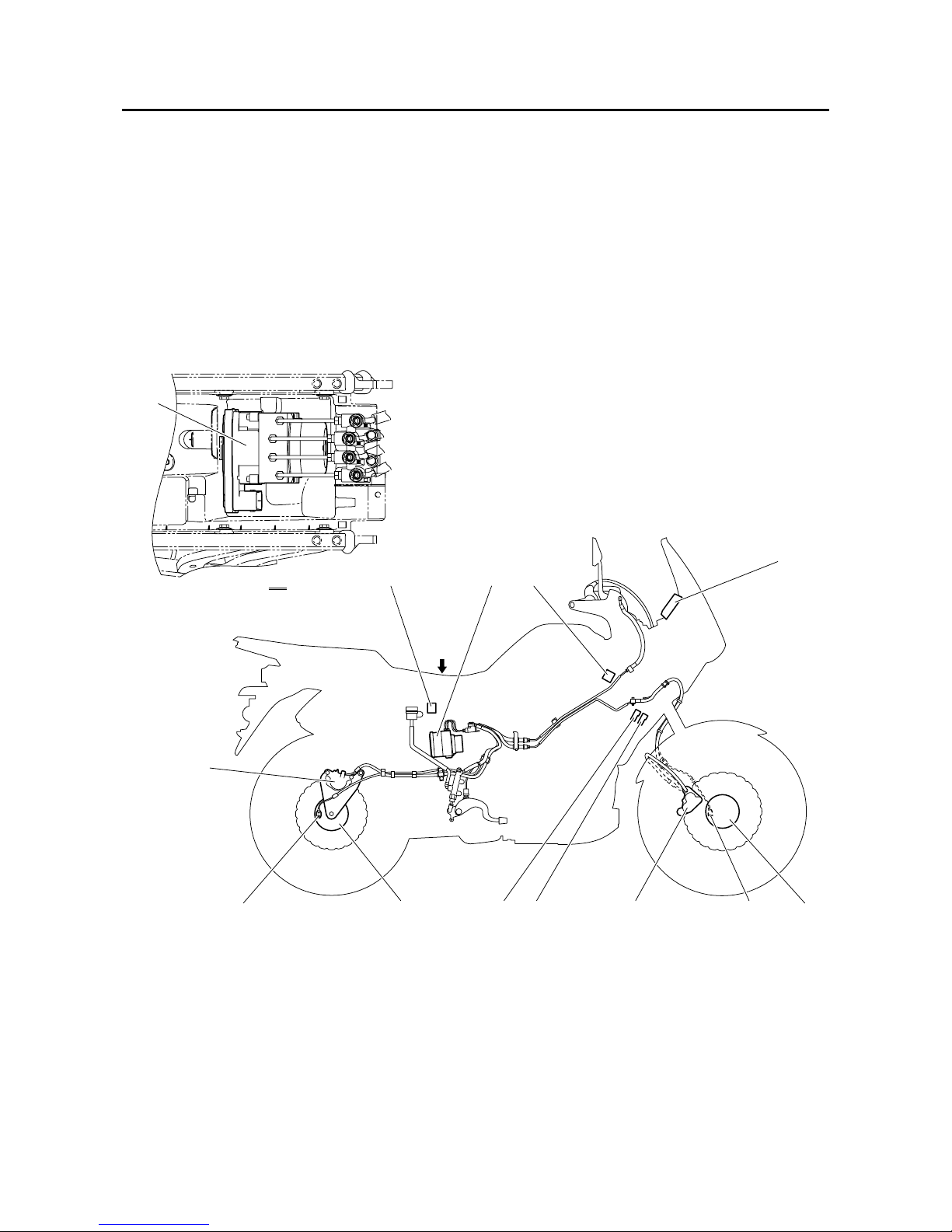

ABS layout
A
A
12
1
236789
10
11 12 13
4,5
1. ABS warning light
2. Front wheel sensor rotor
3. Front wheel sensor
4. Right front brake caliper
5. Left front brake caliper
6. ABS ECU fuse
7. ABS solenoid fuse
8. Rear wheel sensor rotor
9. Rear wheel sensor
10.Rear brake caliper
11.ABS test coupler
12.Hydraulic unit assembly
13.ABS motor fuse
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]

FEATURES
1-11
Useful terms
•Wheel speed:
The rotation speed of the front and rear wheels.
•Chassis speed:
The speed of the chassis.
When the brakes are applied, wheel speed and chassis speed are reduced. However, the chassis
travels forward by its inertia even though the wheel speed is reduced.
•Brake force:
The force applied by braking to reduce the wheel speed.
•Wheel lock:
A condition that occurs when the rotation of one or both of the wheels has stopped, but the vehicle
continues to travel.
•Side force:
The force on the tires which supports the vehicle when cornering.
•Slip ratio:
When the brakes are applied, slipping occurs between the tires and the road surface. This causes a
difference between the wheel speed and the chassis speed.
Slip ratio is the value that shows the rate of wheel slippage and is defined by the following formula.
0%: There is no slipping between the wheel and the road surface. The chassis speed is equal to the
wheel speed.
100%: The wheel speed is “0”, but the chassis is moving (i.e., wheel lock).
Brake force and vehicle stability
When the brake pressure is increased, wheel speed is reduced. Slipping occurs between the tire and
the road surface and brake force is generated. The limit of this brake force is determined by the friction
force between the tire and the road surface and is closely related to wheel slippage. Wheel slippage is
represented by the slip ratio.

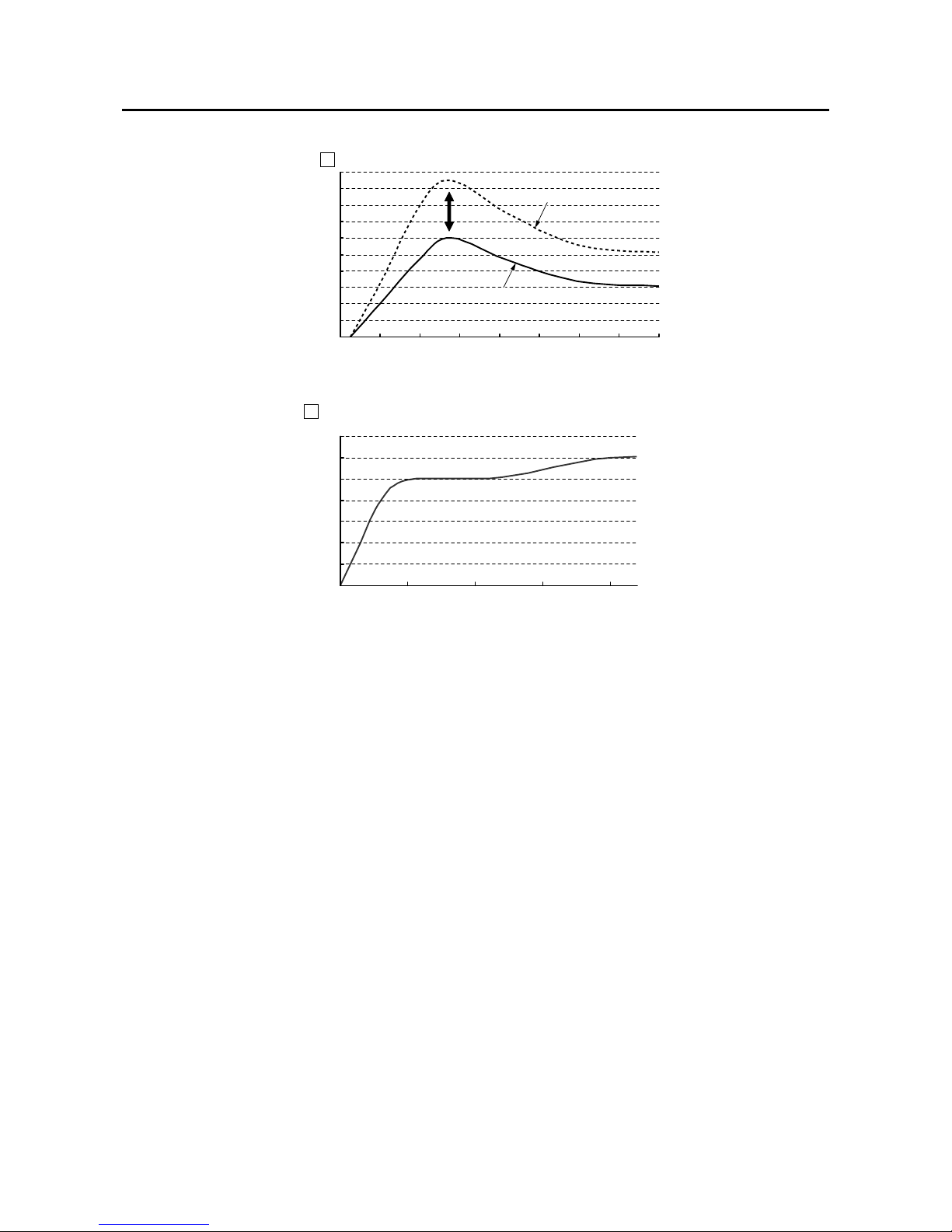

Side force is also closely related to wheel slippage. See figure “A”. If the brakes are applied while keep-
ing the proper slip ratio, it is possible to obtain the maximum brake force without losing much side force.
ABS allows full use of the tires’capabilities even on slippery road surfaces or less slippery road surfac-
es. See figure “B”.
Slip ratio =
Chassis speed –
Wheel speed ×100 (%)
Chassis speed
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: [email protected]
