Thank you for purchasing Yamaha PJP-50USB. This product is a microphone/speaker unit to be connected to a video or
web conference system for use as its audio terminal. Before operating this unit, please read this manual carefully.
■Connection to a video or web conference system
This unit can be connected to a video or web conference system for use as a microphone/speaker of the system.
Replacing the audio input/output of the system with this unit achieves a smoother conference for both talkers and
listeners.
■Audio conference that is "easy to talk" and "easy to hear"
This unit employs arrayed microphones with high voice capturing capability and speakers with high voice reproduction
capability. It also incorporates a high-performance adaptive echo canceller to eliminate interruptions of sound or drop in
the voice level when multiple talkers speak simultaneously. These features make your audio conference "easy to talk" and
"easy to hear".
Introduction
MICMUTE
VOL
4
7
0
8
5
26
3
9
#
1
MENU
ENTER
CLEAR
STANDBY
MICMUTE
VOL
4
7
0
8
5
26
3
9
#
1
MENU
ENTER
CLEAR
STANDBY
PJP-50USB (2 persons) Headset
PJP-100UH (6 persons) PJP-50USB (3 persons)
Web
conference
Web
conference
Web
conference

3
INTRODUCTION
1Microphone indicators
When this unit is turned on, the LEDs light in blue. The
LEDs are turned off while the microphones are being
muted.
2Arrayed microphones
The eight microphones on the top panel pick up the voices
of the talkers.
3
Reserved for future extension.
4/ STANDBY
•While the setting item is being displayed, press the key
to return to the top screen.
•Hold down the key to set the system to the standby
mode.
y
Hold / STANDBY to exit the standby mode.
5Display
The LCD shows the current status of this unit.
6CLEAR
Press the key to cancel a setting without saving it or to
return to the previous screen.
7/
Press either key to select a setting item or move the cursor
up or down.
8ENTER/MENU
•Press the key to enter a setting.
•Press the key to display the setting menu.
9Numeric keys
Press the key to select a setting item.
0MIC MUTE
Press the key to temporarily defeat (mute) the
microphones of this unit. The key lights in orange when
muted.
Pressing the key when the microphones are muted releases
the mute and turns the LED off.
AVOL +/–
Press either key to adjust the speaker volume. Holding
either key increases or decreases the volume continuously.
Controls and Functions
Top panel
MIC MUTE
STANDBY
MENU
ENTER
CLEAR
VOL
4
7
0
8
5
2
6
3
9
#
1
2
1
34 5678 0 A9

4
1USB port
Connect to the PC using a USB cable.
2DC IN 12V terminal
Connect the provided AC adapter.
3AUDIO IN terminal
Connect to the line output terminal or the headphone
output terminal of an audio equipment or PC.
4AUDIO OUT terminal
Connect to the line input terminal or the microphone input
terminal of an audio equipment or PC.
1Serial label
The label carries the following information.
•MODEL No.: Model number of this unit.
•SER.: Serial number for use in management/distinction
of this unit.
2Arrayed speakers
The four arrayed speakers on the bottom panel for use in
output of the audio.
3Adjuster
If you cannot place this unit stably because of the shape of
the desk or other reasons, adjust the foot height using the
adjuster.
1USB mode
Displays the setting of the USB mode.
: This unit functions in the audio mode.
: This unit functions in the telephony mode.
2MIC
Displays the audio input level of the microphones.
3Volume
Displays the audio output level of the speakers.
4USB indicator
Lights up when this unit is connected to the PC using a
USB cable.
5Speaker mute
Lights up when the speakers are muted.
Side panel
DC IN 12V IN AUDIO OUT
12 34
Bottom panel
2
123
Top screen
1
2345
Volume
AUD
TEL

5
PREPARATION
■USB cable (when connecting to a PC
using a USB cable)
Prepare the supplied USB cable.
Be sure to use the supplied USB cable. Otherwise operation
failure may be caused.
■Audio connection cable (when connecting
to a PC or external device without using a
USB cable)
Prepare two audio connection cables (stereo mini-jack
cables).
y
The designs of the audio input/output terminals of video
conference systems vary depending on the models.
Always use audio connection cables having the plugs
matching the audio input/output terminals of the
connected video conference system. Note that the plugs
connected to the Projectphone should always be the stereo
mini plugs.
■System requirement
The PC connected to this unit should meet the following
system requirement.
•OS: Windows 7, Windows Vista SP1 or later (32 bit),
Windows XP SP2 or later (32 bit), Windows 2000
Professional SP4
•USB port: USB 1.1 or later (USB 2.0 recommended)
•You can not connect more than one conference
microphone speaker to the PC at the same time.
•Connect this unit and the PC directly. Connecting them
through a USB hub may cause problems in operation.
•Audio reproduction may be interrupted depending on
the PC usage situations (workloads or available memory
space).
Connection
Check the following before
connecting this unit to the PC
Note Notes

6
■Step 1: Connecting this unit
1Connect this unit to the PC using the
supplied USB cable.
2Connect the AC adapter to the DC IN 12V
terminal.
3Connect the power cable to the AC
adapter.
4Connect the power cable to the AC
outlet.
This unit is turned on. The start-up sound plays and
the microphone indicators light up.
y
You do not need to install the USB driver separately
because this unit is recognized as a basic audio device by
the PC.
Connection using a USB cable
12
3
4
To USB port

7
PREPARATION
■Step 2: Checking the connection
After connecting this unit to the PC, follow the procedure
below to check whether the PC recognizes this unit
properly.
The items in the setting screen vary depending on the PC.
When using Windows XP
1Click [Start] - [Control Panel].
2Click "Sounds, Speech, and Audio
Devices".
3Click "Sounds and Audio Devices".
The "Sounds and Audio Devices Properties" screen
appears.
4Click the "Audio" tab.
5Configure the settings as shown below.
•"Default device" in "Sound playback":
Yamaha PJP-50USB
•"Default device" in "Sound recording":
Yamaha PJP-50USB
y
Normally, "Yamaha PJP-50USB" is automatically selected
when this unit is connected to the PC.
6Click the "Voice" tab.
7Configure the settings as shown below.
•"Default device" in "Voice playback":
Yamaha PJP-50USB
•"Default device" in "Voice recording":
Yamaha PJP-50USB
y
Normally, "Yamaha PJP-50USB" is automatically selected
when this unit is connected to the PC.
8Click "OK" to close the "Sounds and
Audio Devices Properties" screen.
Note
Click
Change
Change
Click
Change
Change

8

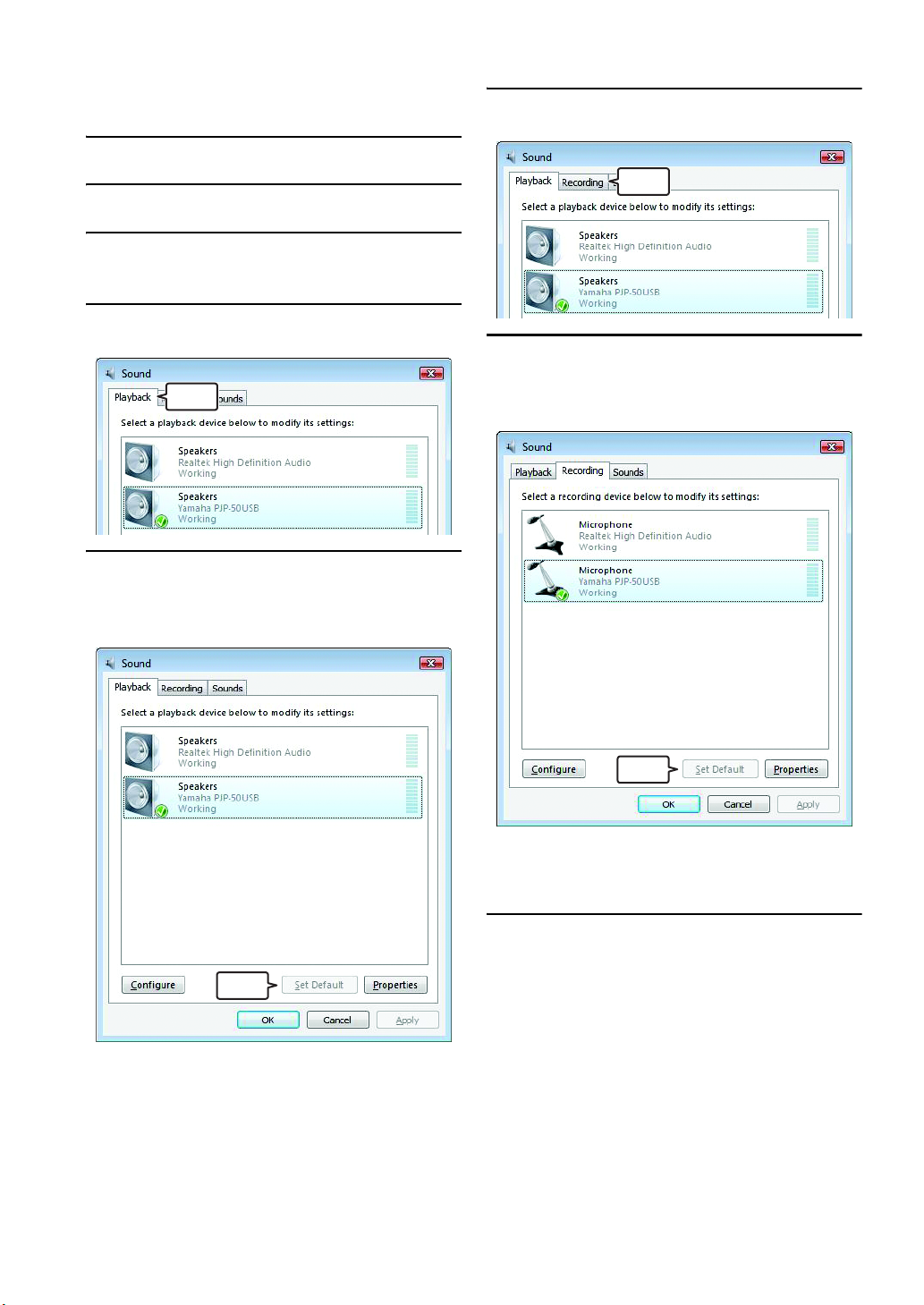

When using Windows 7/Windows Vista
In this section, Windows Vista is used as an example.
1Click [Start] - [Control Panel].
2Click "Classic View".
3Double-click "Sound".
The "Sound" screen appears.
4Click the "Playback" tab.
5Configure the setting as shown below.
Select "Yamaha PJP-50USB" in "Speakers", and then
click "Set Default".
y
Normally, "Yamaha PJP-50USB" is automatically selected
when this unit is connected to the PC.
6Click the "Recording" tab.
7Configure the setting as shown below.
Select "Yamaha PJP-50USB" in "Microphone", and
then click "Set Default".
y
Normally, "Yamaha PJP-50USB" is automatically selected
when this unit is connected to the PC.
8Click "OK" to close the "Sound" screen.
Click
Click
Click
Click

9
PREPARATION
■Step 1: Connecting this unit
1Connect the AUDIO IN terminal of this
unit to the audio output terminal of the
PC or video conference system.
2Connect the AUDIO OUT terminal of this
unit to the audio input terminal of the PC
or video conference system.
3Connect the AC adapter to the DC IN 12V
terminal.
4Connect the power cable to the AC
adapter.
5Connect the power cable to the AC
outlet.
This unit is turned on. The start-up sound plays and
the microphone indicators light up.
y
•The audio may be distorted or too low in certain
operating environments. In such a case, adjust "AUDIO
IN LEVEL" and "AUDIO OUT LEVEL" in "Settings".
For details, see page 15.
•To use this function, you need to change the settings of
the audio input/output of the PC and video conference
system. For the settings of the PC, see "Changing the
settings of the PC" (page 10).
•The designs of the line input/output terminals of video
conference systems vary depending on the models.
Always use audio connection cables having the plugs
matching the line input/output terminals of the
connected video conference system. The plugs
connected to the Projectphone should always be the
stereo mini plugs regardless of the designs of the plugs
connected to the video conference system.
Connection using audio connection cables
1
32
4
5To audio output
terminal
To audio input
terminal

10
■Step 2: Changing the settings of the PC
When you connect this unit to a PC for use as a
microphone/speaker of a conference system, you need to
change the setting so that the audio input from this unit to
the PC is not output to this unit. It is also necessary to
change the setting so that the audio input from the
connected terminal is accepted.
The items in the setting screen vary depending on the PC. When
they are different from the following description, refer to the
instruction manuals of your PC or the sound card installed to your
PC, and set the parameters as follows.
When using Windows XP
1Click [Start] - [Control Panel].
2Click "Sounds, Speech, and Audio
Devices".
3Click "Sounds and Audio Devices".
The "Sounds and Audio Devices Properties" screen
appears.
4Click the "Audio" tab.
5In the "Sound playback" field, click
"Volume".
6In the "Mic Volume" field, select the
"Mute" checkbox.
Which item to mute depends on the connection method.
Configure the settings depending on your operating environment.
7In the "Sound recording" field, click
"Volume".
Note
Click
Click
Note
Select
Click

11
PREPARATION
8In the "Mic Volume" field, clear the
"Mute" checkbox.
•Which item to mute depends on the connection method.
Configure the settings depending on your operating
environment.
•The name of the checkbox may be "Select" on some PCs. In
such a case, select the "Select" checkbox in the appropriate field
depending on the connection method.
When using Windows 7/Windows Vista
In this section, Windows Vista is used as an example.
1Click [Start] - [Control Panel].
2Click "Classic View".
3Double-click "Sound".
The "Sound" screen appears.
4Click the "Playback" tab.
5Select "Speakers" depending on the
connection method, and then click
"Properties".
The "Speakers Properties" screen appears.
The items displayed in the screen vary depending on the
connection method and PC. Configure the PC depending on your
operating environment.
Notes
Clear
Note
Click
Click

12
6Click the "Levels" tab.
7In the "Microphone" field, click to set
the mute function.
8Click the "Recording" tab.
9Select "Microphone" depending on the
connection method, and then click
"Properties".
The "Microphone Properties" screen appears.
10 Click the "Levels" tab.
11 In the "Microphone" field, click to
cancel the mute function.
The items displayed in the screen vary depending on the
connection method and PC. Configure the PC depending on your
operating environment.
Click
Click
Click
Note
Click
Click
Click

13
PREPARATION
Read the following notes and install this unit where you actually use it, such as a conference room.
■Installation environment
The speakers of this unit are arrayed on the bottom panel facing down. Place this unit horizontally on a desktop without
placing any object below this unit.
If you cannot place this unit stably because of the shape of the desk or other reasons, adjust the foot height using the
adjuster equipped on the bottom.
■Position of the talkers
This unit can pick up the audio from 360-degree direction.
The audio pickup area varies depending on the talkers and settings. For details, refer to "Selecting the audio pickup area
(Mic Area)" (page 15).
Installation
Notes for installation
MIC MUTE
VOL
4
7
0
8
5
26
3
9
#
1
MENU
ENTER
CLEAR
STANDBY

14
You can change the settings of this unit using the operation keys on this unit
For the composition of the setting menus and the content of each setting item, see "Setting Menu List" (page 15).
Follow the procedure below to change the settings using
the operation keys on this unit.
1Press to display the top screen.
2When the top screen appears, press
MENU.
The "Menu" screen appears.
3Select "Settings", and then press
ENTER.
The "Settings" screen appears.
4Press or to select a setting item,
and then press ENTER.
For the composition of the setting menus, see
"Setting Menu List" (page 15).
5Change the parameter, and then press
ENTER.
The setting you have configured is saved in this unit.
y
To return to the previous screen without saving the setting,
press CLEAR.
Changing the Settings of This Unit
Note
Changing the settings using the
keys on this unit
MIC MUTE
STANDBY
MENU
ENTER
CLEAR
VOL
4
7
0
8
5
26
3
9
#
1
CLEAR
/
ENTER/MENU
MIC
Volume
Menu
1. View Settings
2. Settings

15
CONFIGURATION
This unit automatically tracks the talker's voice. The
talker's voice can be picked up with very narrow
directivity so that background noise can be significantly
reduced. The voice of only one talker can be picked up at a
time.
While the "Mic Area" screen is being displayed, press a
numeric key to specify the area in which the tracking
function is disabled. Each time you press the numeric key,
the tracking function is enabled or disabled in the
direction as shown below.
y
•Pressing the numeric key (5) enables the tracking
function in the all areas.
•You can select multiple areas at the same time.
Select [Menu] - [Settings] - [Mic Area].
Configure the acoustic echo cancellation setting
depending on your operating environment. Normally, you
do not need to change it from "Low" (default).
•Low (default): Select this setting when this unit is used
in an ordinary conference room, open space, or office.
The communication quality is most stable in this
setting.
•Mid: Select this setting if echo is produced at the other
party when this unit is used in "Low". This setting is
suited for use in a room with high reverberations.
•High: Select this setting if echo is still produced at the
other party when this unit is used in "Mid".
"Mid" and "High" can improve the echo processing capability but
lowers the communication quality. These settings should be
selected only when echo is produced at the other party.
Select [Menu] - [Settings] - [AEC Effect].
When you connect this unit using commercially available
audio connection cables, adjust the audio input level
(amplification) in the range of -12.0 to +12.0 dB.
Select [Menu] - [Settings] - [AUDIO IN LEVEL].
When you connect this unit using commercially available
audio connection cables, adjust the audio output level
(amplification) in the range of -12.0 to +12.0 dB.
Select [Menu] - [Settings] - [AUDIO OUT LEVEL].
Select "Enable" to use this unit as a telephony device. The
default setting is "Disable".
Select [Menu] - [Settings] - [Telephony].
Setting Menu List
Selecting the audio pickup area
(Mic Area)
MICMUTE
VOL
4
7
0
8
5
26
3
9
#
1
MENU
ENTER
CLEAR
STANDBY
MICMUTE
VOL
4
7
0
8
5
26
3
9
#
1
MENU
ENTER
CLEAR
STANDBY
Tracking the talker's
direction automatically
Today...
Next...
MICMUTE
VOL
4
7
0
8
5
26
3
9
#
1
MENU
ENTER
CLEAR
STANDBY
1
2
3
6
9
8
7
4
Configuring the acoustic echo
cancellation setting (AEC Effect)
Note
Changing the audio input level
Changing the audio output level
Using this unit as a telephony
device (Telephony)

16
Utilize this function to use this unit in multiple
environments. Selecting "Environment 1", "Environment
2" or "Environment 3" switches the settings of this unit.
To save the settings
Before using this function, you need to save the settings to
"Environment 1", "Environment 2" or "Environment 3".
Follow the procedure below to save the settings.
1Select "Environment 1", "Environment
2" or "Environment 3".
2Configure the settings of this unit
according to your operating
environment.
The settings you have configured are automatically
saved.
Select [Menu] - [Settings] - [Environment].
•Japanese: Select this setting to display the menus in
Japanese.
•English (default): Select this setting to display the
menus in English.
•Chinese: Select this setting to display the menus in
Chinese.
Select [Menu] - [Settings] - [Language].
You can restore this unit to the factory settings. Select
"Yes" to reset all settings. To cancel the reset operation,
select "No".
Restoring this unit to the factory settings clears all settings you
have configured.
Select [Menu] - [Settings] - [Restore Settings].
Display the current setting information.
Select [Menu] - [View Settings].
Configuring the environment
setting (Environment)
Selecting the menu language
(Language)
Restoring this unit to factory
settings
Note
Checking the settings of this unit

17
ADDITIONAL
INFORMATION
Refer to the following tables when this unit does not function properly. If the problem you are experiencing is not listed
or the instruction does not solve, please contact the retailer or dealer who you purchased the product from.
Troubleshooting
Q1: LED indicator does not light up
Problem Cause Remedy
The power is not turned on. The power cable is disconnected or connected
improperly.
Connect the power cable to the AC outlet and AC
adapter firmly.
The AC adapter is disconnected or connected
improperly.
Connect the AC adapter firmly.
This unit is set in the standby mode. Exit the standby mode. For information on how
to exit it, see page 3.
Q2: Have an audio problem
Problem Cause Remedy
The audio from the other unit
cannot be heard.
The microphones are muted on the other unit. –
The speaker mute function is working. Cancel the speaker mute function.
The audio is interrupted. The audio connection cable is disconnected or
connected improperly.
Connect the audio connection cable firmly.
The speaker volume can not be
turned up when this unit is
connected using audio
connection cables.
The volume setting in Windows is too low. Adjust the volume setting in Windows.
The unit generates feedback
noises.
This unit is placed near the wall. Move this unit away from the wall.
An object is placed near this unit. Avoid placing an object in front of the
microphones of this unit.
This unit is used in a room with high
reverberation.
•Place objects with high sound absorbance in
the room other than in front of the
microphones.
•Decrease the speaker volume to reduce
reverberations.

18
You can download the firmware (program to control the functions of this unit) to use the latest features. For details, refer
to "PJP-50USB Writer Instruction Manual" included in the supplied CD-ROM.
Using the Latest Features
