Yamaha RX-V740RDS User manual

1/10 (G/B)

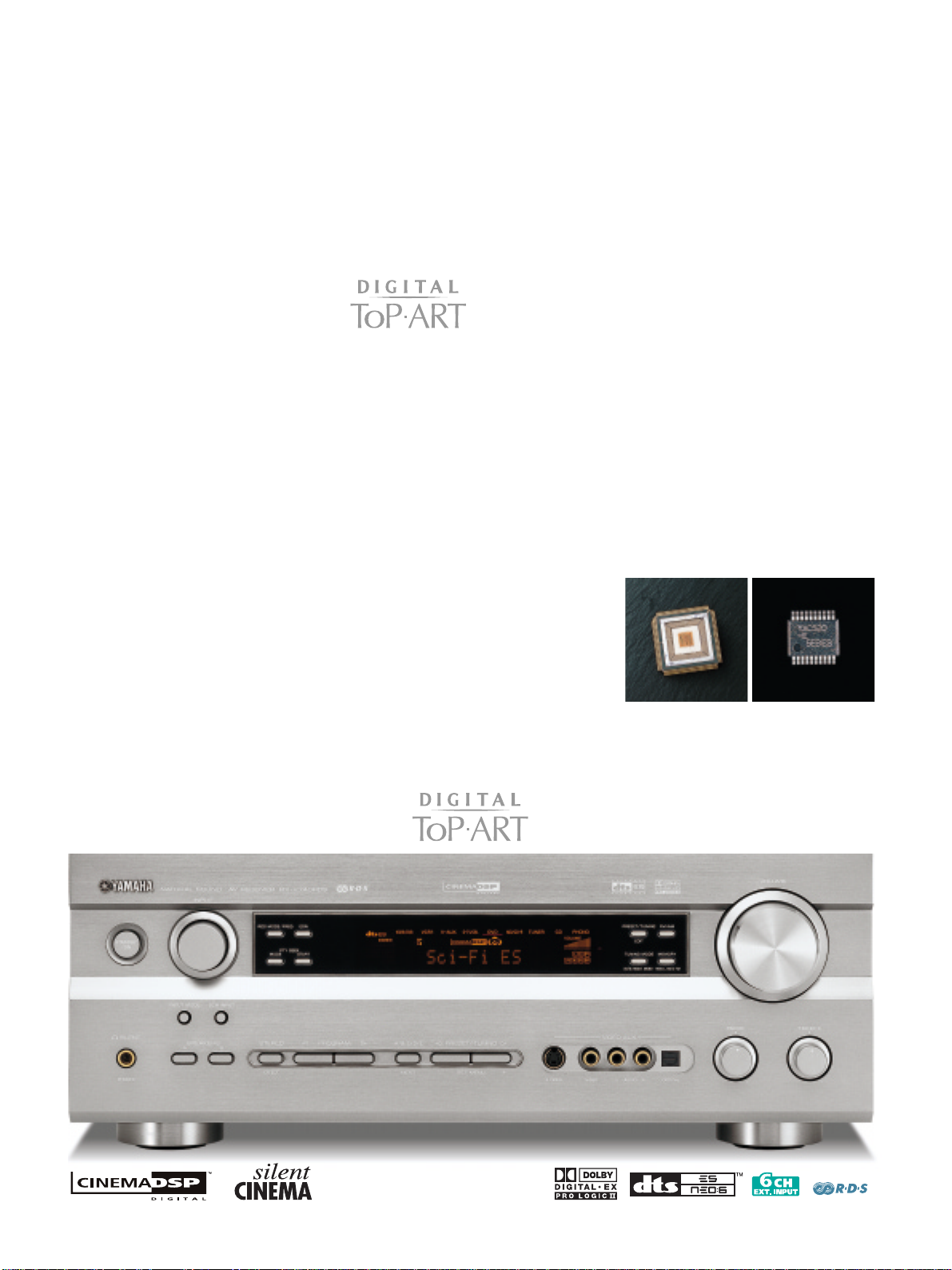

Digital Home Cinema Receiver
RX-V740RDS
The Industry’s Best Surround Sound Performance With a Wide
Range of Programme Choices and Convenient Functions.
High performance, extremely versatile receiver designed to serve as
the core component of any high quality home cinema system. Major features include 6-channel
discrete amplification (140W x 6 DIN), Yamaha’s Digital ToP-ART design concept, Quad-Field CINEMA
DSP, 24 surround programmes, SILENT CINEMA, On-Screen Display, and LCD preset remote control.
Compatible with the newest 6.1-channel movie sound formats including Dolby Digital EX,
DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, Dolby Pro Logic II and DTS Neo:6.
RX-V740RDS
NEW PRODUCT BULLETIN
Black finish is also available in the UK.

96kHz/24-Bit DACs for All Channels
The RX-V740RDS’s vitally important digital-
to-analogue converters use an extremely
96kHz/24-bit high performance. They
perform accurate sound field reproduction
for high quality multi-channel sources, and
for two-channel stereo, provide outstanding
separation and precise musical delineation.
They deliver superior low level linearity with
excellent full-scale performance under
varying operation conditions.
4-Layer DSP Processing Board
All of the DSP IC chips and related circuitry
are located together on a 4-layer board.
This is the first time a 4-layer board has
been used, and it provides a number of
advantages. The dimensions are smaller
Yamaha’s Exclusive
YSS-938 32-Bit Floating
Point Quantization LSI
Digitally Regulated
Volume Control Device
(Yamaha Original YAC-
520 LSI)
2/10 (G/B)
䡲High power 6-channel discrete
amplifier configuration (140W x 6
DIN; 90W x 6 RMS)
䡲Digital ToP-ART (Total Purity
Audio Reproduction Technology)
䡲High Current Amplification for
high sound quality
䡲Easy setup and operation
䡲On-Screen Display and LCD
remote control unit
䡲Compatibility with latest movie
sound formats including Dolby
Digital EX, Dolby Pro Logic II,
DTS-ES Discrete 6.1, and DTS
Neo:6
䡲Powerful 32-bitYamaha LSI
(YSS-938) for CINEMA DSP
processing
䡲24 surround programmes (44
variations) with SILENT CINEMA
and Night Listening mode
Superior Technology and Design for Flawless
Performance and Comprehensive System Control.
Digital ToP-ART Digital ToP-ART
(Total Purity Audio
Reproduction
Technology) is the
name Yamaha has given to a design
philosophy whose goal is to maximize
digital quality while minimizing analogue
circuitry. The culmination of the best
digital engineering and design possible
today, it brings together several key
elements to create the best-sounding,
easiest-to-use A/V components available
Advanced Decoding Circuitry
IncludingYamaha’s ExclusiveYSS-938
32-Bit Floating Point Quantization LSI
The decoding circuitry performs Dolby
Pro Logic II, Dolby Digital, Dolby Digital
EX, DTS Digital Surround, DTS-ES (DTS-
ES Matrix 6.1 and DTS-ES Discrete 6.1),
and DTS Neo:6 decoding with extreme
accuracy, as well as all digital sound
field processing. It also outperforms
other systems in the precise
synchronization of images and sound. Its
low 3V power consumption minimizes
digital noise.
RX-V740RDS
Digital Home Cinema Receiver Black and gold finish available in some areas.

control than up and down — except
Yamaha. We decided that controlling
the volume could be made both easier
and more accurate, and the result is the
Accurate Touch Volume Control. It lets
you make delicate adjustments within a
narrow range, yet enables you to move
to very high or low levels more quickly.
3/10 (G/B)
(2/3 previous types), so signal paths are
shorter and there is more space for the
large power supply components. Digital
interference is reduced and impedance
is lower as well.
Accurate Touch Volume Control
No one expects more from a volume
RX-V740RDS
NEW PRODUCT BULLETIN
213
32-Bit High-Density
Cinema DSP Circuitry
High Current
Amplification
High Performance Digital Circuitry
Digital
Input
6-Ch
Input
Advanced
Decoding
Circuitry
Including
32-Bit DSP
LSI
(YSS-938)
Minimal Analogue
Processing
96 kHz/
24-Bit
DACs
for All 9*
Channels
Accurate
Touch
Volume
Control
(0—-99dB,
0.5 dB
Step) for
6 Channels*
Input
6-Ch
6-Ch High
Output Power
• Main L
• Main R
• Centre
• Rear L
• Rear R
• Rear Centre
From digital input, through
digital processing, to
amplification, maximum
signal quality is maintained
every step of the way.
* In addition to the six channels (Main L/R, Centre, Rear L/R, Rear Centre) there is a subwoofer output (hence 6.1-channel format compatibility) and two front
effect channels (a total of 9 DACs).The front effect channel signals, unique toYamaha CINEMA DSP, are mixed with the main channel signals to achieve more
precise separation of dialogue, music and effects on the front sound stage and a superior sense of presence as compared to other systems.
Its extreme accuracy is due to a high-
signal-resolution analogue design in
conjunction with an ultra-precise digital
control circuit (Yamaha original YAC-520
LSI). The wide control range extends
from 0dB to 99dB, with narrow 0.5dB
steps throughout the entire range for
delicate control, even at low volumes.
䢇Dolby Pro-Logic
Dolby Lab’s basic 4-channel format, widely
used in ordinary theatres and for home
videos.
䢇Dolby Pro Logic II
Improved version of Dolby Pro-Logic for
music and movies. With a more intelligent
matrix decoder, it is suitable for both stereo
and surround-encoded sources. It offers
“bass management” as well as the option of
incorporating “width,” “dimension” and
“panorama” controls.
䢇Dolby Digital
The most popular 5.1-channel home cinema
sound system. An improvement over Dolby
Pro-Logic in that it offers: 1) Full frequency
response in all channels (3Hz — 20kHz), 2)
discrete surround channels, and 3) a
separate track for bass only, called the Low
Frequency Effects channel.
䢇Dolby Digital EX
Dolby's latest surround format, this is Dolby
Digital with an added centre rear channel.
The rear centre channel is actually matrixed
into the two rear channels, and is extracted
upon playback. (Formerly called Dolby
Digital Surround EX, or Dolby Digital Matrix
6.1.)
䢇DTS Digital Surround
The basic DTS 5.1 channel sound format.
Uses a higher data rate than Dolby Digital.
䢇DTS-ES Matrix 6.1
In this format, the back surround channel is
matrix encoded into the left and right
surround channels. For playback, the three
channels are separately decoded.
䢇DTS-ES Discrete 6.1
DTS-ES uses its large bandwidth to provide
a fully discrete rear centre channel, as
opposed to a matrixed one.
䢇DTS Neo:6
Provides 5.1 or 6.1 channels of matrix
decoding from stereo matrix material. Also
decodes Extended Surround matrix
soundtracks and has a Music mode to
expand stereo non-matrix recordings to 5.1
or 6.1 channels.
Brief Guide to Movie Sound Formats

4/10 (G/B)
High Current Amplification Achieves Low Impedance/
High Current Power from Input to Output.
The Importance of High Current
Although power rating is often the first
thing customers look at in a receiver, high
power output does not necessarily mean
good sound. High current level is a much
more important factor. Yamaha receivers
has always had fairly high current levels,
but with the RX-V740RDS, we have further
improved this performance.
What It Does
In brief, Yamaha High Current
Amplification achieves low impedance,
high current power from input (power
supply circuit) to output (speaker
terminals). This drives the speakers much
more smoothly and dynamically, for better
sound from all sources, including 2-
channel audio.
Specific Improvements
The first problem to be overcome was the
difference in voltage that ordinary
receivers suffer between the power
supply and amplifier circuits, caused by
current fluctuations. This was solved by
using custom-made, high-grade block
electrolytic capacitors and a copper grip
for one-point grounding. Another current
drop is generally seen between the
amplifier circuit and the speaker
terminals, caused by the cables, speaker
output relays, copper circuit boards, and
so on. To increase current here, we used
an extra-large, low-impedance
transformer and gold-plated speaker
relay contacts.
6-Channel High Power,
Discrete Amplifier Configuration
The RX-V740RDS will deliver as much as
140W of power (DIN) to each of six
channels (two main, two rear, one centre
and one rear centre). This is more than
enough to fill even the largest rooms with
vibrant music and Richter-scale sound
effects. 6-4 mixdown is also provided, for
enjoying 6-channel input sources from
four or five speakers you already have on
hand with or without subwoofer.
High Dynamic Power Capability
The RX-V740RDS is capable of delivering
large amounts of reserve power for
accurate reproduction of the high energy
peaks that are especially prevalent in
digital audio sources. This emphasizes the
music’s dynamic qualities and provides a
sharper sound image.
Linear Damping (Main L/R Channels)
Level variations due to high amp
impedance tend to reduce an amplifier’s
damping factor, and frequency variations
cause it to fluctuate. This circuit cancels
the effect of these variations, maintaining a
high, stable damping factor, for superior
articulation of all sounds and better
frequency response.
Anti-Resonance ToP-ART Base
Supporting the heavy heat sinks and
circuit board is Yamaha’s ToP-ART base,
which has exceptional anti-resonance and
damping characteristics. Beneath this
base is the bottom of power amplifier, part
of the heavy chassis which is also
The voltage (A) of Block Electrolytic Capacitors and voltage (B) of
Power Transistor Collector should be ideally at the same level. However,
when the current become large, there will be a big difference in the
level of each voltages.
Voltage level difference between A (power supply circuit) and B
(amplifier circuit). Voltage level difference between C (amplifier circuit output) and D (speaker terminals).
High Current Amplification
Conventional Amplifier High Current Amplification Conventional Amplifier
There is also a level difference between Output of the Power Amplifier
(C) and Speaker Terminals (D), which is caused by the copper of the PCB,
Speaker output relays, cables and so on, resulting in reduced sound
quality.
GND
Power
Supply
Circuit
Amplifier
Circuit
AB
GND
Power
Supply
Circuit
Amplifier
Circuit
CD
High Current Amplification Principle

RX-V740RDS
NEW PRODUCT BULLETIN
5/10 (G/B)
designed for maximum vibration
damping.
Anti-Resonance Aluminium-Extruded
Heat Sink
The large, anti-resonance, aluminium-
extruded heat sink is located on the base
frame with the power amplifier circuit
boards to prevent interference with the
preamplifier and digital processing
sections. The power block is equipped
with a fan, but it is only used for extreme
heat build-up and is not activated during
normal operation, preventing the
occurrence of even the slightest
unwanted noise.
Wide-Range Frequency Response for
DVD-Audio and SACD
With an extremely wide frequency range
of 10 to 100,000Hz, this receiver is
capable of delivering the full potential of
the new digital audio sources DVD-Audio
and SACD.
Optimum Space Utilization
The use of highly integrated LSIs allows
an interior design that maximizes power
and sound quality by positioning all the
digital processors and related circuitry in
one small area. This leaves most of the
space open for the power amplifier
components: transformers, capacitors,
heat sink and so on. This means that
these parts can be much larger than
usual for greater power, that they can be
separated for minimum chance of
interference, and that circuits can be
arranged in straight lines for maximum
signal purity. For example, the tone
control circuit layout is straighter and
shorter than ever.
Finest Parts Used Throughout
In order to realize the goals of massive
power and superlative sound quality,
Yamaha technicians completely re-
evaluated all the parts used in previous
receivers. As a result, many were
replaced with more expensive or custom-
designed units.
䢇Extra-Large Custom-Made Block
Electrolytic Capacitors
Developed specifically for the RX-
V740RDS, the 12,000µF/71V block
electrolytic capacitors use low-
magnification foil and are exceptionally
high quality.
䢇Direct Signal Path Speaker Relays with
Gold-Plated Crossover Connection and
Shielding
Speaker switching is accomplished by
relays right in front of the speaker
terminals, rather than at the switch
position. This results in a shorter signal
path and minimum output impedance.
䢇High Performance Myca Capacitors and
Film Capacitors
At this level of sound quality, even these
small parts make a difference. The high
precision FE mica and metallic mylar film
capacitors use polypropylene material
and are the highest performance types on
the market.
䢇Extra-Large Low-Impedance
Transformer
The large 4.8 kg low-impedance
transformer is an important factor in the
RX-V740RDS’s extremely stable power
supply.
䢇Thick PC Board Wiring with 1.6mmφ
Copper Jumper Cables
The audio signal is routed within the
amplifier through exceptionally thick,
top quality wire, ensuring that signal
purity is maintained.
RX-V740RDS Interior View and Signal Flow ( )
RX-740RDS High Quality Parts

6/10 (G/B)
sound fields is Spectacle, which recreates
the open feeling of large-scale, epic
motion pictures. The Sci-Fi is designed to
reproduce all the complex, dynamic
sounds of space/science fiction movies.
Adventure and General are also included.
Centre Graphic Equalizer
In addition to the many audio parameters
that can be adjusted, the RX-V740RDS
provides an even greater degree of sound
field control with the inclusion of a Centre
Graphic Equalizer. This lets you finely
“tune” the overall balance of the sound
field to achieve the optimal imaging for
movie sound.
Night Listening Mode for All Surround
Programmes
When you’re listening to movies late at
night and turn down the volume during
loud scenes, dynamic range suffers and
Quad-Field and Tri-Field
CINEMA DSP
Tri-Field CINEMA DSP projects three
sound fields into the home cinema: a
Presence sound field in the front and
two Surround sound fields in the left
rear and right rear, resulting in a
powerfully realistic three-dimensional
soundscape. And now Yamaha also
offers Quad-Field CINEMA DSP. It adds
an additional rear centre sound field to
the Tri-Field system, in order to enjoy
the new 6.1-channel formats, Dolby
Digital EX and DTS-ES.
CINEMA DSP Programmes
One of the main advantages of CINEMA
DSP is the large choice of sound field
programmes available. The basic
programme for movies is Enhanced,
which greatly improves the sound of the
surround fields. The "largest" of these
Going Beyond Conventional Multi-
Channel Systems
Conventional 5.1-channel/6.1-channel
audio reproduction systems base their
sound on Dolby Digital and DTS
decoding, using matrix and steering
technologies to create surround sound
effects. Yamaha CINEMA DSP is much
more advanced, actually creating richly
realized independent sound fields that
merge to envelop you in an unmatched
surround sound experience. With
dialogue, music and effects from the
presence (front), rear and rear sound
fields, you will hear sound with highly
accurate localization, smooth
movement, exceptional clarity and
richness, and startlingly realistic
presence. It will seem as if the walls of
your room have disappeared and you
are in the middle of your own immense
theatre!
Remarks 䢇: HiFi DSP Programmes 䢇: A/V Programmes 䢇: CINEMA DSP 䢇: Tri-Field CINEMA DSP Capable 䢇: Quad-Field CINEMA DSP Capable
RX-V740RDS Surround Programmes: 24 Surround Programmes (44 Variations)
HiFi DSP Programmes Variations
CONCERT HALL 䢇Concert Hall 1 A circular hall with an expansive sound field.
JAZZ CLUB 䢇Jazz Club [The Bottom Line] 1 A popular New York club seating 300.
ROCK CONCERT 䢇Rock Concert [The Roxy Theatre] 1 The well known L.A. rock showcase seating 460.
ENTERTAINMENT 䢇Disco 1 Designed to emphasize the exciting rhythms of disco music.
䢇6 Ch Stereo 1 For reproducing stereo sources via six channels.
Programme Subtotal 55
CINEMA DSP Programmes Variations
ENTERTAINMENT 䢇Game 1 Adds a deep, spacious feeling to video game sounds.
MUSIC VIDEO 䢇Pop/Rock 1 For 2 to 6.1 channel live music sources
TV THEATER 1 䢇Mono Movie 1 For old monaural video sources.
䢇Variety/Sports 1 For 2 to 6.1 channel music and sports shows.
MOVIE THEATER 1 䢇Spectacle 5 Emphasizes the excitement of scenes with high visual/audio impact.
䢇Sci-Fi 5 For reproducing the expansive, supernatural effects of high-tech SF movie soundtracks.
MOVIE THEATER 2 䢇Adventure 5 A powerful three-dimensional sound field with superb clarity.
䢇General 5 Provides clear dialogue, with a soft, expansive sound.
ENHANCED 䢇Enhanced 5 A wide, all-enveloping surround sound field as in a theatre.
Programme Subtotal 929
Surround Formats Variations
䢇Dolby Digital 1
䢇Dolby Digital EX 1
䢇DTS Digital Surround 1
䢇DTS-ES Matrix 6.1 1
䢇DTS-ES Discrete 6.1 1 For precise reproduction of the various movie sound formats.
䢇Dolby Pro-Logic 1
䢇Dolby Pro Logic II Music 1
䢇Dolby Pro Logic II Movie 1
䢇DTS Neo:6 Music 1
䢇DTS Neo:6 Cinema 1
Programme Subtotal 10 10
Programme Total 24 44
No Other Surround Sound System Can Match for
Rich, Detailed, Realistic Sound.

RX-V740RDS
NEW PRODUCT BULLETIN
7/10 (G/B)
sound field programmes, while DSP
sound field processing is optimized at
the same time.
SILENT CINEMA and
Virtual CINEMA DSP
The SILENT CINEMA
mode gives you private
listening enjoyment of
multi-channel music or movie sound,
including Dolby Digital and DTS
surround, through ordinary
headphones. It’s automatically selected
when the headphones are plugged in.
Virtual CINEMA DSP lets you enjoy the
effects of CINEMA DSP surround sound
without using rear speakers (handy for
use in custom installations where some
rooms don’t have rear speakers). It can
be used with the main/centre/front effect
speakers or even with just the two main
left and right speakers.
you may miss some dialogue and other
sounds. By engaging the Night
Listening mode, you can reduce the
volume and still enjoy proper tonal
balance and dynamic range. You hear
dialogue clearly and the music and
action are just as exciting (without the
screams and explosions disturbing
others).
Auto Priority InputTerminal Selection
and Auto Decoder Selection
Digital input terminals are provided to
handle any kind of digital input.
Functions are programmed to select
priority in order of coaxial digital, optical
digital and analogue when different
digital formats are input from the same
source. The sound decoder is also
automatically selected and processed
according to the combination of the
format of input signals and the selected
Conventional
6.1-Channel Systems
Quad-Field CINEMA DSP
Dialogue MusicEffect
Rear Right Surround/
Effect Sound Field
Presence (Front) Sound Field
SILENT CINEMA Sound Field Imaging
Virtual CINEMA DSP Sound Field Imaging
Rear Left Surround/
Effect Sound Field
Rear Centre Surround/
Effect Sound Field

8/10 (G/B)
4 A/V (with S-
Video) and 3
Audio Inputs, and
2 A/V (with S-
Video) and 1
Audio Outputs
2 Component Video
Inputs (fixed and
assignable) and 1 HDTV
compatible Component
Video Output
Main L/R, Centre, Rear L/R
and Rear Centre Preout, and
Subwoofer Output Terminals
Extra-Large Speaker Terminals
including Speaker A/B Terminals
6-Channel External
Decoder Input for
Enjoying DVD-
Audio/Video or
SACD
4* Optical and 1
Coaxial Digital
Inputs, and 1
Optical Digital
Outputs (fixed
and assignable)
* Including front panel video aux terminal (fixed)
40-Station
AM/FM Preset
Tuning
S-Video and
Composite
Monitor
Output
Terminals
RX-V740RDS Extensive Connections
Easy Setup and Operation
The RX-V740RDS has an ergonomic
design that ensures simple, convenient
operation. Everything from the layout of
the controls to the display menus has
been planned to make using the unit
easy and enjoyable.
On-Screen Display and Convenient
Controls

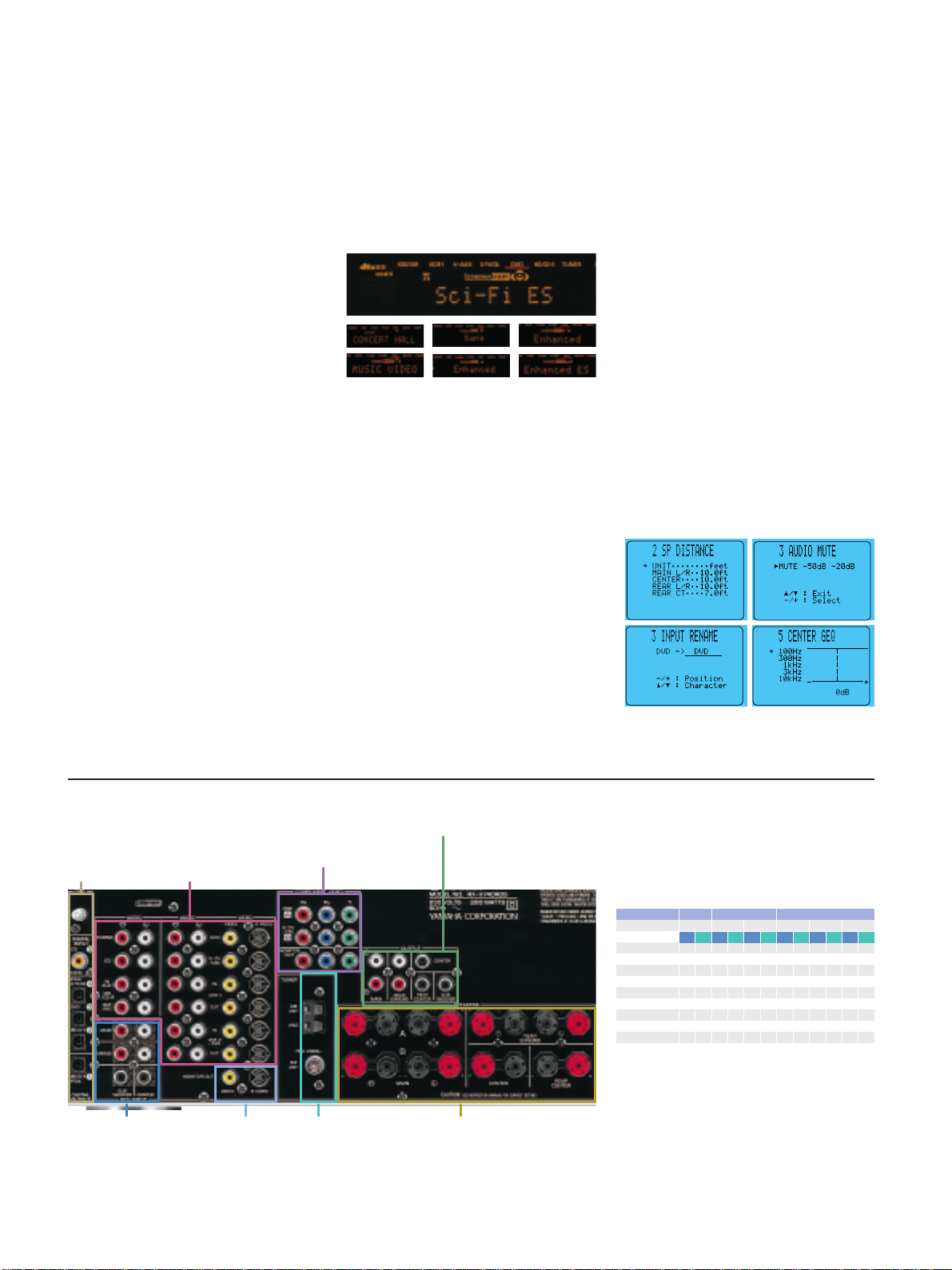

A handy On-Screen Display that
includes extensive yet easily
understandable setup menus makes it
easy to select and adjust desired
functions. Especially useful is a speaker
display in the Speaker Test mode that
makes it easy to balance the levels of
all speakers. DSP programmes can be
selected with the remote control so their
effects can be judged from the listening
position. A rotary encoder Input
Selector makes source selection quick
and easy.
are Setup and Speaker Level, while the
Sound modes feature a Centre Graphic
Equalizer, Speaker Set, Speaker
Distance, LFE Level, Dynamic Range
and Headphone Tone Control. The Input
modes are I/O Assignment, Input and a
new Input Rename function that lets you
create your own names for input
sources. Options include Display Set,
Memory Guard, and two new functions,
Variable Audio Mute and Zone Set. All
of these parameters can be selected
and adjusted from either the front panel
or the remote control.
Programme Name and Surround
Sound Indications
The front panel display shows a variety
of surround sound status indications, so
you always know what modes you are
in. The Programme name is displayed,
including the word “Night” if the Night
Listening mode is selected. Six sound
field modes including Quad-Field and
Tri-Field are also indicated.
An Extensive Range of Useful Menus
The RX-V740 gives you extensive
control over audio and operational
modes through a selection of
parameters that can be adjusted from
the on-screen menus. The Basic modes
All the A/V Connections Needed for the Present and
Into the Future! Plus a Host of Convenient Features.
RX-V740RDS Inputs and Outputs
Analogue Digital Video
Coaxial Optical Composite S Video Compo. V.*
In Out In Out In Out In Out In Out In Out
PHONO 䡲䡲䡲
CD 䡲䡵䡲䡲
MD/CD-R 䡲䡲䡲䡵䡵
DVD 䡲䡲䡵䡲䡲䡲䡵
D-TV/CBL 䡲䡲䡵䡲䡲䡲䡵
VCR 1 䡲䡲䡲䡲䡲䡲䡲䡲䡲䡲
VCR 2/DVR 䡲䡲䡲䡲䡲䡲䡲䡲䡲䡲
VIDEO AUX** 䡲 䡲䡲䡲䡲
MONITOR OUT 䡲䡲䡲*
* Comp. V: Component Video
** Video Aux terminals are on front panel.
䡲*: Component Video Out is compatible with HDTV.
䡲: Fixed Terminals
䡵: Fixed and Assignable Terminals
䡲: Assignable Terminals

RX-V740RDS
NEW PRODUCT BULLETIN
9/10 (G/B)
touch tuning, and with each one the
tuning mode (auto or mono) is also
memorized. Auto
FM Station
Memory will
automatically
preset the 40
strongest stations
on the dial. The
Preset Editing
function can then
be used to
rearrange them
into groups.
Other Notable
Features
• 6-Channel
External
Decoder Input
Terminals for
Future Sound
Formats
• Sleep Timer
either independently assigned to
sources or defaulted to fixed settings.
Speaker A, B or A+B Selection
Speaker A, B or A+B Selection gives
you the advantage of listening to either
or both of two pairs of speakers.
Luminescent Preset Remote Control
Unit with LCD Display
IThe remote control has a high-visibility
display and luminescent buttons. It can
be preset with control codes for TV,
DVD, VCR, CDR, and other
components. It also provides control of
subwoofer level.
Tuner Section Features High Quality,
Easy Operation
In addition to utilizing a Direct PLL IF
Count Synthesizer Tuning system, the
RX-V740RDS also makes station
selection easy. Users can preset as
many as 40 stations for instant one-
Extensive Inputs and Outputs
In addition to the wide range of inputs
and outputs provided on previous
Yamaha receivers, the RX-V740RDS
also includes a Video Conversion
connection (Composite to S-Video,
Monitor Out).
HDTV Compatible Component Video
Out
The frequency response of the
Component Video Monitor Out signal is
5Hz—30MHz, making it compatible with
HDTV monitors.
Front Panel Video Aux Input
Terminals
Front Panel Video Aux Input Terminals
includes S-video and optical digital
input terminals for connecting game
machines, digital equipment, and so on.
Fixed and AssignableTerminals
Yamaha offers terminals that can be
RX-V740RDS Main Specifications
AUDIO SECTION
DIN Standard Power (4 ohms, 1 kHz, 0.7% THD)
Main Channels 140 W + 140 W
Centre Channel 140 W
Rear Channels 140 W + 140 W
Rear Centre Channel 140 W
Minimum RMS Output Power (8 ohms, 20–20,000 Hz, 0.06% THD)
Main Channels 90 W + 90 W
Centre Channel 90 W
Rear Channels 90 W + 90 W
Rear Centre Channel 90 W
High Dynamic Power, Low-Impedance Drive Capability Yes
Dynamic Power/Channel 8 ohms 120 W
6 ohms 145 W
4 ohms 185 W
2 ohms 230 W
Linear Damping Yes
Damping Factor (8 ohms, 20–20,000 Hz) 100 (speaker A)
Input Sensitivity/Impedance Phono (MM) 2.5 mV/47 k-ohms
CD 150 mV/47 k-ohms
Frequency Response 10–100,000 Hz +0, -3 dB
Total Harmonic Distortion (20–20,000 Hz)
CD (Main Sp Out) 0.06%
Signal-to-Noise Ratio (CD, 250 mV) 100 dB
Tone Control Characteristics
Bass Boost/Cut ±10 dB 50 Hz
Turnover Frequency 350 Hz
Treble Boost/Cut ±10 dB 20 kHz
Turnover Frequency 3.5 kHz
VIDEO SECTION
Video Signal Level 1 Vp-p/75 ohms
S-Video Signal Level Y 1 Vp-p/75 ohms
C 0.286 Vp-p/75 ohms
Component Video Signal Level Y 1 Vp-p/75 ohms
Pb/Cb, Pr/Cr 0.7 Vp-p/75 ohms
Signal-to-Noise Ratio 50 dB
Monitor Out Frequency Response
Composite/S-Video Signal 5 Hz–10 MHz -3 dB
Component Video Signal 5 Hz-30 MHz -3 dB
TUNER SECTION
FM 50dB Quieting Sensitivity (1 kHz, 100% Modulation)
Mono 2 µV (17.3 dBf)
Stereo 25 µV (39.2 dBf)
FM Selectivity 400 kHz 70 dB
FM Signal-to-Noise Ratio Mono/Stereo 76 dB/70 dB
FM Frequency Response 20–15,000 Hz +0.5/–2 dB
GENERAL
Standby Power Consumption Less than 1 W
Dimensions (W x H x D) 435 x 171 x 390mm
Weight 13 kg

APB658G-RXV740RDS@113
10/10 (G/B)
For details please contact: Visit us at our website:
http://www.yamaha-audio.co.uk
YAMAHA ELECTRONICS UK LTD
200 Rickmansworth Road Watford Herts WD18 7GQ
• Dolby Digital and Double D are trademarks of Dolby Laboratories Corporation.
• DTS, ES and DTS Digital Surround are trademarks of Digital Theater Systems, Inc.
• Product designs and specifications are subject to change without notice.
RX-V740RDS Notable Features
High Performance Digital Circuitry
• 96 kHz/24-Bit D/A Conversion for All Channels
• Accurate Touch Digitally Regulated Volume Control Governs All
Channels (Yamaha YAC-520 LSI)
• 4-Layer DSP Processing Board to Prevent Digital Interference
High Density CINEMA DSP Circuitry
• Powerful Original 32-Bit Floating-Point Quantization System LSI
(YSS-938) for CINEMA DSP Processing
• Compatibility with Latest Movie Sound Formats including Dolby
Digital EX, Dolby Pro Logic II, DTS-ES Matrix 6.1, DTS-ES
Discrete 6.1, and DTS Neo:6
• Night Listening Mode with Indication for All Programmes
• 24 Surround Programmes (44 Variations) including New Music
Video Programme
• Centre Graphic Equalizer for “Fine Tuning” Sound Field Balance
• Quad-Field CINEMA DSP for 6.1-Channel Digital Surround
• SILENT CINEMA for Headphone Enjoyment
• Virtual CINEMA DSP for Versatile Surround Enjoyment
High Current Amplification
• 6-Channel High Power Discrete Amplifier Configuration
(140W x 6 [DIN}; 90W x 6 [RMS, 20–20,000 Hz])
• High Dynamic Power, Low Impedance Drive Capability
• Linear Damping Circuit Prevents Unwanted Speaker Cone
Movement
• Wide-Range Audio Frequency Response (10–100,000 Hz +0/-3
dB) for DVD-Audio/SACD Compatibility
• Finest Parts Used Throughout
– Extra-Large, Low-Impedance Transformer (4.4 kg)
– Extra-Large Custom-Made Block Electrolytic Capacitors
(12,000 µF)
– Anti-Resonance, Aluminium-Extruded Heat Sink
– Direct Signal Path Speaker Relays with Gold-Plated
Crossover Connection and Shielding for Stable Signal Path
and Speaker Protection
– One-Point Grounding for Improving Linearity and Damping
Factor
– ToP-ART Base for Reduced External Resonance
– High Performance Myca Capacitors and Film Capacitors
– Thick PC Board Wiring with 1.6mmφCopper Jumper Cables
– Extruded Aluminium Front Panel
– Extruded Aluminium Volume Knob
Versatile, Extensive Connections
• 4 Optical and 1 Coaxial Digital Input Terminals (fixed and
assignable, Video Aux: fixed)
• 1 Optical Output Terminal (fixed and assignable)
• 4 A/V (with S-Video) and 3 Audio Input Terminals
• 2 A/V and 1 Audio Output Terminals
• Front Panel Video Aux Input Terminals with Optical Digital and
S-Video Terminals
• Preout Terminals for Main, Centre, Rear and Rear Centre
Channels
• Subwoofer Output Terminal
• 6-Channel External Decoder Input Terminals for Future Sound
Formats
High Video Quality
• HDTV Compatibility
• Wide-Range Video Power Bandwidth (5Hz—30MHz -3 dB)
• 2 Component Video Input Terminals (fixed and assignable) and
1 Monitor Output Terminal
• Video Conversion (Composite to S-Video, Monitor Out)
Convenient Operating Features
• Programme Name and Sound Field Indications
• On-Screen Display
• Auto Priority Input Selection and Auto Decoder Selection
• Rotary Encode Input Selector
• Easy Menu Setup
- Basic Modes: Setup and Speaker Level (Balance
Adjustment)
- Sound Modes: Speaker Set, Speaker Distance, LFE Level,
Dynamic Range, 5-Band Centre Graphic Equalizer and
Headphone Tone Control
- Input Modes: I/O Assignment, Input Mode and Input Rename
- Options: Display Set, Memory Guard, Audio Mute (3 steps:
Mute, -20dB, -50dB) and Zone Set
• Easy Menu Setup Can Control with Remote Control and Front
Panel
• 6-4 Mixdown (6-Channel Input)
• Speaker A+B and A/B Selector
• Test Tone Generator
• Sleep Timer
• Luminescent Preset Remote Control Unit with LCD Display
High Quality, Stable ReceptionTuner
• RDS (Radio Data System)
• 40-Station AM/FM Random Access Preset Tuning
• Auto Preset Tuning
1
2
3
Yamaha’s unique technology for the creation of sound fields is capable of
powerfully reproducing the three-dimensional environment that movie
sound engineers aim to convey, in any audio format from monaural to the latest 6.1-channel
digital surround. It is compatible with DVD and all other A/V sources.
Yamaha CINEMA DSP technology has received a patent in the U.S. (Patent No.
5,261,005).
