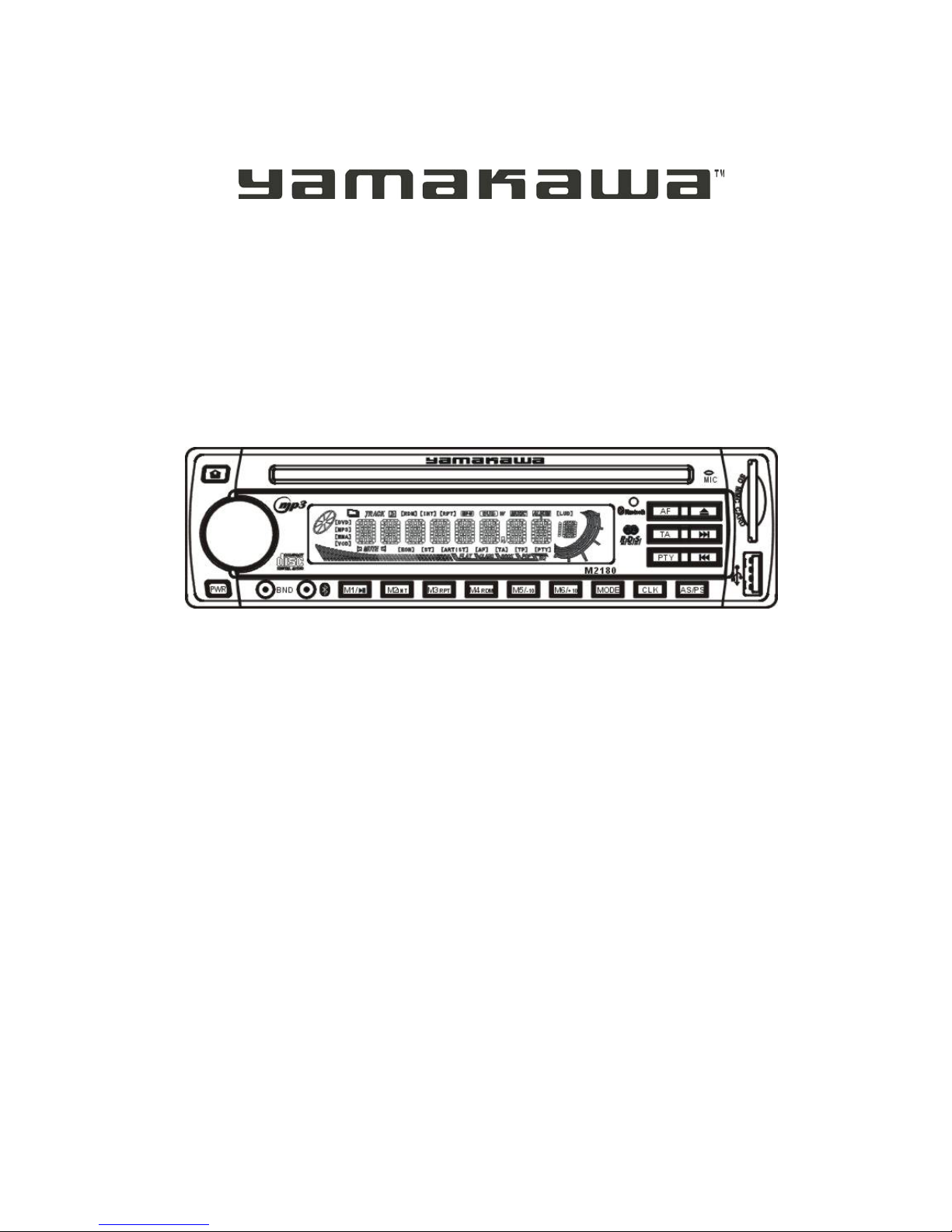

Yamakawa M2180 User manual

Model : M2180
Instruction Manual
Bluetooth Car Stereo Compact Disc
MP3/CD-RW/CD-R/CD SD/MMC USB
Media Player with PLL FM Stereo Radio
Radio Data System (RDS)
Detachable Front Panel System

Function
MODEL : M2180
Bluetooth Car Stereo Compact Disc MP3/CD-RW/CD-R/CD SD/MMC USB
Media Player with PLL FM Stereo Radio, Radio Data System
Detachable Front Panel System
FEATURES
zMP3/CD-RW/CD-R/CD Playback
zThe best stations memory automatically memorizes the best (strongest)
station in the order their strength (AS)
zMP3 files playback from CD, USB, MMC & SD card direct access
zElectronic Volume, Bass, Treble, Fader and Balance control
zPrecision electronic tuning with phase-lock loop (P.L.L.) Circuitry
zProgrammable 18 preset memory tuning
(6 each for FM1/FM2/FM3)
zLoudness control Manual/Auto (Seek)/up and down tuning control
zBand selector for FM1/FM2/FM3
zDisplay control (Frequency, Station Name, Program Type, Clock)
zClock Function in RDS
zCD Repeat Function
zCD and MP3 files on CD/CD-R/CD-RW player function
zPreamplified Line-out for external amplifier
zDetachable front panel protects against theft
zLighting system
zRDS Function:
PI (Program Identification) TA (Traffic Announcement)
PS(ProgramServiceName) PTY(ProgramType)
AF (List of Alternative Frequencies) TP (Traffic Program)
-2-

Content
Function …………………..………. 2 LCD display …………………….. 17
Warnings ………………………….. 4 Panel release button ………….. 17
Drawings ………………………….. 5 CD slot …………………………… 18
Location …………………………… 6 CD eject button …………………. 18
Installation Pause button . ……………………18
Precautions ……………………...7 Intro button ………………………. 18
Mounting example……………….7 Repeat button……………………..18
Detaching and attaching Random button……………………18
The front panel……………………8 Select MP3 Files …………………. 19
ISO connector……………………9 Reset ..………………………………19
Maintenance……………………..10 DSP ………………………………….20
Operation Bluetooth ……….………….……… 21
Power on/off……………………..11 Bluetooth ………………………….. 22
Select Bluetooth ……………………………23
Volume Knob Specifications ………………………24
TA seek/TA alarm………………..11
PI Mute/PI Sound………………..12
Retune L/S……………………….12
MASK DPI ……………………….13
Beep Mode ….…………………..13
Preset Stations …………………13
RDS Function
AF/REG function………………...14
TA function……………………….15
PTY function……………………..15
Display…………………………….15
Mode button………………………16
Band/Loud button……………….16
Automatic or manual tuning……16
A/PS…………………………………17
-3-

Warnings
The exclamation point within the triangle is a warning sign alerting
the user of important instructions accompanying the product.
The lightening flash with arrowhead symbol within the triangle is a
warning sign alerting the user of voltage inside the unit.
The reduce the risk of electric shock, do not remove the cover. No
user serviceable parts inside the unit. Refer all servicing to qualified
personnel.
Invisible laser radiation when the unit is opened or interlocks defeated.
Avoid exposure to laser beam. User of controls, adjustments or procedures
other than those specified herein may result in hazardous
radiation exposure.
This unit must not be exposed to moisture or rain.
This unit should be positioned so that it is properly ventilated.
Do not expose this unit to direct sunlight or heat radiating sources.
-4-

Drawings
-5-

Location
LOCATIONS OF CONTROLS
1. POWER ON/OFF
2. FUNCTION SELECT BUTTON
3. VOL UP/VOL DOWN
4. PRESET STATIONS (1, 2, 3, 4, 5, 6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENT)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (CLK)
9. MODE BUTTON (MODE)
10. BAND BUTTON (BND)
11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN /
CD TRACK/SEARCH BUTTON
13. AUTO SEEK SEARCH TUNING (AS/PS)
14. LCD DISPLAY
15. PANEL RELEASE BUTTON ( )
16. CD SLOT
17. CD EJECTS BUTTON ( )
18. PAUSE BUTTON
19. INTRO BUTTON (PREVIEW ALL TRACKS)( INT)
20. REPEAT BUTTON (RPT)
21. RANDOM BUTTON (RDM)
22.23. -/+10 TRACK SEARCH DOWN/UP

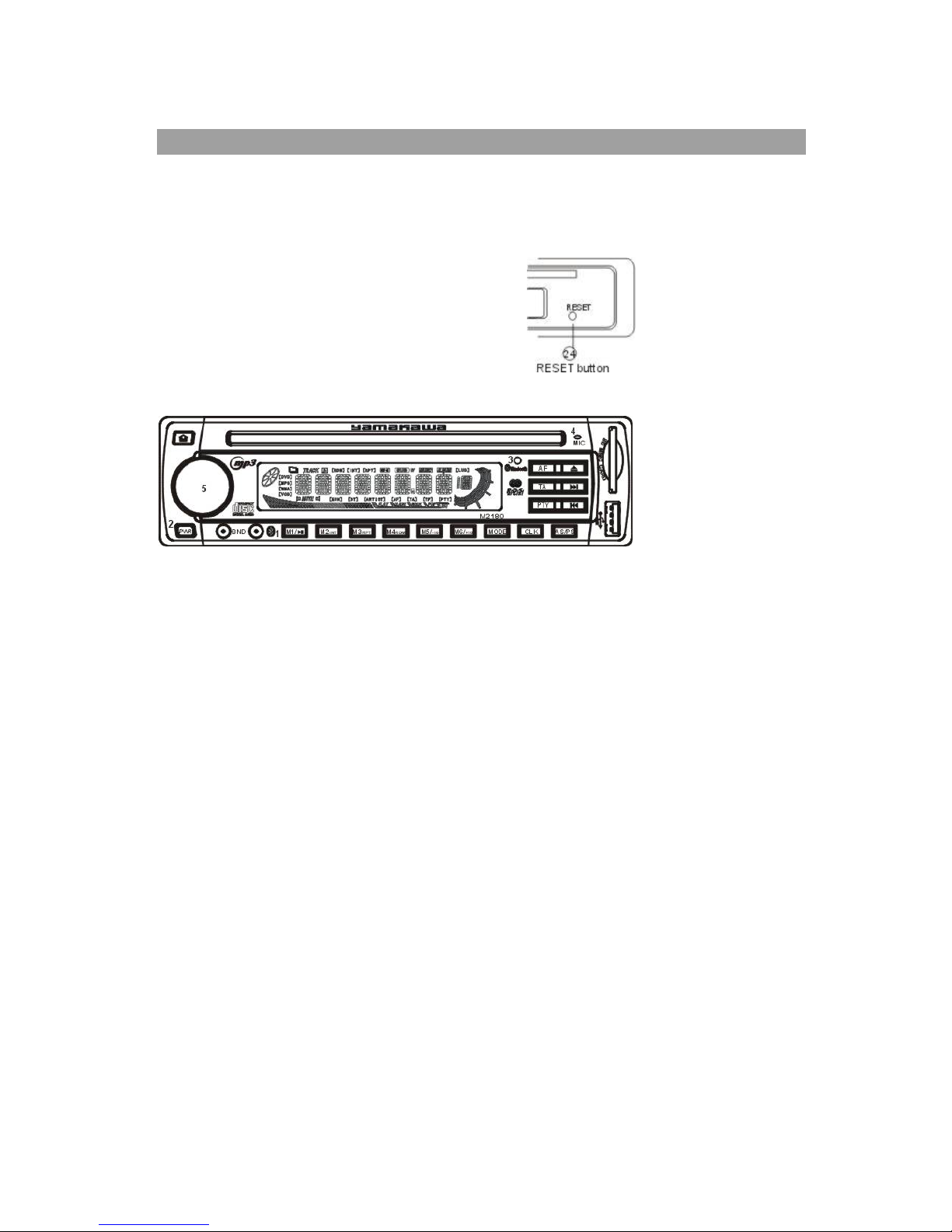

24. RESET BUTTON
25. BLUETOOTH FUNCTION
26. SD/MMC CARD JACK
27. USB JACK
-6-

Installation
INSTALLATION
PRECAUTIONS
Choose the mounting location carefully so that the unit will not interfere with the
normal driving functions of the driver. Avoid installing the unit where it would be
subject to high temperatures, such as from direct sunlight or hot air from the heater,
or where it would be subject to dust, dirt or excessive vibration.
Use only the supplied mounting hardware for a safe and secure installation.
Be sure to remove the front panel before installing the unit.
Mounting angle adjustment
Adjust the mounting angle to less than 30.

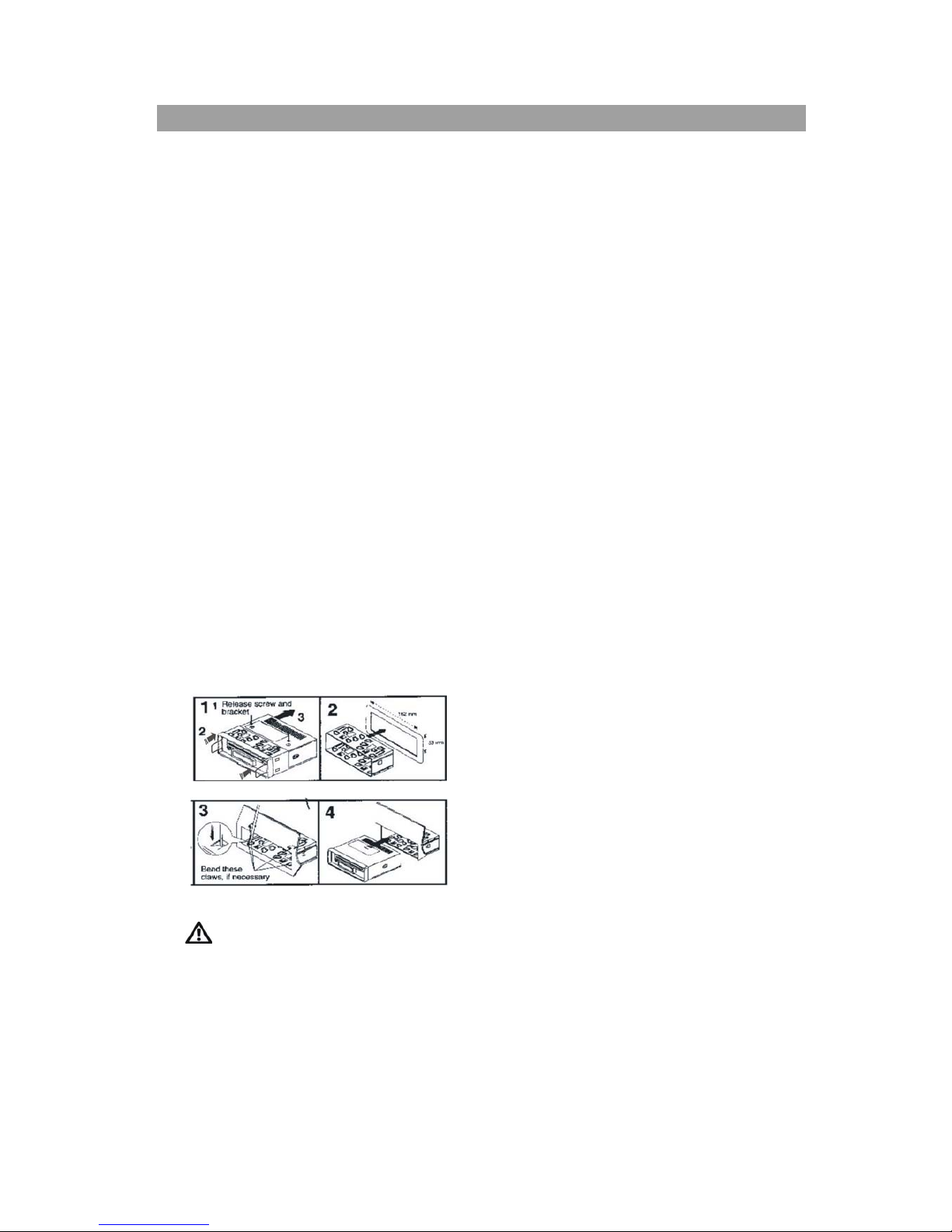

MOUNTING EXAMPLE
Installation in the dashboard
Keep the release key in the safe place as you may need it in future to
remove the unit from the car.
-7-

Installation

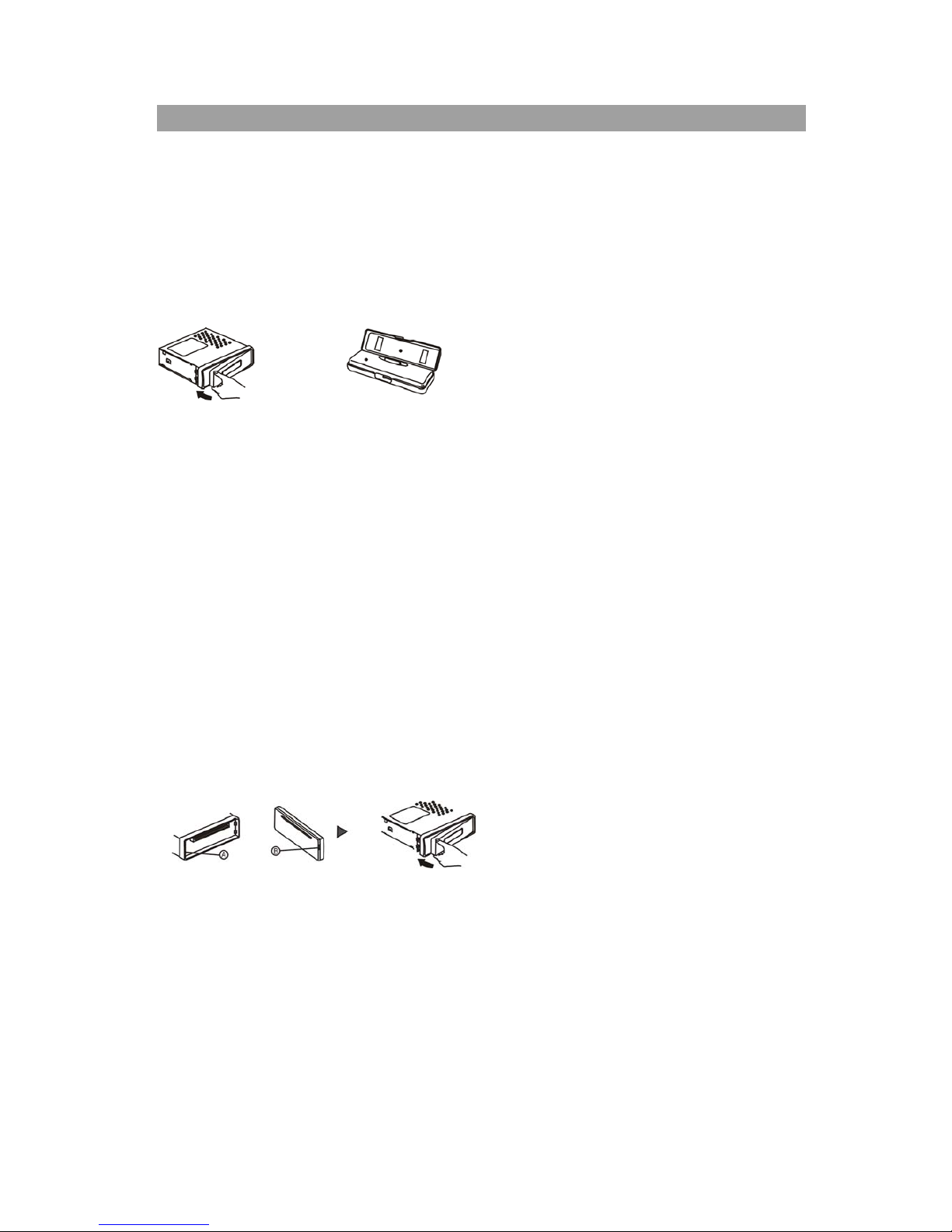

Detaching and attaching the front panel
The front panel of this unit can be detached in order to prevent the unit from being
stolen.
DETACHING THE FRONT PANEL
Before detaching the front panel, be sure to press the PWR button to turn off the
unit first. Then press the button and detach the panel by pulling it towards you as
illustrated.
Note: Be sure not to drop the panel when detaching it from the unit.
ATTACHING THE FRONT PANEL
Make sure the front panel is the right way up when attaching it to the unit as it
cannot be attached upside down. Bring side B of panel to side A of main unit.
Inset the panel in and push until it clicks. Panel is attached.
Notes:
Do not press the front panel hard against the unit when attaching it. It can be
easily attached by pressing it lightly against the unit.
When you carry the front panel with you, put it in the supplied front panel case.
Do not press hard or give excessive pressure to the display window of the front
panel when attaching it to the unit.
-8-

Installation

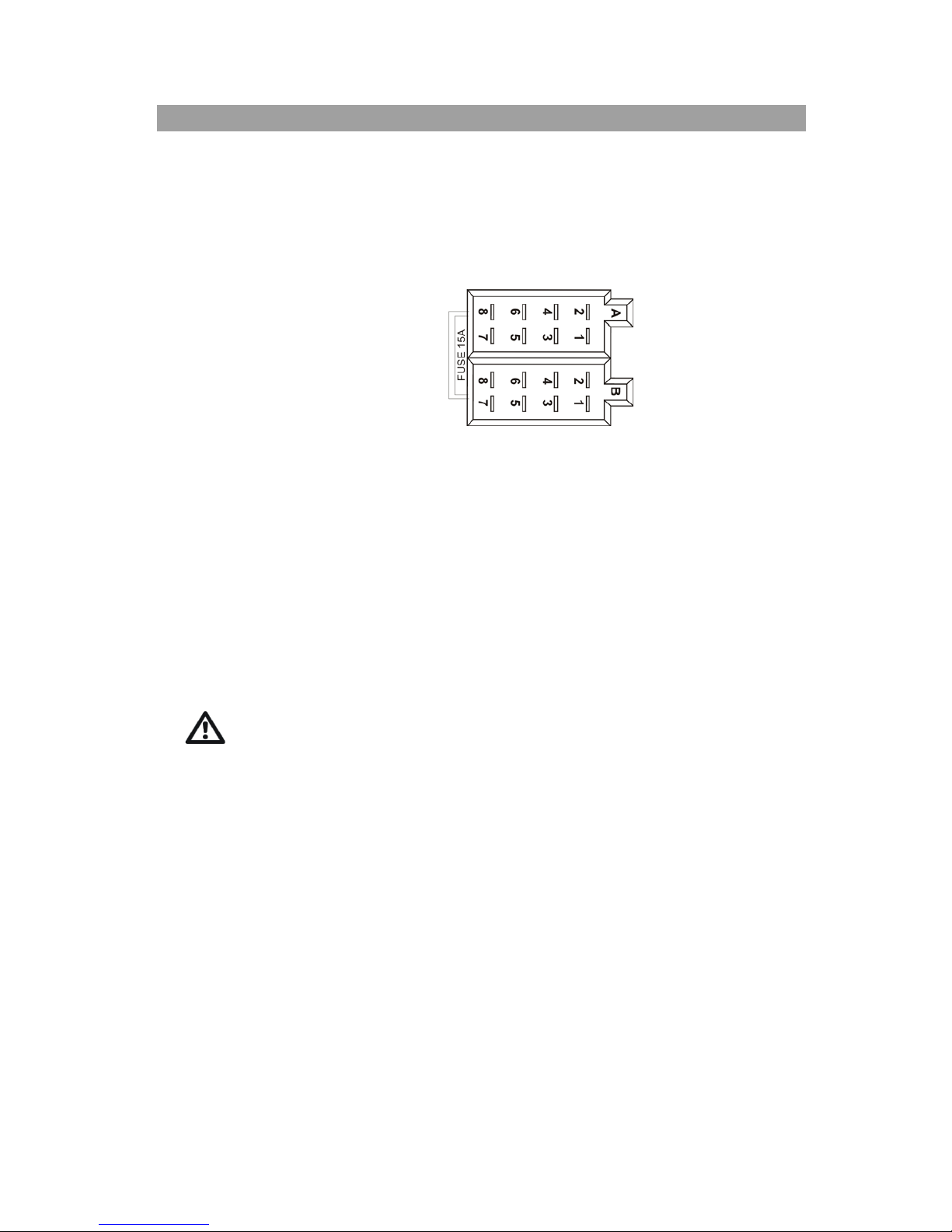

ISO CONNECTOR
RCA Jack Line Out (Rear/Front)-Gray DUAL
:Red(F/Rright) DUAL
:White(F/R left) DUAL
Bluetooth microphone Jack:
:Yellowsingle
CONNECTOR A
1.
2.
3.
4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
6.
7. +12V (TO IGNITION KEY)
8. GROUND
The connector A no.7 must be connected by car ignition key in order to
avoid that car battery becomes weak when the car will be not used for
long period.
CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
-9-

Installation
Maintenance
FUSE REPLACEMENT
If the fuse blows, check the power connection and replace the fuse. If the fuse
blows again after the replacement, there may be an internal malfunction. In this
case, consult your nearest repairing center.
Warning
Use the specified amperage fuse for each lead. Use of a higher amperage fuse may
cause serious damage.
-10-
