Yanton T-X8plus User manual

Support LTE/3G net, single call, group call and all call, group call updating automatically;
SOS function, voice prompt. The operation is simple and easy.
Familiar With The Radio
OK
MENU
EXIT
UP
DOWN
a
c
d
e
f
i
b
Antenna
Speaker
LCD Display
k
l
g
h
Indicator
j
a.
Power / Adjusting Volume
A. The radio power on, rotate the ON/OFF/Volume knob clockwise, continue to increase
the volume.
B. The radio power o󰀨, rotate the ON/OFF/Volume knob counterclockwise, continue to
decrease the volume.
b.
Side key 1:
A. short press enter function menu;
B. long press enter SOS function;
c.
The side key 2:
A. In standby, long press to communncate (PTT);
B. enter function (menu) settings, short press conrm key.
C. Shutdown mode, long press then turn on the radio, indicator is red light, enter radio
programming or software upgrade.
D. Quit the SOS function;
d.
Side key 3:
A. Entering the function menu, such as: group selection, single call selection, friendly
search, system settings and so on, short press is up key.
B. In standby mode, Prompt the current group and user information by short press.
PUBLIC NETWORK
DIGITAL TRUNKING RADIO
QUICK OPERATE GUIDE

2. Hold down the battery buckle and remove the battery from the radio's body.
3. Move left to overturn the top of the USIM card holder, install the USIM card into the card
holder, and pay attention to the direction of the notch.
4. Put the battery in and install it.
NOTE: Before taking out the battery, we must swirl the switch knob to turn o󰀨 the ma-
chine and do not remove the battery directly in the open state. This may lead to the loss
of the data of the mobile phone and even the unrepairable damage.
Basic Use
1. POWER-ON: In power o󰀨 mode, turn on the power switch / volume knob clockwise .
When radio logging in . Voice prompt “dudu…Log in…..Search the network (green light
ash). After successful logged in network (green light slow), there will be a voice prompt
for the current group and members.
2. POWER OFF: when power on ,turn o󰀨 the power switch / volume knob in the counter-
clockwise direction until switch o󰀨.
3. ADJUSTING VOLUME: turn on the volume potentiometer to achieve the reasonable
volume.
4. SELECT GROUP (group calling), SINGLE CALL SELECTION (single call), SELECT
FRIENDS (group calls): Short press the side key 1 or MENU function key, enter the
menu, and operate the corresponding button according to the screen prompt. In this
mode, if it does not operate for more than 15 seconds, it will automatically exit the selec-
tion mode, or press EXIT to exit or return to the default group mode standby.
5. SYSTEM SETUP OPERATION (menu list): Short press the side key 1 or MENU func-
tion key, enter the system menu, and operate the corresponding button according to
the screen prompt. In this mode, if it does not operate for more than 15 seconds, it will
automatically exit the selection mode, or press EXIT to exit or return to the default group
mode standby.
6. GPS SWITCH: Platform settings, be activated when power on.(GPS optional)
7. CURRENT USER QUERY: in standby mode, short press side key 3 will voice prompt
current group and user name.
8. POWER, SIGNAL AND NETWORK ENQUIRIES: standby mode, short press side key 4,
voice prompt the current battery power, wireless signal level and current network mode.
Troubleshooting Guide
If your walkie talkie is in the process of using the following phenomenon, please check the
following information rst, if you can not x the problem, please contact the dealer.
Problem Investigation Method Solution
Poor signal
reception
The current location network signal
is weak at present
1. Please move to the location where
you can receive the network well.
2. Please avoid using it at a similar
time interval or try again later.
Call intermittently
or delay
Base station switching or poor
radio signal or bad network relay
lines of network operators.
After the shutdown, restart the sys-
tem, you can automatically search the
base station and switch to the better
quality network.
e.
Side key 4:
A. Entering the function menu, such as group selection, single call selection, friend
search, system settings and so on, short press as down key.
B. in standby mode, prompt the current power, signal intensity, network mode by short
press.
f.
MENU: In standby mode, short press enter function menu.
g.
UP: Entering the function menu, such as: group selection, single call selection, friend
search, system settings and so on, short press as up button.
h.
OK: Enter the function menu settings, short press as the conrmation key.
i.
EXIT: Entering the function menu, such as group selection, single call selection, friendly
search, system settings and so on, short press as down key or return to the previous
menu.
j.
DOWN: Entering the function menu, such as group selection, single call selection, friend
search, system settings and so on, short press as down key.
k.
The earphone interface: Insert the headset and press the PTT button on the headset
to communicate. Release to cancel the communicate .
l.
USB: Module software upgrade interface.
This radio account setting or software upgrade
Headphone socket can also be used as a programming interface, cooperate with man-
ufacturers of programming cable, the programming software (compatible with kenwood
program cable) can set the unit of information (account name, password, etc.) To enter
a state of programming, hold the PTT button and then turn on the radio, normally on a
red light into the data programming model.
When the battery power is too low:
There will be 4 times beep to remind users to charge and red ashes.
When the battery is overpressure
There will be no voice reminding users, the indicator lights will ash at the same time,
and shut down or can not power on.
Indicator instruction
Radio state Indicator state time
Searching for a network state Green light, ash 0.2S bright, 0.2S extinguish
Standby state Green light, slow ash 1S bright, 1S extinguish
Waiting state (when there is a
GPS signal) Yellow light, slow ash 0.3S bright, 0.7S extinguish
Transmit state Red light bright
Receive state Green light bright
Getting Started
SMART-PTT platform: register the user account and password in the platform manage-
ment page, set up the user's various functional rights, and insert the valid USIM card (tra󰀩c
card) in the registered device.
Install USIM Card
Please prepare a valid USIM card (user identication card) before using this device.
1. Turn the volume knob / power knob. Turn o󰀨 the radio.

Problem Investigation Method Solution
Shortening of
standby time
Standby time is related to the sys-
tem settings of network operators.
Unable to connect to the network,
the talkback device will continue
to transmit the base station signal
and continuously consume battery
power, resulting in short waiting
time.
If you are in a weak area, please
close the intercom device temporarily.
Unable to
connect to the
network
USIM card invalid or bad contact,
bad signal, network connection tim-
eout or you are not in the network
service area;
Switch to a valid USIM card or try a
more open location.
Technical Indicators
Power Supply 3.4-4.2V
Battery 4000mAH
Work band
WCDMA Band 2/5;
FDD-LTE: Band 2/4/12
Dimensions 98*58*35mm
Weight 194g
Operating
Temperature -20°C~+50°C
Storage
temperature
range
-40°C~+85°C
Menu Operation
1. Call menu: Group selection / Private selection / Friend selection
2. System menu:
Backlight setting: o󰀨, 5, 10, 15, 20, 25, 30.
Brightness Setting: level 1, 2, 3, 4, 5, 6, 7, 8, 9, 10.
Network Setting: Auto ,UMTS,LTE
:Account Info, GPS function (only supported with GPS function model), module version,
POC version
UTC Set: -12, -11, -10, -9……0…..12;
Call Quality: standard, enhanced. (when choosing an enhanced type, hd sound quality
cannot communicate with other 2G and 3G models)
Tone Prompt

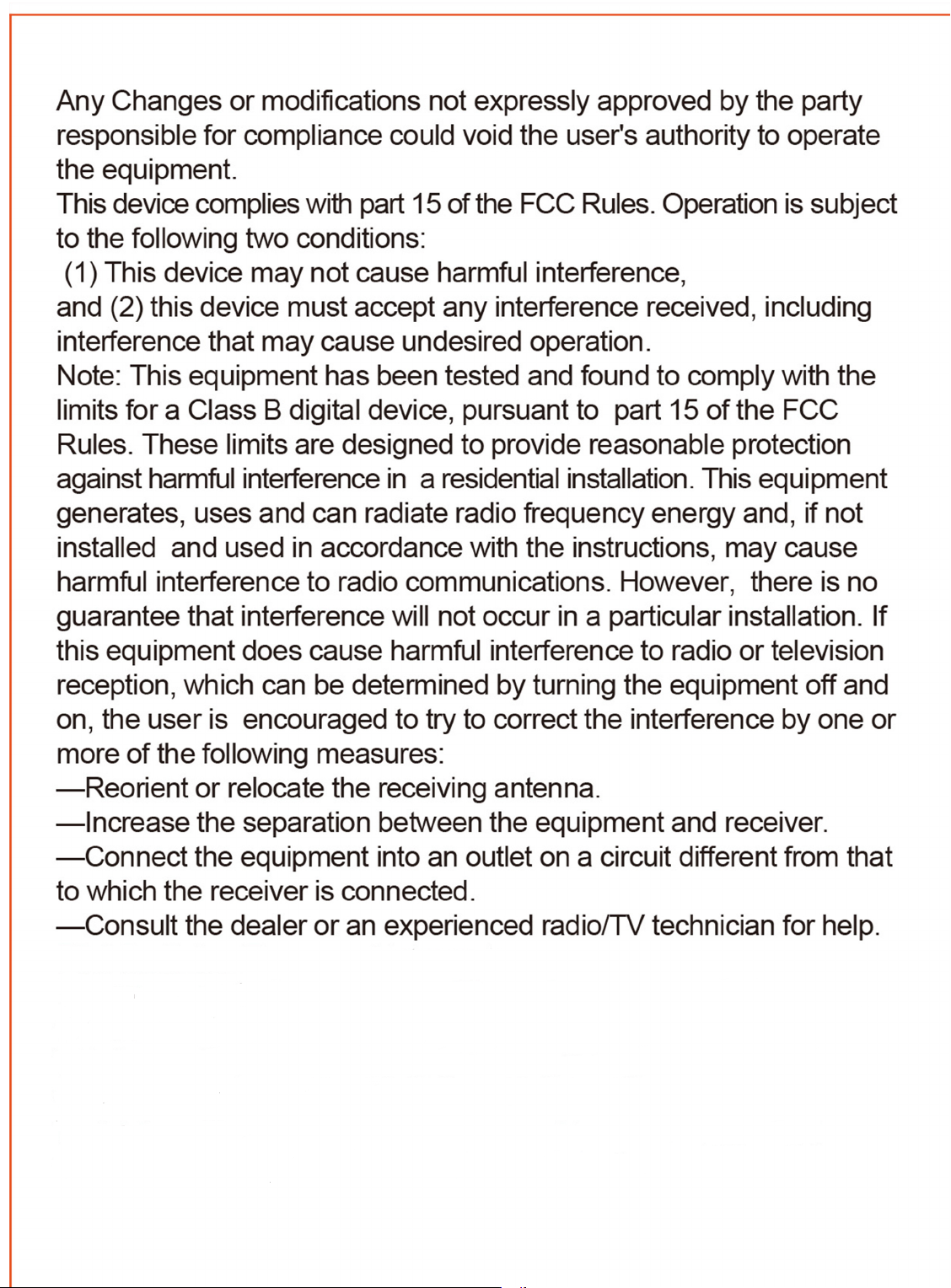

SAR tests are conducted using standard operating positions accepted by
the FCC with the walkie talkie transmitting at its highest certified power
level in all tested frequency bands, although the SAR is determined at the
highest certified power level, the actual SAR level of the walkie talkie while
operating can be well below the maximum value. Before a new model is a
available for sale to the public, it must be tested and certified to the FCC
that it does not exceed the exposure limit established by the FCC, tests for
each product are performed in positions and locations as required by the
FCC.
For body worn operation, this device has been tested and meets the FCC
RF exposure when used with an accessory designated for this product or
when used with an accessory that Contains no metal.
To maintaion compliance with the FCC RF exposure guideline,hold the
transimitter and antenna at least 2.5 centimeters from your face and speak
in a normal voice,with the antenna pointed up and away from the face.
This equipment comply with FCC radiation exposure limits set forth for an
uncontrolled environmenr.
