Yard force ROBOMOWER SA800PRO User manual

Model SA800PRO
Hotline: [phone] 251006
Fax : [phone] 251007
Mail: yardfor[email protected]
www.yardforce.de
Merotec GmbH
Hanns-Martin-Schleyer-Str. 18a
47877 Willich / Deutschland
ROBOMOWER
Original Instructions
GB

2 3
8
9
67
11
10
5
1
2
3
4a
12
15 18
16
17
13 14
19
4b
Read this manual carefully prior to assembling and
operating the Robomower. It is dangerous to operate this
product without being familiar with these instructions.
Keep this manual in a safe place and have it ready for
future reference.
A

4 5
Congratulations on the purchase of your new device. During production, this equipment has
been checked for quality and subject to a nal inspection. The functionality of your equipment
is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants
will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect
and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important
information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating
and safety instructions. Use the product only as described and for the
applications specied. Keep this manual in a safe place and in the event that
the product is passed on, hand over all documents to the third party.
The Robomower is exclusively designed for mowing lawns. It is only intended for private use
and is not suitable for commercial use.
SA800PRO Original Instruction
Introduction 05
Intended purpose 05
General description 05
Technical Data 07
Safety precautions 08
Assembly instructions 28
Operation 42
Cleaning/maintenance 56
Troubleshooting 61
Declaration of conformity 65
Any other use that is not specically approved in these instructions can result in damage to
the Robomower and could be a serious danger to the user.
This appliance MUST NOT be used by children and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do not play with the appliance.
The owner or operator is responsible for any accidents or harm to other people and their
property.
The manufacturer cannot be held liable for damage caused by incorrect operation of
the Robomower or use not in line with its intended purpose.
Scope of delivery
Carefully unpack the mower and check that all the subsequently listed parts are present:
• Robomower
• Charging station
• Transformer
• Extension cord
• Boundary wire
• Boundary wire connector B (blue)
• Fixing pegs
• Spare blades
• Measurement ruler (on the color box)
• Cement resistor
• Manual
CONTENT
INTRODUCTION
INTENDED PURPOSE
GENERAL DESCRIPTION

6 7
Overview
The illustration of the principal functioning parts can be found on the front and
back foldout pages.
1 Robomower x 1
2 STOP button
3 Display and keypad
4a: Charging contacts (Robomower)
4b: Charging contacts (charging station)
5 Charging station x 1
6 Blade (3 per each)
7 Blade holder
8 Front wheel
9 Rear wheel
10 Carrying handle with safety switch
11 Main power switch
12 Control panel
13 Transformer x 1
14 Extension cord x 1
15 Fixing peg x 200
16 Measurement ruler (on the color box) x 2
17 Boundary wire connector x 3
18 Boundary wire x 1 (150m)
19 Cement resistance x 1
Functional description
This Robomower is an autonomous robot used to cut lawn grass. It will remain within an area
designated by a boundary wire, start work following a programmed schedule and return to its
charging station as needed. The three sharp blades ensure clean cuts with minimal damage
to the plant, leaving behind tiny snippets as natural fertilizer.
Max cutting area 800 m2
Battery 862601-INR186500-29E
Lithium-Ion battery, 28V/2.9Ah, 81Wh
Power supply
FY3201500
Input 100-240V AC, 50/60 Hz
Output 32 V DC, CC1.5A
Typical mow time on one charge 80 min
Rated voltage 28 V DC
Rated power 50 W
No load cutting speed 3500 min-1
Cutting width 18 cm
Blade model / part number 846210
Cutting height adjustment 5 Settings
Cutting height, min-max 20 mm-60 mm
Number of blades Three (Pivoting)
Charging time 90 min
Recommended time per day* Please see note 1 below
300 m24 hours
600 m26 hours
800 m28 hours
Degree of protection:
Robomower IPX4
Charging station IPX4
Power supply IP 67
Robomower weight 8.5 Kg
Charging Station weight 2 Kg
Robomower size, L x W x H 570 X 390 X 260 mm
Package size, L x B x H 780 X 510 X 330 mm
Gross weight 18 kg
Measured sound power level
Measured sound pressure 46.6 dB(A) , K=3.0 dB(A)
Guaranteed sound power level LWA= 67 dB(A) (K=0.35 dB(A))
The sound values have been determined according to noise test code given in EN 50636-2-
107, using the basic standards EN ISO 11203 :2009 and EN ISO 3744:2010.
The noise gures quoted are emission levels and are not necessarily safe working levels.
Factors that inuence the actual level of exposure of work-force include the characteristics
of the work room, the other sources of noise, i.e. the number of machines and other adjacent
processes and the length of time for which an operator is exposed to the noise. Also the
permissible exposure level can vary from country. This information, however, will enable the
user of the machine to make a better evaluation of the hazard and risk.
*Note 1: The recommended time per day stated in this specication is just for reference. It
depends on the condition of blades, the type of the grass being cut, the growth condition,
humidity and whether lawn area is at. A more complex lawn with trees, ower beds,
paths and slopes may require a longer work time.
GENERAL DESCRIPTION TECHNICAL DATA

8 9
This section covers the basic safety instructions when
working with this machine.
General notes on safety
This machine can cause serious injury if it is
not properly used. Please read these operating
instructions carefully and familiarise yourself with
all the control elements before operating this
machine.
Keep these operating instructions in a readily
accessible place so that this information is always
at your disposal.
Please note that despite all measures to integrate
safety measures into the construction, the safety
devices and supplemental safety measures, a
resiudual risk remains when using this machine.
Symbols used in the manual
Warning symbols with information on damage and
injury prevention.
Warning symbol with information on the danger of
electric shock.
Symbols on the machine
Caution!
These instructions must be read.
Danger of injury due to ung-out material! Keep
bystanders well away from the machine.
WARNING - Do not ride on the machine.
CAUTION - Do not touch rotating blade.
WARNING – Remove the disabling device
before working on or lifting the machine.
WARNING – Keep your hands and feet away from
the rotating blades. Never place your hands or
feet close to or under the body when Robomower
is in operation.
Return any discarded batteries to your local
dealer, collector or recycle point.
It is not permitted to dispose of this product as
normal household waste. Please recycle where
facilities exist. Check with your local authority or
retailer for recycling advice.
Guaranteed sound power level value is 67dB.
67
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

10 11
Warning Symbols on the charger
Warning!
Before use, refer to the corresponding
paragraph in the manual.
Double insulation
Pole orientation
Waste electrical products should not be disposed
of with household waste. Recycle where facilities
exist. Check your local authority or retailer for
recycling advice.
CE conformity mark
Warning Symbols on the battery pack
Batteries contain Li-Ion and should not be
disposed with general household waste. Contact
your local authority for disposal advice.
Do not throw into water.
Do not throw on to re.
Do not subject the battery to strong sunlight
over long periods and do not leave it in high
temperatures.(max.45 OC).
Waste electrical products should not be disposed
of with household waste. Recycle where facilities
exist. Check your local authority or retailer for
recycling advice.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

12 13
Additional safety instructions for Robomowers
Do not store anything heavy on the top of the Robomower
or charging station both during storage and when use.
Never use the device if the main power switch (11) is
damaged or does not work properly. Never bypass the
main power switch. Set the main power switch to OFF for
storage or when the device is not in use. Use the original
packaging when transporting the Robomower,
especially for long distances.

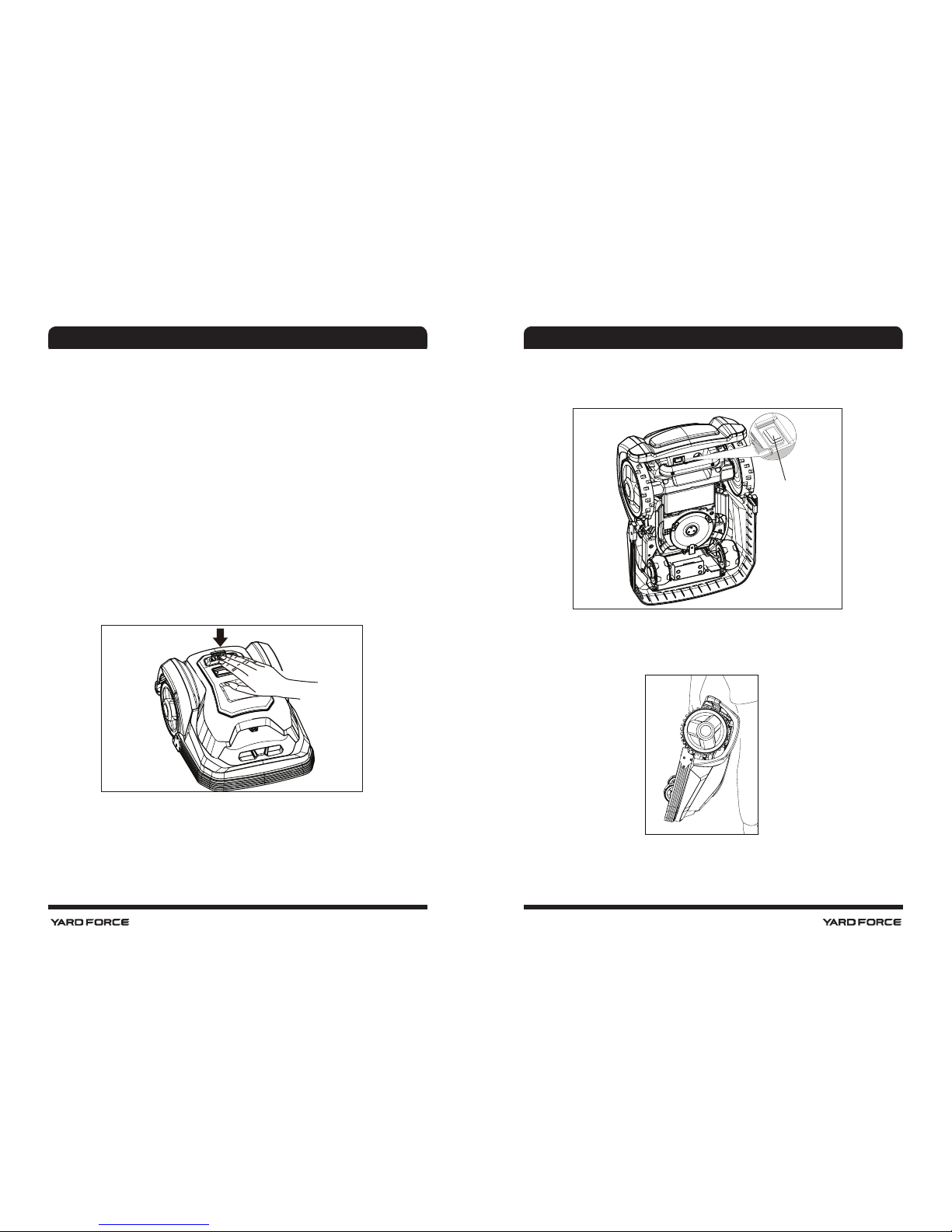

If you need to move the Robomower from or within the
working area, rst press the STOP button (2) to stop the
device.
Secondly, ensure that the main power switch (11) is
switched OFF before you lift up your Robomower.
Thirdly, close the top cover and carry the Robomower
by the carrying handle (10) at the rear under the mower,
keeping the blade disc away from your body as shown.
Note: The carrying handle (10) includes two safety
switches. Lifting the device by the carrying handle will
trigger the switches, deactivating the Robomower.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
Main Power switch

14 15
Lightning Protection
In order to prevent lightning damage to the machine, do
not place the charging station under tall trees.
Operating the machine:
WARNING! This machine can cause serious injuries.
Follow instructions below to reduce risk of accident
and injury.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Preparation:
• Read the instructions carefully and make sure you
understand them fully. Be familiar with the controls
and the proper use of the machine.
• Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge or people unfamiliar with these
instructions use the machine.
• Local regulations may restrict the age of the operator.
Children should be supervised to ensure that they do
not play with the appliance.
• The operator or user is responsible for accidents or
hazards occurring to other people or their property.
• Ensure the correct installation of the perimeter
boundary system as instructed.
• Periodically inspect the area where the machine
is to be used and remove all stones, sticks, wires,
and other debris which could cause damage to the
machine or be unsafe.
• Periodically visually inspect to see that the blades,
blade bolts and cutter assembly are not worn or
damaged. Replace worn or damaged blades and bolts
in sets to preserve balance.
• On multi-spindle machines, take care as rotating one
blade can cause other blades to rotate.
• Never leave the machine to operate unattended,
especially while other people such as children and
pets are in the area.
• Never use the machine to level out uneven patches.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

16 17
• If the blades no longer cut correctly or if the motor is
overloaded, check all the parts of your equipment and
replace the worn parts. If a more extensive repair is
required, contact the customer service centre.
Use:
• Never operate the machine with defective guards or
without safety devices, for example deectors and/or
grass catchers, in place.
• Do not put hands or feet near or under rotating parts.
• Never pick up or carry the machine while the motor is
running.
• Turn OFF / Power OFF the machine
– before clearing any blockages.
– before checking, cleaning or maintaining the
machine.
• Start Robomower according to the instructions.When
the main power switch (11) is in the ON position, make
sure you keep your hands and feet away from the
rotating blades.
• Never lift the Robomower or carry it around with the
mains switch is in the ON position.
• Do not let persons use the mower who do not know
how it works or behaves.
• Do not put anything on top of the Robomower or its
charging station.
• Do not use the Robomower with defective blade discs,
body, defective blades, screws, nuts etc.
• Avoid operating the machine in wet grass. Doing so
can cause additional wear and tear and will increase
the amount of cleaning required.
Work interruptions:
• After the machine has been turned off, the cutting
cylinder will continue to rotate for a few seconds.
Keep hands and feet well away.
• Only remove blockages when the machine is standing
completely still. Ensure that the grass ejector opening
(if any) is clean.
• Switch off the power when the machine is transported,
lifted or tilted.
• Never leave the machine unattended. Children should
be supervised to ensure that they do not play with the
appliance.
CAUTION!
The following below outlines measures to avoid
damage and harm to both the Robomower and
people using it.
Taking care of your machine:
• Switch off the power when the machine is to be
carried across uneven surfaces, for example steps.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

18 19
• Inspect the machine before each use. Never operate
the machine if safety devices (e.g. impact protector,
parts of the cutting facility or bolts) are missing, worn
out or damaged. Check the power cable and starting
lever (if any) for damage. To avoid imbalance, all tools
and bolts must be changed as complete sets.
• Only use spare parts and accessories that have been
supplied or recommended by the manufacturer. The
use of alien parts results in the immediate loss of all
guarantee claims.
• Ensure that all nuts, bolts and screws are rmly
tightened and that the machine is in a safe working
condition.
• Never try to repair the machine yourself, unless you
have been trained accordingly. All work that has not
been listed in these instructions must only be carried
out by authorised servicing agencies.
• Treat the machine with the greatest care. Always keep
the tool clean. Follow the maintenance instructions.
• Never overload the machine. Always work within
the specied capacity range. Do not use low-power
machines for heavy-duty work. Do not operate the
machine for purposes for which it is not intended.
Electrical safety:
CAUTION!
The following states how to avoid accidents and
injuries due to electric shock:
• Before each use, carry out a visual inspection of the
power and extension cord for any signs of damage or
ageing. Damaged mains power cables increase the
risk of electric shock.
• Connect the machine to a power socket with a
residual-current circuit breaker that has a rated current
of no more than 30 mA.
• Always keep the extension cable well away from
the cutting tools. Should the power cable become
damaged during work, instantly disconnect the power
cable from the mains. DO NOT TOUCH THE POWER
CABLE BEFORE IT HAS BEEN DISCONNECTED
FROM THE MAINS! Risk of electric shock.
• The supply cord cannot be replaced. If the cord is
damaged the appliance should be scrapped.
• Keep extension cable away from blades and other
moving parts. They may damage the cable and result
in contact with live parts.
• Check that the mains voltage is the same as indicated
on the rating plate.
Maintenance and storage
• Keep all nuts, bolts and screws tight to be sure the
machine is in a safe working condition.
• Replace worn or damaged parts for safety.
• Ensure that only the recommended replacement
cutting blades are tted.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

20 21
• Ensure that batteries are charged using the charger
supplied or recommended by the manufacturer.
Incorrect use may result in electric shock, overheating
or leakage of corrosive liquid from the battery.
• Servicing of the machine should be carried out
according to manufacturer's instructions.
• In the event of leakage of electrolyte, ush with water/
neutralising agent, seek medical help if it comes into
contact with the eyes.
• Store the appliance with battery pack fully charged at
room temperature (around 20ºC).
• Every deep discharge cycle decreases the capacity
of battery pack. To prolong battery life, it is
recommended to charge the battery every 6 months
over extended periods of time without use.
Transport
The original packaging should be used when transporting
the Robomower over long distances.
To safely move from or within the working areas:
• Press the STOP button to stop the mower.
• Move the main switch button to the OFF position if you
intended to carry the mower.
• Carry the Robomower using the handle below at the rear.
Carry the mower with the blade disc away from the body.
Robomower basic operating principles
• The Robomower chooses its working direction randomly.
It will mow your garden completely without leaving
behind any uncut part within the area restricted by the
chosen boundary.
• You dene the work area by installing the supplied
boundary wire. Once the Robomower detects the
boundary wire, it will stop, move backwards and
continue mowing in a different direction. It is important to
ensure that the boundary is complete. Any objects you
wish to protect within the boundary, such as a garden
pond, trees, garden furniture or ower beds can also be
protected by the boundary wire. The boundary wire must
form one complete loop. If the Robomower encounters
an obstacle, such as a person, tree, pet or other general
garden obstacles, it will stop, move backwards and
continue mowing in a different direction.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

22 23
max. 8 m
min. 2 m
• If you need a narrow corridor to connect two patches
of lawn within the boundary, the corridor should be at
least 2 metres wide and max. 8 m long.
Note: If your Robomower loses ground contact while
hitting an obstacle, the blade disc will stop immediately
to avoid any potential damage.
Locating the charging station
• When the battery is running low, the Robomower
will automatically return to the charging station. It
will approach the closest boundary wire and follow it
anticlockwise (without cutting) back to the charging
station. When fully charged, the Robomower will
automatically resume the interrupted working cycle. The
launch direction from the charging station - clockwise - is
hard-wired into the design and is impossible to change.
Recognising the boundary wire
• Note that before stopping and changing the direction,
the Robomower will overrun the boundary wire by 10
to 40 cm. Please keep this in mind when planning the
boundary wire installation.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

24 25
10-40 cm
Starting and stopping while mowing
• If you want to stop the Robomower at any time during
cutting, please press the STOP button (2). Pressing the
STOP button will also open the top cover, providing
access to the control interface. The Robomower will not
start working again until you have closed the top cover.
> 0,5 m
> 10 m
> 10 m
S1 S2
Own land Neighbour
Robomower mowing limitations
• Out of the box, the Robomower is set to work 7 days a
week. You can adjust the daily working time to match
your garden.
• In case a neighbour is using the same Robomower, you
need keep a 0.5 m distance between your and your
neighbour's boundary wires. Otherwise, the two devices
might interfere with each-other. Additionally, keep
your charging station more than 10 m away from your
neighbour's boundary wires. Last not least, ensure that
the adjacent boundary wires use different signals. Please
refer to section "Signal setting" in order to select signal
S1 or S2 for your installation.
Below is a table showing the signal distances for each
Robomower. Please note your model and use this
information as your guide when designing the boundary
layout.
Model Max field Max. distance to wire
SA800PRO 800 m214 m
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

26 27
NOTE! When the working area is less than 100 m2or
total boundary wire less than 40 m, please integrate the
supplied 10 Ω / 20 W cement resistance to the boundary
wire.
＜100 m
2
Robomower cutting information
• The Robomower has a cutting height setting between
20 mm to 60 mm. If the grass height exceeds 60 mm,
cut it to 60 mm or below before using the Robomower.
Otherwise the load on the unit will be too large and the
cutting efciency will suffer, we recommend using an
ordinary lawn mower or trimmer. Once the installation is
complete, adjust the cutting height to the desired setting.
Always start in a high cutting position and work your way
down to the cutting height you want. Before adjusting
the cutting height, always press the STOP button (2) to
interrupt the cutting. Then turn the large dial to adjust the
cutting height.
Note: Only adjust the cutting height while the Robomower
is switched off.
• Do not use the Robomower during lightning or thunder
storms. In case of damage to the electronic circuitry,
unplug the charging station and - if possible - disconnect
the boundary wire.
The Robomower cutting efciency relies on sharp
blades, so please keep them in good condition.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

28 29
Installation Guide
This chapter explains how to install the Robomower. Please read this completely before you
start the installation.
Introduction
We recommend creating a draft of your lawn, including all obstacles and how these should
be protected. This makes it easier to nd a good position for the charging station and how
to correctly place the boundary wire around your garden perimeter protecting bushes, ower
beds etc. You will also need some tools, like a hammer and wire cutters, pliers or scissors.
Cutting limitations
The Robomower is equipped with collision sensors. These will detect any rigid
and xed obstacles higher than 100 mm, such as walls, fences and garden furniture.
When triggered, the Robomower will stop, reverse backwards and then continue mowing in a
different direction. Still, protecting the obstacles running the boundary wire accordingly is the
recommended long-term solution.
> 100 mm
< 400 mm
Trees
Uneven lawn areas may cause the blades to touch the ground. We recommend leveling
lawn before using your Robomower or excluding uneven areas with he boundary wire.
Stones
We recommend clearing the lawn of small (less than 100 mm high) rocks and stones and
any stones with a round or sloped edge. The Robomower might try and climb such
rocks instead of recognising them as a barrier.
A Robomower getting stuck on such a stone requires user intervention to restart mowing.
Contact with stones can result in damage to the blades.
Slopes
The Robomower can navigate slopes up to a maximum of 50% incline or decline.
Slope should not be steeper
than 50 % (27°).
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

30 31
The boundary wire should never run perpendicular to a gradient of more than 10°.
Likewise, please allow a corridor of at least 2m between a 10° or steeper slope and the boundary
wire. Otherwise, the faster downhill speed may cause the Robomower to
overshoot the boundary wire, especially on wet and slippery ground.
> 40 cm
Paths, Driveways and Roads
If an elevated driveway crosses your lawn, better keep it outside the boundary wire.
Please allow a safety distance of 40 cm between driveway and boundary wire.
boundary wire
min.
2
m
Slope should not b e
steeper than 10˚
Slope should not be
steeper than 10°
Boundary wire
Uneven lawn surfaces
Uneven lawn areas or may cause the blades to touch the ground. We recommend leveling
the lawn before using your Robomower or excluding uneven areas with the boundary wire.
boundary
boundary
If the driveway and lawn are at the same level, feel free to use the boundary wire to create a
corridor. This allows your Robomower to cross the driveway and reach the opposite lawn.
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

32 33
< 5 mm
2) Alternatively, keep the distance between the two parallel wires below 5 mm. Do not
cross the wires - see below. This way, the Robomower will not recognise the wires and
travel across them unhindered. This option requires placing an obstacle on the boundary
wire around the owerbed. Place the obstacle, e. g. a large rock or pole, near position A
indicated on the below illustration. The obstacle must be surrounded by a at area of about
1 m x 1 m, without any slopes. This obstacle will allow the machine to exit the circle.
Flowerbeds
Use the boundary wire to exclude any owerbeds from the cutting area. There are two
options for the two lengths of boundary wire running between the owerbed and the
outer boundary:
1) Keep the distance between the parallel wires above 10 cm. This way, the Robomower will
recognise the boundary wire as an ordinary obstacle. When cutting, it will "bounce" off it as
usual. When following the boundary wire back to the charging station, it will take the detour
around the ower bed.
> 10 cm
General Dos and Don’ts
Do not run the boundary wire parallel directly above an ordinary power cable.
The power cable's electric eld may distort the boundary signal.
Never cross two boundary wires! This will distort the radio signal and cause erratic behavior
of the Robomower.
Ponds and Pools
While the Robomower is protected against rain and spray water, being submerged is likely to
cause severe damage to the electronic parts.
Therefore, it is imperative to exclude any pools from the cutting area. For added safety, we
recommend placing a fence around the pool.
If you have created a boundary corridor inside your working area, the corridor should be at
least 2 m wide and a max length of 8 m.
If a corridor is too narrow or too long, the Robomower might not be able to navigate it from
one end to the other.
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
> 10 cm
Never cross the wires!
Max length
of the
corridor is
8 m
Minimum width of
the corridor is 2 m

34 35
Keep in mind that owers, bushes and surrounding shrubbery will change in size over a season.
Please keep sufcient space between boundary wire and other plants to avoid interference year-
round.
Marking out the Robomower's working area
You have now understood the basic principles of how the Robomower works. The next step
is to mark out the working area with boundary wire by referring to your garden plan. This is a
very important part of the installation, so please take care.
Starting from the charging station, the boundary wire must be one continuous loop without
any breaks or crossings. Connecting the end to the charging stations second connector will
complete the circuit.
Where appropriate, use the included ruler to check the 40 cm required distance.
Firstly, locate the best position for your charging station. Be aware that it needs a permanent
connection to the mains, so take into account the location of the nearest power outlet.
> 1 m
> 2 m
The included supply cord has a length of 9 m.
The charging station (5) must be placed on a at surface, at ground level.
Both the front and back of the charging station must be accessible to the boundary wire. To
ensure the Robomower can return to the charging station smoothly, leave 2m of straight wire
to the front of the charging station and 1m to the side facing the cutting area. Use a shaded
location for the charging station, as a lower temperature while charging is benecial to the
battery.
Important: Place the charging station on an even, at surface away from ponds, pools or
stairs.
We recommend suitable protection from the elements, for example a robot port or garage.
Pay attention to protect cable!
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

36 37
Do not place the charging station too close to a slope, such as at the top of a hill or the
bottom of a furrow. Avoid left and right inclination in excess of 5 degrees.
If your lawn has a soft or uneven surface, we recommend fortifying the area around the
charging station with a grass protection mesh. Otherwise, the repeated stress of the rear
wheels can damage the turf.
Once the position of the charging station is conrmed and mains electrical connection is
laid out, please do not connect to main power yet. Finish all boundary layout work before
connecting the charging station to the power supply.
The pegs should be knocked into lawn
with wire location to boundary outside
like shown.
Cutting area
40 cm
80 cm
Pegging out the boundary wire
We strongly recommend mowing the lawn to 60 mm or less before laying out the boundary
wire. Burying the boundary wire is entirely optional. Still, the closer to the ground you lay out
the boundary wire, the lower the chance of tripping over it or damaging it when mowing the
lawn.
In a very short time, the wire will be covered by grass. As the voltage is only 32 V, there
is no risk of electric shock.
Unpack the boundary wire (18) and locate the free end. Mark the desired path of the
boundary wire with the xing pegs (15).
Use the included ruler (16) to to ensure the required 40 cm distance between wire and
obstacles.
The recommended distance between two pegs is about 80 cm in straight lines, and less in
tight curves. Note that the pegs' hook and wire slit always faces the outside of the boundary.
When rst planting the pegs, do not drive them fully into the ground. Use a light hammer
to drive them in a little bit. Also locate the xing pegs (item 15) and lay each one on the lawn
at approximately the correct distance from lawn edges (40cm) and obstacles.
There is a gauge supplied for this (item 16).
Once all pegs are in position, lay out the boundary wire. Start from the charging station. Run
the wire through the peg's hook and wire slit one-by-one. Do not tighten the boundary wire
too much to prevent wire damage. Carefully prevent any kinks, knots, etc.
When cutting the wire, we recommend leaving at least 1 m spare wire to allow for
adjustments.
Note: The pegs are not suitable for xing the boundary wire on hard surfaces, e.
g. when running the boundary wire across a driveway. Instead, use appropriate
screws and plugs. Be sure to use insulation washers to protect the wire
insulation.
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

38 39
Suitable location for
the charging station
Connector B, red
1 m extra wire
for potential
adjustment
Connector
F, black
NO
OK
Only use the included waterproof boundary wire connectors (17) to join together two
pieces of boundary wire.
See below for some further sketches giving more distance guidelines.
Avoid right angles when running the boundary wire around a corner. Instead, separate into
two 45° angles.
In case the included boundary wire is too short for your garden, more is available from our
service provider.
The wire's total length must not exceed 300 m.
10 - 15 mm
Prepare the boundary wire for the charging station
Use a wire stripper to remove 10-15 mm insulation from each end. Twist the threads tight.
NOTE ! If the enclosed working area is less than 100 m2or the total total boundary wire
length is less than 40m, connect a 10 Ω / 20 W cement resistance to the boundary wire.
Connect the charging station to the boundary wire
Place the charging station on the end of the boundary wire so that the wire runs lengthwise below
the middle of the charging station. Connect that end to the left (black) connector marked "F"
(front). Connect the other end to the right (red) connector marked "B" (back).
F (black)
B (red)
IMPORTANT INFORMATION
Double check that the charger connections are as shown below. Even if there is a blue light, if
the connectors are wrongly connected the machine will not work.
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
