1
Service Kit
753-0893
CODE:
DATE:
SUBJECT:
R-450
September 21, 2000
Toolbox Attachment
Service Kit 753-0893 applies to Yard-Man™Revolution™and White Outdoor Products ZTT Lawn Tractors only.
This kit is recommended for operators who would like to purchase a YardMate™storage container for a Revolution™or ZTT.
Installation Instructions
1. Remove any present rear attachment, such as the bumper weight or a grass collector, from the tractor.
2. Pivot the seat of the tractor seat forward.
3. Remove the hairpin clip and clevis pin from the hole in the rear of the bracket assembly.
4. Position the hooked ends of the bracket assembly to the outside of the hitch plate and over the shoulder bolts. Refer to
Figure 1.
5. Reinsert the clevis pin through the aligned holes provided in both the bracket assembly and the hitch plate. Secure with
the hairpin clip. Refer to Figure 1.
IMPORTANT: There are two holes found in the clevis pin. Be certain to insert the hairpin clip in the UPPER hole to properly
secure the bracket assembly to the hitch plate.
6. Slide the plastic tool box down onto the bracket assembly so that the box can pivot open to the rear.

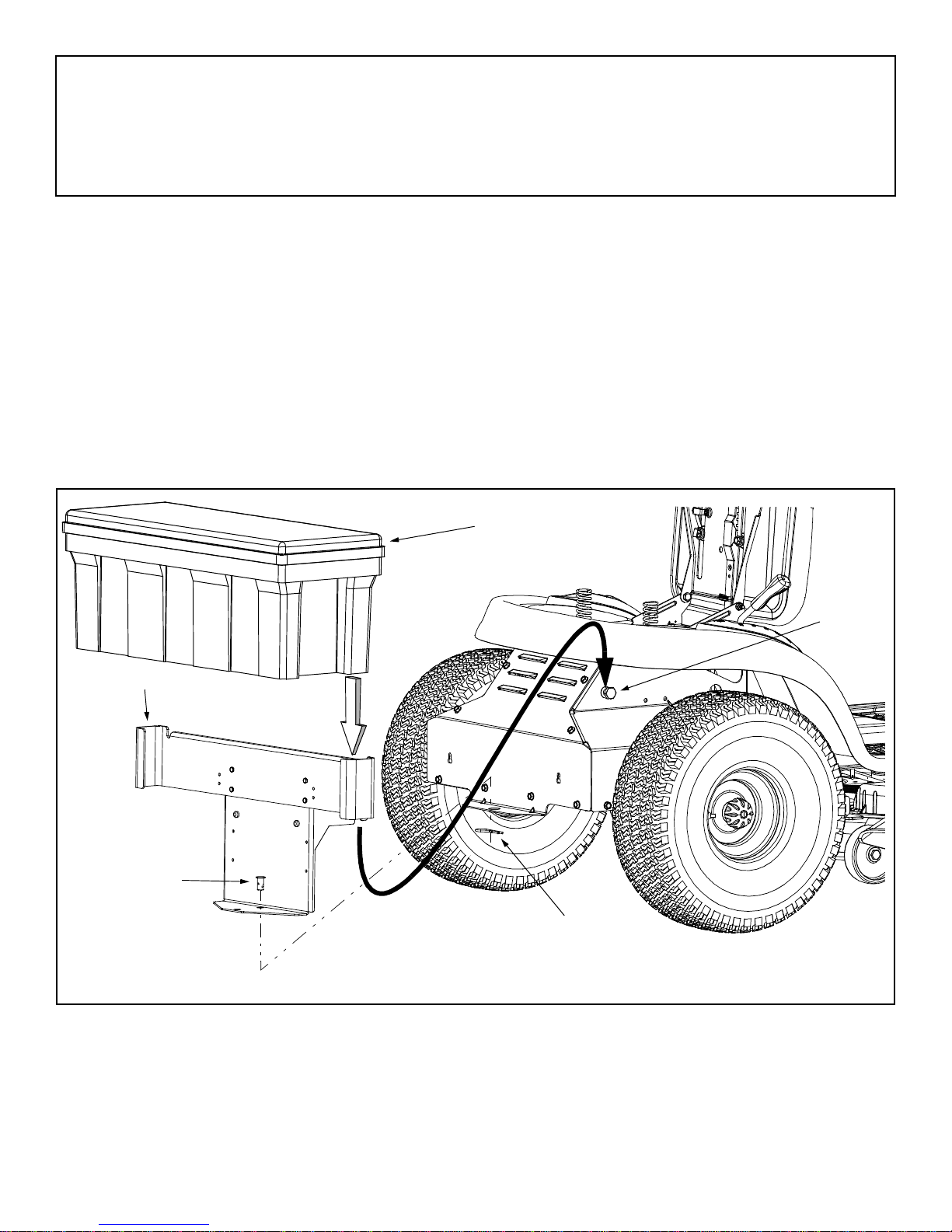

Figure 1
Bracket Assembly
Tool Box
Clevis Pin
Hairpin Clip
Shoulder
Bolt
Form No. 770-1846
(9/2000)
MODELS AFFECTED: 624 & 626 Lawn Tractors
