Yard Works 054-5752-2 User manual

model number 054-5752-2 | contact us: 1.866.523.5218
IMPORTANT:
Read and follow all safety rules and operating
instructions before using this product.
Instruction
Manual
Electric Convertible Pole Saw/Chainsaw

model no. 054-5752-2 | contact us: 1.866.523.5218
2
Type: Pole Saw/Chainsaw
Motor: 120 V AC, 60 Hz, 6 A
Horsepower:1 HP
Wattage:840 W (running watts)
960 W (starting watts)
Bar length:10” (25.4 cm)
Speed:6000 RPM
Chain pitch：3/8” (9.5 mm)
Chain gauge 0.05” (1.27 mm)
Chain type OREGON®
Chain-oil tank capacity 110 ml
Net weight 10 lb 6 oz (4.7 kg) with pole
6 lb 3 oz (2.8 kg) without pole
OREGON® is a registered trademark of Blount, Inc.
SPECIFICATIONS 2
KNOW YOUR POLE SAW 3
SYMBOLS 4
SAFETY INFORMATION 5
EXPLODED VIEW 11
PARTS LIST 12
ASSEMBLY 13
OPERATION 16
MAINTENANCE 23
ELECTRICAL 30
TROUBLESHOOTING 32
WARRANTY 33
Specifications Table of Contents

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
3

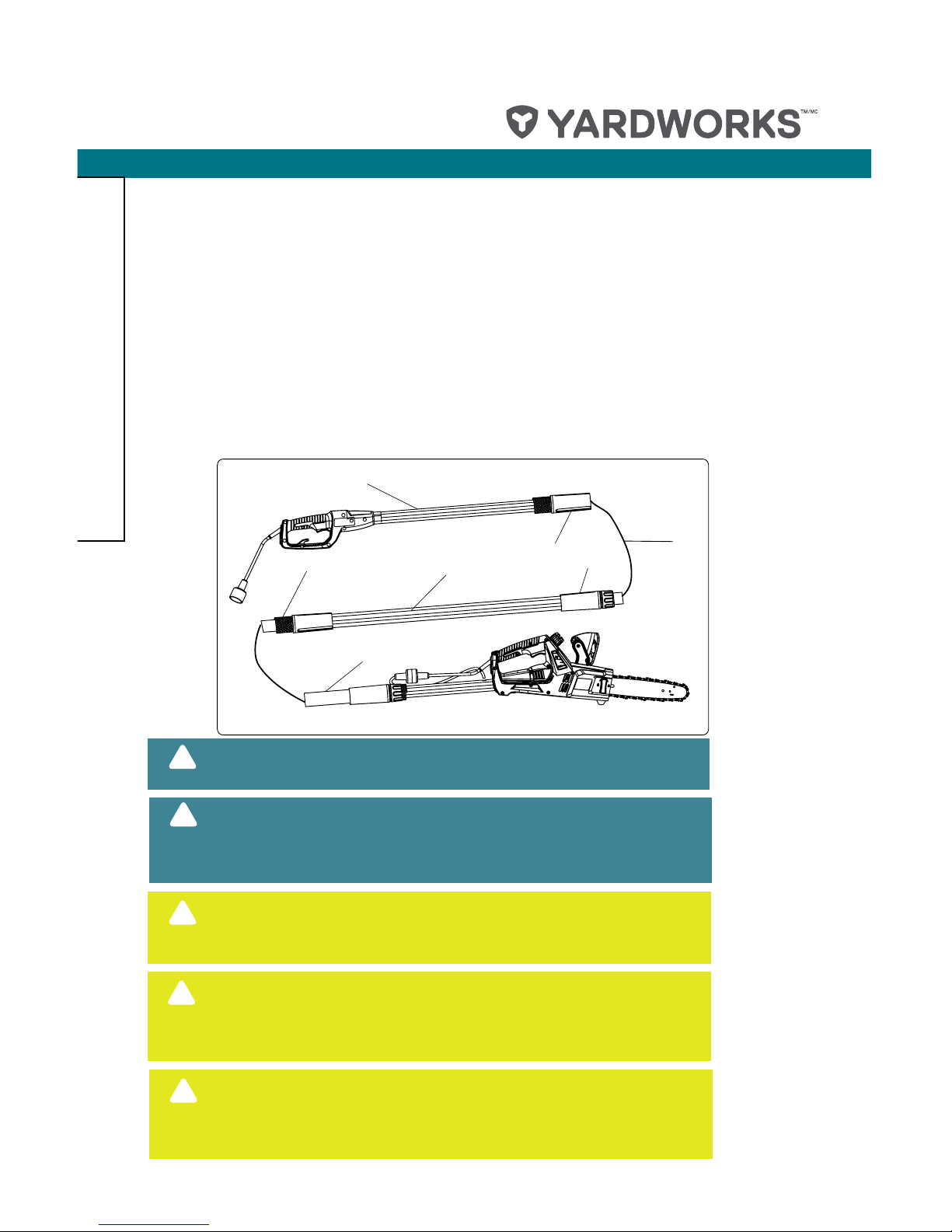

1. Oil Cap
2. Cord Lock
3. Pole Saw Handle
4. Chainsaw
5. Extension Pole
6. Scabbard
KNOW YOUR POLE SAW
•Carefully remove the product and any accessories from the box. Make sure that
all items listed in the packing list are included.
•Inspect the product carefully to make sure no breakage or damage occurred
during shipping.
•Do not discard the packing material until you have carefully inspected and
satisfactorily operated the product.
•If any parts are damaged or missing, please call 1.866.523.5218 for assistance.
WARNING: If any parts are damaged or missing, do not
operate this product until the parts are replaced. Using
a product with damaged or missing parts could result in
serious personal injury.
WARNING: Do not attempt to modify this product or
create accessories not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
Know Your Pole Saw
!
!
1
24
3
5
6

model no. 054-5752-2 | contact us: 1.866.523.5218
4

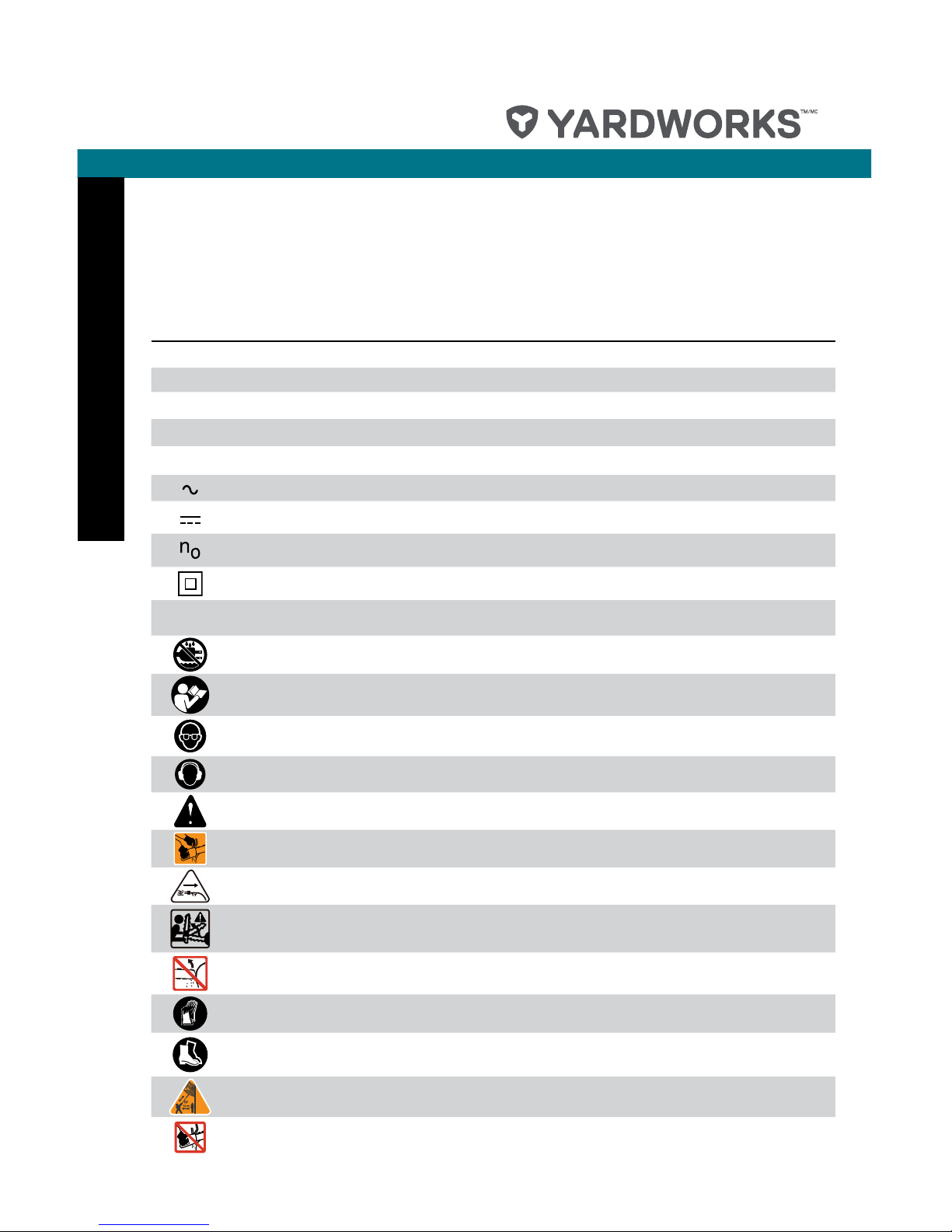

Symbols
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and
more safely.
Symbol Name Designation/Explanation
VVolts Voltage.
AAmperes Current.
Hz Hertz Frequency (cycles per second).
WWatts Power.
min Minutes Time.
Alternating Current Type of current.
Direct Current Type or a characteristic of current.
No Load Speed Rotational speed, at no load.
Class II Construction Double-insulated construction.
/min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Instruction
Manual
To reduce the risk of injury user must read and understand
instruction manual before using this product.
Eye Protection Wear eye protection when operating this equipment.
Wear Ear Protection Wear ear protection when operating this equipment.
Safety Alert Precautions that involve your safety.
Operate With Two Hands Hold and operate the saw properly with both hands.
Electric Shock Precaution Remove plug from the mains immediately if cable is
damaged or cut.
Kickback DANGER! Beware of kickback.
Bar Nose Contact Avoid bar nose contact.
Wear Gloves Wear non-slip, heavy-duty protective gloves when handling
the chainsaw.
Wear Safety Footwear Wear non-slip safety footwear when using this equipment.
Keep Bystanders Away Keep all bystanders at least 50’ (15 m) away.
One Handed Do not operate the saw using only one hand.

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
5
Safety Information
!
WARNING: Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury.
• Use safety equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions
will reduce personal injuries.

model no. 054-5752-2 | contact us: 1.866.523.5218
6
Safety Information
• Avoid accidental starting. Ensure the switch is in the off position before connecting to
power source and/or battery pack and when picking up or carrying the tool. Carrying
power tools with your finger on the switch or energizing power tools that have the switch on
invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not over-reach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
• If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
SERVICE
• Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
CHAIN SAW SAFETY WARNINGS
• Keep all parts of the body away from the saw chain when the chainsaw is operating.
Before you start the chainsaw, make sure the saw chain is not in contact with anything.
A moment of inattention while operating chainsaws may cause entanglement of your clothing

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
7
Safety Information
!
WARNING (Proposition 65): Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
•lead from lead-based paints,
•crystalline silica from bricks and cement and other masonry
products, and
•arsenic and chromium from chemically-treated lumber.
Your risk of exposure to these chemicals varies depending on
how often you do this type of work. To reduce your exposure
to these chemicals, work in a well-ventilated area, and work
with approved safety equipment, such as dust masks that
are specially designed to filter out microscopic particles.
or body with the saw chain.
• Always hold the chainsaw with your right hand on the rear handle and your left hand
on the front handle. Holding the chainsaw with a reversed hand configuration increases
the risk of personal injury and should never be done.
• Hold the power tool by insulated gripping surfaces only, because the saw chain
many contact hidden wiring. Saw chains contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the operator an electric shock.
• Wear safety glasses and hearing protection. Further protective equipment for head,
hands, legs and feet is recommended. Adequate protective clothing will reduce
personal injury by flying debris or accidental contact with the saw chain.
• Do not operate chainsaw while up in a tree. Operation of a chainsaw while up in a tree
may result in personal injury.
• Always keep proper footing and operate the chainsaw only when standing on fixed,
secure and level surface. Slippery or unstable surfaces such as ladders may cause loss
of balance or control of the chainsaw.
• When cutting a limb that is under tension, be alert of spring back. When the tension
in the wood fibers is released, the spring loaded limb may strike the operator and/or throw
the chainsaw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch
the saw chain and be whipped toward you or pull you off balance.
• Carry the chainsaw by the front handle with the chainsaw switched off and away
from your body. When transporting or storing the chainsaw always fit the guide bar
cover. Proper handling of the chainsaw will reduce the likelihood of accidental contact with
the moving saw chain.
• Follow instructions for lubricating, chain tensioning and changing accessories.
Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are
slippery, causing loss of control.
• Cut wood only. Do not use chainsaw for purposes not intended. For example: do not
use chainsaw for cutting plastic, masonry or non-wood building materials. Use of the
chainsaw for operations other than those intended could result in a hazardous situation.

model no. 054-5752-2 | contact us: 1.866.523.5218
8

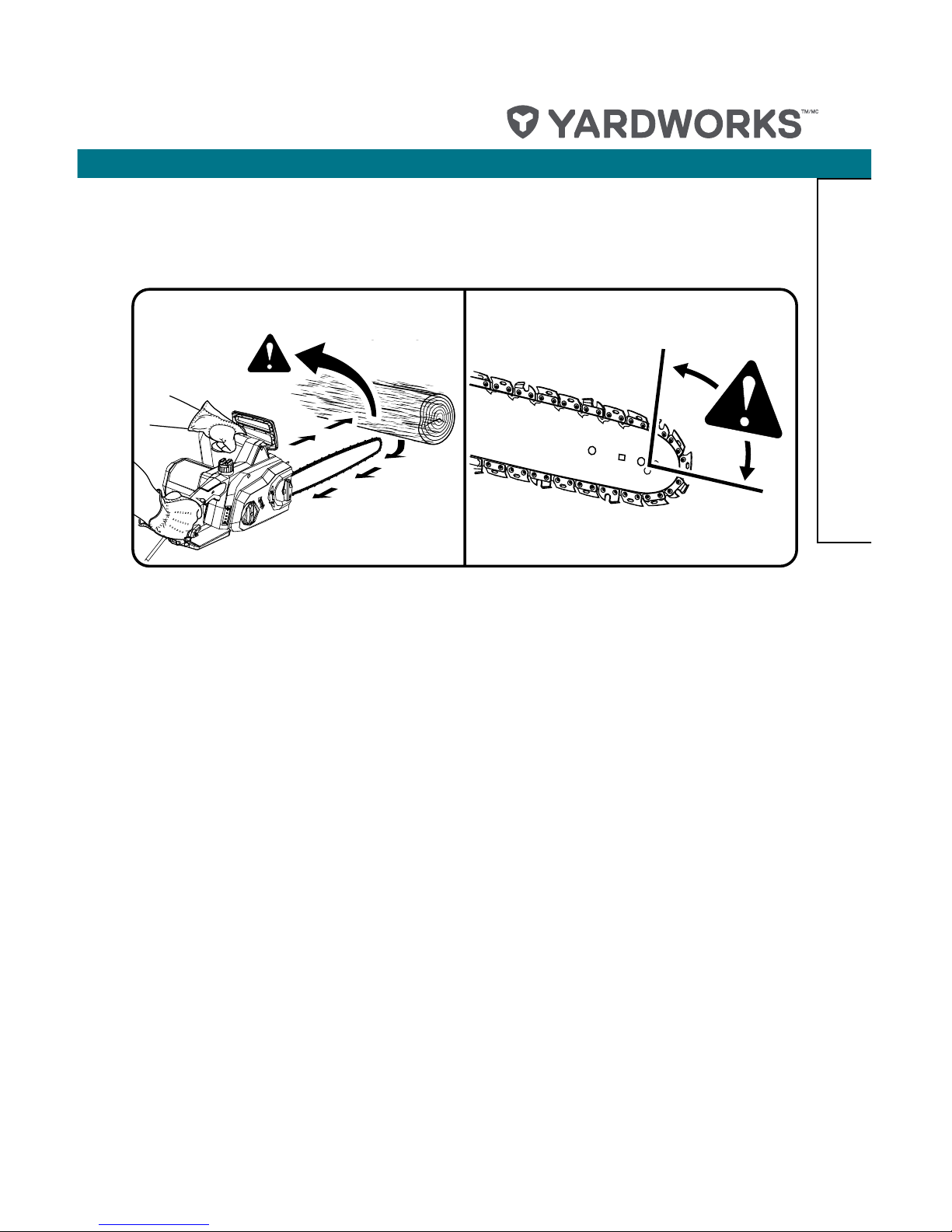

• Contact of the guide-bar tip with any object should be avoided.
• Tip contact may cause the guide bar to move suddenly upward and backward, which may
cause serious injury.
• Always use two hands when operating the chainsaw.
ADDITIONAL WARNINGS
The first-time user should, as a minimum practice, cutting logs on a saw-horse or cradle.
It has been reported that vibrations from hand-held tools may contribute to a condition called
Reynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness
and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors,
exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to
the development of these symptoms. It is presently unknown what, if any, vibrations or extent of
exposure may contribute to the condition. There are measures that can be taken by the operator
to possibly reduce the effects of vibration:
1. Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands
and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud’s
Syndrome.
2. After each period of operation, exercise to increase blood circulation.
3. Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately discontinue use and see
your physician about these symptoms.
1. The recommended cutting capacity of this chainsaw is 6” (15.2 cm) and smaller to prolong
the life of the tool and allow for safest operation. Cutting logs with a diameter larger than this will
cause excess wear on your tool. Logs with a maximum diameter of 10” (25.4 cm) can be cut, but
should only be done so rarely and with caution.
2. The integral spiked bumper is designed to assist cutting. When forced against the log while
cutting it provides a more stable pivot point.
3. Any chainsaw is potentially lethal if used inappropriately. It is strongly suggested that you seek
professional training in the safety and use of this tool.
SAVE THESE INSTRUCTIONS. REFER TO THEM FREQUENTLY AND USE THEM TO
INSTRUCT OTHERS WHO MAY USE THIS UNIT. IF YOU LOAN SOMEONE THIS UNIT,
LOAN THEM THESE INSTRUCTIONS ALSO.
SAVE THESE INSTRUCTIONS!
Safety Information

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
9
Safety Information
CAUSES AND OPERATOR PREVENTION OF KICKBACK (See Fig. 1 – 2)
Fig. 1
ROTATIONAL
KICKBACK
Fig. 2
KICKBACK
DANGER ZONE
Kickback may occur when the nose or tip of the guide bar touches an object, or when the
wood closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up
and back towards the operator.
Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back
towards the operator.
Either of these reactions may cause you to lose control of the saw which could result in
serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As
a chainsaw user, you should take several steps to keep your cutting jobs free from accident
or injury.
Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and
can be avoided by taking proper precautions as given below:
a. Maintain a firm grip, with thumbs and fingers encircling the chainsaw handles, with
both hands on the saw and position your body and arm allow you to resist kickback
forces. Kickback forces can be controlled by the operator, if proper precautions are taken.
Do not let go of the chainsaw.
b. Do not overreach and do not cut above shoulder height. This helps prevent
unintended tip contact and enables better control of the chainsaw in unexpected situations.
c. Only use replacement bars and chains specified by the manufacturer. Incorrect
replacement bars and chains may cause chain breakage and/or kickback.
d. Follow the manufacturer’s sharpening and maintenance instructions for the saw
chain. Decreasing the depth gauge height can lead to increased kickback.
Rotational kickback Kickback danger zone

model no. 054-5752-2 | contact us: 1.866.523.5218
10
• Push and Pull — This reaction force is always opposite to the direction the chain is moving
where contact is made with the wood. Thus, the operator must be ready to control the PULL
when cutting on the bottom edge of the bar, and the PUSH when cutting along the top edge.
(See Fig. 3)
Safety Information
Fig. 3
PULL
PUSH

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
11
Exploded View

model no. 054-5752-2 | contact us: 1.866.523.5218
12
Item Description Drawing Qty
1 Oil cap 311011733 1
2 Guard 311021733 1
3 Chainsaw assembly 311031733 1
4 Tension assembly 311041733 1
5 Slide cover assembly 311051733 1
6 Washer 33301420A 1
7 Sprocket 33900420 1
8 C-Clip 32900420 1
9 Cord holder 34135402 1
10 Scabbard 34114155 1
11 Chain 31101155 1
12 Bar 311001733 1
13 Handle assembly 311061733 1
Parts List

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
13
Assembly
UNPACKAGING
•Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
•Inspect the product carefully to make sure no breakage or damage occurred during
shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
•If any parts are damaged or missing, please call 1.866.523.5218 for assistance.
PACKING LIST
•Pole Saw/Chainsaw
•Extension pole
•Scabbard
•Owner's Manual
WARNING: If any parts are damaged or missing, do not
operate this product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
WARNING: Do not attempt to modify this product or create
accessories not recommended for use with this product.
Any such alteration or modification is misuse and could
result in a hazardous condition leading to possible serious
personal injury.
WARNING: Disconnect the pole saw from the power supply
until the assembly is complete. Failure to comply could
result in accidental starting and possible serious personal
injury.
!
!
!

model no. 054-5752-2 | contact us: 1.866.523.5218
14
CONNECTING THE POLES SEE FIG. 4
Before using the pole saw, assembly is required. When removed from the box, the three poles
are connected by an electrical cord, as shown.
•Unscrew the collar from the threaded base on the centre pole, and push back over the cord
to the lower pole.
•Insert the lower pole into the centre pole, and slide together until you hear the button click.
The tubes are egg-shaped, and will only install one way.
•Lower the collar on the lower pole to the threaded base on the centre pole and rotate
clockwise to secure.
•Repeat this process to attach the upper pole.
WARNING: Do not use any attachments or accessories not
recommended by the manufacturer of this product. The use
of attachments or accessories which are not recommended
can result in serious personal injury.
WARNING: Always wear safety goggles or safety glasses
with side shields when operating power tools. Failure to
do so could result in objects being thrown into your eyes,
resulting in possible serious injury.
WARNING: Do not allow familiarity with this product to
make you careless. Remember that a careless fraction of a
second is sufficient to inflict serious injury.
NOTE: The lower pole and the upper pole should not be able
to separate from centre pole once assembled correctly.
Repeat the above steps if poles can be separated from the
centre pole.
NOTE: If using the product as a chainsaw, no assembly is
required.
!
!
!
!
!
Lower Pole
Collar
Threaded base Centre Pole Collar
Upper Pole
Cord
Assembly
Fig. 4

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
15
CONNECTING THE POLES TO CHAINSAW SEE FIG. 5
•Lift up the cam lock (1).
•Lift up the cover (2).
•Insert the chainsaw pole into the chainsaw. Do not use force when inserting the pole. It
should slide into position where it is marked with a yellow line (3).
•Press down the cam lock (1).
•Secure the chainsaw power cord with cord lock (4).
REMOVING THE POLES FROM THE CHAINSAW SEE FIG. 6
•Pull the chainsaw power cord out of the cord lock (4).
•Lift up the cam lock (1).
•Pull out the chainsaw pole from the chainsaw.
•Press down the cam lock (1).
Assembly
Fig. 5
CHAINSAW
(Detachable Saw — saw detaches from pole
for delimbing and trimming)
COVER (2)
Insert the pole.
CAM LOCK (1)
CORD LOCK (4)
YELLOW LINE (3)
Fig. 6
COVER (2)
CAM LOCK (1)
CHAINSAW
CORD LOCK (4)
Press the cam lock.
Pull out the pole.

model no. 054-5752-2 | contact us: 1.866.523.5218
16
APPLICATIONS
You can use this product as a pole saw for the purposes listed below:
•Limbing
•Pruning
You can also use this product as a chainsaw for the purposes listed below:
•Basic limbing, felling, and woodcutting
•Removing buttress roots

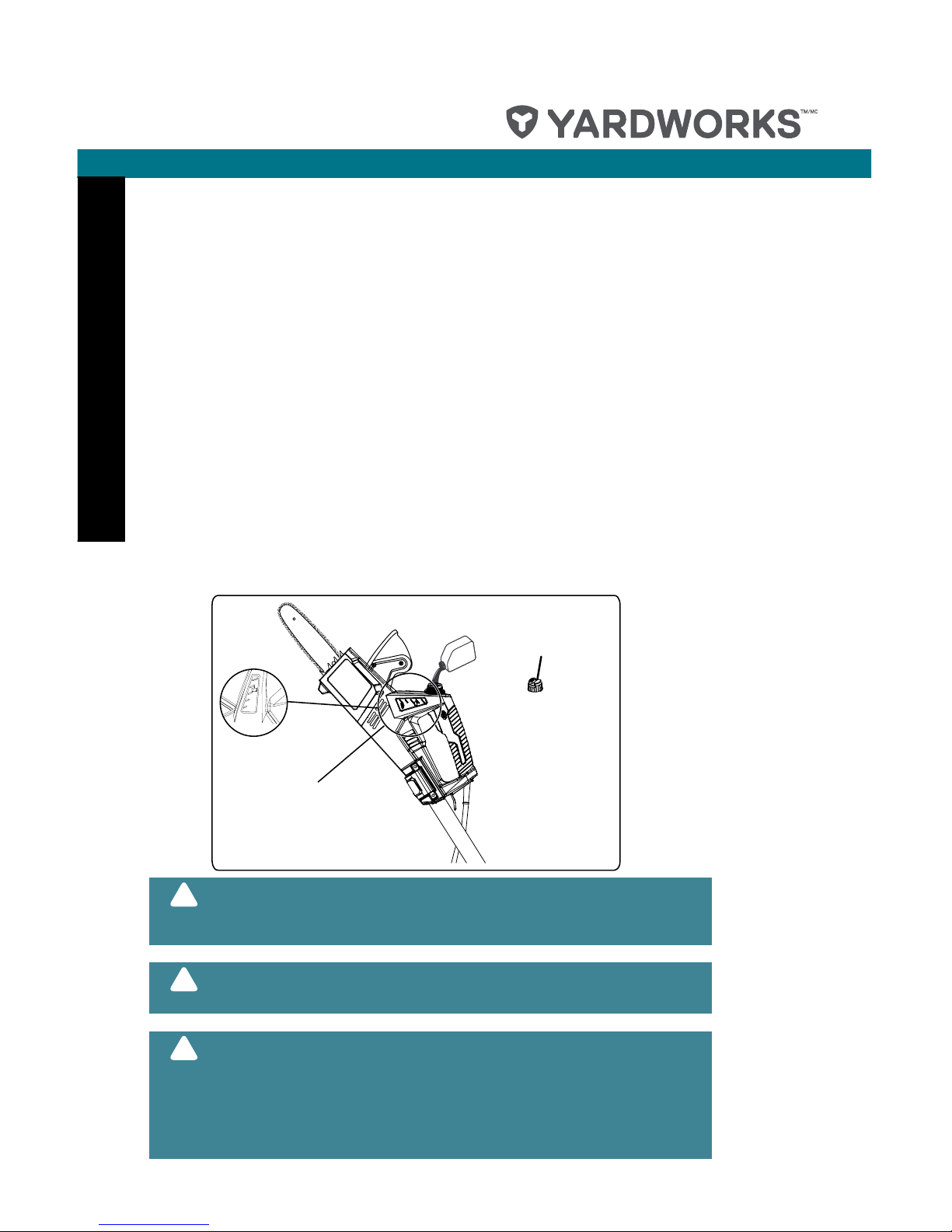

ADDING BAR AND CHAIN LUBRICANT SEE FIG. 7
Use a lubricant that is designed for chains and chain oilers, and is formulated to perform over a
wide temperature range with no dilution required.
•Remove oil cap.
•Carefully pour the bar and chain oil into the tank.
•Wipe off excess oil.
•Check and fill the oil tank when quick-view oil indicator is below the “MIN” indicator line.
•Repeat as needed.
NOTE: It is normal for oil to seep from the saw when not
in use. To prevent seepage, empty the oil tank after each
use, then run for one minute. When storing the unit for a
long period of time (three months or longer), be sure the
chain is lightly lubricated. This will prevent rust on the
chain and bar sprocket.
NOTE: Do not use dirty, used or otherwise contaminated
oils. Damage may occur to the bar or chain.
NOTE: The pole saw comes from the factory with no bar
and chain oil added. The level should also be checked
after every 10 minutes of use, and refilled as needed.
!
!
!
OIL RESERVOIR
QUICK-VIEW
OIL INDICATOR
CAP
Min
CHAIN
LUBRICANT
Operation
Fig. 7

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
17

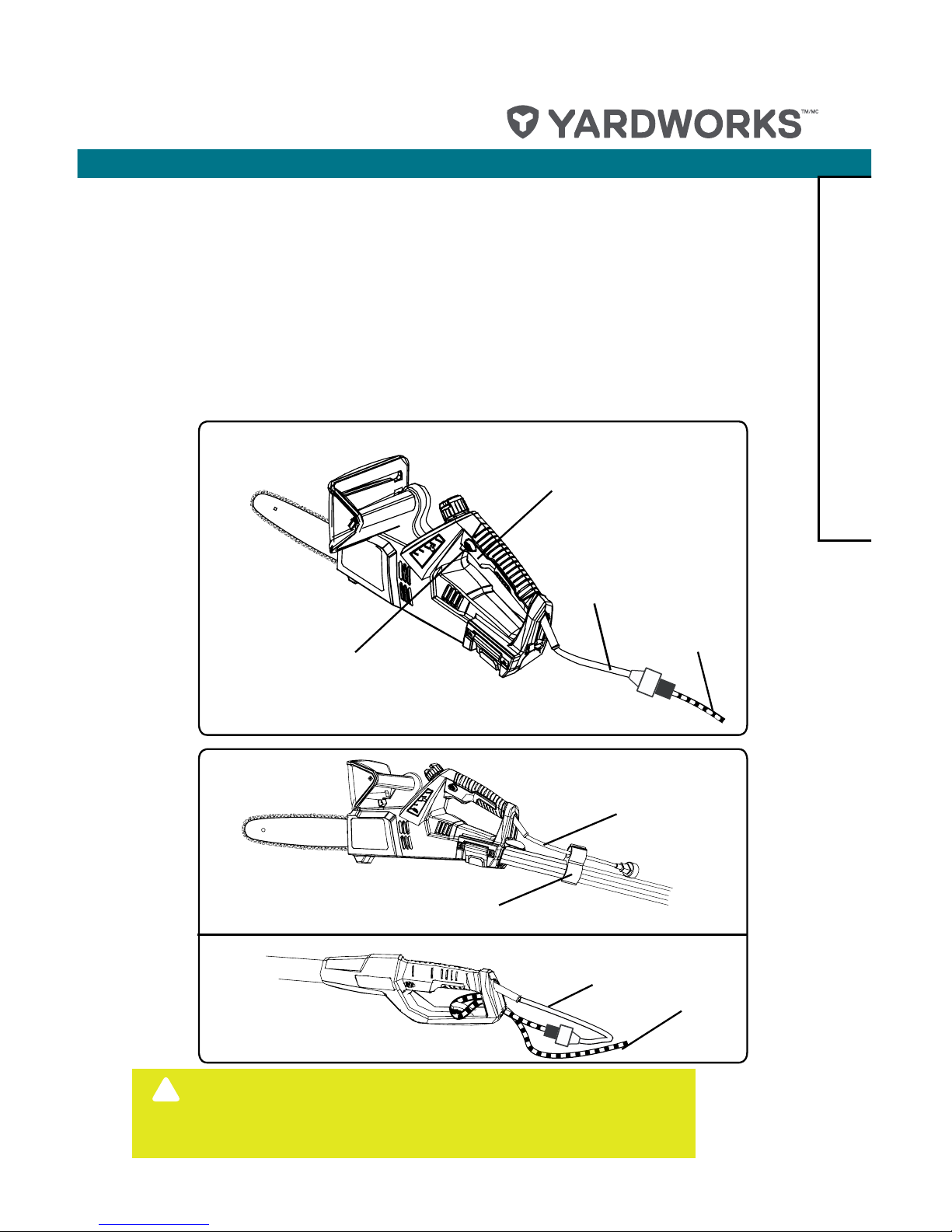

CONNECTING TO THE POWER SUPPLY
Use as a Chainsaw (See Fig. 8)
•Plug power cord into the extension cord.
Use as a Pole Saw (See Fig. 9)
•Secure the chainsaw power cord with cord lock.
•Plug pole saw power cord into the extension cord.
!IMPORTANT: To preserve natural resources, please
recycle or dispose of oil properly. Consult your local
waste management authority for information regarding
available recycling and/disposal options.
Operation
Fig. 7
LOCK-OFF BUTTON
TRIGGER SWITCH
CHAINSAW
POWER CORD
CORD LOCK
(Used as a Chainsaw)
(Used as a Pole Saw)
Fig. 8
CHAINSAW
POWER CORD
POLE SAW
POWER CORD
EXTENSION
CORD
EXTENSION
CORD
Fig. 8
Fig. 9

model no. 054-5752-2 | contact us: 1.866.523.5218
18

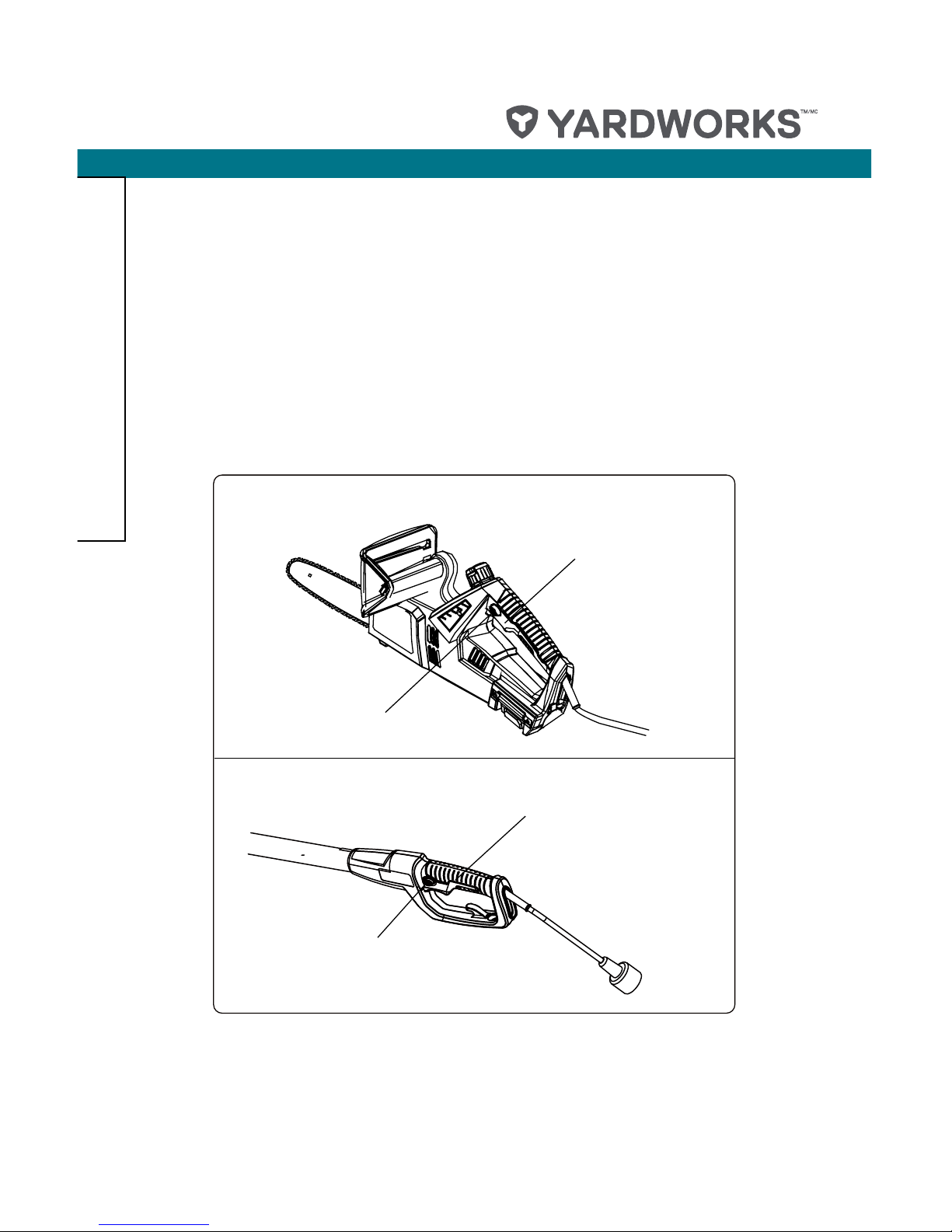

STARTING AND STOPPING SEE FIG. 10
To start the motor:
•Connect the saw to the power supply.
•Place your thumb on the lock-off button, press and hold the lock-off button.
•Fully depress the trigger switch and release the lock-off button.
To stop the motor:
•Release the trigger switch.
Fig. 9
(Used as a Pole Saw)
(Used as a Chainsaw)
Lock-Off Button
Trigger Switch
Trigger Switch
Lock-Off Button
Operation
Fig. 10

model no. 054-5752-2 | contact us: 1.866.523.5218 model no. 054-5752-2 | contact us: 1.866.523.5218
19
ADJUSTING THE POLE EXTENSION
•Disconnect the pole saw from the power supply.
•Align top and bottom sections.
•Using a screwdriver, press on the locking tab.
•Slide the top section over the bottom one.
•When the desired length is achieved, rotate the collar counter-clockwise to secure.
NOTE: Extend the pole only to the length required to
reach the limb being cut. Do not extend the handle above
waist height.
NOTE: Adjust your hand placement on the shaft of the
pole saw to keep proper balance. Do not attempt to
use the pole saw at a length that does not allow you to
achieve proper footing and balance at all times.
!
!
Fig. 10
④
COLLAR
②
① ③
OperationOperation
Fig. 11

model no. 054-5752-2 | contact us: 1.866.523.5218
20
PREPARATION FOR CUTTING SEE FIG. 12 – 13
•Wear non-slip gloves for maximum grip and protection.
•Maintain a proper grip on the unit whenever the motor is running. Use your right hand to
firmly grip the rear handle while your left hand has a firm grip on the pole shaft.
•Hold the unit firmly with both hands. Always keep your left hand on the pole shaft and your
right hand on the rear handle, so your body is to the left of the chain line. Never use a left-
handed (cross-handed) grip, or any stance that places your body or arm across the chain
line.
•Never stand directly under the limb you are cutting.
•Be certain the collars are fully tightened before operating equipment; check them
periodically for tightness during use to avoid serious injury.
BASIC CUTTING PROCEDURE
Follow the steps below to prevent damage to tree or shrub bark. Do not use a back-and-forth
sawing motion.
•Make a shallow first cut (1/4 of limb diameter) on the underside of the limb close to the main
limb or trunk.
•Make a second cut from the top side of the limb outboard from the first cut. Continue the cut
through the limb until the limb separates from the tree. Be prepared to balance the weight of
the tool when the limb falls.
•Make a final cut close to trunk.
NOTE: For the second and final cuts (from the top of the
limb or branch) hold the front cutting guide against the
limb being cut. This will help steady the limb and make
it easier to cut. Allow the chain to cut for you; exert only
light downward pressure. If you force the cut, damage to
the bar, chain, or motor can result.
!
Operation
