Yardline FAIRFIELD GABLE 10 x 10 User manual

16556
STOP!
STOP!
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-800-844-9273
or email:
[e-mail]
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

(This page intentionally left blank.)

10/23/2018
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 120 x 116-5/8" (304,8 x 296,2 cm)
16556
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for speci c restrictions and/or requirements before building.
.• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
FAIRFIELD GABLE 10' x 10' (305 x 305 cm)
- CUSTOMER SERVICE -
Call: 1-800-844-9273 email: [email protected]

2
TOOLS
Safety! Always use approved safety glasses during assembly.
Optional
Required
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver ❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C
❑Drill / Driver
❑1/8" Drill Bit
❑#2 Philips Drive Bit
❑1/4" Drill Bit
❑5/16" Drill Bit
❑1/2" Drill Bit
❑Hand Saw

3
OPTIONAL MATERIALS
DRIP EDGE ..................... 50 Feet #15 ROOFING FELT
To cover 134 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
3-TAB SHINGLES ............................. 6 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK .............................................. 3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 2 Lbs
For shingles.
PAINT FOR TRIM .............................2 Quarts
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! This oor has been designed for general use. Depending on your specic use you may want to construct a heavy
duty oor frame by adding additional oor joists (shown below as shaded).
Below is a list of additional materials (not included):
x3
x16
2 x 4 x 8' (5 x 10 x 243,8 cm) Treated Lumber
Cut to (2) 2 x 4 x 93" (5 x 10 x 236,2 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
and (2) 2 x 4 x 17-1/2" (5,1 x 10,2 x 44,5 cm)
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed includes a oor.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
Optional 12" (30,5 cm) spacing
Standard 16" (40,7 cm) spacing

WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
WALLS
x24 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x5 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x2 2 x 4 x 67" (5,1 x 10,3 x 170,2 cm)
AM
x1 7/16 x 3 x 67" (5,1 x 7,6 x 1,1 cm)
x3 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm)
STL

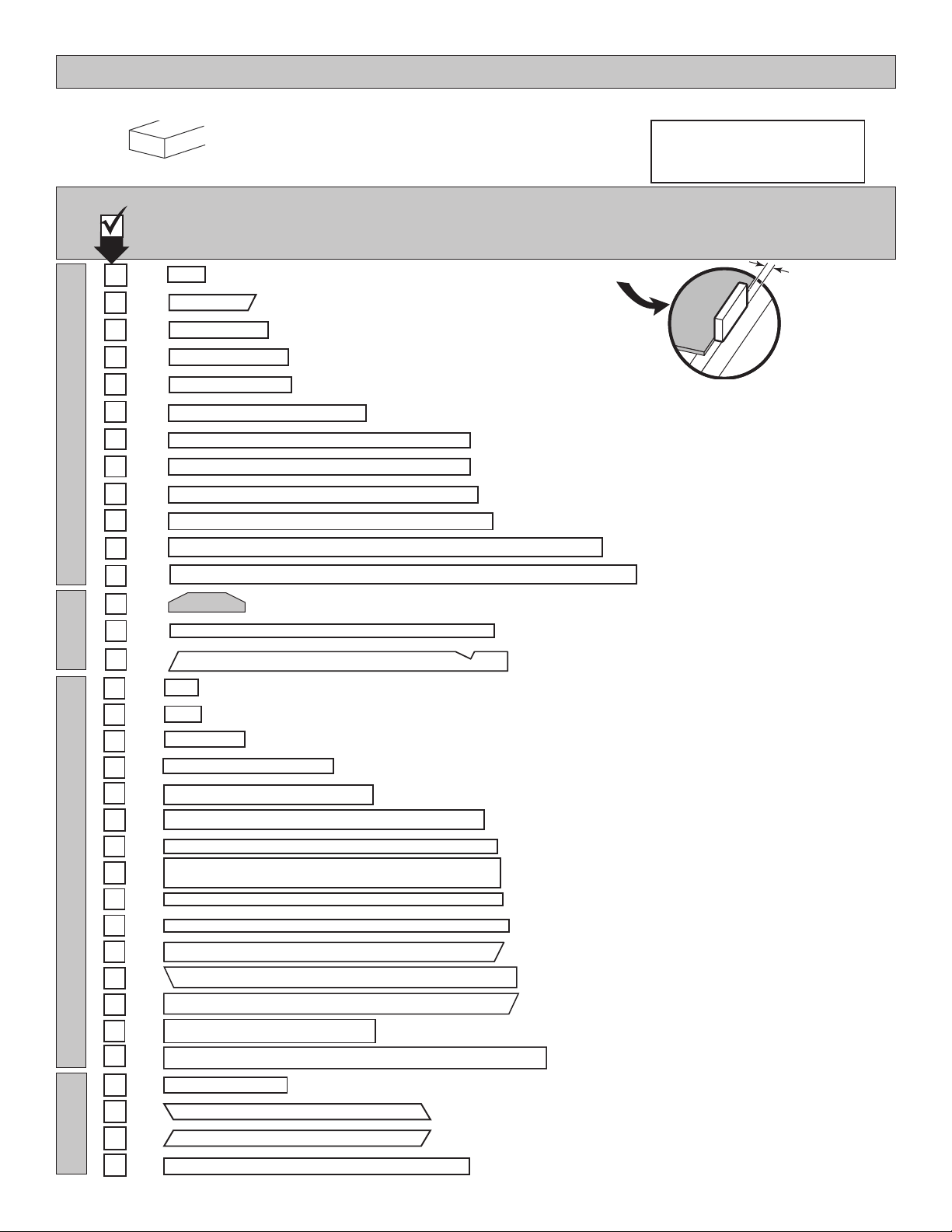

PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM
x4 3/8 x 1-3/4 x 73-7/8" (1,0 x 4,4 x 187,6 cm)
3/4"
(1,9 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
DOORS
OO
x2 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm)
4
x10 6 x 24" (15,2 x 61 cm) GUSSET
x12 2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
ECN
x2 3/8 x 5-7/8 x 45-3/8"" (1 x 14,9 x 115,3 cm)
19/32 x 3 x 72" (1,5 x 7,6 x 183 cm)
x1 ZJ
1 x 3 x 72" (1,6 x 7,6 x 182,9 cm)
x1 HJ
x4 19/32 x 3 x 26-5/8" (1,5 x 7,6 x 67,6 cm)
AH
x1 19/32 x 2-1/2 x 51" (1,5 x 7,6 x 67,6 cm)
GPL
x1 19/32 x 2-1/2 x 51" (1,5 x 7,6 x 67,6 cm)
GPR
x2 3/8 x 7-7/8 x 73-5/16" (1 x 20 x 186,2 cm)
x2 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,8 cm)
x2 3/8 x 4-3/4 x 75-7/8" (1 x 12,1 x 197,2 cm)
x2 3/8 x 4-3/4 x 75-7/8" (1 x 12,1 x 197,2 cm)
x2 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm)
x8 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
CLA
x4 2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm) ECA
x4 3/8 x 1-3/4 x 74-1/2" (1,0 x 4,4 x 189,2 cm)
x2 2 x 4 x 24-1/2" (5,1 x 10,2 x 62,2 cm) KHA
x2 2 x 4 x 24" (5,1 x 10,2 x 61 cm) RL
x2 2 x 4 x 20-5/8" (5,1 x 10,2 x 52,4 cm) CPB
x4 2 x 4 x 17-3/16" (5,1 x 10,2 x 43,7 cm) BJC
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x2 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x2 3/8 x 4-3/4 x 45-3/8" (1 x 12,1 x 115,3 cm)
x2 3/8 x 3-1/4 x 5-7/8" (1 x 8,3 x 14,9 cm) SHIM
x2 19/32 x 2-1/2 x 9" (1,5 x 6,3 x 22,8 cm) EY
x2 19/32 x 2-1/2 x 32-3/4" (1,5 x 6,3 x 83,1 cm)
YR

PARTS LIST continued...
5

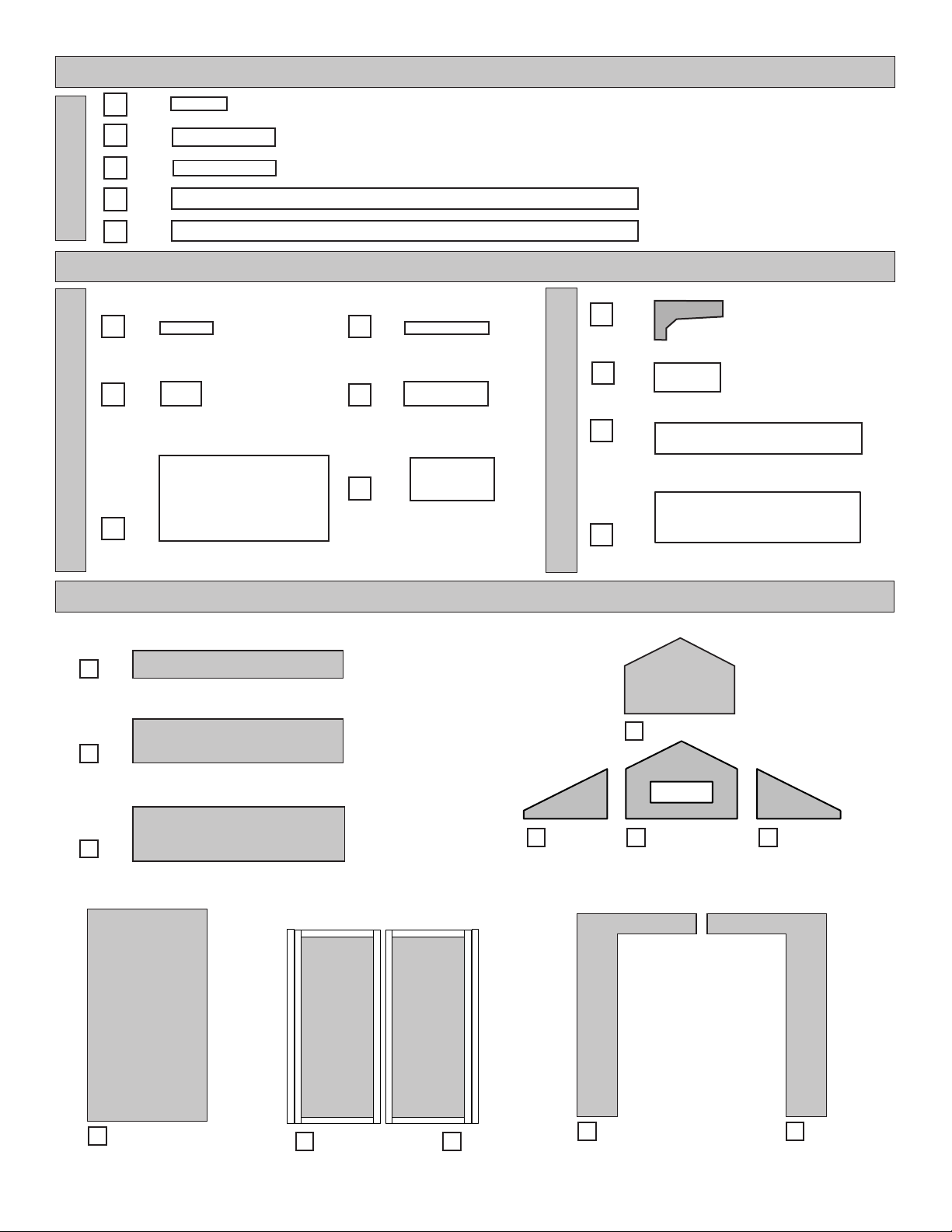

PANEL PARTS LIST
ROOF PANELS
SHELF AND LOFT
SHELF - LOFT
NOTE: Panel parts are not stamped.
NOTE: Panel parts
are not stamped.
Roof panels are 7/16" (1,1 cm) thick.
Wall panels panels are 3/8" (1,1 cm) thick.
7/16 x 8-5/8 x 27-1/4"
(1,1 x 21,9 x 69,2 cm)
x2
7/16 x 27-1/4 x 48"
(1,1 x 69,2 x 121,9 cm)
x4
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
7/16 x 20-5/8 x 48"
(1,1 x 52,4 x 121,9 cm)
x2
7/16 x 20-5/8 x 27-1/4"
(1,1 x 52,4 x 69,2 cm)
x2
7/16 x 8-5/8 x 48"
(1,1 x 21,9 x 121,9 cm)
x2
3/8 x 8 x 12-1/2"
(1 x 20,3 x 31,8 cm)
x6
x3 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm)
AE
x6
1 x 4 x 96" (2,5 x 10,2 x 243,8 cm)
x1 KP
WALL PANEL & DOORS PARTS LIST
x6
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)
x1
LEFT DOOR
x1
RIGHT DOOR
x1
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)
x1
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)
2 x 4 x 24" (5,1 x 10,2 x 61 cm)
RL
x3
x1
20-1/2" x 96" (52,1 x 243,8cm)
7/16 x 11-7/8 x 23-7/8"
(1,1 x 30,2 x 60,6 cm)
x1
7/16 x 11-7/8 x 96" (1,1 x 30,2 x 243,8 cm)
x1
1 x 4 x 23-7/8" (2,5 x 10,2 x 60,6 cm)
JS
x1
x2
3/8 x 11-7/8 x 76" (1 x 30,2 x 193 cm)
x1 x2x2
x2
3/8 x 20-5/8 x 76" (1 x 52,4 x 193 cm)
3/8 x 23-7/8 x 76" (1 x 60,6 x 193 cm)
x1
x1
21-1/2 x 36"
(54,6 x 121,9 cm)
21-1/2 x 36"
(54,6 x 121,9 cm)

x6 BOXES
x7 BOXES
x199
x80
x26
x76
x99
x12
NAIL BOXES
VENT/ DOOR HARDWARE/ WINDOW
FASTENER/HARDWARE BAG
x16
x12
PARTS LIST continued...

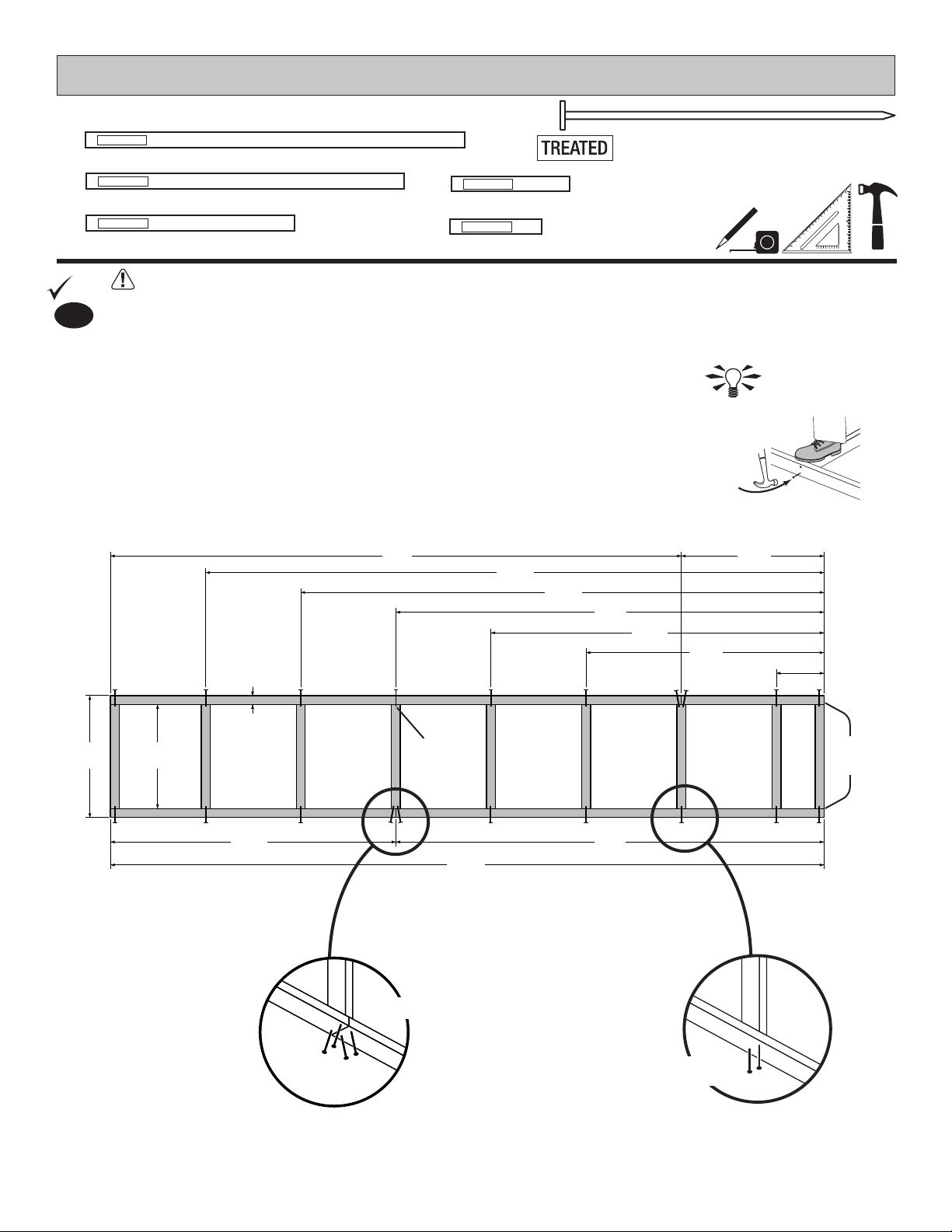

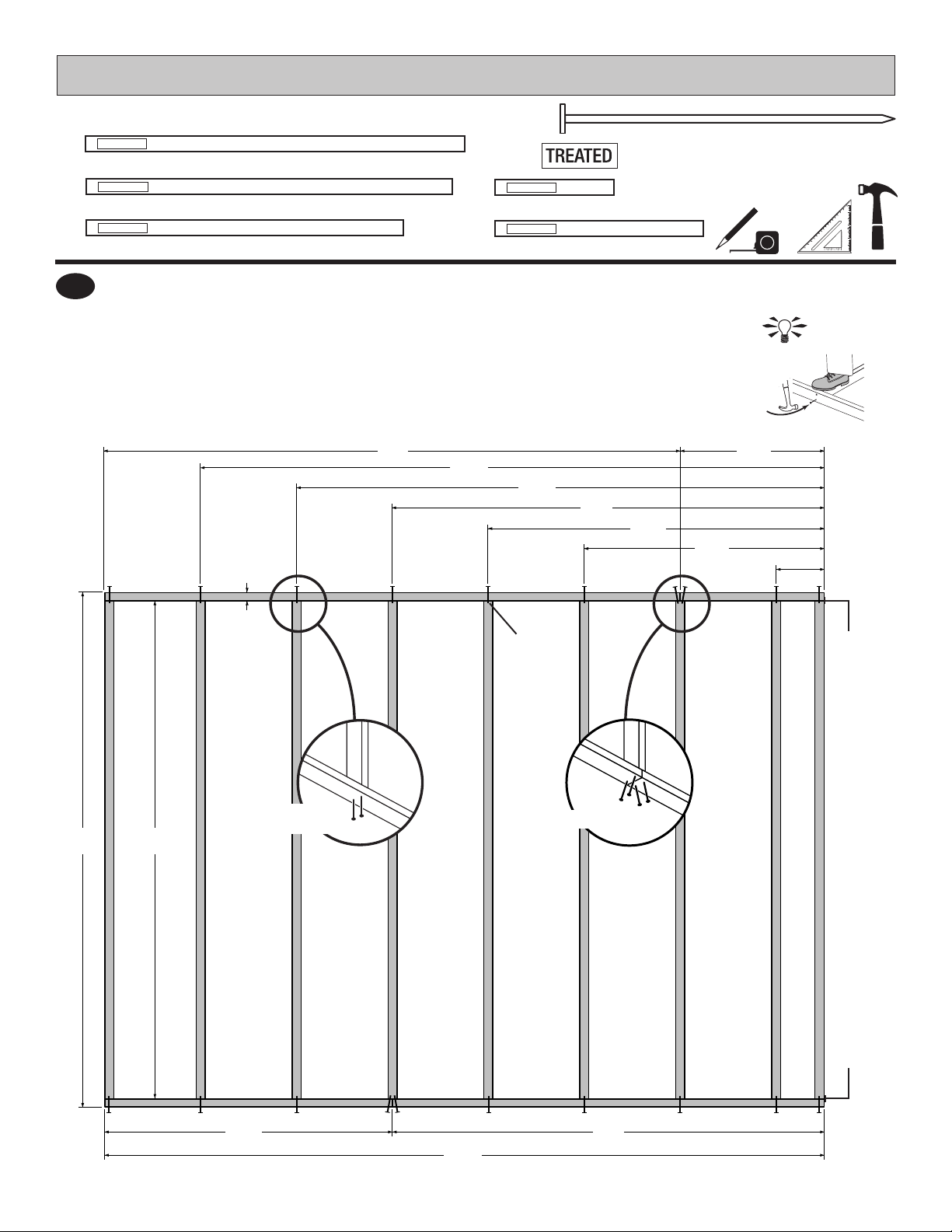

FLOOR FRAME
FLOOR PANELS
6
x2 2 x 4 x 24" (5 x 10 x 61 cm)
TREATED
1-5/8" (4,1 cm)
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm)
2" (5,1 cm)
1-1/2" (3,8 cm)
x1
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x2
5/8 x 23-7/8 x 96"
(1,6 x 60,6 x 243,8 cm)
x1
5/8 x 20-1/2 x 23-7/8"
(1,6 x 52,1 x 60,6 cm)
x1
Treated lumber is
stamped:
x9 2 x 4 x 17-1/2" (5 x 10 x 44,5 cm)
TREATED
x2 2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x2 2 x 4 x 72" (5 x 10 x 183 cm)
TREATED
2 x 4 x 93" (5 x 10 x 236,2 cm)
x9 TREATED
2 x 4 x 96" (5 x 10 x 243,82 cm)
x2 TREATED
5/8 x 20-1/2 x 96"
(1,6 x 52,1 x 243,8 cm)
x1
x1 64" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
Transom Window
1/2" (1,3 cm)
x12
3/4" (1,9 cm)
x4
x1
1-1/4”
x2
Handle (locking)
with Screws
x2
x4
x2
3/8" x5-1/2" (1 cm x 14 cm)
3/8" (1 cm)
3/8" (1 cm)
Hex Bolt
Flat Washer
Lock Nut
(NOT ACTUAL SIZE)
x2
Wall Vent 8x16"
1-1/4" (3,2 cm)
Floor panels are 5/8" (1,5 cm) thick.

8"
(20,3 cm)
8"
(20,3 cm)
12-1/2"
(31,8 cm)
44"
(111,8 cm)
44"
(111,8 cm)
Support seam.
Measurements to
centers of 4x4's.
• 3" Screw angled into 4x4.
• (2) at each point frame and 4x4 touch.
4x4 Runners
(not included).
7
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
PREFERRED METHOD - 4x4 TREATED RUNNERS
MATERIAL REQUIRED
x4 4 x 4 x 10' (8,9 x 8,9 x 305 cm) Treated Lumber
Fasteners for Frame to 4x4.
(3" Screws shown as one option.) Minimum (84) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.

8

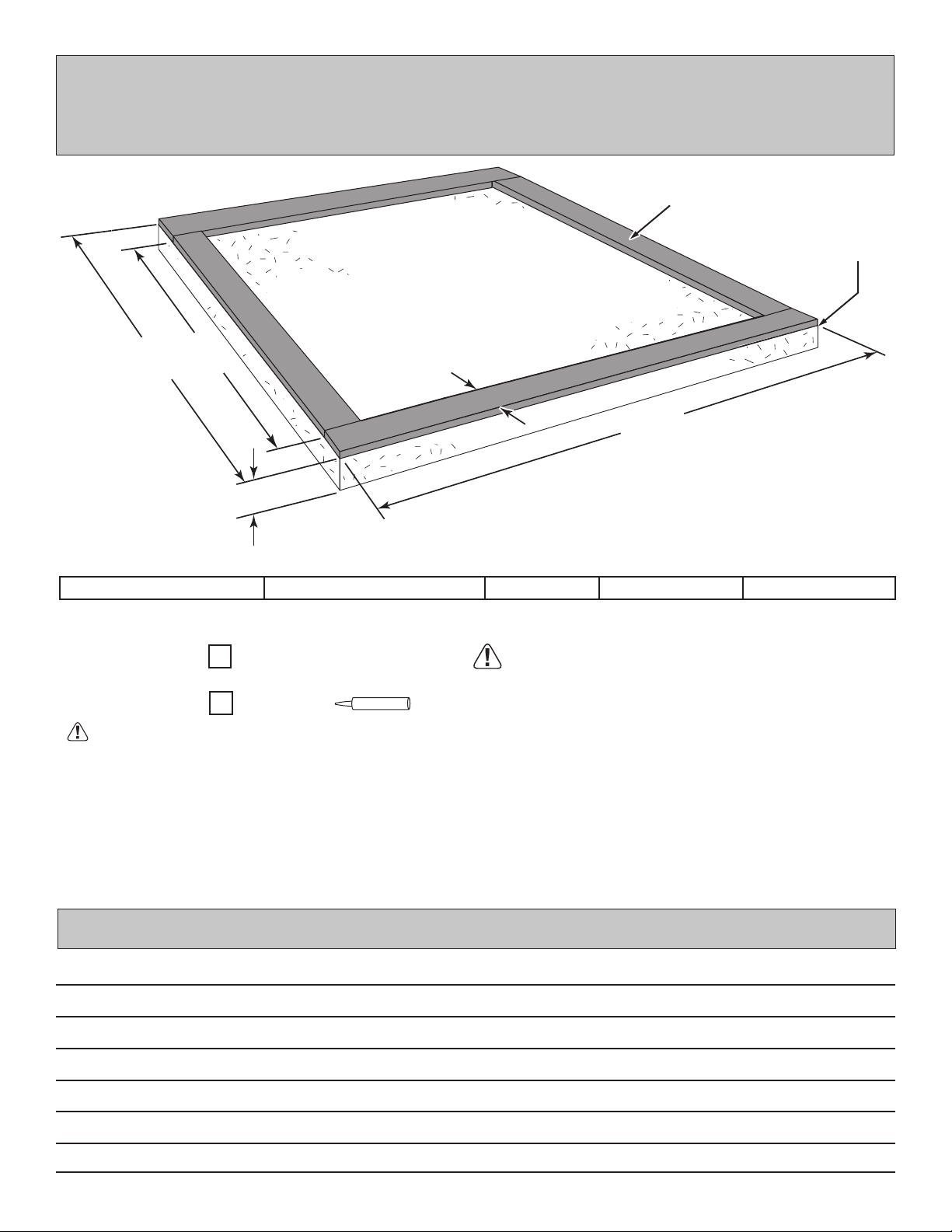

CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab, refer to the diagram below.
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Use treated lumber supplied in kit or purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
Caulk
Requires:
x1
AActual Size B CBuilding Size
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
Treated Sill Plate
Caulk between sill
plate and concrete.
120" (305 cm) 109-1/2" (278,1 cm)10'x 9'-8-1/2" (305 x 295,9 cm)10'x 10' (305 x 305 cm) 116-1/2" (295,9 cm)
2 x 4 x10' (5 x 10 x 305 cm)
x4 MUST be treated lumber.

9
1
3" (7,6 cm) x28
Secure using two 3" nails at each mark.
Orient parts as shown on at surface. Measure and mark each dimension from end of boards.
PARTS REQUIRED:
Flush
at ends
NOTE:
Look for Stamp.
FLOOR FRAME
x1
2 x 4 x 72" (5 x 10 x 183 cm)
TREATED
x1
2 x 4 x 96" (5 x 10 x 244 cm)
TREATED
x1
2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x1
2 x 4 x 24" (5 x 10 x 61 cm)
TREATED
x9
2 x 4 x 17-1/2" (5 x 10 x 44,5 cm)
TREATED
BEGIN
You will build two oor sections.
HINT:
For easier nailing
stand on frame.
48" 72"
8"
40"
56"
72"
88"
104"
24"96"
120"
17 1/2"
1-1/2"
20 1/2"
(121,9 cm) (183 cm)
(20,3 cm)
(101,6 cm)
(142,2 cm)
(183 cm)
(223,5 cm
(264,2 cm)
(61 cm)(244 cm)
(304,8 cm)
(44,5 cm)
(3,8 cm)
(52,1 cm)
x40
Toenail
Center
on marks
3" (4,1 cm)
Nails

10
3" (7,6 cm) x28
Secure using two 3" nails at each mark.
Orient parts as shown on at surface. Measure and mark each dimension from end of boards.
PARTS REQUIRED:
Flush
at ends
NOTE:
Look for Stamp.
FLOOR FRAME
x9
2 x 4 x 93" (5 x 10 x 236,2 cm)
TREATED
x1
2 x 4 x 96" (5 x 10 x 244 cm)
TREATED
x1
2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x1
2 x 4 x 24" (5 x 10 x 61 cm)
TREATED
HINT:
For easier nailing
stand on frame.
48" 72"
8"
40"
56"
72"
88"
104"
24"96"
120"
93"
1-1/2"
96"
(121,9 cm) (183 cm)
(20,3 cm)
(101,6 cm)
(142,2 cm)
(183 cm)
(223,5 cm
(264,2 cm)
(61 cm)(244 cm)
(304,8 cm)
(236,2 cm)
(3,8 cm)
(244 cm)
x40
2
Flush
at ends
x1
2 x 4 x 72" (5 x 10 x 183 cm)
TREATED
Toenailing
3" (4,1 cm)
Nails
Center
on marks

11
3" (7,6 cm) x28
PARTS REQUIRED:
Flush Flush
FLOOR FRAME
x60
Attach  oor sections together as shown using 3" nails.
3
You have  nished your  oor frame. Proceed to level and square frame.
FINISH
120"
(305 cm)
116-1/2"
(295,9 cm)
(4) Nails per side,
stagger pattern.

12
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 167-1/4" (424,8 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square, fasten the frame to the 4x4 runners at each point the frame
contacts the 4x4 runners.
See page 7 for the preferred  oor leveling method.
First, secure at ends with one fastener.
Second, secure at ends with one fastener.
167-1/4"
(424,8 cm)
167-1/4"
(424,8 cm)
Fig. A
DOOR
116-1/2"
(296,2 cm)
120"
(304,8 cm)

13
Move to the opposite side. Using the long edge of the panel as a lever, move thepanel side-to-side until the top
corner is ush to the oor frame (Fig. B).
Secure panel using two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Check that the oor frame is square by measuring diagonally across the frame corners. If the measurements are
the same your oor frame is square. The measurement will be approximately 167-5/16" (425 cm).
Attach the 48 x 96" panel with the 48" edge and corner ush to the outside of the oor frame (Fig A)
and 3/4" along the oor joist. Use the GAA gauge block for the 3/4" measurement.
Secure panel using two 2" nails in the corners.
PARTS REQUIRED:
x1
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x53 2" (5,1 cm)
FLOOR PANELS
Fig. B
Fig. A
3/4"
(1,9 cm)
2 Nails
2 Nails
Ensure your wall frame is square by installing one panel and squaring frame.
Install panels with rough side up (painted grid lines).
3/4" GAUGE
BLOCK
Grid lines up
5/8 x 48 x 96"
(1,6 x 122 x 243,8 cm)
3/4"
GAUGE
BLOCK
For squareness maintain 3/4"
measurement along panel edge. 3/4"
(1,9 cm)
6"
(15,2 cm)
12" (30,5 cm)
120"
(304,8) cm)
DOOR
Flush
GAUGE
BLOCK
Flush
Flush

14
PARTS REQUIRED:
FINISH
You have  nished attaching your  oor panels.
5
x1
5/8 x 48 x 96"
(1,6 x 122 x 243,8 cm)
x1
5/8 x 23-7/8 x 96"
(1,6 x 60,6 x 243,8 cm)
x1
5/8 x 20-1/2 x 96"
(1,6 x 52,1 x 243,8 cm)
x1
5/8 x 20-1/2 x 23-7/8"
(1,6 x 52,1 x 60,6 cm)
x138
2" (5,1 cm)
FLOOR PANELS
Continue installing the remaining panels in the following order:
1. 48 x 96"
2. 20-1/2 x 96"
3. 23-7/8 x 96"
4. 20-1/2 x 23-7/8"
Maintain 3/4" measurement along edge of panel using the 3/4 Gauge Block.
Secure panels using 2" nails 6" apart on edges and 12" apart inside panel.
All panels should be  ush.
DOOR
3/4" GAUGE
BLOCK
Grid lines up
48 x 96"
122 x 243,8 cm)
23-7/8 x 96"
60,6 x 243,8 cm)
20-1/2 x 96"
2,1 x 243,8 cm)
20-1/2 x 23-7/8"
52,1 x 60,6 cm)
Flush
Flush
Flush
Flush
Flush
3/4"
GAUGE
BLOCK
6"
(15,2 cm)
12" (30,5 cm)

15
LEFT WALL
FRONT WALL RIGHT WALL
BACK WALL

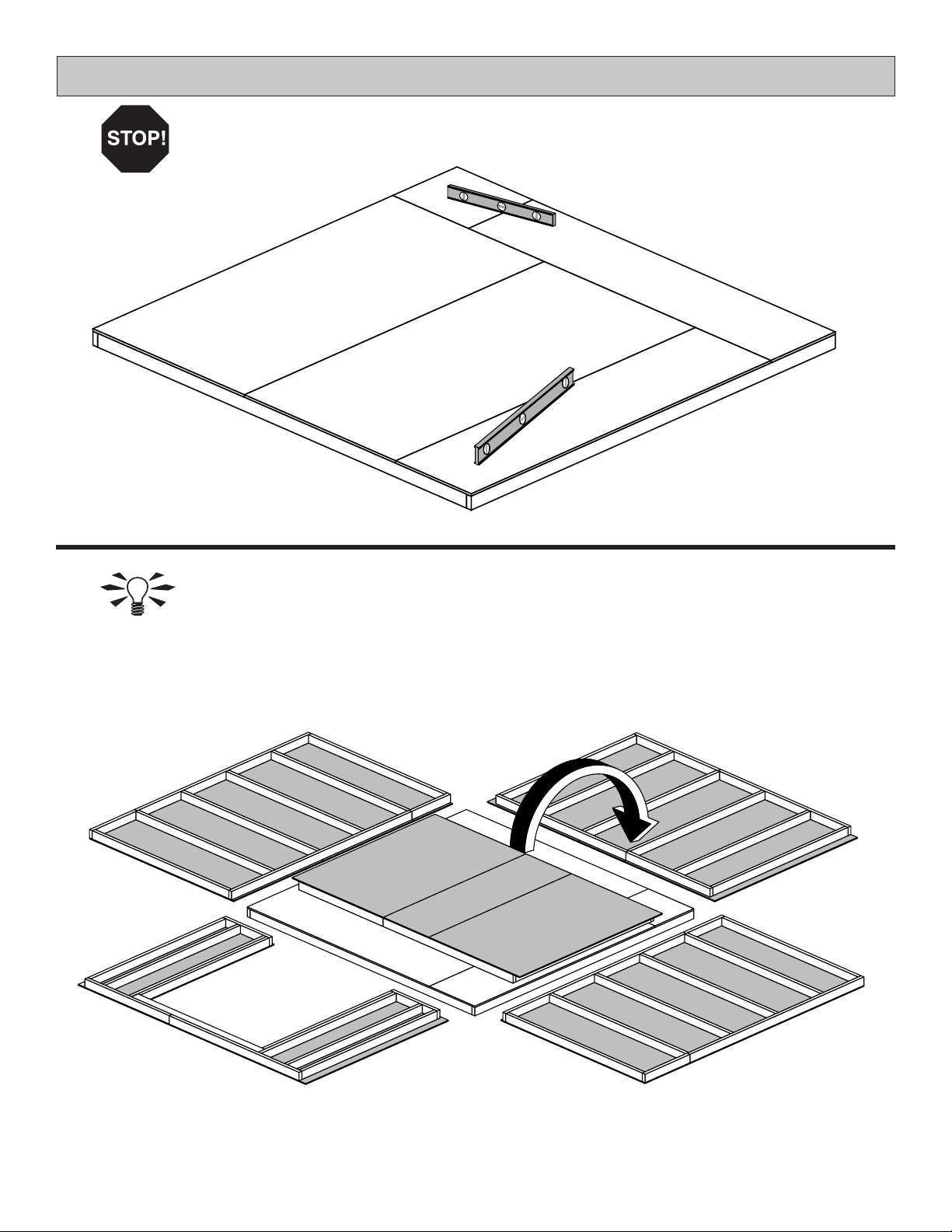

Check that the oor frame is level after installing oor panels.
Re-level if needed.
HINT:
IMPORTANT!
• The oor should be used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.

16
PARTS REQUIRED:
FINISH
You have  nished rafter jig. Proceed to assemble your rafters.
RAFTER ASSEMBLY
120"
(304,8 cm)
3/4"
(1,9 cm)
CLA x2
3" (7,6 cm)
x4
x2 CLA
2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
BEGIN
¸
1Secure one CLA  ush to the  oor deck using two 3" screws.
Measure over 120-3/4" and install a second CLA.
Secure using two 3" screws.
120-3/4"
(306,7 cm)
Fig. A

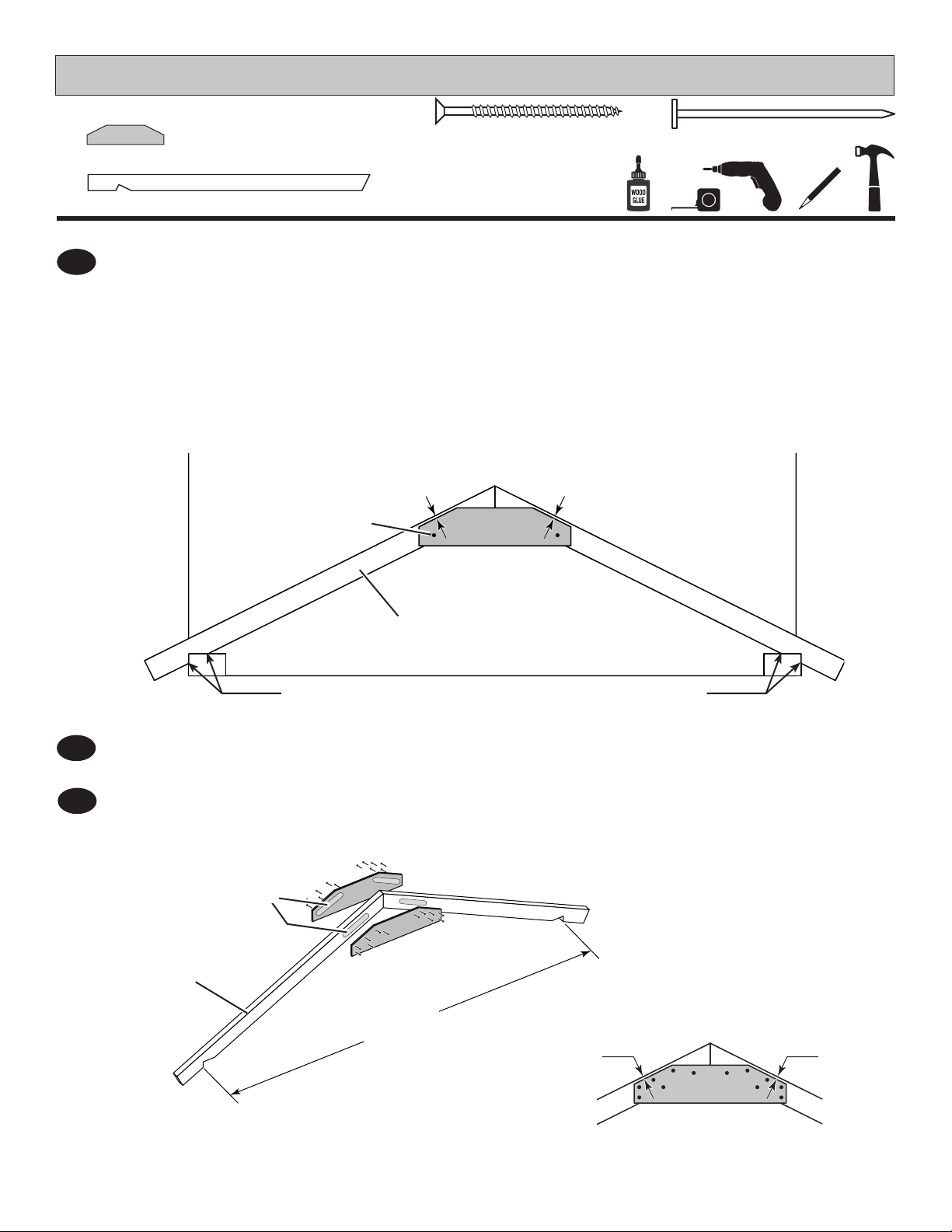

You will build a rafter jig using the  oor and two CLA parts as shown.
Floor Width
(2) 3" (7,6 cm)
Screws
in each CLA
There will be an
overhang on
this end.
Flush Flush

17
PARTS REQUIRED: x88
2" (5,1 cm)
x8
1-5/8" (4,1 cm)
RAFTER ASSEMBLY
x8
6 x 24" (15,2 x 61 cm)
GUSSET
x8
2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
ECN
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
ECN x2
ECN x2
Fig. A
Fig. B
Fig. C
Keep rafters rmly against CLA at both ends when securing gusset.
Repeat STEPS 1 - 2 to assemble three more rafters.
Flip rafters over and attach a second gusset using glue and (12) 2" nails. No need to use jig for 2nd gusset.
3
2
BEGIN
¸
1
1-5/8" (4,1 cm)
Screw
120-3/4"
(306,7 cm)
Place two rafters ECN into the jig as shown.
Keep ECN rm against outside CLA's as shown (Fig.A). Rafters should touch at tips (Fig. A).
Apply glue to rafters where gusset will attach (Fig. B).
Place gusset onto ECN holding a 1/4" gap from edge (Fig. C).
Secure gusset using one 1-5/8" screw into each rafter.
HINT: These screws will help hold the measurements when you nail on gussets.
Use (10) 2" nails to nish securing the gusset to the rafters to pattern shown in Fig. C.
Glue where
gusset installs

18
PARTS REQUIRED: x20 2" (5,1 cm)
x4 1-5/8" (4,1 cm)
RAFTER ASSEMBLY
x2
6 x 24" (15,2 x 61 cm)
GUSSET
x4
2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
ECN
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
ECN x2
ECN x2
Fig. A
Fig. B
Fig. C
Glue where
gusset installs
Keep rafters  rmly against CLA at both ends when securing gusset.
You have  nished assembling your rafters.
Gable-end rafter assemblies only have one gusset.
Repeat steps to assemble two more rafters with only one gusset.
Remove CLA's from  oor.
5
4
FINISH
1-5/8" (4,1 cm)
Screw
120-3/4"
(306,7 cm)
