YATOUR YT-M06 User manual

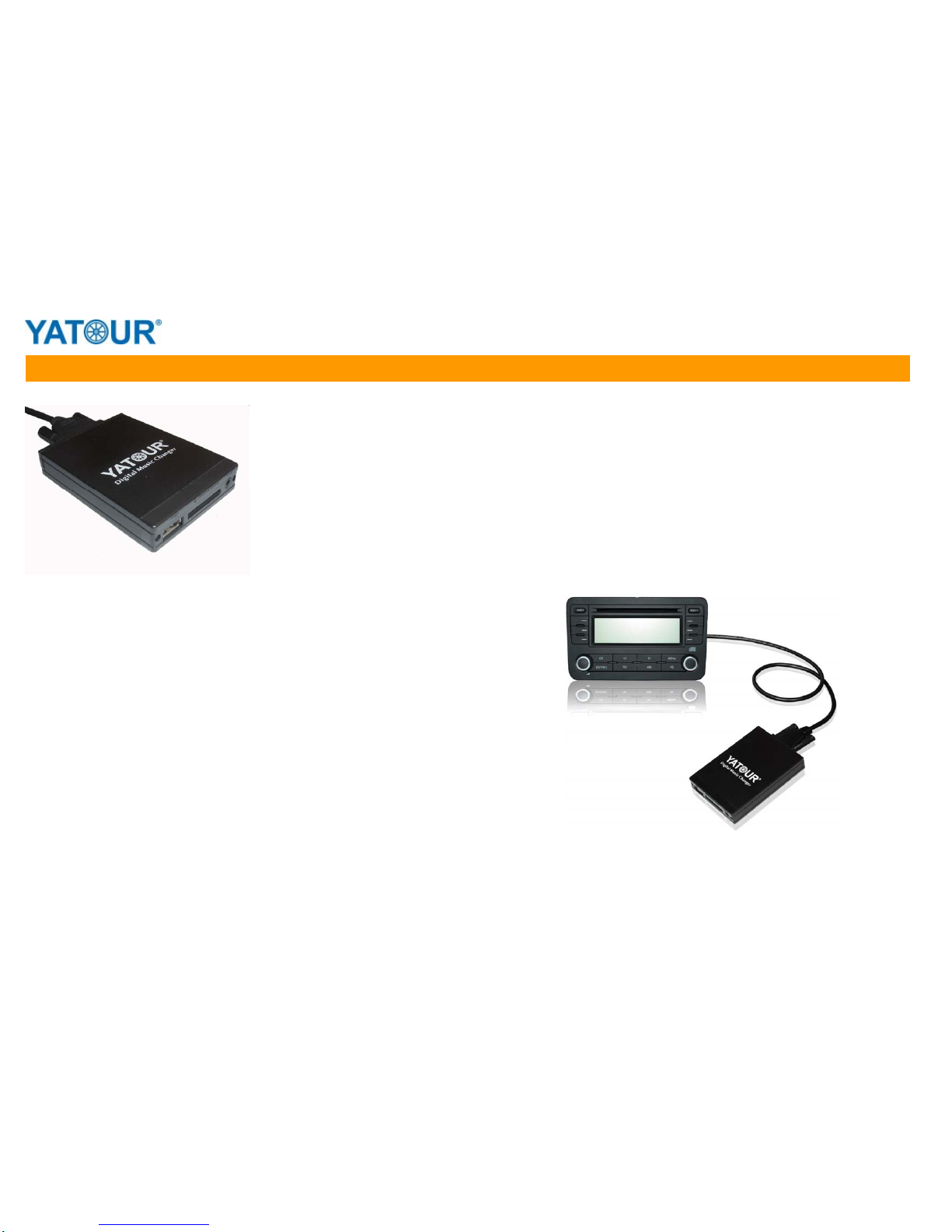

YATOUR Car Digital Music Changer (YT-M06)
YATOUR Car Digital Music Changer is a revolutionary replacement of CD Changer. It delivers CD quality sound directly into
car stereo system via CD changer port.
It is full-featured solution to decode and play MP3/WMA on car Head Unit, without FM Transmitter control. Combining USB
slot, SD/SDHC/MMC slot, andAUX IN slot, YATOUR provides car owners access to vast audio sources.
Acted as a converter of "Entertainment Source", YATOUR can make travel more entertaining and increase peace of mind.
◆Features
· Connected with wire harness, not FM signal controlled, Hi-Fi guaranteed
· Controlled by car Head Unit, support Steering Wheel operation
· With SUNPLUS Hi-Fi Decoding Chip, perfectly support MP3 and WMA tracks
· Supports SD/SDHC/MMC Card/USB Stick/Card Reader/Hard Disk
· Supports external audio source (MP3, MP4, PSP, mobile phone) via AUX IN slot
· Playlist function same as multi CDs
· Support last position memory(LPM)
· Shock proof and electromagnetic interference proof
· Easy to install, without hurting the original car circuit
◆Specification
· Voltage:11V~14.6V DC
· Operational Current: 200 mA
· S/N Ratio: 95dB
· Total Harmonic Distortion: 0.05%
·Frequency Response: 20Hz-20kHz
· DAC Resolution: 20bit
·Operating Temperature: -35℃-80℃
Enjoy Excellence
YATOURDigitalMusicChangerdeliversCDquality
sounddirectlyintocarstereosystem

◆Installation Diagram
Remarks:
YATOUR is only fit for vehicles whose Head Unit is equipped with CD Changer Port.
◆Installation Steps
1. Before installation, turn off the electric power, Remove the Head Unit from the dashboard, and find CD Changer port at the back of the Head Unit.
2. Properly connect the wire harness between YATOUR and the Head Unit. If there is an existing CD Changer, the male connector will be used, in this case it must be
connected to the CD changer. Also connect the black Earth cable(if there is) to the metal body of the Head Unit.
3. Turn on the electric power, insert MP3/WMA media device into YATOUR and run the Head Unit, check whether YATOUR works normally.
4. After the successful test, reassemble the Head Unit, put module unit and wire harness in proper place. Then installation is completed.

◆Application
Factory Fitted Radios: Audi, BMW, Citroen, Fiat, Ford, Honda, Hyundai, Lamborghini, Lancia, Lexus, Mazda, Mercedes/Smart, Mitsubishi, Nissan, Peugeot, Skoda,
Suzuki, Toyota, VW, Volvo
Aftermarket Car Radios:Alpine, Blaupunkt, Clarion, Panasonic, Pioneer, Sanyo, Sony
As space is limited here, please check details in the Application Guide.

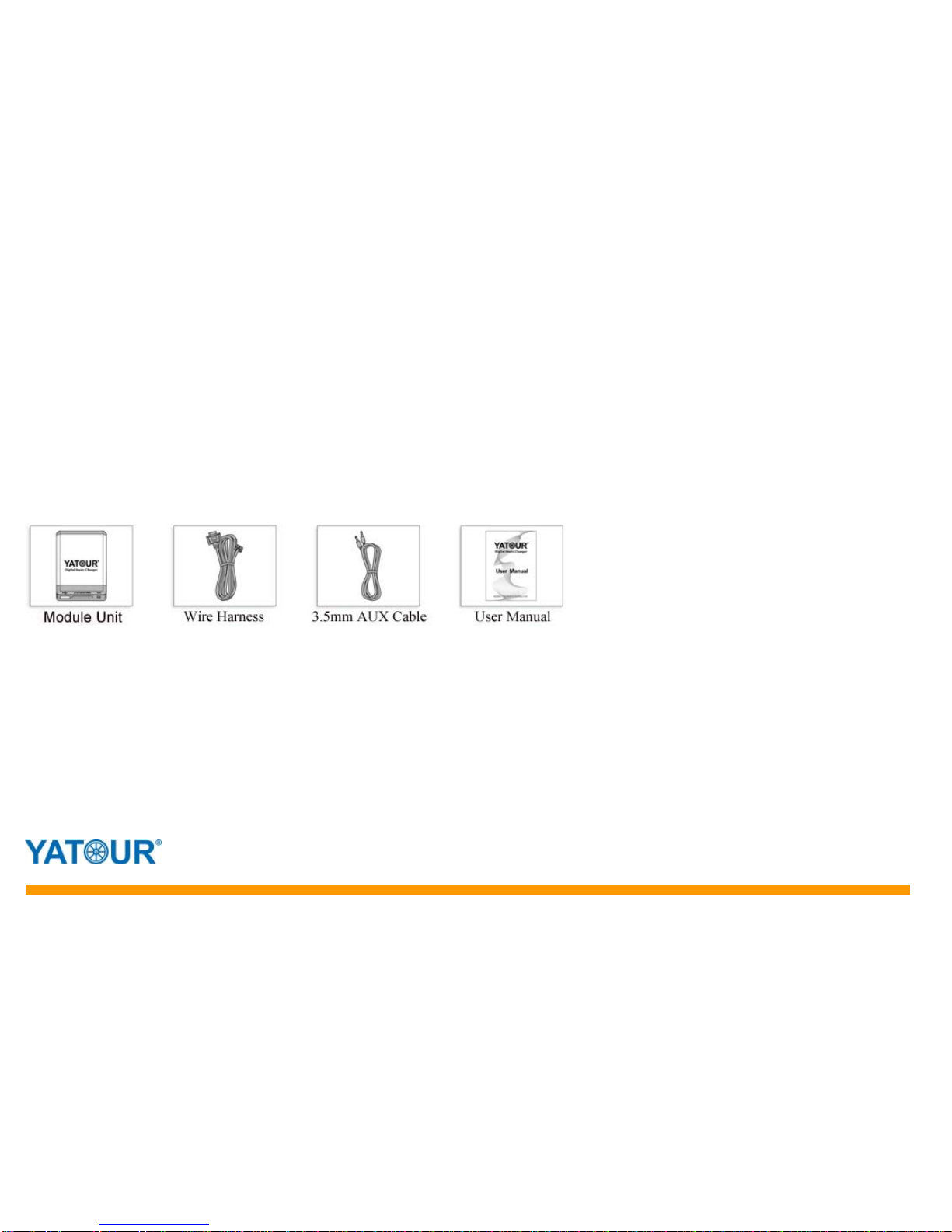

◆Package Content /SET:
·Module Unit One piece
·Wire Harness One piece
·3.5mm AUX Cable One piece
·User Manual One piece
Room 502, District E, LongfuAuto Parts Centre, No.45, Yongfu Road,Yuexiu District, Guangzhou, China
TEL:[phone] FAX:[phone] P.C.:510500
E-mail: [e-mail] Website:http://www.yatour.net
© 2010 Guangzhou Yatour Electronics Technology Co., Ltd All rights reserved.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
CL 1999-2003 YT-M06-HON1
Integra 1998-2001 YT-M06-HON1
MDX 2001-2004 YT-M06-HON1
TL 1998-2003 YT-M06-HON1
RSX 2004-2010 YT-M06-HON2 1, 2
TSX 2004-2010 YT-M06-HON2 1, 2
RL 2005 + YT-M06-HON2 1, 2
RDX 2007 + YT-M06-HON2 1, 2
TL 2004 + YT-M06-HON2 1, 2
MDX 2005 + YT-M06-HON2 1, 2
Application Guide
Car Digital Music Changer (YT-M06)
Specific Notes:
1. XM radio needs CDC/MP3 Switch Cable to hook up with YATOUR.
2. Navigation head unit needs CDC/MP3 Switch Cable to hook up with YATOUR.
Release Date: 03/12/2010
Acura
Acura

Brand Model Model Year Head Unit Compatible
Item Connector Notes
147 2000-2009 Blaupunkt
376 / 378 / 379 / 937 / 947 YT-M06-FTB 1
156 1997-2005 Blaupunkt
376 / 378 / 379 / 937 / 947 YT-M06-FTB 1
159 2005 + Blaupunkt
376 / 378 / 379 / 937 / 939 /
947 YT-M06-FTB 1
166 1999-2005 Blaupunkt YT-M06-FTB 1
Brera 2005 + Blaupunkt 939 YT-M06-FTB 1
GT 2004 + Blaupunkt 937 YT-M06-FTB 1
Spider 2006 + Blaupunkt 939 YT-M06-FTB 1
Alfa Romeo
Specific Notes:
1. Only compatible with Blaupunkt radio system with 8-pin CD changer connection.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
A2 1999-2005 Chorus II, Concert I & II,
Symphony I & II, Navi Plus
RNS-D YT-M06-VAG8 1
A3 2001-2008 Concert, Chorus, Symphony II YT-M06-VAG8 1
A4 1998-2006 Concert I & II, Chorus I & II,
Symphony I & II, Navi Plus YT-M06-VAG8 1
A6 2001-2004 Concert I & II, Chorus I & II,
Symphony I & II, Navi Plus YT-M06-VAG8 1
A8 1999-2003 Concert I & II, Chorus I & II,
Symphony I & II, Navi Plus YT-M06-VAG8 1
AllRoad 2000-2005 YT-M06-VAG8 1
TT 1999-2003 Concert I & II, Chorus I & II,
Symphony I & II, Navi Plus YT-M06-VAG8 1
A3 2001 + Concert II+, Chorus II+,
Symphony II+, YT-M06-VAG12
A3 1996-2003 Navi Plus RNS-E YT-M06-VAG12
A4 2005-2007 Concert II+, Chorus II+,
Symphony II+, RNS-E YT-M06-VAG12
TT 2007 + Concert II+, Chorus II+,
Symphony II+, RNS-E YT-M06-VAG12
Audi
Audi
Specific Notes:
1. In these Audi vehicles, a solid 3-in-1 factory connector blocks access to the CD changer port.
The facotry connector must be removed to gain access to the CD changer port. If that is your case, you need to use YATOUR Audi 20-pin
Adapter Cable that accepts the factory connector and plugs into the radio.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
3 Series E36 1991-1998 Business, Professional YT-M06-BMW1 1, 2
3 Series E46 1998-2005 Business, Professional,
4:3 Navigation YT-M06-BMW1 1, 2
5 Series E39 1995-2000 Business, Professional,
4:3 Navigation,
16:9 Navigation YT-M06-BMW1 1, 2
7 Series E38 1994-2001 Business, Professional,
4:3 Navigation YT-M06-BMW1 1, 2
1994-2000 Business YT-M06-BMW1 1, 2
2001-2006 Business YT-M06-BMW1 1, 2
X3 E83 2004-2006 4:3 Navigation YT-M06-BMW1 1, 2
X5 E53 1999-2006 4:3 Navigation YT-M06-BMW1 1, 2
Z3 1996-2002 Business YT-M06-BMW1 1, 2
Z8 E52 2000-2002 Business, Business CD,
4:3 Navigation YT-M06-BMW1 1, 2
Motorrad K1200LT /Becker Business YT-M06-BMW1 1, 2
Compact
BMW
Specific Notes:
1. Not compatible with models equipped with DSP (Digital Sound Processor).
2. Must be equipped with external CD changer port. External CD changer must be disconnected.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
3 Series E46 1998-2005 16:9 Navigation YT-M06-BMW2 1, 2, 3
5 Series E39 2000-2003 Business, Professional,
16:9 Navigation YT-M06-BMW2 1, 2, 3
7 Series E38 1994-2001 16:9 Navigation YT-M06-BMW2 1, 2, 3
Compact 2001-2006 16:9 Navigation YT-M06-BMW2 1, 2, 3
X3 E83 2004-2006 Business, Professional,
16:9 Navigation YT-M06-BMW2 1, 2, 3
X5 E53 2001-2006 Business, Professional,
16:9 Navigation YT-M06-BMW2 1, 2, 3
Z4 E85 2002-2008 Business,
Business Navigation,
Professional Navigation (16:9) YT-M06-BMW2 1, 2, 3
Z8 E52 2002-2003 Business, Business CD YT-M06-BMW2 1, 2, 3
MINI Cooper 2001-2006 BOOST YT-M06-BMW2 1, 2, 3, 4
4. Not compatible with MINI Cooper S R53 (Construction Year 2006) with radio BOOST (with CAN-BUS).
3. Not compatible with i-Drive system.
BMW
Specific Notes:
1. Not compatible with models equipped with DSP (Digital Sound Processor).
2. Must be equipped with external CD changer port. External CD changer must be disconnected.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
C3 2002-2004 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
C5 2001-2004 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
C8 2003 + Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
Picasso 2002-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
Xsara 2001-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
C2 2005-2009 Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
C3 Pluriel 2005-2009 Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
C3 2005-2009 Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
C4 2004 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
C5 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
C6 2006 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
C8 2004 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
Berlingo 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
Jumpy 2007 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
Synergie 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
1. CD Changer must be activated.
Specific Notes:
Citroen
Citroen
2. Make sure to cut off power supply of the radio before installation.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
Bravio 2005-2007 Blaupunkt OEM radio YT-M06-FTB
New Bravio 2007-2010 Blaupunkt OEM radio YT-M06-FTB
Coupe 1995 + Blaupunkt OEM radio YT-M06-FTB
Croma 2005-2010 Blaupunkt OEM radio YT-M06-FTB
Ducato 2006-2010 Blaupunkt OEM radio YT-M06-FTB
Doblo 2001-2010 Blaupunkt OEM radio YT-M06-FTB
Idea 2004-2010 Blaupunkt OEM radio YT-M06-FTB
Itipla 2000 + Blaupunkt OEM radio YT-M06-FTB
Punto CC DA 2003 + Blaupunkt OEM radio YT-M06-FTB
Panda 2003 + Blaupunkt OEM radio YT-M06-FTB
Punto 1999 + Blaupunkt OEM radio YT-M06-FTB
Qubo Stilo 2002 + Blaupunkt OEM radio YT-M06-FTB
Qubo Fiat 500 2007 + Blaupunkt OEM radio YT-M06-FTB
Fiat

Brand Model Model Year Head Unit Compatible
Item Connector Notes
C-Max -2004 YT-M06-FD 1, 2
Cougar 1998-2004 YT-M06-FD 1, 2
Escort 1990-2004 YT-M06-FD 1, 2
Explorer -2004 YT-M06-FD 1, 2
Fiesta MK4 1996-2004 YT-M06-FD 1, 2
Focus MK1 1998-2004 YT-M06-FD 1, 2
Galaxy 1994-2004 YT-M06-FD 1, 2
Ka 1996-2004 YT-M06-FD 1, 2
Mondeo MK3 2000-2004 YT-M06-FD 1, 2
Orion -2004 YT-M06-FD 1, 2
Puma -2004 YT-M06-FD 1, 2
Scorpio -2004 YT-M06-FD 1, 2
Transit 1994-2004 YT-M06-FD 1, 2
Ford
Specific Notes:
1. Compatible with the following radio- navigation systems:
4050RDS / 4500 / 4600RDS / 5000RDS / 5000RDS EON / 6000RDS / 6000 MP3 / 7000RDS
2. Not compatible with:
* Mondeo & C-Max after 2004
* Not for 6000RDS radio-navigation systems with part number: M009423 / 98AP-18C815-CB (please check the label above)
* Focus after 2008
* Alpine Radio AL390320177503
* Ford Radio RDS 5000NE YM21-18K876-JC
* Not for CAN-BUS controlled radio- navigation systems (Quadlock connection)

Brand Model Model Year Head Unit Compatible
Item Connector Notes
Accord 1998-2002 YT-M06-HON1
Civic 1998-2005 YT-M06-HON1
CR-V 1999-2004 YT-M06-HON1
Insight 2000-2003 YT-M06-HON1
Fit / Jazz 2001-2004 YT-M06-HON1
Odyssey 1998-2004 YT-M06-HON1
Pilot 2003-2005 YT-M06-HON1
Prelude 1998-2002 YT-M06-HON1
S2000 2000-2003 YT-M06-HON1
Accord 2003-2010 YT-M06-HON2 1, 2
City 2002-2010 YT-M06-HON2 1, 2
Civic 2006-2010 YT-M06-HON2 1, 2
CR-V 2005-2010 YT-M06-HON2 1, 2
Element 2003-2010 YT-M06-HON2 1, 2
Fit / Jazz 2005-2010 YT-M06-HON2 1, 2
FR-V 2004-2009 YT-M06-HON2 1, 2
Odyssey 2005-2010 YT-M06-HON2 1, 2
Pilot 2006-2010 YT-M06-HON2 1, 2
Ridgeline 2006-2010 YT-M06-HON2 1, 2
S2000 2004-2010 YT-M06-HON2 1, 2
Honda
Honda
Specific Notes:
1. XM radio needs CDC/MP3 Switch Cable to hook up with YATOUR.
2. Navigation head unit needs CDC/MP3 Switch Cable to hook up with YATOUR.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
Optima YT-M06-HY13 1, 2
Elantra YT-M06-HY13 1
Accent YT-M06-HY8 1
Cerato GLS YT-M06-HY8 1, 3
Coupe YT-M06-HY8 1
Maxima YT-M06-HY8 1
Santa Fe YT-M06-HY8 1
Sonata YT-M06-HY8 1
Tucson YT-M06-HY8 1
Hyundai
Hyundai
Specific Notes:
3. Radio must be MP3 capable.
1. Not compatible with navigation radios.
2. Radio must be 6 Disc.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
Lamborghini Gallardo 2004-2005 YT-M06-VAG8
Brand Model Model Year Head Unit Compatible
Item Connector Notes
Ypsilon 2003+ Blaupunkt YT-M06-FTB
Musa 2004+ Blaupunkt YT-M06-FTB
Lancia

Brand Model Model Year Head Unit Compatible
Item Connector Notes
ES 300/330/350 2004-2010 YT-M06-TOY2 1, 2
GS 300/400/430 2004-2010 YT-M06-TOY2 1, 2
GX 470 2004-2010 YT-M06-TOY2 1, 2
IS
200/250/300/350 2005-2010 YT-M06-TOY2 1, 2
LS 430 2004-2007 YT-M06-TOY2 1, 2
LX 470 2004-2007 YT-M06-TOY2 1, 2
RX
300/330/350/400H 2004-2010 YT-M06-TOY2 1, 2
SC 430 2005-2010 YT-M06-TOY2 1, 2
Lexus
Please enquire us for details about the above-mentioned cable.
Specific Notes:
1. Navigation radio is supported, but needs Y-Cable to hook up with YATOUR.
2. Vehicles equipped with external CD Changer need MP3/CDC Switch Cable to hook up with YATOUR.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
B-Series Pickup 2003-2006 YT-M06-MAZ
3 2004-2008 YT-M06-MAZ
5 2005-2008 YT-M06-MAZ
6 2002-2008 YT-M06-MAZ 1
Miata/MX-5 2003-2008 YT-M06-MAZ 2
SPD 2002-2006 YT-M06-MAZ
Protégé 2002-2008 YT-M06-MAZ
CX-7 2006-2010 YT-M06-MAZ
RX-8 2004-2006 YT-M06-MAZ 3
Tribute 2002-2006 YT-M06-MAZ
Mazda
Compatible with OEM radios with the following serial number:
Special Notes:
3. Radio firmware version must be v9.55 or later, v10.1 and v9.81 not supported.
168 / 1269 / 4103 / 14789909 / 1472086 / 14792089 / 14794008 / 14794522 /
CQ-EM4570ak / CQ-LM4720a / CQ-TT3070aa / CR-LM4282ka
1. Some Mazda 6 03-05 radios need to solder a jumper or a 0-ohm chip register on location L716.
2. Mazda MX-5 is not compatible with "Bose® Sound System"

Brand Model Model Year Head Unit Compatible
Item Connector Notes
Mercedes ALL Models 1994-1998 Special radio /
Exquisit radio YT-M06-MB10
Please check "Smart" for YT-M06-MB8 application list.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
Mitsubishi Outlander 2002-2007 Panasonic radio YT-M06-PAN
Brand Model Model Year Head Unit Compatible
Item Connector Notes
350Z 2003-2010 YT-M06-NIS 1, 2
Almera 1995-2010 YT-M06-NIS 1, 2
Almera Tino 2000-2010 YT-M06-NIS 1, 2
Murano 2005-2010 YT-M06-NIS 1, 2
Navara 2005-2010 YT-M06-NIS 1, 2
Note 2004-2010 YT-M06-NIS 1, 2
Pathfinder 2005+ YT-M06-NIS 1, 2
Patrol 2008-2010 YT-M06-NIS 1, 2
Primera 1995-2001 YT-M06-NIS 1, 2, 3
Qashqai 2007-2008 YT-M06-NIS 1, 2
Qashqai 2+ 2008-2010 YT-M06-NIS 1, 2
X-Trail 2001-2010 YT-M06-NIS 1, 2
Nissan
Specific Notes:
3. Not compatible with Primera 2001 with Blaupunkt Tape head unit.
1. Compatible with OEM radios with MIX button / OEM radios from BOSE / OEM radios from CLARION.
2. Not compatible with OEM radios with navigation / OEM radios with integrated CD Changer.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
106 1997-2004 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
206 1998-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
206CC 2004-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
307 2002-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
307SW 2004-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
406 2002-2004 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
407SW 2004-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
607 2002-2004 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
806 1997-2001 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
807 2002-2005 Blaupunkt/VDO RD3 YT-M06-RD3 1, 2
Expert 2007 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
207 2006 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
307 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
307SW 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
307CC 2004 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
308 2007 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
407 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
407SW 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
607 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
807 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
1007 2005 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
4007 2007 + Blaupunkt/VDO RD4 YT-M06-RD4 1, 2
Specific Notes:
1. CD Changer must be activated.
Peugeot
Peugeot
2. Make sure to cut off power supply of the radio before installation.

Brand Model Model Year Head Unit Compatible
Item Connector Notes
x A 2004-2009 YT-M06-TOY2 1
x B 2004-2009 YT-M06-TOY2 1
t C 2004-2009 YT-M06-TOY2 1
Scion
Specific Notes:
1. Not work with Pioneer radios with OEL display.
