Yerasov IGOR BOIKO signature User manual

Tube guitar combo amplifier
User manual
IGOR BOIKO signature

CONTENTS
1. ........…………………………………………...................................1
2. ………………………………………………………........2
.....…..…………..………………………………….........................2
..… .. …………………………………………....................3
3. ……........………..…………………………………….…….3
4. ..................................................……................................4
5. ..……......………………………………….....................4
6. …….…...…………………………………………..............................4
7. …………………………………………..................................................5
Precautions
General information
Top panel
Rear panel. .......... ....
Operating Instructions
Troubleshooting
Technical Specifications
Delivery
Guarentee

Allow the amp to warm up for a few minutes before playing.
Allow the amp to cool for a few minutes before moving.
Do not store or use the unit in a damp environment.
Do not place the device in direct sunlight or near a heater.
When connecting to a power supply, make sure that its voltage
matches the requirements of the unit. The socket must be also
be earthed.
In the event of a fire, unplug the power cord of the unit.
If the appliance is not used for a long period of time, it must be
disconnected from the power supply.
Before replacing the valves, make sure that the appliance is
disconnected from the power supply.
Avoid touching the hot valves.
Protect it from shocks.
The unit requires good ventilation.
Do not use solvents to clean the cabinet, use a clean, dry cloth.
1 . PRECAUTIONS
1

2.GENERAL
2
IGOR BOIKO Signature Amplifier (IBS) is the professional tube amplifier.
IBS gets the wide spectre of sound from traditional bluesy crunch to the
real rock tone whenever it is used in record sudio or at the stadium
stage. Ibs equipped with a G12H ANNIVERSARY Celestion speaker
and 2õECC83S, 2õECC81, 2õ6V6 tubes. Front control panel has
standard mono jack plug, Bass, Mid and Treble voicing section, built in
reverb (use footswitch to ON/OFF it)
1INPUT -
2GAIN -
3 TREBLE -
4 MIDDLE -
5 BASS -
6 REVERB -
7 VOLUME -
8 POWER -
input jack for connecting an electric guitar
overdrive level knob
treble control knob
middle control knob
bass control knob
reverb level knob
volume control knob. volume control simultaneously adjusts
the volume and sensitivity of the channel. In the initial position the sound
remains clean.As the volume is increased the amp moves smoothly into
creamy overdrive.
on/off LED indicator

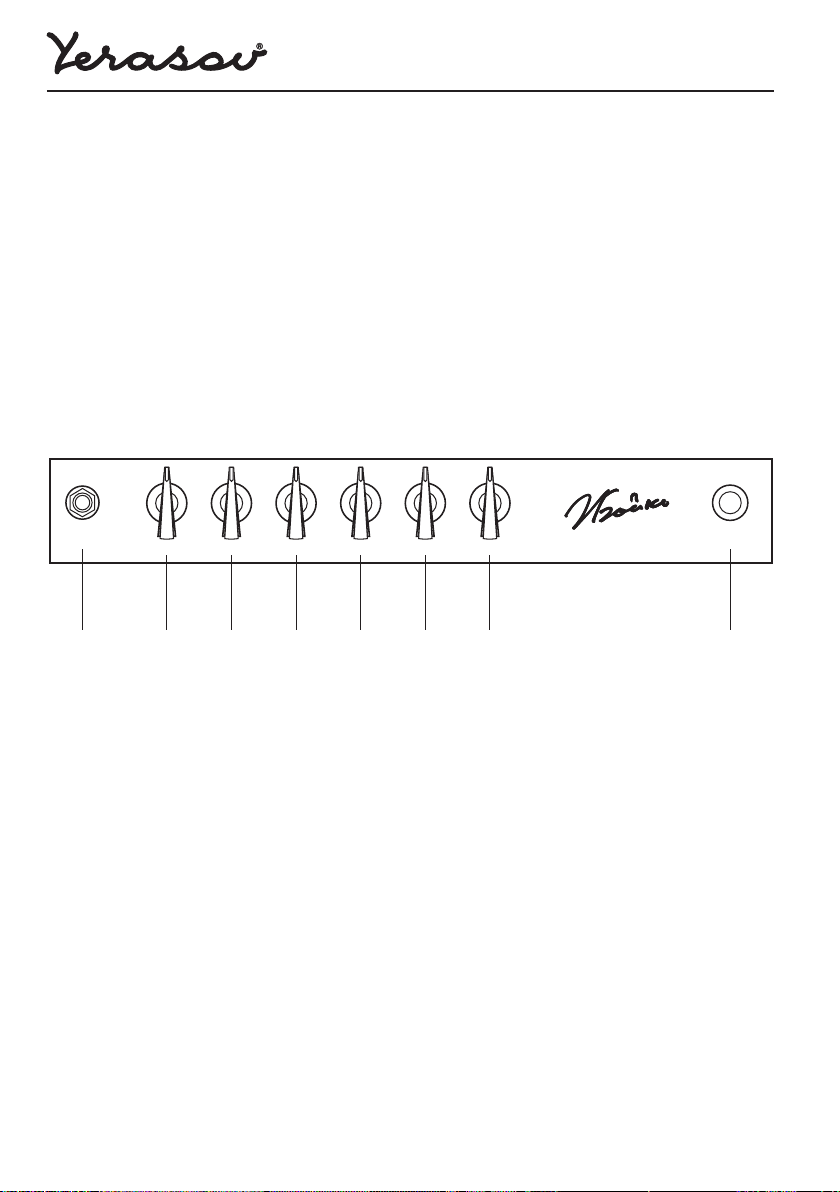

The top panel
Igor Boiko
signature
Igor Boiko
signature POWERPOWER
REVERB VOLUME
1 2 345678
TREBLE MIDDLE BASS
GAIN
INPUT

Rear panel
3.
OPERATING
3
9
12
14
15
Power cable input with T1A fuse.
on/off switch
switch
built in/external speaker out
13 built in speaker cable
ine-in jack for connecting an external preamp
reverb footswitch input
10 POWER -
11 STANDBY -
SPEAKER 8OHM -
LINE INPUT-l
FS REVERB -
9101112141315
AC 220-230V
50/60 Hz T 2A
8 OHM
SPEAKER
ON
STANDBY
ON
POWER LINE INPUT FS REVERB
Connect your guitar to INPUT using a cable with 6.3 mm (1/4") jack. Set
switch to ON to get the mains power flowing. The amp lights up and the
tubes will begin to heat up. Give the tubes about 30 seconds to get toasty;
then you can set the STANDBY switch on. The amp is ready now. When
taking a short break from playing, please use the STANDBY switch so the
tubes remain at operating temperature. This protects them and ensures they
last longer.
ATTENTION! Do not use the amp when speaker jack is plugged out!

4. TROUBLESHOOTING
4
5. SPECIFICATIONS
In some cases, you may encounter problems such as noisy valves, howling
and internal valve faults. All valves have a finite lifespan. If problems occur it
may be easily rectified by replacing a valve. A faulty valve may be identified
by knocking the valve body which may exhibit extra noise. But be aware that
some noise when knocking a preamp valve can be a natural phenomenon.
When a pre amp valve (12AX7) fails it should result in continuous
microphonics.
The simplest solution is to replace a faulty valve with a known good one.
Sometimes it is enough just to change valve places.
The faulty valve may be removed when cold by using a gentle circular
motion after nun plugging the amp from the mails.
Always install a serviceable valve.
6. DELIVERY
Guitar Combo Amplifier units
FS-10 footswitch units.................................................................................... 1
Power cable units................................................. 1
AC fuse (spare) T1A, units
Operating instructions
Container packing, items
1
, ..........
.....................................................
…….……………….........................................................1
………………………………………..........................................1
……………………………………………………...................1
IGOR BOIKO signature, .............................................
Input resistance
Guitar input, MOhm
Line input, kOhm
Output power, W.....
Powered by a 50 Hz, in 230 ± 23
Power consumption, W, not more
Weight (net), kg, not more ..
2xECC83, 2xECC81, 2x6L6
Speaker ......................................... Celestion Anniversary
Dimensions, mm........................................................................ 533x455x240
Weight (net), kg, not more .............................................................................21
:
………..……………………………….........................1
…………………………………………........................100
......................……………..………………………...................... 20
………..……………………………............................
………………………………............................120
………………………….……………….........................17
Lamp...............................................................................
....................... ..........

5
7. GUARANTEE
Warranty period 12 months from the date of purchase.
During the warranty period, the owner is entitled to a free repair.
Caution: In the absence of the warranty card and the receipt of purchase
the warranty period will be calculated from the date of manufacture of the
product.
Warranty does not cover:
- Products that have mechanical damage;
- Violation of the consumer operating conditions;
- In the case of self-repair or modify.
* The valves included with the product are a consumable product and the
warranty on them is for 1 month from the date of receipt of the product.
Combo amp
Ser. Number ___________________
Date of manufacture_____________
(Filled by the manufacturer)
Combo amp
Ser. Number ___________________
Release Date __________________
TCI representative _______________
--------------------------------------------------------------
(Fill-trading company)
Sale Date ______________________
Seller _________________________
Stamp shop ____________________
______________
______________
IGOR BOIKO signature
IGOR BOIKO signature

YERASOV MUSIC CORPORATION
www.yerasov.ru e-mail: [e-mail]
