Yiwu Tianying Optical Instrument Ranger-500 User manual
1
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
Ranger-500 ™ Digital Hi-Definition
Day-Night Camera & DVR Kit Sku#TY-N33
user manual
2
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
1. OVERVIEW
The Ranger-500 ™Digital Hi-Definition Night Vision Monocular is the world's
most advanced long range day and night digital camera & DVR Kit, Utilizing the
most sophisticated CCD sensor, zoom lens and invisible infrared laser
technologies in the world produce a high qual ity picture can surely compete with
the Gen.4 in image sharpness and brightness. the features is 20x optical
magnification, lens zoom from 10mm to 200mm, 80G hard disk memory and large
viewing range-up to 1500m at 0.01 lux night and 500 m at less than 0.0 001 lux
full dark night for identifiable human size target. The built-in 80G hard disk,
rechargeable 12V lithium batteries, 12V DC external power supply interface and
tripod mount can record at long-time, but built-in 4 "DVR LCD screen player with
adjusta ble brightness control and constant sharpness along the entire fields of
view, can view and plays at anytime and anywhere, USB memory output and RS-170
video output allows transferring of the image to a computer, a monitor or a TV.
2. Product features induced :
1)
Great Day And Night Viewing Range
2)
Highly Sensitive Low Light CCD Array(Minimum Scene Illumination : 0.0001 lux )
3)
Lens Zoom From 10mm To 200mm
4)
20-power Optical Magnification
5)
Excellent Resolution ( 68 0 x 480 Pixels )
6)
Automatic Gain Control With Adjustment
7)
Automatic Contrast Control With Adjustment
8)
Built-in 80G Hard Disk Memory.
9)
Video Output And Memory Output.
10)
Tripod Mountable
11)
Stealth IR Illuminator
12)
Self-contained and External Power Supply .
13)
Lightweight 2.6 kg , Compact 230 X140X 140mm, Handheld
14)
12 Months Warranty .
3
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
3. Ranger--500 ™ Digital Hi-Definition Day-
Night Camera Specifications:
1)
Model :TY-N33
2)
Optical Magnification : 20x
3)
Image Array Type : 0.0001 lux(min) CCD Digital NV
4)
lens System : F 1.9 f=10 ~~ 200 mm
5)
Field Of View : 30 ° ~~ 1 °
6)
CCD resolution :570 Lines.
7)
Image resolution: 680 X 480 Pixels
8)
Identification Human Range : 500m at less than 0.0001lux full dark night
9)
Identification Human Range : 1 500m at 0.01lux night
10)
IR Wavelength : 808 nm ± 5 nm
11)
IR Power : 2W
12)
Spectral response: 400 to 1100 nm
13)
Monitors : Built-in 4 ″ Inch
14)
Minimum scene illumination: 0.0001lux.
15)
Internal power : Built-in rechargeable 12V lithium batteries
16)
Continuous Operating Time : >4 hours / each charge
17)
Flash memory : Bulit-in 80G h ard disk
18)
Memory output : USB
19)
Video output : RS-170 / PAL
20)
Tripod Mount : YES.
21)
Operating Temperature : -20 ° C to +60 ° C
22)
Dimensions : 230 X140X 140 mm
23)
Weight : 2.6 kg
4
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
4.Packing.
Standard accessories included
5. User Interface Language :
Chinese or English.
6.Conformation
Ranger-500 ™ By the zoom lens system, and turn color CCD, laser light source,
liquid crystal displays, hard disk video control, etc..
Hard case
1pc
12V 8Ah charge battery
1pc
AC Power Conversion
1pc
Tripod
1pc
Manual , warranty certification
1pc
5
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
7. Use Directions

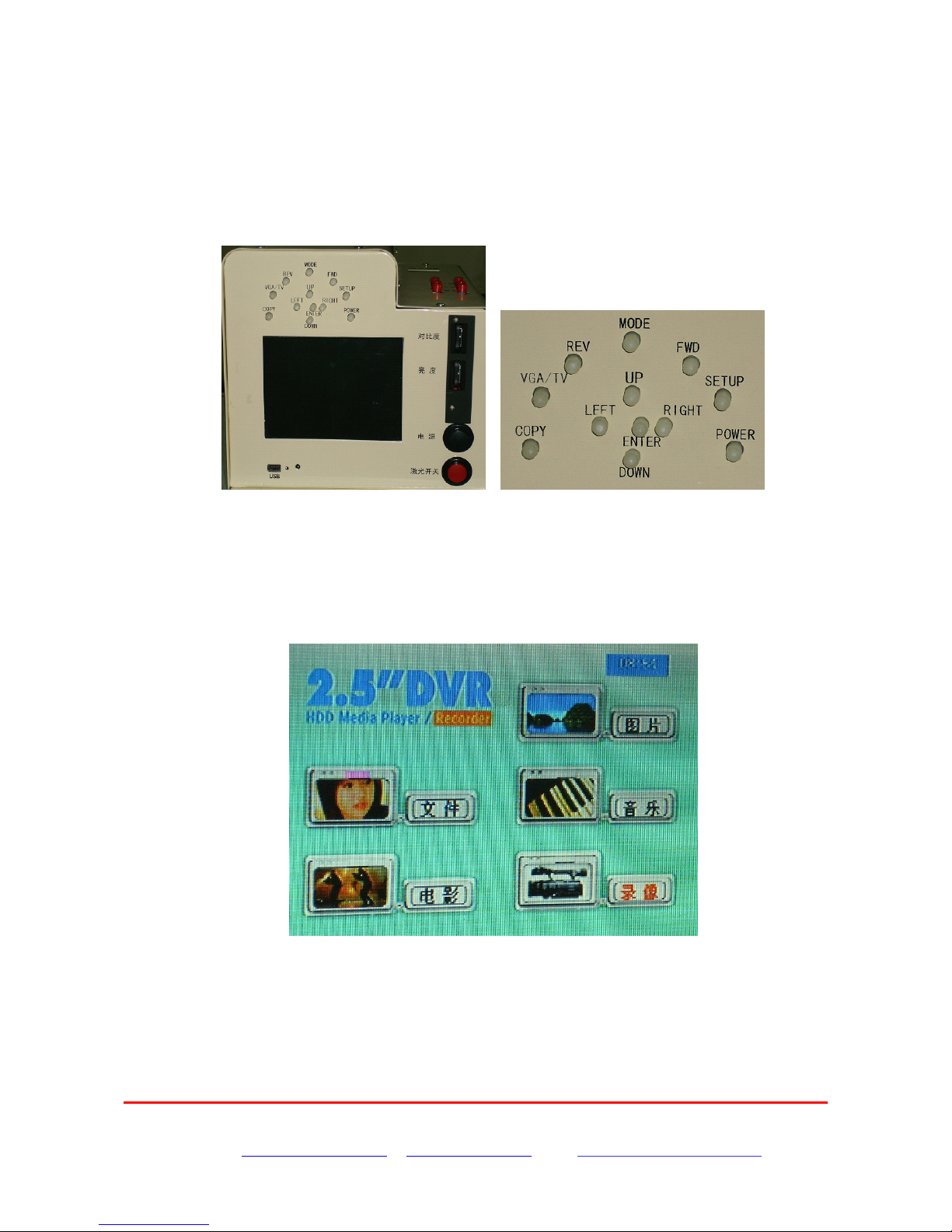

Ranger-500 ™ operation is main through the control panel, control
panel as follow:
Operating Steps ：
1. Press switch, open power ；
2. Press power
，
open videocassette
，
on LCD will show control menu plans as follow
；
3. Click through " UP , DOWN , LEFT , RIGHT "bond ， Select — " 录像 "bond ， Click " ENTER "
6
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
bond,confirmed operatrion ， into the video sereen ； through the upper part of the
operation of the camera lens to control key (below) to obtain the desired video
images.
4.
Click " VGA / TV " button to start recording, click the " MODE " button to stop
video .
5. Surveillance or lack of illumination at night, press the laser switch on the
Control Panel , to open the laser light source, once again press the laser switch
to close the laser light source .
6.
Click SETUP button, you can choose the language interface, video formats and
display parameters .
7.
Through the USB interface, can output the contents of hard disk .
8. After the completion of the operation of choice, click the MODE button to get
out ; finish all operations, first click th e POWER to close the video of hard
disk , and then press the power button close the machine;
9.
The power supply of Ranger-500 ™is from 12V rechargeable battery, also can
pass to 12V DC, charging-port and output port at the handle of right, as
following chart.
7
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
8 8 . Ranger--500 ™ Digital Hi-Definition Day
And Night Camera , Maintenance Notes
1 、 Equipment has not waterproof function to prevent the equipment could lead
to water use; if it must be possible to use the water, protective
measures in advance to do a good job, after the use equipment must be dry
before keep.
2 、
Ranger-500 ™ is a precision optical instrument , da ily maintenance must
note clean ing , dry ing , and long time no use should check regular ly, to
ensure that the equipment in normal working condition .
3 、 If the equipment have some problem need to open the packaging and
inspection , must be completed by professionals , so as to avoid damage to
equipment within the structure of PV systems, effect the normal operation .
4 、
Instruments charge, please insert a stable place after the charger, the
charging process show a red light, when the charging indicator light
turned green, the charge is finish.
5 、
Laser dangerous! ! ! Prohibit the close-up human eye laser reflectors
and strong! ! ! To prevent observ ers or clos e the glared person is
danger .
6 、 Prohibit the coverage when Laser at work! ! ! Cover laser lens cover
could burns or fire .if covering equipment can not ease lose heat ,so
will affect the laser life.
9. Manufacturer Warranty
The manufacturer warrants the TY-N33 quality to demands of the specifications if
the users do not violate use and storage directions.
Guaranteed use time is 12 months from sale date.
8
Company Address:Room 402, 1 Unit, 26building, Fancun, Yiwu City , Zhejiang, China . Post Code:322000
Telephone No.:0086-579-85389306 Fax No.:0086-579-85389305
Guaranteed TY-N33 storage time in bag at storage rooms -2 years from manufacture
date, and for TY-N33, subjected to reinspection-from reinspection date.
Requirements for reliability for export delivery must be with accordance with
conditions of contract of products delivery.
10. CINFIRMATION OF THE CERTIFICATION
The night vision goggles Omega TY-N33 fabrication number ________________________
Correspond to the specification and are ensured fit to use.
Fabrication date _______________________________
Technical inspection division
Representative ________________________________
Yiwu Tianying Optical Instrument Co., Ltd
Company Address: Room 4 02, 1 Unit, 26 building, Fancun , Yiwu City ,
Zhejiang Province , China
Post Code: 322000
Telephones No.:0086-579-85 389306
Fax No.:0086-579-85 389305
Mobile Phone: 0086-13515798545
web: http://www.nightvisioncn.com
