Yoda VP200 User manual
IP Phone user Guide
-1-
Appearance
1. Front Panel
fig 1.1 Front Panel
1. Network Light 2. Logon Light3. Service IP
4. Local IP 5.Local num 6. Vol/+ 7. Vol/-
8.Number 9. Phone Book 10. Back Space
11.Redial 12. Spk 13. Missed
14.Answered 15. Dialed 16Flash
17. Transfer 18. Hold 19Handset
2. Backside view
-2-

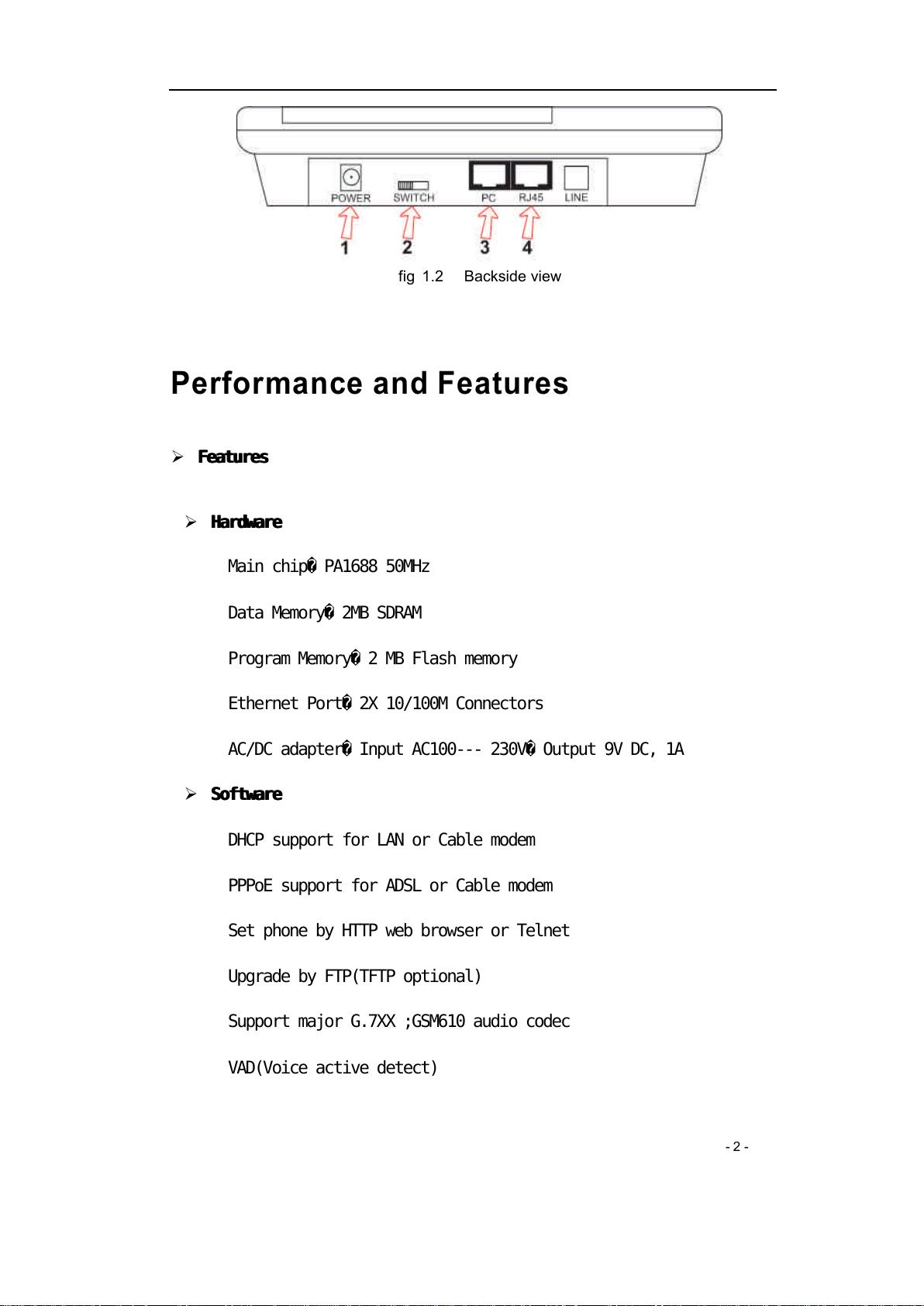

fig 1.2 Backside view
Performance and Features
ØFeaturesFeatures
ØHardwareHardware
Main chipPA1688 50MHz
Data Memory2MB SDRAM
Program Memory2 MB Flash memory
Ethernet Port2X 10/100M Connectors
AC/DC adapterInput AC100--- 230VOutput 9V DC, 1A
ØSoftwareSoftware
DHCP support for LAN or Cable modem
PPPoE support for ADSL or Cable modem
Set phone by HTTP web browser or Telnet
Upgrade by FTP(TFTP optional)
Support major G.7XX ;GSM610 audio codec
VAD(Voice active detect)
-3-
CNG (Comfort noise generation)
Dynamic voice jitter buffer
G.167/165 compliant 16ms echo cancellation
Tone generation and Local DTMF re-generation according with ITU-T
Support the Inband audio; RFC2833; SIP INFO etc DTMF transmission
method
E.164 dial plan and customized dial rules
100 entries for speed dial
80 entries each for missed calls, answered calls and dialed calls
Adjustable volume for both handset and speaker
Voice prompt
Hotline
Support adjustable user password and super password
ØStandardStandard and Protocoland Protocol
SIPSIP PhonePhone supportssupports following standard and protocol:following standard and protocol:
IEEE 802.3 /802.3 u 10 Base T / 100Base TX
Major G.7XX; GSM610 audio codec
SIP RFC3261
TCP/IP: Internet transfer and control protocol
RTP: Real-time Transport Protocol
RTCPReal-time Control Protocol
-4-
VAD/CNG save bandwidth
DHCPDynamic Host Configuration Protocol
PPPoEPPP Protocol over Ethernet
DNSDomain Name Server
TelnetInternet's remote login protocol
FTPFile Transfer protocol
TFTPFile Transfer protocol (optional)
HTTPHyper Text Transfer protocol
ØOperating requirements:Operating requirements:
Operation temperature: 0 to 50C (32to 122F)
Storage temperature: -30to 65C ( -22to 149F)
Humidity: 10 to 90% no dew
ØElectric requirementsElectric requirements::
Voltage: 9V DC
Power: 9W (max.)
Power adapter: AC/DC input 100-230VOutput 9V 1A
Network interface:2X RJ-45 Ethernet Connectors
ØSizeSize
195 x 175 x 85 mm (L x W x H)
-5-
Phone keypad set
When IP phone has been installed properly, you can enter the menu
through the keyboard and LCD, and then set each parameteraccordingly.
Function Keys Introduction:
Keys Function
Service IP With handset hung, press this key to get the GK IP address
Local IP With handset hung, press this key to get phone IP address
Local Number With handset hung, press this key to get phone number
Volume+
Increase the volumes of handset or speaker; turn over the
record backward
Volume-Decrease
the volumes of handset or speaker; turn over the
record forward
Redial While reviewing missed, received or dialed number, press this key to dial current
number.
Spk Press this key to have a call without lifting the handset
Dialed With handset hung, press this key to review dialed number
Answered With handset hung, press this key to review received number
Missed With handset hung, press this key to review missed number
When using keyboard and LCD to configure the settingsof IP phone,
following keys will be employed:
OOperate with the keysperate with the keys
Enter the menu modeEnter the menu mode

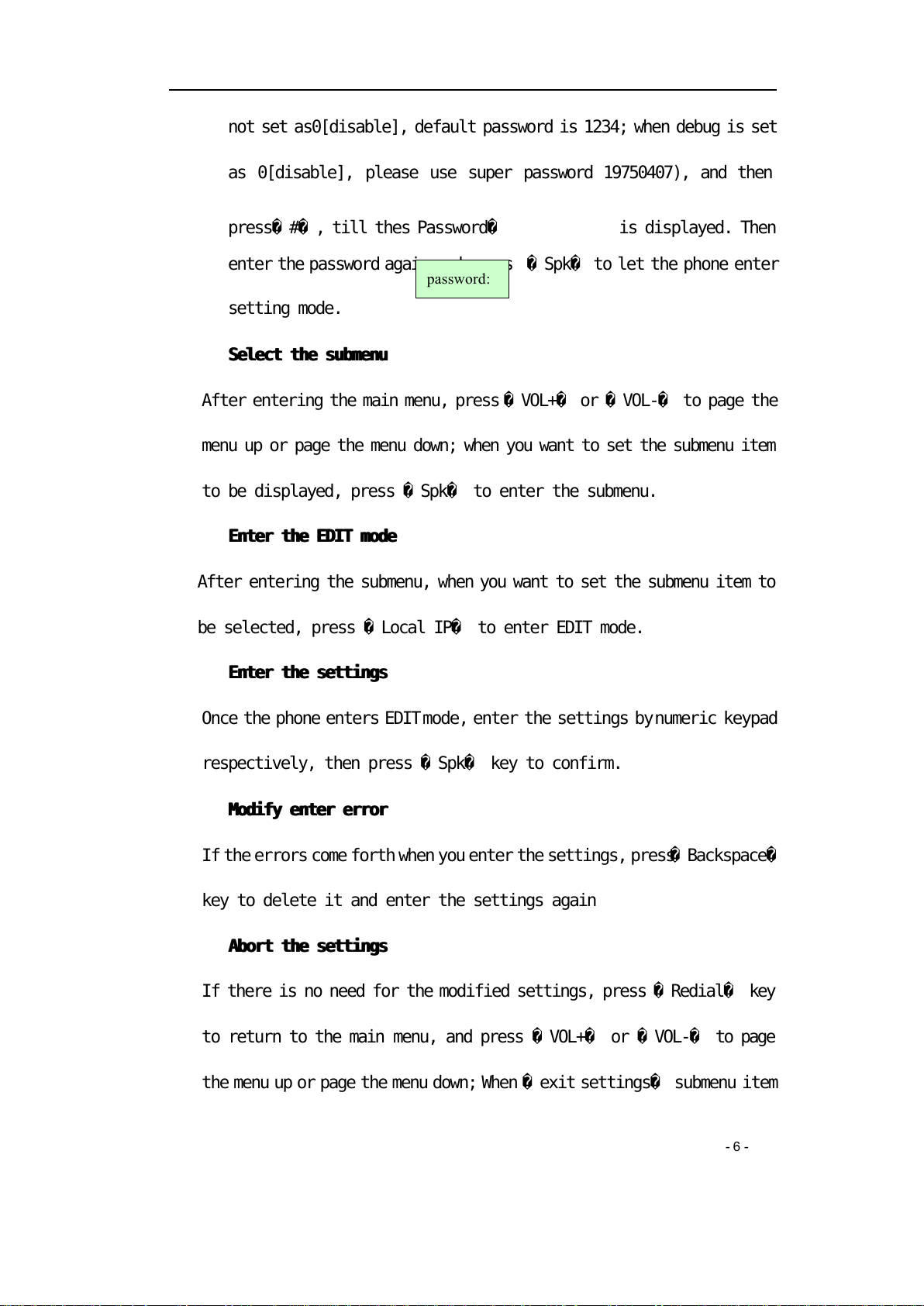

Use the keypad to enter the password of the phone (when debug is
-6-
not set as0[disable], default password is 1234; when debug is set
as 0[disable], please use super password 19750407), and then
press#, till thes Password is displayed. Then
enter the password again and press Spk to let the phone enter
setting mode.
SSelect the submenuelect the submenu
After entering the main menu, press VOL+ or VOL- to page the
menu up or page the menu down; when you want to set the submenu item
to be displayed, press Spk to enter the submenu.
Enter the EDIT modeEnter the EDIT mode
After entering the submenu, when you want to set the submenu item to
be selected, press Local IP to enter EDIT mode.
EEnter the settingsnter the settings
Once the phone enters EDITmode, enter the settings bynumeric keypad
respectively, then press Spk key to confirm.
MModifodify enter errory enter error
If the errors come forth when you enter the settings, pressBackspace
key to delete it and enter the settings again
Abort the settingsAbort the settings
If there is no need for the modified settings, press Redial key
to return to the main menu, and press VOL+ or VOL- to page
the menu up or page the menu down; When exit settingssubmenu item
password:
-7-

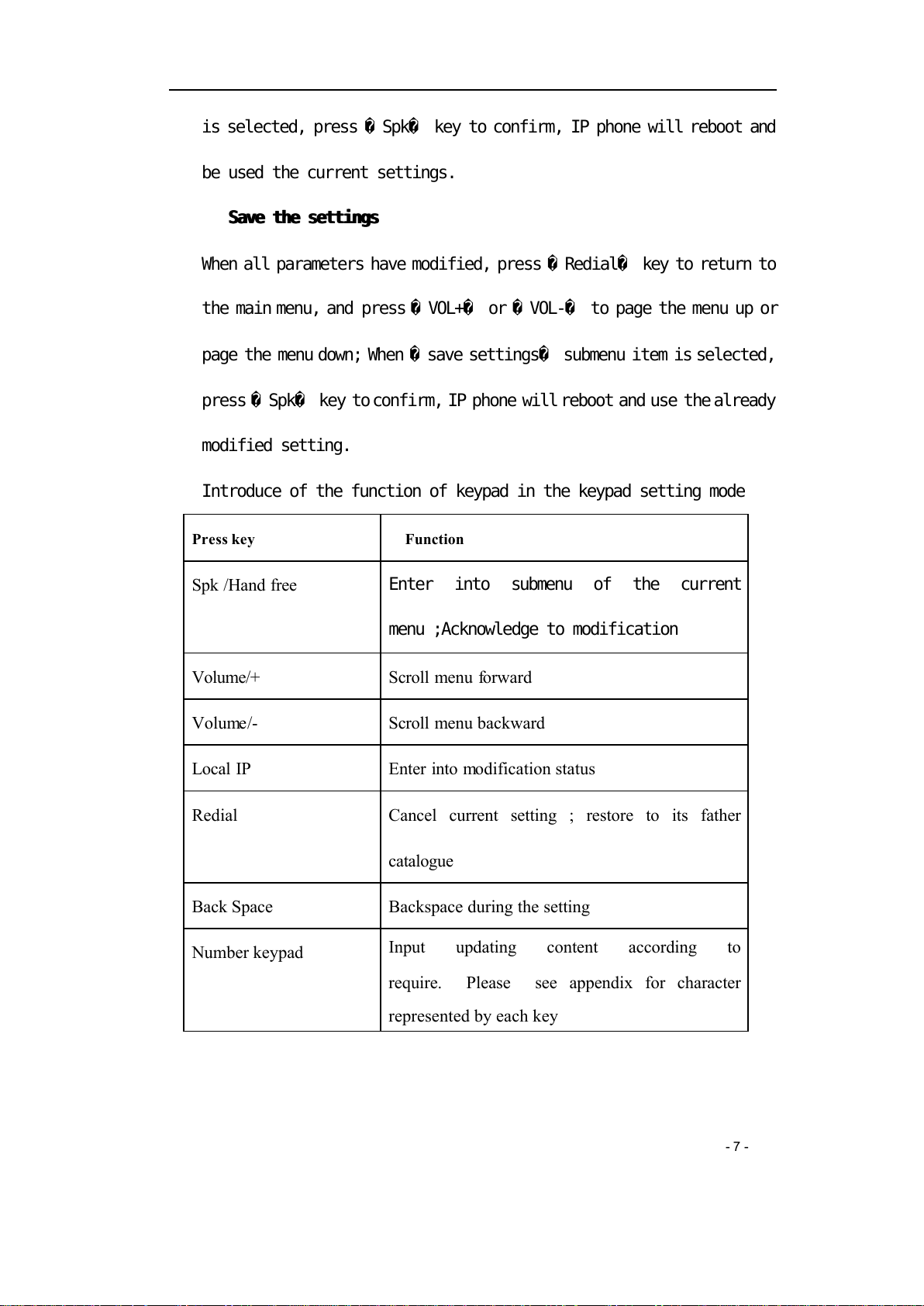

is selected, press Spk key to confirm, IP phone will reboot and
be used the current settings.
Save the settingsSave the settings
When all parameters have modified, press Redial key to return to
the main menu, and press VOL+ or VOL- to page the menu up or
page the menu down; When save settingssubmenu item is selected,
press Spk key to confirm, IP phone will reboot and use the already
modified setting.
Introduce of the function of keypad in the keypad setting mode
Press key Function
Spk /Hand free Enter
into submenu of the current
menu ;Acknowledge to modification
Volume/+ Scroll menu forward
Volume/-Scroll menu backward
Local IP Enter into modification status
Redial Cancel current setting ; restore to its father
catalogue
Back Space Backspace during the setting
Number keypad
Input updating content according to
require. Please see appendix for character
represented by each key
-8-
ØSet the main menuSet the main menu
Main Menu StructureMain Menu Structure
Fig 2.1 Main Menu structure Illustration
ØSet the network submenuSet the network submenu
Network Submenu StructureNetwork Submenu Structure
Fig 2.2 Network submenu structure Illustration
ØSet the audio submenuSet the audio submenu
Audio Submenu StructureAudio Submenu Structure
-9-
Fig 2.3 Audio submenu structure Illustration
ØSet the dial plan submenuSet the dial plan submenu
Dial plan submenu StructureDial plan submenu Structure
Fig 2.4 Dial plan submenu structure Illustration
ØSet the protocol menuSet the protocol menu
Protocol Submenu StructureProtocol Submenu Structure
-10 -

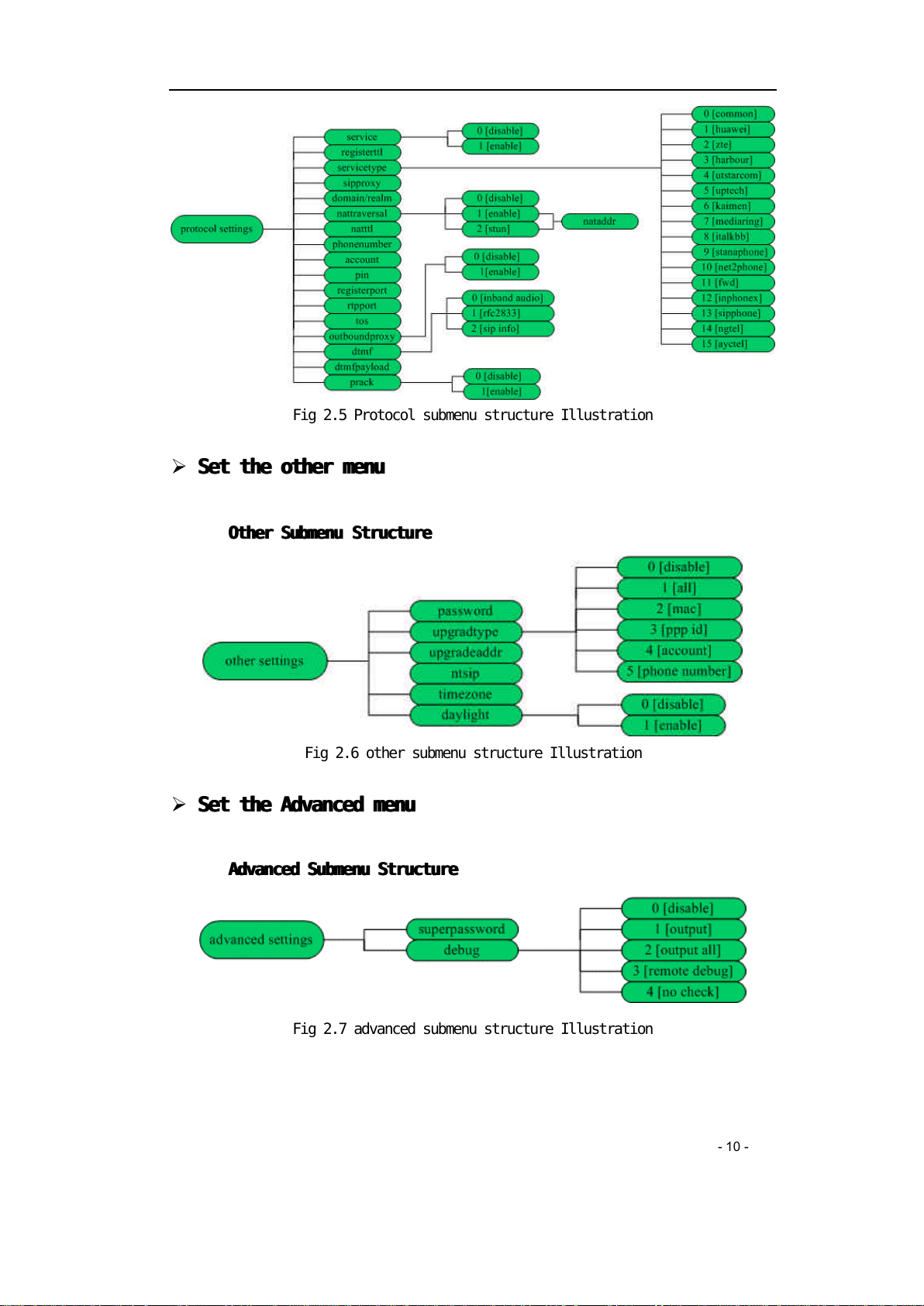

Fig 2.5 Protocol submenu structure Illustration
ØSet the other menuSet the other menu
Other SubmenuOther Submenu StructureStructure
Fig 2.6 other submenu structure Illustration
ØSet the Advanced menuSet the Advanced menu
Advanced Submenu StructureAdvanced Submenu Structure
Fig 2.7 advanced submenu structure Illustration
-11 -
AppendixAppendix TaTableble IP phone digital-character key map:
KeysKeys Press OncePress Once Press TwicePress Twice Press ThricePress Thrice PressPress quarticquartic PressPress quinticquintic
11 1 . , ?/_ !//
22 2 A/a B/b C/c [
33 3 D/d E/e F/f ]
44 4 G/g H/h I/i *
55 5 J/j K/k L/l
66 6 M/m N/n O/o #
77 7 P/p Q/q R/r S/s
88 8 T/t U/u V/v
99 9 W/w X/x Y/y Z/z
** .
00 0 space :/@ ;/- \ /&
## Case change
ØConfigured byConfigured by WEBWEB
Double click icon to open the IE browser. Input the IP address
of the phone into address bar ( ), and then input
password of the phone into the following page.
-12 -
Fig 3.1 Http Setting
Default password 1234 is ordinary password and super password is 19750407.
With Debug set 0[disable], please input super password; while Debug is
not set as 0[disable], please input ordinary password. Then
click button. The following configured page wills popup.
ØNetwork SettingNetwork Setting
Fig 3.2 Network Setting
-13 -
iptypeiptype: Set how IP phone gets relevant network parameters by
selecting corresponding item from drop down list.
nstatic ipstatic ip: Select this item to authorize users set IP address,
subnet mask and router IP address of IP phone manually.
ndhcpdhcp: Select this item to enable DHCP mode. With this system, your
LAN or router automatically assigns all the required network
parameters to any device connected to it when the device log on.
VP200 IP phone is shipped from the factory with DHCP on. So, if your
LAN or router is configured to use DHCP addressing, the IP phones
LAN parameters will automatically be configured as soon as it is
connected to the LAN or router and powered up.
npppoepppoeThose ADSL and Cable Modem users please select this item for
it is a protocol especially designed for them. With this system,
ADSL ISP automatically assigns all the required IP parameters to
any device connected to it when the device log on.
nmodemmodemIf the IP phone used with modem, please select this item to
get relevant network parameters auto. Then please fill ID and pin
into ppp id and ppppin fields.
ppp id:ppp id: With pppoepppoe or modemmodem selected in iptypeiptype drop down list, please
enter the user name here.
-14 -

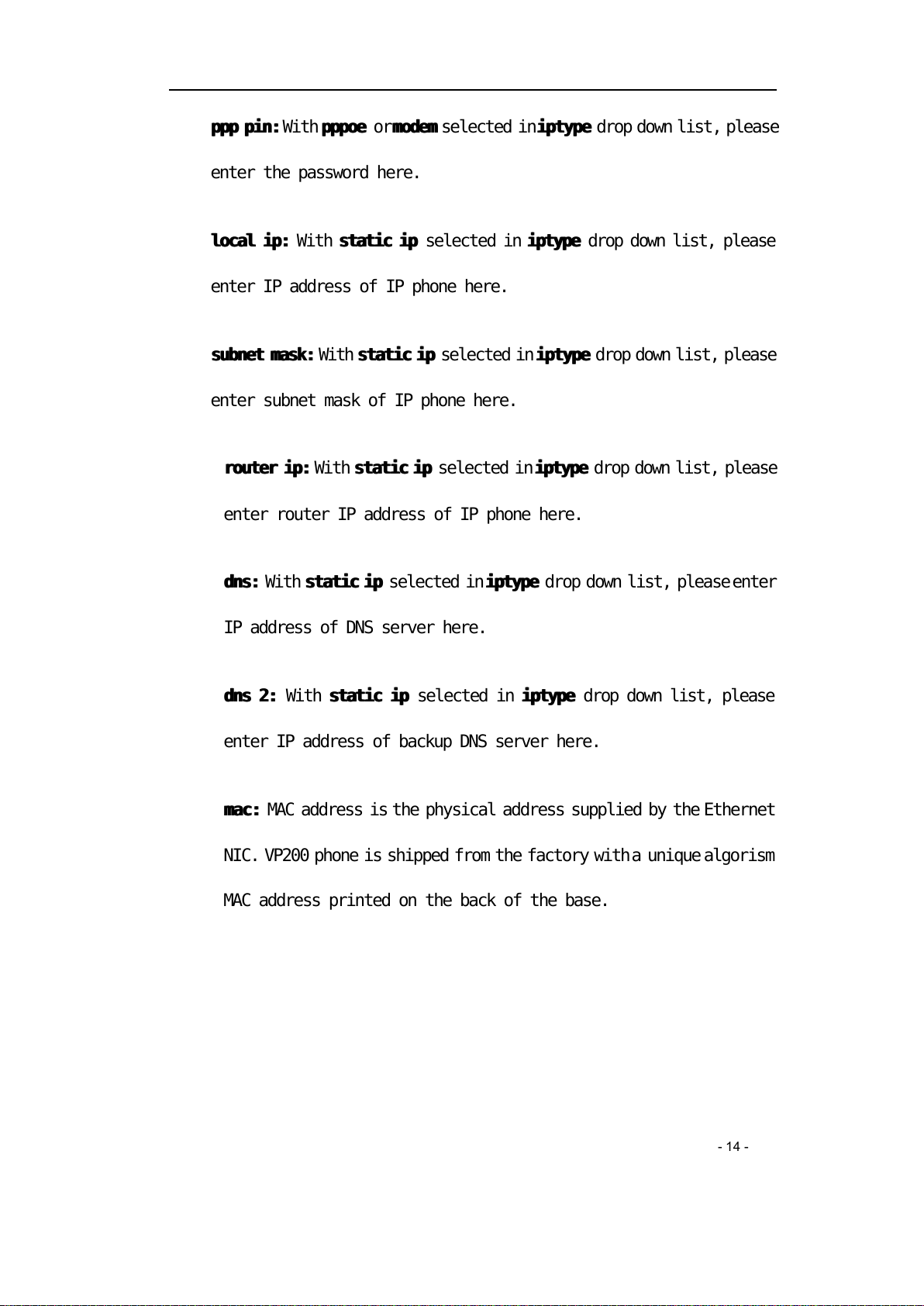

ppp pin:ppp pin: With pppoepppoe ormodemmodem selected iniptypeiptype drop down list, please
enter the password here.
local ip:local ip: With static ipstatic ip selected in iptypeiptype drop down list, please
enter IP address of IP phone here.
subnet mask:subnet mask: With static ipstatic ip selected in iptypeiptype drop down list, please
enter subnet mask of IP phone here.
router ip:router ip: With static ipstatic ip selected in iptypeiptype drop down list, please
enter router IP address of IP phone here.
dns:dns: With static ipstatic ip selected in iptypeiptype drop down list, pleaseenter
IP address of DNS server here.
dns 2:dns 2: With static ipstatic ip selected in iptypeiptype drop down list, please
enter IP address of backup DNS server here.
mac:mac: MAC address is the physical address supplied by the Ethernet
NIC. VP200 phone is shipped from the factory withaunique algorism
MAC address printed on the back of the base.
-15 -
ØAudioAudio settings:settings:

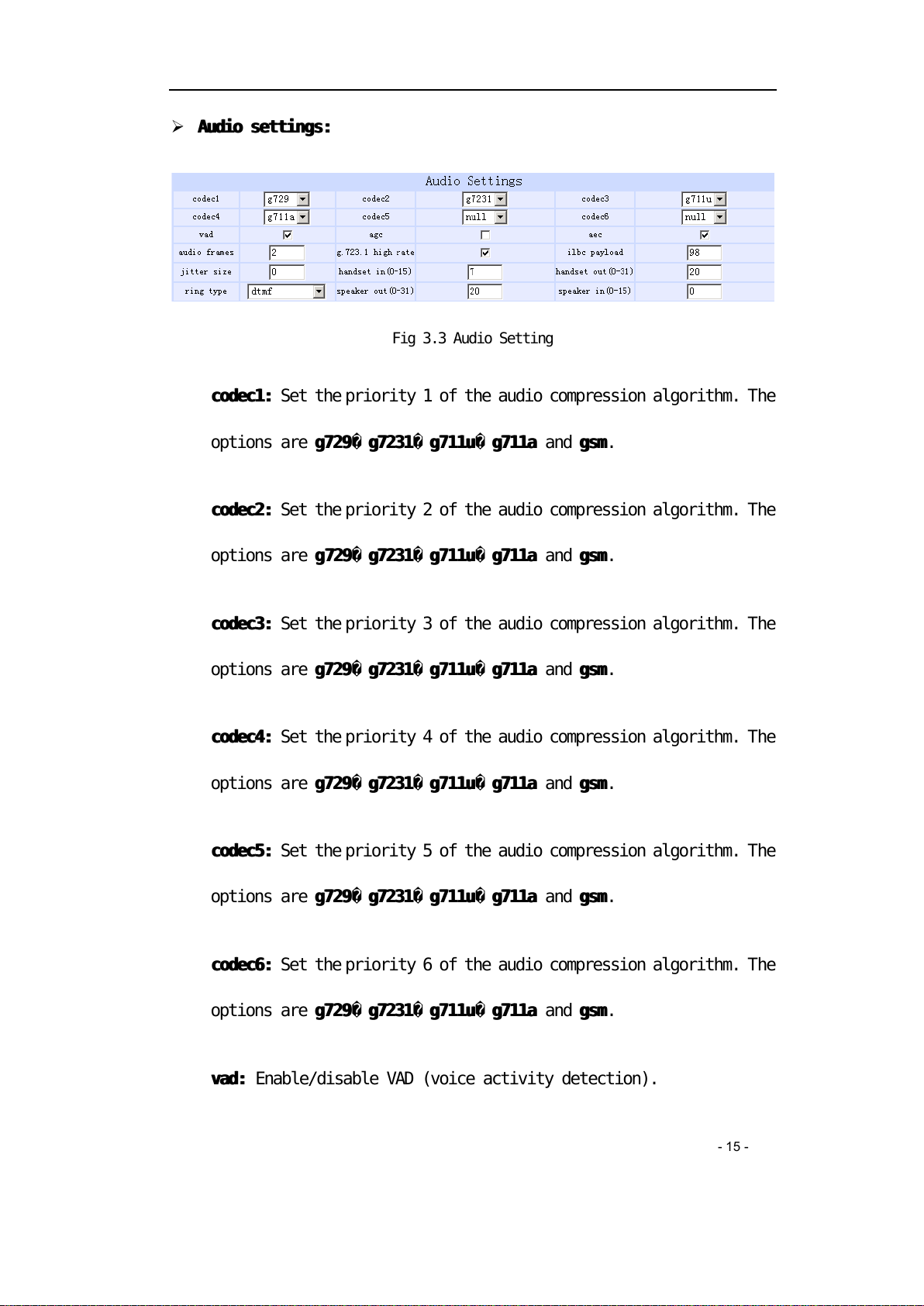

Fig 3.3 Audio Setting
codec1:codec1: Set the priority 1 of the audio compression algorithm. The
options are g729g729gg77231231g711ug711ugg7711a11a and gsmgsm.
codec2:codec2: Set the priority 2 of the audio compression algorithm. The
options are g7g72929gg77231231g711ug711ugg7711a11a and gsmgsm.
codec3:codec3: Set the priority 3 of the audio compression algorithm. The
options are g729g729gg77231231g711ug711ugg7711a11a and gsmgsm.
codec4:codec4: Set the priority 4 of the audio compression algorithm. The
options are g729g729gg77231231g711ug711ugg7711a11a and gsmgsm.
codecodec5:c5: Set the priority 5 of the audio compression algorithm. The
options are g729g729gg77231231g711ug711ugg7711a11a and gsmgsm.
codec6:codec6: Set the priority 6 of the audio compression algorithm. The
options are g729g729gg77231231g711ug711ugg7711a11a and gsmgsm.
vad:vad: Enable/disable VAD (voice activity detection).
-16 -
agc:agc: Enable/disable AGC.
aec:aec: Enable/disable VEC.
audio frame:audio frame: Set audio frames in RTP package. Minimum is 1 and maximum
is 8.
g.723.1 high rate:g.723.1 high rate: enable/disable g.723.1 high rate. G.723.1 high
rate is 6.3kbps, low rate is 5.3kbps.
ilbc payloailbc payload :d : Set the payload type of RTP package whne ILBC codec
selected to DTMF delay. The value range is 96-255.
jitter size :jitter size : Set buffer size of RTP package. The valuerange is 0 -32.
handset in:handset in: Set the volume of handset input.
handset out:handset out: Set the volume of handset output.
ring type:ring type: Set ring type by selecting corresponding item from drop
down list.
ndtmfdtmf :: Set ring as ordinary rings in different frequency
nnot disturbnot disturb: Set the phone do not ring by selecting this item.
nuser defineuser define Set ring as music saved by user by selecting this item.
-17 -
nAdvancedAdvanced:: Set ring used the individualized tone provided by system
(need system support).
speaker out:speaker out: Set the volume of handfree output.
speaker in:speaker in: Set the volume of handfree input.
ØDial Plan settings:Dial Plan settings:
Fig 3.4 Dial Plan Setting
use dialplan:use dialplan: Set whether use dial plan or use dial number by
selecting the corresponding item in drop down list.
ndisable:disable: Do not use dial plan or dial number by selecting this
item.
nenable:enable: Use dial plan by selecting this item.
ndialnum:dialnum: Use dial number by selecting this item. With this item
selected, please enter the dial prefix into dial numberdial number field.
nprefix:prefix: Use specially service by selecting this item.
nHotline:Hotline: Use Hotline function by selecting this item. With this
item selected, please enter the hotline number into dial numberdial number
-18 -

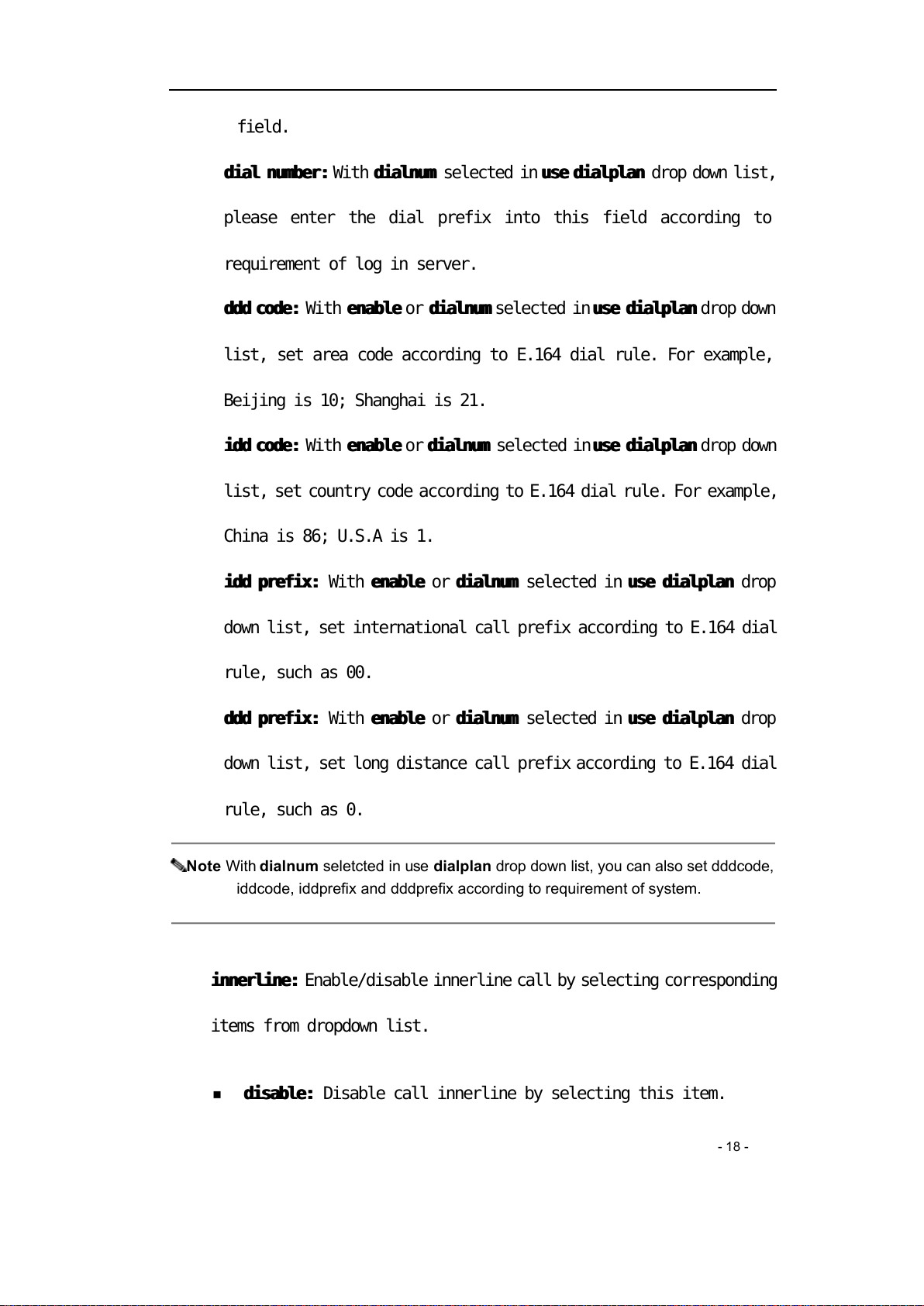

field.
dial number:dial number: With dialnumdialnum selected in use dialplanuse dialplan drop down list,
please enter the dial prefix into this field according to
requirement of log in server.
ddd code:ddd code: With enableenable or dialnumdialnum selected in use dialplanuse dialplan drop down
list, set area code according to E.164 dial rule. For example,
Beijing is 10; Shanghai is 21.
idd code:idd code: With enableenable or dialnumdialnum selected in use dialplanuse dialplan drop down
list, set country code according to E.164 dial rule. For example,
China is 86; U.S.A is 1.
idd prefix:idd prefix: With enableenable or dialnumdialnum selected in use dialplanuse dialplan drop
down list, set international call prefix according to E.164 dial
rule, such as 00.
ddd prefix:ddd prefix: With enableenable or dialnumdialnum selected in use dialplanuse dialplan drop
down list, set long distance call prefix according to E.164 dial
rule, such as 0.
Note With dialnum seletcted in use dialplan drop down list, you can also set dddcode,
iddcode, iddprefix and dddprefix according to requirement of system.
innerline:innerline: Enable/disable innerline call by selecting corresponding
items from dropdown list.
ndisable:disable: Disable call innerline by selecting this item.
-19 -

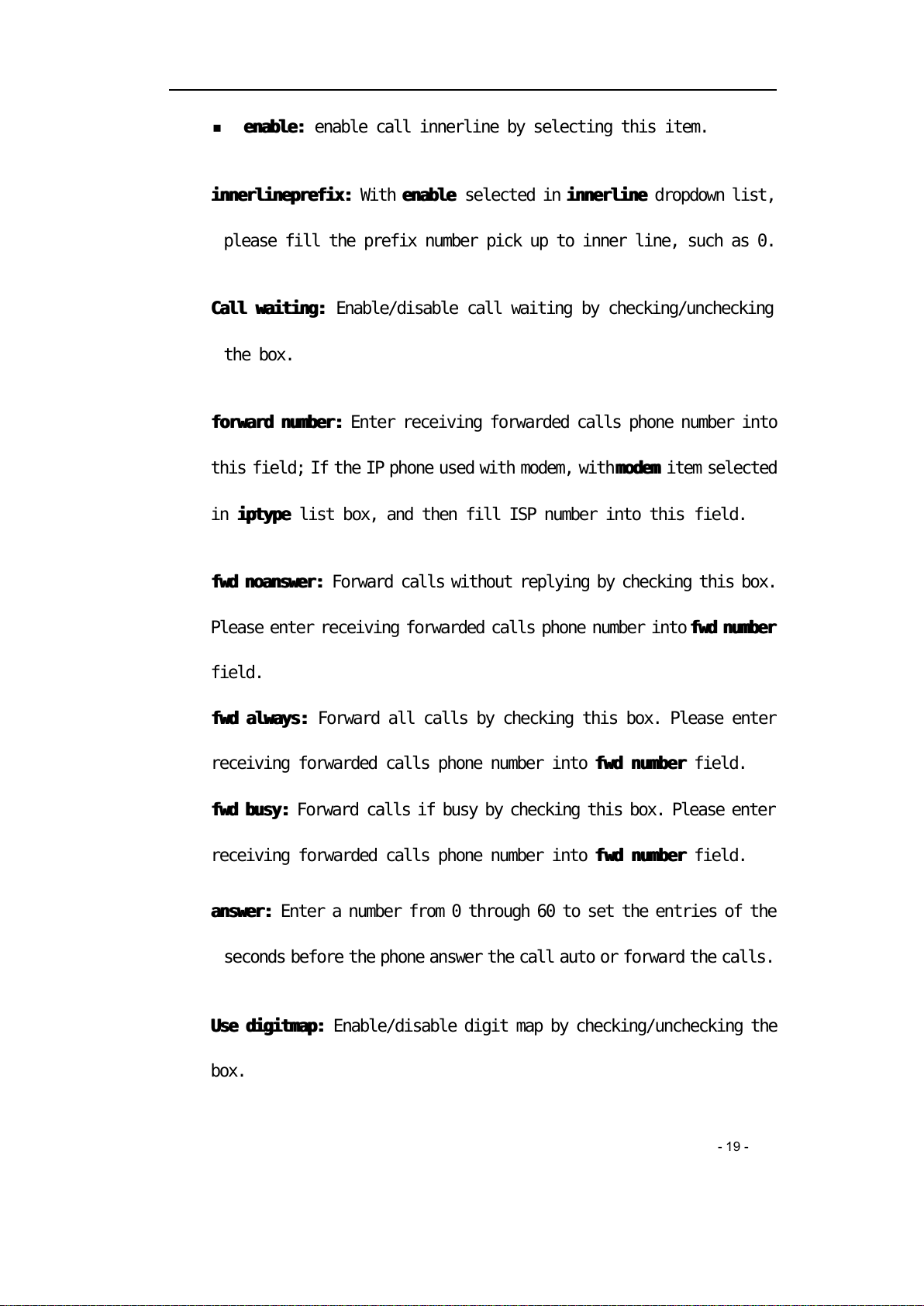

nenable:enable: enable call innerline by selecting this item.
innerlineprefix:innerlineprefix: With enableenable selected in innerlineinnerline dropdown list,
please fill the prefix number pick up to inner line, such as 0.
CCall waiting:all waiting: Enable/disable call waiting by checking/unchecking
the box.
forward number:forward number: Enter receiving forwarded calls phone number into
this field; If the IP phone used with modem, withmodemmodem item selected
in iptypeiptype list box, and then fill ISP number into this field.
fwd nofwd noansweranswer:: Forward calls without replying by checking this box.
Please enter receiving forwarded calls phone number into fwfwd numberd number
field.
fwd always:fwd always: Forward all calls by checking this box. Please enter
receiving forwarded calls phone number into fwd numberfwd number field.
fwd busy:fwd busy: Forward calls if busy by checking this box. Please enter
receiving forwarded calls phone number into fwfwd numberd number field.
answer:answer: Enter a number from 0 through 60 to set the entries of the
seconds before the phone answer the call auto or forward the calls.
UUse digitmap:se digitmap: Enable/disable digit map by checking/unchecking the
box.
Other manuals for VP200
1
Table of contents
Other Yoda IP Phone manuals
