York PC9*DH Quick start guide

TECHNICAL GUIDE
AFFINITY
MODELS: PC9*DH
GAS-FIRED
CONDENSING / HIGH EFFICIENCY
DOWNFLOW / HORIZONTAL
MODULATING FURNACES
WITH ECM MOTOR
NATURAL GAS
60 - 120 MBH INPUT
Due to continuous product improvement,
specifications are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.gamanet.org.
EFFICIENCY
RATING
CERTIFIED
ISO 9001
Certified Quality
Management System
246815-YTG-D-0108
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
These Category IV, highly efficient, compact, condensing
type furnaces are designed for residential and commercial
installations in a basement, closet, alcove, recreation room or
garage where the ambient temperature is above 32°F, or
higher. They may be either side wall or thru-roof vented using
approved plastic type combustion air and vent piping. All
units are factory assembled, wired and tested to assure
dependable and economical installation and operation.
WARRANTY
Lifetime limited warranty on both heat exchangers to the orig-
inal purchaser; a 20-year limited warranty from original instal-
lation date to subsequent purchaser.
10-year warranty on the heat exchanger in commercial appli-
cations.
5-year limited parts warranty.
FEATURES
• Modulating heating operation includes:
- Modulating gas valve
- Modulating inducer operation
• Provides increased comfort level & very quiet unit opera-
tion
• Compact, easy to install, ideal height 40" cabinet.
• Blower-off delay for cooling SEER improvement.
• Easy to connect power/control wiring.
• Built-in, high level self diagnostics with fault code display.
• Low unit amp requirement for easy replacement applica-
tion.
• Integrated control module for reliable, economical opera-
tion.
• High velocity filter available for easy field installation.
• May be installed as either two-pipe (direct vent) or single
pipe vent (using indoor combustion air)
• Top intake & vent connection allows installation in narrow
locations.
• Electronic Hot Surface Ignition saves fuel cost with
increased dependability and reliability.
• Induced combustion system with inshot main burners for
quiet, efficient operation.
• No special vent termination kit required.
• 100% shut off main gas valve for extra safety.
• ECM High-efficiency, direct drive motor with large, quiet
blower.
• 24V, 40 VA control transformer and blower relay supplied
for add-on cooling.
• Hi-tech tubular aluminized steel primary heat exchanger.
• Secondary (condensing) heat exchanger of 29-4C high-
grade stainless steel.
• Timed on, adjustable off blower capability for maximum
comfort.
• Independent door removal for greater durabilty and ease
of access.
• Easy access from front of unit for cleaning, maintenance or
service.
• Protection from intake, exhaust or condensate blockage.
• Insulated blower compartment for quiet operation.
• 3-way transition facilitates fresh air piping.

246815-YTG-D-0108
2Unitary Products Group
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
C
19-1/4
1-1/4
1-1/4 5/8
5/8
23-5/8
D
2-1/4
23-1/4
20
B
BOTTOM IMAGE
SUPPLY END
TOP IMAGE
RETURN END
LEFT SIDE
RIGHT SIDE
22-3/4
7/8
7/8
13-7/8
HORIZONTAL CONDENSATE
DRAIN OPENING 2”
JUNCTION BOX
HOLE 7/8”
GAS PIPE ENTRY 1-1/2”
CONDENSATE DRAIN
HOLE 7/8”
SIDE PIPING HOLE 3-3/8”
T-STAT WIRING 7/8” K.O.
HORIZONTAL CONDENSATE
DRAIN OPENING 1-3/4”
22-1/4
25-3/8
26-1/2
27-1/8
29
22-3/4
21-5/8
18-1/2
11-3/4
7-1/2
2-1/4
T-STAT WIRING 7/8” K.O.
HORIZONTAL CONDENSATE
DRAIN OPENING 1-3/4”
HORIZONTAL
CONDENSATE
DRAIN OPENING 1-3/4”
JUNCTION BOX
HOLE 7/8”
GAS PIPE
ENTRY 1-1/2”
CONDENSATE DRAIN
HOLE 7/8”
29
22-3/4
21-1/4
18-1/2
9-1/8
8-1/2
30-1/8
23-11/16
E
FRONT
A
40
DIMENSIONS
Models CFM Cabinet
Size Cabinet Dimension
A (in.) B (in.) C (in.) D (in.) E (IN.)
PC9B12N060DH11 1200 B 17-1/2 16-1/4 15 1-3/4 2-3/8
PC9B12N080DH11 1200 B 17-1/2 16-1/4 15 1-3/4 2-3/8
PC9C16N080DH11 1600 C 21 19-3/4 18-1/2 2-1/8 2-3/4
PC9C16N100DH11 1600 C 21 19-3/4 18-1/2 2-1/8 2-3/4
PC9C20N100DH11 2000 C 21 19-3/4 18-1/2 2-1/8 2-3/4
PC9D20N120DH11 2000 D 24-1/2 23-1/4 22 2-1/2 3
ELECTRICAL AND PERFORMANCE DATA
Models Input
Max/Min Output Max/Min Nominal Airflow Cabinet Width AFUE Air Temp. Rise Maximum Input Air Temp. Rise Minimum Input
MBH MBH CFM In. % °F °F
PC9B12N060DH11 60 / 21 57 / 20 1200 17-1/2 95.0 40 - 70 20 - 50
PC9B12N080DH11 80 / 28 76 / 26 1200 17-1/2 95.0 40 - 70 20 - 50
PC9C16N080DH11 80 / 28 76 / 26 1600 21 95.0 40 - 70 20 - 50
PC9C16N100DH11 100 / 35 95 / 33 1600 21 95.0 40 - 70 20 - 50
PC9C20N100DH11 100 / 35 95 / 33 2000 21 95.0 40 - 70 20 - 50
PC9D20N120DH11 120 / 42 115 / 39 2000 24-1/2 95.0 40 - 70 20 - 50
Models Max.Outlet
Air Temp. Blower Blower Size Total Unit Max.
Over-current
Protect
Min. Wire Size
(awg) @ 75 ft.
One Way
Approximate
Operating
Weight
Power Supply
(Voltage-PH-Hz
°F HP Amps In. Amps
PC9B12N060DH11 170 1/2 7.7 11 x 8 9 20 14 136 115-1-60
PC9B12N080DH11 170 1/2 7.7 11 x 8 9 20 14 143 115-1-60
PC9C16N080DH11 170 3/4 9.6 11 x 10 12 20 14 159 115-1-60
PC9C16N100DH11 170 3/4 9.6 11 x 10 12 20 14 163 115-1-60
PC9C20N100DH11 170 1 12.8 11 x 11 14 20 12 165 115-1-60
PC9D20N120DH11 170 1 12.8 11 x 11 14 20 12 182 115-1-60

246815-YTG-D-0108
Unitary Products Group 3
NOTES:
1. Airflow expressed in standard cubic feet per minute (CFM).
AIR FLOW DATA
HIGH / LOW SPEED COOLING AND HEAT PUMP CFM
PC9B12N060DH11 PC9B12N080DH11 JUMPER SETTINGS
CFM CFM
High Low High Low COOL Tap ADJ Tap
1330 900 1310 890 A B
1130 800 1100 740 B B
1220 850 1220 830 A A
1040 730 1000 670 B A
1120 770 1090 720 A C
920 650 900 610 C B
950 660 880 610 B C
740 540 680 510 D B
860 610 810 580 C A
690 540 630 500 D A
790 570 730 530 C C
630 530 590 500 D C
PC9C16N080DH11
PC9C16N100DH11 PC9C20N100DH11 JUMPER SETTINGS
CFM CFM
High Low High Low COOL Tap ADJ Tap
1660 1110 2210 1480 A B
1550 1050 1780 1180 B B
1610 1070 2040 1350 A A
1440 960 1620 1050 B A
1470 990 1840 1250 A C
1370 920 1560 1010 C B
1290 850 1470 940 B C
1130 790 1370 890 D B
1230 850 1460 930 C A
1050 720 1250 790 D A
1110 760 1310 810 C C
950 660 1090 690 D C
PC9D20N120DH11 JUMPER SETTINGS
CFM
High Low COOL Tap ADJ Tap
2280 1510 A B
1860 1190 B B
2090 1370 A A
1630 1060 B A
1880 1250 A C
1620 1030 C B
1500 960 B C
1410 880 D B
1490 920 C A
1290 790 D A
1360 840 C C
1140 690 D C
All CFM’s are shown at 0.5” w.c. external static pressure.These units have variable speed motors that automatically adjust to provide constant CFM from 0.0” to 0.6” w.c.
static pressure. From 0.6” to 1.0” static pressure, CFM is reduced by 2% per 0.1” increase in static. Operation on duct systems with greater than 1.0” w.c. external static
pressure is not recommended.
NOTE: At some settings, LOW COOL airflow may be lower that what is required to operate an airflow switch on certain models of electronic air cleaners. Consult the
instructions for the electronic air cleaner for further details.

246815-YTG-D-0108
4Unitary Products Group
FILTER PERFORMANCE
The airflow capacity data published in the “Blower Perfor-
mance” table listed above represents blower performance
WITHOUT filters. To determine the approximate blower per-
formance of the system, apply the filter drop value for the fil-
ter being used or select an appropriate value from the “Filter
Performance” table shown.
NOTE: The filter pressure drop values in the “Filter Perfor-
mance” table shown are typical values for the type of filter
listed and should only be used as a guideline. Actual pres-
sure drop ratings for each filter type vary between filter manu-
facturer.
NOTE: All filters must be high velocity cleanable type.
APPLYING FILTER PRESSURE DROP TO
DETERMINE SYSTEM AIRFLOW
To determine the approximate airflow of the unit with a filter in
place, follow the steps below:
1. Select the filter type.
2. Determine the External System Static Pressure (ESP)
without the filter.
3. Select a filter pressure drop from the table based upon
the number of return air openings or return air opening
size and add to the ESP from Step 2 to determine the
total system static.
If total system static matches a ESP value in the airflow table
(i.e. 0.20, 0.60, etc,) the system airflow corresponds to the
intersection of the ESP column and Model/Blower Speed row.
FILTER SIZES
CFM Cabinet
Size Top Return Filter in
1200 B (2) 14 x 20
1600 C (2) 14 x 20
2000 C (2) 14 x 20
2000 D (2) 14 x 20
FILTER PERFORMANCE - PRESSURE DROP INCHES W.C. AND (KPA)
Airflow Range Minimum
Opening Size Filter Type
Disposable Washable Fiber Pleated
CFM in2In W.C. In W.C. In W.C.
0 - 750 230 0.01 0.01 0.15
751 - 1000 330 0.05 0.05 0.20
1001 - 1250 330 0.10 0.10 0.20
1251 - 1500 330 0.10 0.10 0.25
1501 - 1750 380 0.15 0.14 0.30
1751 - 2000 380 0.19 0.18 0.30
2001 & Above 463 0.19 0.18 0.30
UNIT CLEARANCES TO COMBUSTIBLES
Application Top Front Rear Left Side Right Side Flue Floor/Bottom Closet Alcove Attic Line
Contact
In. In. In. In. In. In. In.
Downflow1300 0 0 1*
* Combustible floor base or air conditioning coil required for use on combustible floor.
Yes Yes Yes NA
Horizontal 0 3 0 1 1 0 0 Yes Yes Yes Yes†
† Line contact only permitted between lines formed by the intersection of the rear panel and side panel (top in horizontal position) of the furnace jacket and build-
ing joists, studs or framing.

246815-YTG-D-0108
Unitary Products Group 5
For additional connection diagrams for all UPG equipment refer to “Line Voltage System Wiring” document available on-line at
www.upgnet.com in the Product Catalog Section.

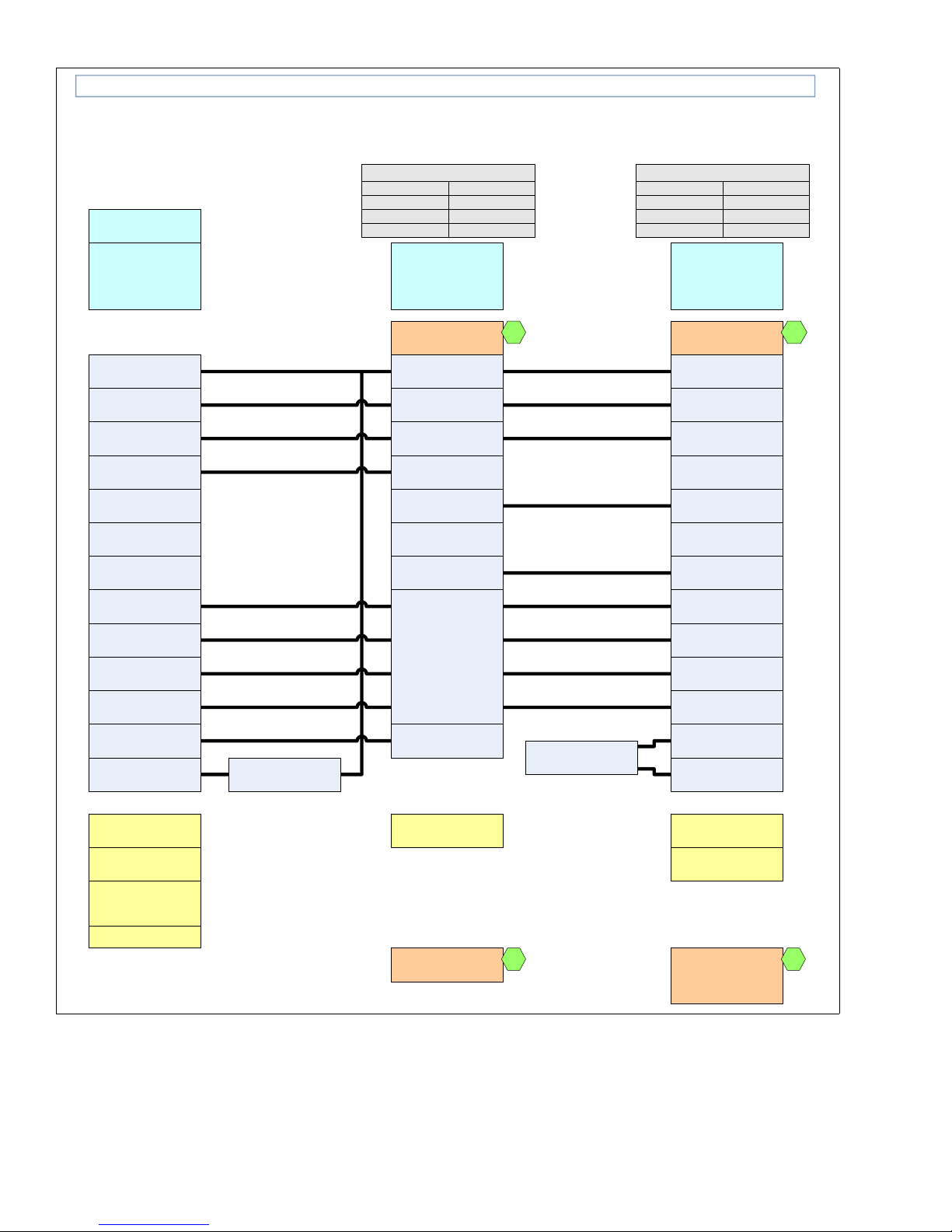

Thermostat Chart -
AC 26A Two Stage Air Conditioner – Variable Speed Modulating Furnace
C
24 – Volt Common
Y1
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*PP32U70124
THERMOSTAT
AUX
Auxiliary Heat
R
24 – Volt Hot
(Heat XFMR)
R
24 – Volt Hot
(Cool XFMR)
C
24 – Volt Common
Y1
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*DN22U00124
THERMOSTAT
W2
Second Stage Heat
R
24 – Volt Hot
(Heat XFMR)
R
24 – Volt Hot
(Cool XFMR)
E/W1
Emergency Heat
E/W1
First Stage Heat
TWO STAGE
AIR
CONDITIONER
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
Y2
Second Stage
Compressor
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
VARIABLE SPEED
MODULATING
FURNACE CONTROL
G
Fan
VARIABLE SPEED
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
HUM
Dehumidification-
Open on Humidity Rise
W
Modulating Heat
Part Numbers:
SAP = Legacy
171334 = 031-09153
1
1
Move HUMIDISTAT
jumper to “YES”
if humidistat is to be used.
FL9C
FC9C
PC9ID MODELS
External Humidistat
(Optional)
Open on Humidity Rise
24VAC Humidifier
(Optional)
External Humidistat
(Optional)
Open on Humidity Rise
22
Connection of the “C”
terminal, 24-Volt common
is optional when used with
batteries
Thermostat Installer Setup
0170-System Type-must
be set to 8-2 Heat/2 Cool
Multistage Conventional
Connection of the “C”
terminal, 24-volt common
is optional when used with
batteries
Thermostat Installer Setup
1-System Type-must
be set to 6-2 Heat/2 Cool
Multistage Conventional
Thermostat Installer Setup
15-Compressor Protection
-must be set to 5
Part Number:
S1-2HU16700124
2

246815-YTG-D-0108
6Unitary Products Group
Thermostat Chart -
AC 26B Two Stage Air Conditioner – Variable Speed Modulating Furnace
TWO STAGE
AIR
CONDITIONER
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
Y2
Second Stage
Compressor
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
VARIABLE SPEED
MODULATING
FURNACE CONTROL
G
Fan
VARIABLE SPEED
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
HUM
Dehumidification-
Open on Humidity Rise
W
Modulating Heat
Part Numbers:
SAP = Legacy
171334 = 031-09153
1
1
Move HUMIDISTAT
jumper to “YES”
if humidistat is to be used.
FL9C
FC9C
PC9ID MODELS
External Humidistat
(Optional)
Open on Humidity Rise
24VAC Humidifier
(Optional)
External Humidistat
(Optional)
Open on Humidity Rise
22
Part Number:
S1-2HU16700124
2
C
24 – Volt Common
R
24 – Volt Hot
Y
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*DN22C00124
THERMOSTAT
W2
Second Stage Heat
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
Y2
Second Stage
Compressor
G
Fan
*DP22U70124
THERMOSTAT
W2
Second Stage Heat
W
First Stage Heat E/W1 First Stage Heat
Step 1 of Thermostat User
Configuration Menu must
be set to MS 2
Connection of the “C”
terminal, 24-Volt common
is optional when used with
batteries Connection of the “C”
terminal, 24-Volt common
is optional when used with
batteries

246815-YTG-D-0108
Unitary Products Group 7
Thermostat Chart -
Optional Harness
AC 26C Two Stage Air Conditioner – Variable Speed Modulating Furnace
TWO STAGE
AIR
CONDITIONER
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
Y2
Second Stage
Compressor
C
24 – Volt Common
Y1
First Stage Compressor
L
Malfunction Light
Y2
Second Stage
Compressor
G
Fan
*PP32U71124
*PP32U72124
THERMOSTAT
R
24 – Volt Hot
W2
Second Stage Heat
DHM
Dehumidification
HM
Humidistat
Step 1 of Thermostat User
Configuration Menu must
be set to MLTISTG
E/W1
First Stage Heat
24VAC Humidifer
(Optional)
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
VARIABLE SPEED
MODULATING
FURNACE CONTROL
G
Fan
VARIABLE SPEED
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
HUM
Dehumidification-
Open on Humidity Rise
W
Modulating Heat
Part Numbers:
SAP = Legacy
171334 = 031-09153
1
1
Move HUMIDISTAT
jumper to “YES”
if humidistat is to be used.
FL9C
FC9C
PC9ID MODELS
Comfort Alert Interface
(two pin connector)
E2/P Switch must be in the
E2 position
Step 16 of Thermostat
Installer Table Menu
must be set to ON to use
Comfort Alert Features
Only applies to
*PP32U72124

246815-YTG-D-0108
8Unitary Products Group
Thermostat Chart -
O
Reversing Valve
Energized in Cool
C
24 – Volt Common
R
24 – Volt Hot
W1 OUT
First Stage Heat
W2 OUT
Second Stage Heat
Y2 OUT
Second Stage Compressor
Y1
Single Stage Compressor
X/L
Malfunction Light
Y2
Second Stage Compressor
W
Auxiliary Heat
BS
Bonnet Sensor
BSG
Bonnet Sensor
YORKGUARD VI
CONTROL
TWO STAGE
HEAT PUMP
Bonnet Sensor
(Optional)
C
24 – Volt Common
Y1
First Stage Compressor
L
Malfunction Light
Y2
Second Stage Compressor
G
Fan
*PP32U71124
*PP32U72124
THERMOSTAT
R
24 – Volt Hot
E/W1
First Stage Aux. Heat
W2
Second Stage Aux. Heat
DHM
Dehumidistat
HM
Humidistat
O
Reversing Valve
Energized in Cool
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
VARIABLE SPEED
MODULATING
FURNACE CONTROL
G
Fan
VARIABLE SPEED
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
HUM
Dehumidification-
Open on Humidity Rise
W
Modulating Heat
Change FFuel jumper
on the heat pump control
to “ON”
1
Part Numbers:
SAP = Legacy
171334 = 031-09153
2
2
Move HUMIDISTAT
jumper to “YES”
if humidistat is to be used.
Part Numbers:
SAP = Legacy
126768 = 031-09137
18395 = 031-01996
340512 = 031-09178
1
FL9C
FC9C
PC9ID MODELS YZE
OD MODELS
YZH
H*5
H*8
Step 1 of the Thermostat
Installer Table must be
set to Heat Pump
E2/P Switch must be in the
E2 position
Step 2 of the Thermostat
Installer Table must be
set to 2
Step 5 of Thermostat User
Configuration Menu must
be set to “ON” for
Dehumidification
24VAC Humidifier
(Optional)
Change Hot Heat Pump
jumper on the heat pump
control to “ON”
HP 28A Two Stage Heat Pump – Variable Speed Modulating Furnace (With Hot Heat Pump Operation)

246815-YTG-D-0108
Unitary Products Group 9
Thermostat Chart -
HP 28C Two Stage Heat Pump – Variable Speed Modulating Furnace (With Hot Heat Pump Operation)
O
Reversing Valve
Energized in Cool
C
24 – Volt Common
R
24 – Volt Hot
W1 OUT
First Stage Heat
W2 OUT
Second Stage Heat
Y2 OUT
Second Stage Compressor
Y1
Single Stage Compressor
X/L
Malfunction Light
Y2
Second Stage Compressor
W
Auxiliary Heat
BS
Bonnet Sensor
BSG
Bonnet Sensor
YORKGUARD VI
CONTROL
TWO STAGE
HEAT PUMP
Bonnet Sensor
(Optional)
C
24 – Volt Common
R
24 – Volt Hot
Y1
Single Stage Compressor
VARIABLE SPEED
MODULATING
FURNACE CONTROL
G
Fan
VARIABLE SPEED
MODULATING
FURNACE
Y/Y2
Second or Full
Stage Compressor
HUM
Dehumidification-
Open on Humidity Rise
W
Modulating Heat
Change FFuel jumper
on the heat pump control
to “ON”
1
Part Numbers:
SAP = Legacy
171334 = 031-09153
2
2
Move HUMIDISTAT
jumper to “YES”
if humidistat is to be used.
Part Numbers:
SAP = Legacy
126768 = 031-09137
18395 = 031-01996
340512 = 031-09178
1
FL9C
FC9C
PC9ID MODELS YZE
OD MODELS
YZH
H*5
H*8
C
24 – Volt Common
R
24 – Volt Hot
Y1
First Stage Compressor
O
Reversing Valve
Energized in Cool
L
Malfunction Light
Y2
Second Stage Compressor
G
Fan
*DN22H00124
*DP22U70124
THERMOSTAT
E/W1
First Stage Aux. Heat
W2
Second Stage Aux. Heat
C
24 – Volt Common
Y
First Stage Compressor
O/B
Reversing Valve
L
Malfunction Light
Y2
Second Stage Compressor
G
Fan
*PP32U70124
THERMOSTAT
E
Emergency Heat
R
24 – Volt Hot
(Heat XFMR)
RC
24 – Volt Hot
(Cool XFMR)
AUX
Auxiliary Heat
Step 1 of Thermostat
Installer/Configuration
Menu must be set to “HP2”
Selection of GAS/ELEC
switch on thermostat
not necessary
Thermostat Installer Setup
0170-System Type-
must be set to 12
3 Heat/2 Heat Pump
Thermostat Installer Setup
0190-Changeover Valve-
must be set to 0
O/B terminal
Energized in Cooling
Thermostat Installer Setup
0200-Backup Heat Source-
must be set to 1
Heat Pump Backup Heat
Source is Fossil Fuel
External Humidistat
(Optional)
Open on Humidity Rise
Thermostat Installer Setup
0210-External Fossil Fuel
Kit- must be set to 1
Heat Pump Control
is Controlling Heat Pump
Backup Heat
Change Hot Heat Pump
jumper on the heat pump
control to “ON”
3

246815-YTG-D-0108
10 Unitary Products Group
ACCESSORIES
PROPANE (LP) CONVERSION KIT -
1NP0680 - All units
This accessory conversion kit may be used to convert natural
gas (N) units for propane (LP) operation. Conversions must
be made by qualified distributor or dealer personnel.
CONCENTRIC VENT TERMINATION -
1CT0302 (2")
1CT0303 (3")
CONDENSATE NEUTRALIZER KIT - 1HT0901
Neutralizer cartidge has a 1/2" plastic tube fittings for installa-
tion in the drain line. Calcium carbonate refill media is also
avaiable from the Source 1 Parts (p/n 026-30228-000).
SIDEWALL VENT TERMINATION -
1HT0901 (3")
1HT0902 (2")
For use on sidewall, two-pipe installations only. Provide a
more attractive termination for locations where the terminal is
visable on the side of the home.
COMBUSTIBLE FLOOR BASE -
1CB0317 - 17 1/2” Cabinet
1CB0321 - 21” Cabinet
1CB0324 - 24-1/2” Cabinet
COIL TRANSITION -
1TK0917 - 17 1/2” Cabinet
1TK0921 - 21” Cabinet
1TK0924 - 24-1/2” Cabinet
Required in downflow applications when using G*FD series
coils.
ROOM THERMOSTATS - A wide selection of compatible
thermosets are available to provide optimum performance
and features for any installation.
1H/1C, manual change-over electronic non-programmable
thermostat.
1H/1C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
1H/1C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the
price book or consult factory.

246815-YTG-D-0108
Unitary Products Group 11
NOTES

Subject to change without notice. Printed in U.S.A. 246815-YTG-D-0108
Copyright © by Unitary Products Group. 2008. All rights reserved. Supersedes: 246815-YTG-C-0606
Unitary 5005 Norman
Products York OK
Group Drive 73069
NOTES
