YORKVILLE UCS1P User manual

➲1500-watt Horn Loaded Powered Subwoofer
➲15-inch Long Excursion 8-ohm Driver
➲Compact Size (11.1 cubic feet)
➲3-inch Voicecoil
➲Solid 15mm 11-ply birch plywood cabinet
➲Heavy gauge perforated metal grille
➲Built in heavy duty casters and tiltback handle
➲Two-year unconditional warranty*
*Warrany valid in Canada and the United States only

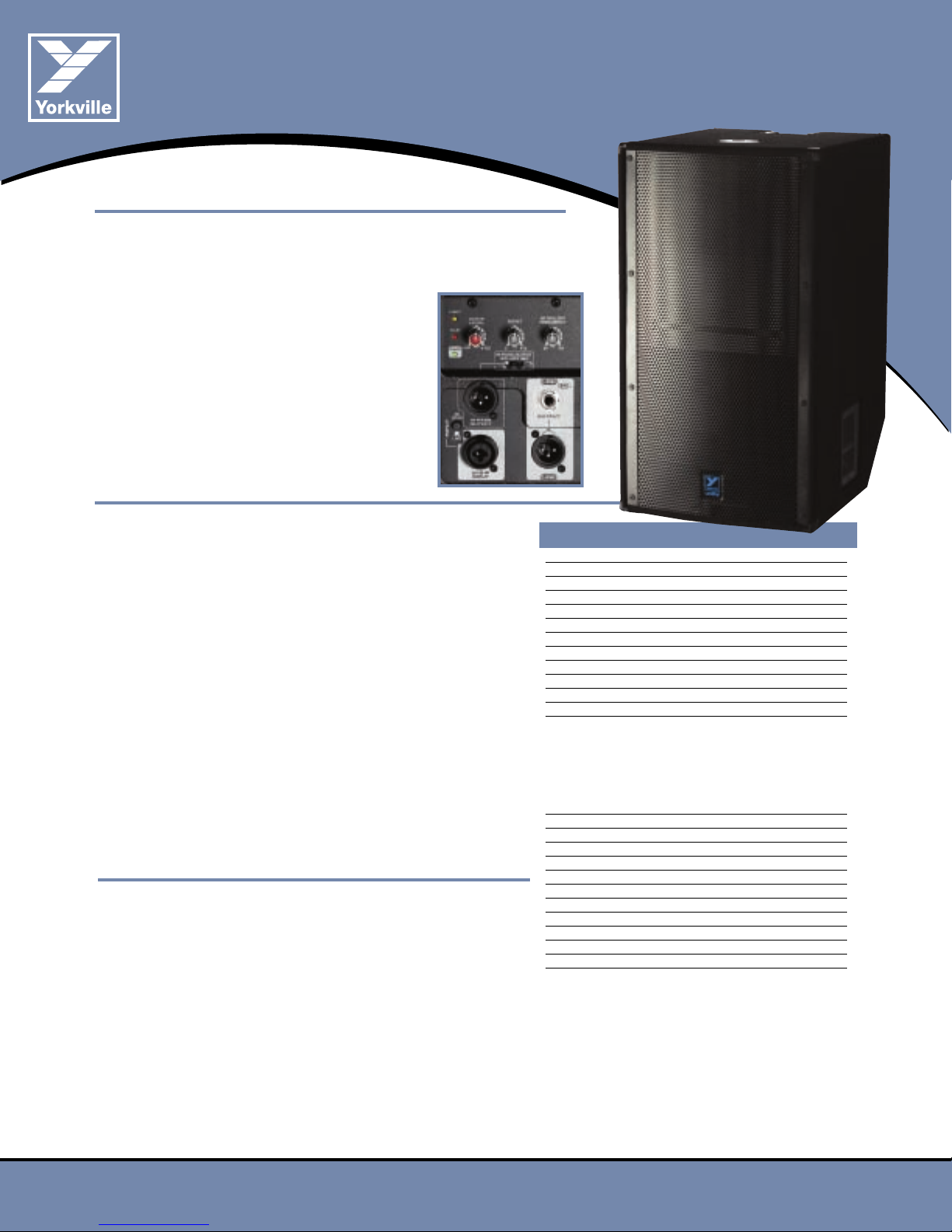

Unity™UCS1P
15-inch Powered Subwoofer
Unity™UCS1P
Features:
Overview:
yorkville.com
The Active UCS1P is the ideal active subwoofer solution for use with any
combination of Unity™ loudspeaker full-range cabinets. The 1500-watt
integrated power amplifier takes full advantage of the cabinet’s horn-loaded
design and single 15-inch long excursion driver to deliver enough bottom end
support for virtually any PA application.
The unmatched performance of the UCS1P is the direct result of outstanding
cabinet design combined with innovative integrated electronics designed to
maximize the UCS1P’s output. The UCS1P can be connected to any line or
speaker level source via the XLR / TRS Combi-jack input. Built-in crossover
circuitry means the UCS1P can be added to any system without complicated
external crossovers being required. Multiple UCS1P’s can be integrated into any
setup using the XLR or 1/4" TRS balanced thru put on each power module.
The UCS1P is made with a solid 15mm 11-ply birch plywood cabinet construction
and has a heavy gauge perforated metal grill to protect the components.
Integrated wheels and bar handles make moving and stacking the UCS1P as easy
as it can possibly be for a subwoofer in this class.
The UCS1P comes in a black carpet covering to mate with the U15, U215
and U15P.
Unity™ Series Overview
The Unity™ Series of loudspeakers is a radical loudspeaker cabinet design utilizing
the patented Unity™ Summation Aperture Horn Technology, which was invented by
loudspeaker designer Tom Danley and licensed from Sound Physics Labs Inc.
The Unity™ Series pushes the limits of modern state-of-the-art sound reinforcement
technology, which features a radical new loudspeaker horn design, arguably the first
major evolution in horn technology in the last 60 years. Ultra clear reproduction through the high-mid band with extremely linear frequency response
has been achieved using the patented* Unity™ horn technology, licensed from Sound Physics Labs Inc. Unity™ horn technology combines a single 1"
throat with a 1.75” diaphragm high frequency compression driver alongside three 5” ceramic magnet midrange drivers on a single, highly efficient
conical horn. This combines high and mid frequency energy in a single 60º x 60º conical horn that produces frequencies from 300Hz to 20kHz. Patent
holder Tom Danley explains it this way. "With a conical horn, one sees that at the compression driver exit, the expansion rate is very rapid at high
frequency cutoff, and since the expansion rate acts as a high pass filter, the low frequency energy does not couple to the mouth. Move a few inches
toward the mouth and one finds the expansion rate is much slower and suitable for low midrange, if only that was where the driver was. All one has
to do is obtain a mid driver,suitable for efficient horn loading in that frequency band and find the point in the flare where the expansion rate is suitable
for that frequency range and couple the sound in at that point. Because the compression driver and each mid driver are less than 1/4 wavelength apart,
their output combines fully and coherently,something which cannot happen if the driver were further than about 1/3 wavelength apart."
*U.S. Patent # 6,411,718 B1
Unity™ UCS1P Specifications:
Model UCS1P
SYSTEM TYPE Horn Loaded Subwoofer
ACTIVE OR PASSIVE Active
PROGRAM POWER (Watts) 1500
MAX SPL (dB) 132
FREQUENCY RESPONSE (Hz +/- 3db) 37 - 120
LF DRIVER(s) 15 inch, Ceramic Magnet, 3 inch voicecoil
LF PROTECTION Thermal / Overcurrent / Clip
LF POWER AMPLIFIER (Watts) 1500
POWER CONSUMPTION (typ/max) 792/960VA (8A@120V, 4A@230V)
INPUTS - XLR 1 line/speaker level Combi-Jack input
LED INDICATORS Clip, Limit
OTHER CONTROLS / FEATURES Active Controls:
Master Level
Bass Boost Level
HF Rolloff Frequency (80-150Hz)
Hi-Pass Output Rolloff Switch (90Hz, 100Hz, 110Hz)
Hi-Pass XLR Output
Speaker / Line level input switch
CORNERS Metal
FEET Rubber
WHEELS 2 (Rear)
BAR HANDLES 2 (Side), 1 (Rear), 1 (Bottom)
POLE MOUNT ADAPTER (1 3/8"-3.5cm) 1 (Top)
ENCLOSURE MATERIALS 15mm (5/8inch) 11-ply Russian Birch
GRILLE Perforated Metal
COVERING / FINISH Black Ozite (Carpet)
DIMENSIONS (DWH xbackW, inches) 27 x 22.25 x 41
DIMENSIONS (DWH xbackW, cm) 68.6 x 56.5 x 104
