YSX GD100L User manual

YSX
Quick Installation Guide and Service Guide
Cloud2Me to Smart HD Camera
GD100L(YSX001-B 720P Night Edition）

Congratulations, you have YSX high quality
webcam, beautiful and elegant structure, the
pixel clarity, a sense of immersive. Before
using this product, read the instructions
for proper use carefully.
1. Read instructions: Before using the product, please read
all safety and operating instructions.
2. Keep the operating instructions,it should be retained for
future reference.
3. Compliance with instructions: All operation and shall
comply with instructions for use.
4. Water and moisture: Do not use this product in a humid
environment near bathtubs, vanities, kitchen sink, pots and
other clothing. The yield Product can not be immersed in
water or splash water on it, nor objects filled with liquids
(such as vases)were placed on the product.
5. Outdoor use warning: To prevent the risk of fire and elec-
tric shock, do not place the product inrain or humid en-
vironment.
6. The storage location: Place the product in a dry,fixed
position.
7. Cleaning: Use a soft, dry cloth products should wipe. Never
use furniture wax, benzene, insecticides or other volatile
liquid cleaning the product, otherwise it will corrode the
product.
8. Foreign invasion: Please prevent foreign matter falling into
the inside of the product.
9. Maintenance: The user should not attempt to hands-on
service, should be left to deal with the manufacturers or
vendors.

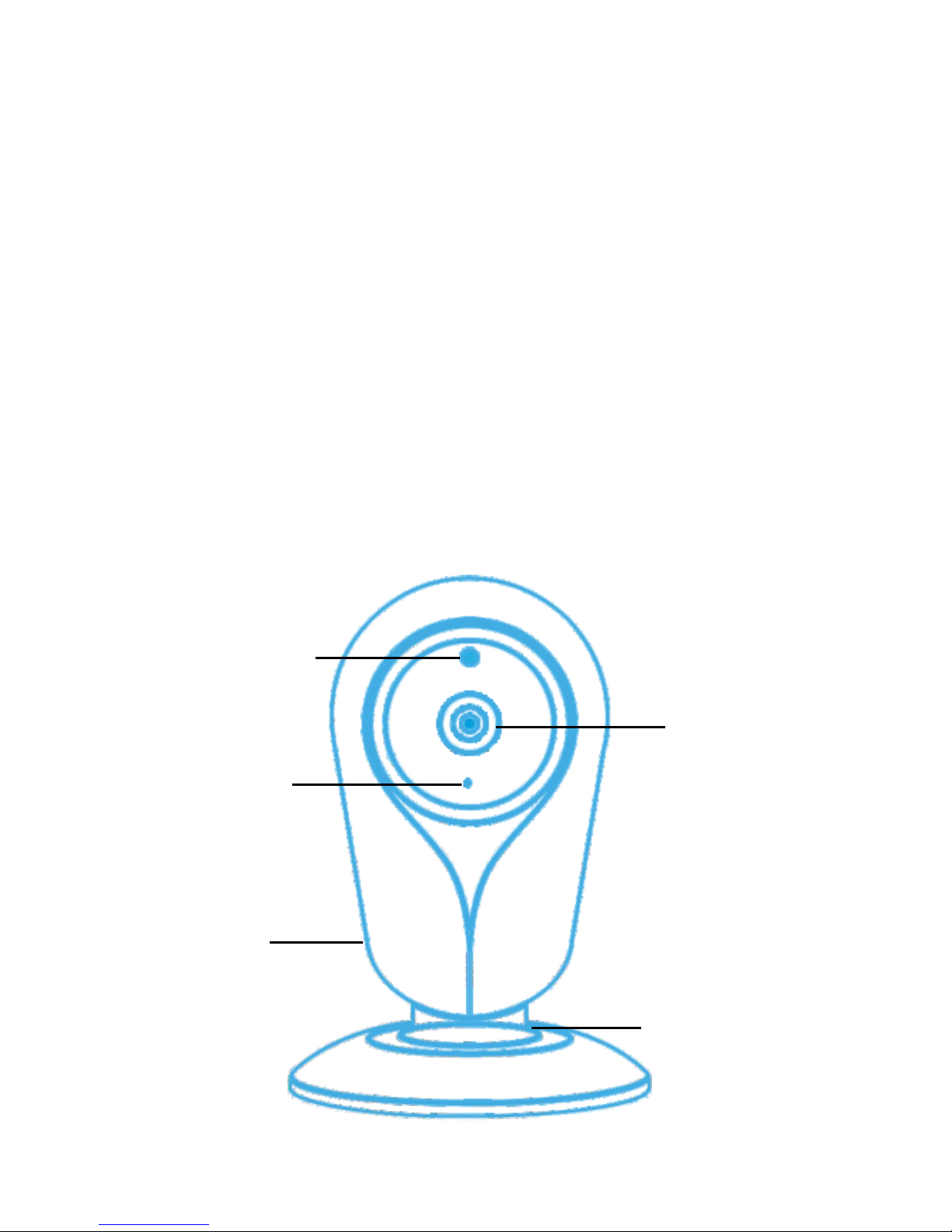

Infarde(Night
vision version)
Lens
Polot lamp
Stents
Foundation
Product manual
Hardware Description
Cloud2Me to be a through WIFI wireless network, with a
smart HD camera phone app use. You can use the cloud-
2Me to remote live (Live View), taped / playback (CVR),
voice intercom, you can also invite friends to watch together
and share life with joy.

Loudspeaker
SD card slot
Configuration
hole
Microphone
Power Port
IPC X 1
Mini USB Cable X 1
５Ｖ ／ １．５Ａ power adapter X 1 (support 10000mAh charge
treasure can hold about 12 hours continuous power
supply, equipment consumption per hour 300mAh)
Reset pin X 1
Quick Installation Guide and Service Guide
X 1
Packing List
After unpacking, please check the host is intact, accessories
are complete.
Hardware Description

Installation Method
Specifications
Sensor……
Image Device: CMOS image sensor chip (CS1211K)
Brand: PIXELPLUS
Photosensitive Size: Photoreceptor 1 / 2.9 "
Image resolution: 1280 * 720P (100W pixels)
Lens………
Lens Size:Sensing Area 1/2.7” M12
Lens Type: Full glass (4G)
Angle: H-FOC 94 °
Focus: 3.6mm fixed focal length
Aperture: F / No 2.1
Video……
Compression Format：H.264Mainprofile
Image: Vertical / horizontal
Frequency：50HZ，60HZ/Outdoor
Resolution and Frame Rate：
A clear pattern: 720P up to 15 frames / sec.
Smooth mode: VGA up to 15 frames / sec.
Stream: Supports dual-stream (1280 * 720P + VGA)
Image Enhancement: Auto white balance, backlight
compensation
Night function: Yes (auto switching)
Infrared Sensitivity: Support, less than 5LUX turn night mode
Night vision distance: 10 meters

Audio frequency……
Voice: Support half-duplex voice intercom (which can be
upgraded to full duplex)
Equipment: Built-in microphone, speaker
Audio Input and Output: 1 channel
Compression: Audio32
Network……
Network Interface: WIFI access 802.11 / b / g / n
Network Protocols：HTTP，TCP/IP，UDP，SMTP，DHCP，
P2P，Relay，Rtsp
Software Integration……
Docking Mode: APP docking, set up easy to use smart soft-
ware features: local storage, the phone re-
cording, motion detection
Monitoring: Support for Apple, Android phones,windows
computer monitor(Need to make the corresp-
onding system terminal software)
Remote Access: Determined by the different Cloud Server
Physical Characteristics……
Infrared Light: 10
Filter: With IR-CUT filter
Environmental Characteristics……
Operating Temperature：-10℃--35℃
Operating Humidity：20%--85%
Storage Temperature：-10℃--60℃
Storage Humidity： 0%--90%
Power……
Power Specifications：DC ５Ｖ／ １．５Ａ
Power: 2.5W Minimum
Storage……
External: Maximum support TF32G
Memory：DRAM / 64M，FLASH / 16M
Authenticate……
Currently ROHS; CE, FCC, etc.may apply for the customer's
own surplus video provide technical support.
Note: The above product specification defines the first edition,
there may be updated in real time, for reference only.

First:Assembly Products
1.Insert the SD card into the camera card slot.
2.Headgear in the network camera holder.
3.Power Connection: Plug the power cord is connected to
the 220V AC power, the other end of the power cord into
the camera interface.
4. Use communication equipment landing "cloud to cloud"
account, bind camera.
5.Turn on the video monitor.
Second:Use Operation Steps
1.Client Downloads
Method One: Two-dimensional code scanning on the pack-
age quickly download
Method two: The Cloud2Me to android version is available in
pea pods, application treasure download
Cloud2Me to ios version can be downloaded in
app store
Method three: The Cloud2Me to download and install android
version also directly through the link：
http://android.myapp.com/myapp/detail,htm?apk
Name=com.cn.Cloud2Me
http://apps.wandoujia.com/apps/com.cn.Cloud2Me
Assembly and Use

.Register Account2
)Wechet Registration(1
①Start App and select the login mode.
②Enter your account information of wechet
③Click OK
)(2 E-mail Registration
①Click E-mail
Click the "Register"②
③Enter the registered email password and click Register,
and into the mailbox activated
(3)Mobile Register
Click mobile landing
①
Sign Up ②
Enter the account password and then enter verification code ③
and click Register.
(3)Add Device
①Plug the power cord
②Insert wait 20 seconds, then insert the reset pin
③Hear "beep" sound, while the yellow light flashes
④Confirm flashing yellow light, or re operation of the second unit
⑤Enter WIFI information
⑥Ready to sweep the two-dimensional code / or select sonic Con-
figuration(Try try several times when not connected)
⑦Use IPC scan two-dimensional code, the distance between 10-20
cm. Wait adding results. Webcam added successfully (Chinese
voice: Scan successful, click Next; LED: flashing yellow light).
After the IPC on the line: Chinese voice: camera head the line;
LED: blue light.
⑧Click to add cameras to watch online.
(4)Features
①Click to add cameras to watch online
②Click on the appropriate button to voice intercom / scr-
een shots / Mobile Video / smooth, clear switch / a key full-
screen function
Assembly and Use

③Click the drop-down button, additional settings
④Select the item you want to set
⑤Click Share to share any micro-letter friends
⑥Click the alarm notification can view historical alarm log
⑦Click settings you can set alarm notifications, adjust the
sound, unbundling cameras operating
⑧After clicking the camera can no longer use the unbund-
ling of the camera
⑨Click on the phone choose to watch the video archive
⑩Click here to watch the recorded video
Watch the video archives
Click on the video file select the file (under green flag
indicates date can get to the SD card video)
Click the SD card you want to view the video archives
SD card remote viewing video
(5)Prompt
Share the feature of your happiness in real-time with ①
your friends, girlfriends, you can also share to micro-
channel group, so that we can remember your beautiful
moments together with you. And in consider-ation of the
safety of users, share links with a timeliness, share links
30mins when not being processed, share links will fail.
(Taking into account your privacy, sharing the equip-ment
is designed to only listen to the other side, and say,look,
ensure your absolute administrator pri0vileges)
SD card video for the card that is recording, client remote ②
access and support local playback, the video card in two
ways: md directory for motion detection record-ing video
each file 1min (need to enable motion detection to trigger) ,
record loop recording video directory for each file 10min.
File number of clients for remote access to the nearest 30,
and give priority to 30 md file directory.
Assembly and Use
11
12
13
14

1. Q:Two-dimensional code, a long acoustic formulated not
on how to do?
A: Place the unit off and re-configuration (from the ca-
mera when the two-dimens ional code formulated
about 10-15cm).
2.Q: Rom network camera for a long time, and WIFI name
and password correct?
A: Check the signal strength WIFI environment, or replace
the signal strength of the WIFI environment and reset
pin with a long press reset hole about 3S, hear the"beep"
sound to indicate successful reset, and reset.
3. Q: Real-time video playback failure?
A: Make sure the client network good video viewing re-
quires high-speed, multi-try a few times to refresh or
replace the network environment.
4. Q: Share a link does not open?
A: Make sure that the user has downloaded the product
sharing client.
5. Q: Mobile terminal can not hear the sound coming from
the camera?
A: Please put the phone volume to maximum.
6. Q: Camera can be successful on-line but can not bind an
account?
A: Make sure the camera is used by another account bind-
ing, as has been binding, remove the camera with anoth-
er account in the settings option.
7. Q:Client view live video is not smooth, Caton?
A: Check the phone WIFI environment or 3G / 4G signal
strength is attached.
8. Q: The client can not open the phone side recording / Can
not Get SD card recording?
A: Make sure you have enough memory mobile terminal / SD
card is Into the device.
Frequently Asked Questions

① This product must play its normal function in the network
to ensure smooth conditions. Any loss due to network qua-
lity of service, network failures and other service interrupt-
ions caused by force majeure arising from the company and
the manufacturer does not assume any responsibility.
② This product is a mobile terminal app enables remote live
video viewing require network support related costs charg-
ed by telecommunications operators you use.
③ In the service user, and constantly improve, the principle of
sustainable development, the company reserves the right
to modify the products described in this document and the
right to improve, customers no longer notice.
Disclaimer
Security Statement
① To avoid electromagnetic interference, turn off the product ex-
pressly prohibit the use of electronic devices in the workplace or
the environment, including but not limited to aircraft, medical fa-
cilities and so on.
② Do not humid, dusty, hot, thunderstorm days, or close to the fire
source, the magnetic field of the environment using the product,
in order to avoid product failure, fire, or explosion.
③ Do not place the camcorder and accessories in a place where
children can touch, so as not to cause danger.

Warranty Regulations
① Three Guarantees principles: 7 days return, 15 days re-
placement, host 1 year warranty.
② From the date of purchase within seven days, if the pro-
duct host non-human damage performance failure (see
"Product Performance Fault Table"), interactive video de-
tection determination by the sale, consumers can choose
according to hair ticket price refund or free replacement
once the same model specifications product.
③ From the date of purchase 8-15 days, if the product host
a non-man-made damage performance failure (see "Pro-
duct Performance Fault Table"),surplus sale through video
detection to determine, with consumers free replacement
model with product specifications.
④ From the date of purchase within 12 months, if the product
appears inhuman host as corrupted performance failure
(see "Product Performance Fault Table"), sale of video de-
tection determination by the surplus, to provide consumers
with free insurance repair services.
⑤ Power adapter, power cord and other accessories artificial
damage resistance fail, the surplus sale of video detection
determination to provide 15 days for Free fee replacement,
1 year free warranty service. Listed in the "product perfor-
mance failure Table"
⑥ When you purchased the product failure, need to apply for
the above service, please send the product to interactive
video.

Product Performance
Fault Table
Failure of Performance
Name
Host Unreachable electric light
does not shine
Can not boot
You can not call or video
Because the product structure or
material caused by cracking the shell
Instructions listed other function failure
Unable to properly energized
Fitting
Camera
Host

The following does not belong to free warranty,
YSX provide frequency reasonable fees repair:
① Fails Instructions require the installation, use, mainten-
ance, insurance pipe product failure or damage caused;
② Beyond the limited warranty, the warranty period;
③ Unauthorized alteration, tore product barcode;product
barcode or type of product according to
④ product warranty card body does not match;
⑤ Without authorization changes inherent profile or di-
sassemble unauthorized repair;
⑥ Unexpected factors or human behavior causes damage
to the product, such as input not suitable for voltage,
temperature, water, mechanical damage, broken, pro-
ducts severe oxidation or rust, etc;
⑦ Customer rework the way back because of transport,
loading and unloading caused damage;
⑧ Due to force majeure such as earthquakes, fires, floods,
lightning, etc. Product failure or damage caused;
⑨ Other non-product itself, design, technology, manufact-
uring, quality, etc. Failure or damage caused problems.
⑩ Consumer's own network causes the product unusable.
Non-Warranty

Content of Harmful Substances
Status Description
Toxic and hazardous substances
or elements
Shell
Circuit
board
Power
Adapter
Annex
Pb Hg Cd Cr6+ PBB PBDE
○ Indicates that this hazardous substance in all
homogeneous materials that are in the limit
requirement in SJ / T11363-2006 standards
below.
× Indicates that the toxic substances and ha-
zardous substances contained in at least one
of the homogeneous materials for this part is
above the limit requirement in SJ / T11363-
2006 standard.

Technical Support and Service
Official Website:
Official Weibo:
Official Micro Letter:
Customer Service Email:
Consumer Hotline:

Cloud2Me to smart cameras Warranty certificate
Dealer retained
Customer Name:..........................................(Mr / Ms)
Phone：.........................................................................
Customer Address:：...................................................
.......................................................................................
Host Mode：.................................................................
Serial Number：...........................................................
Purchase Store:：.........................................................
Store Address：......................................
.
Purchase Date：...................................
Shop Tel：...................................................
Invoice Number：.........................................................
Purchase
Seal

Customer retention
Cloud2Me to smart cameras Warranty certificate
Customer Name:..........................................(Mr / Ms)
Phone：.........................................................................
Customer Address:：...................................................
.......................................................................................
Host Mode：.................................................................
Serial Number：...........................................................
Purchase Store:：.........................................................
Store Address：......................................
.
Purchase Date：...................................
Shop Tel：...................................................
Invoice Number：.........................................................
Purchase
Seal

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
