Z-CAR ZTX-700 User manual

1

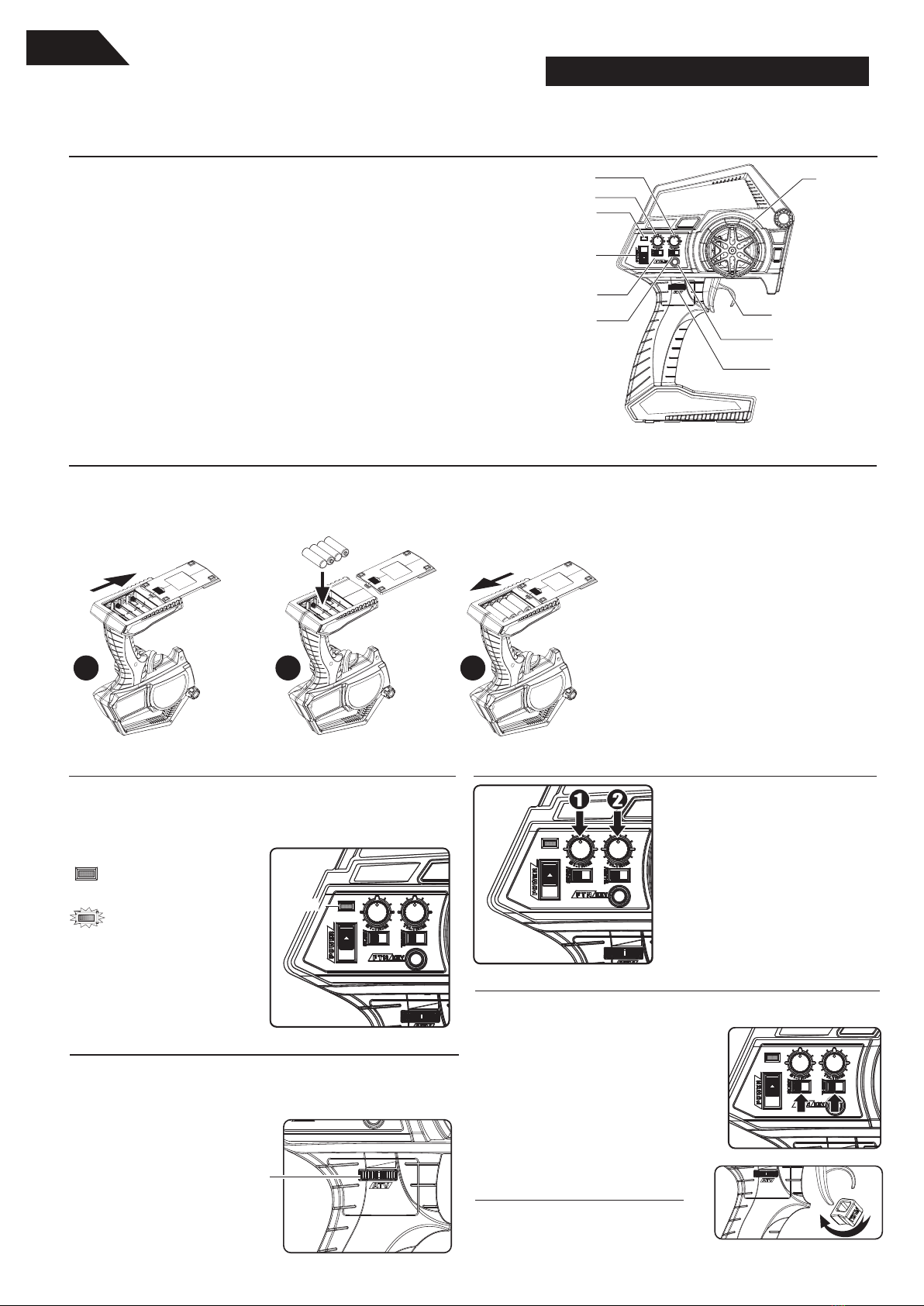

ABOUT THE RADIO SYSTEM
ZTX-700
ST. Trim Dial
TH. Trim Dial
* In general, user will experience under steer when making a wide turn at high speed or
over steer when making sharp turn at high speed (easy to spin out). User should practice
the Throttle and steering approach for dierent cornering at dierent speed or road surface.
Battery Installation
The following is an overview of the various functions and adjustments found on ZTX-700 radio system for Z-CAR models. It is important to read
and understand about all of these functions and adjustments before driving.
Z-CAR ZTX-700 2.4GHz FHSS Technology System
FUNCTIONS
TRANSMITTER ZTX-700
2.Install the batteries
observing the polarity
marked on battery
compartment.
3.Then reinstall the battery
compartment cover as the
Picture shown below.
Warning :
Never disassemble batteries or put the
batteries in re, chemical agents, otherwise
they may cause personal injuries or property
damages.
Battery Disposal :
Observe corresponding regulations about
wasted battery treatment regulations.
1. After running out of power, dispose of
wasted batteries in designated areas far
away from water supply, household areas
and planted areas.
2. Submit the wasted batteries to specic
recycling stations.
Battery LED Indicator
The Green LED indicator located on the front left side of the transmitter indicates
the power supply of batteries. The green LED will go solid on indicating that
the batteries have sucient power. When batteries voltage drops below 4
volts, LED will turn to Flashing RED, indicating the batteries power is low and
should be replaced.
Pre-Run Check
Steering
Wheel
Throttle Trigger
LED
Indicator
Steering
Reverse
Throttle
Reverse
ATV
FTN Key
ON/OFF
Switch
* Always turn on the transmitter rst by sliding
the switch on the left side from bottom to top.
The small red and green lights above the
switch should both light up. If not, you need
to check for low or incorrectly installed
batteries.
1. Steering : Adjust the steering trim to keep
the front wheels in straight line when steering
wheel remains in NEUTRAL position.
2. Throttle : Adjust the throttle trim to ensure
the rear wheels stop rotating when throttle
trigger remains in NEUTRAL position.
GREENGREEN
Solid GREEN :
Sucient Power supply
Flashing RED :
Time to replace batteries
123
Steering Wheel : Control direction (Left/Right) of the RC model.
Throttle Trigger : Control speed and direction (Forward/Brake/Backward)
of the driving model.
ON / OFF Switch : Power ON / OFF the transmitter.
FTN Key : Is used to synchronize the connection between the transmitter and
the receiver. It also serves as additional function on dierent model.
LED Indicator : Green and Red color for indicating battery low, pairing in
progress, End-Points setting and normal operation.
ATV : Adjust the maximum steering angle on both sides when model turns
Left / Right.
ST. Trim Dial : Adjust the neutral position of steering servo when model
wheels are straight ahead.
TH. Trim Dial : To adjust the throttle position
Steering Reverse : Reverse the response direction when operating Steering Wheel.
Throttle Reverse : Reverse the response direction when operating Throttle Trigger.
1. Supplied with 4 x 1.5V AA
Batteries, radio can be
operated a few hours.
Installation: Remove the
battery compartment cover
as shown below.
Reversing
Throttle Limiter
Reversing is used to change the response direction of steering wheel and throttle
trigger. This Transmitter features 2 reversing functions: Steering Reverse and Throttle
Reverse.
Steering Reverse: Reverse the response direction
when operating steering wheel. Turning left steering
wheel, the model turns right while turning right the
model turns left.
Throttle Reverse: Reverse the response direction
when operating throttle trigger. Pushing forward
throttle trigger the model moves backward while
pulling back, the model moves forward. If necessary
you can just use a small screwdriver to adjust the
responding switches.
Installed the Throttle limiter can reduced
Throttle travel by 30% .
Ideal for beginner.
ATV enables to adjust the maximum steering angle of servo on both sides (Left
and Right) when model makes steering. The ATV aects the sensitivity of servo.
Reducing dual rate value can lower the sensitivity of servo and reduce the same
maximum steering angle on both sides. Remember to adjust the ATV within the
adjustment range.
ATV
ATV
ENG

2
FCC Informaon
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide residenal protecon against harmful interference in a
residenal installaon. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons.
However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does
cause harmful interference to radio or television recepon, which can be determined by turning the equipment
on and off, the user is encouraged to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna. Increase the separaon between the equipment and the receiver. Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected.
FCC Warning:
The equipment may generate or use radio frequency energy. Changes or modificaons to this equipment may
cause harmful interference unless the modificaons are expressly approved in the instrucon manual.
Modificaons not authorized by the manufacturer may void the user’s authority to operate this device. This
device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operaon.
Limited Warranty
Warranty Period: Z-CAR R/C warrants that the SC-1E (”Product”) will be free from original factory defects in
materials and workmanship upon purchase (”Warranty Period”). What is Not Covered - This warranty is not
transferable and does not cover (a) cosmec damage, (b) damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or due to improper use, installaon, operaon or maintenance, (c) modificaon to
any part of the Product, (d) aempted service by anyone other than a Z-CAR R/C authorized service center, or (e)
Product not purchased from an authorized Z-CAR RC dealer.
OTHER THAN THE EXPRESS WARRANTY ABOVE, Z-CAR RC MAKES NO OTHER WARRANTY OR REPRE-SENTATION,
AND THREFORE DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND SUITABILITY FOR A PARTICULAR PURPOSE. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETER- MINED THAT THE PRODUCT WILL MEET THE
REQUIREMENTS OF THEIR INTENDED USE.
Purchaser’s Remedy - Z-CAR RC’s sole obligaon and purchaser’s sole and exclusive remedy shall be that
Z-CAR RC will, at its opon, either (a) service, or (b) replace, any Product determined by Z-CAR RC to be
defecve. Z-CAR RC reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or
replacement decisions are at the sole discreon of Z-CAR RC. Proof of purchase is required for all warranty
claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY.
Limitaon of Liability
Z-CAR RC SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED
IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF
Z-CAR RC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Further, in no event shall the liability of Z-CAR RC exceed the individual price of the Product on which liability Is
asserted. As Z-CAR RC has no control over use, setup, final assembly, modificaon or misuse, no liability shall be
assumed nor accepted for any resulng damage or injury. By the act of use, setup or assembly, the user accepts all
resulng liability. If you se the purchaser or user are not prepared to accept the liability associated with the use
of the Product, purchaser is advised to return the Product immediately in new and unused condion to the place
of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from
country to country, or state to state. Z-CAR RC reserves the right to change or modify this warranty at any me
without noce.
21/ Floor, Kingsway Industrial Building,
Phase 2, 173 - 175 Wo Yi Hop Road,
Kwai Chung, N.T., Hong Kong.
For official Carisma RC spare parts, see your local
hobby shop or place of purchase first. If unavailable, parts
can be ordered direct at: hp://www.carisma-shop.com
Note:
Carisma LTD
NCC Warning Statement
Arcle 12
Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the
characterisc and funcons of the original design of the cerfied lower power frequency electric machinery.
Arcle 14
The applicaon of lower power frequency electric machineries shall not affect the navigaon safety nor interfere
a legal communicaon, if an interference is found, the service will be suspended unl improvement is made and
the interference no longer exists.

3
Z-CAR
CRX-170
Z-CAR
CRX-170
Z-CAR
CRX-170
Z-CAR
CRX-170
Z-CAR
CRX-170
Z-CAR
CRX-170

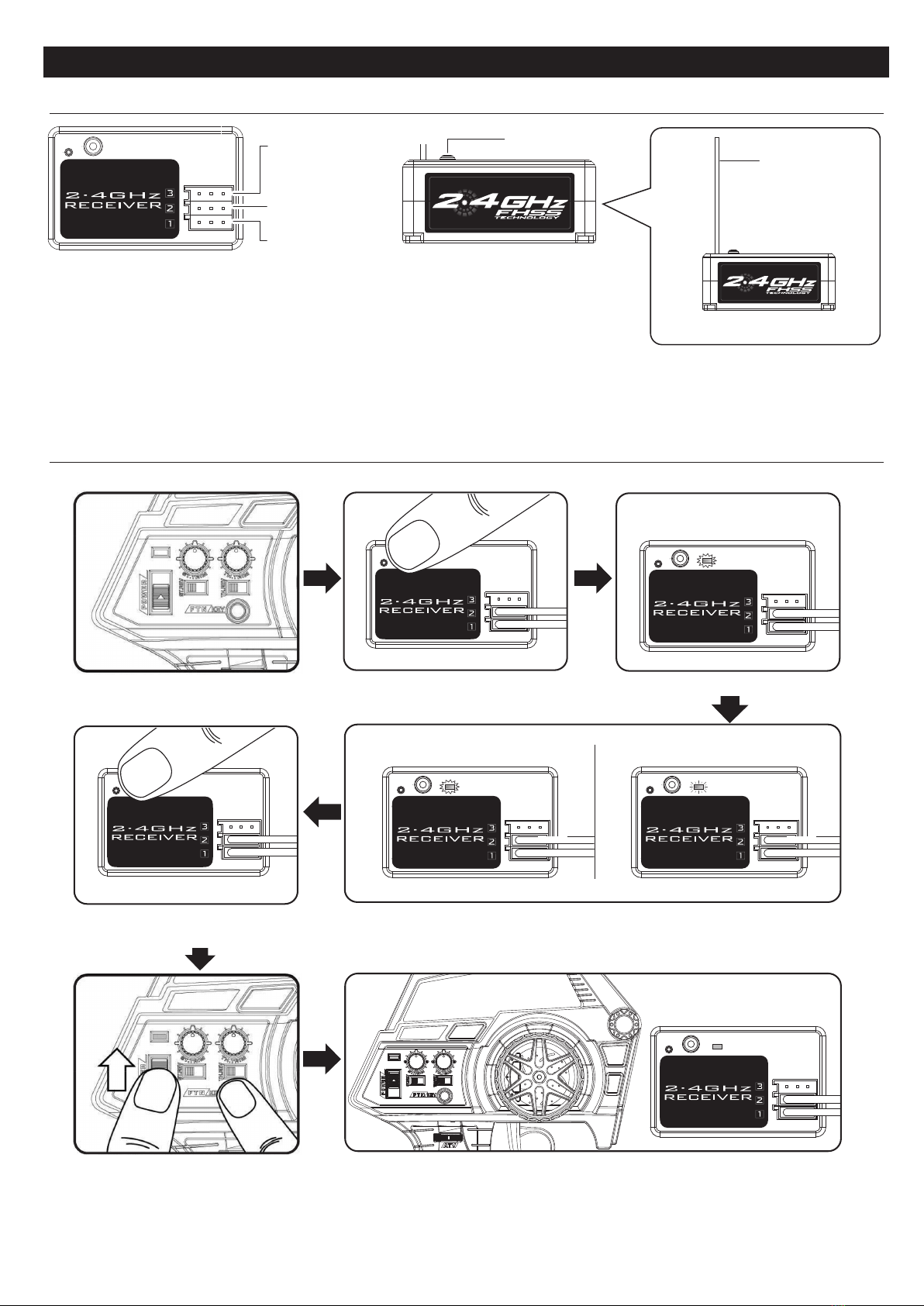

RECEIVER CONNECTION AND INSTALLATION
Z-CAR 2.4GHz Receiver CRX-170
Z-CAR 2.4GHz Receiver CRX-170 Synchronization
Remarks :
The mounting positions of receiver and
antenna cable greatly aect the operating
range.
Install the antenna vertically to the ground.
Auxiliary Port (Reserved)
Steering Port : Where to plug in the servo.
Throttle Port : Where to plug in the Electronic
Speed Controller (ESC).
Setup Button : Synchronize transmitter and receiver.
Select frame rate.
Steering Port
Throttle Port
Auxiliary Port
(Reserved)
Warning :
• Never bend the metal pins on the
PCB of receiver.
• Never cut the antenna cable.
• Install the antenna vertically as
shown in the gure.
• Keep the antenna as far away from
the motor, ESC and other noise
sources as you possibly can.
Setup Button
Antenna Cable
CRX-170
Tips :
• Wrap the receiver with something soft, such as foam
rubber, to avoid vibration. If there is a chance of getting
wet, put the receiver in a waterproof bag or balloon.
MAKE SURE ALL CONNECTIONS ARE CONNECTED AND IN THE RIGHT ORDER
IF IT FAILS TO SYNC, THE LED WILL CONTINUE TO FLASH AND PLEASE GO BACK TO STEP 1 AGAIN.
1. Transmitter is OFF Position 3. The LED on the receiver will Flash
4. The ashing pattern on the receiver indicates the frame rate:
High Speed Flash is for all kind of Servos and
Slow Speed Flashing is for Analogue Servos ONLY
2. HOLD the Setup Button located on
the Receiver while turning ON
High Speed Flash Slow Speed Flashing
5. Select the desire frame rate by
pushing the Setup Botton on the
receiver ONCE.
6. Now, take the transmitter HOLD the
FTN KEY while you turn the
Transmitter ON
Now the Transmitter is SYNCing
with the Receiver
7.When the LED on both Transmitter and the Receiver remain solid then
Transmitter is sucessfully Sync to Receiver
