Consult IX CellWizard WTX-05 User manual

CellWizard™ CW Transmitter Family
CW & WCDMA Test Transmitter
User Manual
Ver. 3.2 February 2019

P a g e | 2
Copyright©2019 Consultix
All Rights Reserved
No part of this manual may be produced or transmitted in any form or by any means without prior written
consent of Consultix.
Trademarks
Consultix is a trademark of Consultix Company. All other trademarks mentioned in this manual are the
property of their respective holders.
Notice
The information in this manual is subjected to be changed without notice. Every effort has been made in
the preparation of this manual to ensure the accuracy of the contents, but all statements, information and
recommendations in this manual do not constitute the warranty of any kind, expressed or implied.

P a g e | 3
Table of Contents
Table of Contents................................................................................................................................... 3
Introduction .......................................................................................................................................... 4
Overview.........................................................................................................................................................4
WTX Highlights ...............................................................................................................................................4
Key Features...............................................................................................................................................4
Safety Compliances & Precautions.................................................................................................................5
Getting Started ...................................................................................................................................... 6
Package contents............................................................................................................................................6
WTX Front Panels ...........................................................................................................................................7
Keypad buttons functions ..............................................................................................................................8
Display Icons...................................................................................................................................................9
General Operations.............................................................................................................................. 10
Preparations .................................................................................................................................................10
Menus...........................................................................................................................................................10
Starting a test scenario.................................................................................................................................11
Start a new test ........................................................................................................................................11
Channel Saving .............................................................................................................................................12
Recall saved configuration........................................................................................................................12
Save a re-usable Configuration ................................................................................................................12
Device Upgrade (WTX-05 only) ....................................................................................................................12
Activating a new upgrade with a key-code ..............................................................................................12
Memory Status.............................................................................................................................................12
Device Information .......................................................................................................................................13
Battery Status ...............................................................................................................................................13
Appendix A: Specifications ................................................................................................................... 14

P a g e | 4
Introduction
Overview
Consultix WTX is a test transmitter that generates a CW (Continuous Wave) and W-CDMA (WTX-05-W and
WTX-05-A only) signals with maximum output power 20 dBm. It is a compact, portable, lightweight, easy to
use for indoor coverage test scenarios. WTX operates over most of wireless frequency bands; 2.6 GHz, 2.5
GHz, 2.1 GHz, 1.8 GHz, 900 MHz, 850 MHz, 700 MHz, 400 MHz, 200 MHz and others.
WTX Highlights
Key Features
•Two transmitter modes: CW & W-CDMA (WTX-05 only).
•Adjustable output power range, W-CDMA mode: -10 dBm to 20 dBm (Depends on band)
•Adjustable output power range CW mode: -10 dBm to 20 dBm
•Adjustable channel frequency.
•Standard Frequency step: 200 KHz. (optional 1 KHz)
•Output power accuracy of 1 dBm.
•Memory channels.
•Lightweight.
•Ergonomic user interface.
•Functional Keypad.
•LCD display.
•Battery Operation

P a g e | 5
Safety Compliances & Precautions
In order to avoid damage to your WTX and to ensure efficient operation of your test transmitters, please
make sure to follow the following recommendations and best practices:
A. To avoid hazard or damage, only use original accessories with the WTX
B. Don't touch the antenna during operation as it may alter the radiation pattern
C. The best practice is to connect the antenna before turning-on the RF Power
D. Do not operate in Wet/Very Damp Conditions
E. Do not operate near flammable or explosive materials
F. If you suspect there is damage to this product, have it inspected only by authorized service personnel
or service centers

P a g e | 6
Getting Started
Package contents
Please unpack and inspect the shipping package to make sure that you have received all the parts without
damage; the shipping package is shown in table 1.

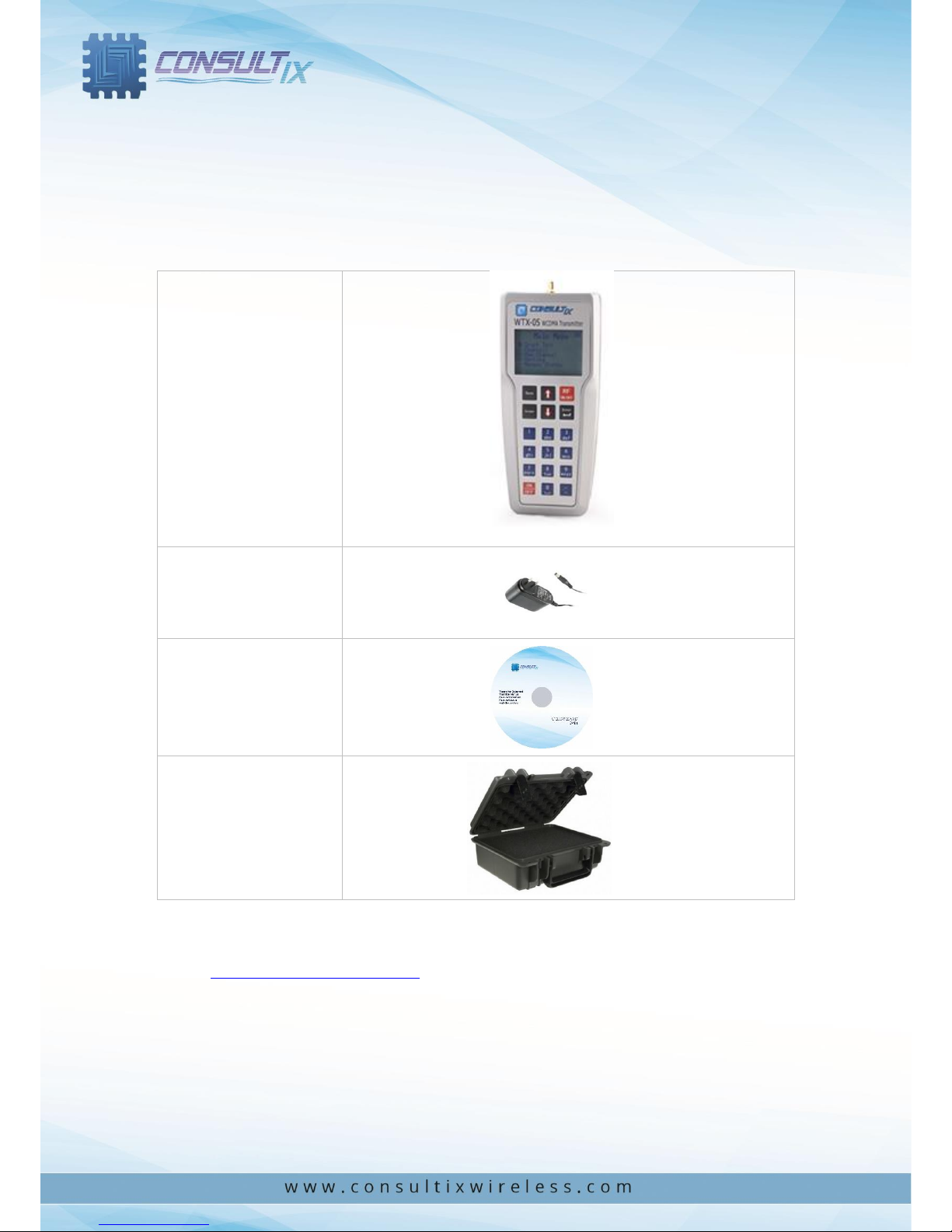

Table 1: Packing List
For any issue regarding the shipment package, please contact your nearest Consultix distributor or contact
us directly at [e-mail]
WTX
12 VDC Power Adapter
Manual CD
Carrying Case

P a g e | 7
WTX Front Panels

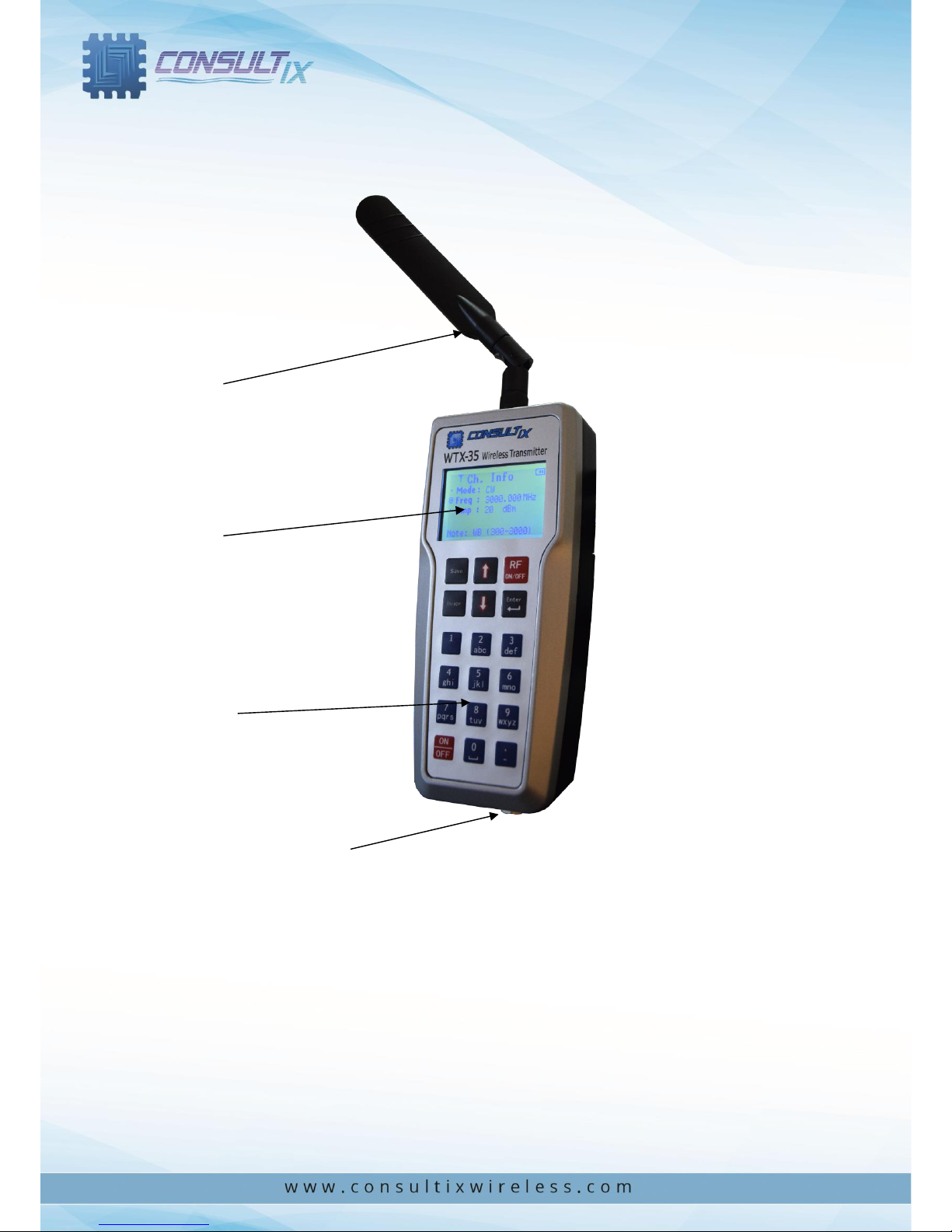

Figure 1 below depicts the Front Panel of the WTX transmitter.
Figure1: WTX Transmitter User Interface
(1) Antenna connected to SMA RF interface (2) LCD
(3) Keypad (4) Charger Socket
(2)
(3)
(4)
(1)

P a g e | 8
Keypad buttons functions
(1) ON/OFF: Switching on & switching off the device
(2) Num pad: Writes numbers, characters or space
(3) Escape: Goes to previous menu, or cancels entered data
(4) Save: Saves current configuration
(5) Edits values or names
(6) Enter: Enters to submenus, accepts choice, goes to fine-tuning for amplitude, frequency
adjustment or toggles between CW or W-CDMA modes
(7) Up & Down arrows: Move up and down between menus, or fine-tuning of amplitude and
frequency (after clicking the hard button “Edit” as per (5) above)
(8) RF ON/OFF: Starts or stops RF transmission
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)

P a g e | 9
Display Icons
(1) Menu Choices (2) RF On/OFF indicator (3) Charging indicator
(4) Menu title (5) Battery indicator
(1)
(5)
(3)
(4)
(2)

P a g e | 10
General Operations
Preparations
Connect the charger into its socket.
Note, for the first time usage of the device, battery should be charged continuously 10 hours.
Switch On the device by 1 second press on the On/OFF switch.
Connect the antenna to the device.
The device now is ready to start tests.
In the following section, the menus of the WTX will be described in details before going through illustrating
different operations of the unit
Menus

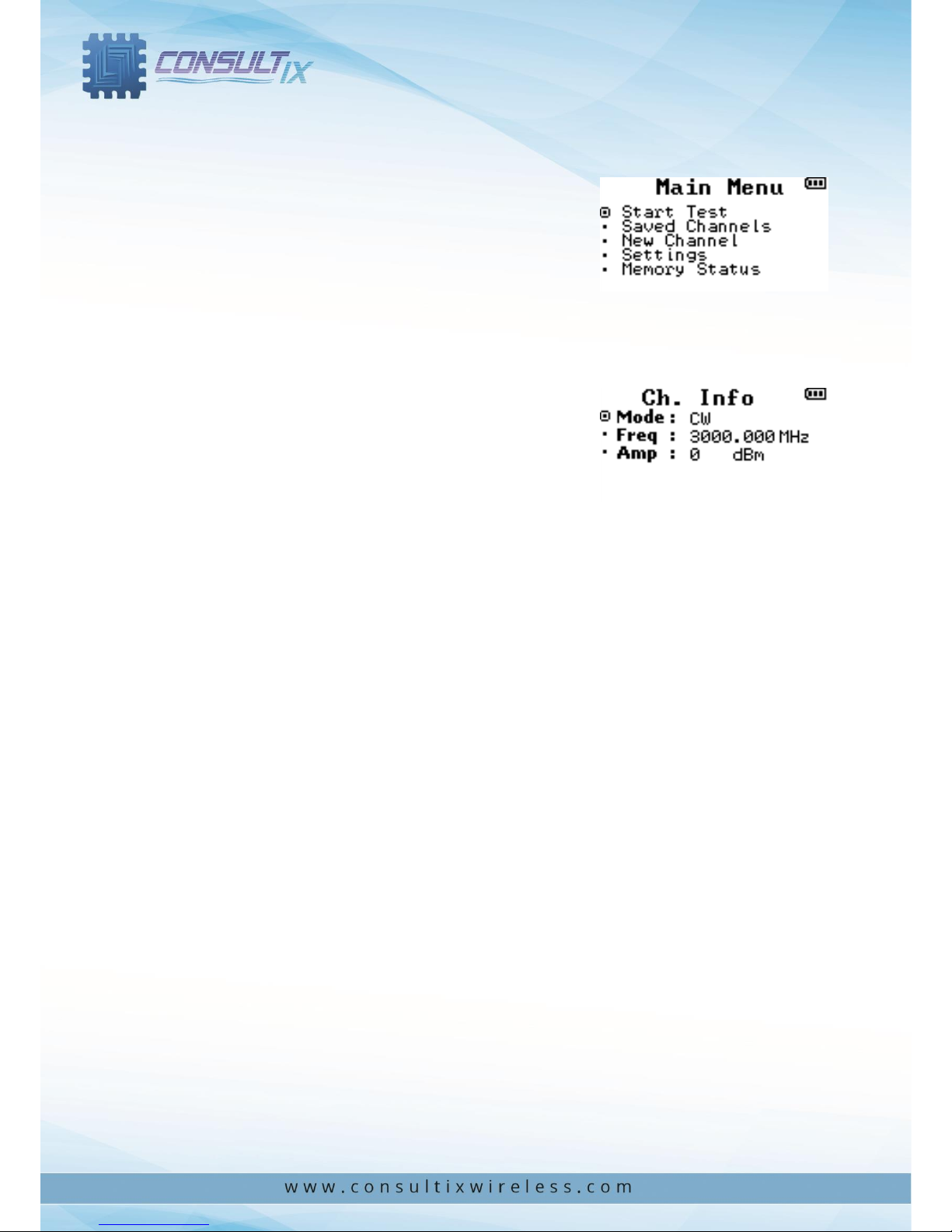

Main Menu
Start Test: To start a test
This will recall all configurations for the last test setup incl.: Mode, Freq, Amp, and
scrambling code. And you can modify afterwards

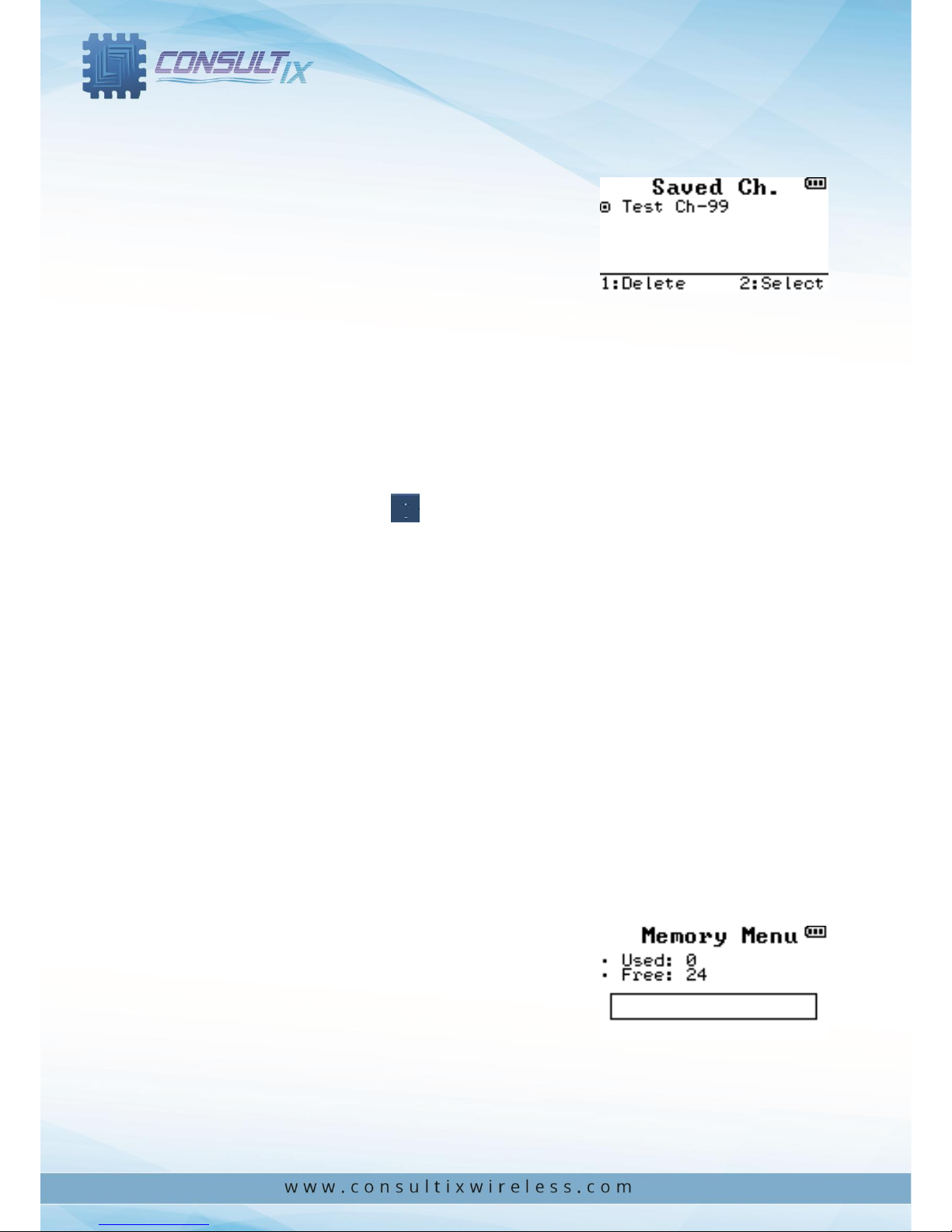

Saved Channels: This menu contains saved test channels with all of its configurations.
Use num pad (1) to delete saved test channel, and use num pad (2) to start RF test for a
chosen channel, or simply click RF ON/OFF
New Channel: To add a new channel to the device memory
Mode: To choose the transmitting mode; either CW or W-CDMA "for
WTX-05-W and WTX-05-A only "
Freq: Enters the required channel frequency in the relevant band
(standard frequency step 200 KHz)
Amp: Enters the required channel amplitude
Scr.: Enters the scrambling code of the W-CDMA signal. Scrambling
code ranges from 0 to 511
Setting
Factory setting - This function is used to restore WTX factory settings. It
will delete all saved test channels from your device
Note: this will erase activated Key-codes license
Version/Upgrade:
- Providing info about activated features, and available upgrades
- Entering key-codes required for any newly purchased upgrade
Memory Status: Shows the number of utilized and free memory locations.
WTX can store up to 24 test channels
