1. General Description
The Z3-DM368-SDI-RPS development system consists of both hardware and software. The hardware
provided includes one Z3-DM368-MOD system on module card and a carrier, or application board, the Z3-
DM368-APP-11 (X is the HW release version), which provides advanced video input capabilities. The
bundled software includes all necessary components for the user to develop its own advanced multimedia,
graphics and DSP applications.
Measuring only 44x67 mm, the Z3-DM368-MOD is a compact OEM module supporting H.264 codec at
1080p30 fps (frames per second) encode and stream, decode from stream or store in applications such as
broadcast video, video security, digital signage, video kiosks, internet gaming, networked multimedia
appliances and industrial video. The Z3-DM368-MOD features a unique edge connector design which
supplies all interfaces native to the DM368 to an application board mate, including I2C, SPI, LCD, USB,
Serial, SD/MMC/MS, digital video, digital audio, analog composite and component video. Figure 1 below
shows the Z3-DM368-MOD system on module.

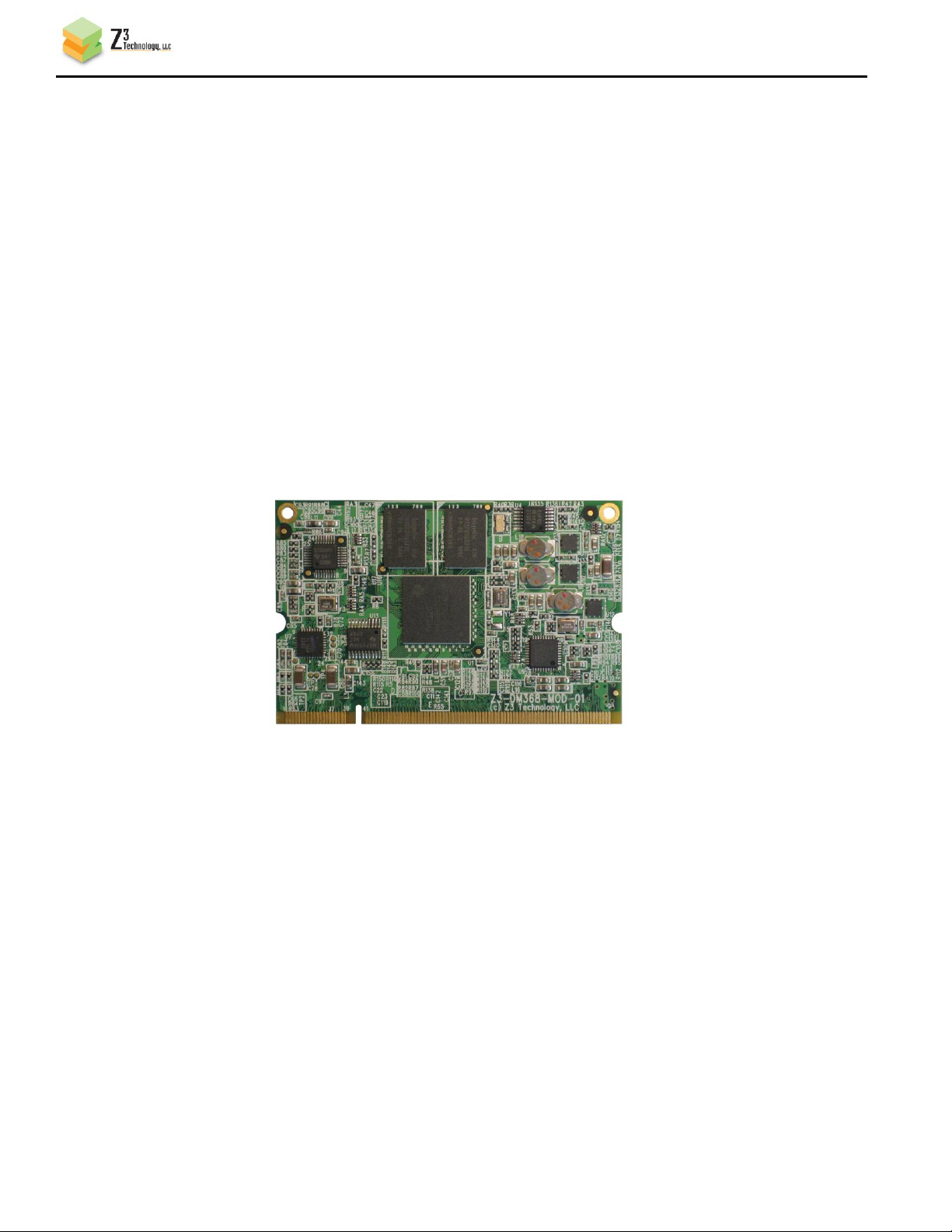

Figure 1: Z3-DM368-MOD-01

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
5
An application board, Z3-DM368-APP-11,is available from Z3 Technology and is included with the
Z3-DM368-SDI-RPS system.This application board contains the I/O blocks for a broadcast quality video
encoder. It uses the I/O expansion capability of the Z3-DM368-MOD to implement additional functions not
present in the base module. The Z3-DM368-APP-11 application board has SDI and Component inputs,
Ethernet and ASI outputs and two analog stereo audio inputs. Figure 2 below shows the Z3-DM368-MOD-01
system mounted on a Z3-DM368-APP-11 carrier board.
Software licensing, additional design services and support are available from Z3 Technology. Please contact
Z3 at http://www.z3technology.com or e-mail at sales@z3technology.com.

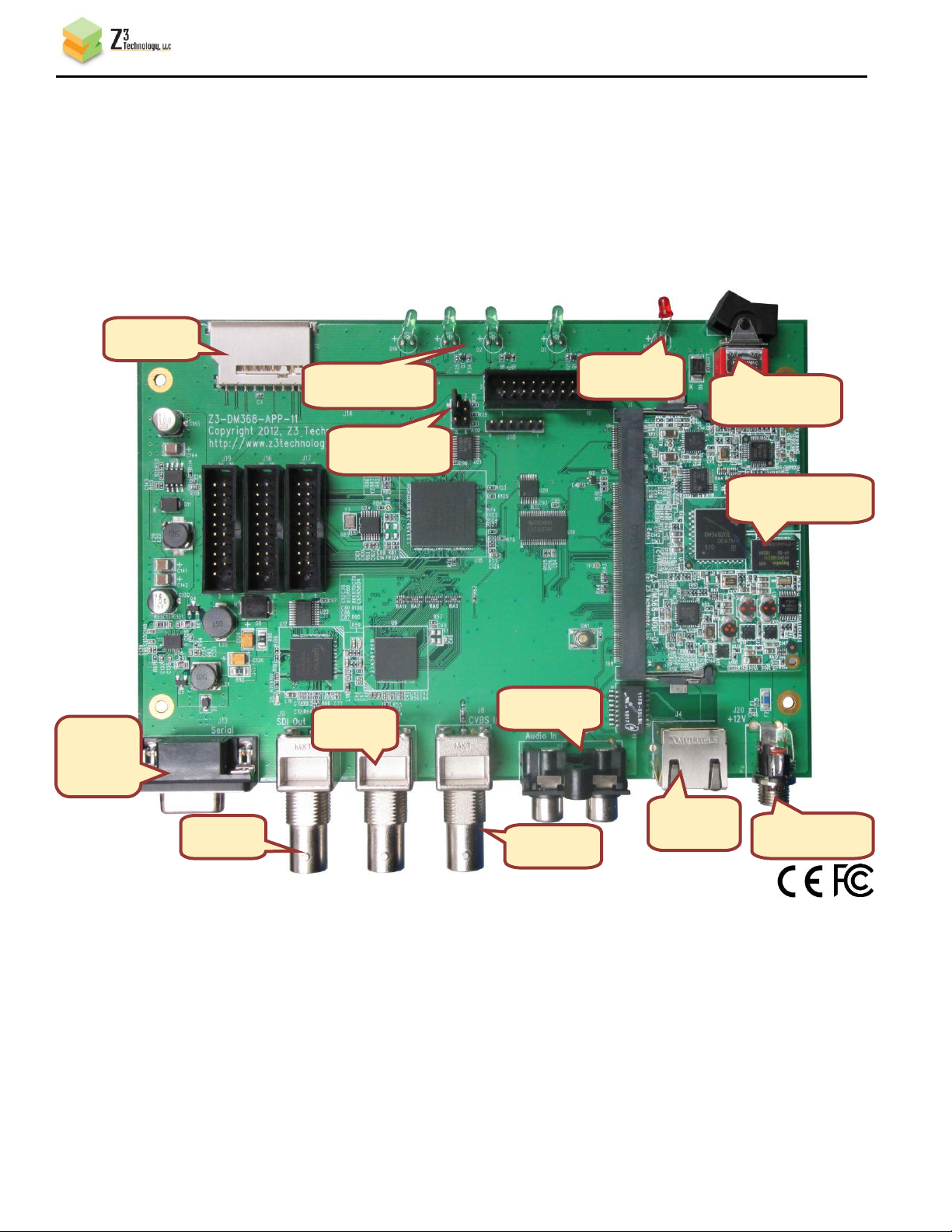

Figure 2: DM368-APP-11 with DM368-MOD-01
SD Card
Power LED
DM368-MOD-01
Power switch
ASI Out
Audio In
Serial
port
Ethernet
+12V Power
Status LEDs
(4)
Mfr Jumper
SDI In
CVBS In

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
6
2. Features
On-board standard definition video ADC with composite input
H.264 BP & MP, MPEG-4 SP and MJPEG video encoding up to 1080p, 30 fps
H.264 BP & MP, MPEG-4 SP and MJPEG video decoding up to 1080p, 30 fps
RS232 serial console port
Low power consumption
Built-in Ethernet MAC, on-board PHY
Edge Connector Expansion:
Digital Video input interface for use with CMOS sensors or other devices
Digital Video output interface for use with LCD or other devices
Composite Video input
Stereo Audio input (3 sets of stereo inputs)
Stereo Audio output, line level plus independent output for headphones
Fast Ethernet I/O
MMC/SD Card port
Two UARTs for serial interface
General Purpose I/O
SPI and I2C ports
3. Applications
The Z3-DM368-MOD is designed to facilitate the implementation of video and audio functions on media-
embedded applications such as kiosks, machine vision and other industrial applications, information centers,
digital signs, medical imaging, POS, etc. Its versatile design allows the system designer to focus on the end
application, with confidence that the Z3-DM368-MOD will handle all audio and video media operations
required with little or no additional engineering effort.
Whether the end application requires encode or decode media from storage or streaming, the readily available,
production-ready Z3-DM368-MOD will simplify the overall system design, reducing time to market and costs.

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
7
4. Serial Control
4.1 Serial
1. Plug-in a DB-9 serial cable from the Z3-DM368-SDI-RPS to your PC
2. Set up Teraterm on the PC for 115k, 8, N, 1, N, 1ms/char, 50ms/line
3. Connect to the proper COM port
4. Connect the Power to the Z3-DM368-SDI-RPS
5. Power-on the Z3-DM368-SDI-RPS
6. Output should come immediately to the Teraterm console
4.2 Terminal Output
+==============================================================
| Z3 Technology, LLC Z3 DME-01 1.04.08
+==============================================================
| + -- Set Device Name [ Z3-DM368-SDI-RPS ]
| = -- Set Password [ BLANK ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| 0 -- Operating Mode [ ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| 1 -- Video Source [ SDI ]
| 2 -- Audio Source [ Channels 1+2 ]
| 3 -- Audio Codec [ AAC-LC ADTS ]
| 4 -- Audio Bitrate [ ]
| 5 -- Video Resolution [ Follow input ]
| 6 -- Rate Control [ CBR ]
| 7 -- Video Bitrate [ 8000k ]
| 8 -- Video Profile [ High ]
| 9 -- Gop Size [ 60 Frames ]
| A -- Video Burst Size [ 1000ms ]
| B -- Video Codec [ ]
| C -- Frame Decimation [ ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| D -- Output Interface [ ASI+UDP ]
| E -- Output Format [ MPEG-2 TS ]
| F -- Dest IPAddress [ 225.1.2.3 ]
| G -- Dest Port [ 8888 ]
| H -- ASI Bitrate [ 12000k ]

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
8
| I -- ASI PCR Interval [ ]
| J -- PID/Audio,Video,PCR [ ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| K -- Local IPAddress [ 192.168.0.65 ]
| L -- Local Netmask [ 255.255.0.0 ]
| M -- Default Gateway [ 192.168.0.1 ]
+==============================================================
| T -- Stop S -- Start
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| U -- Load User Settings R -- Refresh Menu
| W -- Save User Settings X -- Exit
| Y -- Load Factory Default Settings
+==============================================================
---- enter option
4.3 System Menu Control
Streaming Encoder System Menu Control
+ -- Set Device Name
Custom
= -- Set Password
Custom
0 –Operating Mode
Encoder
1 –Video Source
SDI, Composite
2 –Audio Source
Channels 1+2, Channels 3+4, Channels 5+6, Channels 7+8
3 –Audio Codec
AAC-LC ADTS, AAC-LC LATM, PCM, MP3, AC-3, Passthru,
None
4 –Audio Bit Rate
64 kbits, 96 kbits, 128 kbits, 192 kbits
5 –Video Resolution
Follow Input
6 –Rate Control
CBR, VBR, Fixed Frame
7 –Video Bit Rate
Custom
8 –Video Profile
Baseline, Main, High, Fast
9 –Gop Size
15 frames, 30 frames, 60 frames, 120 frames, 240 frames
A –Video Burst Size
150ms, 200ms, 300ms, 400ms, 500ms, 1000ms, 1200ms, 1400ms,
1600ms, 1800ms, 2000ms
B –Video Codec
H.264, MPEG-2
C –Frame Decimation
None,1/2, 1/3, 1/4
D –Output Interface
Ethernet, ASI, Ethernet + ASI
E –Output Format
RTP, MPEG-2 TS
F –Dest IPAddress
Custom

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
9
G –Dest Port
Custom
H –ASI Bitrate
Custom
I –ASI PCR Interval
Custom
J –PID/Audio, Video, PCR
Custom
K –Local IPAddress
Custom
L –Local Netmask
Custom
M –Default Gateway
Custom
T –Stop
Stop the stream
S –Start
Start the stream
U –Load User Settings
Load stored user settings
W –Save User Settings
Save preferred user settings
Y –Load Factory Default
Settings
Load system default settings
R –Refresh Menu
Refresh the system menu
X –Exit
Exit the system menu
5. Web Server Control
1. Power on the Z3-DM368-SDI-RPS
2. Connect the Ethernet cable from the Z3-DM368-SDI-RPS unit directly to the PC
3. Disable all wireless connections
4. For a client PC to access the Z3-DM368-SDI-RPS factory default settings, set the IP address of the
PC to 192.168.0.XX
5. Open Firefox or Internet Explorer 8 (or above) as your web browser.

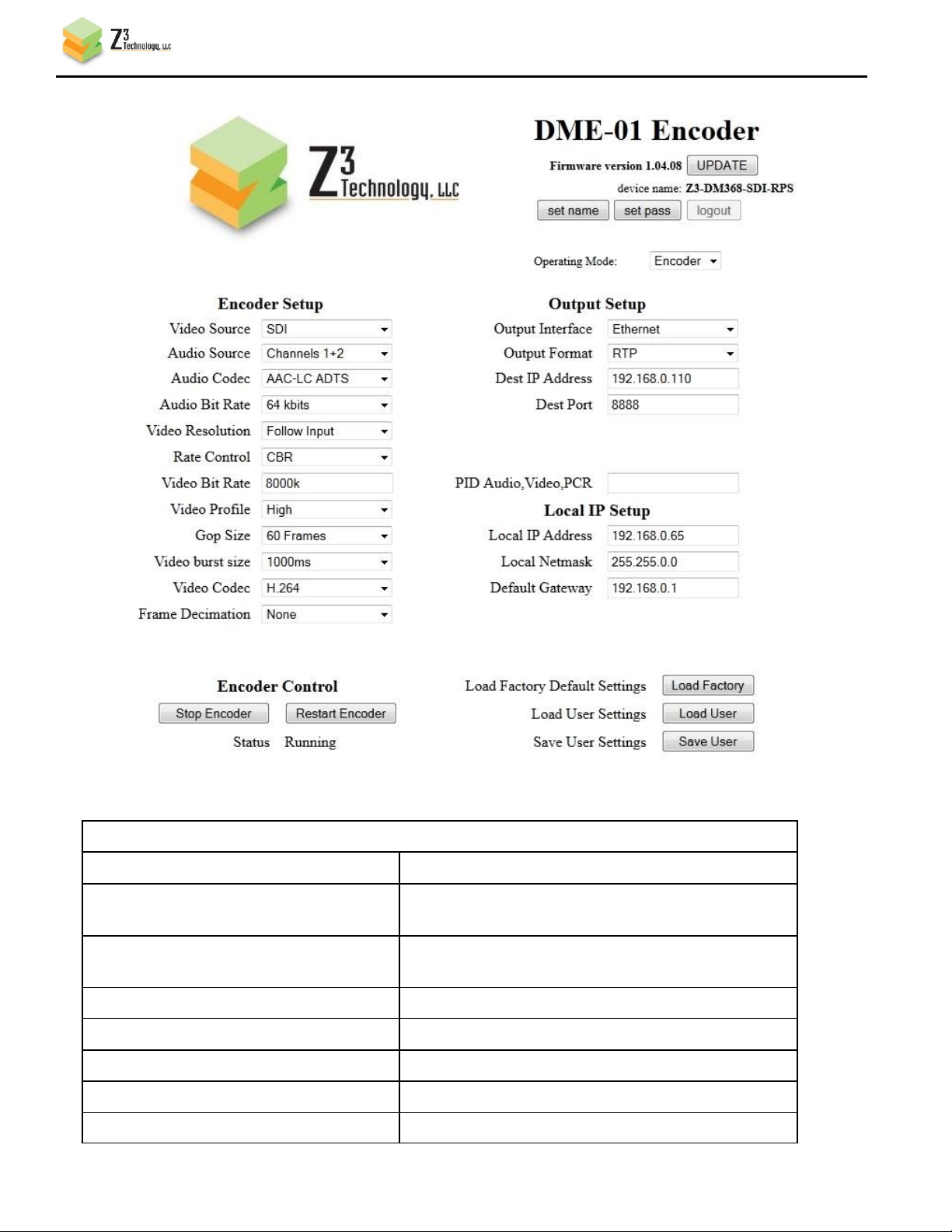

6. Type the IP address of the Z3-DM368-SDI-RPS in your web browser (http://192.168.0.65) and the
Z3-DM368-SDI-RPS Encoder web configuration menu will appear
*The Web Server will state “DME-01 Encoder.” Please note the device name below which is titled
as “Z3-DM368-SDI-RPS”.

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
10
5.1 System Menu Control
Encoder Setup
Video Source
SDI, Composite
Audio Source
Channels 1+2, Channels 3+4, Channels 5+6,
Channels 7+8
Audio Codec
AAC-LC ADTS, AAC-LC LATM, PCM, MP3,
AC-3 Passthru, None
Audio Bit Rate
64 kbits, 96 kbits, 128 kbits, 192 kbits
Video Resolution
Follow Input
Rate Control
CBR, VBR, Fixed Frame
Video Bit Rate
Custom
Video Profile
Baseline, Main, High, Fast

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
11
Gop Size
15 Frames, 30 Frames, 60 Frames, 120 Frames,
240 Frames
Video Burst Size
150ms, 200ms, 300ms, 400ms, 500ms, 1000ms,
1200ms, 1400ms, 1600ms, 1800ms, 2000ms
Video Codec
H.264, MPEG-2
Frame Decimation
None, 1/2, 1/3, 1/4
Output Setup
Output Interface
Ethernet, ASI, Ethernet + ASI
Output Format
RTP, MPEG-2 TS
Dest IPAddress
Custom
Dest Port
Custom
PID/Audio, Video, PCR
Custom
Local IP Setup
Local IPAddress
Custom
Local Netmask
Custom
Default Gateway
Custom
Encoder Control
Stop
Stop the encoder
Start
Start the encoder
User Options
Load User Settings
Load stored user settings
Save User Settings
Save preferred user settings
Load Factory Default Settings
Load system default settings

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
12
6. Demo
Note: If you use unicast on the encoder, you must also use unicast on the VLC receiver. If you use
multicast on the encoder, you must also use multicast on the VLC receiver.
6.1 Encode & Stream with PC VLC Decode
Please see all connections labeled below.
*In order to perform this HD-SDI demo, you will need a video source with an NON-HDCP HDMI output (we
use a Brite-View box, Model: BV-5005HD Mini CT). You will also need an HDMI to HD-SDI converter (we
use a TV One converter, Model: 1T-FC-766).
The System can be controlled via serial port or Web Interface.
*The steps below provide instructions on controlling the system via serial port.
SD Card
Power LED
DM368-MOD-01
Power switch
ASI Out
Audio In
Serial
port
Ethernet
+12V Power
Status LEDs
(4)
Mfr Jumper
SDI In
CVBS In

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
13
1. Plug-in DB-9 serial cable from Z3-DM368-SDI-RPS to PC’s COM port.
2. Setup teraterm on PC for 115k, 8, N, 1, 0ms/char, 100ms/line.
3. Connect power supply to Brite-View Box.
4. Connect USB stick with content to Brite-View Box.
5. Set Brite-View Box to HDMI Auto.
6. Connect HDMI out of Brite-View Box to the HDMI in of the TV One HD-SDI converter.
7. Connect Ethernet from Z3-DM368-SDI-RPS to a PC.
8. Set the PC IP address to 192.168.0.XX
9. Connect 12V Power supply to the Z3-DM368-SDI-RPS.
*Before powering up the Z3-DM368-SDI-RPS system, make sure the Brite-View Box and TV One
converter are running.
10. Open up a console window
11. Power on the Z3-DM368-SDI-RPS system
12. After booting up and running through the beginning of the sequence, the system menu will appear:
+==============================================================
| Z3 Technology, LLC Z3 DME-01 1.04.08
+==============================================================
| + -- Set Device Name [ Z3-DM368-SDI-RPS ]
| = -- Set Password [ BLANK ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| 0 -- Operating Mode [ ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| 1 -- Video Source [ SDI ]
| 2 -- Audio Source [ Channels 1+2 ]
| 3 -- Audio Codec [ AAC-LC ADTS ]
| 4 -- Audio Bitrate [ ]
| 5 -- Video Resolution [ Follow input ]
| 6 -- Rate Control [ CBR ]
| 7 -- Video Bitrate [ 8000k ]
| 8 -- Video Profile [ High ]
| 9 -- Gop Size [ 60 Frames ]
| A-- Video Burst Size [ 1000ms ]
| B -- Video Codec [ ]
| C -- Frame Decimation [ ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| D -- Output Interface [ ASI+UDP ]

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
14
| E -- Output Format [ MPEG-2 TS ]
| F -- Dest IPAddress [ 225.1.2.3 ]
| G -- Dest Port [ 8888 ]
| H -- ASI Bitrate [ 12000k ]
| I -- ASI PCR Interval [ ]
| J -- PID/Audio,Video,PCR [ ]
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| K -- Local IPAddress [ 192.168.0.65 ]
| L -- Local Netmask [ 255.255.0.0 ]
| M -- Default Gateway [ 192.168.0.1 ]
+==============================================================
| T -- Stop S -- Start
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| U -- Load User Settings R -- Refresh Menu
| W -- Save User Settings X -- Exit
| Y -- Load Factory Default Settings
+==============================================================
---- enter option
For RTP Streaming:
13. Make sure “RTP” is selected as the Output Format. If it is not, press “E”
14. On the menu, press “F” to change the Destination IPAddress to your computer's static IP
15. Press “S” to start streaming.
16. Open VLC
17. Under Media, press “Open File” and open the SDP file (provided by Z3 Technology on your Z3 Server
Account).
18. You should now see video playing on VLC.
*It is possible that you may need to reboot if you do not see video in VLC
For UDP (MPEG-2 TS) Streaming:
13. Make sure “MPEG-2 TS” is selected as the Output Format. If it is not, press “E”
14. On the menu, press “F” to change the Destination IP Address to your computer's static IP
15. Press “S” to start streaming.
16. Open VLC
17. Under Media, press “Open Network Stream” and type “udp://@:port number (ex. udp://@:8888)
18. You should now see video playing on VLC.
*It is possible that you may need to reboot if you do not see video in VLC

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
15
7. Changing Network Parameters
The network parameters for the Z3-DM368-MOD can be changed in uboot.
To get to uboot power on the system and within the first 3 seconds of power up, hit the <enter> key.
Once in uboot mode the network parameters can be changed. The default settings of the Z3-DM368-MOD
are noted below:
>setenv ethaddr 00:01:34:01:02:03
>setenv ipaddr 192.168.0.65
>setenv gatewayip 192.168.0.1
>setenv netmask 255.255.0.0

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
16
Once you have changed all of the parameters that you want to you can save the parameters in the flash by
the following command:
>saveenv
After saving the uboot parameters, turn power off and then back on. Let the system completely boot and
the network parameters should be correct.
Network parameters can be check by going into uboot mode and using the following command (for ipaddr
as an example:
>printenv ipaddr
8. Updating Firmware
8.1 SD Card
The Programming SD Card provided is used to re-program the system by creating a new image or update
from Z3 Technology. Do not use the “Programming SD Card” until you are ready to update your system.
If you are ready to update your system:
-Locate the *.img file on your Z3 Server Account
-Place “Programming SD card” in computer
-Open the zwriter.exe windows program (located on your Z3 Server Account)
-Select correct *.img file
-Select correct location for of your “programming SD card”. Do NOT make mistake on this item. This
will cause wherever you are writing to be overwritten.
****There is no recovery once you hit “Write Device”****
-Eject “programming SD card” from computer
-Place in SD card socket of Z3-DM368-SDI-RPS
-Power on system with terminal output connected to PC
-You will see the system updating the flash
-Once complete, the system will boot
-Power off unit
-Remove “programming SD card”
-Power cycle system for clean boot and system should be updated
8.2 Web Server
-Locate the *.img file on your Z3 Server Account

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
17
-Select correct *.img file and save it on your computer
-Power on the Z3-DM368-SDI-RPS
-Connect the Ethernet cable from the Z3-DM368-SDI-RPS directly to the PC
-For a client PC to access the Z3-DM368-SDI-RPS, set the IP address of the PC to 192.168.0.XX
-Open Firefox or Internet Explorer 8 (or above) as your web browser
-Type the IP address of the Z3-DM368-SDI-RPS in your web browser (http://192.168.0.65) and the
Z3-DM368-SDI-RPS web configuration menu will appear.
-Press the “Update” button at the top of the menu
-Browse and select the *.img file was saved onto your PC
-Press update to update the Z3-DM368-SDI-RPS system
-Power cycle system for clean boot and system should be updated.
9. Troubleshooting
No video is usually caused by networking issues.
1): Check IP address and Netmask. Ping PC from Z3-DM368-SDI-RPS and ping Z3-DM368-SDI-RPS
from PC. Use direct connection from Z3-DM368-SDI-RPS system to PC without router/customer
network. Once video connection is established, then add in customer specific network equipment.
2): Check to make sure firewalls are turned off
3): Check video source. Verify video source is outputting compatible analog video
4): Verify PC is fast enough and has enough DDR to decode compressed video
5): Verify VLC version is 1.1x or later
No SDP file?
1): Please check your Z3 server account

CONFIDENTIAL Z3-DM368-SDI-RPS
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.0702
18
Table of contents
Other Z3 Technology Recording Equipment manuals
