LegalTek LX User manual

LEGALTEK LX OPERATING MANUAL
LXII Digital DVD Recording System
LegalTek A division of Gulen, Inc.
5753 E. Santa Ana Canyon Rd. Ste. G Anaheim Hills, CA 92807 714-321-9200 LegalTekLX.COM

IMPORTANT
This LX recorder contains the most recent hardware and firmware release.
The installed USB primary memory exhibits excellent data transfer speed and is more robust
being less susceptible to file corruption due to mishandling.
New USB flash memory must be pre-formatted for the FAT32 file system by a Windows based
computer (manual page 23) before installation into the LX. Once installed, access the LX menu
and touch the “Format SD” button on the control console. This will initiate formatting of USB
installed memory device by the LX.
The “FORMAT SD” button is also used to erase recordings from the LX flash memory prior to
initiating a new recording. Files stored on the LX PRO external hard drive can be individually
transferred or deleted when connected to a Windows based computer.
Not all USB devices are compatible with the LX. Those manufactured by Transcend without a
security vault feature will work well. SDHC devices must be capable of at least Class 6 data
transfer speed to work properly in an LX recorder. We suggest that you purchase additional
memory devices directly from Legaltek to ensure compatibility.
The LX utilizes sophisticated DSP processors, as well as Secure Digital and USB removable
memory, much as a computer. Before removing or installing USB or SDHC memory, always
power off the recorder using the RED “Power” switch, on the left rear chassis.
Failure to do so may cause the firmware to be corrupted, resulting in system malfunction and
the possible loss of recorded data.
Once memory is installed, boot up the recorder using the RED “Power” switch. This procedure
will initialize all memory blocks and ensure proper recording.
When not in use, always power down both the LX monitor and recorder. This procedure will
guard against firmware corruption due to power interruption or inappropriate memory handling.
To play LX files on Windows based computers, it may be necessary to download the K-
lite codec Pack, (standard) from:
http://www.codecguide.com/download_k-lite_codec_pack_mega.htm
Click the “Download” link on the left navbar. Click the “Standard" download link on the right
navbar, save and run the file. Be sure to install the MPEG2 option when prompted.
You will now be able to play LX files in Windows Media and most other MPEG2 capable
players.
Additional recent updates not covered in this manual will be addressed in a supplement if
required.

Contents
Introduction
1
System Unpacking
2
Monitor Controls
4
Connections
6
Control Console
8
Camera and Microphone Installation
9
System Setup
13

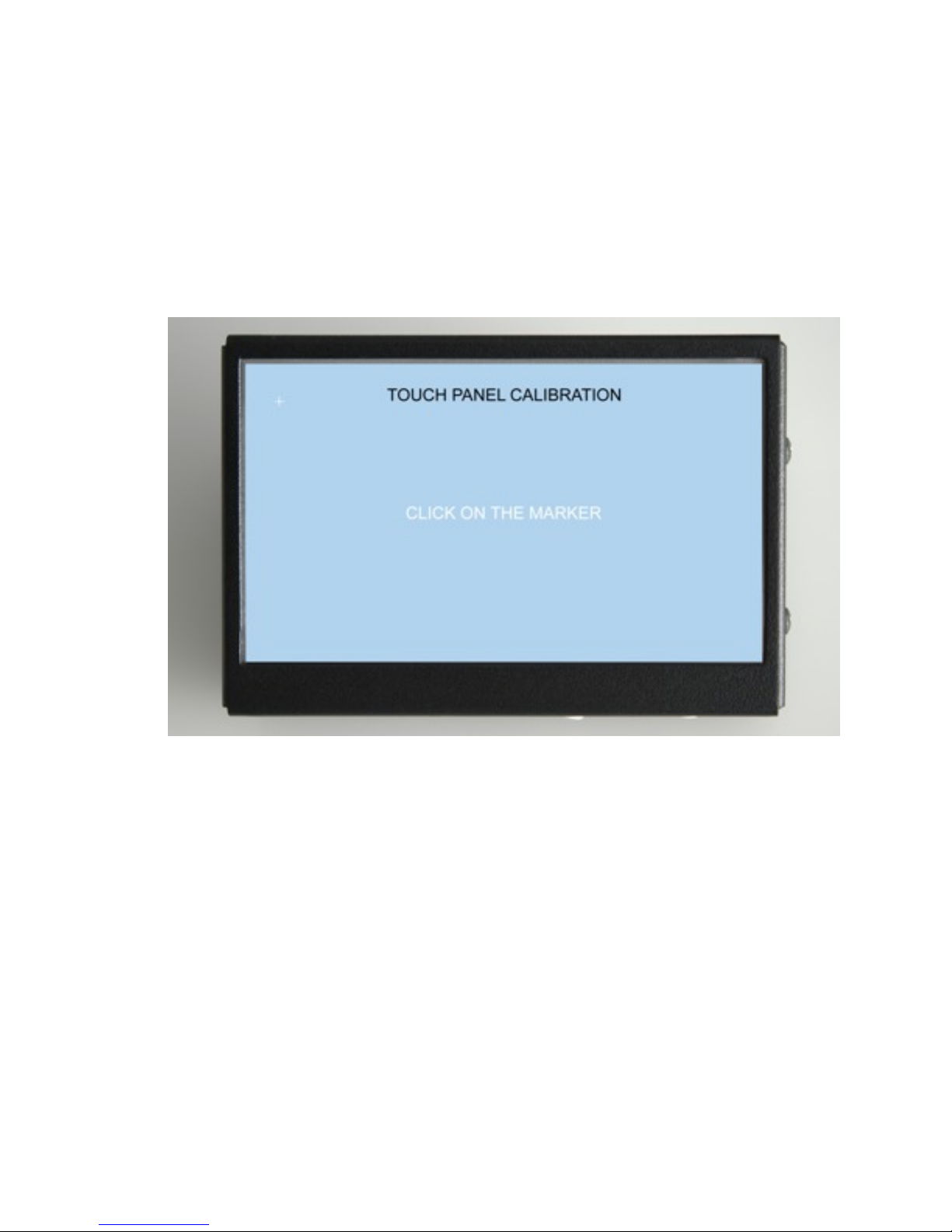

Touch Panel Calibration
15
Portable System Setup
16
Connections
17
Power Up
18
Camera and Microphone Placement
18
USB SDHC Card Pre-Formatting
23
Firmware Update Procedure
24
System Programming
26
Control Console Display
38
Recording
39
Playback
41
DVD Burning/File Management
43
Technical Specifications
51

About Us
Legaltek is a unique group of law enforcement technical professionals, established equipment
providers and manufacturers, that create products and offer services based on the needs and
requirements of our core customers, law enforcement and the legal community.
Through research, innovation and purpose driven design, Legaltek merges technology with
accepted standards and methodology, to develop specialty equipment that is simple to use and
reasonably priced.
Legaltek has become an established technical resource by providing assistance with
equipment selection, system design and audio/video laboratory services.
Welcome to the leading edge of law enforcement technology.
Introduction
Welcome to Bell Helicopter
Thank you for purchasing the new LX digital DVD recording system by LEGALTEK. Purpose
driven engineering has resulted in a versatile, simple to use recorder that will provide years of
maintenance free service. The LX represents a new standard in digital interview recording
systems specifically designed for law enforcement interrogation documentation.
The LX brings together both the stable LINUX operating system and universally compatible
MPEG2 recording standard. Recordings made on the LX can be viewed on virtually any DVD
player or computer with DVD playback capability.
Standard design features, coupled with our specialty line of accessory products, offer the law
enforcement professional a simple yet powerful solution to record and archive video
information.
Important
Before removing or installing SDHC or USB memory, always power off the recorder using the
RED “Power” switch located on the left rear chassis. Failure to do so may cause the firmware
to be corrupted resulting in system malfunction and possible loss of recorded data.
Once memory is installed, boot up the recorder using the RED “Power” switch located on the
left rear chassis. This procedure will initialize all memory blocks and ensure proper recording.
ALWAYS POWER DOWN THE LX MONITOR AND RECORDER WHEN NOT IN USE. This
procedure will guard against firmware corruption due to power interruption or
inappropriate memory handling.
1

System Unpacking
Legaltek ships the LX digital video recording system in a double wall container featuring a
custom cut foam insert. Please save this container should you need to transport the unit
safely.
Please refer to the illustration below to identify the packing configuration of the LX and
supplied accessories.
2

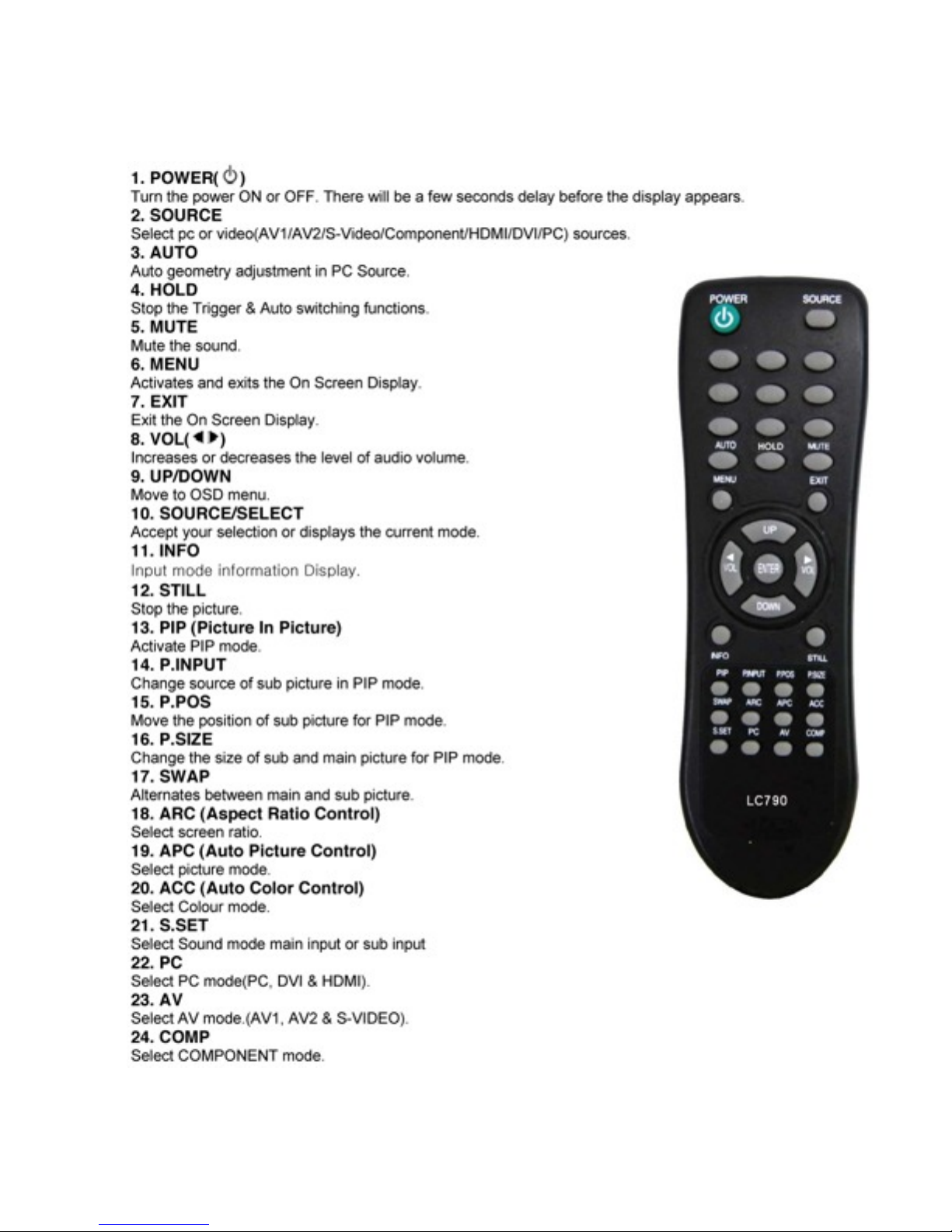

IR Remote Functions
Remote Controller
3

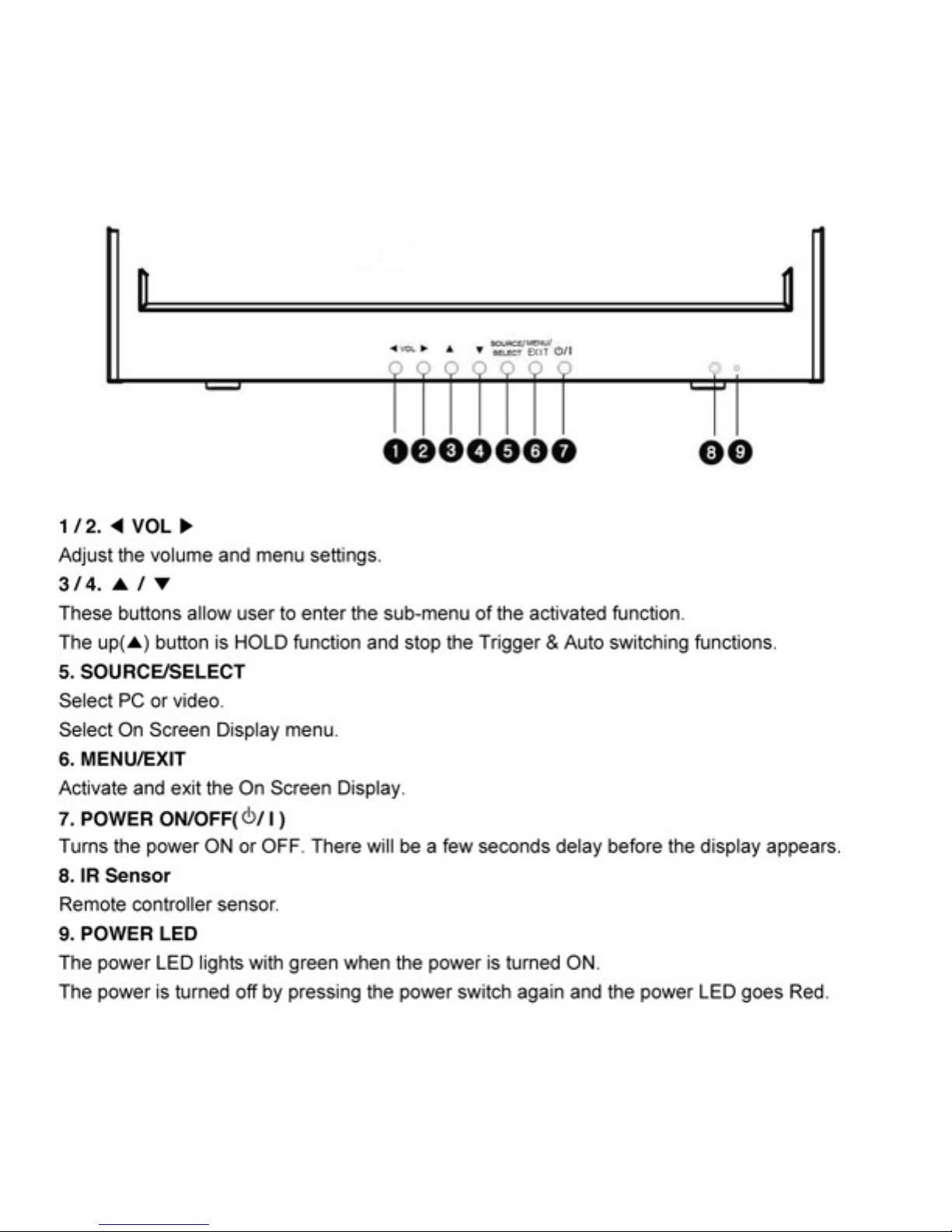

Monitor Control and Functions
Key Functions
4

Monitor Control and Function Menus
On Screen Display Menu Description
5

DVD Recorder Control Panels
6
Primary Controls - Right Side

7

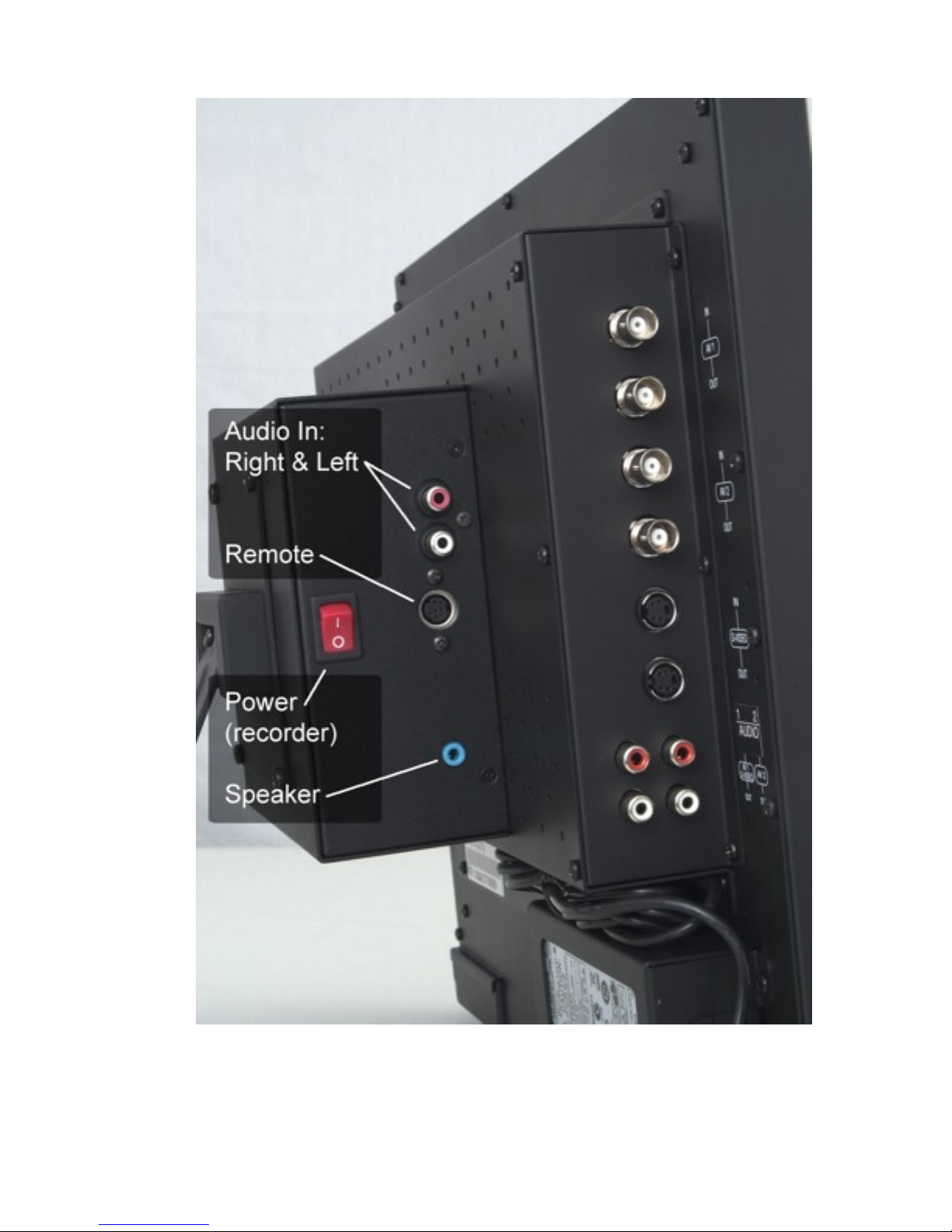

Connections and Recorder Power Switch-Left Side

Control Console
Control Surface and Cable Connection
8

System Installation
Camera Installation
It is important that the camera be adjusted and positioned correctly before permanent
installation.
To simplify this process, place the LX on a table in the interview room. You will not require the
touch screen control console for this procedure.
Connect one end of the DC/Video cable to the camera and the other end to the LX AV1 IN and
the 12V regulated camera power adaptor. The LX monitor can now be used to correctly adjust
and position the camera before permanent mounting.
Power up the LX monitor by depressing the power switch on the lower front panel. While
watching the monitor, position the camera, mark the screw holes or trace the mounting ring for
proper cut out.
Legaltek specialty cameras are factory adjusted for optimal performance under normal lighting
conditions. However, they may be adjusted electronically via the rear joystick control to
accommodate variations. Please refer to the enclosed menu guide.
*Important: If this device is serving as the close up camera for an LX PIP system and is
connected to AV1 IN (Full Screen Display), please note the following: The camera connected
to AV2 IN (PIP insert), is both recorded and viewed in the lower right quarter of the video
display. Position the close up camera so that the subject is slightly above and to the left of
center, as to not be covered by PIP insert.
Disconnect the DC/Video cable and install it in the wall or ceiling from the camera location to
the area where the LX recorder will be permanently set up.
Reconnect the DC/Video cable to the camera, secure it to the wall ring with the supplied
screws and connect the other end to the LX recorder AV1 IN (AV2 IN) and DC 12V regulated
camera power adaptor.
The installation is complete.
9

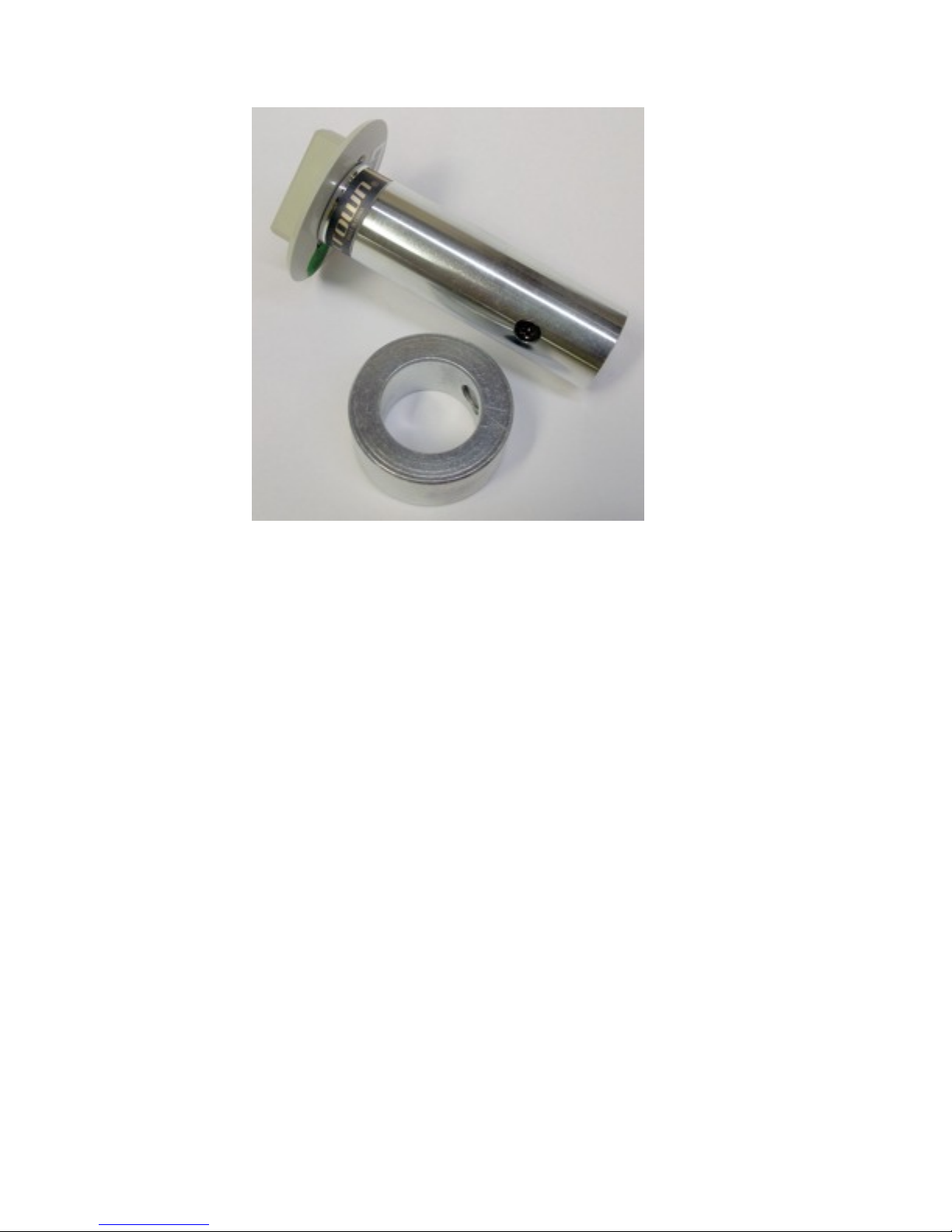

Microphone Installation
To mount the LXM ceiling module, carefully drill a ¾” hole in the tile or plaster, taking care not
to damage the immediate surrounding surface. With the supplied allen wrench, loosen the set
screw on the machined retaining ring on the microphone body and carefully slide it off. Place
the microphone body through the hole, secure with the retaining ring and tighten the set-screw.
Connect the female end of the supplied balanced audio cable to the microphone and the male
end to the LX pre-amplifier/compressor.
The installation is complete.
10

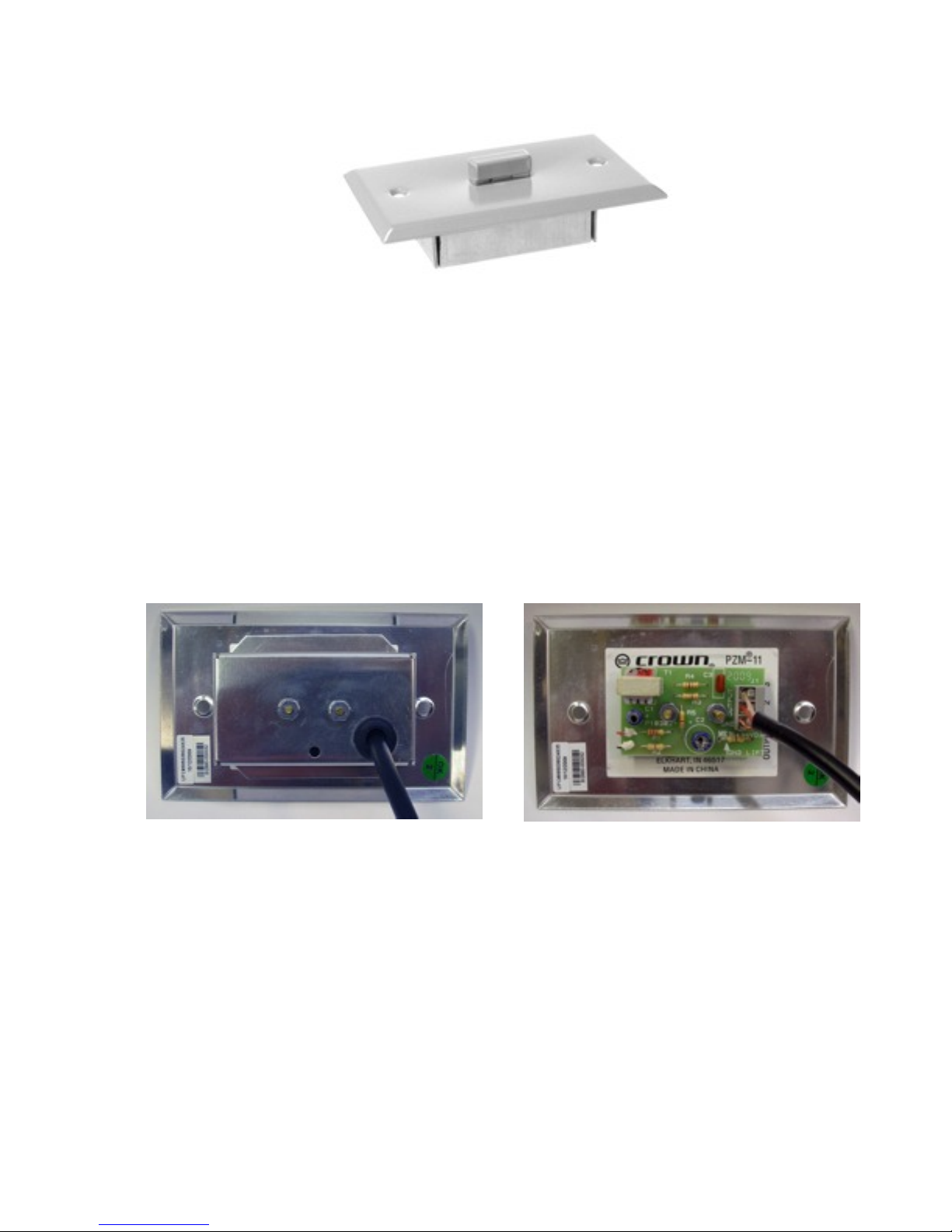

LXM Wall Microphone Module
The LXM wall mount module is shipped with cable connected and mounting hardware. Select
a location between the wall support studs and trace the mounting ring for proper cut out. Cut
the mounting hole and install the mounting ring. Fish the microphone cable (male connector
end) through the mounting ring, up the wall and to the equipment room. Secure the
microphone module to the mounting ring with the supplied screws.
The installation is complete.
Note: If you cannot fish the cable with male connector up the wall, adhere to the following
procedure to remove the microphone cable from the module and fish the bare wires down the
wall:
Loosed and remove the two nuts on the module rear cover. Carefully slide the rear cover away
from the module exposing the terminal strip. Disconnect the three wires from the microphone
terminal strip using a small flat blade screwdriver. Fish the bare end of the balanced audio
cable from the ceiling down the wall and through the mounting ring. Route the cable through
the rear cover and reattach the three wires to the appropriate connections on the terminal strip.
#1(GND) bare copper shield, #2 (AUDIO +) red wire and #3 (AUDIO -) clear wire. Replace the
rear cover and tighten the two retaining nuts. Carefully place the microphone into the wall-
mounting ring and secure with the supplied fasteners. Connect the male end of the balanced
audio cable to the LX pre-amplifier/compressor.
The installation is complete.
11

LXM Wall Security Microphone Module
The LXM wall mount module is shipped with cable connected and mounting hardware. Select
a location between the wall support studs and trace the mounting ring for proper cut out. Cut
the mounting hole and install the mounting ring. Fish the microphone cable (male connector
end) through the mounting ring, up the wall and to the equipment room. Secure the
microphone module to the mounting ring with the supplied screws. Install the stainless steel
cover with the supplied screws. Make sure to install the cover with the vents facing downward.
The installation is complete.
Note: If you cannot fish the cable with male connector up the wall, adhere to the following
procedure to remove the microphone cable from the module and fish the bare wires down the
wall:
Disconnect the three wires from the microphone terminal strip using a small flat blade
screwdriver. Fish the bare end of the balanced audio cable from the ceiling down the wall and
through the mounting ring. Reattach the three wires to the appropriate connections on the
terminal strip. #1(GND) bare copper shield, #2 (AUDIO +) red wire and #3 (AUDIO -) clear
wire. Carefully place the microphone into the wall-mounting ring and secure with the supplied
fasteners. Install the stainless steel cover with the supplied screws. Make sure to install the
cover with the vents facing downward. Connect the male end of the balanced audio cable to
the LX pre-amplifier/compressor.
The installation is complete.
12

System Setup
Place the LX on a flat desk or countertop and extend the support leg to achieve the desired
viewing angle.
Connect the AC power cord to the power adaptor on the lower rear of the LX and connect the
AC power plug to the supplied power strip or UPS.
Locate the Remote Console cable and connect one end into the Remote jack on the left side
panel of the LX recorder and connect the other end to Remote Connection jack on the rear of
the touch screen Remote Console.
Unpack the powered speaker system. Plug the DC power adaptor into the supplied power strip
or UPS and connect the DC cable to the 12V jack on the rear of the right powered speaker.
Connect the left (attached) speaker cable to the jack marked To Left Speaker on the rear of
the right speaker. Locate the 1/8” mini to RCA speaker connection cable. Insert the 1/8” mini
plug into the Speaker jack on the left side of the LX recorder and the two RCA plugs into the
Audio Input jacks on the right speaker.
When headphones are used, insert the 1/8” stereo headphone plug into the Headphone jack
on the front of the right powered speaker. The speakers will be attenuated and audio will be
heard in the stereo headphones. Use the volume knob on the speaker to adjust the headphone
listening level.
Locate the camera video/DC cables. Connect the end with the male DC 12V plug into the
camera’s female power jack and the BNC video connector onto the camera’s female BNC
video jack. Connect the BNC plug on the other end of the cable into the AV 1 IN BNC jack on
the LX side panel. If a second camera is being used, connect the second BNC plug into the AV
2 IN BNC jack on the LX side panel. Insert the DC 12V plug(s) from the camera(s) AC adaptor
(s) into the female DC receptacle(s) on the video/power cable(s). Connect the camera AC
adaptor(s) to the supplied power strip or UPS.

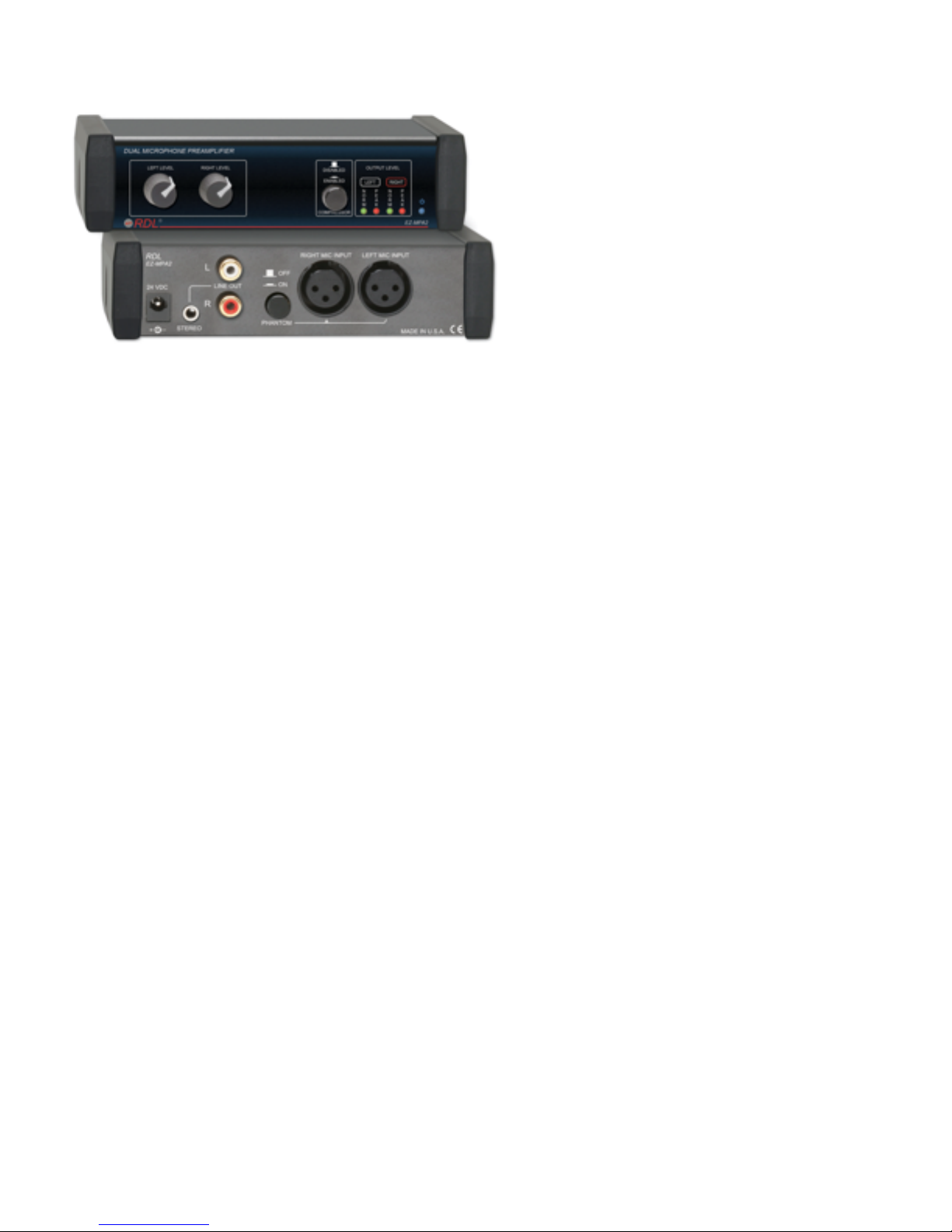

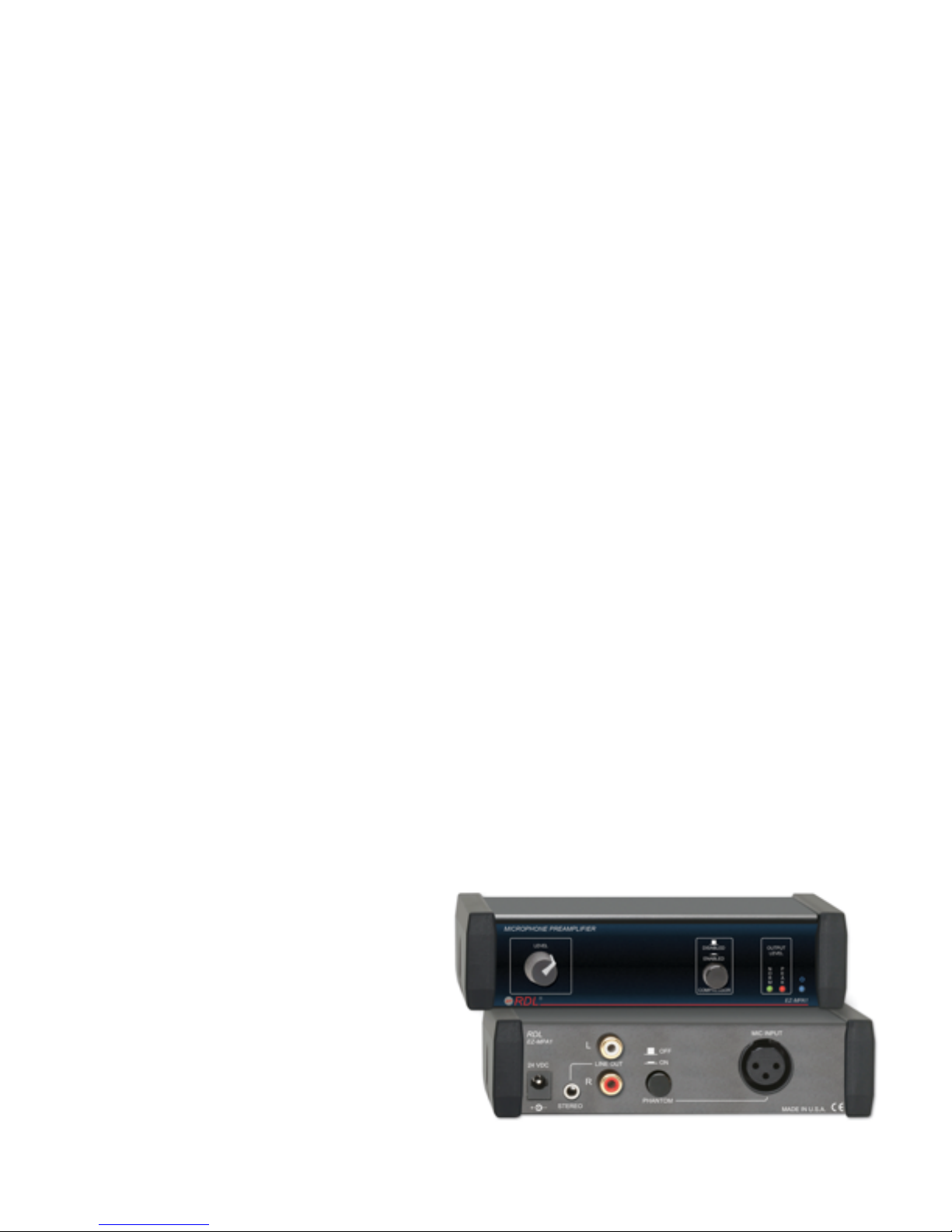

Locate the microphone preamplifier, power adaptor and 3’ stereo audio cable. Plug the power
adaptor into the power strip and the DC cable into the 24VDC jack on the rear of the
preamplifier. Plug the 3’ stereo audio cable into the LINE OUT jack on the rear of the
preamplifier and the other end into the two AUDIO IN jacks on the left side of the LX recorder.
The PHANTOM and COMPRESSOR buttons should always be enabled (depressed) on the
Microphone Preamplifier.
13
(Single channel microphone
preamplifier)

Locate the microphone(s) and microphone cable(s). Connect the microphone(s) to the female
connector(s) on the microphone cable(s) and plug the male connector(s) into the MIC INPUT
jack(s) on the rear of the microphone preamplifier. Begin with the microphone level at about 2
o’clock and adjust up or down as necessary.
If you connecting accessories such as the Video Server streaming adaptor, Digital Audio
Recorder, Multiple Headphone Distribution Amplifier or a Remote Video Monitor, please
use the BNC AV 1 or AV 2 OUT jacks and RCA AUDIO 1 / 2 OUT jacks on the left side of the
LX chassis.
Power Up
The LX LCD monitor and DVD recorder are powered up (and down) with separate power
switches. This feature allows continuous room monitoring while powering the recorder
up or down when reinserting or removing memory.
1) Turn on the LCD MONITOR by depressing the power button on the lower front control
panel.
2) Turn on the DVD RECORDER by depressing the red power button on the rear left side
control panel.
3) If you are activating the LX for the first time, proceed to the “SETUP” section for system
programming.
4) If your LX has been programmed, you may begin recording or begin playback of previously
recorded files at this time.
14
(Dual channel microphone preamplifier)

Touch Panel Calibration
To calibrate the touch panel, please follow these steps:
1. Locate the “Menu” button on the rear of the control console.
2. Press the “Menu” button once and the “SETUP” screen will appear.
3. Press the “Menu” button rapidly, several times and the “Touch Panel Calibration” screen
will appear.
4. Using a stylus or non-sharp pointed object, touch the tiny white marker at the upper left
of the screen. The marker will then move to the upper right of the screen.
5. Repeat step #4 as the marker moves to the lower right, and then, lower left of the
screen.
6. Once calibration is complete, the “SETUP” screen will appear.
7. Touch “EXIT SETUP” to return to the video/control mode.
8. Calibration is complete.
15

Portable System Setup
The LX portable system is housed in a watertight Pelican case equipped with 2" hard rubber
transport wheels, a retractable extension handle and multiple fold- down carrying handles.
Place the case on a table or flat surface and release the top securing latches to open the case
lid assembly.
Please refer to the diagram below to identify system components and their proper storage
location within the portable case.
16
