ZAGATO ESPRESSO COFFEE MACHINE User manual

We congratulate you for having bought this top-quality coffee machine and thank you for
choosing Zagato.
Before operating the coffee machine , we recommend to read the following instructions
thoroughly which explains how to install and use the unit.
Instruction Manual
ZagatO
Macchina da Caffe’
Espresso coffee machine
Maquina para café exprés
machine a café espress
Espresso Kaffeemaschinen
Volumetrica Series
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

General Instructions
This Espresso coffee machine is intended for professional use. It is designed to prepare hot
drinks such as tea, cappuccino, coffee (at various strengths and volumes) and espresso.
Additional accessories are available which have been designed for optimum use of the
machine.
If the machine has two or more groups, it can be operated by two persons at the same time.
These characteristics, together with the fact that the machine is capable of non-stop
preparation of hot beverages, guarantee extensive and efficient use.
Please read the instructions carefully before using the machine!
The coffee machine that you have purchased was designed and constructed in compliance
with the requirements of contemporary technologies, which provide quality and reliability.
The instructions will help you to get acquainted with the advantages of this machine. Here
you will find information about how to operate the machine in the most efficient way and how
to react if malfunction will occur.
Store this manual carefully. If you should lose it, you can ask for and additional copy from the
distributor.
Index
Read these instructions carefully and make sure to hand them to other users.
2
Safety Indications
General Safety instructions
Machine Description
Technical Data
Installation
Preparation of the machine
Starting the machine
Calibration
Use and Programming
Coffee pouring
Pre infusion
Alarm conditions
Programming

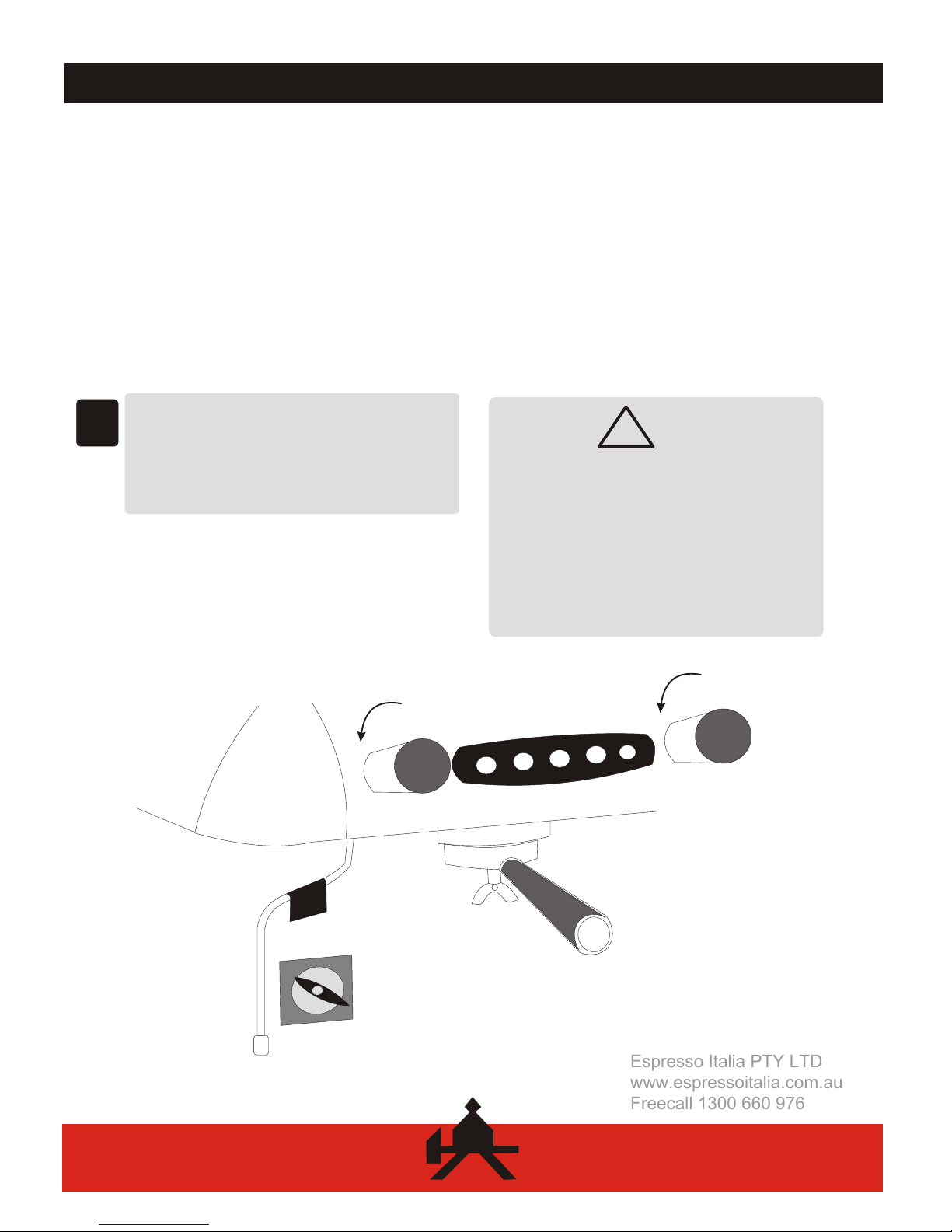

Dispensing hot water
Dispensing steam
Cleaning and Maintenance

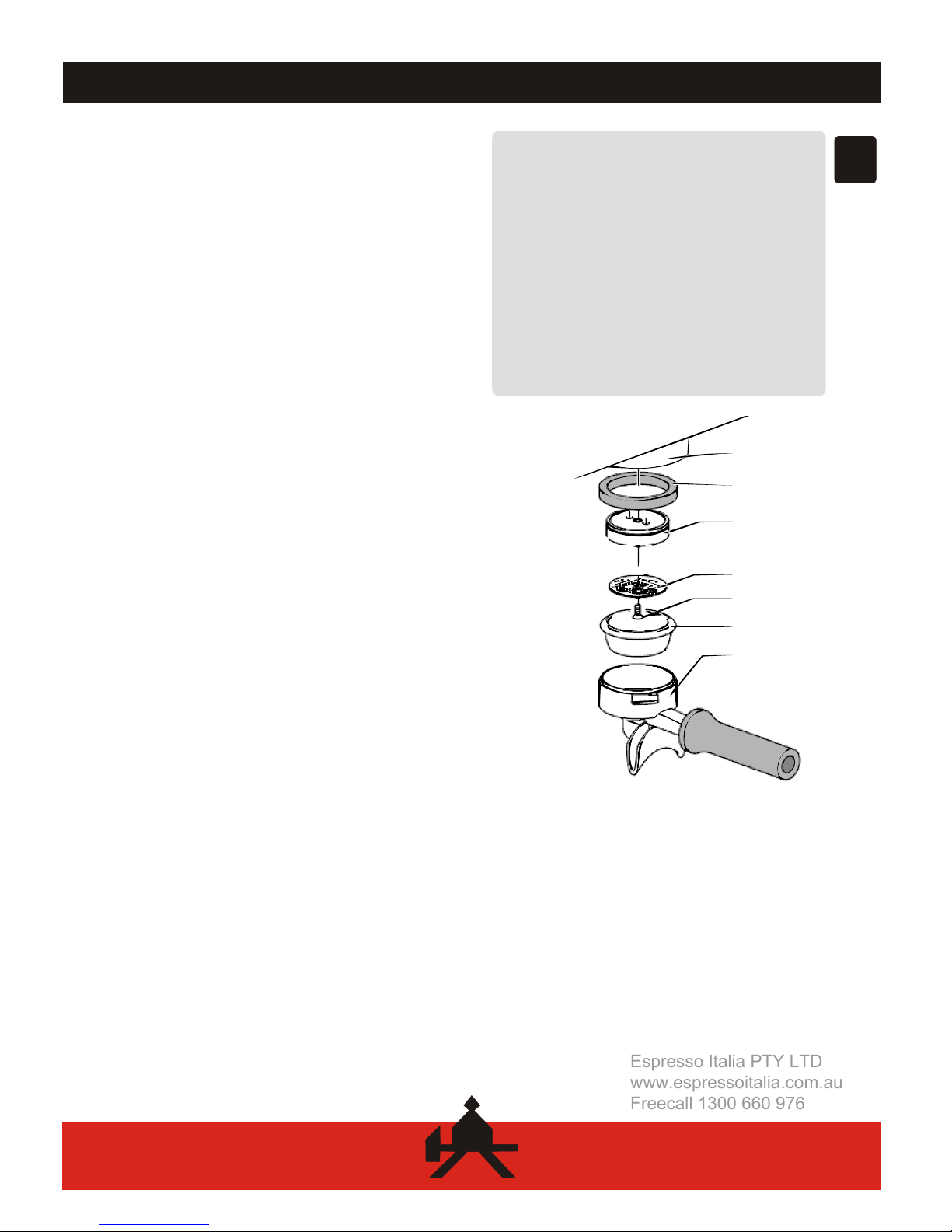

Filter and filter holder
Showers
Steam nozzle
Group heads (back flushing)
Machine maintenance
Trouble Shooting
3
4
5
6
7
8-11
12-13
14-15
ZagatO
!
NOTE
!
NOTE
!The warning triangle
shows all important safety
indications to ensure the
user’s safety.
The non observance of
said instructions may
cause serious injuries!
Operations essential to
guarantee efficient
function.
Interventions to be carried
out exclusively by an
installer or authorized
technician.
TEC
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Safety indications
General safety instructions
Do not touch the machine with wet hands
and feet!
Do not use the machine barefooted!
Do not use cable extensions in wet areas!
Do not switch off from the mains!
Before the specialized personnel carries
out maintenance operations deactivate
the appliance from the electrical network
through the omni-polar switch.
Follow the instructions for the everyday
cleaning as given is this manual.
In case of damage or improper functions
switch off the machine. Do not try to repair
it yourself, but refer to specialized
personnel.
The original plug should not be replaced
by the user. In case the plug gets
damaged, switch off the machine and
refer to a professional.
In case you decide not to use the machine
for long time, it is recommended to switch
it off from the mains and to drain the water
from the boiler.
For the proper functioning of the coffee
machine it is necessary to follow the
instructions of the manufacturer strictly
and also to have specialized staff perform
periodical maintenance.
How to use the instructions
These instructions cannot anticipate every
possible use of the unit.
For further information or question
concerning specific situations or problem ,
please contact the local dealer or
manufacturer directly.
Power Cord
Never use this unit with a defective power
cord. Replace defective power cords and
plugs, contac authorised personnel. Do
not extend the power cord around corners
or sharp edges or over hot parts. Do not
unplug the unit by pulling the power cord
and never touch it with wet hands. Make
sure the power cord does not hang from
tables or shelves.
Danger! Electrical parts should never
be in contact with water: danger of
short circuit!
This unit must be used exclusively for the
purpose it has been manufactured.
Do not make technical changes for any
reason whatsoever; any improper use is
forbidden, due to the risk which might
occur!
The unit must be connected to a socket
with a suitable voltage . Voltage must
correspond to the voltage shown on the
appliance rating plate.
Keep children away
Do not allow children to play with the
machine. Children are not aware of the
potential danger caused by electrical
appliances.
Do not expose your hands or other part of
your body in the direction of the coffee,
the steam or hot water outlets. Steam and
hot water may cause injuries.
Any unauthorized handling of any part of
the machine renders any guarantee null
and void.
3
ZagatO
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

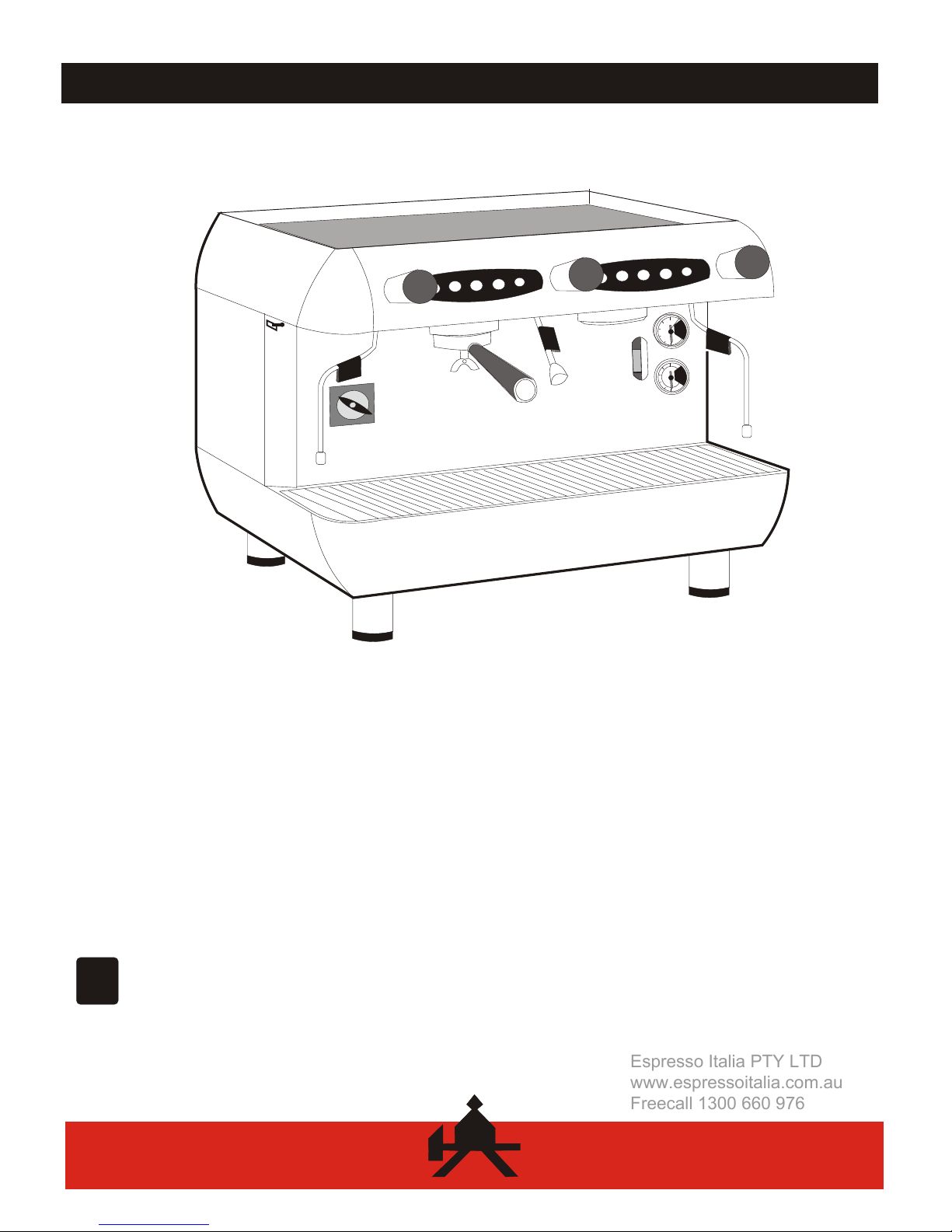

Machine Description
7 Hot water dispensing
8 Steam Knob
9 Machine main switch
10 Internal programming switch
11 Hot water knob
12 Push button panels
1 Boiler level-check window
2 Boiler pressure gauge
3 Pump gauge
4 Steam nozzle
5 2-cup filter
6 Adjustable feet
1
0
1.5
2.5
1
0
1.5
2.5
12
3
7
4
4
5
6
9
10
11 8
812 12
0
12
Positioning
Place the unit on a level surface.
Keep 5 cm of clear space from the side wall of the unit and 10 cm from the rear.
In order to function at its potential avoid placing the unit near hot temperature areas.
Use the adjustable legs to level the unit.
Do not place heavy objects on top of the unit.
4
ZagatO
!
NOTE
Volumetrica series
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Technical Data
Model Zagato
1gr Volumetrica
Zagato
2gr Volumetrica
Zagato
3gr Volumetrica
Power 11AMP: 240V 50/60HZ;
2400W
17AMP:240V 50/60HZ
3900W
25AMP:240V 50/60HZ
6000W
Water pres min./max.2 bar/4 bar
Width x Height x Depth 500x620x520 700x620x520 950x620x520
Boiler Capacity litre 6 l 12 l 18 l
Heating Element 2000W 3400W 5500W
Brewing Group Heads 1 2 3
Steam Wand (-s) 1 2 2
Hot Water 1 1 1
Electronic : Multiple pre/brewing & volume setting - Auto self-cleaning
Temperature control 1.2 bar pressure switch for heated water output
Litre/hour 7 l/h 14 l/h 21 l/h
Espresso production
30 ~ 40 ml
120 e/h 240 e/h 360 e/h
Finish/Color Aluminum stainless steel look (Silver)
Filter handle(-s) 1single/1double 1single/2double 1single/3double
Rack (6cm high)1 2 2
Blind Filters 1 2 3
5
ZagatO
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Installation
Preparation of the machine
The preparation of the coffee machine
and its installation must be performed by
qualified staff.
Starting the machine
Open the water tap of the water mains
and of the softener / water filter.
Turn the switch to position “1”
(electrical power supplied to the pump for
automatic boiler filling and machine
services) and wait for the boiler to be
automatically filled with water.
Turn the switch to position “2” (full
electrical power suppled, including the
heating element in the boiler) and wait for
the machine to warm up completely.
Wait for the pressure to reach its
operational pressure 1.1÷1.3 atm
checking the boiler pressure on the
gauge
Should the machine fail to stabilize on the
indicated values it is
necessary to calibrate the pressure
switch as described in calibration
paragraph.
Then check the pressure on the pump
gauge putting a unit into
operation with filter holder engaged filled
with ground, dosed and
pressed coffee in order to achieve an
effective working pressure of
8/9 atm.
Should re-calibration of the pump
pressure be necessary this
operation should be undertaken as
indicated in the “calibration” paragraph.
!
!
WARNING
Use of the machine without all the
installation operations having been carried
out by technical personnel could damage it
seriously.
WARNING
During the machine’s warm-up (roughly
20 minutes), the negative pressure valve
will release steam for a few seconds until
the valve itself closes.
Before using the machine, run deliveries
with the filter holder attached for a few
seconds to release any air which may be
in the circuit, so that the head groups are
completely heated.
The user must be provided with
instructions in order to use the machine
properly. It is recommended not to take
actions which may disturb the functions of
the machine.
WHEN THE MACHINE IS SWITCHED
ON, ITS BOILER CONTAINS STEAM
AND WATER UNDER PRESSURE
!
!
0
12
Switch
Machine
OFF
Machine
ON
Prime
Boiler
6
ZagatO
TEC
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Calibration
Pressure switch adjustment
The pressure switch shown in the figure
acts to keep the
boiler pressure constant by engaging or
de-activating the electrical
heating resistance.
This pressure switch is already calibrated
to 1.1-1.3 bar during the
initial machine testing stage, but should a
different working pressure
be required, it is possible to vary the
operational field of the pressure
switch using the regulation screw (U);
pressure reduction results in
a reduction in temperature, whilst
increasing the pressure will also
increase the water temperature.
The regulation direction is shown in the
figure and on the pressure
switch itself.
The pressure varies by 0.1 atm for every
complete screw turn,
Pump pressure adjustment
Insert the filter holder into the unit filled
with regularly ground, dosed
and pressed coffee. Press one of the
coffee button and read the pressure on
the pump pressure gauge
NB: The correct pressure is of 8-9 atm.
Should the pressure indicated on the
pressure gauge be incorrect,
turn it clockwise to increase the pump
pressure and anti-clockwise
to reduce the pressure.
Once adjustment is complete check
pump calibration by delivering
one or more coffees.
Z= Pump pressure adjustment screw.
!
WARNING
Disconnect the electricity supply before
undertaking this operation.
!
7
ZagatO
TEC
TEC
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Use and programming

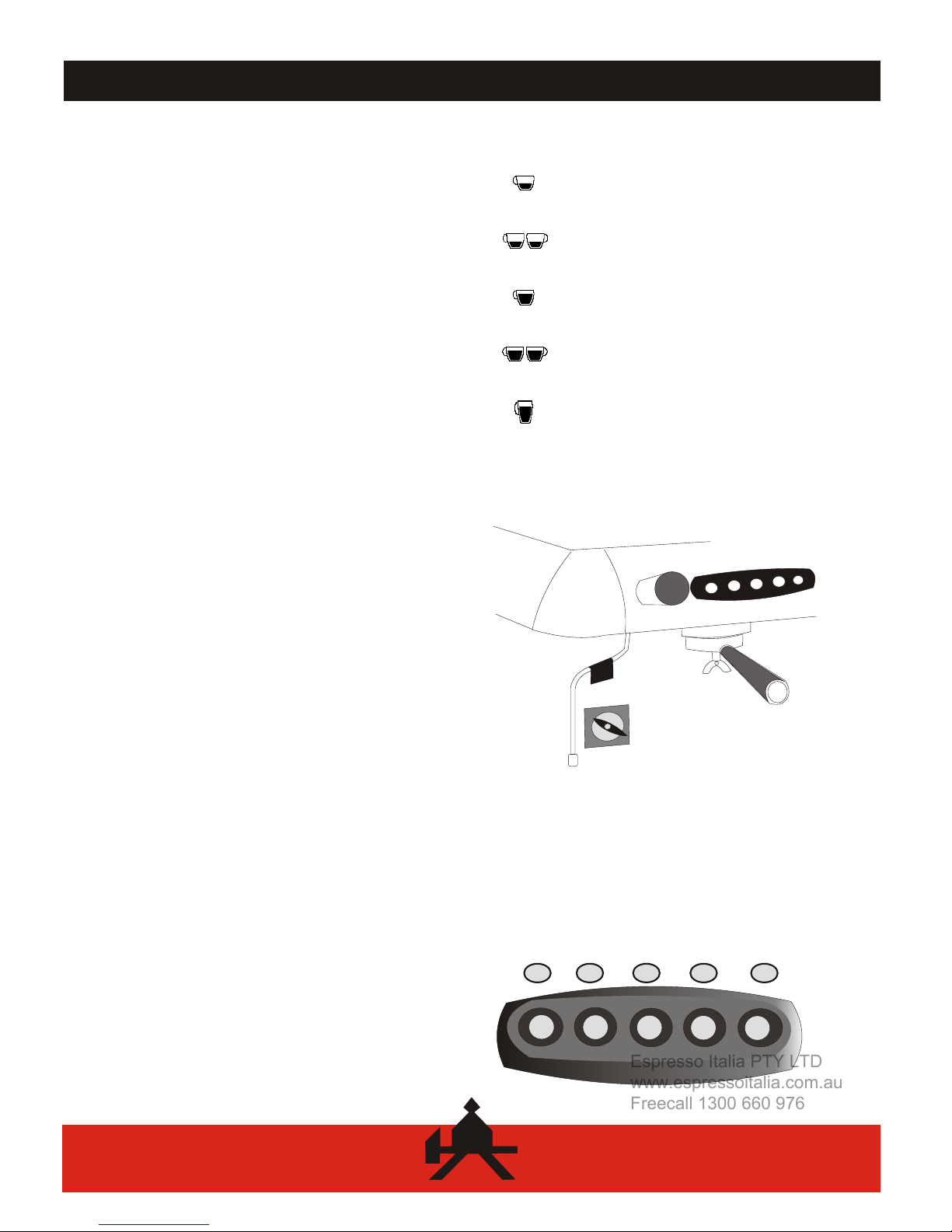

Coffee Pouring
On pressing the corresponding button
T1-T2-T3 or T4, the corresponding
delivery solenoid valves are activated for
the time necessary to obtain the required
amount of product as previously
programmed (volumetric check).
The delivery in progress may be
suspended before actually reaching the
desired programmed product quantity by
pressing button T5 Stop.
It is also possible to obtain simultaneous
coffee delivery from all the machine
groups.
Continuously Coffee Pouring
For continuous coffee measure delivery
press button T5 from the keyboard
corresponding to the group head which
one wishes to operate. Press again the
same button T5 to Stop.
Pre infusion
Our software permits measure
configuration so that the relative delivery
of the COFFEE measures through
volumetric control is
preceded by pre-infusion. Delivery of the
coffee measure after time 1 (ON) is
suspended for a time 2 (OFF) and is then
resumed for the completion of selection.
On pressing one of the volumetric control
measure buttons, the normal delivery
cycle is preceded by a short timed water
jet in order to dampen the coffee before
actual delivery stage.
This function ensures the optimum
extraction especially for espresso
coffees.
0
12
T1 T2 T3 T4T5
T1 single espresso coffee
T2 double espresso coffee
T3 single long coffee
T4 double long coffee
T5 programming/continuos
and stop
T1 T2 T3 T4 T5
Boiler (filling) level time out
This alarm condition occurs whenever
the water level is too low or the level
probe remains uncovered. In such a case
all the buttons are lit.
The filling stage is automatically engaged
and to cancel the alarm conditions switch
the machine off and then on again.
Alarm conditions all buttons lit
T5
T4
T3
T2T1
8
ZagatO
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Use and programming
Coffee measure programming
Place the programming switch in the ON
position. It is located inside the coffee
machine on the left-hand side panel of the
body. To access the inside of the machine
remove the top tray cup warmer.
The buttons T1-T2-T3-T4 will light up.
The button T5 will flash.
IMPORTANT
Programming mode
Use the button T5 to swap between pre
infusion and no pre infusion
programming mode.
When the button (T1/T2/T3/T4) flashes
you are in pre infusion mode
When the buttons light up you are in
normal pouring mode (no pre infusion)
0
12
T1 T2 T3 T4T5
ON
IMPORTANT
The programming of every dose must be
done with ground coffee and not with
previously used grounds. With machines
having two or three groups, by first
programming the right-hand buttons
panel the others are automatically
programmed. It is however both possible
and advisable to program the push button
panels independently, always starting
from the right-hand button panel.
1
2
2
1
Flash
Light Light Light Light
FlashFlashFlashFlash
Flash
T1
T1
T2
T2
T3
T3
T4
T4
T5
T5
T5
T4
T3
T2T1
T5
T4
T3
T2T1
Pre infusion mode
NO pre infusion mode
9
ZagatO
!
NOTE
!
NOTE
Programming
switch located
inside
machine
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Use and programming
Once completing the programming, place
the programming switch back in the OFF
position.
Repeat the following operation for the
programming of the remaining buttons :
For programming with pre infusion
repeat steps 3 to 6
For programming with no pre infusion
repeat steps 7- 8 and 5
Programming with no pre infusion
(Buttons must be lit up, if not press T5)
Put the coffee cup under the dispensing
spout.
Press and hold the button to be
programmed until the desired dose is
obtained.
Press button T5 to confirm.
Press button T5 to confirm.
7
6
9
88Flash
Flash
Flash
Light
Light
Light
Light Light
T1 T2 T3 T4 T5
T5
T4
T3
T2T1
0
12
T1 T2 T3 T4T5
9
Programming with pre infusion
(Buttons must flash, if not press T5)
Put the coffee cup under the dispensing
spout.
Press the button to be programmed and
hold for as long as you want the pre-
infusion. (Aprox. from 1 to 3 sec)
Wait up to 2 sec. (Infusion time)
Press and hold the same button again
until the desired dose is obtained.
4
4
6
5
5
3
T1
T1
T2
T2
T3
T3
T4
T4
T5
T5
T5
T4
T3
T2T1
T5
T4
T3
T2T1
10
ZagatO
!
NOTE
Programming
switch located
inside
machine
OFF
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Use and programming
0
12
Dispensing hot water
To dispense hot water , turn the tap knob
(W) counter -clockwise : the amount of
water which comes out of the nozzle will
be proportional to te opening of the tap.
Dispensing Steam
To dispense steam , turn the tap knob (S)
counter -clockwise : the amount of steam
which comes out of the nozzle will be
proportional to the opening of the tap.
The steam nozzles must be cleaned
immediately after use in order to prevent
the risk of the formation of any scale which
may block the holes and to ensure that any
drinks made subsequently do not absorb
any unpleasant odors.
W
S
IMPORTANT
You can also pull the tap knob ether for
the steam or the water in order to get hot
water/ steam.
WARNING
Handle the steam nozzle with care using
the anti-burn handle (1) and do not touch
the hot water nozzle. Contact with steam
and hot water may be harmful to people.
!
1
11
ZagatO
!
NOTE
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Cleaning and maintenance
IMPORTANT
For the perfect cleaning and efficiency of
the appliance, several simple cleaning
operations are necessary on the
functional parts and accessories as well
as the body panels.
The indications given here are applicable
for normal use of the coffee machine. If the
machine is heavily used then cleaning
should be performed more frequently.
Filter and filter holder
The filters (F) and the relative filter
holders (G) must be cleaned daily in hot
water. The best thing to do is to let them
soak in hot water overnight so that the
fatty coffee deposit can dissolve.
It is advisable to special coffee machines
detergent to the water , and then to rinse
everything off with water. Failure to clean
the filters and filter holders daily will
compromise the quality of the coffee and
will also cause problems such as bad
extraction and coffee grounds at the
bottom of the cup.
Showers
The showers (D) should be cleaned
weekly in hot water. To do this loosen the
screw (E) and remove the shower.
Steam Nozzles
The steam pipes must be kept clean all
the times. Check the ends of the steam
nozzle and clean them daily, clearing out
the exit holes with a small needle.
Filter Holder
It is advisable to leave the filter-holder
cups inserted with the coffee dregs for the
entire working day to ensure that the filter-
holder is always at optimum
temperature..
Body
The body panels should be cleaned with a
cloth soaked in warm water Do not use
abrasive detergents since the panels
could get scratched.
A GROUP HEAD
B SEAL
C SHOWER HOLDER
D SHOWER
E SCREW
F FILTER BASKET
G FILTER HOLDER
A
B
C
D
E
F
G
12
ZagatO
!
NOTE
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Cleaning and maintenance
Group heads (back flushing)
The cleaning of the internal parts of the
delivery groups is to be performed weekly
in the following manner:
Insert the rubber blind filters (A) in the
filter-holders
Pour a teaspoon of a suitable detergent
powder on each of the blind filters and
attach the filter-holders to the groups.
Using the right-hand button panel, press
at the same time button T1 and T5 to
activate the automatic cleaning cycle.
The buttons T2 ,T3, T4 will light up.
After the 10th cleaning cycle on the right-
hand group, it will start a new cleaning
process in the left-hand group.
The cleaning cycle will stop automatically
or by pressing the T3 button.
Rinse out the unit using a normal filter and
then undertake a few dispensing
operations using water only. Then
prepare a coffee in order to eliminate any
detergent residue.
Machine maintenance
Periodically check the following items:
Check the pump pressure gauge which
should indicate a value between 8 and 9
bar. In case of malfunction, request the
assistance of technical personnel.
Check the pressure gauge, making sure
that the boiler pressure is 0.8 -1.2 bar.
Check the conditions of the filters for any
damage along the edges and see if there
are any coffee grounds in the cup. If
necessary replace the filters.
Light
Start automatic back flushing
Stop automatic back flushing
Light
Light
Light
Light
Light
T1
T1
T2
T2
T3
T3
T4
T4
T5
T5
T5
T4
T3
T2T1
T5
T4
T3
T2T1
A
13
ZagatO
TEC
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Trouble Shooting
DEFECT
No power to
machine
No water in boiler
No water from
group head
No Steam from
the nozzle
Too much water
in the boiler
Machine leaking
Delivery of coffee
is too fast
Delivery of coffee
is too slow
Coffee grounds
are wet
Grounds in cup
1 The coffee is too coarse
2 Not enough coffee in the
filter basket
1 The coffee is too fine
2 Too much coffee in the
filter basket
1 Not enough coffee in filter
basket
2 The group heads are too cold
3 The coffee is too fine
1 The filter holder is dirty
2 The filter holes are worn
3 The coffee is not ground evenly
1 Clean the filter holder
2 Replace the filter
3 Service the grinder
1 Adjust the grinder doser
2 Wait for group head to heat up
3 Adjust the grinder coarser
1 Adjust the grinder finer
2 Adjust the grinder doser
1 Adjust the grinder coarser
2 Adjust the grinder doser
1 Dirty/clogged drain box
2 Drainage pipe clogged or
detached
3 Other internal leakages
1 Clean the drain box
2 Replace/clean the drainage
pipe
3 Contact specialized personnel
1 Main switch off
2 Machine switch off
3 Incorrect electrical mains
connection
1 Main tap closed
2 Clogged pump, filter
3 Motor/pump faulty
1 Main tap closed
2 Motor/pump faulty
3 Clogged jets
4 Electronic board faulty
5 Solenoid valve faulty
6 buttons panel faulty
1 Too much water in the boiler
2 Damaged heating element
1 Motor/pump remains engaged
2 Perforated heat exchanger
3 Water inlet solenoid blocked
1 Open the mains tap
2 Contact specialized personnel
3
4
5
6
1 Contact specialized personnel
2
1 Contact specialized personnel
2
3
1 Open the mains tap
2 Replace water filter
3 Contact specialized personnel
1 Switch mains on
2 Switch machine to 2
3 Contact specialized personnel
to check connection
CAUSE SOLUTION
14
ZagatO
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Trouble Shooting
DEFECT
Coffee delivered
cold
Coffee delivered
too hot
All buttons lit
The pump
leaks water
The pump
functions below
the nominal
capacity
The pump
is noisy
1 Incorrect pressure switch
calibration
1 Pump malfunction
1 Pump malfunction
1 Pump malfunction
1 Safety device activated
2 No water in mains
3 Coffee is too fine
1 Turn the machine off and back
on
2 open the water mains tap
3 Adjust grinder
1 Lime scale present on the
heat exchanger or element
2 Oxidized pressure switch
contacts
3 Defective electrical connection
4 Partially burnt out element
CAUSE SOLUTION
1 Contact specialized personnel
2
3
4
1 Contact specialized personnel
1 Contact specialized personnel
1 Contact specialized personnel
1 Contact specialized personnel
WARNING
If the problem is not solved, turn the
machine off and contact technical
service for assistance.
Do not attempt to undertake any repairs.
Machine dismantling
To dismantle the machine we recommend
that it is dismantled and
the parts separated according to the type
of materials involved (plastic, metal, etc).
The parts separated in this way are then to
be sent to the relative specialized disposal
companies.
!
15
ZagatO
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976

Imported by Espresso Italia Pty Ltd
67/69 Scarborough Beach Rd
North Perth 6006 WA
Freecall 1300660 976
About the manual
The manufacturer reserves the right to add additional details to the product. We guarantee
that these instructions reflect the actual state of the product at the moment of its sale in the
market.
We also would like to use this occasion to invite you to offer suggestions regarding possible
improvements of this product or the instructions themselves.
ZagatO
Espresso Italia PTY LTD
www.espressoitalia.com.au
Freecall 1300 660 976
