ZANIER RUBY 130 User manual

User's manual
EN
Sauna Room
1/13
RUBY 130
2017/08/28

EN
2/13
PREFACE
Thank you very much for purchasing our product.
Please read this manual carefully before assembling and save it afterwards. Please write down the control
box serial number of the cabin as this number will be required in case of repair or order of spare parts.
ATTENTION
Installation and repair should only be done by a qualified electrician!
Check power supply rating and make sure the grounded outlet is correctly connected before installation.
Use original parts only. Do not share the outlet with any other appliances.
When not in use, turn off the cabin's power unit.
Locate your cabin indoors and on a flat, level and dry surface.
DANGER
Heaters shall not be subjected to water spray; shower heads shall not be installed within the infrared cabin.
Covering the radiator causes a fire hazard due to overheating. Do not cover the heaters !
Keep flammable or easily combustible materials/objects (eg.towels) away from the radiator at all times.
Do not touch the radiator during and shortly after use as a burning hazard exists due to hot parts.
The light bulb heats in use. If the bulb needs to be changed, unplug the cabin and let the bulb cool down
before changing it.
Should the electrical connection get damaged, it must be replaced-either by the manufacturer or by a
licensed electrician!
WARNING
If you suffer from illness or other health-related problems, especially heart conditions or circulatory
disturbances or if you take medication, you should consult a doctor before using the infrared cabin.
Children and frail persons should never be in the cabin without supervision.
If you feel uncomfortable while using the infrared cabin, stop immediately and consult with your doctor.
Never go to a hot infrared cabin if you have taken alcohol, strong medicines or narcotics.
Technical data
Model
Cabin material
Length
Width(depth)
Height
Voltage
Radiators Type
Total output
Back panel
Front
Calves
RUBY 130
Regular hemlock
1301 mm
938 mm
1900 mm
230volt 50Hz
Ruby & Magnesium Tube radiator
2200W 9.6 A
350W x 2
500W x 2
500W x 1

3/13
PARTS LIST
Cabin Individual parts (variations possible)
2
NO NAME Q'TY
1
3
4
6
8
10
1
1
1
1
1
1
Back guardrail (1188*720*43mm)
11 2
12
Front heater (650*280*28mm)
4
13
Bench support panel (1188*90*40mm)
Floor panel 1 (1184*841*40.5mm)
Top panel (1269*928*28mm)
Front panel (1900*1301*62.5mm)
Front heater cover (305*135*20mm)
Side panel 2 (1900*890*48mm)
1
Box No
1
2
1
1
1
1
3
3
2 1
Side panel 1 (1900*890*48mm)2
5 1
Back panel (1860*1246*43.5mm) 1
91
Bench surface panel (1188*450*33mm)
1
1
14
Door handle (outside,300*40*40mm & inside,300*40*40mm)
1
71
Calves guardrail (670*250*43mm) 1
MDF cover (1269*928*3mm)
EN
1
2
3
4
5
6
7
8
10
9
11
12
13
15
16
14
2
15
1
1
16
Hinge(48*40*20)
1
Glass door (1730*557*6mm)

4/13
ASSEMBLE INSTRUCTIONS
Assemble tips
Tools
Spiral drill (kit)
Screwdriver (kit)
Allen Wrench (kit)
Spirit level
Tape measure Electric drill
Cutter
Pencil
Hammer
Stepladder
Hardware parts (variations possible)
Please remove transport packaging and inspect that your infrared cabin has been delivered complete and
intact before beginning assemble.
A least 2 persons are required for assemble of the cabin
Please check the countersink and hole diameter of the drill holes to avoid damaging the wood..
The minimum room height required for installation is 2020mm
1x 16x
Φ4*30
Φ3*16
2x
Φ6*60
30x
Φ4*45
1x
30*20*2
EN

5/13
ASSEMBLE INSTRUCTIONS
1
2
3
(1)
(2)
EN
1
3
The top need to be stand at the same line when
connecting the front door and side panel
4
(3)

6/13
ASSEMBLE INSTRUCTIONS
5
(4)
EN
Note: connect front heater cable;
8 x
(Φ4x45)
2
5
The top need to be stand at the same line when
connecting the back panel and side panel (NO.2&NO.5)
6
(5)
10 x(Φ4x45)
1-Φ3*16

7/13
ASSEMBLE INSTRUCTIONS
(6)
EN
4 x
4 x
(Φ4x45)
(Φ4x45)
7
Front
Back
8
4 x
(Φ4x45)
(8)
10
9
(7)

8/13
ASSEMBLE INSTRUCTIONS
(9)
EN
(Φ4x30)
(Φ4x30)
2 x
8 x
360mm
12
Note: connect front heater cable; front heater
distance away from floor panel about 360mm.
. Screw the triangle wood cover on the top and bottom of
heater guardrail,and the both bevel edge of triangle wood
cover need to be aligned to heater guardrail’s bevel edge
. Install the complete heater with guardrail between the
front panel and side panel
1
1
2
2
11
Two heater

9/13
ASSEMBLE INSTRUCTIONS
EN

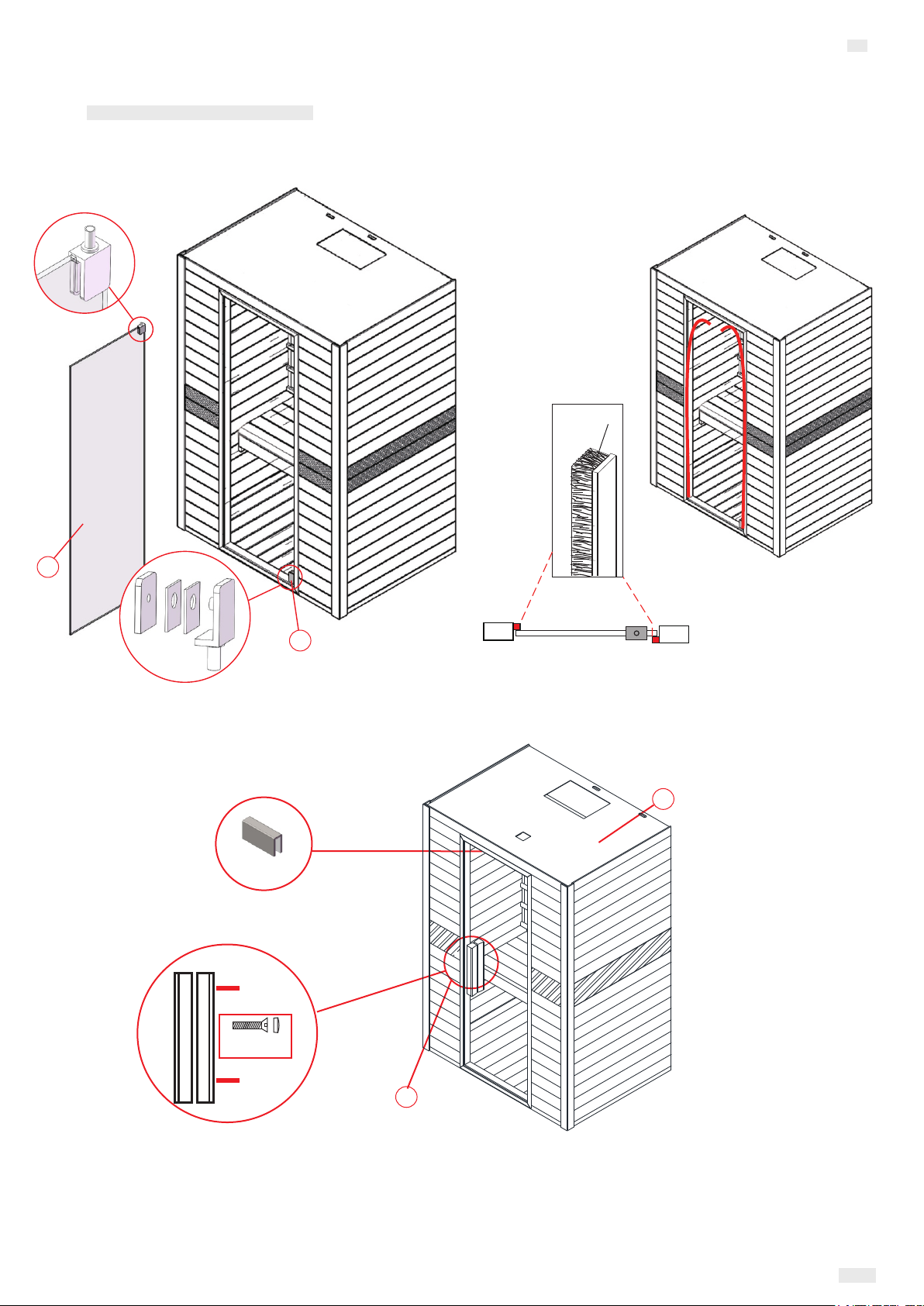

13
14
(11)
(10)
15X2
16
Door seal
glass door
Glass clip
2- Φ 6*60
Wood cover

10/13
AC230V/350W
AC230V/500W
AC230V/500W
FKF-603
Input Voltage
Power Rating
Current Rating
Safety Grade
Model
I
9.6A
2200W
AC230V/50HZ
CIRCUIT DIAGRAM
AC230V/500W
AC230V/350W
EN
To Heater
AC230V/15A
MAX:10A/1PCS
Power box
Temperature
Sensor
MP3
Antenna Speaker
4/3W
4/3W
OUTPUT DC12V/3A
INPUT AC230V
Color light
DC12V/8W
75°C
Temperature
Control

OPERATING INSTRUCTIONS
4)Color light
Short press ,you can set the desired color(7 color totally)and close the light; Long press to go
into an automatically cycling mode,changing 7 colors every 5 seconds.
Connect the power unit to wall outlet, the LED indicator will start to blink on the display.
Now it is possible to switch on the infrared heaters, the light and the music function.
Color light
Time setting
Temperature setting
Time Temperature/ +
Time Temperature/ -
ON/OFF
1)Startup
Press to switch on the display and heaters start to work, the length of time is automatically set to 99 minutes
and the air temperature inside the cabin will be presented. Press again could switch off the heaters.
2)Temperature settings
The left display refers to the air temperature. Press , you can set the desired temperature from 35 to 60
by pressing the / keys,Interval=1; The setting number blinks 10 seconds then automatically presents
the air temperature; When at this temperature, the heaters will stop working automatically; When it fall 4
below this temperature, the cabin will start up automatically.
Please note: The maximum air temperature reachable in the cabin may be lower than the desired
temperature. This is dependent on the temperature outside the cabin. Default temperature=40
3)Time settings
The right display refers to the length of time. Press , you can set the desired time from 5mins to 99mins
by pressing the / keys; Interval=1mins;
When count down to 00, the heaters will shut off automatically.
Default time=99minutes.
10/13
EN
Play/Pause(Mute in FM State)
/Long press automatic channel
selection and save
Menu switch/long press for
power on/off
Add the volume/ Long press add
volume in a row
Reduce the volume/Long press
reduce volume in a row
Previous Song/ Previous Channel
/FM state, long press for searching
up channels
USB
FM/MP3/BLUETOOTH PLAYER Nest Song/ Next Channel /FM state,
long press for searching down
channels
5)MP3

SERVICE
Use instructions
Drink plenty of liquids before and after use of the infrared cabin.
Dry yourself off completely.
The optimal cabin temperature for a pleasant session lies between 35 and 60.
After a heating period of an hour at the latest, the cabin should be switched off and a heating brake of
at least 30 minutes should be taken.
Maintenance instructions
Clean the cabin with a damp cotton towel, dry with a clean dry towel.
Clean the glass with a window/glass cleaner and a soft cloth.
Do not pour water in the control panel or clean it with wet cloth. For cleaning purposes, use a cleaning
cloth that has been only slightly moistened with a mild soapy solvent (dish detergent).
Do not use chemical detergents to clean the cabin.
Please fasten the screws of the bench once every three months, avoid the loose or drop off.
12/13
It is recommended to take a warm shower and relax after use.
Notes:
EN

SERVICE
Fill in this form and make a picture of it and Email to:
Date of purchase:
Serial Number:
Reference number:
Name:
Article state (unopened, just opened or used):
Please encircle on picture below which heater or which panel
has a fault.
Attach pictures of the problem and send them through email.
GUARANTEE CARD
13/13
EN
1
2
3
4
5
6
7
8
10
9
11
12
13
14
Control unit label sample
Serien-Nr.:
Serial No:
Elektronik-
Recycling!
Sauna Room
Heater:Ruby & Magnesium Tube radiator
Wood:Regular hemlock
230V 50Hz~2200W
RUBY 130
