Before installing and using the appliance read this user's instruction book carefully. It contains safety
precautions, hints, information and ideas. If the refrigerator is used in compliance with the
instructions written, it will operate properly and provide you with greatest satisfaction.
The symbols below help you to find things more easily:
Safety precautions
Warnings and information at this symbol serve safety for you and your appliance.
Hints, useful information
Environmental information
Symbol for ideas
At this symbol ideas can be found according to food and its storing.
GB
From the Electrolux Group. The worlds No.1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux
Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of
approx. USD 14 billion in more than 150 countries around the world.

57
Cont
Contents ents
GB
Important safety information ..................................................................................................58
General safety precautions....................................................................................................58
Precautions for child safety....................................................................................................58
Safety precautions for installation ...........................................................................................58
Safety precautions for isobutane ............................................................................................58
Instructions for the User.........................................................................................................59
General information..............................................................................................................59
Description of the appliance, main parts..................................................................................59
Handling the appliance .........................................................................................................60
Putting it into use.............................................................................................................60
Controlling the temperature, setting....................................................................................60
How to use the refrigerator................................................................................................60
Storing in the refrigerator ..................................................................................................61
Storage time and temperature of foods....................................................................................61
How to use the freezer..........................................................................................................61
Freezing.........................................................................................................................61
Storing in the freezer........................................................................................................62
How to make ice cubes ....................................................................................................62
Some useful information and advice........................................................................................62
Hints and ideas ...................................................................................................................62
How to save energy .........................................................................................................62
The appliance and environment .........................................................................................62
Maintenance .......................................................................................................................63
Defrosting ......................................................................................................................63
Regular cleaning .............................................................................................................64
When the refrigerator is not in use......................................................................................64
Trouble shooting..................................................................................................................64
How to change the bulb ...................................................................................................64
If something does not work ...............................................................................................65
Instructions for the Installer....................................................................................................66
Technical data.....................................................................................................................66
Installing the appliance .........................................................................................................66
Transportation, unpacking.................................................................................................66
Cleaning ........................................................................................................................66
Placement ......................................................................................................................67
Change of door opening direction ......................................................................................67
Electrical connection........................................................................................................68
Storage time chart (1) ...........................................................................................................69
Storage time chart (2) ...........................................................................................................70
Warranty and service .............................................................................................................70
Guarantee conditions ...........................................................................................................70
Service and spare parts....................................................................................................70
Declaration of guarantee terms .............................................................................................71

58
Im
Impor port tant saf ant safe et ty inf y infor ormation mation
General safety precautions
Keep these instructions and they should remain at
the appliance when moving away or changing
owner.
This appliance is designed for storing food,
domestic use according to these instructions only.
Specialised companies that are qualified to do
so by the manufacturer must carry out service
and repairs including repairing and changing
the power cord. Accessory parts supplied by
them should be used only for repairing. Otherwise
the appliance can be damaged or can cause other
damage or injury.
The appliance is out of circuit only in that case if the
plug is removed from the socket. Before cleaning
and maintenance always unplug it (do not get it by
the cable). If the socket is difficult to reach, switch
off the appliance by cutting off the current.
Power cord must not be lengthened.
Without the lamp cover of interior lighting you must
not operate the appliance.
When cleaning, defrosting, taking out frozen food
or ice tray do not use sharp, pointed or hard
devices, as they can cause damage to the
appliance.
Be careful not to allow liquids to the temperature
control and lighting box.
Ice and ice-cream can cause hurt if they are eaten
immediately after removal from the frozen food
compartment.
After dissolving frozen food must not be refrozen, it
must be used up as soon as possible.
Store pre-packed frozen food in accordance with
the frozen food manufacturer's instructions.
You must not make defrosting faster with any
electric heating appliance or chemicals.
Do not put hot pot to the plastic parts.
Do not store flammable gas and liquid in the
appliance, because they may explode.
Do not store carbonated drinks, bottled drinks and
bottled fruits in the frozen food compartment.
Check and clean the outlet of melting water coming
during defrosting regularly - a label inside the
appliance warns you for this. If it is clogged the
melting water gathered can cause earlier failure.
Adults must handle the appliance. Do not allow
children to play with it or its controlling parts.
If you are discarding the appliance pull the plug
out of the socket, cut the connection cable (as
close to the appliance as you can) and remove
the door to prevent playing children to suffer
electric shock or to close themselves into it.
Precautions for child safety
Do not allow children to play with the packaging of
the appliance. Plastic foil can cause suffocation.
Safety precautions for
installation
Put the appliance to the wall to avoid touching or
catching warm parts (compressor, condenser)
to prevent possible burn.
When moving the appliance take care of the plug
not to be in the socket.
When placing the appliance take care not to
stand it on the power cord.
Adequate air circulation should be around the
appliance, lacking this leads to overheating. To
achieve sufficient ventilation follow the
instructions relevant to installation.
For the safety of life and property keep
the precautions of these user's
instructions as the manufacturer is not
responsible for damages caused by omission.
Safety precautions for
isobutane
Warning
The refrigerant of the appliance is isobutane
(R 600a) that is inflammable and explosive to a
greater extent.
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
Do not use mechanical devices or other means
to accelerate the defrosting process, other than
those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
GB

59
Ins
Instr tructions f uctions for the User or the User
General information
The official designation of the appliance is
refrigerator-freezer combination with one motor
compressor and freezer placed in the lower part. The
appliance has -besides the general services- a freezer
with its own door and is completely separated from the
other unit.
According to this the appliance is suitable for storing
frozen and deep-frozen food, freezing products in
quantity given in the user's instructions at home
and making ice.
The appliance can meet the requirements of
standards between different temperature limits
according to the climate class.
The letter symbol for climate class can be found on
the data label.
Description of the appliance, main parts

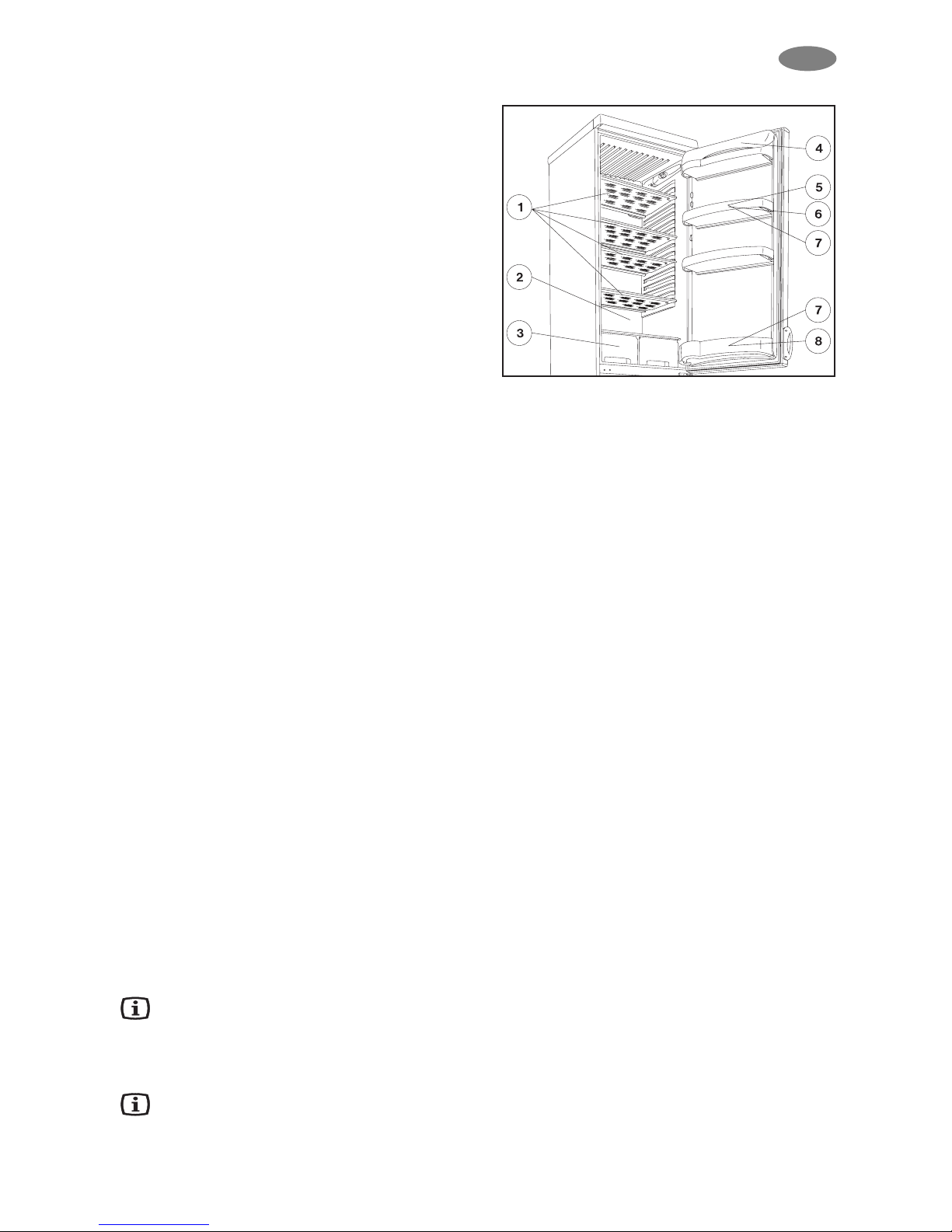

12. Butter compartment
13. Egg tray
14. Door shelf
15. Door gasket
16. Bottle shelf
17. Ice tray
18. Condenser
19. Defrost water outlet tube
20. Spacer
21. Evaporative tray
22. Compressor
23. Rollers
A - Refrigerator
B - Freezer
1. Lighting box
2. Glass shelf
3. Defrost water collector
4. Glass shelf
5. Vegetable boxes
6. Data label
7. Freezing compartment
8. Storing compartments
9. Defrost water outlet
10. Bottom cover grid
11. Adjustable feet
GB

60
Putting it into use
Place the accessories into the appliance then plug to
the mains socket.
To start cooling turn the thermostatic control knob on
the right-hand side of the compartment from 0
clockwise. In 0 position the appliance is out of
operation.
The next paragraph will give instructions for setting.
Handling the appliance
Controlling the temperature, setting
The thermostatic controller interrupts the operation of
the appliance automatically for more or less time
depending on the setting then restarts it assuring the
required temperature.
Turning the control button towards the bigger numbers
cooling becomes more and more intensive.
Operate the appliance in the 5 thermostatic knob
position for 4-5 hours after the installing so that the
temperatures reach the +5 °C in the fridge and -18 °C
in the freezer. After reset the thermostatic knob to the
3 position and place the foodstuffs to be made cold
and to be frozen into the adequate compartment. The
3 position generally meets the requirements of
everyday cooling.
We recommend you to keep the above mentioned in
case of defrosting and cleaning as well as placing of
fairly big quantity foodstuffs too.
The temperature coming about in the refrigerator is
effected by not only the position of the thermostatic
control but the ambient temperature, frequency of
door openings and the quantity of food put into it
newly, etc.
In the maximum i.e. 5 position - in case of
increased demand e.g. during heatwaves -
without disconnecting continuous operation can
occur. This does not cause damages to the appliance.
How to use the refrigerator
For adequate cooling developing interior air
circulation is necessary. For this reason you are
asked not to cover the whole surface of the wire
shelves with paper, trays, etc.
Do not put hot food into the refrigerator.
Allow it to reach room temperature naturally.
In this way the unnecessary frost building up can
be avoided.
Foods can take over odours from each
other. So it is essential to put foods in closed
dishes or wrap them in cellophane, aluminium
foil, grease-proof paper or cling film before
placing them into the refrigerator. This way foods
will keep their moisture e.g. vegetables will not
dry out after some days.
GB

61
Storing in the refrigerator
When placing the different kinds of food take into
consideration the sketch below in figure:
1. Confectionery, ready-cooked foods, foods in
dishes, fresh meat, cold cuts, drinks
2. Milk, dairy products, foods in dishes
3. Fruits, vegetables, salads
4. Cheese, butter
5. Eggs
6. Yoghurt, sour cream
7. Small bottles, soft drinks
8. Big bottles, drinks
Storage time and temperature of
foods
The storage time chart at the end of the instruction
book gives information about storage time.
The storage time can not be determined exactly in
advance, as it depends on the freshness and handling
of the cooled food. That is why the storage time made
known is only informative.
If you do not want to use up deep-frozen foods bought
immediately they can be stored for about 1 day (until
dissolving) in the refrigerator.
How to use the freezer
GB
Freezing
Freezing different products should always be done in
the freezing compartment after proper preparing.
The quantity of food to be frozen should be 4 or 6 kg
depending on type.The quantity can be read on the
data label, which is on the left at the bottom of the
fresh food compartment.
Set the thermostat knob to Max. position.
Operate the appliance in this position for 2 hours.
After 2 hours reset the thermostatic knob to a position
adequate for you or Medium position. Put the
quantity to be frozen into the freezing compartment
(max. 4 or 6 kg).
After 24 hours replace the frozen products into the
wire basket (or baskets).
Never freeze food in bigger quantity than
given in the Technical data at the same
time, otherwise freezing will not be thorough and
after dissolving various deterioration may take
place (losing taste and aroma, lysing, etc.).
Do not make ice during freezing preferably,
because making ice reduces freezing capacity.

62
Storing in the freezer
It is practical to replace frozen products into the wire
basket(s) after freezing has finished. Doing this you
could make room in the freezing compartment for
another freezing. Intermediate freezing does not
deteriorate foods already stored.
Do not forget to keep to the storage time given
on the packaging of frozen products if you buy
them frozen. To store home-frozen products see the
storing instructions placed in the door of the freezer.
Symbols signify the various foods, numbers mean
maximum storing time given in months.
It is safe to store quick-frozen, frozen foods only
if they have not dissolved even for a short time
until placing them into the freezer. If the deep-frozen
food has already dissolved, refreezing is not
recommended, it has to be used up as soon as
possible.
How to make ice cubes
To make ice cubes fill the enclosed ice cube tray with
water and put it to the frozen food compartment.
Setting thermostatic control knob to maximum
position can shorten preparing time. After finishing do
not forget to reset the thermostatic control to the
suitable position.
Ready ice cubes can be taken out of the tray under
running water then twist or hit it. If the ice tray freezes
to the compartment, avoid using metal tools or knife to
take it out as the cooling system can be damaged.
Some useful information and
advice
The variable shelves are worth paying attention to,
which increases the usability of the fresh food
compartment considerably. Rearranging the
shelves is also possible when the door is open at an
angle of 90°.
After opening and closing the door of freezer
vacuum will rise inside the appliance because of
the low temperature. So wait 2-3 minutes after
closing the door - if you want to open it again - while
inner pressure equalises.
Take care of operating the freezer at a position of
thermostatic control so that the inside temperature
can never go above -18 °C, since temperature
higher than this storing time of frozen foods can
decrease.
It is practical to make sure of faultless operation of
the appliance daily so as to notice possible failure
in time and prevent deterioration of frozen foods.
How to save energy
Avoid putting the appliance in a sunny place and
near anything that gives off heat.
Be sure that the condenser and the compressor
are well ventilated. Do not cover the sections
where ventilation is.
Wrap products in tightly closing dishes or cling
film to avoid building up unnecessary frost.
Do not leave the door open longer than
necessary and avoid unnecessary openings.
Put warm foods into the appliance only when
they are at room temperature.
Keep the condenser clean.
The appliance and environment
This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the
urban refuse and rubbish. Avoid damaging the
cooling unit, especially at the rear near the heat
exchanger. Information on your local disposal sites
may be obtained from your municipal authorities.
The materials used on this appliance marked with
the sympol are recyclable.
Hints and ideas
In this chapter practical hints and ideas are given
about how to use the appliance to reach maximum
energy saving and there is environmental
information about the appliance as well.
GB

63
Maintenance
Defrosting
Bleeding part of the moisture of cooling chambers in form
of frost and ice goes with the operation of the appliance.
Thick frost and ice has an insulating effect, so it reduces
cooling efficiency as the temperature increases in the
cooling chambers, they need more energy, at a certain
thickness it does not allow the door of the freezing
compartment to open.
At this type of appliance defrosting the cooling plate of the
refrigerator is automatic without any external
intervention.The thermostatic control interrupts the
operation of compressor at regular intervals for more or
less time - during this cooling is interrupted - the
temperature of the cooling plate goes above 0 °C due to
interior heating load of the compartment, so defrosting
occurs. When the surface temperature of the cooling
plate has reached +3 - +4 °C the thermostatic control
restarts operation of the system.
Melting water flows through defrost water outlet leaded
through the back into the evaporative tray maintained on
the top of compressor and evaporates due to its warmth.
Check and clean the outlet of melting water
coming during defrosting regularly - a label
inside the appliance warns you for this. If it is clogged
the melting water gathered can cause earlier failure
as it can go to the insulating of the appliance.

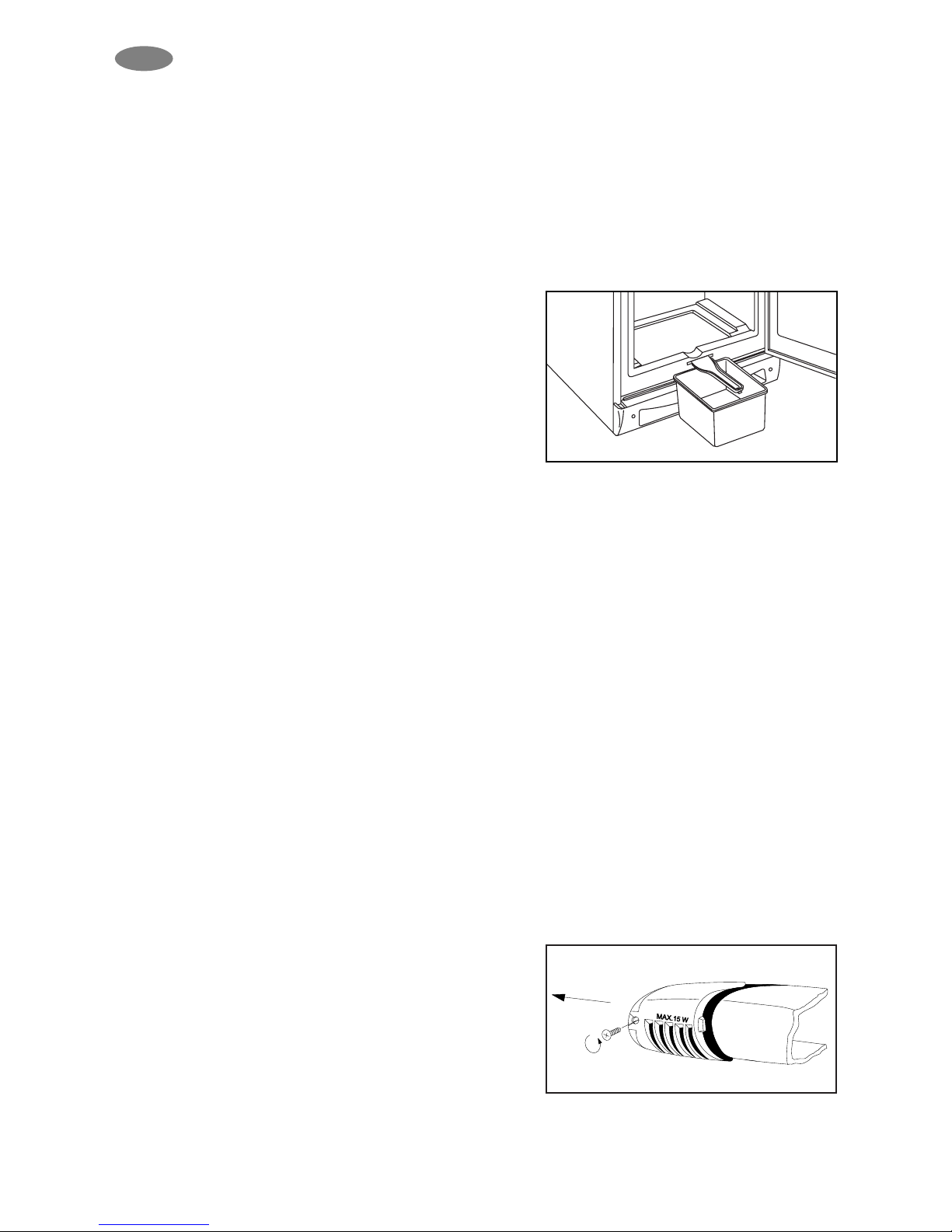

Clean the melting water outlet with the supplied pipe
scraper that can be seen in the figure. The pipe scraper
has to be stored in the outlet.
The most typical case of clogging up in the melting water
outlet when you put food wrapped in some paper into the
appliance and this paper contacts back plate of the
refrigerator and freezes to it. If you remove the food right at
this moment the paper will tear and it can cause clogging
up in the outlet by getting into it. So you are asked to be
careful - because of the above - when placing foods
wrapped in paper into the appliance.
In case of increased demand e.g. during
heatwaves, the refrigerator temporarily happens to
operate constantly - during this the automatic defrosting is
ineffective.
Remaining small ice and frost stains on back plate of the
refrigerator after defrosting period is not abnormal.
The freezer can not be equipped with automatic defrosting
set since the deep-frozen and frozen foods do not endure
melting temperature.
When small frost and ice occurs scrape off and remove
frost and ice coating with the supplied plastic scraper.
The tray in figure is not a piece of accessories to the
appliance!
When ice coating is so thick that it cannot be removed with
the plastic scraper, the cooling plates have to be
defrosted. Frequency of defrosting depends on usage
(generally 2-3 times a year).
Take the frozen foods out of the appliance, and put them
into a basket lined with paper or cloth. Store them in a
possibly cool place or replace them into another
refrigerator.
GB

64
Pull out the mains plug from the mains socket, so both
parts of the appliance are out of operation.
Open the doors of both parts of the appliance and clean
the refrigerator according to 'Regular cleaning'. Maintain
and clean the freezer as following:
Sweep off the melting water with a cloth or sponge in
direction of sides of the cooling plates. The melting water
swept down gathers in the outlet channel practically
formed in the bottom of the appliance and can be
removed according to figure.
Put an adequately high bowl or dish under the outlet.
The bowl in figure is not a piece of accessories to the
appliance!
Wipe the surfaces after defrosting and leading the water
out.
Put the mains plug into the mains socket and put foods
taken out back to their places.
It is recommended to operate the appliance at the highest
position of the thermostatic control for some hours so that
it can reach the sufficient storing temperature as soon as
possible.
Regular cleaning
It is recommended to wash the inside of the
refrigerator in 3-4 weeks time using lukewarm water
then wipe it (it is practical to clean the inside of the
freezer and defrost it at a time).
Household cleaner or soap must not be used.
After breaking the circuit wash the appliance with
lukewarm water then wipe it. Clean the door gasket with
clean water. After cleaning apply voltage to the appliance.
It is recommended to remove the dust and dirt collected
on the back of the refrigerator and the condenser and to
clean the evaporative tray on top of the compressor once
or twice a year.
When the refrigerator
is not in use
In case the appliance will not be used for a long time
follow these steps:
Break the circuit of the appliance.
Remove foods from the refrigerator.
Defrost and clean it as written before.
Leave the door open to avoid a build up of air inside.
Trouble shooting
How to change the bulb
Should the light fail to work you can change it as below:
Break the circuit of the appliance.
Unscrew the plate screw fixing the lamp cover, then
take the lamp cover off in the direction of arrow and the
bulb can be changed. (Type of the bulb: Mignon 322,
230 V, 15 W, E 14 thread)
After changing bulb replace the lamp cover, screw the
plate screw and apply voltage to the appliance.
The lack of light does not influence the development of
the adequate temperatures.
GB

65
If something does not work
During operation of the appliance some smaller but
annoying trouble can often occur, which does not
require calling a technician out. In the following chart
information is given about them to avoid unnecessary
charges on service.
We draw your attention that operation of appliance goes
with certain sounds (compressor- and circulating
sound). This is not trouble, this goes together with the
operation of the appliance.
We draw it to your attention again that the
appliance operates discontinuously, so the
stopping of compressor does not mean being no-
current. That is why you must not touch the electrical
parts of the appliance before breaking the circuit.
Possible cause
Thermostatic control can be set wrongly.
If products are not cold enough or placed
wrongly.
The door does not close tightly or it is not shut
properly.
Thermostatic control can be set wrongly.
The door does not close tightly or it is not shut
properly.
Products in big quantity to be frozen were put in.
Products to be frozen are placed too closely to
each other.
It is normal. During automatic defrosting frost
melts on the back plate.
The outlet of the chamber can be clogged up.
Products placed in can prevent water from
flowing into the collector.
The melting water outlet flows not into the
evaporative tray above the compressor.
Products are not wrapped properly.
Doors are not shut properly or do not close
tightly.
The thermostatic control can be set wrongly.
The thermostatic control is set wrongly.
Doors are not shut properly or do not close
tightly.
Products in big quantity to be frozen were put in.
Too warm food was put in.
Plug is not connected to the mains socket
properly.
The fuse burnt out.
The thermostatic control is not on.
Electrical network broke down.
The appliance is not supported properly.
Solution
Set the thermostat knob to higher position.
Place the products according to the chapter
Storing in the refrigerator.
Check if the door closes well and the gasket
is unhurt and clean.
Set the thermostat knob to higher position.
Check if the door closes well and the gasket
is unhurt and clean.
Wait some hours and then check the
temperature again.
Place the products in a way so that cold air
could circulate among them.
Clean the outlet.
Replace the products so that they can not
touch the back plate directly.
Put the melting water outlet to the evaporative
tray.
Wrap the products better.
Check if the doors close well and the gaskets
are unhurt and clean.
Set the thermostat knob to a position that
gives higher temperature.
Set the thermostat knob to a position that
gives higher temperature.
Check if the doors close well and the gaskets
are unhurt and clean.
Wait some hours and then check the
temperature again.
Put food at max. room temperature.
Check the connection.
Change the fuse.
Start the appliance according to instructions
in chapter 'Putting it into use'.
Get an electrician to check it.
Check if the appliance stands stable (all the
four feet should be on the floor).
Problem
It is too warm in the
refrigerator.
It is too warm in the freezer.
Water flows at the back plate
in the refrigerator.
Water flows into the chamber.
Water flows onto the floor.
There are too much frost and
ice.
The compressor operates
continually.
The appliance does not work
at all. Neither cooling, nor
lighting works. Indicator lamp
or lamps do not give light.
The appliance is noisy.
Inasmuch as the advice does not lead to result, call the nearest brand-mark service.
GB

66
Model/Type
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/24h)
(kWh/year)
Energy class, according to EU standards
Freezing capacity (kg/24h)
Rising time (h)
Rated power (W)
Weight (kg)
Number of compressors
KSU 350 A (ZLKI 351)
Freezer: 105
Refrigerator: 245
Freezer: 90
Refrigerator: 242
600
2000
600
0,94
343
A
5
18
150
71
1
Ins
Instr tructions f uctions for the Ins or the Inst taller aller
Technical data
Installing the appliance
Transportation, unpacking
It is recommended to deliver the appliance in
original packaging, in vertical position
considering the protective warning on packaging.
After each transportation the appliance must not be
switched on for approx. 2 hours.
Unpack the appliance and check if there are damages
on it. Report possible damages immediately to the
place you bought it. In that case retain packaging.
Cleaning
Remove every adhesive tape, which ensure the parts
not to move in the appliance.
Wash the inside of the appliance using lukewarm
water and mild detergent. Use soft cloth.
After cleaning wipe out the inside of the appliance.
GB

67
Placement
The ambient temperature has an effect on the energy
consumption and proper operation of the appliance.
When placing, take into consideration that it is
practical to operate the appliance between ambient
temperature limits according to the climate class that
is given in the chart below and can be found in the
data label.
Class of climate Ambient temperature
SN +10 ... +32 °C
N +16 ... +32 °C
ST +18 ... +38 °C
If the ambient temperature goes below the lower data
the temperature of the cooling compartment can go
beyond the prescribed temperature.
If the ambient temperature goes beyond the upper
data this means longer operating time of the
compressor, breakdown in the automatic defrosting
increasing temperature in the cooling compartment or
increasing energy consumption.
When placing the appliance ensure that it stands level.
This can be achieved by two adjustable feet (1) at the
bottom in front. 1-1 piece of distance washer (2) are
accessories of the adjustable feet. If levelling the
appliance requires, these washers can be removed.
Do not stand the appliance on a sunny place or close
to a radiator or cooker.
If it is unavoidable because of furnishing and the
appliance has to be stood near a cooker take these
minimum distances into consideration:
In case of gas or electric cooker 3 cm must be left,
when it is less put a 0,5-1 cm non-flam insulation
between the two appliances.
In case of oil or coal-fired stove the distance must
be 30 cms since they give off more heat.
The refrigerator is designed to operate when it is
totally pushed to the wall.
When placing the refrigerator keep minimal
distances recommended in figure.
A:placing it under a wall-cupboard
B : placing it freely
Change of door opening direction
Should the setting-up place or handling demand it,
door-opening direction can be refitted from right-
handed to left-handed.
Appliances on the market are right-handed.
GB

68
Following operations are to be done on the basis of
figures and explanations:
Break the circuit of the appliance.
Tilt back the appliance carefully being careful so that
the compressor cannot touch the floor. It is
recommended to ask another person for help, who
can keep the appliance at this position safely.
Remove carefully (e.g. with a knife) the covering
nails of screws fixing the bottom cover grid, then the
cover grid can be removed by unscrewing the plate-
screws (2 pieces).
Dismount the bottom door holder of the freezer by
removing the screws (2 pieces) and the fill plates
(2 pieces).
Take off the door of the freezer by pulling it slightly
downwards.
Dismount the double door holder by removing the
screws (2 pieces) and the fill plates (2 pieces).
Take off the door of the refrigerator by pulling it
slightly downwards.
Unscrew the top door holding pin of the refrigerator,
then screw it back on the other side.
Remove the covering nails of the double door holder
on the left side and put them to the other side.
Fit the door of the refrigerator to the top door
holding pin.
Fix the double door holder onto the left side using
the screws (2 pieces) and fill plates (2 pieces). Be
careful that the door edge of the refrigerator is
parallel with the edge of the mantle.
Fit the door of the freezer to the double door holding
pin.
Fix the bottom door holder onto the left side using
the screws (2 pieces) and fill plates (2 pieces). Be
careful that the door edge of the freezer is parallel
with the edge of the mantle.
Pull out the cover element of the cover grid in the
direction of arrow (1) and place it and contrary side (2).
Put the cover grid back and fix it with the plate-
screws (2 pieces), then put the covering nails back.
Put over the handle on the other side and put the
plastic covering nails into the holes set free.
Put the appliance to its place, set it level and apply
voltage to it.
In case you do not want to perform the procedures
above, call the nearest brand-mark service. Technicians
will accomplish the refitting expertly for charge.
Electrical connection
This refrigerator is designed to operate on a
230 V AC (~) 50 Hz supply.
The plug must be put into a socket with protective
contact. If there is no such, it is recommended to
get an electrician to fit an earthed socket in
compliance with standards near the refrigerator.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive)
and subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
GB

69
S
St tor orage time char age time chart (1) t (1)
Time and method of storage of fresh foods in the refrigerator
Notation:
Xusual storage time
x possible storage time (concerns to really fresh product only)
Foods Storage time in days Method of packaging
1234567
Raw meat XXx x x cling film, airtight
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat Xdish covered
Roasted minced meat XXx x dish covered
Cold cuts, Vienna sausage XXx x cling film, cellophane, grease-proof paper
Fresh fish Xx x cling film, airtight
Cooked fish XXx x dish covered
Fried fish XXx x x dish covered
Tinned fish, open Xx x dish covered
Fresh chicken XXXx x x cling film, airtight
Fried chicken XXXx x x dish covered
Fresh hen XXx x x cling film, airtight
Boiled hen XXx x x dish covered
Fresh duck, goose XXXx x x cling film, airtight
Roasted duck, goose XXXXx x x dish covered
Butter unopened XXXXXXXoriginal packaging
Butter opened XXxxxxxoriginal packaging
Milk in a plastic bag XXXx x original packaging
Cream XXx x plastic box
Sour cream XXXXx x x plastic box
Cheese (hard) XXXXXXXaluminium foil
Cheese (soft) XXXXx x x cling film
Curds XXXXx x x cling film
Egg XXXXXXX
Spinach, sorrel XXx x cling film
Green peas, green beans XXXXx x x cling film
Mushroom XXx x x cling film
Carrot, roots XXXXXXXcling film
Bell-pepper XXx x x cling film
Tomato XXXXXXXcling film
Cabbage XXXXXx x cling film
Quickly rotting fruits (strawberry,
raspberry, etc.) XXXx x cling film
Other fruits XXXXx x x cling film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XXx x dish covered
GB

70
Guarantee conditions
Service and spare parts
If calling the service is unavoidable, announce the
trouble at a brand-mark service nearest to your place.
When announcing the appliance has to be identified
according to its data label.
The data label of the appliance is stuck to the wall of
the interior beside the vegetable box in the fresh food
compartment in the bottom on the left side. All
necessary data are there which are needed to the
service announcement (type, model, serial number,
etc.). Note here the data from the data label of your
appliance:
Model
Product No.
Serial No.
Date of purchase:
The manufacturer reserves the right to make any changes in the products.
W
War arr rant anty and ser y and service vice
Foods In the fresh food In the **** frozen food
compartment +2 - +7°C compartment -18°C
Vegetables:
green beans, green peas, mixed vegetables, marrow, corn, etc. 1 day 12 months
Ready-cooked foods:
vegetable dish, trimmings, with meat, etc. 1 day 12 months
Ready-cooked foods:
sirloin steaks, stew from knuckle of ham, meat from pig pudding, etc. 1 day 6 months
Foods from potatoes, pasta:
mashed potato, gnocchi, dumpling, pasta filled with jam, chips 1 day 12 months
Soups:
meat-broth, soup from green beans, soup from green peas, etc. 1 day 6 months
Fruits:
sour cherry, cherry, gooseberry, fruit cream, mashed maroon 1 day 12 months
Meat:
chicken, duck, goose 1 day 5 months
fillets, tuna fish 1 day 6 months
Popsicle, ice-cream 1 day 3 weeks
S
St tor orage time char age time chart (2) t (2)
Storage time of deep-frozen and frozen products
GB

71
Our appliances are produced with the greatest of care.
However, a defect may still occur. Our consumer
services department will repair this upon request, either
during or after the guarantee period. The service life of
the appliance will not, however, be reduced as a result.
This declaration of guarantee terms is based on
European Union Directive 99/44/EC and the
provisions of the Civil Code. The statutory rights that the
consumer has under this legislation are not affected by
this declaration of guarantee terms.
This declaration does not affect the vendor's statutory
warranty to the end user. The appliance is guaranteed
within the context of and in adherence with the following
terms:
1. In accordance with provisions laid down in
paragraphs 2 to 15, we will remedy free of charge
any defect that occurs within 24 months from the
date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of
use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance
is returned to the condition it was in before the
defect occurred. Defective parts are replaced or
repaired. Parts replaced free of charge become our
property.
3. So as to avoid more severe damage, the defect must
be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer
providing proof of purchase showing the purchase
and/or delivery date.
5. The guarantee will not apply if damage caused to
delicate parts, such as glass (vitreous ceramic),
synthetic materials and rubber, is the result of
inappropriate use.
6. The guarantee cannot be called on for minor faults
that do not affect the value or the overall reliability of
the appliance.
7. The statutory warranty does not apply when defects
are caused by:
a chemical or electrochemical reaction caused
by water,
abnormal environmental conditions in general,
unsuitable operating conditions,
contact with harsh substances.
8. The guarantee does not apply to defects due to
transport which have occurred outside of our
responsibility. Nor will the guarantee cover those
caused by inadequate installation or assembly, lack
of maintenance or failure to respect the assembly
instructions or directions for use.
9. Defects that result from repairs or measures carried
out by people who are not qualified or expert or
defects that result from the addition of non-original
accessories or spare parts are not covered by
the guarantee.
10.Appliances that are easy to transport may be
delivered or sent to the consumer services
department. Home repairs are only anticipated
for bulky appliances or built-in appliances.
11.If the appliances are built-in, built-under, fixed or
suspended in such a way that removing and
replacing them in the place where they are fitted
takes more than half an hour, the costs that result
therefrom will be charged for. Connected
damage caused by these removal and
replacement operations will be the responsibility
of the user.
12.If, during the guarantee period, repairing the
same defect repeatedly is not conclusive, or if
the repair costs are considered disproportionate,
in agreement with the consumer, the defective
appliance may be replaced with another
appliance of the same value.
In this event, we reserve the right to ask for a
financial contribution calculated according to the
length of time it has been used.
13.A repair under guarantee does not mean that the
normal guarantee period will be extended nor
that a new guarantee period begins.
14.We give a twelve month guarantee for repairs,
limited to the same defect.
15.Except in the event where liability is legally
imposed, this declaration of guarantee terms
excludes any compensation for damage outside
the appliance for which the consumer wishes to
assert his rights. In the event of legally admitted
liability, compensation will not exceed the
purchase price paid for the appliance.
These guarantee terms are only valid for appliances
purchased and used in Belgium. For exported
appliances, the user must first make sure that they
satisfy the technical conditions (e.g.: voltage,
frequency, installation instructions, type of gas, etc.)
for the country concerned and that they can
withstand the local climatic and environmental
conditions. For appliances purchased abroad, the
user must first ensure that they meet the
qualifications required in Belgium. Non-essential or
requested adjustments are not covered by the
guarantee and are not possible in all cases.
Our consumer services department is always at your
disposal, even after the guarantee period has
expired.
Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel. [phone]
Declar
Declaration of guar ation of guarant antee t ee ter erms ms
GB

Printed by Xerox Hungary Ltd. 2002. 11. 22.
From the Electrolux Group. The worlds No.1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux
Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of
approx. USD 14 billion in more than 150 countries around the world.
