Zanussi Electrolux ZDC 5355 W User manual

TUMBLE DRYER
ZDC 5355 W
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store dry Synthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
Start/
ause
ZDC 5355W
Door Spin Option Change Exit
60 min
30 min
Cooling
TIMELINE AUTOREVERSE 6 kg
INSTRUCTION BOOKLET
125992770
Unpacking: see page 23
GB
125992770.qxp 2004-09-07 07:53 Page 1

2
Installation
•This appliance is heavy. Care should be taken when
moving it.
•It is dangerous to alter the specifications or attempt
to modify this product in any way.
•Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
•Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
•If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
•If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).
Child Safety
•This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
•Pets and children have been known to climb into
tumble dryers. Please check your drum before use.
•Keep all packaging well away for children.
Use
•Do not overload the appliance (see programme
chart).
•Clothes which are dripping wet should not be
placed in the dryer.
•As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
•Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
•Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substance are volatile, they
could cause an explosion. Only tumble dry items
washed with water.
•In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
Cushions, quilts and the like (these items
accumulate heat).
Items containing rubber foam or materials similar
to rubber foam.
•Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
•Clean fluff filters after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged.
•Do not allow fluff to accumulate around the dryer.
•Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre. Always insist on genuine Zanussi-
Electrolux spare parts.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
125992770.qxp 2004-09-07 07:53 Page 2

3
For the User
Important Safety Information 2
•Installation
•Child Safety
•Use
Your New Tumble Dryer 4
Description of the Appliance 4
The Control Panel 5
•Programme/Time Selector Dial 5
•Display 5
•Door Release Button 5-6
•Spin Speed Button 6
•Option, Change, Exit Button 6-9
•Start/Pause Button 10
Programme Chart 11
Operating Sequence 12-14
Hints & Tips on Drying 15
Maintenance and Cleaning 16
•External cleaning 16
•Cleaning the door 16
•Cleaning the filters 16
•Cleaning the condenser unit 16-17
•Emptying the water reservoir 17
•Cleaning the drum 17
Something Not Working 18
Service and Spare Parts 19
Customer Care 19
Guarantee Conditions 20
For the Installer
Installation Instructions 21
Technical Specifications 21
Adjusting the Level of Conductivity 22
•Unpacking 23
•Positioning 23
•Stacking kit (optional accessory) 23
•Door reversal 23
•Electrical connection 23-24
Contents
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
125992770.qxp 2004-09-07 07:53 Page 3

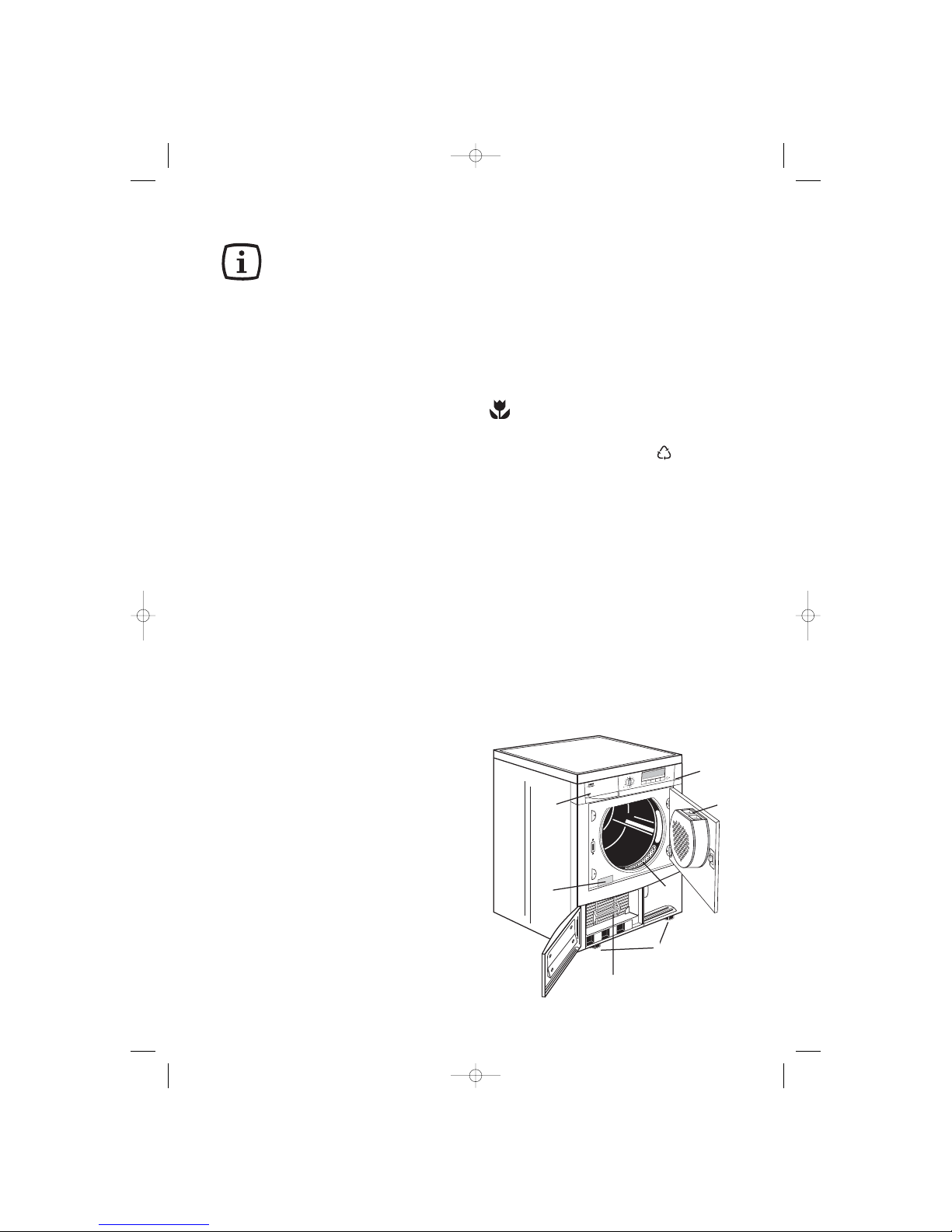

Description of the Appliance
01 Control panel
02 Water reservoir
03 Fluff filters
04 Rating Plate
05 Condenser unit
06 Adjustable feet
1
2
5
6
3
43
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store drySynthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
Start/
ause
ZDC 5355W
DoorSpinOptionChangeExit
60 min
30 min
Cooling
TIMELINE
AUTOREVERSE 6 kg
4
This tumble dryer will give your wash that soft, relaxed feel whatever
the weather.
Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through
very economical electricity consumption and short drying times.
Your New Tumble Dryer
In the interest
of the environment
•Materials marked with the symbol are
recyclable.
•Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
•When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
•Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the
environment? We use recycled paper!
Energy saving tips
To save energy we recommend that you follow these
hints:
•Try to load the maximum capacity of the machine
as small loads are uneconomical.
•Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
•Do not over-dry laundry, this avoids creasing and
saves energy.
•Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
•Ventilate the room well. The room temperature
should not exceed +35°C during drying.
125992770.qxp 2004-09-07 07:53 Page 4

5

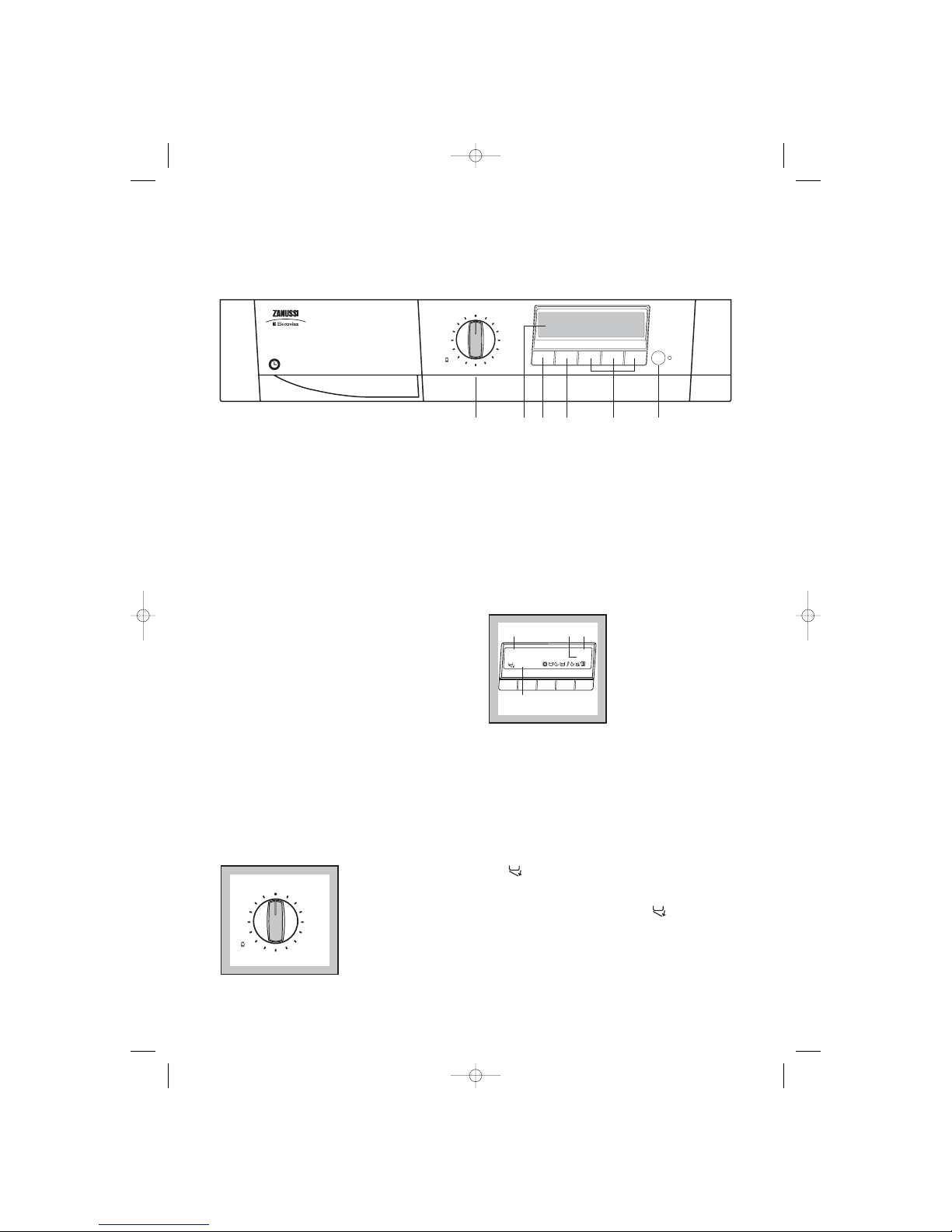

The Control Panel
1 Programme/Time
Selector Dial
Allows you to select electronically controlled or time
controlled drying.
Turn the dial to the required programme or time.
The selector dial can be turned either clockwise or
counterclockwise.
Electronically controlled drying (automatic)
The appliance runs these programmes with the help
of probes which detect the degree of dampness of the
laundry.
Simply select the programme according to the type of
laundry and degree of drying required.
Time controlled drying
This can be used to finish off drying if necessary.
Select the 60 minute programme for cottons or the 30
minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “RESET/OFF”.
At the end of drying, turn the selector dial to
“RESET/OFF” to switch the machine off before
removing the laundry.
The selector dial is divided into 4 sections:
●Cotton (blue section)
●Synthetics (green section)
●Time controlled drying (grey section)
●Memory 1, Memory 2 (green section)
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store dry Synthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
60 min
30 min
Cooling
2 Display
The DISPLAY is used for setting a large number of
functions and combine them with each other using
only a few control elements (1 programme selector
dial and 6 buttons). This simple control method is
made easy thanks to the interactive display.
Interactive means that the dryer display changes to
reflect each step you have entered. This ensures that
only those settings that make sense are made. You are
able to see the current settings at any time in the
information panel and in the option row.
1. Information panel shows the current settings and
the current phase of drying cycle.
2. Real time clock
3. End cycle time
4. Selection shows the spin speed and the options
selected.
3 DOOR RELEASE Button
Press this button to open the door.
The icon appears above the relative button.
If the door is opened while the programme is running
the appliance immediately stops drying. The «Pause»
message appears on the display, the icon is
shown above the Door button and the START/
PAUSE button starts flashing.
Opening the door by means of this button is
possible only if the tumble dryer is on
(programme selector dial set to a programme or
drying time).
Change Options
Exit
Cotton extra
Drying
08.30
10.55
1200
1 23
4
Door Spin
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store dry Synthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
Start/
ause
ZDC 5355W
Door Spin Option Change Exit
60 min
30 min
Cooling
134562
TIMELINE AUTOREVERSE 6 kg
125992770.qxp 2004-09-07 07:53 Page 5

If you open the door during a programme, in order to
restart the programme you must press the Start/Pause
button again after having closed the door. The
icon appears on the display above the relative button.
4 SPIN SPEED Button
Press this button repeatedly to change the value of
the spin speed.
This value appears on the display above the relative
button.
To do this you must know the real spin speed that
your laundry has been spunin the washing machine.
Depending on the type of laundry the spin speeds are
the follow:
- COTTONS: ........800-900-1000-1100-1200-1300
1400 1500-1600 rpm.
- SYNTHETICS: ..800-900-1000 rpm.
- BABY: ................800-900-1000-1100-1200 rpm.
If you do not know the exact laundry spin speed you
can choose blank (no value on the display). The
tumble dryer will dry the laundry using a default
factory drying cycle.
Using this option you could decrease the drying cycle
time, saving energy.
If you have selected a time controlled programme
(60 min. or 30 min.) you could not use this option
because it has been selected a fixed time of drying.
If you try to press this button a warning message
«Selection error» appears in the display.
5 OPTION, CHANGE and
EXIT Buttons
Option button allows you to move through the
option icons.
Change Options
Exit
Half Power
No
10.55
Door Spin
Change button allows you to select/change the status
of the different icons.
Exit button allows you to return to the previous
selection.
Depending on the programme, different functions can
be combined. These must be selected after choosing
the desired programme and before pressing the
START/PAUSE button.
By depressing the «Option» button, all the symbol
icons, allowed for the selected programme, will
appear in the display.
The first option (Half Power) will start flashing.
Its name and status will appear on the display.
If you want to change the option status, press
«Change» button. A line will appear below the
selected icon, indicating that the option is set.
To select the other options press again the «Option»
button and proceed as before.
Once you have completed the selection of the options,
press the «Exit» button, the selected icons will remain
fixed on the display.
Note: To modify the already chosen option selections,
repeat the previous procedure.
Important! While selecting the option, if you press
the «Spin» or Start/Pause button, or you turn the
selector dial, the relative function will be executed.
Half Power
Selecting this option allows drying to be performed at
a lower temperature, for delicate items.
The corresponding icon appears on the display
during set up mode and the drying cycle.
A dash is shown under the relative icon to indicate
that the option has been selected.
Change Options
Exit
Cotton extra
Cycle end at
08.30
10.55
1200
Door Spin
Change Options
Exit
Half Power
Yes
10.55
Door Spin
6
125992770.qxp 2004-09-07 07:53 Page 6

7
This option can also be used for time controlled
drying.
This option cannot be selected with Quick Dry .
Quick
By selecting this option the drying time is reduced in
the following COTTON programmes:
●EXTRA DRY
●READY TO WEAR
●STORE DRY
This option cannot be selected with Half Power
and Dry Level option.
Delay Start
This option makes it possible to delay the starting of
the drying programme by 30 min - 60 min - 90 min, 2
hours and then by 1 hour till 20 hours. You can
modify the status of the delay pressing the «Change»
button sequentially. The delay you have selected is
indicated in the display.
You must select this option after you have set the
programme and before you press the START/PAUSE
button.
You can cancel the delay time at any moment, before
you press the START/PAUSE button. If you have
already pressed the START/PAUSE button and you
wish to cancel the delay time proceed as follows:
1. set the dryer to PAUSE by pressing the
START/PAUSE button;
2. deselect the Delay start option, changing the
status;
3. press the START/PAUSE button to start the
programme.
Important!
The selected delay can be changed only after selecting
the drying programme again.
If you wish to load other laundry to be dried after
having selected the delay time option:
- open the door, pressing the relative button
- load your laundry
- press the START/ PAUSE button, after having
closed the door.
Change Options
Exit
Delay Start
Start in 30 in.
9.42
12.15
Door Spin
1200
Half Load
This option can be selected when the load inside the
drum is less or equal to the half load weight declared
by the programme selected.
This option will decrease the duration of the drying
phase and it allows you to save energy.
This option cannot be selected with time controlled
dying (30 min. and 60 min.).
Long Anticrease
To be used when you are not able to remove your
dried laundry just after the end of the drying cycle.
Selecting this option the anticrease phase will be
prolonged by an hour.
Dry Level
Selecting Dry Level option, you can choose 3
different degrees of humidity that your laundry
retains.
To select the requested humidity degree press the
«Change» button repeatedly.
When on the display appears:
Increased Dry
You has choosen the medium degree of drying.
Drying cycle time will increase by approx. 3
min.
Very Dry
Provides the highest degree of drying. Drying
cycle time will increase by approx. 6 min.
Reduced Dry
Provides the lowest degree of drying. Drying
cycle time will decrease by approx. 2 min.
To confirm your choice press «Exit».
This option cannot be selected with Quick option .
No Buzzer
A buzzer sounds:
●when selecting the programme
●when an incorrect option selection is made
●when the programme selector dial is turned to
another position during the programme or when
you press an option button during the cycle
●at the end of the programme
●when the water reservoir is full
●if the machine is not working correctly
●when the small door at the bottom is open.
By selecting this option, pressing «Change» button,
the acoustic signal is switched off:
125992770.qxp 2004-09-07 07:53 Page 7

8
●at the end of the programme
●when the water reservoir is full
●if the machine is not working correctly
●when the small door at the bottom is open.
To confirm this option press «Exit» button.

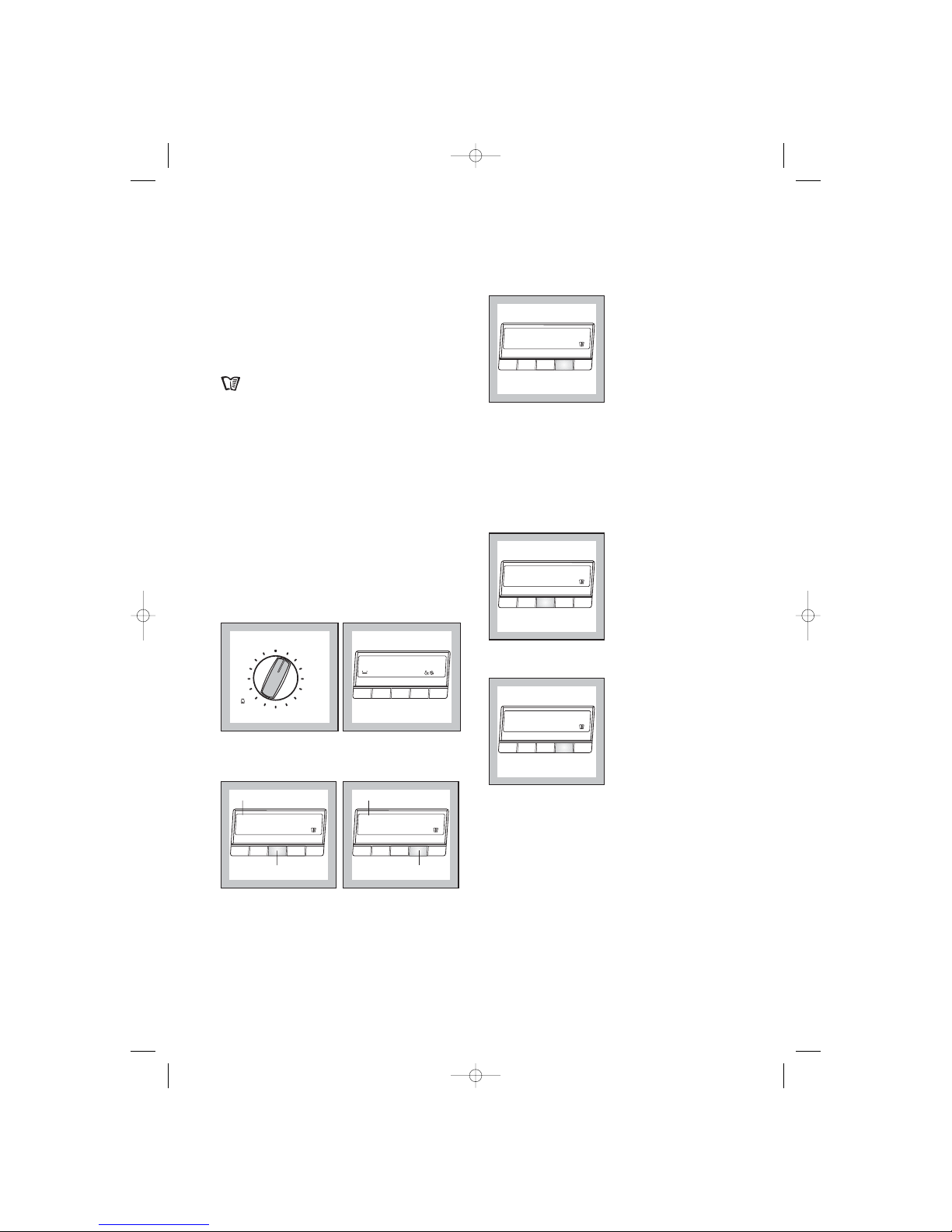

Set Up menu:
Menu option is used for selecting various basic
settings without affecting the particular drying
programme. These basic settings will remain active
until they are deselected/modified.
To move through the different Menu settings use the
«Option» button. To change/confirm the selected
setting use the «Change» button.
Memory
Programme settings that are frequently used can be
saved. There are 2 memory spaces available for this
purpose. The saved programme can be selected in the
same way as any other drying programme by means
of the selector dial.
Example: Cotton Extra Dry, 1200 rpm, No Buzzer
and Dry Level option).
1. Select the cycle and programme settings.
2. Enter the Menu option and select one of the
memory positions. «Store programme?»
message will appear in the display.
3. To memorise the selected programme press the
«Change» button. «Stored» message will appear
in the display.
Change Options
Exit
Me ory 1
Store progra e?
B
B
Temp. Spin
Change Options
Exit
Setup
A
A
Temp. Spin
Change Options
Exit
Cotton extra
Cycle end at
08.30
10.55
1200
Door Spin
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store dry Synthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
60 min
30 min
Cooling
To change the memorised programme setting repeat
the procedure from the beginning.
Sound
The sound setting permits you to modify the volume
of the sound emitter. You can choose between
different levels: low, no sound and normal.
Example:
1. Enter the Menu option and select the sound setting.
2. Use the «Change» button to select the desired
level.
Water Hardness
You can change the water hardness choosing 3
different degrees (see the chapter «Adjusting the level
of conductivity» on page 22).
Language
You can change the language setting if you would like
the indicators in the display to appear in a different
language.
Change Options
Exit
Sound
Low or No Sound
Temp. Spin
Change Options
Exit
Sound
Nor al
Temp. Spin
Change Options
Exit
Progra e Stored
Temp. Spin
125992770.qxp 2004-09-07 07:53 Page 8

9
Example:
1. Enter the Menu option and select the Language
setting.
2. Press the «Change» button to select the desired
Language.
Clock
The clock setting permits you to modify/set up the
current time. It is important to keep it updated as the
current END Cycle Time depends on it.
Example:
1. Enter the Menu option and select the Clock
setting.
2. With a short/single time press of the «Change»
button, the time varies minute by minute. With a
continue pressure of the «Change» button, the
time varies 10 minutes by 10 minutes.
Contrast
The Contrast setting allows you to modify the optical
characteristic of the display.
Example:
1. Enter the Menu option and select the Contrast
setting.
2. Use the «Change» button to set up the desired
contrast level.
Change Options
Exit
Contrast
B
Temp. Spin
Change Options
Exit
Contrast
A
Temp. Spin
Change Options
Exit
Einstellungen
B
Temp. Spin
Change Options
Exit
Sprache
DEUTCH
A
Temp. Spin
Change Options
Exit
Language
ENGLISH
Temp. Spin
Brightness
The Brightness setting allows you to modify the
backlight intensity of the display.
Example:
1. Enter the Menu option and select the Brightness
setting.
2. Use the «Change» button to set up the desired
brightness level.
Note:
At the end of the programme if no button is pressed
for approximately 10 minutes the backlight intensity
goes off.
Change Options
Exit
Brightness
B
Temp. Spin Change Options
Exit
Brightness
A
Temp. Spin
125992770.qxp 2004-09-07 07:53 Page 9

10
6 START/PAUSE Button
This button has 2 functions:
●Start: after you have selected the desired
programme and options, press this button to start
the tumble dryer. The light close to the button will
stop flashing and remain lit.
If you have selected a delay time option, the
countdown will begin and will be shown on the
display.
●Pause: when you press this button again, the
programme in progress is interrupted. The light
close to the button will start flashing. To restart
the programme, press the button again.
If the door is opened while the programme is running
the appliance immediately stops drying. The «Pause»
message appears in the display and the icon is
shown above the Door button.
The appliance immediately stops drying, the «Pause»
and «Please close condenser door» messages appear
in the display also when the condenser door is
opened.
This button must be pressed again after closing the
door in order to restart the programme from the point
at which it was interrupted.
This button must also be pressed after a power
failure and after having re-inserted the water
reservoir.
If it has been emptied in the middle of a
programme after«The tank is full, please empty»
message and an acoustic signal has sounded.
In both cases the light of the Start/Pause button
flashes to remind you that the start button needs to be
pressed again.
Start/
ause
125992770.qxp 2004-09-07 07:53 Page 10

11
Programme Chart
Automatic drying (electronic programmes)
(*) According to IEC 61121 Standards.
Type of laundry Degree of drying required Max-load (1) Programme
COTTON
Extra dry
Ready to wear
Store dry
Slightly damp
Iron dry
Machine Iron Dry
6 kg
6 kg
6 kg
6 kg
6 kg
6 kg
Extra dry (COTTON EXTRA)
Ready to wear (COTTON STRONG)
Store dry(*) (COTTON CUPBOARD)
Slightly damp (COTTON DAMP)
Iron dry(*) (COTTON IRON)
Machine Iron Dry (COT. MACHINE IRON)
Time controlled drying
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying.
• The degree of dryiness required
Cooling
This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent
odour of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
•cotton, linen: drum full but not too tightly packed;
•synthetics: drum no more than half full;
•delicate fabrics: drum no more than one third full.
Type of laundry Drying time Max-load (1) Programme
selector dial position
COTTON
SYNTHETIC
60’
30’
6,5 kg
2.5 kg
60 min
30 min
SYNTHETIC
Extra dry
Store dry
Iron dry
2.5 kg
2.5 kg
2.5 kg
Extra dry (EASYCARE EXTRA)
Store dry(*) (EASYCARE CUPBOARD)
Iron dry (EASYCARE IRON)
JUMPERS Baby dry 1 kg
(10 jumpers) Baby dry (BABY)
• Baby Dry cycle is a special programme for jumpers to be dried “READY TO WEAR”.
125992770.qxp 2004-09-07 07:53 Page 11

12

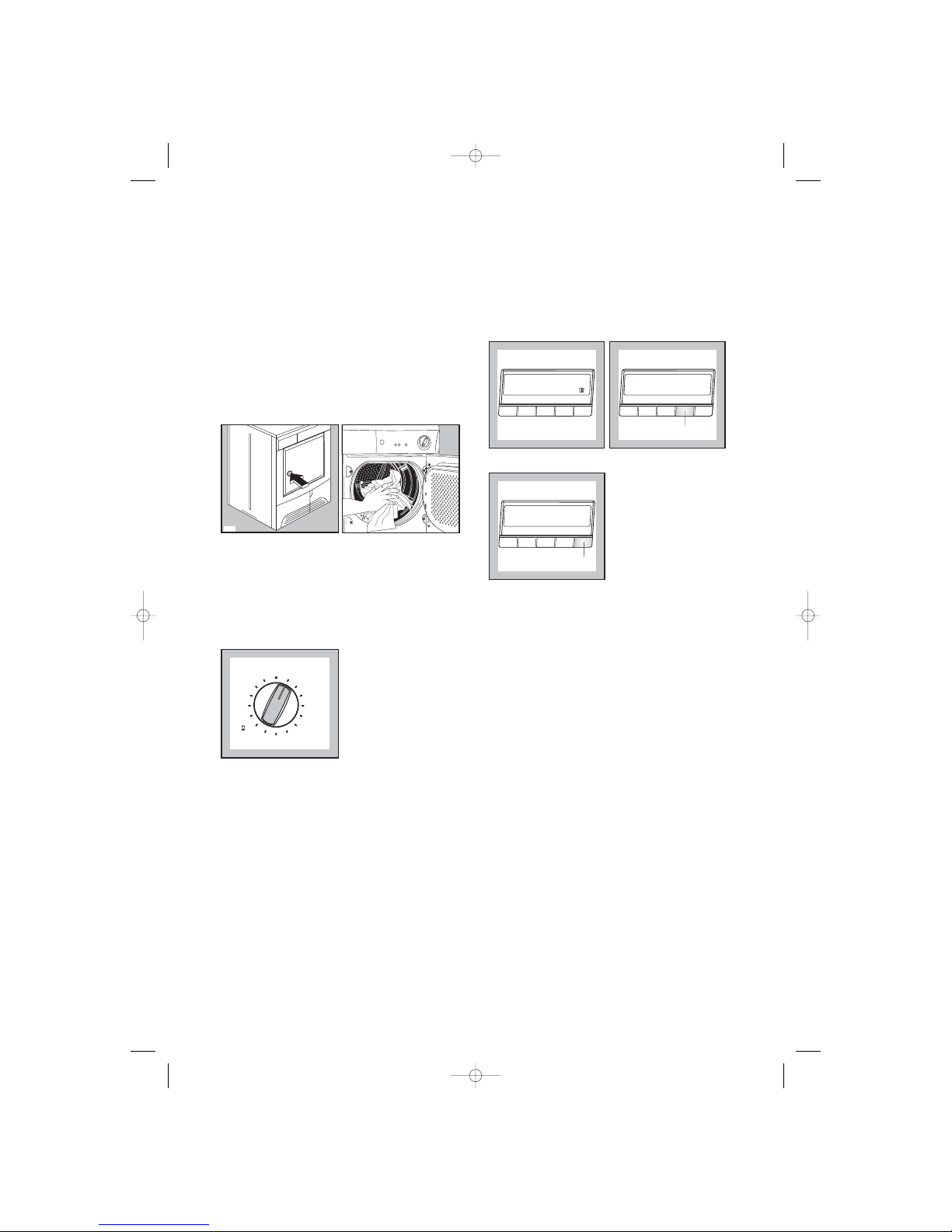

Operating Sequence
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Drying
1. Connect the appliance.
2. Open the door (see picture).
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does not
get caught between the door and filter.
5. Turn the selector dial to the desired programme to
switch the appliance on. To switch the appliance
off turn it to «Reset/Off».
Switching on the appliance for the first time.
Language
When switching on the appliance for the first time
you must set the language in which you want the
indicators on the display to appear.
Important!
If the display is not showing any language, the
appliance has already been switched on once. In
such case, go to the chapter «Change language» if
you would like to change the language setting.
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store dry Synthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
60 min
30 min
Cooling
P1108
P1149
Example:
Press the «Change» button until the desired
language appears in the display.
Press the EXIT button to confirm the selection.
All indicators on the display will appear in this
language from now on.
Note:
If the undesired language has been set, press the
«Spin and Option» buttons simultaniously for
about 3 seconds in order to change the language.
Follow the instructions as before.
Setting the time
You should set the time prior to the first drying
cycle and when changing to and from daylight
savings time. See «Clock setting», Menu.
6. Turn the selector dial, in order to select the
desired programme. The relevant message will
appear in the display.
The display will show the end cycle time «Cycle
end at» of the selected programme, calculated on
the basis of the maximum load for each type of
fabric. The START/PAUSE button light will start
flashing.
If the load of laundry to be dried is small, at the
beginning of the cycle the display will still
indicate the end cycle relevant to the maximum
load.
Change Options
Exit
Einstellungen
B
Temp. Spin
Change Options
Exit
Sprache
DEUTCH
A
Temp. Spin
Change Options
Exit
Language
ENGLISH
Temp. Spin
125992770.qxp 2004-09-07 07:53 Page 12

13

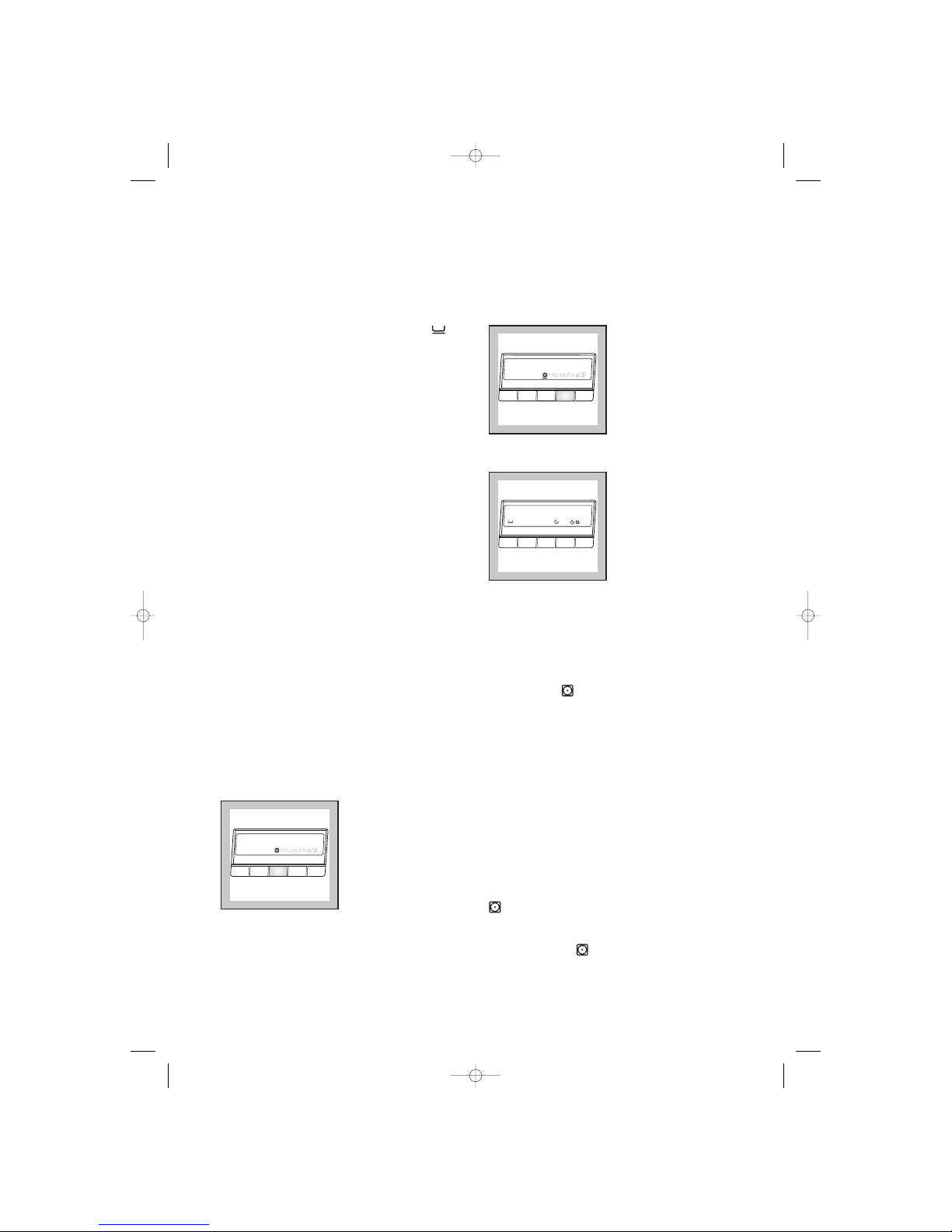

The duration value will be gradually adjusted
during the execution of the drying cycle.
7. Press the SPIN button repeatedly, in order to
select the real spin speed that your laundry has
been spun. The selected spin level will be shown
on the third row above to the spin button.
8. Press the «Options» button to select the required
options.
To confirm your choice press the «Change»
button.
Depending on the selected programme only
certain options are available and shown during
the selection phase.
Note: Not all the options are compatible
between themselves. The incompatible option
icons will disappear.
9. Select the DELAY START option if required.
Before you start the programme choose the
required option.
The selected delay time value (up to 20 hours)
will appear on the display while selecting.
The end cycle will be updated and shown on the
relative position of the display.
Change Options
Exit
Delay Start
Start in 30 in 11.25
Door Spin
Change Options
Exit
Delay Start
No 10.55
Door Spin
Change Options
Exit
Cotton extra
Cycle end at
08.30
10.55
1200
Door Spin
Change Options
Exit
Cotton extra
Cycle end at
08.30
10.55
1200
Door Spin
Cotton extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Machine iron dry
Store dry Synthetic extra dry
Iron dry
Baby
Memory1
Memory2
Reset/
Off
60 min
30 min
Cooling
10.Press the START/PAUSE button. The relevant
light will stop flashing. The message relevant to
the phase that is in progress will be shown in the
display.
If you have chosen a delayed start, the tumble
dryer will begin the countdown.
If the programme selector dial is turned to another
position, when the machine is running, the buzzer
will sound and the «Selection error» message
appears in the display.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (on the second row of the display
appears the «Cooling» message).
You may remove the laundry after this phase.
The display shows the following messages one
after an other: «Please clean the filters» and
«Please empty the tank». The buzzer sounds to
indicate the end of the cycle.
11.If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing phase
(duration: 30 minutes maximum).
If you do not remove the laundry, the dryer will
stop automatically at the end of the anti-creasing
phase. The display will show the following
messages one after an other: «Anticrease»,
«Please clean the filters» and «Please empty the
tank». The buzzer sounds to indicate the end of
the cycle.
The light of the START/PAUSE button goes off
and a flashing zero appears on the display.
12.Turn the programme selector dial to “RESET/
OFF”; all the lights go out. The appliance is
switched off.
Remove the laundry.
If you open and then close the door before
turning the programme selector dial to
“RESET/OFF”, the machine is ready to
perform another drying programme. The
display shows the selected programme,
duration of the programme and the options
required.
Change Options
Exit
Cotton extra
Drying
08.30
10.55
1200
Door Spin
Start/
ause
125992770.qxp 2004-09-07 07:53 Page 13

14
After each use
• Clean the filters (see page 16).
• Empty the water reservoir (see page 17).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position «Cooling» and
wait until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance. To do this first turn the dial to «Reset/
Off» and then to «Cooling» and press Start/Pause
button.
Modifying the programme
To change a programme which is running, first cancel
it by turning the programme selector dial to «Reset/
Off». Select the new programme and press the
Start/Pause button.
125992770.qxp 2004-09-07 07:53 Page 14

15
Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
Care Labels you may find on your laundry
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
Sheet 700 to 1000 g
Pillowcase 100 to 200 g
Tablecloth 400 to 500 g
Table Napkin 50 to 100 g
Kitchen Towel 70 to 120 g
Linen Hand Towel 100 to 150 g
Hand Towel 150 to 250 g
Bath Towel 700 to 1000 g
Bathrobe 1000 to 1500 g
Shirt 200 to 300 g
Apron 150 to 200 g
•Always load well spun laundry. The higher the spin
speed the lower the electricity consumption and the
shorter the drying time.
•DO NOT load dripping wet laundry into the dryer.
Roll the article in a towel or spin to remove excess
water.
•Close poppers and zips and fasten any buttons.
•Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
•Remove the laundry immediately after the
programme has finished.
•Use a fabric conditioning sheet to reduce static. We
recommend the sheet is pinned to an article of
laundry (using a safety pin).
•Mix the load i.e. large and small articles.
•When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
DO NOT use the tumble dryer to dry the following:
•Articles contaminated with inflammable substances
e.g. petrol, cleaning solvents, cooking oil, fats or
hair lacquer.
•Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
•Very delicate articles such as silk.
•Very large and bulky items such as duvets or
sleeping bags.
Hints & Tips on Drying
125992770.qxp 2004-09-07 07:53 Page 15

16
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use water with a little mild washing-up liquid added
rinse and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Regular cleaning ensures correct drying.
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth. The «Please clean
filters» message appears on the dispay to remind you
to carry out this operation.
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
looses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1151
P1110
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1150
Maintenance and Cleaning
After a while, a whitish patina due to detergent
residue on laundry forms on the filters. When this
occurs, clean the filters with warm water using a
brush. Remove the filter in the door opening as per
picture (it can be positioned with the tooth facing to
the left or to the right).
Do not use the appliance without filters.
Cleaning the condenser unit
Clean the air condenser when the «Please clean
condenser» message appears on the dispay.
The condenser is situated at the lower part of the
cabinet behind a small door. To open the door, push
the catch as per picture.
During the drying cycle or at the end, it is normal
for water to be present on the surface of the
condenser.
To pull out the condenser, first turn the two red stops
downwards as shown below and then remove the
condenser unit holding it at the handle.
P1155
P1154
P1153
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1152
125992770.qxp 2004-09-07 07:53 Page 16

17
Clean it with a brush and rinse it under the shower if
necessary.
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser cabinet
and in the inner part of the small door with a damp
cloth.
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops upwards and
close the door.
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
The message «The tank is full, please empty»
written on the display reminds you to do this.
Proceed as follows:
•Pull out the reservoir
•Turn it upside down and let water flow down
•Re-fit the reservoir
P1157
P1156
P0639
The reservoir must be re-inserted correctly.
If this is not done the same message comes on during
next drying and the programme stops, leaving the
laundry damp. The buzzer will sound.
After inserting the reservoir the START/PAUSE
button has to be pressed again to allow the
programme to continue.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Cleaning the drum
When your laundry does not reach the desired degree
of dryness, in other words, when it turns out either
too dry or too damp,we advise you to clean the inside
of the drum with a cloth soaked with vinegar.
This will eliminate the slight patina that has formed
in the drum (due to residues of detergent and
softeners used in the washing, and to the lime
contained in the water), which prevents the probes
from detecting the correct degree of dryness.
125992770.qxp 2004-09-07 07:53 Page 17

18
The tumble dryer does not
start
●The door(s) has (have) not been closed (
«Can’t lock door») .
●The plug is not properly inserted in the power socket.
●There is no current at the socket.
●The main fuse or the fuse in the plug has blown.
●The selector dial is not set correctly.
●The water reservoir is full or not properly inserted (
«The tank is full, please
empty»
). The programme starts in any case but it stops after approx. 4 minutes.
●The START/PAUSE Button has not been pressed.
●The DELAY START option has been selected.
Drying takes too long or
laundry is not dry enough.
●The laundry has not been spun properly.
●The filters and/or the condenser are clogged up (
«Please clean
filters/condenser»
).
●The water reservoir is full (
«The tank is full, please empty» ).
●The room temperature is too high.
●The selected time or drying cycle was not suitable for the laundry.
●The HALF POWER option has been selected.
●The HALF LOAD option has been selected.
●There is too much laundry inside the appliance.
●The dryer is not correctly installed.
Something Not Working
Symptom Possible causes
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
During machine operation it is possible that one of the following messages appears on the display:
Problem with filters/condenser ......«Please clean filters/condenser» Please check filters/condenser.
Problem with water reservoir ........«The tank is full, please empty» Please check the water reservoir.
Door open ......................................«Can’t lock door» Please check the door.
Once the problem has been eliminated, press the START/PAUSE button to restart the programme.
IMPORTANT: if the «Warning» message and an alarm code (e.g. E21) appear on the display and the buzzer
sounds, switch the machine off and call the Service Centre.
If after the above checks, there is still a fault, call your local Service Force Centre.
125992770.qxp 2004-09-07 07:53 Page 18

19
Service & Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you
have read the details under the heading “Something
Not Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance
(found on the rating plate - see picture)
5. The purchase date.
Please note that a valid purchase receipt or
guarantee documentation is required for in-
guarantee service calls.
Customer Care Department
For Customer Services in the Republic of Ireland
please contact us at the address below:
Zanussi-Electrolux
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: [phone]
Email:[email protected]
For general enquiries concerning your Zanussi
Electrolux appliance or for further information on
Zanussi Electrolux products, please contact our
Customer Care Department by letter or telephone at
the address below or visit our website at
www.zanussi.co.uk
Customer Care Department
Zanussi Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel [phone]*
* calls to this number may be recorded for training
purposes.
125992770.qxp 2004-09-07 07:53 Page 19

20
Guarantee Conditions
Standard guarantee conditions
We, Zanussi Electrolux, undertake that if, within 12
months of the date of the purchase, this ZANUSSI
ELECTROLUX appliance or any part thereof is
proved to be defective by reason only of faulty
workmanship or materials, we will, at our option
repair or replace the same FREE OF ANY CHARGE
for labour, materials or carriage on condition that:
●The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
●The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
●The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
●All service work under this guarantee must be
undertaken by a Service Force Centre.
●Any appliance or defective part replaced shall
become the Company’s property.
●This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
●Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
●Costs incurred for calls to put right an appliance
which is improperly installed or calls to
appliances outside the United Kingdom.
●Appliances found to be in use within a
commercial environment, plus those which are
subject to rental agreements.
●Products of Zanussi Electrolux manufacture
which are NOT marketed by Zanussi Electrolux.
European guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
●The guarantee starts from the date you first
purchased your product.
●The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
●The guarantee relates to you and cannot be
transferred to another user.
●Your new home is within the European
Community (EC) or European Free Trade Area.
●The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
●The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
125992770.qxp 2004-09-07 07:53 Page 20
