Zanussi ZCE 600 W User manual

1
ELECTRIC
COOKER
ZCE 600 W
ZCE 610 X
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
All manuals and user guides at all-guides.com
all-guides.com

2
Important Safety Information
You MUST read these warnings carefully before installing or using the
appliance. If you need assistance, contact our Customer Care
Department on 08705 727727
Installation
lThis cooker must be installed by qualified
personnel, according to the manufacturers
instructions and to the relevant British Standards.
 This cooker is heavy. Take care when moving it.
lemove all packaging before using the cooker.
lEnsure that the electrical supply complies with the
type stated on the rating plate.
lDo not attempt to modify the cooker in any way.
Child Safety
lThis cooker is designed to be operated by adults.
Do not allow children to play near or with the
cooker.
lThe cooker gets hot when it is in use. Children
should be kept away until it has cooled.
lChildren can also injure themselves by pulling pans
or pots off the cooker.
During Use
lThis cooker is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
lDo not use this cooker if it is in contact with
water. Do not operate the cooker with wet hands.
lEnsure the control knobs are in the OFF position
when not in use.
lWhen using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the cooker.
lUnstable or misshapen pans should not be used on
the hob hotplates as unstable pans can cause an
accident by tipping or spillage.
lNever leave the cooker unattended when cooking
with oil and fats.
lThis cooker should be kept clean at all times. A
build-up of fats or foodstuffs could result in a fire.
lNever use plastic dishes in the oven or on the hob
hotplates. Never line any part of the oven with
aluminium foil.
lAlways ensure that the oven vent which is located
at the centre back of the hob is left unobstructed
to ensure ventilation of the oven cavity.
lPerishable food, plastic items and areosols may be
affected by heat and should not be stored above
the cooker.
Service
lThis cooker should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
lAfter installation, please dispose of the packaging
with due regard to safety and the environment.
lWhen disposing of an old appliance, make it
unusable, by cutting off the cable.
Keep this instruction book for future
reference and ensure it is passed on
to any new owner.
All manuals and user guides at all-guides.com

3
This appliance is manufactured according
to the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC -
89/336 EEC current edition.

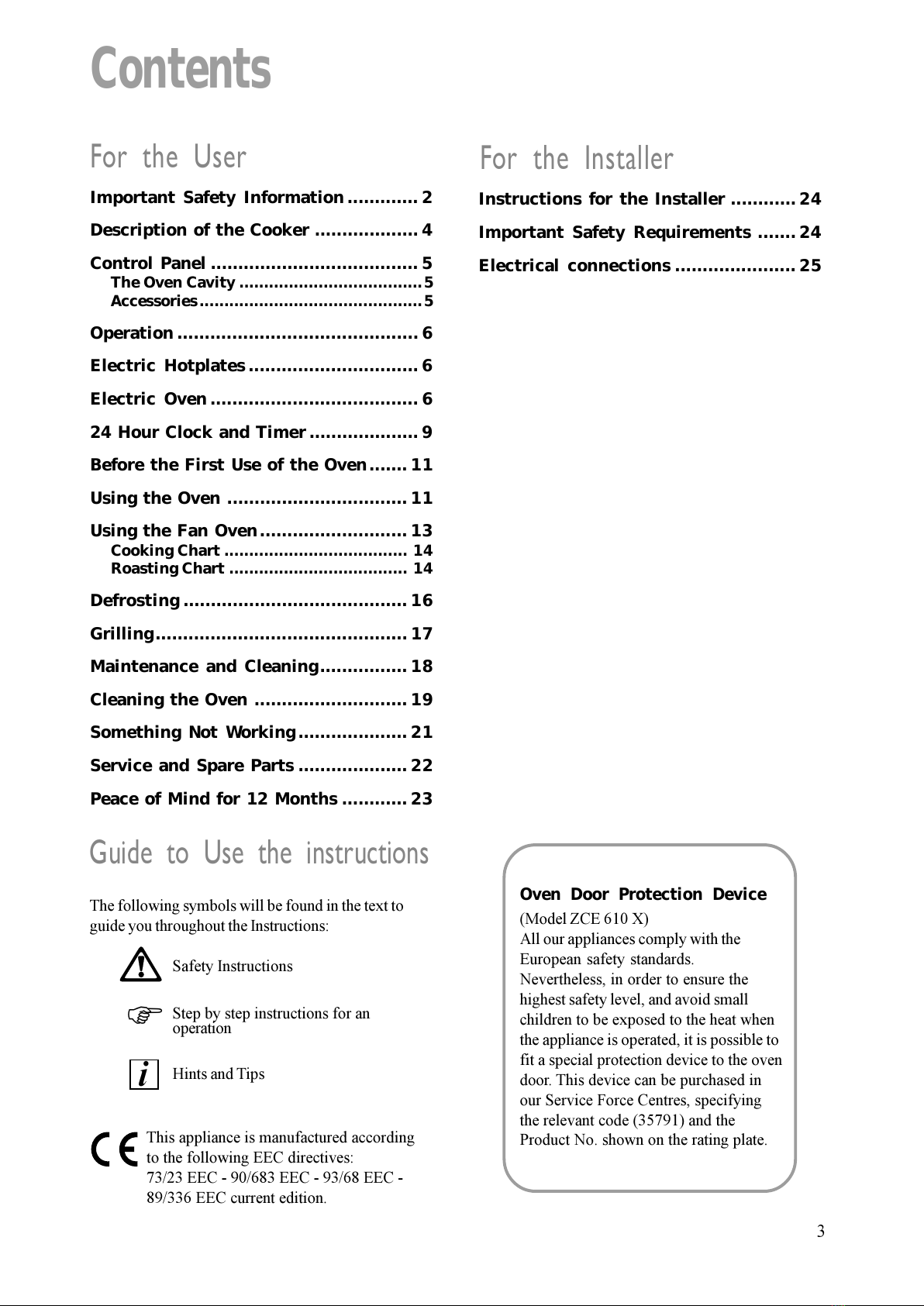

Contents
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
F
i
Oven Door Protection Device
(Model ZCE 610 X)
All our appliances comply with the
European safety standards.
Nevertheless, in order to ensure the
highest safety level, and avoid small
children to be exposed to the heat when
the appliance is operated, it is possible to
fit a special protection device to the oven
door. This device can be purchased in
our Service Force Centres, specifying
the relevant code (35791) and the
Product No. shown on the rating plate.
Important Safety Information............. 2
Description of the Cooker ................... 4
Control Panel ...................................... 5
The Oven Cavity .....................................5
Accessories.............................................5
Operation ............................................ 6
Electric Hotplates ............................... 6
Electric Oven...................................... 6
24 Hour Clock and Timer .................... 9

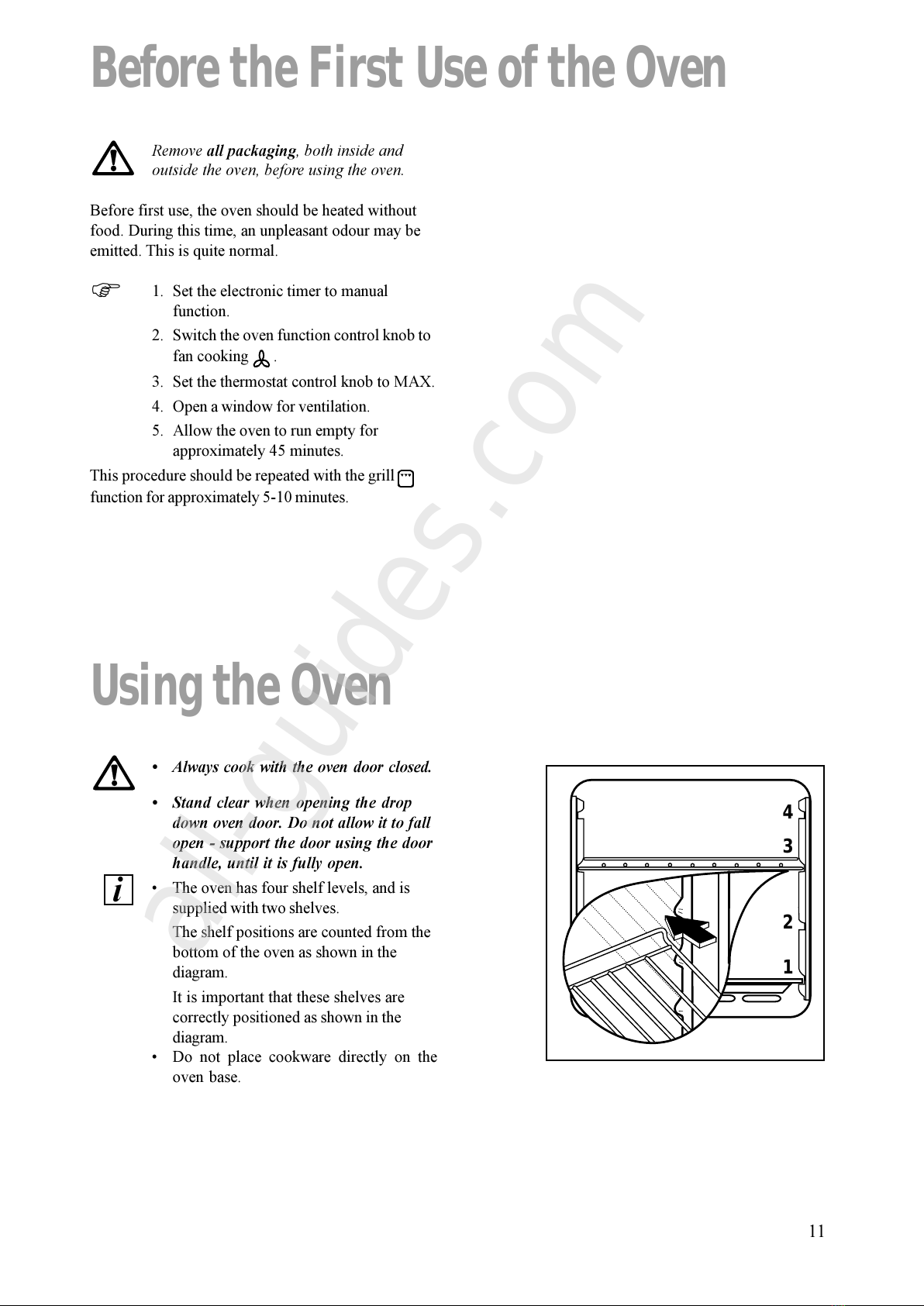

Before the First Use of the Oven....... 11

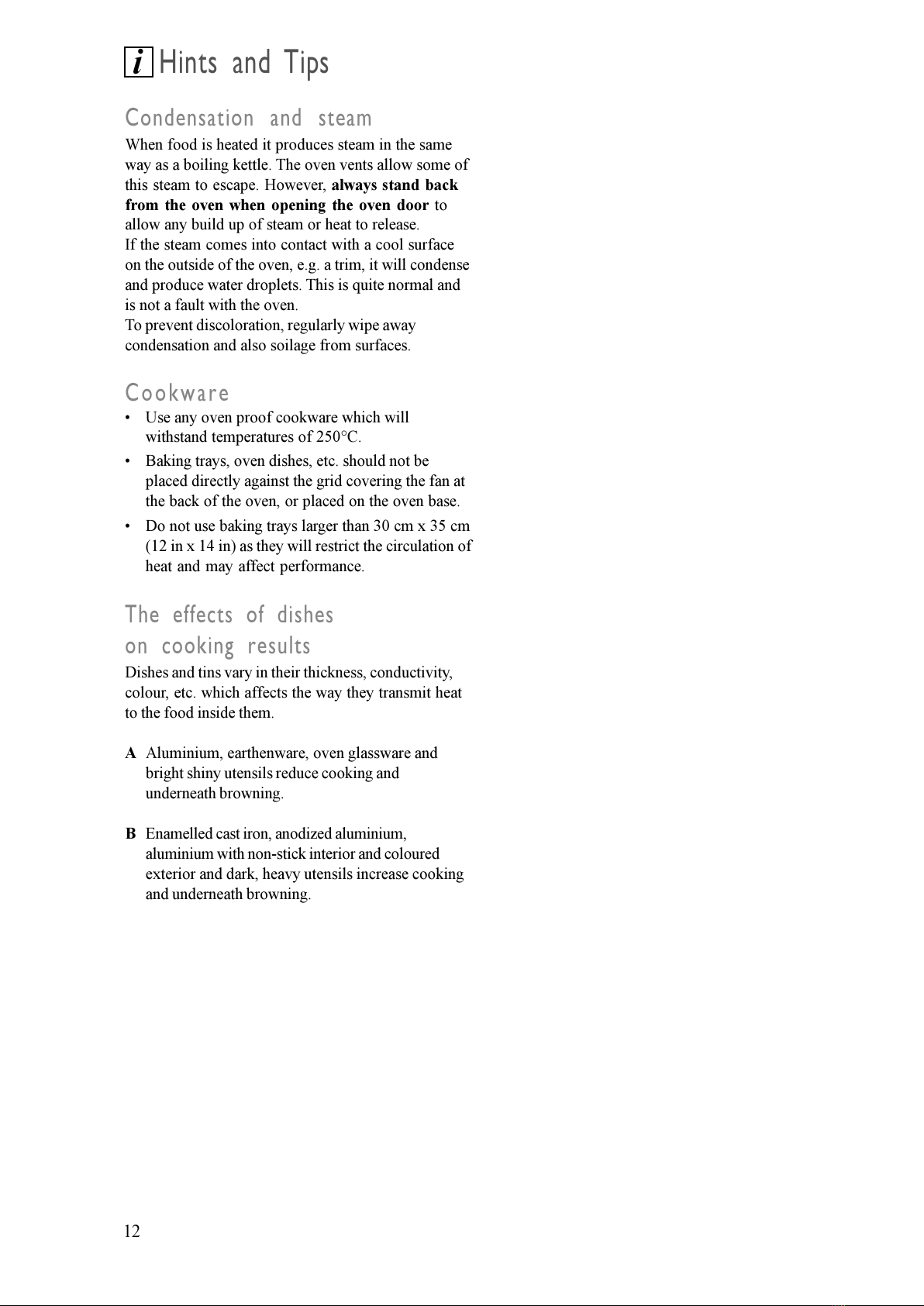

Using the Oven ................................. 11

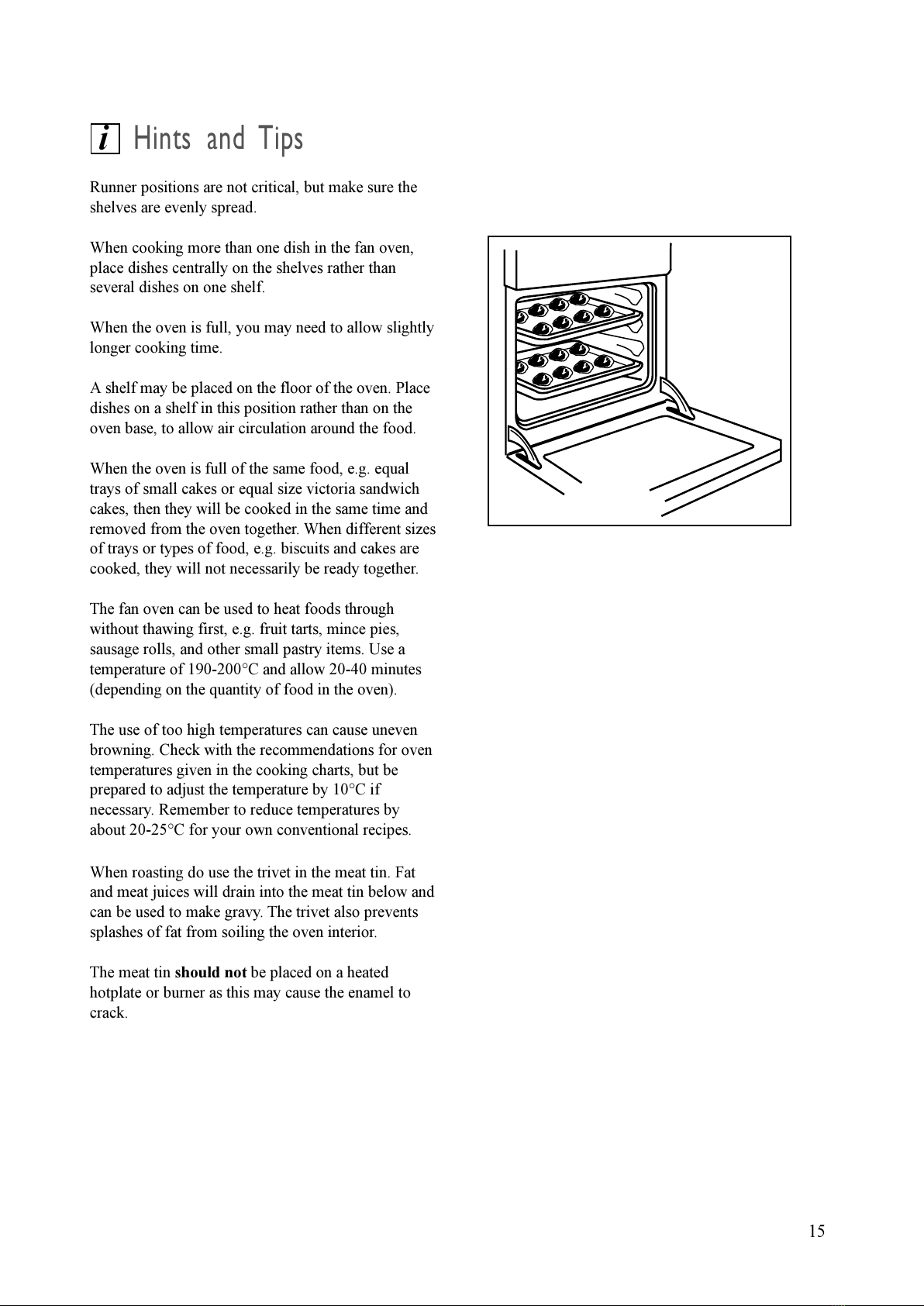

Using the Fan Oven........................... 13
Cooking Chart ..................................... 14
Roasting Chart .................................... 14

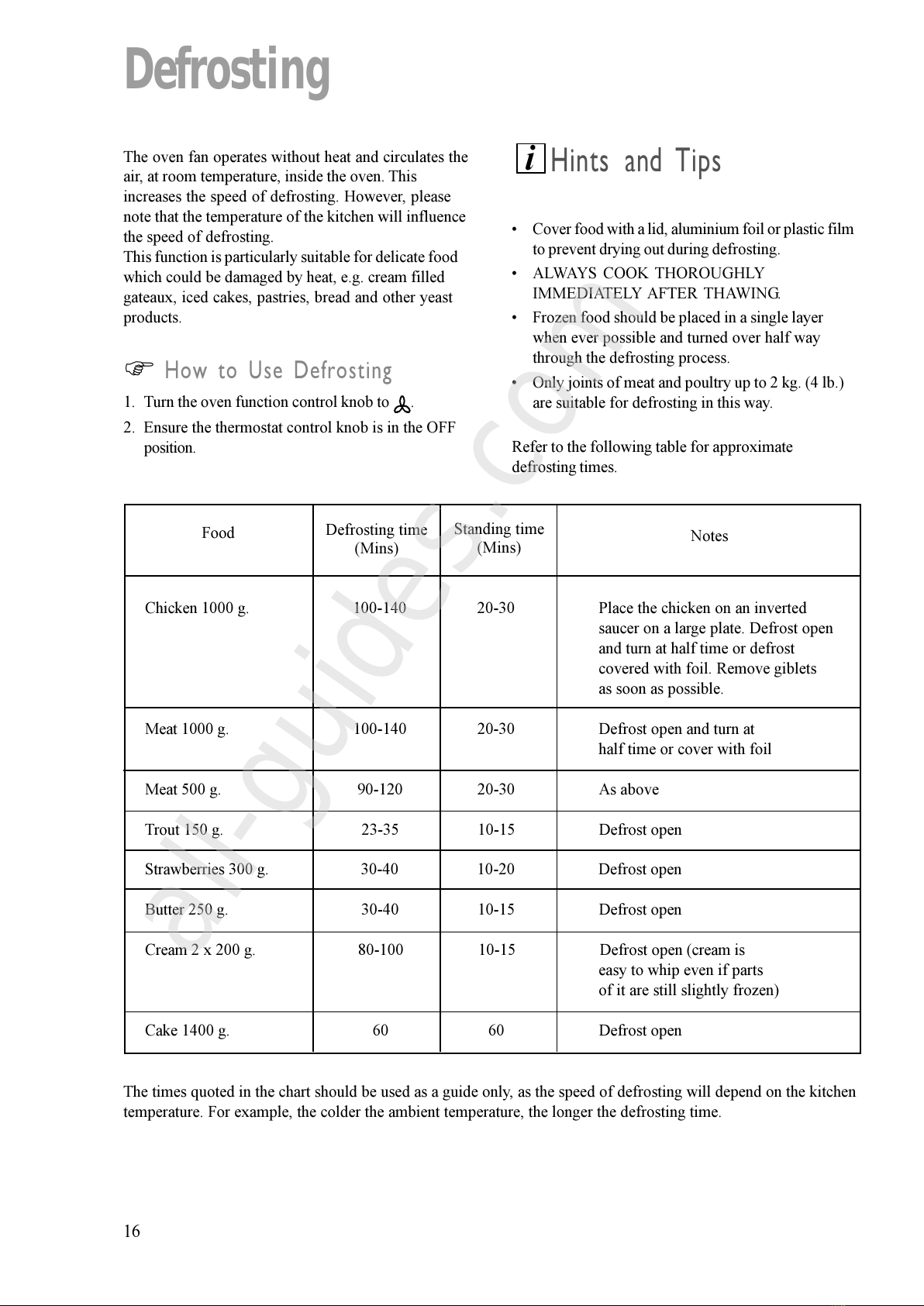

Defrosting ......................................... 16
Grilling.............................................. 17

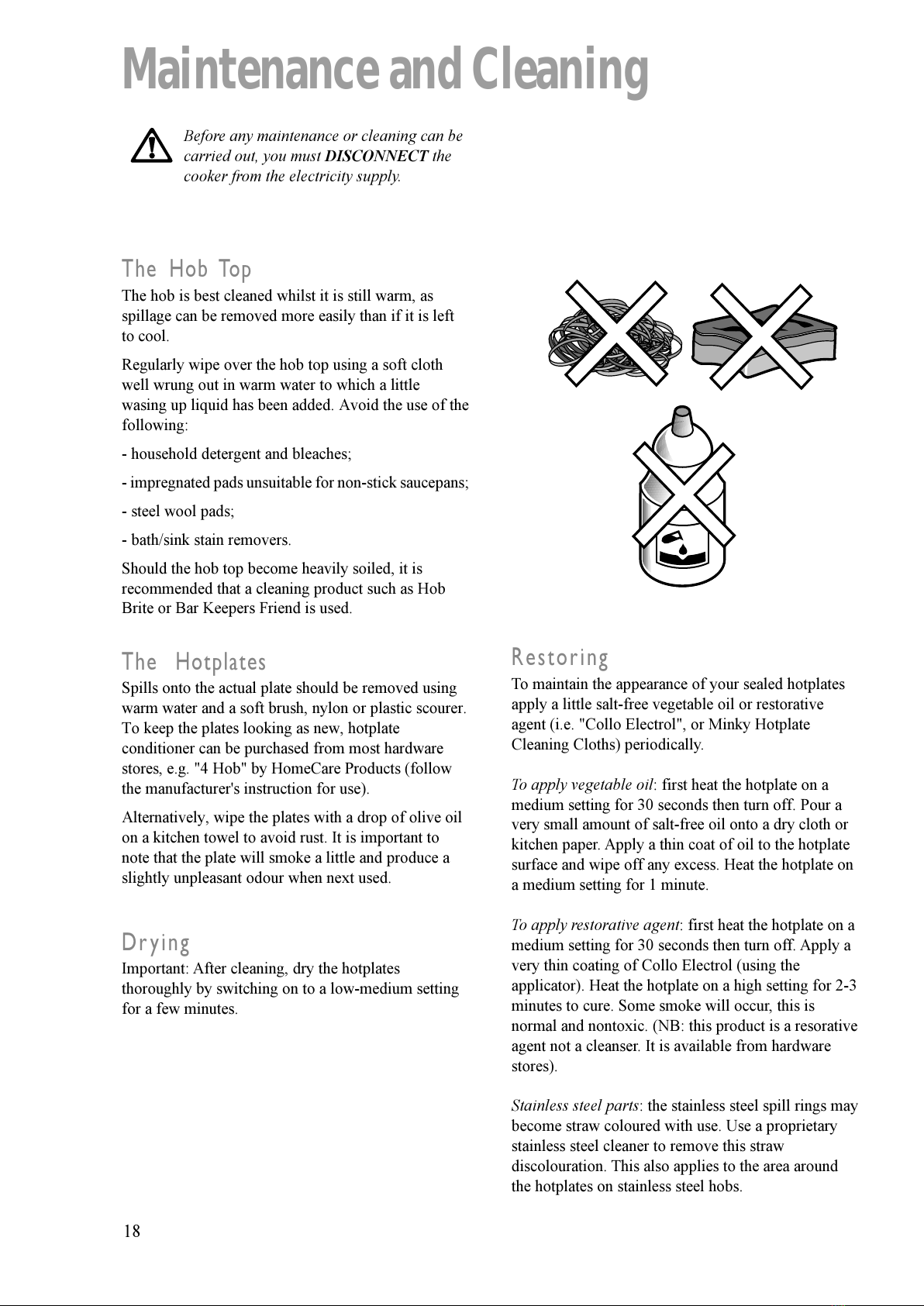

Maintenance and Cleaning................ 18
Cleaning the Oven ............................ 19
Something Not Working.................... 21
Service and Spare Parts .................... 22
Peace of Mind for 12 Months ............ 23
Instructions for the Installer ............ 24
Important Safety Requirements ....... 24
Electrical connections ...................... 25
For the User For the Installer
All manuals and user guides at all-guides.com

4
STOP
SET
TIME
Description of the Cooker
Splash back
(only on model ZCE
610 X)
Back left normal
hotplate
Front left rapid
hotplate
Control panel
Shelf
Oven door
Front right rapid
hotplate
Back right normal
hotplate
Fitting the Splash back
(only on model ZCE 610 X)
A stainless steel splash back is supplied with the
appliance. This is meant to be fitted on the rear edge
of the cooker's hob. The splash back package is in
the oven cavity.
1. Unpack the splash back and dispose of the
packaging with due regard to safety and the
environment.
2. Slide the two bayonets of the splash back into the
relevant supports on the rear edge of the cooker's
hob.
All manuals and user guides at all-guides.com

5
A
U
T
O
TIMER

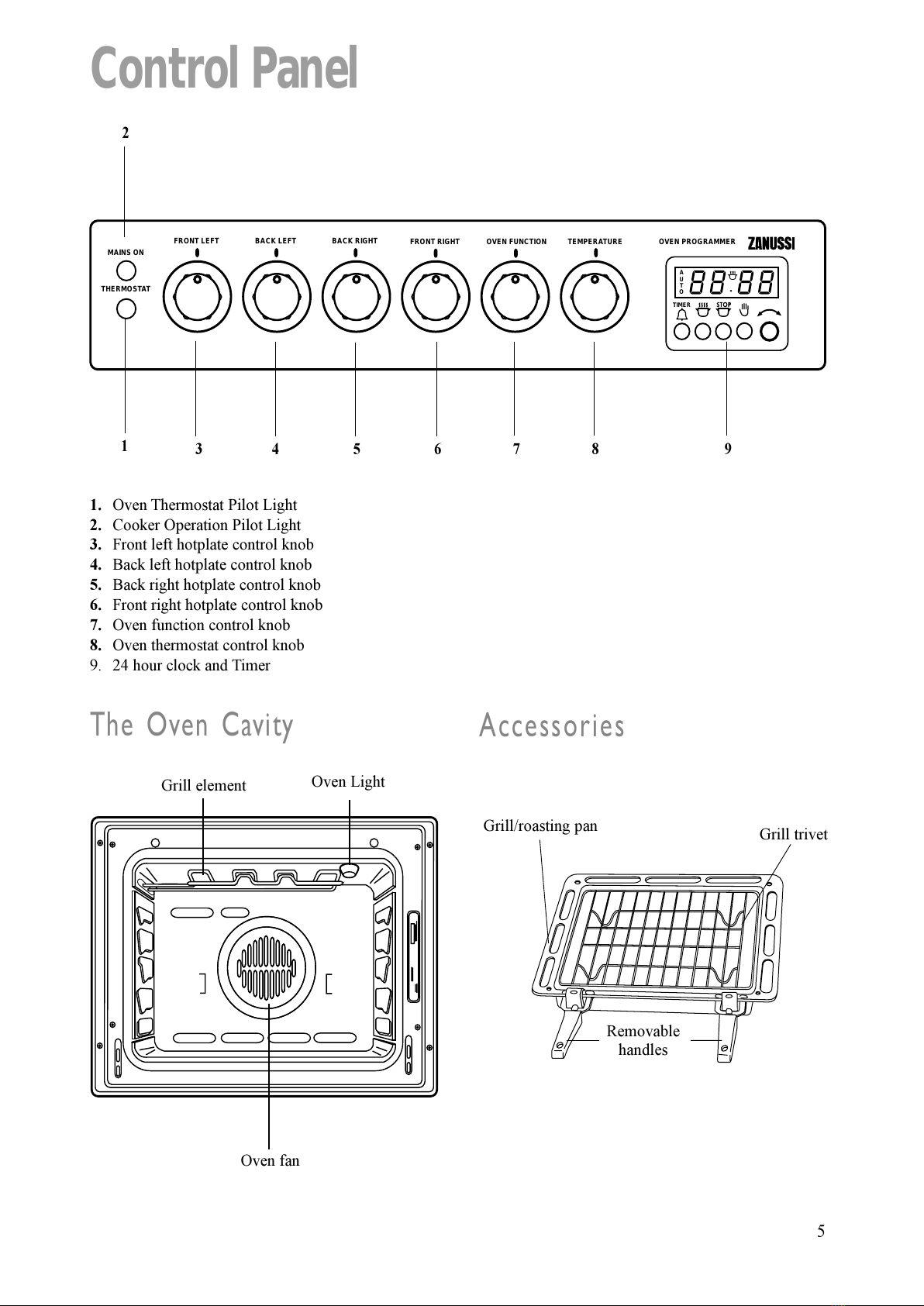

FRONT LEFT BACK LEFT BACK RIGHT FRONT RIGHT OVEN FUNCTION TEMPERATURE
MAINS ON
THERMOSTAT
OVEN PROGRAMMER
1. Oven Thermostat Pilot Light
2. Cooker Operation Pilot Light
3. Front left hotplate control knob
4. Back left hotplate control knob
5. Back right hotplate control knob
6. Front right hotplate control knob
7. Oven function control knob
8. Oven thermostat control knob
9. 24 hour clock and Timer
87654
2
13
Control Panel
The Oven Cavity
Grill element Oven Light
Accessories
Oven fan
9
Grill trivet
Grill/roasting pan
emovable
handles
All manuals and user guides at all-guides.com

6
Electric Hotplates
To switch on a hotplate, turn the relevant control knob
to the required heat setting.
The control knob is numbered 1 - 6
0 - OFF
1 - Minimum
6 - Maximum.
The hob has two types of hotplates:
Normal Hotplates (Back right and le t)
We recommend the plates are switched to maximum
(6) for a short while to boost the plate, and then
adjusted to the required setting.
Rapid Hotplates (Front right and le t)
The rapid hotplates will heat up more quickly than a
normal plate.
It is important to note that the plate may smoke
a little and produce a slightly unpleasant odour
when used for the first time. This is quite
normal and will disappear after a few minutes.
Suggestions for the correct setting of the plates are
given in the following table.
Operation
OFF 0
Very Gentle 1To keep food warm
To melt butter and chocolate
Gentle 2To prepare cream-sauces,
stews and milk puddings
or to fry eggs
Slow 3Dried vegetables, frozen
food, fruit, boiling water
or milk
Medium 4Boiled potatoes, fresh
vegetables, pâtés, soups,
broths, pancakes or fish
High 5Larger stews, meat roll, fish,
omelettes, steaks
Fast 6Steaks, escalopes and frying.
i
All manuals and user guides at all-guides.com
all-guides.com

7
i

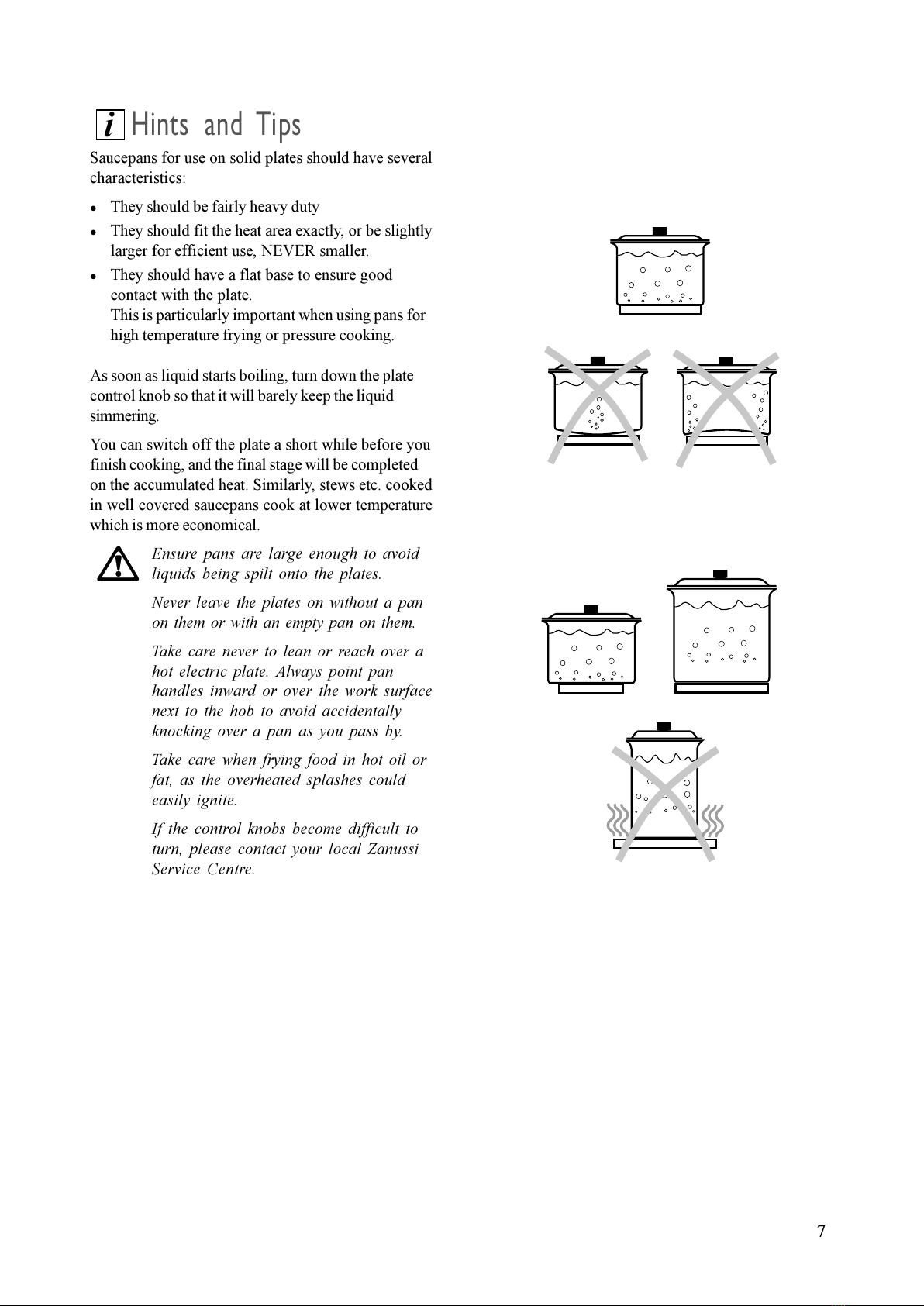

Hints and Tips
Saucepans for use on solid plates should have several
characteristics:
lThey should be fairly heavy duty
lThey should fit the heat area exactly, or be slightly
larger for efficient use, NEVE smaller.
lThey should have a flat base to ensure good
contact with the plate.
This is particularly important when using pans for
high temperature frying or pressure cooking.
As soon as liquid starts boiling, turn down the plate
control knob so that it will barely keep the liquid
simmering.
You can switch off the plate a short while before you
finish cooking, and the final stage will be completed
on the accumulated heat. Similarly, stews etc. cooked
in well covered saucepans cook at lower temperature
which is more economical.
Ensure pans are large enough to avoid
liquids being spilt onto the plates.
Never leave the plates on without a pan
on them or with an empty pan on them.
Take care never to lean or reach over a
hot electric plate. Always point pan
handles inward or over the work surface
next to the hob to avoid accidentally
knocking over a pan as you pass by.
Take care when frying food in hot oil or
fat, as the overheated splashes could
easily ignite.
f the control knobs become difficult to
turn, please contact your local Zanussi
Service Centre.
All manuals and user guides at all-guides.com

8

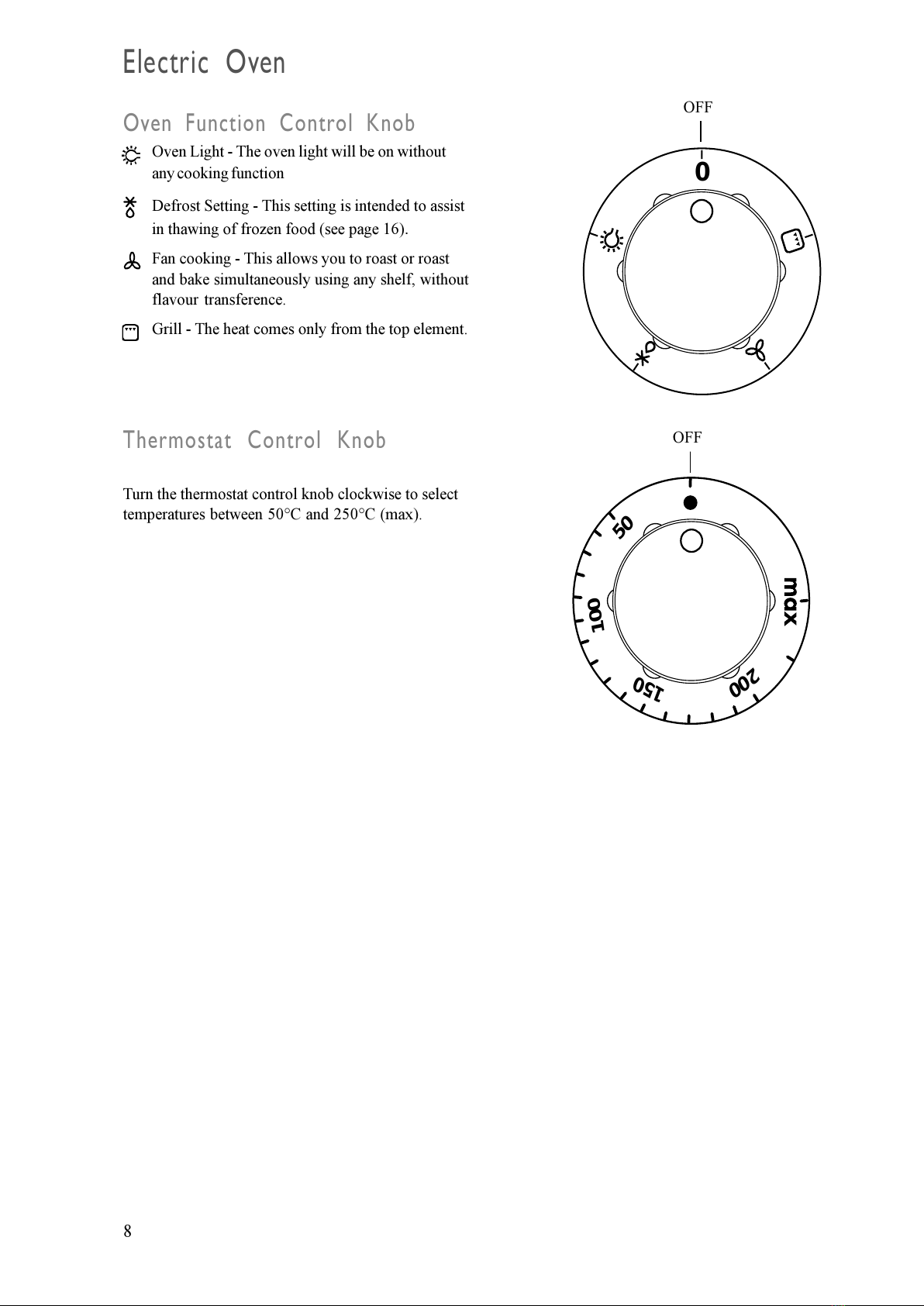

Oven F nction Control Knob
Oven Light - The oven light will be on without
any cooking function
Defrost Setting - This setting is intended to assist
in thawing of frozen food (see page 16).
Fan cooking - This allows you to roast or roast
and bake simultaneously using any shelf, without
flavour transference.
Grill - The heat comes only from the top element.
Electric Oven
0
OFF
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (max).
100
150
200
50
OFF
All manuals and user guides at all-guides.com

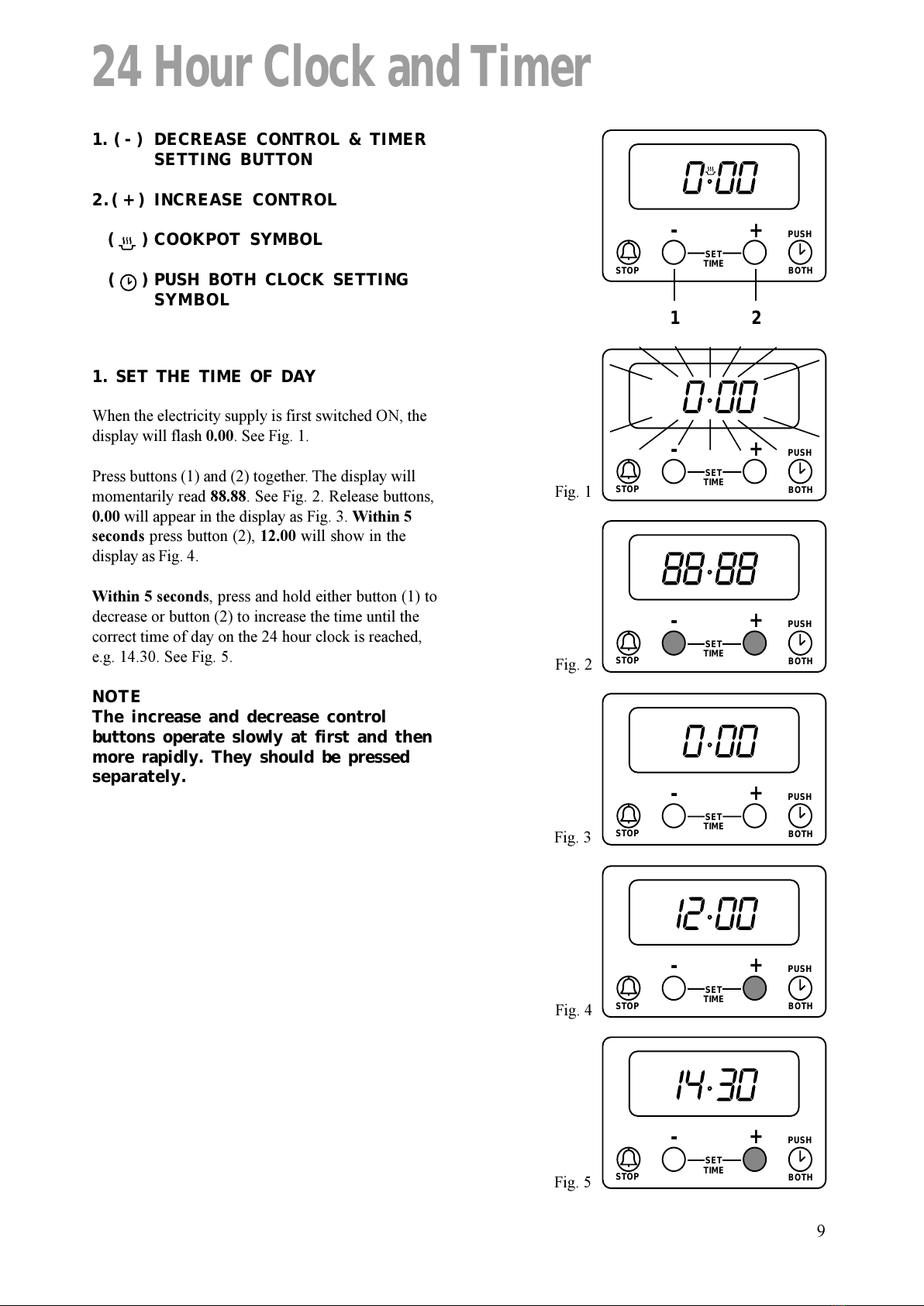

9
1. ( - ) DECREASE CONTROL & TIMER
SETTING BUTTON
2.( + ) INCREASE CONTROL
( ) COOKPOT SYMBOL
( ) PUSH BOTH CLOCK SETTING
SYMBOL
1. SET THE TIME OF DAY
When the electricity supply is first switched ON, the
display will flash 0.00. See Fig. 1.
Press buttons (1) and (2) together. The display will
momentarily read 88.88. See Fig. 2. elease buttons,
0.00 will appear in the display as Fig. 3. Within 5
seconds press button (2), 12.00 will show in the
display as Fig. 4.
Within 5 seconds, press and hold either button (1) to
decrease or button (2) to increase the time until the
correct time of day on the 24 hour clock is reached,
e.g. 14.30. See Fig. 5.
NOTE
The increase and decrease control
buttons operate slowly at first and then
more rapidly. They should be pressed
separately.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
24 Hour Clock and Timer
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
12
All manuals and user guides at all-guides.com

10
2. THE TIMER
IMPORTANT
The timer can be used to time a set cooking period.
At the end of the cook time the timer will
automatically switch off the oven if in use.
The timer gives an audible reminder at the end of any
period of cooking up to 23 hours and 59 minutes.
To set, press button 1) and the display will read 0.00,
see Fig. 6.
Release button 1) and press and hold button 2). The
display will count up in one minute intervals until the
interval to be timed is reached, e.g. 30 minutes, see
Fig. 7. If necessary, press and hold button 1) to
achieve the correct time interval.
The timer will begin to count down once set. At the
end of the timed period, the timer will click, switching
the oven OFF if in use.
An audible signal will sound for up to 2 minutes.
The cookpot symbol will flash and the time of day will
show in the display. See Fig. 8.
To stop the sound press button 1). The display will
stop flashing and show the time of day, e.g. 15.00.
The cookpot symbol ) will go out. See Fig. 9. If
using the oven it will come on again once button 1)
has been depressed. When cooking is complete
remove food and turn OFF oven temperature control.
3. TO CANCEL THE TIMER
Press and release button 1). Then press and hold
button 1) and the display will count down in one
minute intervals to 0.00. See Fig. 10. Release button
1).
After a few seconds the cookpot symbol will flash and
the time of day will show in the display. See Fig. 11
If the oven is in use this will switch OFF after a few
seconds.
To reset, press button 1) and 2) together. See Fig. 12.
4. THINGS TO NOTE
1. The time of day must be set before the oven will
operate. There will be a few seconds delay before
the oven switches on.
2. The timer function controls the main oven only and
will switch the oven OFF at the end of a timed
period. This function is useful if you want to begin
cooking now and have the oven switch OFF
automatically.
3. If you have used the timer to time food cooking in
the oven you will need to reset the timer before
the oven can operate again.
Fig. 8
Fig. 7
Fig. 9
Fig. 6
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
Fig. 12
Fig. 11
Fig. 10
All manuals and user guides at all-guides.com
