Zanussi ZCG662 User manual

EN
User manual
Cooker
ZCG662
IE
GB

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hob - Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Hob - Helpful hints and tips _ _ _ _ _ _ _ _ _ 9
Hob - Care and cleaning _ _ _ _ _ _ _ _ _ _ 9
Oven - Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
Oven - Clock functions _ _ _ _ _ _ _ _ _ _ _ 11
Oven - Helpful hints and tips _ _ _ _ _ _ _ _ 12
Oven - Care and cleaning _ _ _ _ _ _ _ _ _ 17
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 20
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 22
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it oper-
ates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that
you activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
• The appliance and its accessible parts become hot during use.
Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or
separate remote-control system.
2
www.zanussi.com

• Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
• Never try to extinguish a fire with water, but switch off the appli-
ance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
• Remove any spillage from the lid before opening. Let the hob sur-
face cool down before closing the lid.
• Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed be-
low and adjacent safe structures.
• The sides of the appliance must stay adja-
cent to appliances or to units with the same
height.
• Do not install the appliance on a platform.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact
3
www.zanussi.com

the Service or an electrician to change a
damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
• The electrical installation must have an isola-
tion device which lets you disconnect the
appliance from the mains at all poles. The
isolation device must have a contact open-
ing width of minimum 3 mm.
Gas connection
• All gas connections should be made by a
qualified person.
• Before installation, make sure that the local
distribution conditions (nature of the gas and
gas pressure) and the adjustment of the ap-
pliance are compatible.
• Make sure that there is air circulation around
the appliance.
• The information about the gas supply is on
the rating plate.
• This appliance is not connected to a device,
which evacuates the products of combus-
tion. Make sure to connect the appliance ac-
cording to current installation regulations.
Pay attention to requirements regarding ade-
quate ventilation.
Use
Warning! Risk of injury, burns or electric
shock.
• Use this appliance in a household environ-
ment.
• Do not change the specification of this ap-
pliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Internally the appliance becomes hot when
in operation. Do not touch the heating ele-
ments that are in the appliance. Always use
oven gloves to remove or put in oven acces-
sories or ovenware.
• Be careful, when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Always keep the appliance door closed
when the appliance is in operation.
• Do not put cutlery or saucepan lids on the
cooking zones. They become hot.
• Set the cooking zone to “off” after use.
• Do not use the appliance as a work surface
or as a storage surface.
• Provide good ventilation in the room where
the appliance is installed.
• Use only stable cookware with the correct
shape and diameter larger than the dimen-
sions of the burners.
• Make sure the flame does not go out when
you quickly turn the knob from the maximum
to the minimum position.
• Make sure pots are centrally positioned on
the rings and do not stick out over edges of
the cooking surface.
• Use only the accessories supplied with the
appliance.
• Do not install a flame diffuser on the burner.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
4
www.zanussi.com

Warning! Risk of fire or explosion.
• Fats and oil when heated can release flam-
mable vapours. Keep flames or heated ob-
jects away from fats and oils when you cook
with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a mix-
ture of alcohol and air.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot ap-
pliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep baking tray for moist cakes. Fruit
juices cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be dam-
aged.
• Do not activate the cooking zones with emp-
ty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause scratch-
es on the glass ceramic. Always lift these
objects up when you have to move them on
the cooking surface.
Warning! This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room heating.
Gas Grill
Warning! Risk of fire and burns.
• Do not put the oven shelf with food on the
highest shelf level.
Lid
• Do not change the specification of the lid.
• Clean the lid regularly.
• Do not open the lid, when there are spills on
the surface.
• Before you close the lid turn all burners off.
• Do not close the lid until the hob and oven
are completely cold.
• Glass lids can shatter, when heated (if appli-
cable).
Care and Cleaning
Warning! Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appli-
ance and disconnect the mains plug from
the mains socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the Serv-
ice.
5
www.zanussi.com

• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety in-
structions on the packaging.
• Do not clean the catalytic enamel (if applica-
ble) with any kind of detergent.
• Do not clean the burners in the dishwasher.
Internal light
• The type of light bulb or halogen lamp used
for this appliance, is only for household ap-
pliances. Do not use it for house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifica-
tions.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
Product description

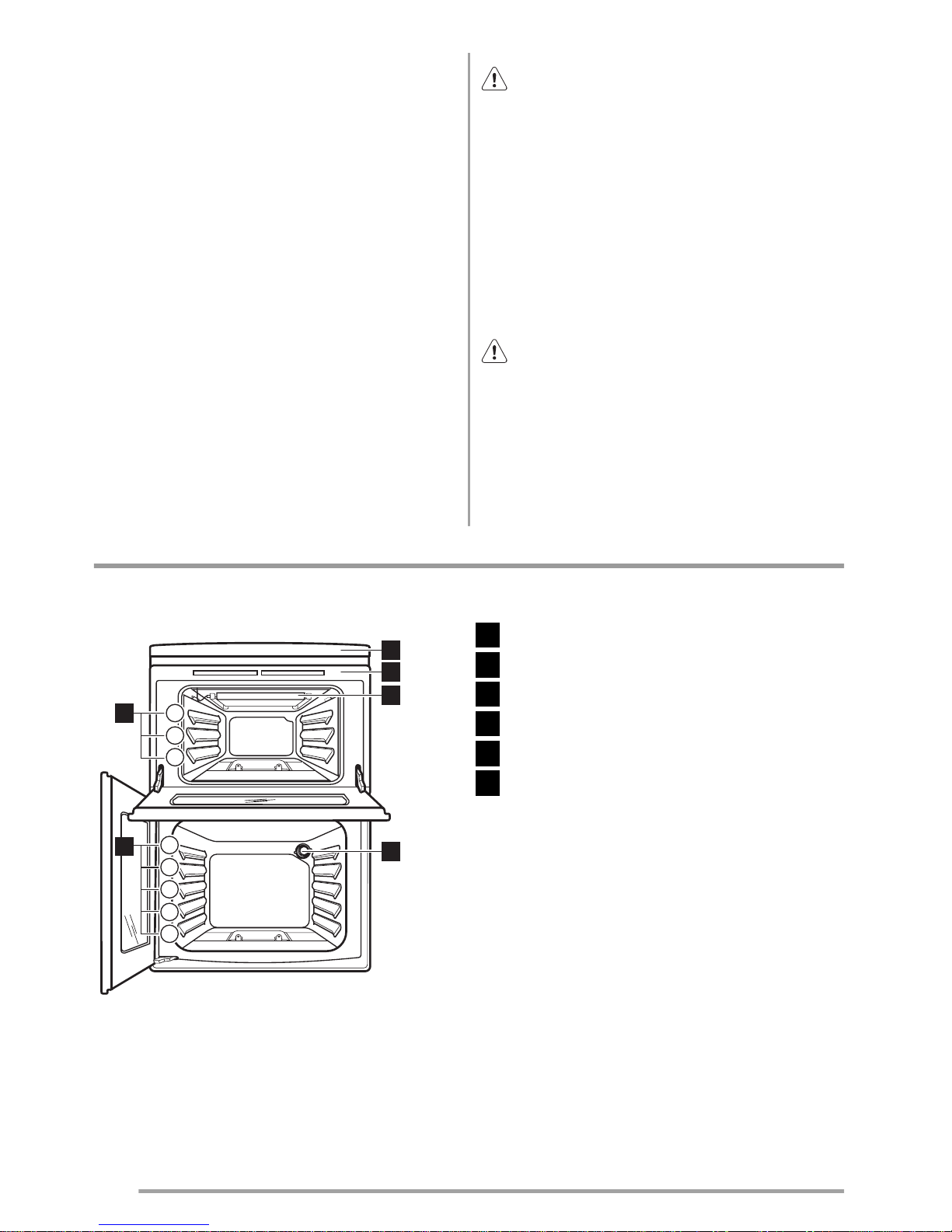

General overview
2
1
4
5
6
3
1
2
3
1
2
3
4
5
1Control panel and hob
2Air vents for cooling fan
3Grill
4Oven lamp
5Shelf positions of the main oven
6Shelf positions of the top oven
6
www.zanussi.com

Cooking surface layout
2
5
43
1
1Steam outlet
2Semi-rapid burner
3Auxiliary burner
4Rapid burner
5Semi-rapid burner
Control panel
1 2 3 4 1
1Knobs for the hob
2Knob for the main oven
3Electronic programmer
4Knob for the top oven / Grill
Accessories
•Oven shelf
For cookware, cake tins, roasts.
•Deep roasting pan
To bake and roast or as pan to collect fat.
•The roasting pan grid
To put in the deep roasting pan.
Before first use
Warning! Refer to the Safety chapters.
Initial Cleaning
• Remove all accessories and removable shelf
supports (if applicable).
• Clean the appliance before first use.
Important! Refer to the chapter "Care and
cleaning".
Setting the time
You must set the time before you operate
the oven.
When you connect the appliance to the electri-
cal supply or after a power cut, the indicator for
the Time of Day function flashes.
Press the +or -button to set the correct time.
After approximately five seconds, the flashing
stops and the display shows the time of day
you set.
To change the time, press again and
again until the indicator for the Time of
Day function flashes.
Preheating
Set an oven to maximum temperature and run
an empty oven for 1 hour, to burn off any resi-
due from the cavity surface. Accessories can
become hotter than in normal use. During this
period an odour can be emitted. This is normal.
Make sure the room is well ventilated.
Preheat the two ovens. Heat up one oven at a
time.
7
www.zanussi.com

Hob - Daily use
Warning! Refer to the Safety chapters.
Lighting the burners
Warning! Be very careful when you use
open fire in a kitchen environment. The
manufacturer declines all responsibility in case
of misuse of the flame.
Always light the burner before you put
cookware on it.
1. Turn the knob to the maximum position
and push it down. When you push the
knob, the spark generator activates auto-
matically.
2. Keep the control knob pushed for approxi-
mately 5 seconds. This lets the thermo-
couple warm up. If not, the gas supply is
interrupted.
3. Adjust the flame after it is regular.
If after some tries the burner does not
light, check if the crown and its cap are in
the correct positions.
8
7
6
9
3
4
5
2
1
1Burner cap
2Burner crown
3Ignition candle
4Thermocouple
5Hob
6Slots
7Burner body
8Location peg
9Hole
Replacing burner parts
1. Carefully put the burner crown on the
burner body. Do not use force.
a) Make sure that the hole in the crown
is above the ignition candle.
b) Make sure that the location pegs are
in the slots in the burner body.
c) Let the crown fall freely onto the body.
d) Make sure that you can move the
crown a small distance from side to
side.
2. Put the burner cap centrally on top of the
crown (enamel side up). Move the cap
from side to side and front to back to make
sure that it is correctly installed.
3. Try to light the burner. If the burner does
not ignite, adjust the crown and cap again.
Warning! Do not keep control knob
pressed for more than 15 seconds.
If the burner does not light after 15 seconds,
release the control knob, turn it into off position
and wait for at least 1 minute before trying to
light the burner again.
If the burner accidentally goes out, turn
the control knob to the off position and try
to light the burner again after minimum 1 mi-
nute.
The spark generator can start automatical-
ly when you switch on the mains, after in-
stallation or a power cut. It is normal.
8
www.zanussi.com

Turning the burner off
To put the flame out, turn the knob to the sym-
bol .
Warning! Always turn the flame down or
switch it off before you remove the pans
from the burner.
Lid Safety Device
Lid has safety device, which cut off gas supply
for hob. It works only when lid is closed.
Warning! Always use the control knob to
switch off a burner. Do not use the lid as a
cut-off device.
Hob - Helpful hints and tips
Warning! Refer to the Safety chapters.
Energy savings
• If possible, always put the lids on the pans.
• When the liquid starts to boil, turn down the
flame to barely simmer the liquid.
Use pots and pans with diameter applica-
ble to the dimension of burner.
Burner Diameters of cookware
Rapid 180 mm - 260 mm
Semi-rapid 120 mm - 220 mm
Auxiliary 80 mm - 160 mm
Use cookware with the bottom as thick and flat
as possible.
Hob - Care and cleaning
Warning! Refer to the Safety chapters.
Clean the appliance after each use.
Always use cookware with clean bottom.
Warning! Switch the appliance off and
let it cool down before you clean it.
Warning! For safety reasons, do not
clean the appliance with steam cleaners
or high-pressure cleaners.
Warning! Do not use abrasive cleaners,
steel wool pads or acids, they can cause
damage to the appliance.
• To clean the enamelled parts, cap and
crown, wash it with warm soapy water.
• Stainless steel parts wash with water, and
then dry with a soft cloth.
• The pan supports are not dishwasher proof;
they must be washed by hand.
• Make sure you position the pan supports
correctly after cleaning.
• To make burners work correctly, make sure
that the arms of the pan supports are in the
centre of the burner.
•Be very careful when you replace the
pan supports to prevent the hob top
from damage.
After cleaning, dry the appliance with a soft
cloth.
Oven - Daily use
Warning! Refer to the Safety chapters.
Cooling fan
When the appliance operates, the cooling fan
switches on automatically to keep the surfaces
of the appliance cool. If you switch off the ap-
pliance, the cooling fan stops.
If there is a fault in the cooling fan, contact
the customer service.
Switching the top oven, top oven grill or
the main oven on and off
Ignition of top and main oven gas burner:
Push the gas oven control knob and turn it to
. Keep it pushed for some seconds, but no
more than 15 seconds. Do not release it until
the flame comes on.
Ignition of top oven grill burner:
9
www.zanussi.com

Push the gas oven control knob and turn it to
. Keep it pushed for some seconds, but
no more than 15 seconds. Do not release it
until the flame comes on.
If the top oven gas burner or grill burner
does not come on or if it accidentally goes
out:
1. Release the gas oven control knob and
turn it to the “ Off“ position.
2. Open the oven door.
3. After one minute, try to light the oven gas
burner again.
You cannot operate the top oven, when
the grill is in use.
After ignition:
1. Release the gas oven control knob.
2. Close the oven door.
3. Turn the gas oven control knob to the nec-
essary temperature setting.
Ovens safety device:
The top and main oven has a thermocouple. It
stops the gas flow, if the flame goes out.
Turning off the oven burner
To put out the flame, turn the knob to the off
position.
Turning off the grill burner
To put out the flame, turn the knob to the off
position.
Automatic ignition
Sometimes when oven is in operation you can
hear noises, these are normal and do not refer
to any defects.
The main oven has an automatic ignition
system which ignites again the burner if the
flame accidentally goes out.
Top Oven Functions
Oven function Application
Off position The appliance is off.
Gas mark 1 - 8 Range of temperature
adjustment
Range of temperature adjustment for conventional cooking.
To set the temperature, turn the knob counterclockwise.
Grill To grill flat food in the middle of the shelf. To make toast. To
activate the grill, turn the knob clockwise.
Main Oven Functions
The oven has these functions:
Oven function Application
Off position The appliance is off.
Gas mark 1 - 9 Range of tempera-
ture adjustment
Range of temperature adjustment for conventional cooking.
Ignition To activate the oven.
Minimum tempera-
ture
To set the minimum temperature.
10
www.zanussi.com

Installing the oven accessories
Put the slide-in accessories between the guide
bars of one of the oven levels.
Important! The flame protection on the shelf
must point up.
Use the shelf with flame protection only
on the first and second level in the top
oven, and on all the levels in the main oven.
Grilling set
The grilling set includes the roasting pan grid
and the deep roasting pan. You can use the
roasting pan grid on the two sides.
Warning! Risk of burns when removing
the accessories from a hot oven.
You can use the grill-
ing set to roast larger
pieces of meat or
poultry on one level:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point up-
wards.
You can use the grill-
ing set to grill flat
dishes in large quan-
tities and to toast:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point
downwards.
Put the deep roasting pan in the oven at the
necessary level.
Only put the grilling set on the first or sec-
ond shelf level of top oven.
Oven - Clock functions
Electronic programmer
1 2 3
456
1Minute minder indicator
2Time display
3Time of day indicator
4Button +
5Selection button
6Button -
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set a countdown time. This function has no effect on the operation of
the oven.
11
www.zanussi.com

Minute Minder function
This function has no effect on oven opera-
tions.
1. Press the Selection button again and
again until the indicator for the minute
minder function flashes.
2. Set the time with + or - button (the maxi-
mum time is 2 hours 30 minutes).
3. After 5 seconds, the clock starts to count
down.
4. When the set time ends, press a button to
stop the signal.
Cancelling the clock functions
1. Push the Selection button again and again
until necessary function indicator flashes.
2. Push and hold button "-".
After some seconds the clock function
goes out.
Oven - Helpful hints and tips
Warning! Refer to the Safety chapters.
The temperature and baking times in the
tables are guidelines only. They depend
on the recipes, quality and quantity of the in-
gredients used.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf levels. Use is to cook smaller quan-
tities of food. It gives especially good results
when used to cook fruitcakes, sweets and sa-
voury flants or quiche.
Main oven
The main oven is particularly suitable for cook-
ing larger quantities of food.
Baking
General instructions
• Your new oven may bake or roast differently
to the appliance you had before. Adapt your
usual settings (temperature, cooking times)
and shelf levels to the values in the tables.
• With longer baking times, the oven can be
switched off about 10 minutes before the
end of baking time, to use the residual heat.
• Use deep roasting pan in middle or top shelf
level of top oven.
• To brown pastry dishes on the bottom, cook
on metal plate or put on a baking tray.
When you use frozen food, the trays in
the oven can twist during baking. When
the trays get cold again, the distortion
will be gone.
How to use the Baking Tables
• We recommend to use the lower tempera-
ture the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• Baking time can be extended by 10-15 mi-
nutes, if you bake cakes on more than one
level.
• Cakes and pastries at different heights do
not always brown equally at first. If this oc-
curs, do not change the temperature setting.
The differences equalize during the baking
procedure.
Tips on baking
Baking results Possible cause Remedy
The cake is not browned
sufficiently below
Incorrect oven level Put the cake on a lower oven level
12
www.zanussi.com

Baking results Possible cause Remedy
The cake sinks (be-
comes soggy, lumpy,
streaky)
Oven temperature too high Use a lower setting
The cake sinks (be-
comes soggy, lumpy,
streaky)
Baking time is too short Set a longer baking time
Do not set higher temperatures to de-
crease baking times
The cake sinks (be-
comes soggy, lumpy,
streaky)
Too much liquid in the mixture Use less liquid. Look at the mixing times, spe-
cially when you use mixing machines
Cake is too dry Oven temperature too low Set a higher oven temperature
Cake is too dry Baking time too long Set a shorter baking time
Cake does not brown
equally
Oven temperature too high and
baking time too short
Set a lower oven temperature and a longer
baking time
Cake does not brown
equally
No equal mixture Put the mixture equally on the baking tray
Cake does not cook in
the baking time set
Temperature too low Use a slightly higher oven temperature setting
Top oven cooking chart
Food Shelf position Gas mark Cooking Time (Total
Hours)
Biscuits 1 - 2 40:10 - 0:20
Small / Queen Cake 1 - 2 50:18 - 0:25
Sponge 1 - 2 40:18 - 0:20
Victoria Sandwich 1 - 2 40:18 - 0:25
Gingerbread 1 - 2 21:15 - 1:30
Flapjack 1 - 2 50:25 - 0:30
Shortbread 1 - 2 30:45 - 1:05
Fruit Pies, Crumbles 1 - 2 60:40 - 0:50
Milk Puddings 1 - 2 31:30 - 2:00
Scones 1 - 2 70:08 - 0:12
Choux Pastry 1 - 2 60:30 - 0:35
Éclairs / Profiteroles 1 - 2 50:20 - 0:30
Flaky Pastry 1 - 2 60:25 - 0:40
Mince Pies 1 - 2 50:15 - 0:20
Pasta Lasagne etc. 1 - 2 50:40 - 0:45
Meat Pies 1 - 2 70:25 - 0:35
Quiche, Tarts, Flans 1 - 2 50:25 - 0:45
Shepherd’s Pie 1 - 2 70:30 - 0:40
Soufflés 1 - 2 50:20 - 0:30
13
www.zanussi.com

Food Shelf position Gas mark Cooking Time (Total
Hours)
Fish 1 - 2 40:20 - 0:30
Fish Pie 1 - 2 60:20 - 0:25
Beef Casserole 1 - 2 32:30 - 3:00
Lamb Casserole 1 - 2 42:30 - 3:00
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 1 - 2 51:00 - 1:30
Roast Potatoes 1 - 2 61:00 - 1:30
Large Yorkshire Pud-
dings
1 - 2 70:25 - 0:40
Individual Yorkshire Pud-
dings
1 - 2 70:15 - 0:25
Main oven cooking chart
Food Shelf position Gas mark Cooking Time (Total
Hours)
Biscuits 1 + 4 40:10 - 0:20
Bread 2 - 3 81) 0:25 - 0:30
Bread rolls/buns 3 - 4 81) 0:15 - 0:20
Small / Queen Cake 1 + 4 50:18 - 0:25
Sponge 1 + 4 40:20 - 0:30
Victoria Sandwich 1 + 4 40:18 - 0:25
Madeira Cake 2 - 3 41:15 - 1:30
Rich Fruit Cake 2 - 3 22:15 - 2:30
Christmas Cake 2 - 3 23:00 - 4:30
Gingerbread 2 - 3 21:15 - 1:30
Flapjack 3 5 0:25 - 0:30
Shortbread 3 3 0:45 - 1:05
Fruit Pies, Crumbles 3 6 0:40 - 0:60
Milk Puddings 3 3 1:30 - 2:00
Scones 1 + 4 70:08 - 0:12
Choux Pastry 3 6 0:30 - 0:35
Éclairs / Profiteroles 3 5 0:20 - 0:30
Flaky Pastry 3 6 0:25 - 0:40
Mince Pies 1 + 4 50:15 - 0:20
Pasta Lasagne etc. 3 5 0:40 - 0:45
Meat Pies 3 2 0:25 - 0:35
Quiche, Tarts, Flans 3 2 0:25 - 0:45
14
www.zanussi.com

Food Shelf position Gas mark Cooking Time (Total
Hours)
Shepherd’s Pie 3 7 0:30 - 0:40
Soufflés 3 5 0:20 - 0:30
Fish 3 4 0:20 - 0:30
Fish Pie 3 6 0:20 - 0:25
Beef Casserole 2 3 2:30 - 3:00
Lamb Casserole 2 4 2:30 - 3:00
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 3 - 4 51:00 - 1:30
Roast Potatoes 3 - 4 61:00 - 1:30
Large Yorkshire Pud-
dings
3 - 4 70:25 - 0:40
Individual Yorkshire Pud-
dings
3 - 4 70:15 - 0:25
1) When baking bread cook for 10 minutes at gas mark 8 then reduce to mark 6 for the remaining cook time.
Roasting
Roasting dishes
• Use heat-resistant ovenware to roast (please
read the instructions of the manufacturer).
• Large roasting joints can be roasted directly
in the deep roasting pan or on the oven shelf
above the deep roasting pan. (If present)
• Roast lean meats in a roasting tin with a lid.
This well keep the meat more succulent.
• All types of meat, that can be browned or
have crackling, can be roasted in the roast-
ing tin without the lid.
• Use deep roasting pan in middle or top shelf
level of top oven and in two or higher level of
main oven.
•Make sure that the grilling set or roast-
ing pan is set in middle of shelf be-
tween front and rear of the oven cavity
Roasting chart
Meat Shelf Level Gas Mark Cooking time
Beef/ Beef boned 2 5 20 - 35 minutes per 500g (1lb) and 20 - 35
minutes over
Mutton/Lamb 2 5 25 - 35 minutes per 500g (1lb) and 25 - 35
minutes over
Pork/Veal/Ham 2 5 30 - 40 minutes per 500g (1lb)
Chicken 2 5 15 - 20 minutes per 500g (1lb) and 20 mi-
nutes over
Turkey/Goose 2 5 15 - 20 minutes per 500g (1lb) up to 3500g
(7lb) then 10 minutes per 500g (1lb) over
3500g (7lb)
Duck 2 5 25 - 35 minutes per 500g (1lb) and 25 - 30
minutes over
15
www.zanussi.com

Meat Shelf Level Gas Mark Cooking time
Pheasant 2 5 35 - 40 minutes per 500g (1lb) and 35 - 40
minutes over
Rabbit 2 5 20 minutes per 500g (1lb) and 20 minutes
over
Grilling
Always use the grilling function with
maximum temperature setting
Warning!
• When grill operates, closing the door
automatically cut-off the flames.
• Do not use the door as a cut-off device.
• Always grill with the oven door opened.
• Keep minimum 5 cm distance from front
and rear edges of grilling area.
• Do not put a meal on edge of shelf.
• The grilling area is set in centre of the
shelf.
•Make sure that the grilling set or
roasting pan is set in middle of
shelf between front and rear of the
oven cavity
Caution! Accessible parts may be hot
when grill is in use. Young children should
be kept away.
Always pre-heat the empty oven with the
grill functions for 5 minutes.
• Set the shelf in the shelf level as recommen-
ded in the grilling table.
• When use grilling set in top oven, always re-
move the oven shelf.
• Grill only flat pieces of meat or fish.
Grilling chart
Food Shelf position Grilling Time (Total Hours)
Bacon Rashers 2 - 3 0:05 - 0:06
Beef Burgers (home-made) 2 - 3 0:20 - 0:30
Chicken Joints 2 - 3 0:30 - 0:40
Lamb Chops 2 - 3 0:15 - 0:20
Pork Chops 2 - 3 0:20 - 0:30
Whole Trout/Mackerel 2 - 3 0:15 - 0:25
Plaice/Cod Fillets 2 - 3 0:10 - 0:15
Kebabs 2 - 3 0:20 - 0:30
Kidneys – Lamb/Pig 2 - 3 0:08 - 0:12
Liver – Lamb/Pig 2 - 3 0:10 - 0:20
Sausages 2 - 3 0:20 - 0:30
Steak – Rare 2 - 3 0:06 - 0:12
Steak – Medium 2 - 3 0:12 - 0:16
Steak – Well Done 2 - 3 0:14 - 0:20
Toasted Sandwiches 2 - 3 0:01 - 0:03
16
www.zanussi.com

Oven - Care and cleaning
Warning! Refer to the Safety chapters.
• Clean the front of the appliance with a soft
cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual cleaning
agent
• Clean the oven interior after each use. Thus
you can remove dirt more easily and it does
not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft cloth
with warm water and cleaning agent) after
each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It can
destroy nonstick coating!
Stainless steel or aluminium applian-
ces:
Clean the oven door with a wet sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids or abrasive mate-
rials as they can damage the oven surface.
Clean the oven control panel with the same
precautions
Catalytic walls
The walls with a catalytic coating are self-
cleaning. They absorb fat which collects on
walls while the oven operates.
To support this self-cleaning process
heat the oven without any food regularly:
1. Open the oven door.
2. Remove all accessories from the oven.
3. Close the door.
4. Set the maximum oven temperature and let
the oven operate for 1 hour.
5. Clean the oven cavity with a soft and
damp sponge.
Caution! Do not attempt to clean
catalytic surfaces with oven sprays,
abrasive cleaners, soap or other cleaning
agents. This may damage the catalytic surface.
Discolouration of the catalytic surface has
no effect on catalytic properties.
Cleaning the top oven glass panels
The door glass on your product can be
different in type and shape from what you
see in diagrams. The number of glasses can be
different.
Removing the glass:
1. Open the door.
2. Push the door trim at both sides to release
the clips. Refer to the picture.
3. Remove the glass panels.
1
2
1
To replace the glass obey the procedure
in opposite sequence.
Cleaning the oven door
The door glass on your product can be
different in type and shape from what you
see in diagrams. The number of glasses can be
different.
Removing the glass:

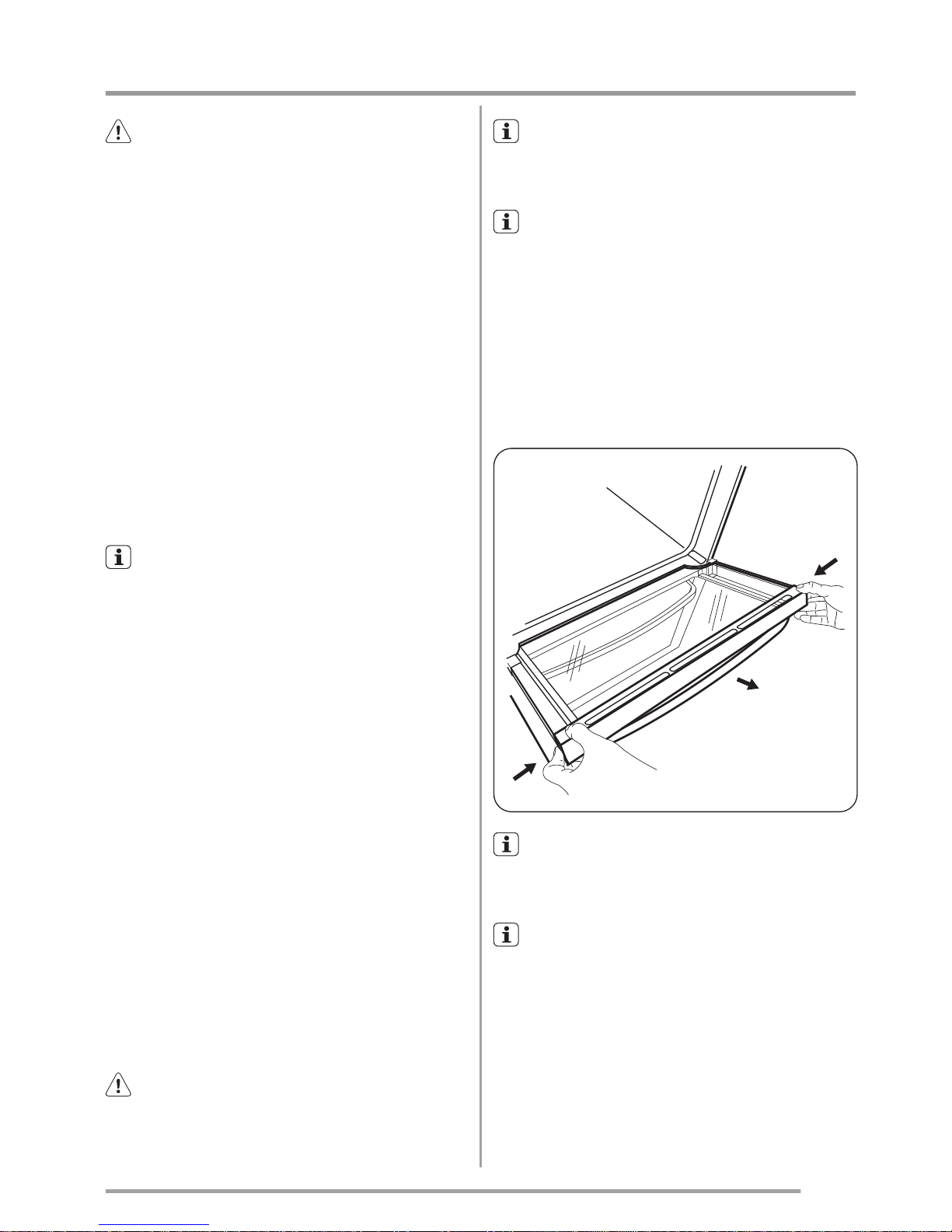

1. Push the door trim at one side to remove it.
Refer to the picture.
2. Pull up the trim.
3. Remove the glass panels.
17
www.zanussi.com

1
2
A
To replace the glass panels obey the pro-
cedure in opposite sequence. Before you
lower the trim attach the A trim part to the
door. Refer to picture.
Oven lamp
Warning! There is a danger of electrical
shock!
Before you change the oven lamp:
• Switch off the oven.
• Remove the fuses in the fuse box or switch
off the circuit breaker.
Put a cloth on the bottom of the oven for
protection of the oven light and glass cov-
er.
Replacing the oven lamp
1. You can find the lamp glass cover at the
back of the cavity.
Turn the lamp glass cover counterclock-
wise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with an applicable
300 °C heat-resistant oven lamp.
Important! Use the same oven lamp type.
4. Install the glass cover.
What to do if…
Warning! Refer to the Safety chapters.
Problem Possible cause Remedy
The appliance does not operate. The fuse in the fuse box is re-
leased.
Control the fuse. If the fuse is re-
leased more than one time, refer
to a qualified electrician.
The appliance does not operate. The appliance is too hot. Cool down the appliance for
some hours
The grill, burners, ovens and timer
do not work.
There is no electrical supply. Make sure that the unit is connec-
ted and the electrical supply is
switched on.
The grill, burners, ovens and timer
do not work.
There is no electrical supply. Examine the house electrical in-
stallation fuse.
The grill, burners, ovens and timer
do not work.
There is no gas supply. Examine the house gas supply,
use other gas appliance (Central
heating or gas fires).
Only main oven does not work. Time is not set. Set the time
18
www.zanussi.com

Problem Possible cause Remedy
There is no spark when lighting
the gas.
Burner cap and crown are placed
uneven.
Make sure that the burner cap
and crown are in correct posi-
tions.
The flame is blow out immediately
after ignition.
Thermocouple is not heated suffi-
cient.
After lightning the flame, keep the
knob pushed for approximately 5
seconds.
The gas ring burns unevenly. Burner crown is blocked with
food residue.
Make sure that the injector is not
blocked and the burner crown is
clear of food particles or cleaning
fluids. Dry them with a cloth and
clean stubborn marks away with a
dry nylon brush (for example an
old toothbrush).
The oven does not heat up. The oven is not switched on. Switch on the oven.
The oven does not heat up. The necessary settings are not
set.
Control the settings.
The oven does not cook evenly. Check that the appliance is cor-
rectly installed and levelled, and
that you use the recommended
temperatures and shelf positions.
The oven lamp does not operate. The oven lamp is defective. Replace the oven lamp.
The display shows “12.00” and
"LED".
A power cut. Reset the clock.
Steam and condensation settle on
the food and in the oven cavity.
You left the dish in the oven for
too long.
Do not leave the dishes in the
oven for longer than 15-20 mi-
nutes after the cooking process
ends.
The appliance makes noises or
popping sounds.
When the gas is drawn through
the burner, it can compress as
they heat up. Some metal parts of
the appliance expand and con-
tract when they heat up or cool
down. The noises are normal.
The flame colour is orange or yel-
low.
The flame can look orange or yel-
low (flame disturbance) in some
areas of the burner because of
how the burner is made. This is
normal.
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
19
www.zanussi.com

Serial number (S.N.) .........................................
Installation
Warning! Refer to the Safety chapters.
Technical data
Dimensions
Height 894 - 912 mm
Width 595 mm
Depth 600 mm
Top oven capacity 34 l
Main oven capacity 79 l
Location of the appliance
You can fit your freestanding appliance with
cabinets on one or both sides and in the cor-
ner.
Do not install the appliance in a bed-sitting
room of volume less than 20 m³ or in a bath-
room, shower room or garage.
Warning! Do not install the appliance
below ground level, for example in a
basement, or aboard a boat, yacht or other
vessel.

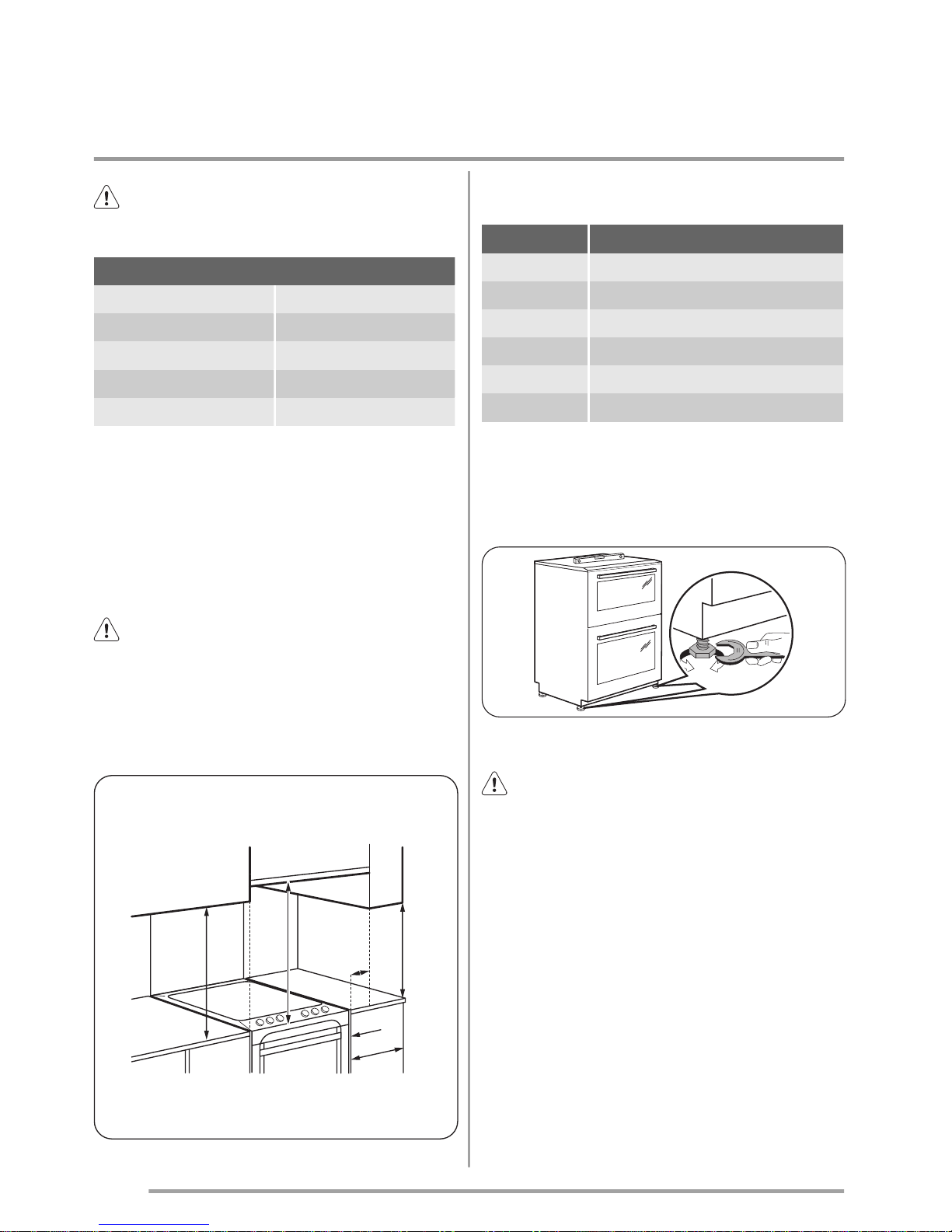

For the minimal distances of fitting check the
table.
A
E
C
B
F
D
Minimal distances
Dimension mm
A650
B150
C 2
D400
E450
Fless than 400
Levelling
Use small feet on the bottom of appliance to
set same level of cooker top surface with other
surfaces
The stability chain
Caution! You must install the stability
chain. If you do not install it the appliance
can tilt.
Before you install stability chain, adjust the
appliance to the correct height.
Measure down 180 mm from the appliance top
surface, then measure right 30 mm (See pic-
ture). Mark the position of the wall and this
gives anchor point for the stability chain.
20
www.zanussi.com
