Zanussi ZCG660GNC User manual

EN
ZCG660GNC
ZCG660GWC
ZCG660GXC
User Manual
Cooker
GB IE

Contents
Safety information 2
Safety instructions 3
Product description 6
Before first use 7
Hob - Daily use 8
Hob - Hints and tips 9
Hob - Care and cleaning 9
Oven - Daily use 10
Oven - Clock functions 12
Oven - Hints and tips 13
Oven - Care and cleaning 18
Troubleshooting 20
Installation 21
Energy efficiency 24
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an
incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
•Only a qualified person must install this appliance and replace
the cable.
•Do not operate the appliance by means of an external timer or
separate remote-control system.
2 www.zanussi.com

•Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
•Never try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
•Do not store items on the cooking surfaces.
•Do not use a steam cleaner to clean the appliance.
•Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
•Remove any spillage from the lid before opening. Let the hob
surface cool down before closing the lid.
•Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always
use oven gloves to remove or put in accessories or ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
Safety instructions
This appliance is suitable for the following
markets: GB IE
Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always wear
safety gloves.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with the
same height.
• Do not install the appliance on a platform.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• Make sure to install a stabilizing means in
order to prevent tipping of the appliance.
Refer to Installation chapter.
www.zanussi.com 3

Electrical Connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or come near
the appliance door, especially when the door
is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door, before you
connect the mains plug to the mains socket.
Gas connection
• All gas connections should be made by a
qualified person.
• Before installation, make sure that the local
distribution conditions (nature of the gas and
gas pressure) and the adjustment of the
appliance are compatible.
• Make sure that there is air circulation around
the appliance.
• The information about the gas supply is on
the rating plate.
• This appliance is not connected to a device,
which evacuates the products of
combustion. Make sure to connect the
appliance according to current installation
regulations. Pay attention to requirements
regarding adequate ventilation.
Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not use the appliance as a work surface
or as a storage surface.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or heated
objects away from fats and oils when you
cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a
mixture of alcohol and air.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put water directly into the hot
appliance.
4 www.zanussi.com

– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance or
directly on the bottom of the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches. Always lift these objects up when
you have to move them on the cooking
surface.
• Provide good ventilation in the room where
the appliance is installed.
• Use only stable cookware with the correct
shape and diameter larger than the
dimensions of the burners.
• Make sure the flame does not go out when
you quickly turn the knob from the maximum
to the minimum position.
• Use only the accessories supplied with the
appliance.
• Do not install a flame diffuser on the burner.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
Care and Cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Remaining fat or food in the appliance can
cause fire.
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Make sure the cavity and the door are wiped
dry after each use. Steam produced during
the operation of the appliance condensates
on cavity walls and can cause corrosion. To
decrease the condensation operate the
appliance for 10 minutes before cooking.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
• Do not clean the burners in the dishwasher.
Lid
• Do not change the specification of the lid.
• Clean the lid regularly.
• Do not open the lid, when there are spills on
the surface.
• Before you close the lid turn all burners off.
• Do not close the lid until the hob and oven
are completely cold.
• Glass lid can shatter, when heated (if
applicable).
Internal light
• The type of light bulb or halogen lamp used
for this appliance is only for household
appliances. Do not use it for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Gas Grill
WARNING!
Risk of fire, explosion and burns.
• Do not leave the appliance unattended
during grilling. Accessible parts become hot.
www.zanussi.com 5

• Keep children away when the grill is in use.
• Never use the grill with the oven door
closed. Leave the oven door open. There is a
risk of fire or carbon monoxide emissions.
• Do not put the oven shelf with food on the
highest shelf level.
Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the appliance
correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
• Flat the external gas pipes.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.

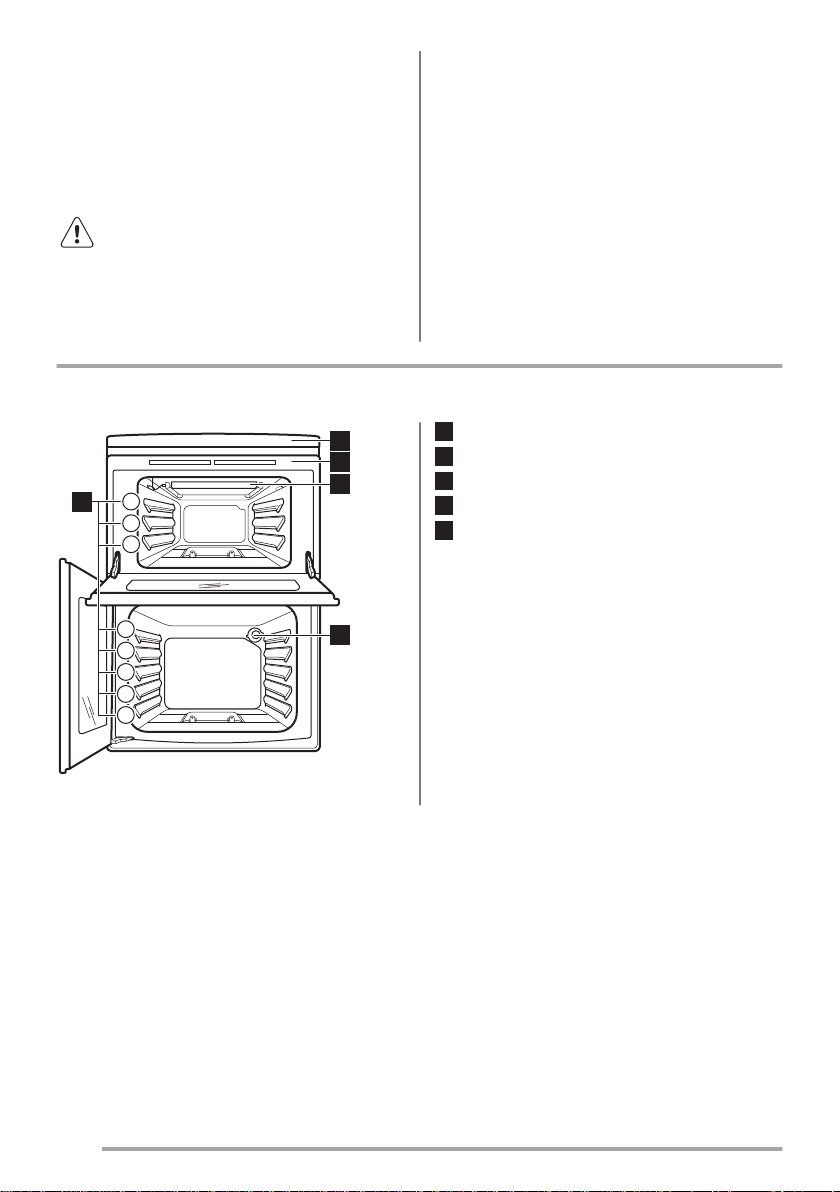

Product description
General overview
5
1
2
3
1
2
3
4
5
2
1
3
4
1Control panel and hob
2Air vents for the cooling fan
3Grill
4Lamp
5Shelf positions
6 www.zanussi.com

Cooking surface layout
2
5
4 3
1
1Steam outlet - number and position depend
on the model
2Semi-rapid burner
3Auxiliary burner
4Rapid burner
5Semi-rapid burner
Cooker control panel
2 3 41 1
1Knobs for the hob
2Knob for the main oven
3Electronic programmer
4Knob for the top oven
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Trivet
For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
Before first use
WARNING!
Refer to Safety chapters.
Initial Cleaning
Remove all accessories from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories back to their initial position.
Setting the time
You must set the time before you operate the
oven.
When you connect the appliance to the
electrical supply or after a power cut, the
indicator for the Time of Day function flashes.
Press the or to set the correct time.
After approximately five seconds, the flashing
stops and the display shows the time of day.
To change the time, press again and again
until the indicator for the Time of Day function
flashes.
Preheating
Preheat the empty appliance before first use.
Preheat the two ovens. Heat up one
oven at a time.
1. Set the maximum temperature.
2. Let the appliance operate for 1 hour.
Accessories can become hotter than usual. The
appliance can emit an odour and smoke. This is
normal. Make sure that the airflow is sufficient.
www.zanussi.com 7

Hob - Daily use
WARNING!
Refer to Safety chapters.
Ignition of the hob burners
Always light the burner before you
put on the cookware.
WARNING!
Be very careful when you use open
fire in the kitchen environment. The
manufacturer declines any
responsibility in case of the flame
misuse.
1. Turn the knob for the hob to the position
and push it down. When you push the knob,
the spark generator activates automatically.
2. Keep the knob for the hob pushed for equal
or less than 10 seconds to let the
thermocouple warm up. If not, the gas
supply is interrupted.
3. Adjust the flame after it is regular.
WARNING!
Do not keep the knob pushed for
more than 15 seconds. If the burner
does not light after 15 seconds,
release the knob, turn it into the off
position and try to light the burner
again after minimum 1 minute.
If after some tries the burner does
not light, check if the crown and its
cap are in the correct position.
In the absence of electricity you can
ignite the burner without an
electrical device. In this case
approach the burner with a flame,
push the relevant knob down and
turn it to maximum position. Keep
the knob pushed for equal or less
than 10 seconds to let the
thermocouple warm up.
If the burner accidentally goes out,
turn the knob to the off position and
try to light the burner again after
minimum 1 minute.
The spark generator can start
automatically when you switch on
the mains, after installation or a
power cut. It is normal.
Burner overview
A
B
D
G
E
C
F
H
I
A) Burner cap
B) Burner crown
C) Ignition candle
D) Thermocouple
E) Hob
F) Slots
G) Burner body
H) Location peg
I) Hole for the ignition candle
Replacing burner parts
1. Put carefully the burner crown on the burner
body. Let the crown fall freely onto the
body. Do not use force.
Make sure that the hole in the crown is
above the ignition candle.
Make sure that the location pegs are in the
slots in the burner body.
Make sure that you can move the crown a
small distance from side to side.
2. Put the burner cap centrally on top of the
crown.
Make sure that the cap is correctly installed,
with the enamel side up and you can move
the cap from side to side and front to back.
3. Light the burner.
8 www.zanussi.com

If the burner does not ignite, adjust the crown
and cap again.
Turning the burner off
To put the flame out, turn the knob to the off
position .
WARNING!
Always turn the flame down or
switch it off before you remove the
pans from the burner.
Lid Safety Device
Lid has safety device, which cuts off the gas
supply for the hob. It works only when the lid is
closed.
WARNING!
Always use the knob for the hob to
switch off a burner. Do not use the
lid as a cut-off device.
Hob - Hints and tips
WARNING!
Refer to Safety chapters.
Cookware
WARNING!
Do not put the same pan on two
burners.
WARNING!
Do not put unstable or damaged
pots on the burner to prevent from
spill and injury.
CAUTION!
Make sure that pot handles are not
above the front edge of the cooktop.
CAUTION!
Make sure that the pots are placed
centrally on the burner in order to
get maximum stability and to get
lower gas consumption.
Diameters of cookware
WARNING!
Use cookware with diameters
applicable to the size of burners.
Burner Diameter of cook-
ware (mm)
Rapid 180 - 260
Semi-rapid 120 - 220
Auxiliary 80 - 160
Hob - Care and cleaning
WARNING!
Refer to Safety chapters.
General information
• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have
no effect on how the hob operates.
• Use a special cleaner applicable for the
surface of the hob.
• Wash stainless steel parts with water, and
then dry them with a soft cloth.
Pan supports
The pan supports are not resistant
to washing in a dishwasher. They
must be washed by hand.
1. Remove the pan supports to easily clean
the hob.
Be very careful when you
replace the pan supports to
prevent the hob top from
damage.
2. The enamel coating occasionally can have
rough edges, so be careful when you wash
www.zanussi.com 9

the pan supports by hand and dry them. If
necessary, remove stubborn stains with a
paste cleaner.
3. After you clean the pan supports, make sure
that they are in correct positions.
4. For the burner to operate correctly, make
sure that the arms of the pan supports are
aligned with the centre of the burner.
Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, and food with sugar. If not, the
dirt can cause damage to the hob.
•Remove when the hob is sufficiently
cool: limescale rings, water rings, fat stains,
shiny metallic discoloration. Clean the hob
with a moist cloth and non-abrasive
detergent. After cleaning, wipe the hob dry
with a soft cloth.
Cleaning the spark plug
This feature is obtained through a ceramic
ignition candle with a metal electrode. Keep
these components well clean to prevent difficult
lighting and check that the burner crown holes
are not obstructed.
Oven - Daily use
WARNING!
Refer to Safety chapters.
Cooling fan
When the appliance operates, the cooling fan
activates automatically to keep the surfaces of
the appliance cool. If you deactivate the
appliance, the cooling fan can continue to
operate until the appliance cools down.
If there is a defect in the cooling fan,
contact the Authorised Service
Centre.
Igniting the oven and grill burners
CAUTION!
When the oven is active, the lid has
to be opened to avoid over-heating.
Keep the oven door open when you
ignite the burner.
Oven safety device:
The oven burners have a
thermocouple. It stops the gas flow,
if the flame goes out.
You cannot operate the top oven
burner, when the grill is active.
1. Open the oven door.
2. Push the knob for the top oven and turn it
counterclockwise to to ignite the top
oven burner.
• Push the knob for the top oven and turn
it clockwise to to ignite the grill
burner.
• Push the knob for the main oven and
turn it counterclockwise to to ignite
the main oven burner.
3. Keep the knob pushed for equal or less
than 15 seconds to let the thermocouple
warm up. If not, the gas flow is interrupted.
4. After ignition release the knob, close the
oven door and turn the knob to set the
necessary heat setting.
WARNING!
Do not push the knob for more than
15 seconds. If the oven burner does
not light after 15 seconds, release
the knob, turn it back to off position
and try to light the oven burner again
after minimum 1 minute.
CAUTION!
In the absence of electricity you can
ignite the oven burner without an
electrical device. In this case open
the oven door, put the flame near the
hole in the bottom of the oven cavity,
turn the knob to the spark position
and push it down. Keep the knob for
the oven functions pushed for equal
or less than 15 seconds to let the
thermocouple warm up.
If the oven burner accidentally goes
out, turn the knob for the oven
functions to the off position and try
to light the burner again after
minimum 1 minute.
Check if the burner holes are not
blocked.
10 www.zanussi.com

Turning off the oven burners
To put out the flame, turn the knob to the off
position.
Top Oven Functions
Oven function Application
Off position The appliance is off.
1 - 8 1) Heat settings Heat settings for Conventional Cooking.
Grilling To grill flat food in the middle of the grill and to toast.
1) 1 - 140 °C, 2 - 145°C, 3 - 150°C, 4 -160°C, 5 - 180°C, 6 - 220°C, 7 - 245°C, 8 - 260°C
Main Oven Functions
Oven function Application
Off position The appliance is off.
Minimum temperature To set the minimum temperature.
1 - 91) Heat settings Heat settings for Conventional Cooking.
Ignition To activate the main oven.
1) min - 130 °C, 1 - 140°C, 2 - 150°C, 3 -165°C, 4 - 180°C, 5 - 205°C, 6 - 220°C, 7 - 230°C, 8 - 245 °C, 9 - 260°C
Inserting the oven accessories
Put the slide-in accessories between the guide
bars in the top / main oven on the necessary
shelf position.
The flame protection on the shelf
must point up.
Use the shelf with flame protection
only on the first and second shelf
position in the top oven and on all
shelf positions in the main oven.
Trivet and Grill- / Roasting pan
WARNING!
Be careful when you remove the
accessories from a hot appliance.
There is a risk of burns.
The stopper in the top oven cavity keeps the
deep pan in the proper position. Do not push
the pan too deep into the cavity, because it may
cause a damage to the stoper or the deep pan.
You can use the trivet to roast larger pieces of
meat or poultry on one shelf position.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point up.
www.zanussi.com 11

2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in large
quantities and to toast.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point down.
2. Put the deep pan into the oven on the
necessary shelf position.
Oven - Clock functions
Display
A B C
A) Minute minder indicator
B) Time display
C) Time of day indicator
Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
Setting the Minute Minder
Use this function to set a countdown time. The
maximum time you can set is 2 hours 30
minutes. This function has no effect on the
operation of the oven.
1. Press again and again until the indicator
for the Minute Minder function starts to
flash.
2. Press or to set the necessary time.
The Minute Minder starts automatically after five
seconds.
3. When the set time is completed, an
acoustic signal sounds. Press any button to
stop the clock function.
4. Turn the knob for the oven functions and
the knob for the temperature to the off
position.
Cancelling the clock functions
1. Press the again and again until the
necessary function indicator flashes.
2. Press and hold .
12 www.zanussi.com

The clock function goes out after some
seconds.
Oven - Hints and tips
WARNING!
Refer to Safety chapters.
The temperature and baking times in
the tables are guidelines only. They
depend on the recipes and the
quality and quantity of the
ingredients used.
Always preheat an empty oven at the
temperature required for the food for
20 minutes before you start cooking.
CAUTION!
The spillages from the food can
blocked the burner holes, because
of this place the food in centre of the
shelf in the gas oven.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf positions. Use it to cook smaller
quantities of food. It gives especially good
results when used to cook fruitcakes, sweets
and savoury flants or quiche.
Main oven
The main oven is particularly suitable for
cooking larger quantities of food.
Baking
• Your oven can bake or roast differently to the
appliance you had before. Adapt your usual
settings (temperature, cooking times) and
shelf positions to the values in the tables.
• The manufacturer recommends that you use
the lower temperature the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• You can extend baking times by 10 – 15
minutes if you bake cakes on more than one
shelf position.
• Cakes and pastries at different heights do
not always brown equally at first. If this
occurs, do not change the temperature
setting. The differences equalize during the
baking procedure.
• With longer baking times, you can deactivate
the oven approximately 10 minutes before
the end of the baking time and then use the
residual heat.
When you cook frozen food, the trays in the
oven can twist during baking. When the trays
become cold again, the distortions are gone.
Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
browned sufficiently. The shelf position is incorrect. Put the cake on a lower shelf.
The cake sinks and becomes
soggy, lumpy or streaky. The oven temperature is too high. The next time you bake, set a slightly lower oven temperature.
The cake sinks and becomes
soggy, lumpy or streaky. The baking time is too short. Set a longer baking time. You cannot decrease baking
times by setting higher tem-
peratures.
The cake sinks and becomes
soggy, lumpy or streaky. There is too much liquid in the mixture. Use less liquid. Be careful with mixing times, especially if you use
a mixing machine.
www.zanussi.com 13

Baking results Possible cause Remedy
The cake is too dry. The oven temperature is too low. The next time you bake, set a
higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set a
shorter baking time.
The cake browns unevenly. The oven temperature is too high
and the baking time is too short. Set a lower oven temperature and a longer baking time.
The cake browns unevenly. The mixture is unevenly distrib-
uted. Spread the mixture evenly on the baking tray.
The cake is not ready in the bak-
ing time given. The oven temperature is too low. The next time you bake, set a slightly higher oven temperature.
Conventional Cooking - Top oven
Food Heat setting Total prepara-
tion time
(min)
Shelf posi-
tion
Biscuits 4 10 - 20 2
Small / Queen Cake 5 18 - 25 2
Sponge 4 18 - 20 2
Victoria Sandwich 4 18 - 25 2
Gingerbread 2 75 - 90 2
Flapjack 5 25 - 30 2
Shortbread 3 45 - 65 2
Fruit Pies, Crumbles 6 40 - 50 2
Milk Puddings 3 90 - 180 2
Scones 7 8 - 12 2
Choux Pastry 6 30 - 35 2
Éclairs / Profiteroles 5 20 - 30 2
Flaky Pastry 6 25 - 40 2
Mince Pies 5 15 - 20 2
Pasta Lasagne etc. 5 40 - 45 2
Meat Pies 7 25 - 35 2
Quiche, Tarts, Flans 5 25 - 45 2
Shepherd’s Pie 7 30 - 40 2
14 www.zanussi.com

Food Heat setting Total prepara-
tion time
(min)
Shelf posi-
tion
Soufflés 5 20 - 30 2
Fish 4 20 - 30 2
Fish Pie 6 20 - 25 2
Beef Casserole 3 150 - 180 2
Lamb Casserole 4 150 - 180 2
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 5 60 - 90 2
Roast Potatoes 6 60 - 90 2
Large Yorkshire Puddings 7 25 - 40 2
Individual Yorkshire Puddings 7 15 - 25 2
Conventional Cooking - Main oven
Food Heat setting Total preparation
time (min) Shelf posi- tion
Biscuits 4 10 - 20 1 + 4
Bread 81) 25 - 30 2 - 3
Bread rolls / buns 81) 15 - 20 3 - 4
Small / Queen Cake 5 18 - 25 1 + 4
Sponge 4 20 - 30 1 + 4
Victoria Sandwich 4 18 - 25 1 + 4
Madeira Cake 4 75 - 90 2 - 3
Rich Fruit Cake 2 135 - 150 2 - 3
Christmas Cake 2 180 - 270 2 - 3
Gingerbread 2 75 - 90 2 - 3
Flapjack 5 25 - 30 3
Shortbread 3 45 - 65 3
Fruit Pies, Crumbles 6 40 - 60 3
Milk Puddings 3 90 - 120 3
Scones 7 8 - 12 1 + 4
www.zanussi.com 15

Food Heat setting Total preparation
time (min) Shelf posi- tion
Choux Pastry 6 30 - 35 3
Éclairs / Profiteroles 5 20 - 30 3
Flaky Pastry 6 25 - 40 3
Mince Pies 5 15 - 20 1 + 4
Pasta Lasagne etc. 5 40 - 45 3
Meat Pies 2 25 - 35 3
Quiche, Tarts, Flans 2 25 - 45 3
Shepherd’s Pie 7 30 - 40 3
Soufflés 5 20 - 30 3
Fish 4 20 - 30 3
Fish Pie 6 20 - 25 3
Beef Casserole 3 150 - 180 2
Lamb Casserole 4 150 - 180 2
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 5 60 - 90 3 - 4
Roast Potatoes 6 60 - 90 3 - 4
Large Yorkshire Puddings 7 25 - 40 3 - 4
Individual Yorkshire Puddings 7 15 - 25 3 - 4
1) When baking bread cook for 10 minutes at heat setting 8 then reduce to heat setting 6 for the remaining cook time.
Roasting
• Use heat-resistant ovenware to roast (refer
to the instructions of the manufacturer).
• You can roast large roasting joints directly in
the deep pan (if present) or on the wire shelf
above the deep pan.
• Roast lean meats in the roasting tin with the
lid. This keeps the meat more succulent.
• All types of meat that can be browned or
have crackling can be roasted in the roasting
tin without the lid.
• We recommend that you cook meat and fish
weighing 1 kg and above in the appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid into
the deep pan.
• If necessary, turn the roast (after 1/2 - 2/3 of
the cooking time).
• Baste large roasts and poultry with their
juices several times during roasting. This
gives better roasting results.
• You can deactivate the appliance
approximately 10 minutes before the end of
the roasting time, and use the residual heat.
16 www.zanussi.com

Roasting
Food Heat setting Total preparation time (min) Shelf po-
sition
Beef / Beef boned 5 20 - 35 minutes per 500g (1lb) and 20 -
35 minutes over 2
Mutton / Lamb 5 25 - 35 minutes per 500g (1lb) and 25 -
35 minutes over 2
Pork / Veal / Ham 5 30 - 40 minutes per 500g (1lb) 2
Chicken 5 15 - 20 minutes per 500g (1lb) and 20 mi-
nutes over 2
Turkey / Goose 5 15 - 20 minutes per 500g (1lb) up to
3500g (7lb) then 10 minutes per 500g
(1lb) over 3500g (7lb)
2
Duck 5 25 - 35 minutes per 500g (1lb) and 25 -
30 minutes over 2
Pheasant 5 35 - 40 minutes per 500g (1lb) and 35 -
40 minutes over 2
Rabbit 5 20 minutes per 500g (1lb) and 20 minutes
over 2
Grilling in general
WARNING!
Always grill with the oven door
opened.
When the grill is active, closing the
door automatically cut-off the flames.
Do not use the door as a cut-off
device.
•Always grill with the maximum
temperature setting.
• Always put the deep pan with trivet onto the
second or third shelf position.
• Grill only flat pieces of meat or fish.
Grilling
Food Total preparation time
(min) Shelf position
Bacon Rashers 5 - 6 2 - 3
Beef Burgers (home-made) 20 - 30 2 - 3
Chicken Joints 30 - 40 2 - 3
Lamb Chops 15 - 20 2 - 3
Pork Chops 20 - 30 2 - 3
Whole Trout / Mackerel 15 - 25 2 - 3
Plaice / Cod Fillets 10 - 15 2 - 3
www.zanussi.com 17

Food Total preparation time
(min) Shelf position
Kebabs 20 - 30 2 - 3
Kidneys – Lamb / Pig 8 - 12 2 - 3
Liver – Lamb / Pig 10 - 20 2 - 3
Sausages 20 - 30 2 - 3
Steak – Rare 6 - 12 2 - 3
Steak – Medium 12 - 16 2 - 3
Steak – Well Done 14 - 20 2 - 3
Toasted Sandwiches 1 - 3 2 - 3
Oven - Care and cleaning
WARNING!
Refer to Safety chapters.
Notes on cleaning
• Clean the front of the appliance with a soft
cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each use.
Fat accumulation or other food remains may
result in a fire. The risk is higher for the grill
pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and let
them dry. Use a soft cloth with warm water
and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents, sharp-
edged objects or a dishwasher. It can cause
damage to the nonstick coating.
Stainless steel or aluminium appliances
Clean the oven door with a wet
sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean the
oven control panel with the same
precautions.
Catalytic cleaning
CAUTION!
Do not clean the catalytic surface
with oven sprays, abrasive cleaning
agents, soap or other cleaning
agents. This will damage the
catalytic surface.
Spots or discolouration of the
catalytic surface have no effect on
catalytic properties.
WARNING!
Keep children away when you clean
the oven at a high temperature. The
oven surface becomes very hot and
there is a risk of burns.
CAUTION!
Always turn the oven light on while
using the catalytic cleaning (if
applicable).
Before activating the catalytic
cleaning remove all the accessories
from the oven.
The walls with a catalytic coating are self-
cleaning. They absorb fat which collects on the
walls while the appliance operates.
To support the self-cleaning procedure, heat
the empty oven on a regular basis.
18 www.zanussi.com

Catalytic cleaning works only in the main oven.
1. Clean the oven floor with warm water and
washing up liquid, then dry it.
2. Set the maximum temperature and let oven
operate for 1 hour.
3. Set the oven temperature to 250 °C and let
the oven operate for 1 hour.
4. When the appliance is cool, clean it with a
soft and moist sponge.
Removing and cleaning the door
glasses - top oven
The door glass in your product can
be different in type and shape from
the examples you see in the image.
The number of glasses can also be
different.
1. Open the door.
2. Hold the door trim on the top edge of the
door at the two sides and push inwards to
release the clip seal.
1
2
1
3. Pull the door trim to the front to remove it.
4. Remove the glass panels.
To install the panels, do the same steps in
reverse.
Removing and cleaning the door
glasses - main oven
The door glass in your product can
be different in type and shape from
the example you see in the image.
The number of glasses can also be
different.
1. Push the door trim at one side to remove it.
1
2
A
2. Pull up the trim.
3. Remove the glass panels.
To replace the glass panels, do the
same steps in reverse. Before you
lower the trim, attach the A trim part
to the door. Refer to the image.
Replacing the lamp
Put a cloth on the bottom of the interior of the
appliance. It prevents damage to the lamp glass
cover and the cavity.
WARNING!
Danger of electrocution! Disconnect
the fuse before you replace the
lamp.
The lamp and the lamp glass cover
can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
The back lamp
The lamp glass cover is at the back
of the cavity.
1. Turn the lamp glass cover counterclockwise
to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with a suitable 300
°C heat-resistant oven lamp.
Use the same oven lamp type.
4. Install the glass cover.
www.zanussi.com 19

Troubleshooting
WARNING!
Refer to Safety chapters.
What to do if...
Problem Possible cause Remedy
You cannot activate the appli-
ance. The appliance is not connected to an electrical supply or it is
connected incorrectly.
Check if the appliance is correct-
ly connected to the electrical
supply.
You cannot activate the appli-
ance. The fuse is released. Make sure that the fuse is the cause of the malfunction. If the
fuse releases again and again,
contact a qualified electrician.
You cannot activate the appli-
ance. The appliance is too hot. Wait for the appliance to cool down.
The burners do not work. There is no gas supply. Check the gas connection.
There is no spark when you try to
activate the spark generator. Burner cap and crown are placed incorrectly. Place the burner cap and crown correctly.
The flame extinguishes immedi-
ately after ignition. Thermocouple is not heated up sufficiently. After lightning the flame, keep the knob pushed for equal or less
than 10 seconds.
The flame ring is uneven. Burner crown is blocked with
food residues. Make sure that the injector is not blocked and the burner crown is
clean.
The flame colour is orange or yel-
low. The flame can look orange or yel- low in some areas of the burner.
This is normal.
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are not
set. Make sure that the settings are correct.
The lamp does not operate. The lamp is defective. Replace the lamp.
It takes too long to cook the
dishes or they cook too quickly. The temperature is too low or too high. Adjust the temperature if neces- sary. Follow the advice in the
user manual.
Steam and condensation settle
on the food and in the cavity of
the oven.
You left the dish in the oven for
too long. Do not leave the dishes in the oven for longer than 15 - 20 mi-
nutes after the cooking process
ends.
20 www.zanussi.com
