Zanussi ZCV664FPB User manual

EN
ZCV664FPB
ZCV664FPW
ZCV664FPX
User Manual
Cooker

Contents
Safety information 2
Safety instructions 4
Product description 6
Before first use 7
Hob - Daily use 8
Hob - Hints and tips 8
Hob - Care and cleaning 9
Oven - Daily use 9
Oven - Clock functions 12
Oven - Hints and tips 12
Oven - Care and cleaning 18
Troubleshooting 20
Installation 21
Energy efficiency 23
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•Only a qualified person must install this appliance and replace
the cable.
2 www.zanussi.com

•Do not operate the appliance by means of an external timer or
separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
•CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
•WARNING: Danger of fire: Do not store items on the cooking
surfaces.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door or the glass of hinged lids of the hob since
they can scratch the surface, which may result in shattering of
the glass.
•Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
•If the glass ceramic surface / glass surface is cracked, switch
off the appliance to avoid the possibility of electric shock.
•WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre or
similarly qualified persons to avoid an electrical hazard.
•Only use the core temperature sensor recommended for this
appliance.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls. Install
the shelf supports in the opposite sequence.
www.zanussi.com 3

•The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The use
of inappropriate guards can cause accidents.
Safety instructions
Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied
with the appliance.
• Always take care when moving the appliance
as it is heavy. Always use safety gloves and
enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with the
same height.
• Do not install the appliance on a platform.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• Make sure to install a stabilizing means in
order to prevent tipping of the appliance.
Refer to Installation chapter.
Electrical Connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or come near
the appliance door, especially when the door
is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door, before you
connect the mains plug to the mains socket.
Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
4 www.zanussi.com

• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not use the appliance as a work surface
or as a storage surface.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or heated
objects away from fats and oils when you
cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a
mixture of alcohol and air.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance or
directly on the bottom of the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches. Always lift these objects up when
you have to move them on the cooking
surface.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
Care and Cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Fat and food remaining in the appliance can
cause fire.
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Make sure the cavity and the door are wiped
dry after each use. Steam produced during
the operation of the appliance condensates
on cavity walls and can cause corrosion. To
decrease the condensation operate the
appliance for 10 minutes before cooking.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use any
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
www.zanussi.com 5

Internal light
• The type of light bulb or halogen lamp used
for this appliance is only for household
appliances. Do not use it for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Product description

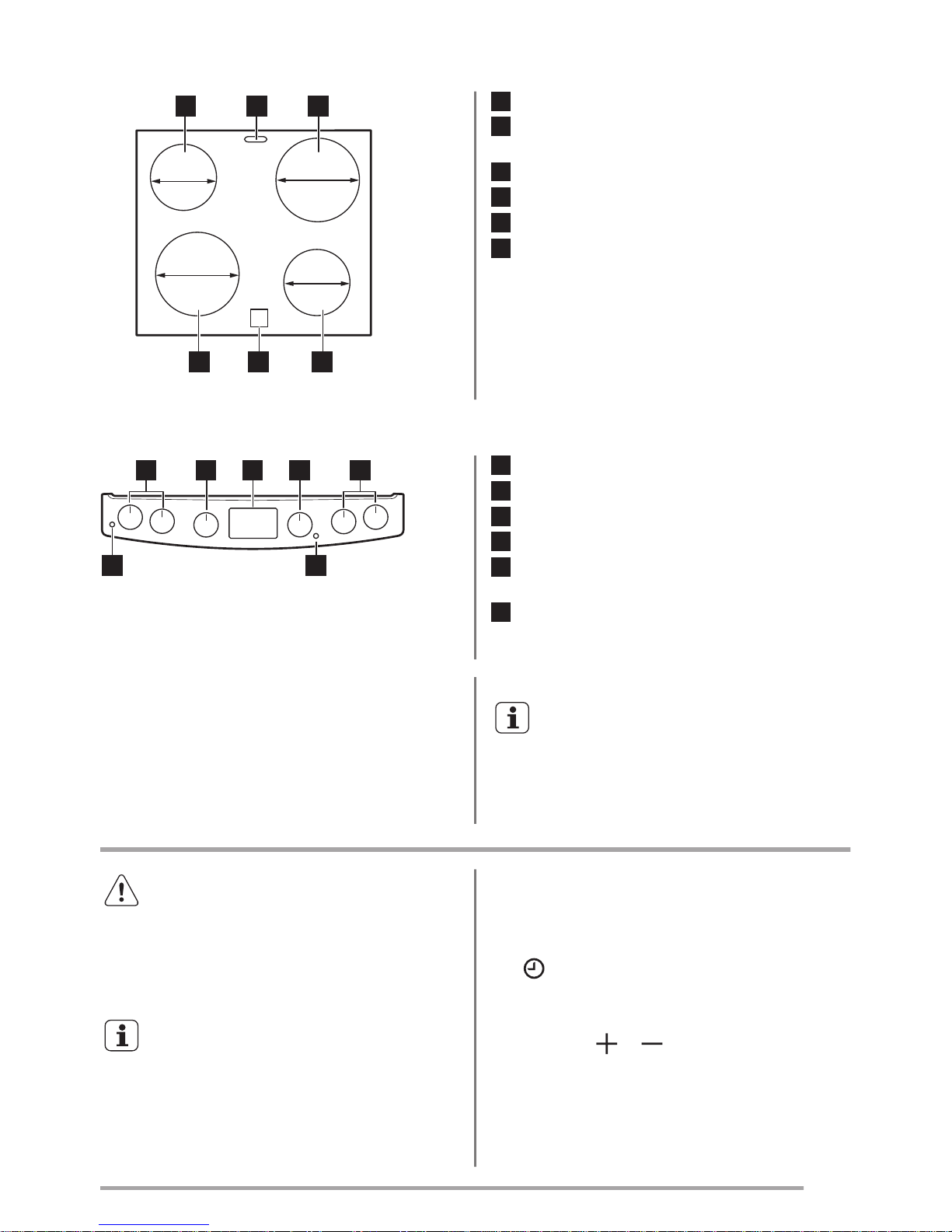

General overview
1
2
3
4
5
5
7
4
6
5
4
3
2
1
83
2
1
1Control panel and hob
2Air vents for the cooling fan
3Heating element
4Lamp
5Shelf support, removable
6Socket for the core temperature sensor
7Fan
8Shelf positions
6 www.zanussi.com

Cooking surface layout
180 mm
145 mm
145 mm
180 mm
13
456
2
1Cooking zone 1200 W
2Steam outlet - number and position depend
on the model
3Cooking zone 1700 W
4Cooking zone 1200 W
5Residual heat indicator
6Cooking zone 1700 W
Cooker control panel
56
1 2 43 1
1Knobs for the hob
2Knob for the top oven functions
3Electronic programmer
4Knob for the main oven functions
5Temperature indicator / symbol for the main
oven
6Temperature indicator / symbol for the top
oven
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Trivet
For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
•Core temperature sensor
To measure how far the food is cooked.
Before first use
WARNING!
Refer to Safety chapters.
Initial Cleaning
Remove all accessories and removable shelf
supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories before
first use.
Put the accessories and the removable shelf
supports back to their initial position.
Setting and changing the time
The flashes when you connect the appliance
to the electrical supply, when there was a
power cut or when the timer is not set.
1. Press the or to set the correct time.
After approximately 5 seconds, the flashing
stops and the display shows the time of the day
you set.
www.zanussi.com 7

2. To change the time of day, press and
at the same time until starts to flash.
When the timer function is active,
you cannot change the current time.
Preheating
Preheat the empty appliance before first use.
Preheat the two ovens. Heat up one
oven at a time.
1. Set the maximum temperature.
2. Let the appliance operate for 1 hour.
3. Set the function .
4. Let the appliance operate for 15 minutes.
Accessories can become hotter than usual. The
appliance can emit an odour and smoke. This is
normal. Make sure that the airflow is sufficient.
Hob - Daily use
WARNING!
Refer to Safety chapters.
Heat setting
Symbols Function
Off position
1 - 6 Heat settings
Use the residual heat to decrease
energy consumption. Deactivate the
cooking zone approximately 5 - 10
minutes before the cooking process
is completed.
Turn the knob to a necessary heat setting.
To complete the cooking process, turn the knob
to the off position.
Residual heat indicator
WARNING!
There is a risk of burns from residual
heat.
The indicator comes on when a cooking zone is
hot.
Hob - Hints and tips
WARNING!
Refer to Safety chapters.
Cookware
The bottom of the cookware must be
as thick and flat as possible.
Cookware made of enamelled steel
and with aluminium or copper
bottoms can cause the colour
change on the glass-ceramic
surface.
Examples of cooking applications
Heat
set-
ting:
Application:
1 Keeping warm
2 Gentle simmering
3 Simmering
4 Frying / browning
5 Bringing to the boil
6 Bringing to the boil / quick frying /
deep-frying
8 www.zanussi.com

Hob - Care and cleaning
WARNING!
Refer to Safety chapters.
General information
• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have
no effect on how the hob operates.
• Use a special cleaner applicable for the
surface of the hob.
• Use a special scraper for the glass.
Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, sugar and food with sugar. If not,
the dirt can cause damage to the hob. Take
care to avoid burns. Put the special scraper
on the glass surface at an acute angle and
move the blade on the surface.
•Remove when the hob is sufficiently
cool: limescale rings, water rings, fat stains,
shiny metallic discoloration. Clean the hob
with a moist cloth and non-abrasive
detergent. After cleaning, wipe the hob dry
with a soft cloth.
•Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a moist cloth.
Oven - Daily use
WARNING!
Refer to Safety chapters.
Top oven functions
Symbol Oven function Application
Off position The appliance is off.
Oven Lamp To activate the lamp without a cooking function.
100 - 250 Conventional Cooking To bake and roast food on one shelf position.
Dual Circuit Grill To grill food items in medium quantities in the middle of the
shelf. To make toasts.
Full Grill To grill flat food and to toast bread.
Main oven functions
Symbol Oven function Application
Off position The appliance is off.
www.zanussi.com 9

Symbol Oven function Application
Oven Lamp To activate the lamp without a cooking function.
Defrost This function can be used for defrosting frozen foods, such
as vegetables and fruits. The defrosting time depends on the
amount and size of the frozen food.
100 - 250 Thermaflow® To bake on up to two shelf positions at the same time and to
dry food. Set the temperature 20 - 40 °C lower than for
Conventional Cooking.
Activating and deactivating the top /
main oven
It depends on the model if your
appliance has knob symbols,
indicators or lamps:
• The indicator comes on when the
oven heats up.
• The lamp comes on when the
oven operates.
• The symbol shows whether the
knob controls one of the cooking
zones, the oven functions or the
temperature.
1. Turn the knob for the top / main oven
functions to select an oven function.
2. To deactivate the oven turn the knob for the
top / main oven functions to the off position.
Cooling fan
When the appliance operates, the cooling fan
activates automatically to keep the surfaces of
the appliance cool. If you deactivate the
appliance, the cooling fan can continue to
operate until the appliance cools down.
Using the core temperature sensor
The core temperature sensor measures the core
temperature of the meat.
There are two temperatures to be set:
• The oven temperature. Refer to the table for
roasting.
• The core temperature. Refer to the table for
the core temperature sensor.
CAUTION!
Only use the core temperature
sensor supplied with the appliance,
or genuine replacement parts.
1. Put the point of the core temperature
sensor into the centre of the meat.
2. Put the plug of the core temperature sensor
into the socket on the side of the appliance.
The indicator for the core temperature
sensor flashes.
3. Press the button or to set the core
temperature.
You can set the temperature from 30 °C to
99 °C. Refer to values in the table.
4. Set the oven function and the oven
temperature.
5. Press a button to stop the signal.
An acoustic signal sounds for two minutes,
when the meat is at the set core
temperature.
10 www.zanussi.com

6. Deactivate the appliance.
7. Remove the plug of the core temperature
sensor from the socket. Remove the meat
from the appliance.
If the meat is not cooked to your satisfaction, do
the above steps again and set a higher core
temperature.
You can change the temperature at any time
during the cooking. Press the button or
and then again to change the set core
temperature.
WARNING!
Be careful when you remove the tip
and plug of the core temperature
sensor. The core temperature sensor
is hot. There is a risk of burns.

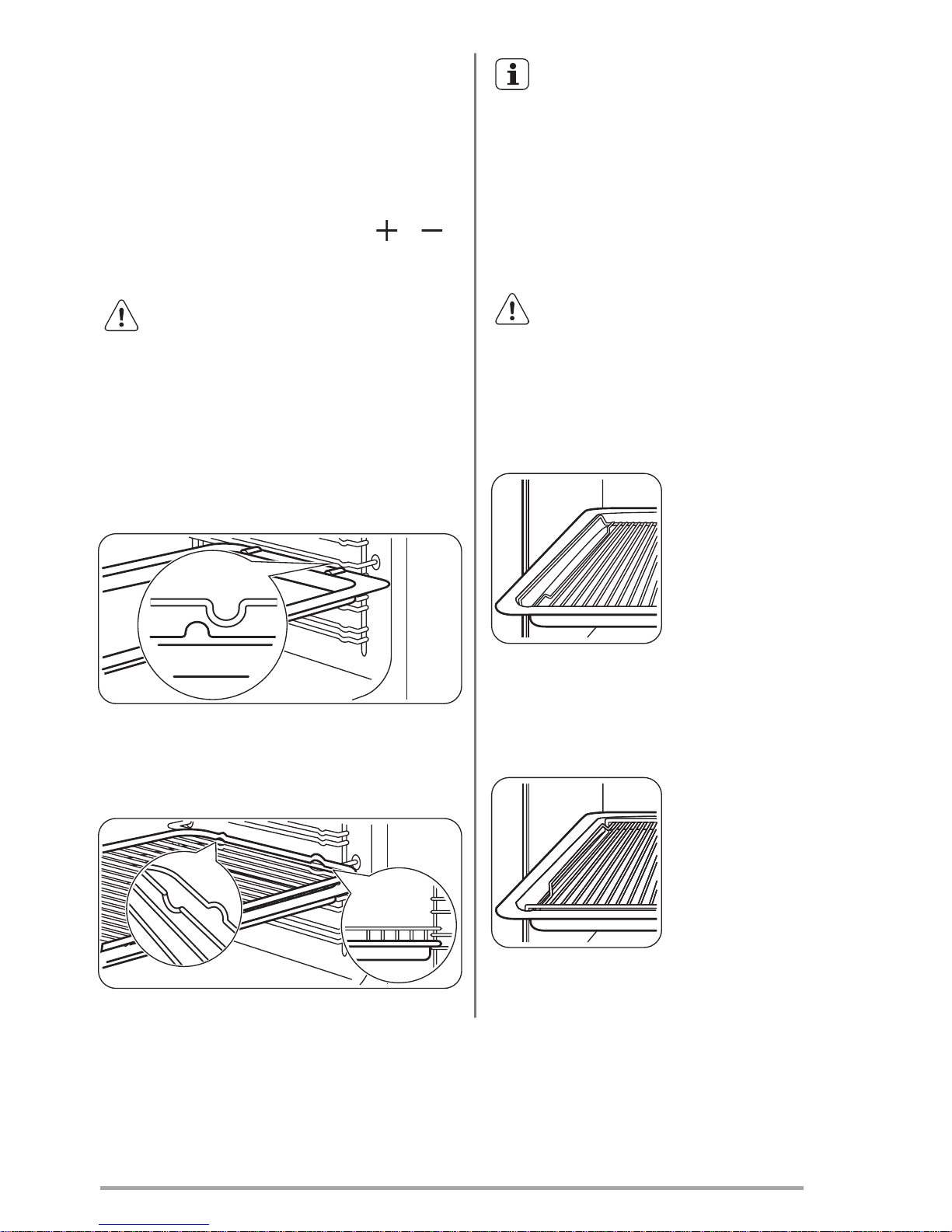

Inserting the oven accessories
Deep pan:
Push the deep pan between the guide bars of
the shelf support.
Wire shelf and the deep pan together:
Push the deep pan between the guide bars of
the shelf support and the wire shelf on the
guide bars above.
• All accessories have small
indentations at the top of the
right and left side to increase
safety. The indentations are also
anti-tip devices.
• The high rim around the shelf is a
device which prevents cookware
from slipping.
Trivet and Grill- / Roasting pan
WARNING!
Be careful when you remove the
accessories from a hot appliance.
There is a risk of burns.
You can use the trivet to roast larger pieces of
meat or poultry on one shelf position.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point up.
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in large
quantities and to toast.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point down.
2. Put the deep pan into the oven on the
necessary shelf position.
www.zanussi.com 11

Oven - Clock functions
Display
A B C D
A. Minute minder indicator
B. Time display
C. Time of day indicator
D. Core temperature sensor indicator
Buttons
Button Function Description
MINUS To set the time.
PLUS To set the time.
Setting the Minute Minder
Press or again and again to set the
necessary time.
The Minute Minder starts automatically after 5
seconds.
When the set time is completed, an acoustic
signal sounds. Press any button to stop the
signal.
To cancel the Minute Minder function press
or then press and hold until the clock
function goes out and acoustic signal sounds.
Oven - Hints and tips
WARNING!
Refer to Safety chapters.
The temperature and baking times in
the tables are guidelines only. They
depend on the recipes and the
quality and quantity of the
ingredients used.
Always preheat an empty oven at the
temperature required for the food for
20 minutes before you start cooking.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf positions. Use it to cook smaller
quantities of food. It gives especially good
results when used to cook fruitcakes, sweets
and savoury flants or quiche.
Main oven
The main oven is particularly suitable for
cooking larger quantities of food.
Baking
• Your oven may bake or roast differently to
the appliance you had before. Adapt your
usual settings (temperature, cooking times)
and shelf positions to the values in the
tables.
• The manufacturer recommends that you use
the lower temperature the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• You can extend baking times by 10 – 15
minutes if you bake cakes on more than one
shelf position.
• Cakes and pastries at different heights do
not always brown equally at first. If this
12 www.zanussi.com

occurs, do not change the temperature
setting. The differences equalize during the
baking procedure.
• With longer baking times, you can deactivate
the oven approximately 10 minutes before
the end of the baking time and then use the
residual heat.
When you cook frozen food, the trays in the
oven can twist during baking. When the trays
become cold again, the distortions are gone.
Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
browned sufficiently. The shelf position is incorrect. Put the cake on a lower shelf.
The cake sinks and becomes
soggy, lumpy or streaky. The oven temperature is too high. The next time you bake, set a slightly lower oven temperature.
The cake sinks and becomes
soggy, lumpy or streaky. The baking time is too short. Set a longer baking time. You cannot decrease baking
times by setting higher tem-
peratures.
The cake sinks and becomes
soggy, lumpy or streaky. There is too much liquid in the mixture. Use less liquid. Be careful with mixing times, especially if you use
a mixing machine.
The cake is too dry. The oven temperature is too low. The next time you bake, set a
higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set a
shorter baking time.
The cake browns unevenly. The oven temperature is too high
and the baking time is too short. Set a lower oven temperature and a longer baking time.
The cake browns unevenly. The mixture is unevenly distrib-
uted. Spread the mixture evenly on the baking tray.
The cake is not ready in the bak-
ing time given. The oven temperature is too low. The next time you bake, set a slightly higher oven temperature.
Conventional Baking - Top Oven
Food Temperature (°C) Time (min) Shelf posi-
tion
Biscuits 170 - 190 10 - 20 2
Bread 200 - 220 30 - 35 2
Bread rolls / buns 200 - 220 10 - 15 2
Cakes: Small & Queen 160 - 180 18 - 25 2
Cakes: Sponges 160 - 175 20 - 30 2
www.zanussi.com 13

Food Temperature (°C) Time (min) Shelf posi-
tion
Cakes: Victoria Sandwich 160 - 170 18 - 25 2
Cakes: Madeira 140 - 150 75 - 90 2
Cakes: Rich Fruit 140 - 150 120 - 150 2
Cakes: Gingerbread 140 - 150 80 - 90 2
Cakes: Meringues 90 - 100 150 - 180 2
Cakes: Flapjack 160 - 170 25 - 30 2
Cakes: Shortbread 130 - 150 45 - 60 2
Cakes: Apple Pie 170 - 180 50 - 60 2
Casseroles: Beef / Lamb 160 - 170 150 - 180 2
Casseroles: Chicken 160 - 180 80 - 90 2
Convenience Foods Follow manufacturer`s instructions. 2
Fish 170 - 190 20 - 30 2
Fish Pie (Potato Topped) 190 - 200 20 - 30 2
Fruit Pies, Crumbles 190 - 200 30 - 50 2
Milk Puddings 150 - 170 90 - 120 2
Pasta Lasagne etc. 170 - 180 40 - 50 2
Pastry: Choux 180 - 190 30 - 40 2
Pastry: Eclairs, Profiteroles 180 - 190 30 - 40 2
Pastry: Flaky / Puff Pies 210 - 220 30 - 40 2
Shortcrusts: Mince Pies 190 - 200 15 - 20 2
Shortcrusts: Meat Pies 190 - 210 25 - 35 2
Shortcrusts: Quiche, Tarts, Flans 180 - 200 25 - 50 2
Scones 220 - 230 8 - 12 3
Shepard`s Pie 190 - 200 30 - 40 2
Souffles 170 - 180 20 - 30 2
Vegetables: Baked Jacket Potatos 180 - 190 60 - 90 2
Vegetables: Roast Potatos 180 - 190 60 - 90 2
Yorkshire Pudding Large 220 - 210 25 - 40 2
Yorkshire Pudding Individual 210 - 220 15 - 25 2
Roasting Meat, Poultry Refer to the Roasting table. 2
14 www.zanussi.com

Thermaflow® Baking - Main Oven
Shelf positions are not critical but
ensure that the oven accessories are
evenly spaced when more than one
is used.
Food Temperature (°C) Time (min) Shelf posi-
tion
Biscuits 180 - 190 10 - 20 1 – 3
Bread 190 - 210 30 - 35 2
Cakes: Small & Queen 150 - 170 18 - 25 1 – 3
Cakes: Sponges 160 - 170 20 - 25 3
Cakes: Madeira 140 - 160 60 - 80 3
Cakes: Rich Fruit 130 - 140 120 - 150 3
Cakes: Christmas 130 - 140 180 - 270 3
Cakes: Apple Pie 160 - 170 50 - 60 3
- Shortbread 130 - 150 45 - 60 1 – 3
Fish 160 - 180 30 - 40 3
Fruit Pies, Crumbles 170 - 180 30 - 50 3
Milk Puddings 140 - 160 60 - 90 3
Pastry: Choux 180 - 190 30 - 40 3
Pastry: Shortcrust 180 - 190 25 - 35 3
Pastry: Flaky 180 - 190 30 - 40 3
Pastry: Puff Follow manufacturer`s instructions. Reduce
the temperature for Fan oven by 20 °C. 3
Plate Tarts 180 - 190 25 - 45 3
Quiches / Flans 170 - 180 25 - 45 3
Scones 210 - 230 8 - 12 1 – 3
Roasting: Meat, Poultry 160 - 180 Refer to the Roasting
table. 2
Roasting
• Use heat-resistant ovenware to roast (refer
to the instructions of the manufacturer).
• You can roast large roasting joints directly in
the deep pan (if present) or on the wire shelf
above the deep pan.
• Roast lean meats in the roasting tin with the
lid. This keeps the meat more succulent.
• All types of meat that can be browned or
have crackling can be roasted in the roasting
tin without the lid.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid into
the deep pan.
• If necessary, turn the roast (after 1/2 - 2/3 of
the cooking time).
www.zanussi.com 15

• Baste large roasts and poultry with their
juices several times during roasting. This
gives better roasting results.
• You can deactivate the appliance
approximately 10 minutes before the end of
the roasting time, and use the residual heat.
Thermaflow® - Main Oven
Roasting
Food Temperature (°C) Time (min)
Beef / Beef boned 170 - 190 20 - 35 minutes per 0.5 kg (1 lb) and 20 - 30 minutes
over
Mutton / Lamb 170 - 190 20 - 35 minutes per 0.5 kg (1 lb) and 25 - 35 minutes
over
Pork / Veal / Ham 170 - 190 30 - 40 minutes per 0.5 kg (1 lb) and 30 - 40 minutes
over
Chicken 180 - 200 20 - 25 minutes per 0.5 kg (1 lb) and 20 minutes over
Turkey / Goose 170 - 190 15 - 20 minutes per 0.5 kg (1 lb) up to 3.5 kg (7 lb)
then 10 minutes per 0.5 kg (1 lb) over 3.5 kg (7 lb)
Duck 180 - 200 25 - 35 minutes per 0.5 kg (1 lb) and 25 - 30 minutes
over
Pheasant 170 - 190 35 - 40 minutes per 0.5 kg (1 lb) and 35 - 40 minutes
over
Rabbit 170 - 190 20 minutes per 0.5 kg (1 lb) and 20 minutes over
Core temperature sensor table
Beef
Food Food core temperature (°C) Shelf position
Roast beef 55 - 65 2 - 3
Rump steak - browning 55 - 65 2 - 3
Rump steak - roasting 55 - 65 2 - 3
Roast beef 75 - 80 1 - 2
Veal
Food Food core temperature
(°C) Shelf position
Fillet of beef 65 2 - 3
Lamb
Food Food core temperature
(°C) Shelf position
Leg / shoulder / saddle 90 2
16 www.zanussi.com

Pork
Food Food core temperature
(°C) Shelf position
Roast pork 80 2 - 3
Neck fillets 75 - 80 2 - 3
Ham 70 - 75 1 - 2
Poultry
Food Food core temperature
(°C) Shelf position
Turkey breast 75 - 80 2 - 3
Grilling in general
WARNING!
Always grill with the oven door
closed.
•Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• Always set the deep pan to collect the fat
into the first shelf position.
• Grill only flat pieces of meat or fish.
The grilling area is set in centre of the shelf.
Dual Grill - Top Oven
Food Time (min) Shelf position
Bacon Rashers 5 - 6 3
Beefburgers 10 - 20 3
Chicken Joints 20 - 40 2
Chops - Lamb 15 - 25 2 - 3
Chops - Pork 20 - 25 2 - 3
Fish - Whole / Trout / Makarel 10 - 12 2
Fillets - Plaice / Cod 4 - 6 2
Kebabs 12 - 18 2 - 3
Kidneys - Lamb / Pig 6 - 10 2 - 3
Sausages 20 - 30 3
Steaks: Rare 4 - 6 3
www.zanussi.com 17

Food Time (min) Shelf position
Steaks: Medium 6 - 8 3
Steaks: Well Done 12 - 15 3
Toasted Sandwiches 3 - 4 3
Defrost
• Remove the food packaging. Put the food on
a plate.
• Do not cover it with a bowl or a plate. This
can extend the defrost time.
• Use the first shelf position. The one on the
bottom.
Oven - Care and cleaning
WARNING!
Refer to Safety chapters.
Notes on cleaning
• Clean the front of the appliance with a soft
cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a dedicated
cleaning agent.
• Clean the appliance interior after each use.
Fat accumulation or other food remains may
result in a fire. The risk is higher for the grill
pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and let
them dry. Use a soft cloth with warm water
and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents, sharp-
edged objects or a dishwasher. It can cause
damage to the nonstick coating.
Stainless steel or aluminium appliances
Clean the oven door with a damp
cloth or sponge only. Dry it with a
soft cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean the
oven control panel with the same
precautions.
Catalytic cleaning
CAUTION!
Do not clean the catalytic surface
with oven sprays, abrasive cleaning
agents, soap or other cleaning
agents. This will damage the
catalytic surface.
Spots or discolouration of the
catalytic surface have no effect on
catalytic properties.
WARNING!
Keep children away when you clean
the oven at a high temperature. The
oven surface becomes very hot and
there is a risk of burns.
CAUTION!
Always turn the oven light on while
using the catalytic cleaning (if
applicable).
Before activating the catalytic
cleaning remove all the accessories
from the oven.
The walls with a catalytic coating are self-
cleaning. They absorb fat which collects on the
walls while the appliance operates.
To support the self-cleaning procedure, heat
the empty oven on a regular basis.
1. Clean the oven floor with warm water and
washing up liquid, then dry it.
2. Set the oven temperature to 250 °C and let
the oven operate for 1 hour.
18 www.zanussi.com

3. When the appliance is cool, clean it with a
soft and moist sponge.
Removing the shelf supports
To clean the oven, remove the shelf supports.
1. Pull the front of the shelf support away from
the side wall.
2. Pull the rear end of the shelf support away
from the side wall and remove it.
2
1
Install the shelf supports in the opposite
sequence.
CAUTION!
Make sure that the longer fixing wire
is in the front. The ends of the two
wires must point to the rear.
Incorrect installation can cause
damage to the enamel.
Removing and cleaning the door
glasses - top oven
The door glass in your product can
be different in type and shape from
the examples you see in the image.
The number of glasses can also be
different.
1. Open the door.
2. Hold the door trim on the top edge of the
door at the two sides and push inwards to
release the clip seal.
1
2
1
3. Pull the door trim to the front to remove it.
4. Remove the glass panels.
To install the panels, do the same steps in
reverse.
Removing and cleaning the door
glasses - main oven
The door glass in your product can
be different in type and shape from
the example you see in the image.
The number of glasses can also be
different.
1. Push the door trim at one side to remove it.
www.zanussi.com 19

1
2
A
2. Pull up the trim.
3. Remove the glass panels.
To replace the glass panels, do the
same steps in reverse. Before you
lower the trim, attach the A trim part
to the door. Refer to the image.
Replacing the lamp
Put a cloth on the bottom of the interior of the
appliance. It prevents damage to the lamp glass
cover and the cavity.
WARNING!
Danger of electrocution! Disconnect
the fuse before you replace the
lamp.
The lamp and the lamp glass cover
can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
The back lamp
The lamp glass cover is at the back
of the cavity.
1. Turn the lamp glass cover counterclockwise
to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with a suitable 300
°C heat-resistant oven lamp.
Use the same oven lamp type.
4. Install the glass cover.
Troubleshooting
WARNING!
Refer to Safety chapters.
What to do if...
Problem Possible cause Remedy
You cannot activate the appli-
ance. The appliance is not connected to an electrical supply or it is
connected incorrectly.
Check if the appliance is correct-
ly connected to the electrical
supply.
You cannot activate the appli-
ance. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the
fuse is blown again and again,
contact a qualified electrician.
Residual heat indicator does not
come on. The zone is not hot because it operated only for a short time. If the zone operated sufficiently long to be hot, speak to an Au-
thorised Service Centre.
20 www.zanussi.com
