Zanussi TCS 683 LT User manual

TUMBLE DRYER
SUŠILNI STROJ
BUBNOVÁ SUŠIČKA
SUSZARKA DO BIELIZNY
TCS 683 LT
kg 2
kg 1
650
45'- 55'
25'- 35'
kg 5
kg 2,5
800/ 900
85' -105'
45'- 60'
1000/ 1200
75' - 100'
40' - 55'
800/ 900
110'- 130'
60' - 75'
1000/ 1200
100'- 125'
55' - 70'
AUTOREVERSE
INSTRUCTION BOOKLET
NAVODILA ZA UPORABO
NÁVOD K OBSLUZE
INSTRUKCJA OBSŁUGI
125995110

YOUR NEW TUMBLE DRYER
2
With your new tumble dryer you will have soft dry
laundry with any weather conditions.
It is fitted with a condensing device that
condenses the moist air drawn from the laundry
which is then collected in a water container. The
water container can be discharged directly by
means of a suitable drain hose.
The appliance has been developed meeting all
top quality requirements in order to guarantee its
long life.
Low energy consumption and short drying time
make the operation of your tumble dryer
extremely economical.
Ecological hints
In order to obtain energy savings, it is advisable
to follow these instructions:
■Whenever possible, dry the maximum load for
the selected programme, as described in the
programme tables. Small loads are
uneconomical.
■The laundry should be well spun before being
loaded into the dryer. The higher the spin
speed, the shorter the drying time and
therefore the lower the energy consumption.
■Avoid overdrying the laundry by selecting the
suitable time according to the degree of
dryness required. Overdried laundry is not
easily ironed.
■To take advantage of the maximum load
capacity, laundry that has to be store dried
can be dried with laundry that has to be iron
Environment protection
■Packaging recycling
Materials marked with the symbol are
recyclable. To enable them to be recycled, they
must be placed in the appropriate collection
areas (or containers). Check with your local
Council or Environmental Health Office.
>PE<= polyethylene
>PS<= polystyrene
>PP<= polypropylene
■Tumble dryer scrapping
When the appliance is to be scrapped, cut off
the power supply cable and make the door
closing device unusable to prevent young
children from being trapped inside.
Use authorised disposal sites for your old
appliance.
i
The symbols you will see on some paragraphs of this booklet have the following meaning:
Important information concerning the
safety in the use of your machine.
Disregarding this information might
lead to damages.
Information for correct use of your
machine and to obtain the best
performance.
Important information concerning
environment protection.
Our contribution to the protection of the
environment: we use recycled paper.
dried. Select the iron dry programme; when
this is over, remove the laundry to be ironed
and dry the remaining items.
■If the filter and the condenser are regularly
cleaned, short drying time and low energy
consumption are guaranteed.
■The room should be well ventilated. The
room temperature must not exceed +35°C
during drying.
i

CONTENTS
3
Warnings................................................Page 4
Description of the appliance........Page 5
Technical specifications ................Page 5
Installation.............................................Page 6
■Positioning.................................................Page 6
■Electrical connection .................................Page 6
■Stacking kit................................................Page 6
■Connecting a drain hose ...........................Page 6
Use.............................................................Page 7
■Control panel.............................................Page 7
■Drying Times.............................................Page 8
■Useful hints ...............................................Page 9
■Drying sequence .......................................Page 10
Maintenance.........................................Page 11
■External cleaning.......................................Page 11
■Cleaning the filter ......................................Page 11
■Cleaning condenser .................................Page 11
■Emptying water container..........................Page 12
Something not working..................Page 13
ENGLISH

4
WARNINGS
Installation
■Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
■Make sure that the appliance does not stand
on its electrical supply cable.
■If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
Use
■Always unplug the appliance after use.
■Clothes which are dripping wet should not be
placed in the dryer.
Always load well spun laundry. The higher the
spin speed, the lower the electricity
consumption and the shorter the drying times.
■Never tumble dry items that have been in
contact with chemicals such as dry cleaning
fluid. These are of a volatile nature and could
cause an explosion.
■As some bulky items such as duvets and
eiderdowns should be dried in large
commercial machines because of their bulk,
check with the manufacturer of the item if it is
suitable for drying in a domestic machine,
even if the dry weight of the item is within the
limit advised.
■Always check that no cigarette lighters have
been left in pockets.
■Leave the door slightly ajar when not in use to
preserve the door seal.
■The fluff filter must be cleaned after every
use.
■Do not operate the appliance with a damaged
filter or without filter as this may cause a fire.
■Do not overload the appliance.
■Do not allow fluff to accumulate around the
dryer.
■Do not dry canvas shoes or sports shoes, as
they could get stuck between the door and
the drum, thus blocking the latter.
Service/Repair
■Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning. Refer
to your local Zanussi Service Centre. Always
insist on genuine Zanussi spare parts.
General safety
■It is dangerous to modify or try to modify the
specifications of this appliance in any way.
■This appliance is designed to be used by
adults. Children should not be allowed to
touch the controls or play with the product.
■Pets and small children may climb into tumble
dryers. Check your appliance each time
before use.
Please read this instruction booklet carefully before using this appliance and pay particular attention
to these warnings.
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is supplied with the appliance in order that the
new owner can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.

5
ENGLISH
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 60 cm
ELECTRICAL CONNECTION Voltage/Frequency 220-230 V/50 Hz
Max. power absorbed 2200 W (10A)
DRYING CAPACITY Cotton, linen 5 kg
Synthetics 2 kg
ENERGY CONSUMPTION: Cotton, linen 3.8 kWh (5 kg store dry)
Cotton, linen 3.0 kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
DESCRIPTION OF THE APPLIANCE
01 Top cover
02 Programme chart
03 Door opening button
04 Low temperature button
05 Start button
06 “Water container full” light
07 Drying time selector dial
08 Mains-on light
09 Fluff filter
10 Lock
11 Rating plate
12 Ventilation grid
13 Water container
14 Condenser
15 Adjustable feet
11 14
15
1345
10
12
68
7
2
9
AUTOREVERSE
kg 2
kg 1
650
45'- 55'
25'- 35'
kg 5
kg 2,5
800/ 900
85' -105'
45'- 60'
1000/ 1200
75' - 100'
40' - 55'
800/ 900
110'- 130'
60' - 75'
1000/ 1200
100'- 125'
55' - 70'
13

Positioning
The tumble dryer can be positioned on any firm
level surface. Check that it is absolutely level
with the aid of a spirit level. If it is not, raise or
lower the feet until it is.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation
grille or the air intake grilles at the back of the
machine.
The feet must never be removed.
Do not restrict the floor clearance through
deep-pile carpets, strips of wood or similar.
This might cause heat build-up which would
interfere with the operation of the appliance.
Important
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may
affect the performance of the appliance.
The tumble dryer must be installed in a clean
place, where dirt does not build up.
Electrical connection
This machine is designed to operate on a 220-
230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (2.2 kW),
also taking into account any other appliances in
use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
6
INSTALLATION

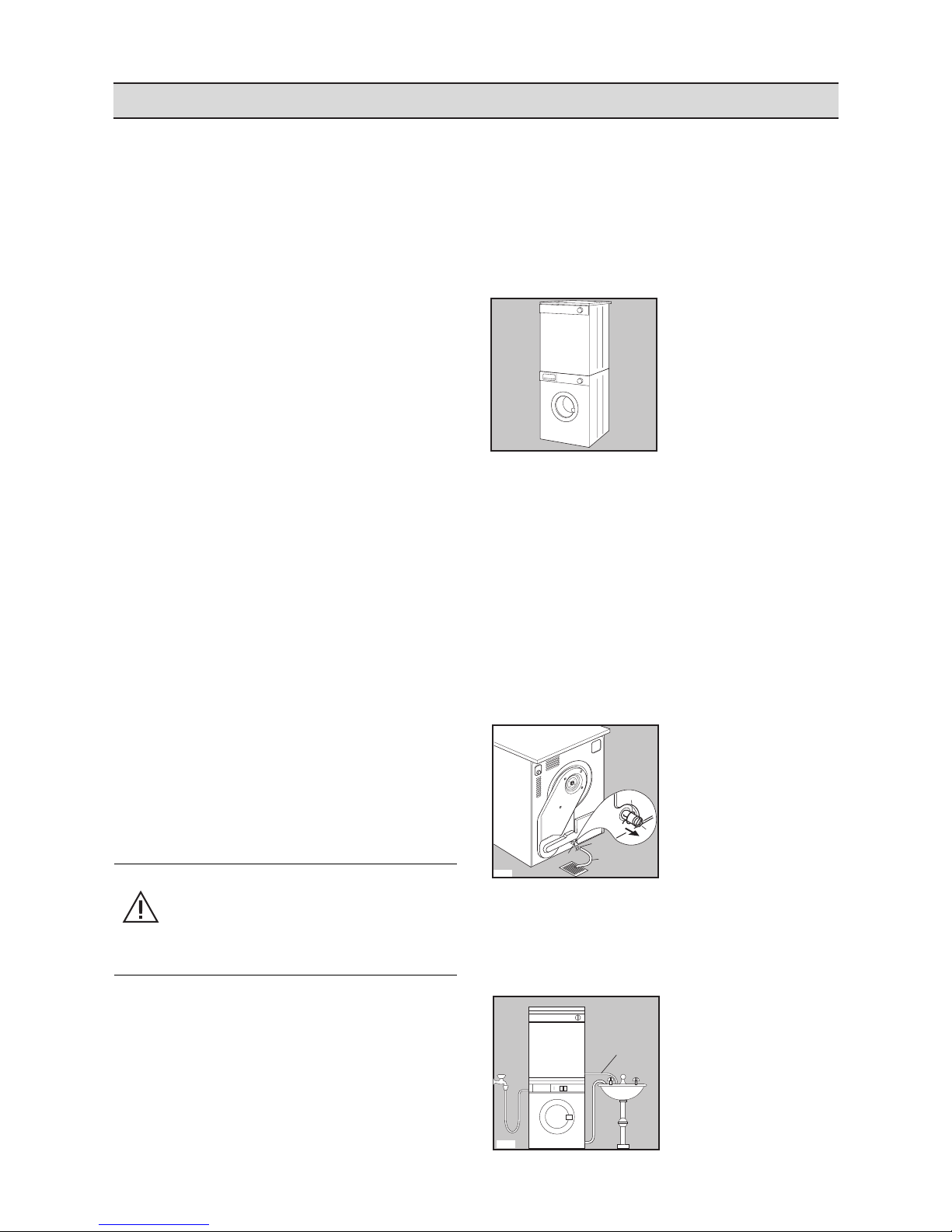

Stacking kit
It is possible to mount the dryer on top of all
washing machines having a worktop 60 cm wide
and a front loading. To this purpose, the special
stacking kit is available through your dealer.
Complete installation instructions are enclosed
with the kit.
Connecting a drain hose
If there is a sink or drain near the appliance, the
condensed water can be discharged directly
through a hose that is available on the market.
In order to connect the hose to the appliance
proceed as follows:
■Remove the clamp (A)
■Pull out the plug (B)
■Insert the drain hose (C)
■Fasten the hose (C) to the appliance using the
clamp (A).
If the appliance is stacked on the washing
machine, the condensed water can be
discharged through the hose as shown in figure,
but take into account that the hose must be
pointed downwards.
P1044
P1043
A
B
A
BC
P1046
C

7
ENGLISH
USE
1 Programme Chart
The programme chart provides a summary of all
the programmes available and the corresponding
drying times.
2 Door opening and programme
interruption button
To open door, press this button: the programme
in progress is interrupted.

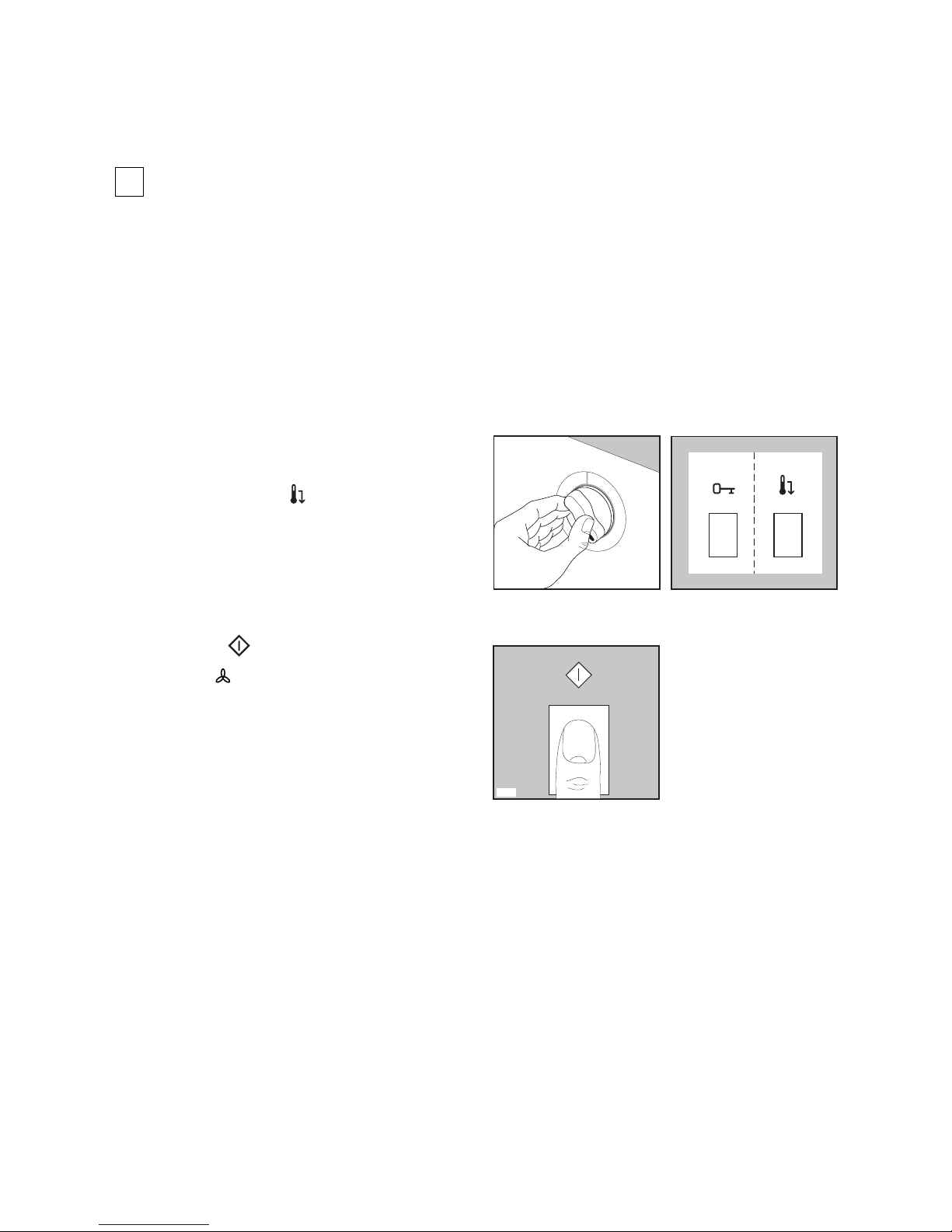

3 Low Temperature button
Press this button to reduce the temperature when
drying particularly delicate cotton or linen items.
4 Start button
After selecting the drying time, press start button:
the appliance will start drying.
If the door is opened during drying, the
programme is interrupted. It will be resumed
by pressing the button again.
5 “Water container full” light
This light lights up when the water container is
full or when it has been inserted incorrectly.
6 Drying Time Selector Dial
The selector dial incorporates two drying cycles,
one of up to 150 minutes at a high temperature
for cotton and linen, and one of up to 100
minutes at a low temperature for synthetic
fabrics.
To set the machine to the selected time, turn the
dial clockwise until the time you want coincides
exactly with the pointer.
NEVER attempt to turn the dial in an
anticlockwise direction.
The drying time depends on:
- the speed of the last spin
- the desired degree of drying
- the type of laundry
- the size of the load.
Cooling phase
When selecting the drying time, it should be
remembered that it includes a 10 minute cooling
phase. The heating is automatically cut off and
the laundry is cooled.
The position on the dial can be selected to
refresh jumpers, clothes, etc.
7 Mains-On Light
This lights up when the machine starts operating
and goes out at the end of the programme or by
opening the door.
Control panel
kg 2
kg 1
650
45' - 55'
25' - 35'
kg 5
kg 2,5
800 / 900
85' -105'
45' - 60'
1000 / 1200
75' - 100'
40' - 55'
800 / 900
110' - 130'
60' - 75'
1000 / 1200
100' - 125'
55' - 70'
AUTOREVERSE
1234567

8
Synthetics
Selector dial: up to 100 minutes
Degree of drying required Degree of spin given
rpm Quantity kg Drying times mins
650 2 45-55
1 25-35
1 20-30
Store dry
The laundry must be suitably spun in your washing machine before being placed in the tumble dryer
(800 rpm minimum). If the washing machine spins at a lower speed than 800 rpm, it is advisable to
buy a spin-dryer.
Drying times are given as a guide only and vary according to the size of the load, the type of laundry,
the degree of spinning prior to drying.
Start by selecting a short drying time. If necessary, perform an additional drying cycle afterwards.
Experience will soon enable you to estimate the drying time needed for your usual laundry loads. It is
advisable to take note of them.
Size of load
It is not necessary to weigh the laundry, if these instructions are followed:
■Cottons, linen: full drum, but not overloaded.
■Synthetics: half drum.
■Particularly delicate fabrics: do not fill the drum more than 1/3.
For a mixed load (cotton and synthetics, for example) select the drying time suitable for the most
delicate fabrics and then increase it by approx 10 mins.
Drying Times
Cotton and Linen
Selector dial: up to 150 minutes
Degree of drying required Degree of spin given
rpm Quantity kg Drying times mins
Store dry
Iron dry
800/900
1000/1200
5 110 - 130
2.5 60 - 75
5 100 - 125
2.5 55 - 70
800/900
1000/1200
5 85 - 105
2.5 45 - 60
5 75 - 100
2.5 40 - 55
Iron dry 650 2 30-40

9
ENGLISH
Useful hints
■Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet 700 - 1000 g
Tablecloth 400 - 500 g
Kitchen towel 70 - 120 g
Table napkin 50 - 100 g
Towelling hand towel 150 - 250 g
Bathrobe 1000 - 1500 g
Man’s shirt 200 - 300 g
Pillowcase 100 - 200 g
Man’s pyjamas 400 - 500 g
Ladies’ nightdress 200 - 250 g
■Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon
tights, bulky materials such as anoraks,
blankets, eiderdowns, sleeping bags, feather
quilts and any items containing rubber foam or
materials similar to rubber foam.
■Always follow the instructions on garment
labels.
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
■Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled
inside them. Close press studs, zips and hooks
and tie belts and apron strings.
■Sort laundry according to type and degree of
drying required.
■Do not over-dry laundry, this avoids creasing
and saves energy.
■Avoid drying dark clothes with light coloured
fluffy items such as towels as they could attract
the fluff.
■The laundry must be thoroughly spun before
tumble drying.
■Easy-care items, too, e.g. shirts, should be
briefly pre-spun before drying (depending on
crease resistance approx. 30 seconds or using
the special brief spin programme of your
washing machine).
■Knitted textiles (knitted underwear) may shrink
a little during drying. Please do not overdry
items of this type. It is advisable to allow for
shrinkage when choosing the size of new
purchases.
■You can also put starched items into your
dryer. However, to achieve the desired
starched effect, choose the programme “iron
dry”. To remove any starch residues, wipe out
the internal drum after drying with a moist cloth
and then rub it dry.
■To avoid a static charge when drying is
completed, use either a fabric softener when
you are washing the laundry or a fabric
conditioner specifically for tumble dryers.
■Remove the laundry when the dryer has
finished drying.
■If individual items are still damp after drying,
set a brief post-drying time, but at least 20
minutes. This will be necessary particularly for
multilayered items (e.g. collars, pockets, etc.).
i

10
Drying sequence
Before starting up for the first time it is advisable
lo load a few moist cloths into the dryer and to let
it run for about 20 minutes. This ensures that no
dust and dirt is left in the drum.
Operation
1. Connect the appliance.
2. Load the laundry.
3. Close the door.
4. Select the desired drying time (in high or low
temperature section, depending on the
laundry).
5. In case, press button .
6. Press button : the programme starts.
If the position on the dial is reached, the
heating is automatically cut off and the laundry is
cooled.
After around 10 minutes, the programme is over.
Important: It is not advisable to open the door
during operation to check the degree of dryness.
As the laundry is warm, when touched it gives
the impression of still being damp, even if it is
dry. Open the door after the programme has
finished.
If the programme has to be interrupted, it is
advisable to perform the cooling phase to
prevent the heat from building up inside the
machine.
After drying
■Switch off the appliance.
■Clean the filter and empty water container
(see pages 11 and 12).
i
P0555
40
P0918

11
ENGLISH
MAINTENANCE
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry
thoroughly.
Important: do not use methylated spirit, diluents
or similar products.
Cleaning the filter
Your dryer will only function well if the filter is
clean.
The filter collects all the «fluff» which
accumulates during drying and it must therefore
be cleaned at the end of each programme with a
damp cloth.
Pull the filter upwards to extract it and remove
the fluff. Then refit the filter.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All
fabric loses fluff when drying but it goes un-
noticed in the air. In a tumble dryer it simply
collects in the filter.
Remove the fluff around the filter and around
the seat of the condenser in the inner door
using a damp cloth.
Cleaning condenser
Remove fluff from the condenser regularly
according to how frequently the machine is used
and to the type of laundry being dried. However it
should always be cleaned when deposits of fluff
can be seen.
Extract the condenser using the top handle;
remove fluff with a hand-held shower head or a
soft brush.
Attention: never use the tumble dryer without
the condenser.
P1026
P0636
P0639

12

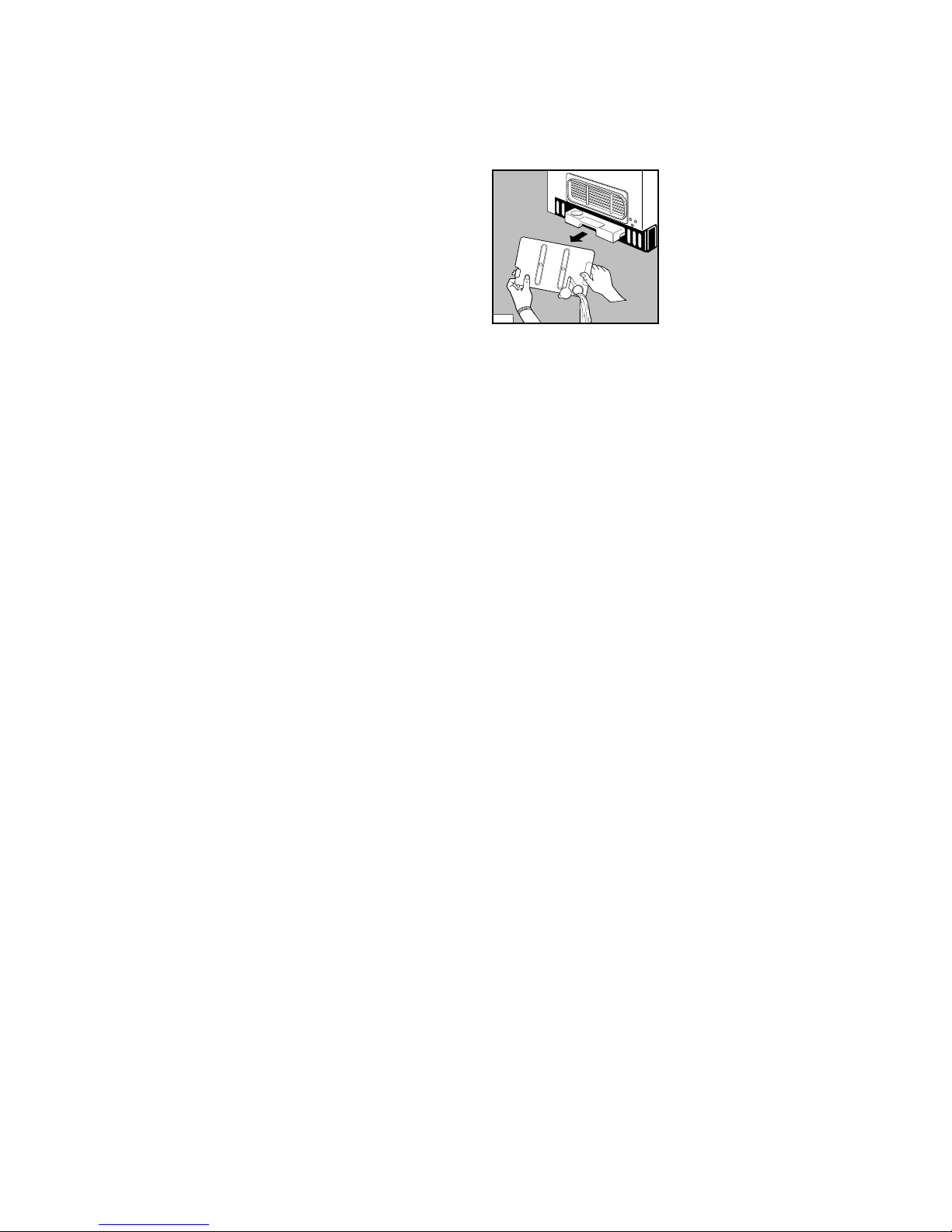

Emptying water container
Water extracted from the laundry being dried is
collected in a special container.
This container must be emptied after every
cycle.
Important: should the container be filled during a
drying programme, the corresponding light will
light up on the panel to indicate that the container
has to be emptied. The time selector dial rotates
to position “O”, but the drying cycle is not
completed. In this case, after emptying out the
container, the remaining drying time has to be
selected again.
Insert container correctly.
Attention: After this procedure, before the dryer
resumes the operation, for a few seconds it could
remain still and the “water container full” light
could remain on.
Note:
The water collected in the container can be used
in a steam iron provided it is filtered (for example
with a strainer or a coffee filter).
P0637

13
ENGLISH
SOMETHING NOT WORKING
If, after the above checks, there is still a fault, call
your local Service Centre.
Please make sure you give the model and serial
number of the appliance.
This information can be found on the rating plate.
Before contacting your local Service Centre, please make the following checks:
Problem Possible cause
■The dryer does not start up
■The dryer does not dry properly
■The door is open.
■There is no electricity supply from the wall socket.
■The fuse has blown.
■The time selector dial is not set correctly.
■The start button has not been depressed.
■The water container is full or is not properly
positioned.
■The filter or the condenser is clogged.
■Insufficient drying time.
■The selected cycle is not suitable for the
laundry.
■The water container is full or is not properly
positioned.
■The low temperature function has been
selected.
■Excessive laundry load.
