Zanussi TD 4212 W User manual

TUMBLE DRYER
TD 4212 W
START
ON-OFF
DUAL TEMPERATURE
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
COTTON SYNTHETICS
STORE DRY
Spun at rpm
k 5
k 2.5
IRON DRY
800 / 900 1000 / 1200
80' - 100' 75' - 95'
55' - 70' 50' - 65'
Spun at rpm 650
50' - 60'
30' - 35'
k 2.5
k 1
800 / 900 1000 / 1200
70' - 90' 65' - 85'
35' - 50' 30' - 45'
STORE DRY
TD 4212 W
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
LOW
TEMP.
LIGHT
ON-OFF
DRYING TIME
XTRACAPACITY
AUTOREVERSE
INSTRUCTION BOOKLET
125994620
Unpacking: see page 16
GB
125994620.qxd 10/05/01 10.42 Pagina 1 (Nero/Process Black pellicola)

2
Installation
■This appliance is heavy. Care should be taken
when moving it.
■It is dangerous to alter the specifications or attempt
to modify this product in any way.
■Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
■Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
■If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
■If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).
■This tumble dryer is designed to be vented through
to the open air. It should have its own ventilation
system which should not be joined with any other
ventilation system connected to any other
appliance.
Child Safety
■This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
■Pets and children have been known to climb into
tumble dryers. Please check your drum before use.
■Keep all packaging well away for children.
Use
■Do not overload the appliance (see programme
chart).
■Clothes which are dripping wet should not be
placed in the dryer.
■As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
■Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
■Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substance are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
■In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
Cushions, quilts and the like (these items
accumulate heat).
Items containing rubber foam or materials similar
to rubber foam.
■Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
■Clean fluff filters after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged.
■Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Centre. Always insist on genuine Zanussi spare
parts.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
125994620.qxd 10/05/01 10.42 Pagina 2 (Nero/Process Black pellicola)

3
For the User
Important Safety Information 2
■Installation 2
■Child Safety 2
■Use 2
Your New Tumble Dryer 4
Description of the Appliance 5
The Control Panel 6
■Programme Chart 6
■Low Temperature Button 6
■Start Button 6
■Mains-on Light 6
■Drying Time selector dial 6
Programme Chart 7
Operating Sequence 8
■Load the laundry 8
■Select the drying time 8
■Start the machine 8
■When drying is completed 8
Hints & Tips on Drying 9
Maintenance and Cleaning 10
■External cleaning 10
■Cleaning the door 10
■Cleaning fluff filters 10
Something Not Working 11
Service and Spare Parts 11
Customer Care 11
Guarantee Conditions 12
Zanussi Service Force 13-14
For the Installer
Installation Instructions 15
Technical Specifications 15
■Unpacking 16
■Positioning 16
■Fitting the vent hose 16-17
■Door reversal 17
■Stacking kit (optional accessory) 17
■Electrical connection 18
Contents
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
125994620.qxd 10/05/01 10.42 Pagina 3 (Nero/Process Black pellicola)

4
This tumble dryer will give your wash that soft, relaxed feel whatever
the weather.
Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through
very frugal electricity consumption and short drying times.
Your New Tumble Dryer
In the interest
of the environment
■Materials marked with the symbol are
recyclable.
■Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
■When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
■Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the
environment? We use recycled paper!
Energy saving tips
To save energy we recommend that you follow these
hints:
■Try to load the maximum capacity of the machine
as small loads are uneconomical.
■Always load well spun laundry. The higher the
spin speed, the lower the electricity consumption
and the shorter the drying times.
■Do not over-dry laundry, this avoids creasing and
saves energy.
■Clean the filters regularly to avoid excessive
drying times and high electricity consumption.
■Ventilate the room well. The room temperature
should not exceed +35°C during drying.
125994620.qxd 10/05/01 10.42 Pagina 4 (Nero/Process Black pellicola)

5

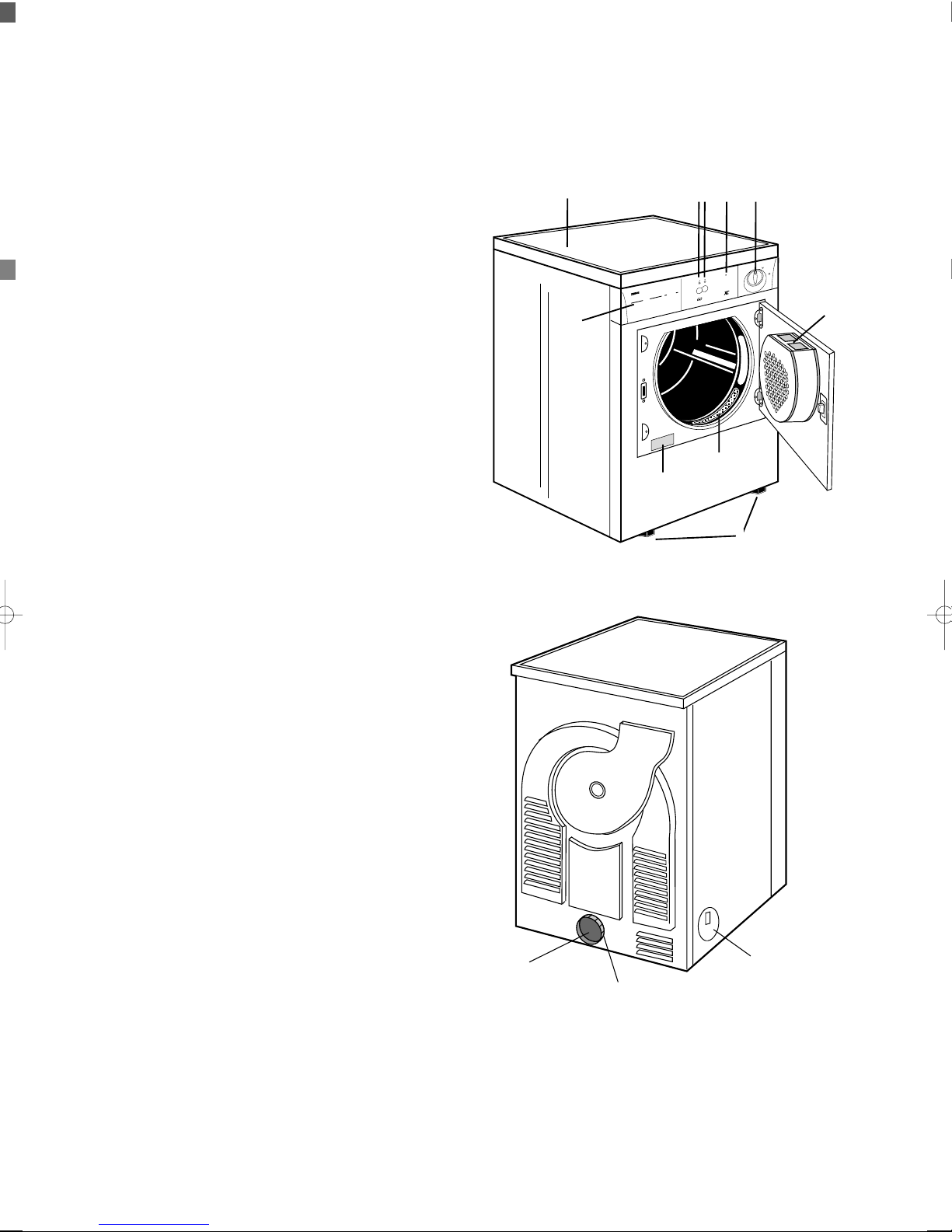

Description of the Appliance
1 Worktop
2 Programme chart
3 Low Temperature Button
4 Start Button
5 Mains-On Light
6 Drying Time Selector Dial/ON-OFF Switch
7 Fluff filters
8 Rating Plate
9 Adjustable feet
10 Side vent outlet
11 Ring nut
12 Rear vent outlet
1
2
7
8
9
34 5 6
7
START
ON-OFF
DUAL TEMPERATURE
IMPORTANT: PLEASE RE
AD TH
E INSTRUCTION BOOK B
EFORE USING T
HIS APPLIANCE
COTTONSYNTHETICS
STORE DRY
Spun at rpm
k 5
k 2.5
IRON DRY
800 / 900 1000 / 1200
80' - 100' 75' - 95'
55' - 70' 50' - 65'
Spun at rpm
650
50' - 60'
30' - 35'
k 2.5
k 1
800 / 900 1000 / 1200
70' - 90' 65' - 85'
35' - 50' 30' - 45'
STORE DRY
TD 4212 W
IMPORTANT: PLEASE RE
AD TH
E INSTRUCTION BOOK B
EFORE USING T
HIS APPLIANCE
LOW
TEMP.
LIGHT
ON-OFF
DRYING TIME
X
TRA
C
APACITY
AUTOREVERSE
10
11
12
125994620.qxd 10/05/01 10.42 Pagina 5 (Nero/Process Black pellicola)

6
1 2 34 5
START
ON-OFF
DUAL TEMPERATURE
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
COTTON SYNTHETICS
STORE DRY
Spun at rpm
k 5
k 2.5
IRON DRY
800 / 900 1000 / 1200
80' - 100' 75' - 95'
55' - 70' 50' - 65'
Spun at rpm 650
50' - 60'
30' - 35'
k 2.5
k 1
800 / 900 1000 / 1200
70' - 90' 65' - 85'
35' - 50' 30' - 45'
STORE DRY
TD 4212 W
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
LOW
TEMP.
LIGHT
ON-OFF
DRYING TIMEDRYING TIME
XTRACAPACITY
AUTOREVERSE
The Control Panel
1 Programme Chart
This will help you to select the correct time for
drying.
2 Low Temperature
Button
Press this button to reduce the temperature when
drying particularly delicate cotton or linen items.
In this case you should select a longer drying time.
On the programmes for synthetics the temperature is
automatically reduced.
Therefore it is not necessary to depress this button.
3 Start Button
After selecting the drying time press this button to
start the programme.
If the door is opened during drying, this button has to
be depressed again after closing the door to allow the
programme to continue.
4 Mains-On (ON-OFF) Light
This lights up when the machine starts operating and
goes out by turning the selector dial to “0” and when
you open the door.
55
Drying Time Selector
Dial/ON-OFF Switch
The selector dial incorporates two drying cycles, one
of up to 150 minutes at a high temperature for cotton
and linen, and one of up to 100 minutes at a low
temperature for synthetic fabrics.
To set the machine to the selected time, turn the dial
clockwise until the time you want coincides exactly
with the pointer.
NEVER attempt to turn the dial in an anticlockwise
direction.
When selecting the drying time, you should
remember that it includes a 10 minute cooling phase
(position on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages to
the laundry.
Additional drying
If at the end of the programme the laundry is still too
damp, set the dial for a further period of drying
(remembering to take into account the cooling
period).
125994620.qxd 10/05/01 10.42 Pagina 6 (Nero/Process Black pellicola)

7
Programme Chart
Cotton and linen
Selector dial: up to 150 minutes
Type of laundry:
Cotton
Towelling
Shirts
Sheets
Hand towels
Tablecloths
Table napkins
Degree of drying
Store dry
(wardrobe dry)
6
2.5
100-125
55-70
95-115
50-65
5 80-100 75-95
6
2.5
90-110
35-50
85-105
5 70-90 65-85
30-45
Iron dry
(not completely dry;
suitable for ironing)
Max. amount
of laundry
in kg
Drying time in minutes for
laundry spun at
800/900 rpm 1000/1200 rpm
Synthetics
Selector dial: up to 100 minutes
Type of laundry:
Synthetics or mixed fabrics
which do not require
ironing.
Synthetics or mixed fabrics
which have to be ironed.
(Please see labels on items)
Degree of drying
Store dry 2.5 50-60
30-35
40-50
25-30
1
2.5
1
Iron dry
Max. amount of
laundry in kg
Drying time in minutes for laundry
spun at a minimum speed of 650 rpm
ATTENTION! Please follow the instructions on labels when drying mixed fabrics.
Drying times are given as a guide only. Experience will soon enable you to estimate the drying time needed for
your usual laundry loads.
Do not start by selecting a long drying time. It is better to determine the required degree of dryness by gradually
increasing the drying time.
For a mixed load (cotton and synthetics, for example) select the time for the most delicate fibres and increase it
by 10 mins.
125994620.qxd 10/05/01 10.42 Pagina 7 (Nero/Process Black pellicola)

8
Before using your tumble dryer for the first time, we
recommend you place a few damp cloths inside the
appliance and dry for approximately 20 minutes.
There may be dust inside a brand new tumble dryer.
1. Load the laundry
Open the door by pressing on the left side as per
picture.
Load the items one at a time, shaking them out
loosely and close the door.
Please check the laundry does not get caught between
the door and filter.
2. Depress Button , if
required
3. Select the drying time
Turn the selector dial clockwise to the desired time
(in the high or low temperature range, according to
the fabrics).
100
M0045S
P1108
P1104
Operating Sequence
4. Start the machine
Depress Start Button , the mains-on light comes
on and the machine starts operating.
5. When drying is completed
The machine stops automatically.
Turn the selector dial to “0”, the mains-on light goes
out.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 10
minutes the dryer carries out the cooling and anti-
crease treatment phase.
Clean the filters after every drying programme.
Clean filters ensure correct functioning of the
appliance.
START
125994620.qxd 10/05/01 10.42 Pagina 8 (Nero/Process Black pellicola)

Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
Care Labels you may find on your laundry
normal drying (high temperature)
delicate drying (low temperature)
may be tumble dried
do not tumble dry
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
Sheet 700 to 1000 g
Pillowcase 100 to 200 g
Tablecloth 400 to 500 g
Table Napkin 50 to 100 g
Kitchen Towel 70 to 120 g
Linen Hand Towel 100 to 150 g
Hand Towel 150 to 250 g
Bath Towel 700 to 1000 g
Bathrobe 1000 to 1500 g
Shirt 200 to 300 g
Apron 150 to 200 g
■Always load well spun laundry. The higher the
spin speed the lower the electricity consumption
and the shorter the drying time.
■DO NOT load dripping wet laundry into the
dryer. Roll the article in a towel or spin to remove
excess water.
■Close poppers and zips and fasten any buttons.
■Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
■Remove the laundry immediately after the
programme has finished.
■Use a fabric conditioning sheet to reduce static.
We recommend the sheet is pinned to an article of
laundry (using a safety pin).
■Mix the load i.e. large and small articles.
■When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
DO NOT use the tumble dryer to dry the
following:
■Articles contaminated with inflammable
substances e.g. petrol, cleaning solvents, cooking
oil, fats or hair lacquer.
■Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
■Very delicate articles such as silk.
■Very large and bulky items such as duvets or
sleeping bags.
9
Hints & Tips on Drying
125994620.qxd 10/05/01 10.42 Pagina 9 (Nero/Process Black pellicola)

10
You must disconnect the appliance from the electricity
supply, before you can carry out any cleaning or
maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Regular cleaning ensures correct drying.
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth.
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not due
to excessive wear caused by the dryer. All fabric
looses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
AUTOREVERSE
k 5
k 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
k 2,5
k 1
P1111
P1110
AUTOREVERSE
k 5
k 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
k 2,5
k 1
P1109
Maintenance and Cleaning
If necessary the filters can be cleaned under running
water using a brush. In this case, remove the filter in
the door opening as per picture (it can be positioned
with the tongue facing to the left or to the righ).
AUTOREVERSE
k 5
k 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
k 2,5
k 1
P1112
125994620.qxd 10/05/01 10.42 Pagina 10 (Nero/Process Black pellicola)

11
The tumble dryer does not start ■The door has not been closed.
■The plug is not properly inserted in the power
socket.
■There is no current at the socket.
■The main fuse or the fuse in the plug has blown.
■A drying time has not been selected.
■The Start Button has not been depressed.
Drying takes too long or laundry is not
dry enough.
■The laundry has not been spun properly.
■The filters are clogged up.
■The room temperature is too high.
■The selected time or drying cycle was not suitable
for the laundry.
■The low temperature button has been pressed.
■There is too much laundry inside the appliance.
■The dryer is not correctly installed.
Something Not Working
Symptom Possible causes
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
If after the above checks, there is still a fault, call
your local Zanussi Service Force Centre.
Service & Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Zanussi Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to
the Service Force Centre covering your post code
area.
The addresses are listed on the following pages.
Before calling out an engineer, please ensure you
have read the details under the heading “Something
Not Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance
(found on the rating plate - see picture on page 5).
5. The purchase date
Customer Care
For general enquiries concerning your Zanussi
appliance or for further information on Zanussi
products, please contact our Customer Care
Department by letter or telephone as follows:
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel [phone]*
or visit our website at www.zanussi.co.uk
* calls to this number may be recorded for training
purposes.
125994620.qxd 10/05/01 10.42 Pagina 11 (Nero/Process Black pellicola)

12
Guarantee Conditions
Standard guarantee conditions
We, Zanussi undertake that if, within 12 months of
the date of the purchase, this Zanussi appliance or
any part thereof is proved to be defective by reason
only of faulty workmanship or materials, we will, at
our option, repair or replace the same FREE OF
ANY CHARGE for labour, materials or carriage on
condition that:
■The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
■The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
■The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
All service work under this guarantee must be
undertaken by a Zanussi Service Force Centre.
Any appliance or defective part replaced shall
become the Company’s property.
This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
■Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
■Costs incurred for calls to put right an appliance
which is improperly installed or calls to
appliances outside the United Kingdom.
■Appliances found to be in use within a
commercial environment, plus those which are
subject to rental agreements.
■Products of Zanussi manufacture which are NOT
marketed by Zanussi.
European guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
■The guarantee starts from the date you first
purchased your product.
■The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
■The guarantee relates to you and cannot be
transferred to another user.
■Your new home is within the European
Community (EC) or European Free Trade Area.
■The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
■The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
125994620.qxd 10/05/01 10.42 Pagina 12 (Nero/Process Black pellicola)

To contact your local Service Force Centre telephone [phone]
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD
JERSEY Jersey Electricity Company
Haut De Lorme
Rue De Haut De Lorme
Trinity
Jersey
Channel Islands JE3 5FG
SCOTLAND
ABERDEEN 54 Claremont Street
Aberdeen AB10 6RA
AUCHTERMUCHTY 33a Burnside
Auchtermuchty
Fife KY14 7AJ
BLANTYRE Unit 5
Block 2
Auchenraith Ind. Estate
Rosendale Way
Blantyre G72 0NJ
DUMFRIES 93 Irish Street
Dumfries
DG1 2 PQ
DUNOON 7 Hill Street
Dunoon
Argyll
PA23 7AL
EDINBURGH Unit 12
Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB
GLASGOW Unit 4
Wellington Road
Bishopriggs
Glasgow G64 2SA
INVERNESS Unit 3BI
Smithton Ind. Estate
Smithton
Inverness IV2 7WL
ISLE OF ARRAN RHaggerty
Bruach
Blackwaterfoot
Isle of Arran
ISLE OF BARRA JZerfah
244 Bruernish
Isle of Barra
Western Islands HS9 5QY
ISLES OF BUTE Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH
ISLE OF LEWIS ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
KELSO 2, 6 & 8 Woodmarket
Kelso
Borders
TD5 7AX
ORKNEY 7KingStreet
Kirkwall
Orkney
KW15 1JF
PERTH Scottish Hydro Electric
Central Warehouse
Inveralmond
(OWN SALES) Perth PH1 3AF
SHETLAND 3-4 Carlton Place
Lerwick
Shetland
(OWN SALES) ZE1 0PW
SHETLAND Bolts Shetland
26 North Road
Lerwick
(OWN SALES) Shetland ZE1 0PE
WHALSAY Leask Electrical
Harisdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
Kilwee Business Park
Dunmurry
Belfast
BT17 0HD
WALES
CARDIFF Unit 4
Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed Parc
Abergele Road
Rhuddlan
Clwyd
LL18 5UG
DYFED Unit 9
St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4JW
OSWESTRY Plas Ffynnon Warehouse
Middleton Road
Oswestry
SY11 2PP
NORTH EAST
GATESHEAD Unit 356a
Dukesway Court
Dukesway
Gateshead NE11 0BH
GRIMSBY 15 Hainton Avenue
Grimsby
N. E. Lincs
DN32 9AS
HULL Unit 1
Boulevard Industrial Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates Road
Cross Gates
Leeds
LS15 7YS
NEWTON AYCLIFFE Unit 23
Northfield Way
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ
SHEFFIELD Pennine House
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
Dock Road
Birkenhead
CH41 1LT
CARLISLE Unit 7
James Street Workshops
James Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
BOLTON Unit B
Central Industrial Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Unit 250
Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL
STOCKPORT Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
13
125994620.qxd 10/05/01 10.42 Pagina 13 (Nero/Process Black pellicola)

To contact your local Service Force Centre telephone [phone]
MIDLANDS
BIRMINGHAM 66 Birch Road East
Wyrley Trading Estate
Witton
Birmingham
B6 7DB
BOURNE Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 68 St. Marys Street
Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER 101 Rycroft Street
Gloucester
GL1 4NB
HEREFORD Units 3 & 4
Bank Buildings
Cattle market
Hareford
HE4 9HX
HIGHAM FERRERS 30 High Street
Higham Ferrers
Northants
NN10 8PL
ILKESTON Unit 2
Furnace Road
Ilkeston DE7 5EP
LEICESTER Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF
LINCOLN Unit 8
Clifton Street
Stone Field Park
Lincoln
LN5 8LQ
NEWCASTLE 18-21 Croft Road
UNDER LYME Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
REDDITCH 13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND
TAMWORTH Unit 3
Sterling Park
Claymore
Tamworth
B77 5DQ
WORCESTER Units 1 & 2
Northbrooks Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gardner Ind. Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
CHELMSFORD Hanbury Road
Widford Ind. Estate
Chelmsford
Essex
CM12 3AE
COLINDALE Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
ELTHAM 194 Court Road
Mottingham
Eltham
London SE9 4EW
ENFIELD 284 Alma Road
Enfield
London
EN3 7BB
GRAVESEND Unit B4
Imperial Business Estate
West Mill
Gravesend
Kent
DA11 0DL
IPSWICH Unit 6C
Elton Park Business Centre
Hadleigh Road
Ipswich
IP2 0DD
LETCHWORTH 16-17 Woodside Ind. Park
Works Road
Letchworth
Herts
SG6 1LA
LONDON 2-4RoyalLane
Yiewsley
West Drayton
Middlesex
UB7 8DL
MAIDENHEAD Reform Road
Maidenhead
Berkshire
SL6 8BY
MOLESEY 10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
NEWBURY 9PipersCourt
Berkshire Drive
Thatcham
Berkshire
RG19 4ER
NORWICH 2b Trafalgar Street
Norwich
NR1 3HN
SUNBURY Unit 1a
The Summit
Hanworth Road
Sunbury on Thames
TW16 5DB
SOUTH EAST
ASHFORD Unit 2
Bridge Road Business Centre
Bridge Road
Ashford
Kent TN23 1BB
FLEET Unit 1
Redfields Ind. Estate
Church Crookham
Fleet
Hampshire GU13 0RD
HAYWARDS 21-25 Bridge Road
HEATH Haywards Heath
Sussex RH16 1UA
TONBRIDGE Unit 30
Deacon Trading Estate
Morley Road
Tonbridge
TN9 1RA
SOUTH WEST
BARNSTAPLE Main Road
Fremington
Barnstaple
North Devon EX31 2NT
BOURNEMOUTH 63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
BRIDGEWATER 6HerswellBusinessPark
Salmon Parade
Bridgwater
Somerset TA6 5PY
BRISTOL 11 Eldon Way
Eldonwall Trading Estate
Bristol
BS4 3QQ
EMSWORTH 266 Main Road
Southbourne
Emsworth
PO10 8JL
ISLE OF WIGHT Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight PO33 1DB
NEWTON ABBOT Unit 2
Zealley Ind. Estate
Kingsteignton
Newton Abbot
TQ12 3TD
REDRUTH Unit 7D
Pool Ind. Estate
Druids Road
Redruth
Cornwall TR15 3RH
14
125994620.qxd 10/05/01 10.42 Pagina 14 (Nero/Process Black pellicola)

15
Installation Instructions
Technical Specifications
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
DIMENSIONS Height 85 cm (33.5”)
Width 60 cm (23.6”)
Depth 58 cm (22.7”)
POWER SUPPLY VOLTAGE 230-240 V/50 Hz
TOTAL POWER ADSORBED 2650 W (13A)
MAXIMUM RECOMMENDED LOAD Cotton, linen 6 kg ( 13 lbs)
Synthetics 2.5 kg (5.5 lbs)
DRUM VOLUME 108 l
CONSUMPTIONS Cotton, linen 3.3 kWh (5 kg store dry)
Cotton, linen 2.7 kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
125994620.qxd 10/05/01 10.42 Pagina 15 (Nero/Process Black pellicola)

16
Unpacking
Warning !
Slide out the polythene bag containing the
polystyrene block(s) before using the appliance.
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
Whilst drying, the tumble dryer will expel a certain
amount of warm, very moist air, and this should be
removed from the room as quickly as possible to
prevent condensation. In an extremely well ventilated
room or close to an open window, this may occur
naturally.
However, in general, it is better to carry the dryer's
exhaust outside via the 100 mm diameter flexible
hose supplied with the appliance; ending either
temporarily at an open window, or permanently at a
fixed ventilation grille, fitted to an exterior wall or
window.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Make sure there are no obstructing items or material
near the air-intake louvres provided at the back (e.g.
paper, rags etc.).
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
P1106
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the two adjustable
feet at the front of the machine until it is.
The feet must never be removed.
Do not restrict the floor clearance through deep-
pile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Important
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
Fitting the vent hose
To simplify the installation, there is a choice of vent
outlets: one at the back, the others in the left and
right-hand side.
Connect the hose to whichever is the more
convenient by pulling the ring nut (A) from the vent
outlet at the back, screwing it on to the hose and
pushing it firmly back into place.
The unused vents should now be sealed with the
special snap covers provided
P1027
A
A
P1028
P0046
125994620.qxd 10/05/01 10.42 Pagina 16 (Nero/Process Black pellicola)

17
Advice: If the hose is long and the room temperature
low, the moisture might condense to water inside the
hose. This is an unavoidable natural phenomenon.
To prevent this water from lying in the hose or
flowing back into the tumble dryer, it is advisable to
drill a small hole (dia. 3 mm) in the lowest point of
the hose and to place a small container below it.(See
picture, point B).
Once connected to the dryer, run the vent hose to the
desired outlet point, ensuring that the run’s overall
length is less than 2 m, and that it contains no more
than two bends. As to the outlet itself, if you have
decided on a fixed wall/window grille, a good local
builder’s merchant should be able to supply you with
the necessary fittings and installation advice.
It is important not to connect the vent
hose to, for example, a cooker hood, or
a chimney or flue pipe designed to
carry the exhaust from a fuel burning
appliance.
Note that to avoid condensation problems, it is
essential that the dryer be fitted with the flexible hose
to carry its “exhaust” at least beyond the kitchen units;
preferable outside the kitchen.
P0055
P1056 B
In order to prevent the appliance from overheating, it
is important that the steam exhaust is unobstructed.
Therefore, in case of a permanent hose fitted to an
exterior wall or ceiling, it must be ensured an exhaust
capacity of at least 150 m3/h.
If the dryer is fitted next to kitchen units, make
sure that the vent hose is not squashed. If the hose
is partially squashed, drying efficiency will be
reduced, resulting in longer drying times and
higher energy consumption.
If the hose is completely squashed, the safety cut-
outs with which the machine is fitted may operate.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest Zanussi Service Centre.
Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.
P1107
125994620.qxd 10/05/01 10.42 Pagina 17 (Nero/Process Black pellicola)

18
Electrical connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be observed.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the
appliance’s rating plate. (See picture on page 5).
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1362) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13 A
P1041
E
N
L
Permanent connection
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green earth
cable at any point.
125994620.qxd 10/05/01 10.42 Pagina 18 (Nero/Process Black pellicola)

© Electrolux Household Appliances Limited 2001
From the Electrolux Group. The world’s No. 1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.
125994620.qxd 10/05/01 10.42 Pagina 19 (Nero/Process Black pellicola)
