Zanussi ZDC 5370 W User manual

TUMBLE DRYER
ZDC 5370 W
TIMELINE
AUTOREVERSE 6 kg
COTTON
Extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Wring dry
Store
dry
Extra dry
Iron dry
E TRA
PROGRAMMES
Start/
Pause
No
Buzzer
DoorDelay
Start
Drying
Cooling
End
Full Tank
RESET/
OFF
Quick
Dry
Low
Temperature
60 min
Cooling
SYNTHETIC
Easy iron
90 min
30 min
Baby dry
ZDC 5370W
INSTRUCTION BOOKLET
125981230
Unpacking: see page 17
GB
125981230.qxp 2005-09-03 11:58 Page 1

2
Installation
•This appliance is heavy. Care should be taken when
moving it.
•It is dangerous to alter the specifications or attempt
to modify this product in any way.
•Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
•Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
•If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
•If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).
Child Safety
•This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
•Pets and children have been known to climb into
tumble dryers. Please check your drum before use.
•Keep all packaging well away for children.
Use
•Do not overload the appliance (see programme
chart).
•Clothes which are dripping wet should not be
placed in the dryer.
•As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
•Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
•Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substance are volatile, they
could cause an explosion. Only tumble dry items
washed with water.
●Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed in the tumble
dryer.
●If you have washed your laundry with stain
remover you must execute an extra rinse cycle
before loading your tumble dryer.
•In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
Cushions, quilts and the like (these items
accumulate heat).
Items containing rubber foam or materials similar
to rubber foam.
•Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
•Clean fluff filters after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged.
•Do not allow fluff to accumulate around the dryer.
•Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre. Always insist on genuine Zanussi spare
parts.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
125981230.qxp 2005-09-03 11:58 Page 2

3
For the User
Important Safety Information 2
•Installation
•Child Safety
•Use
Your New Tumble Dryer 4
Description of the Appliance 4
The Control Panel 5
•Programme/Time Selector Dial 5
•Door Release Button 5
•No Buzzer Button 5
•Quick Dry Button 5
•Low Temperature Button 5
•Delay Start Button 6
•Display 6-7
•Start/Pause Button 7
•Indicator Lights 7
Programme Chart 8
Operating Sequence 9
Hints & Tips on Drying 10
Maintenance and Cleaning 11
•External cleaning 11
•Cleaning the door 11

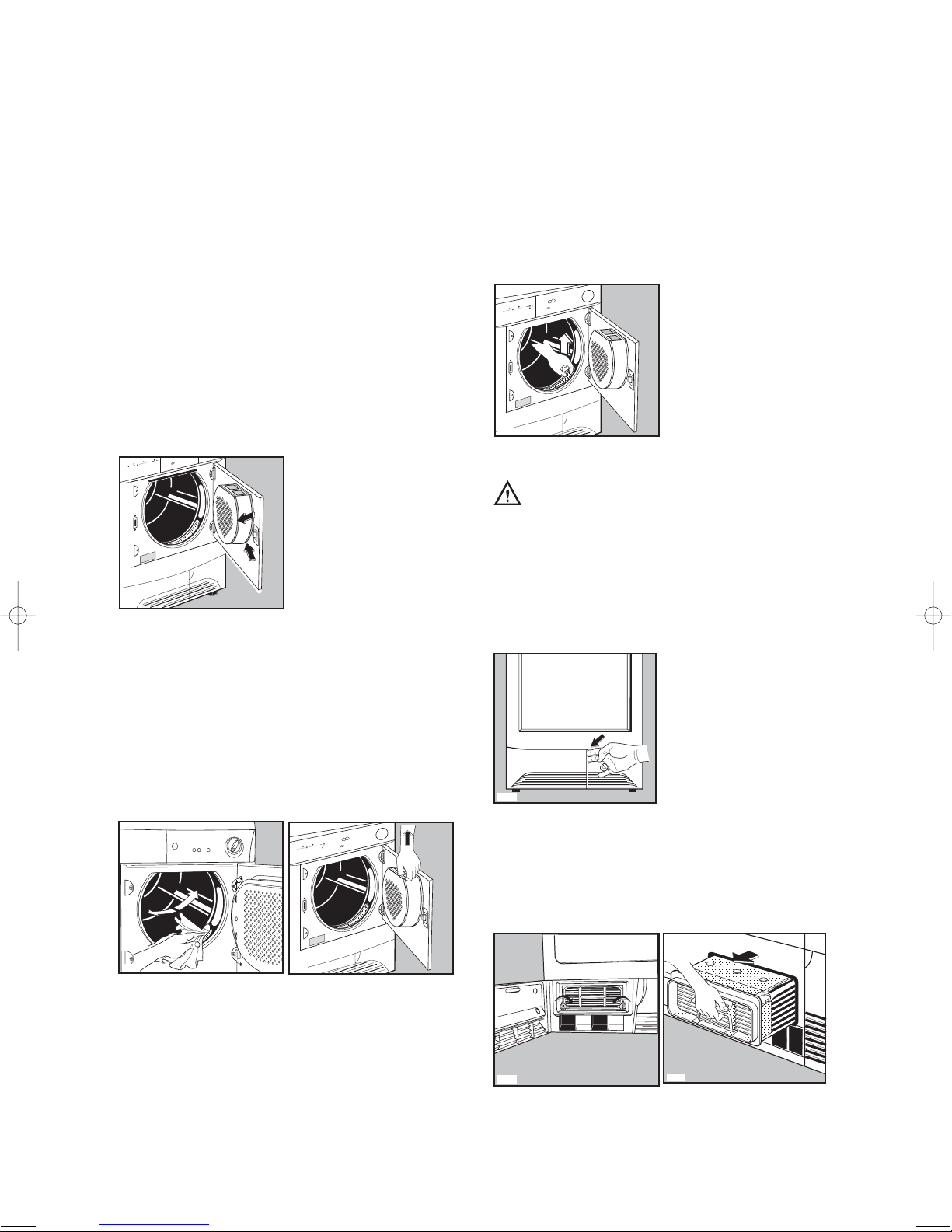

•Cleaning the filters 11

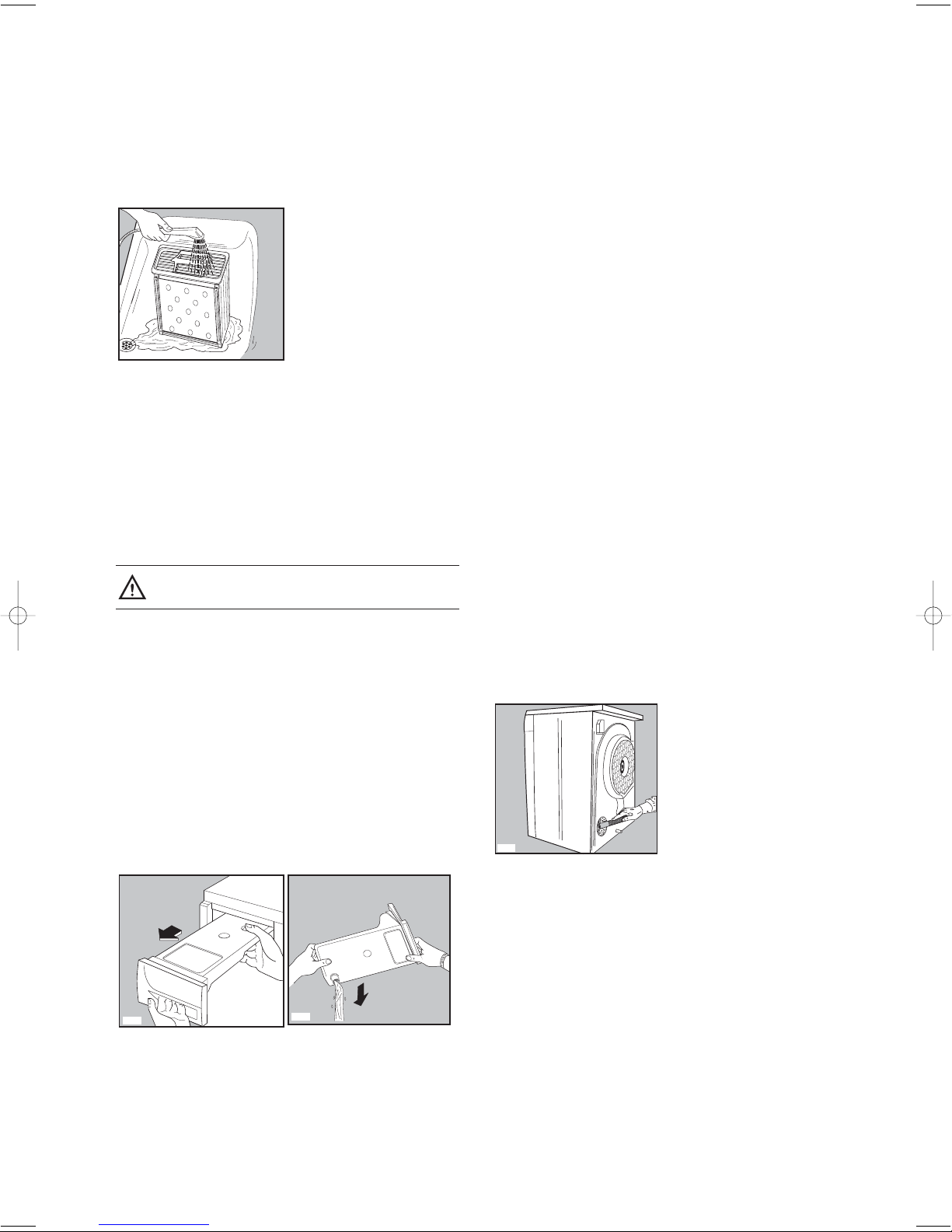

•Cleaning the condenser unit 11-12
•Emptying the water reservoir 12
•Cleaning the drum 12
•Cleaning the air intake grille 12

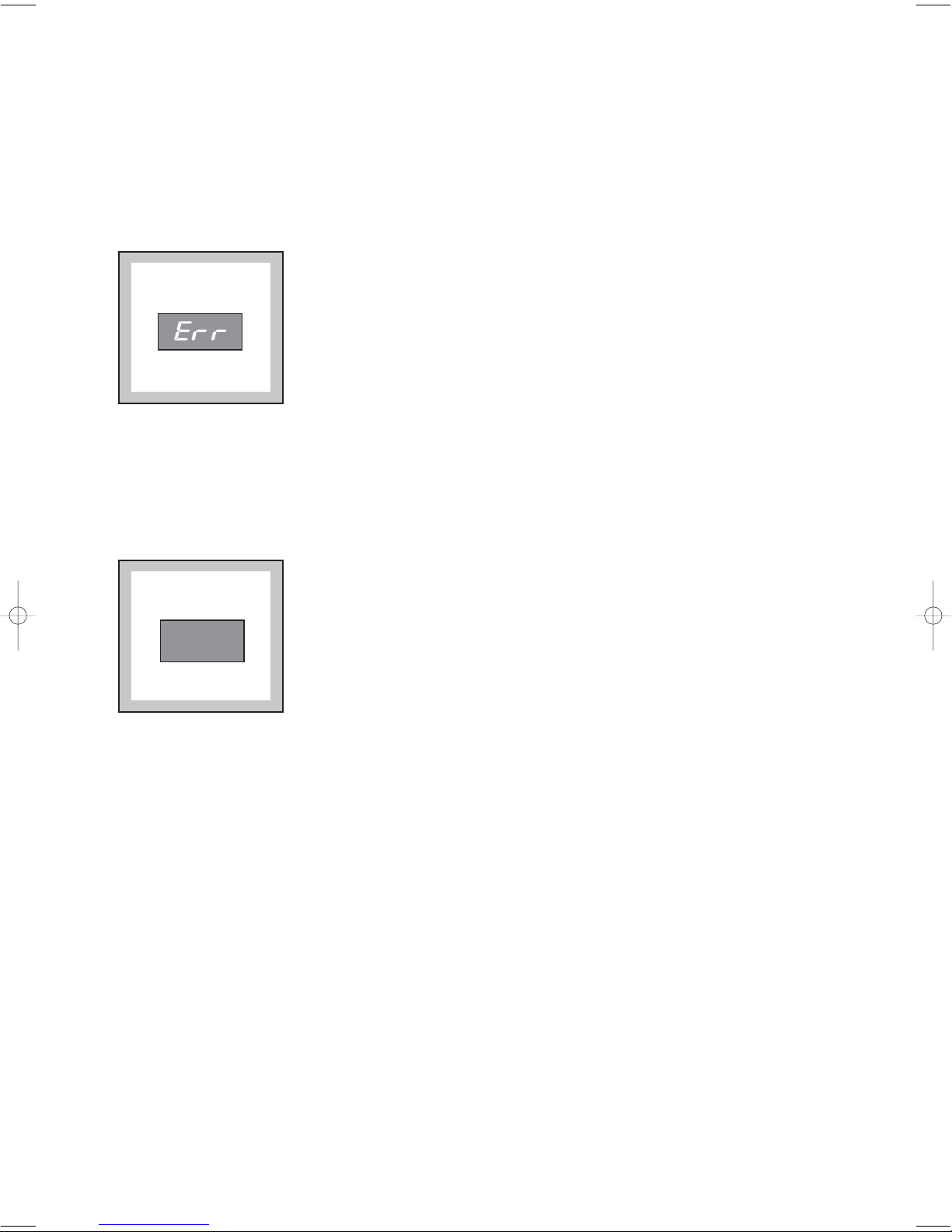

Something Not Working 13
Service and Spare Parts 13
Customer Care 13
Guarantee Conditions 14
For the Installer
Installation Instructions 15
Technical Specifications 15
Adjusting the level of conductivity 16
•Unpacking 17
•Positioning 17
•Stacking kit (optional accessory) 17
•Door reversal 17
•Electrical connection 17-18
Contents
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
125981230.qxp 2005-09-03 11:58 Page 3

Description of the Appliance
01 Control panel
02 Water reservoir
03 Drum light
04 Fluff filters
05 Rating Plate
06 Condenser unit
07 Adjustable feet
1
2
6
7
4
54
3
6kg
TIMELINE
START ZDC 5350W
PROGRAMME
COTTON
Extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Wring dry
Store
dry
Extra dry
Iron dry
ETRA
PROGRAMME
Start/
Pause
No
Buzzer
DoorDelay
Start
Clogged
Condenser
Drying
Cooling
End
Clogged Filters
Full Tank
RESET/
OFF
Quick
Dry
Low
Temperature
60 min
Cooling
SYNTHETIC
Easy iron
90 min
30 min
TIMED
PROGRAMME
Baby dry
FUNCTION
4
This tumble dryer will give your wash that soft, relaxed feel whatever the weather.
Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through
very frugal electricity consumption and short drying times.
Your New Tumble Dryer
•When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
•Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the
environment? We use recycled paper!
•Old appliance
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by in appropriate
waste handling of this product. For more detailed
information about recycling of this product, please contact
your local city office, your household waste disposal
service or the shop where you purchased the product.
Energy saving tips
To save energy we recommend that you follow these hints:
•Try to load the maximum capacity of the machine
as small loads are uneconomical.
•Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
•Do not over-dry laundry, this avoids creasing and
saves energy.
•Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
•Ventilate the room well. The room temperature
should not exceed +35°C during drying.
In the interest
of the environment
•Materials marked with the symbol are recyclable.
•Check with your local Council
or Environmental Health Office to see if there are
facilities in your area for re-cycling this appliance.
125981230.qxp 2005-09-03 11:58 Page 4

5

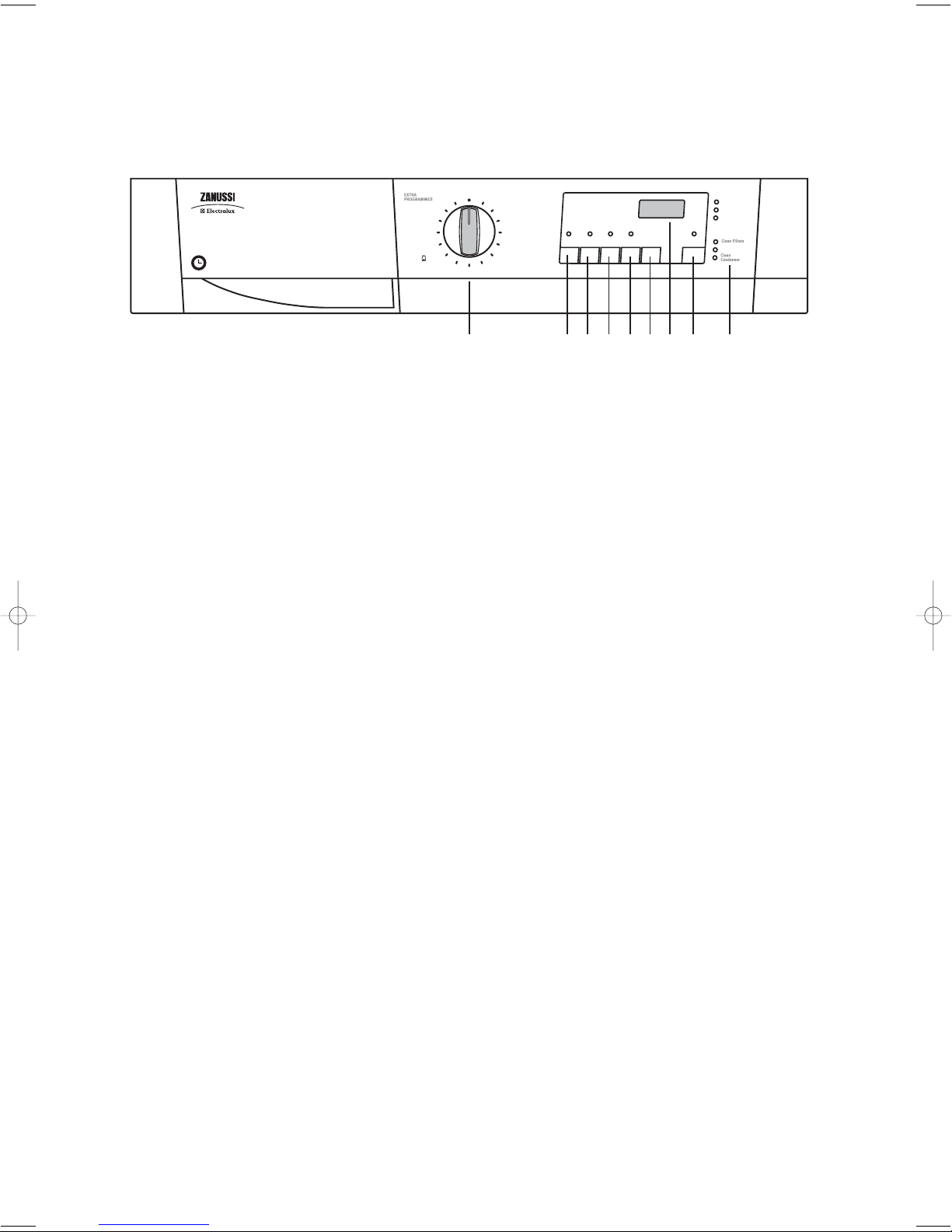

The Control Panel
1 Programme/Time
Selector Dial
Allows you to select electronically controlled or time
controlled drying.
Turn the dial to the required programme or time.
Electronically controlled drying (automatic)
The appliance runs these programmes with the help
of probes which detect the degree of dampness of the
laundry.
Simply select the programme according to the type of
laundry and degree of drying required.
Time controlled drying
This can be used to finish off drying if necessary.
Select the 90 or 60 minute programme for cottons or
the 30 minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “RESET/OFF”.
At the end of drying, turn the selector dial to
“RESET/OFF” to switch the machine off before
removing the laundry.
2 DOOR RELEASE Button
Press this button to open the door. The light above
the button will light up.
Opening the door by means of this button is
possible only if the tumble dryer is on
(programme selector dial set to a programme or
drying time).
If you open the door during a programme, in order to
restart the programme you must press the
START/PAUSE button again after having closed the
door.
3 No BUZZER Button
A buzzer sounds
• when selecting the programme
• when depressing the buttons
• when an incorrect option selection is made
• when the programme selector dial is turned to
another position during the programme or when
you depress an option button during the cycle
• at the end of the programme and during the
anticrease phase
• when the water reservoir is full
• if the machine is not working correctly
• when the small door at the bottom is open.
By depressing the button the acoustic signal is
switched off.
The corresponding light comes on.
4 QUICK DRY Button
By depressing this button the drying time is reduced
in the following COTTON programmes:
•EXTRA DRY
•READY TO WEAR
•STORE DRY
The corresponding pilot light comes on.
This option cannot be selected with LOW
TEMPERATURE function.
5 LOW TEMPERATURE
Button
Pressing this button allows drying to be performed at
a lower temperature, for delicate items.
The corresponding pilot light comes on.
This option can also be used for time controlled
drying.
This option cannot be selected with QUICK DRY.
TIMELINE
COTTON
Extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Wring dry
Store
dry
Extra dry
Iron dry
Start/
Pause
No
Buzzer
Door Delay
Start
Drying
Cooling
End
Full Tank
RESET/
OFF
Quick
Dry
Low
Temperature
60 min
Cooling
SYNTHETIC
Easy iron
90 min
30 min
Baby dry
123456789
AUTOREVERSE 6 kg
ZDC 5370W
125981230.qxp 2005-09-03 11:58 Page 5

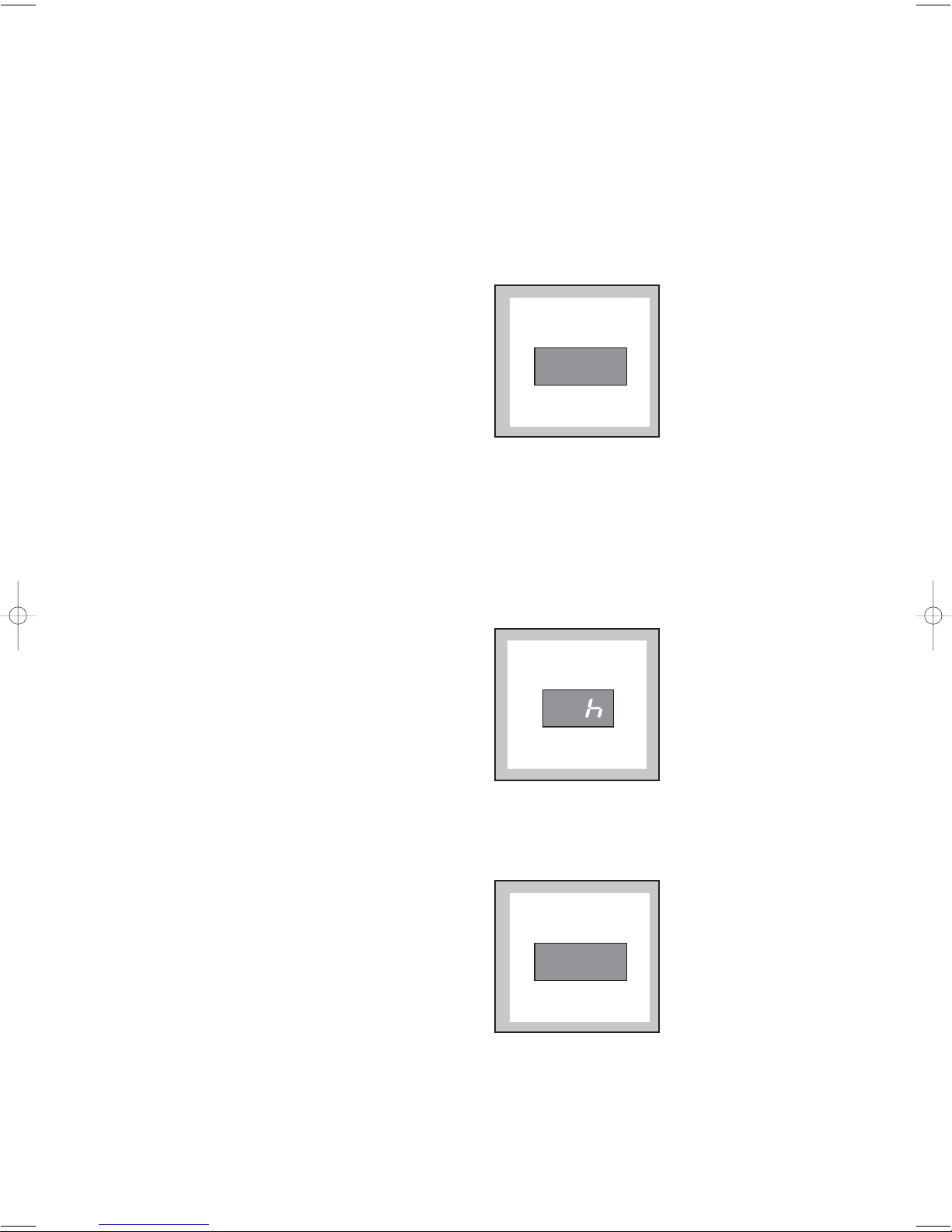

6 DELAY START button
This button allows you to delay the starting of the
programme by 12 hours max.
This option must be selected after having selected
the programme and before pressing START/PAUSE
to start the programme.
Every time the button is pressed, the time is
increased by 30 minutes, until the display shows a
delay of “2 hours”. After this, the delay is displayed
hour by hour.
The minutes or hours of delay that have been
selected are displayed for 2 seconds, then the display
shows the duration of the previously selected
programme.
The countdown begins after you have pressed the
START/PAUSE button.
To cancel the delay time press the START/PAUSE
button and after press the DELAY START button
until the display indicates 0’. Then press the
START/PAUSE button again.
When the delay is cancelled, the display shows 0’ and
after the duration of the programme.
During the delayed start, it is not possible to change
the programme or the delay time that have been
selected. To do this, you must first switch off the
machine by setting the programme selector dial to
“RESET/OFF”. Select the new programme, the
options and the delayed start, then press the
START/PAUSE button.
During the delayed start, to cancel or change
functions that have been selected, simply set the
appliance to PAUSE. Once you perform the desired
operation, press once again the START/PAUSE
button.
If you wish to add more laundry while the machine is
performing the countdown, simply open the door.
When you close the door, press the START/PAUSE
button again to cause the countdown to be resumed.
7 DISPLAY
The display shows the following information:
• duration of selected programme
• delayed start
• end of programme
• incorrect option selection
• alarm code
•Duration of selected programme
After you have selected the programme, its
duration (in hours and minutes) appears on the
display. It is calculated automatically on the basis
of the maximum load accepted for each type of
fabric and of the required degree of drying.
When the programme starts, the remaining time is
displayed every 5 minutes.
•Delayed start
If you have selected a delay time by means of the
relevant button, the display shows it for 2 seconds;
then it shows the duration of the previously
selected programme.
The countdown is displayed every 30 minutes until it
displays “90 minutes” and then hour by hour.
•End of programme
A flashing zero indicates the end of the
programme and it is displayed after the “anti-
creasing” phase.
0
3
1.20
6
125981230.qxp 2005-09-03 11:58 Page 6

7
•Incorrect option selection
If you select an option that is not compatible with
the programme you have selected, the display
shows Err (error).
This code will reappear during the execution of the
programme if you press one of the option buttons or
turn the programme selector.
•Alarm code
In the case of a functional problem, the display
shows an alarm code (e.g. E21). See page 13 for
more detailed information.
8 START/PAUSE button
Press this button to start the dryer after having
selected the programme and the options.
The relevant light will stop flashing. If you have
chosen a delayed start, the machine will begin the
countdown.
If the door of the appliance or the small door at
the bottom is opened while the programme is
running, this button must be pressed again after
closing the door in order to restart the
programme from the point at which it was
interrupted.
This button must also be depressed after a power
failure and after having re-inserted the water
reservoir, if it has been emptied in the middle of a
programme after lighting up of the “FULL
TANK” light.
In both cases the light of the Start/Pause button
flashes to remind you that the start button needs to be
pressed again.
E21
9 Indicator Lights
These lights indicate the following functions:
“DRYING” light
This light indicates that the appliance is in the drying
phase.
“COOLING” light
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a 10
minute cooling phase to cool the laundry.
“END” light
This light is on at the end of the cooling phase,
during the anti-creasing phase and at the end of the
programme.
“CLEAN FILTERS” light
This light illuminates at the end of the programme to
remind you that the filters must be cleaned.
“FULL TANK” light
This light comes on at the end of the programme to
remind you that the water reservoir must be emptied
out. If this light illuminates during a programme this
means that the water reservoir is full. The buzzer
sounds, the programme stops, the light of the
Start/Pause button flashes.
“CLEAN CONDENSER” light
It comes on every 80 cycles to remind you that the
condenser must be cleaned.
125981230.qxp 2005-09-03 11:58 Page 7

8
Programme Chart
Automatic drying (electronic programmes)
(*) According to IEC 61121 Standards.
Type of laundry Degree of drying
required Max-load (1) Programme
COTTON
Extra dry
Ready to wear
Store dry
Slightly damp
Iron dry
Wring dry
6 kg
6 kg
6 kg
6 kg
6 kg
6 kg
EXTRA DRY
READY TO WEAR
STORE DRY(*)
SLIGHTLY DAMP
IRON DRY(*)
WRING DRY
Time controlled drying
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying.
• The degree of dryiness required
Cooling
This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent
odour of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
•cotton, linen: drum full but not too tightly packed;
•synthetics: drum no more than half full;
•delicate fabrics: drum no more than one third full.
Type of laundry Drying time Max-load (1) Programme
selector dial position
COTTON
COTTON
SYNTHETICS
90’
60’
30’
6,5 kg
6,5 kg
3 kg
90 min
60 min
30 min
SYNTHETICS
Extra dry
Store dry
Iron dry
3 kg
3 kg
3 kg
EXTRA DRY
STORE DRY(*)
IRON DRY
JUMPERS Baby dry 1 kg
(10 jumpers) BABY DRY
Jackets, shirts, chemises. Easy iron 1 kg EASY IRON
• Baby Dry cycle is a special programme for jumpers to be dried “READY TO WEAR”.
125981230.qxp 2005-09-03 11:58 Page 8

9
Operating Sequence
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Drying
1. Connect the appliance.
2. Open the door (see picture).
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does not
get caught between the door and filter.
5. Select the drying programme or time. The lights
DRYING, COOLING and END come on. The
light of the START/PAUSE button flashes and the
display shows the duration of the programme.
6. If required, press the LOW TEMPERATURE
button and/or the NO BUZZER button or the
QUICK DRY button.
7. Select the DELAY START if required. The
selected delay appears on the display for 2
seconds, then the duration of the selected
programme is displayed.
8. Press the START/PAUSE button: the
corresponding light stops flashing and drying
starts. Only the DRYING light stays lit. If you
have selected the DELAY START, the machine
begins its countdown.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (light COOLING is on).
You may remove the laundry after this phase.
The END, CLEAN FILTERS and FULL TANK
lights illuminate. The display shows a static zero
and the buzzer sounds to indicate the end of the
cycle.
9. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing phase
(duration: 30 minutes maximum).
If you do not remove the laundry, the dryer will
P1108
P1149
stop automatically at the end of the anti-creasing
phase.
The END, CLEAN FILTERS and FULL TANK
lights remain lit and the buzzer sounds for 2
minutes.
The light of the START/PAUSE button goes off
and a flashing zero appears on the display.
10.Turn the programme selector dial to “RESET/
OFF”; all the lights go out. The appliance is
switched off.
Remove the laundry.
If you open and then close the door before
turning the programme selector dial to
“RESET/OFF”, all the lights corresponding to
the phases making up the performed
programme come on and the display shows the
duration of the programme.
After each use
• Clean the filters (see page 11).
• Empty the water reservoir (see page 12).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position “Cooling” and
wait until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance. To do this first turn the dial to “RESET/
OFF” and then to “Cooling” and depress
START/PAUSE Button.
Modifying the programme
To change a programme which is running, first cancel
it by turning the programme selector dial to “RESET/
OFF”. Select the new programme and press the
START/PAUSE Button.
125981230.qxp 2005-09-03 11:58 Page 9

10
Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
Care Labels you may find on your laundry
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
Sheet 700 to 1000 g
Pillowcase 100 to 200 g
Tablecloth 400 to 500 g
Table Napkin 50 to 100 g
Kitchen Towel 70 to 120 g
Linen Hand Towel 100 to 150 g
Hand Towel 150 to 250 g
Bath Towel 700 to 1000 g
Bathrobe 1000 to 1500 g
Shirt 200 to 300 g
Apron 150 to 200 g
•Always load well spun laundry. The higher the spin
speed the lower the electricity consumption and the
shorter the drying time.
•DO NOT load dripping wet laundry into the dryer.
Roll the article in a towel or spin to remove excess
water.
•Close poppers and zips and fasten any buttons.
•Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
•Remove the laundry immediately after the
programme has finished.
•Use a fabric conditioning sheet to reduce static. We
recommend the sheet is pinned to an article of
laundry (using a safety pin).
•Mix the load i.e. large and small articles.
•When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
DO NOT use the tumble dryer to dry the following:
•Articles contaminated with inflammable substances
e.g. petrol, cleaning solvents, cooking oil, fats or
hair lacquer.
•Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
•Very delicate articles such as silk.
•Very large and bulky items such as duvets or
sleeping bags.
Hints & Tips on Drying
125981230.qxp 2005-09-03 11:58 Page 10

11
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Regular cleaning ensures correct drying.
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth. The CLOGGED
FILTERS light reminds you to carry out this
operation.
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
looses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1151
P1110
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1150
Maintenance and Cleaning
After a while, a withish patina due to detergent
residue on laundry forms on the filters. When this
occurs, clean the filters with warm water using a
brush. Remove the filter in the door opening as per
picture (it can be positioned with the tooth facing to
the left or to the right).
Do not use the appliance without filters.
Cleaning the condenser unit
Clean the air condenser when CLOGGED
CONDENSER light comes on.
The condenser is situated at the lower part of the
cabinet behind a small door. To open the door, push
the catch as per picture.
During the drying cycle or at the end, it is normal
for water to be present on the surface of the
condenser insertion .
To pull out the condenser, first turn the two red stops
downwards as shown below and then remove the
condenser unit holding it at the handle.
P1155
P1154
P1153
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1152
125981230.qxp 2005-09-03 11:58 Page 11

12
Clean it with a brush and rinse it under the shower if
necessary.
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser cabinet
and in the inner part of the small door with a damp
cloth.
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops upwards and
close the door.
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
The FULL TANK light reminds you this operation.
Proceed as follows:
•Pull out the reservoir
•Turn it upside down and let water flow down
•Re-fit the reservoir
P1157
P1156
P0639
The reservoir must be re-inserted correctly.
If this is not done the pilot light FULL TANK comes
on during next drying and the programme stops,
leaving the laundry damp. The buzzer will sound.
After inserting the reservoir the START/PAUSE
button has to be depressed again to allow the
programme to continue.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Cleaning the drum
When your laundry does not reach the desired degree
of dryness, in other words, when it turns out either
too dry or too damp,we advise you to clean the inside
of the drum with a cloth soaked with vinegar.
This will eliminate the slight patina that has formed
in the drum (due to residues of detergent and
softeners used in the washing, and to the lime
contained in the water), which prevents the probes
from detecting the correct degree of dryness.
Cleaning the air intake grille
Using a vacuum cleaner remove the fluff from the air
intake grille at the back of the appliance.
P1162
125981230.qxp 2005-09-03 11:58 Page 12

13
Service & Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read
the details under the heading “Something Not Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance
(found on the rating plate - see picture)
5. The purchase date.
Please note that a valid purchase receipt or
guarantee documentation is required for in-
guarantee service calls.
To buy accessories, consumables and spare parts at
our online shop please visit: http://www.zanussi-
electrolux.co.uk
Customer Care Department
For general enquiries concerning your Zanussi
Electrolux appliance or for further information on
Zanussi Electrolux products, please contact our
Customer Care Department by letter or telephone at
the address below or visit our website at
www.zanussi.co.uk
Customer Care Department
Major Appliances
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel [phone]*
* calls to this number may be recorded for training
purposes.
The tumble dryer does not
start
●The door(s) has (have) not been closed.
●The plug is not properly inserted in the power socket.
●There is no current at the socket.
●The main fuse or the fuse in the plug has blown.
●The selector dial is not set correctly.
●The water reservoir is full or not properly inserted (the FULL TANK light is on).
The programme starts in any case but it stops after approx. 4 minutes.
●The START/PAUSE Button has not been depressed.
●The DELAY START option has not been selected.
Drying takes too long or
laundry is not dry enough.
The drum light does not
light up:
●The laundry has not been spun properly.
●The filters and/or the condenser are clogged up.
●The water reservoir is full.
●The room temperature is too high.
●The selected time or drying cycle was not suitable for the laundry.
●The LOW TEMPERATURE button has been pressed.
●There is too much laundry inside the appliance.
●The dryer is not correctly installed.
Something Not Working
Symptom Possible causes
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if the END light flashes, the buzzer sounds and an alarm code is displayed, switch the machine
off and call the Service Centre.
If after the above checks, there is still a fault, call your local Service Force Centre.
●The Programme/Time selector dial is on position “RESET/OFF”.
●The lamp is defective.
125981230.qxp 2005-09-03 11:58 Page 13

14
Guarantee Conditions
Standard guarantee conditions
We, Zanussi Electrolux, undertake that if, within 12
months of the date of the purchase, this ZANUSSI
ELECTROLUX appliance or any part thereof is
proved to be defective by reason only of faulty
workmanship or materials, we will, at our option
repair or replace the same FREE OF ANY CHARGE
for labour, materials or carriage on condition that:
●The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
●The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
●The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
●All service work under this guarantee must be
undertaken by a Service Force Centre.
●Any appliance or defective part replaced shall
become the Company’s property.
●This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
●Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
●Costs incurred for calls to put right an appliance
which is improperly installed or calls to
appliances outside the United Kingdom.
●Appliances found to be in use within a
commercial environment, plus those which are
subject to rental agreements.
●Products of Zanussi Electrolux manufacture
which are NOT marketed by Zanussi Electrolux.
European guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
●The guarantee starts from the date you first
purchased your product.
●The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
●The guarantee relates to you and cannot be
transferred to another user.
●Your new home is within the European
Community (EC) or European Free Trade Area.
●The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
●The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]
125981230.qxp 2005-09-03 11:58 Page 14

15
Technical Specifications
DIMENSIONS Height 85 cm (33.5”)
Width 60 cm (23.6”)
Depth 58 cm (22.8”)
POWER SUPPLY VOLTAGE 240 V/50 Hz
TOTAL POWER ADSORBED 2450 W (13A)
MAX LOAD CAPACITY Cotton, linen 6.0.kg (13.2 lbs)
Synthetics 3 kg (06.6 lbs)
DRUM VOLUME 108 l
CONSUMPTIONS Cotton, linen 3.84 kWh (6,5 kg store dry)
Cotton, linen 3.30 kWh (6,5 kg iron dry)
Synthetics 1.60 kWh (3 kg store dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Installation Instructions
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
125981230.qxp 2005-09-03 11:58 Page 15

16
Adjusting the level of conductivity
Water contains, a variable quantity of limestone and
mineral salts of which quantities vary according to
geographical locations thus varying its conductivity
values.
Relevant variations of the conductivity of the water
compared to those prefixed by the factory could
slightly influence the residual humidity of the
laundry at the end of the cycle.
Your dryer allows you to regulate the sensitivity of
the drying sensor based on conductivity values of the
water by using the following procedure.
Procedure:
Turn the programme selector dial to switch on the
appliance
In selection mode press simultaneously the buttons 3
and 6until «C0» appears on the digits.
Adjusting the level of
conductivity:
Press the button 5 sequentially: the level of
conductivity is indicated by the lighting of the
horizontal hyphens.
6
3
245
Start/
Pause
No
Buzzer Delay
Start
Drying
Cooling
End
Full Tank
Quick
Dry
Low
Temperature
ZDC 5370W
6
3
12 45
COTTON
Extra dry
Ready to wear
Iron dry
Slightly damp
Store dry
Wring dry
Store
dry
Extra dry
Iron dry
E TRA
PROGRAMMES
Start/
Pause
No
Buzzer
Door Delay
Start
Drying
Cooling
End
Full Tank
RESET/
OFF
Quick
Dry
Low
Temperature
60 min
Cooling
SYNTHETIC
Easy iron
90 min
30 min
Baby dry
ZDC 5370W
1.25
Normally, the appliance is factory-set to the
highest level; however, certain models may be
configured differently.
Memorizing the new
setting:
Simultaneously press down the buttons 3and 6until
the previous drying cycle time appears again on the
display and the buzzer sounds.
Display Conductivity degree Approximative value
(µS/cm)
CC00Low < 300
CC00Medium 300 - 600
CC00High > 600
125981230.qxp 2005-09-03 11:58 Page 16

17
Stacking kit (optional accessory)
It should be possible to stack your new dryer on top
of a front loading washing machine with cover’s
depth between 48 and 60 cm.
Read carefully the instructions supplied with the kit.
Please contact your local Service Force Centre for
further advice.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest Zanussi Service Force
Centre.
This will be a chargeable option.
Electrical connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be observed.
Should the appliance power supply cable
need to be replaced, this must be carried out
by our Service Centre.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the
appliance’s rating plate. (See picture on page 4).
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved BS 1363/A fuse
must be used.
P1148
Unpacking
Warning !
Slide out the polythene bag containing the
polystyrene block before using the appliance.
Pull off adhesive strips from inside machine on
top of drum
Should the appliance be moved, it must be
transported vertically.
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grilles at the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
The feet must never be removed.
Do not restrict the floor clearance through deep-
pile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Important
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room temperature
must not be lower than +5°C and higher than +35°C, as
it may affect the performance of the appliance.
P1106
125981230.qxp 2005-09-03 11:58 Page 17

18
Should the plug need to be replaced for any reason,
proceed as described below. The wires in the mains lead
are coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13 A
P1041
E
N
L
Permanent connection
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green earth
cable at any point.
125981230.qxp 2005-09-03 11:58 Page 18

© Electrolux plc 2005
From the Electrolux Group. The world’s No. 1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.
125981230.qxp 2005-09-03 11:58 Page 20
