Zanussi ZDC46130S User manual

User
Manual
Tumble
Dryer
ZDC 46130 S
ZDC 46130 W
125986546.qxp 2008-01-23 10:32 Page 1

2
Welcome to the world of Electrolux
Thank you for choosing a first class product from
Electrolux, which hopefully will provide you with
lots of pleasure in the future. The Electrolux
ambition is to offer a wide variety of quality
products that make your life more comfortable.
You find some examples on the cover in this
manual. Please take a few minutes to study this
manual so that you can take advantage of the
benefits of your new machine. We promise that it
will provide a superior User Experience delivering
Ease-of-Mind. Good luck!
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or
correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on
the use of the appliance.
Tips and information about economical and ecological use of the machine are marked with
this symbol.
Important safety information . . . . . . . . . . 3
Description of the appliance . . . . . . . . . . 5
Controls panel and their functions . . . . 5-6
Drying programmes. . . . . . . . . . . . . . . . . 7
Before the first use . . . . . . . . . . . . . . . . . 8
Drying hints. . . . . . . . . . . . . . . . . . . . . . 8-9
Operating sequence. . . . . . . . . . . . . 10-12
Care and cleaning . . . . . . . . . . . . . . 13-15
Something not working. . . . . . . . . . . 16-17
Technical data . . . . . . . . . . . . . . . . . . . . 18
Consumption values . . . . . . . . . . . . . . . 18
Installation . . . . . . . . . . . . . . . . . . . . . . . 19
Electrical connection . . . . . . . . . . . . . . . 20
Environment concerns. . . . . . . . . . . . . . 21
Guarantee Conditions . . . . . . . . . . . . . . 22
Service & Spare Parts. . . . . . . . . . . . . . 23
Contents
125986546.qxp 2008-01-23 10:32 Page 2

3
Important safety information
In the interest of your safety and to
ensure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings. To avoid unnecessary
mistakes and accidents, it is important to
ensure that all people using the appliance
General safety
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for
their safety.
• Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
•Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive dam-
age and must not be placed into the
machine.
• In order to avoid danger of fires caused by
excessive drying, do not use appliance to
dry the following items: Cushions, quilts and
the like (these items accumulate heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be dried
in the tumble dryer.
•Always unplug the appliance after use,
clean and maintenance.
• Under no circumstances should you attempt
to repair the machine yourself. Repairs car-
ried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre.Always
insist on genuine spare parts.
• Items that have been soiled with sub-
stances such as cooking oil acetone, petrol,
kerosene, spot removers, turpentine, waxes
and wax removers should be washed in hot
water with an extra amount of detergent
before being dried in the tumble dryer.
• Danger of explosion: Never tumble dry
items that have been in contact with inflam-
mable solvents (petrol, methylated spirits,
dry cleaning fluid and the like).As these
substance are volatile, they could cause an
explosion. Only tumble dry items washed
with water.
• Risk of fire: items that have been spotted
or soaked with vegetable or cooking oil con-
stitute a fire hazard and should not be
placed in the tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse
cycle before loading your tumble dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments to be loaded into appli-
ance
are thoroughly familiar with its operation
and safety features. Save these
instructions and make sure that they
remain with the appliance if it is moved or
sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
125986546.qxp 2008-01-23 10:32 Page 3

4
WARNING!
Never stop a tumble dry before the end of
the drying cycle unless all items are
quickly removed and spread out so that
the heat is dissipated.
RISK OF FIRE!
Installation
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it
and contact the Service Centre.
•All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this
is not adhered to. See relevant section in
the user manual.
• The final part of a tumble dryer cycle occurs
without heat ( cool down cycle ) to ensure
that the items are left at a temperature that
ensures that items will not be damaged.
•Any electrical work required to install this
appliance should be carried out by a quali-
fied electrician or competent person.
• Care must be taken to ensure that the appli-
ance does not stand on the electrical supply
cable.
• If the machine is situated on a carpeted
floor, please adjust the feet in order to allow
air to circulate freely.
•After having installed the appliance, check
that it is not pressing or standing on its
electrical supply cable.
• If the tumble dryer is placed on top of a
washing machine, it is compulsory touse
the stacking kit (optional accessory).
Use
• This appliance is designed for domestic
use. It must not be used for purposes other
than those for which it was designed.
• Only wash fabrics which are designed to be
machine dried. Follow the instructions on
each garment label.
• Do not dry unwashed items in the tumble
dryer.
• Do not overload the appliance. See the rel-
evant section in the user manual.
• Clothes which are dripping wet should not
be placed in the dryer.
• Garments which have been in contact with
volatile petroleum products should not be
machine dried. If volatile cleaning fluids are
used, care should be taken to ensure that
the fluid is removed from the garment
before placing in the machine.
• Never pull the power supply cable to
remove the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power
supply cable, the control panel, the working
surface or the base are damaged so that
the inside of the tumble dryer is accessible.
• Fabric softeners, or similar products should
be used as specified by the fabric softener
instructions.
Child safety
• This machine is not intended for use by
young children or infirm persons without
supervision.
• Children should be supervised to ensure
that they do not play with the appliance.
• The packaging components (e.g. plastic
film, polystyrene) can be dangerous to chil-
dren - danger of suffocation! Keep them out
of children’s reach.
• Keep all detergents in a safe place out of
children’s reach.
• Make sure that children or pets do not climb
125986546.qxp 2008-01-23 10:32 Page 4

5
12345
Controls panel and their functions

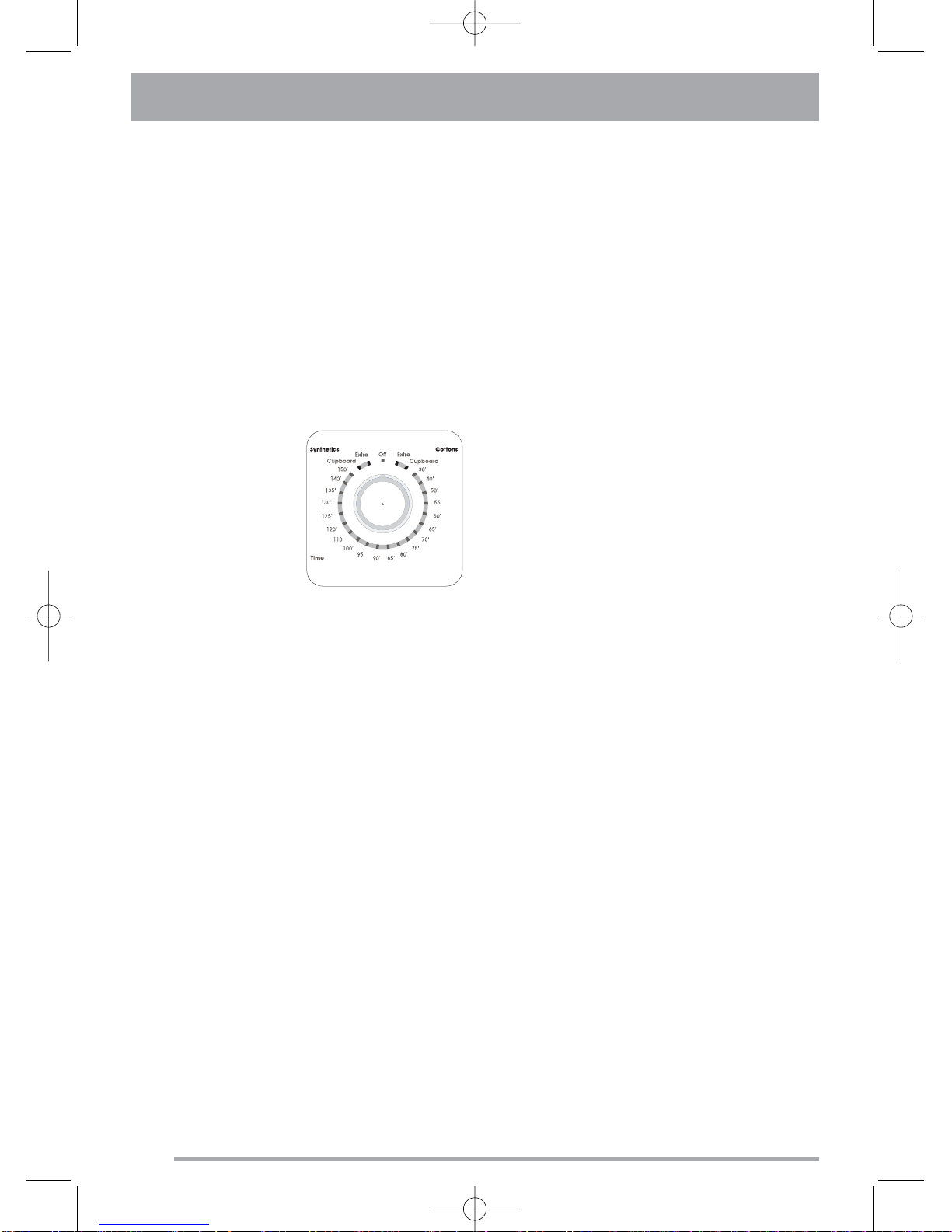

PROGRAMME TIME
SELECTOR DIAL
Allows you to select electronically controlled or time controlled
drying.
Turn the dial to the required programme or time.
Description of the appliance
1
2
3
4
5
6
1 Control panel
2 Fluff filters
3 Rating Plate
4 Consenser Unit
5 Water reservoir
6Adjustable feet
1
125986546.qxp 2008-01-23 10:32 Page 5

6

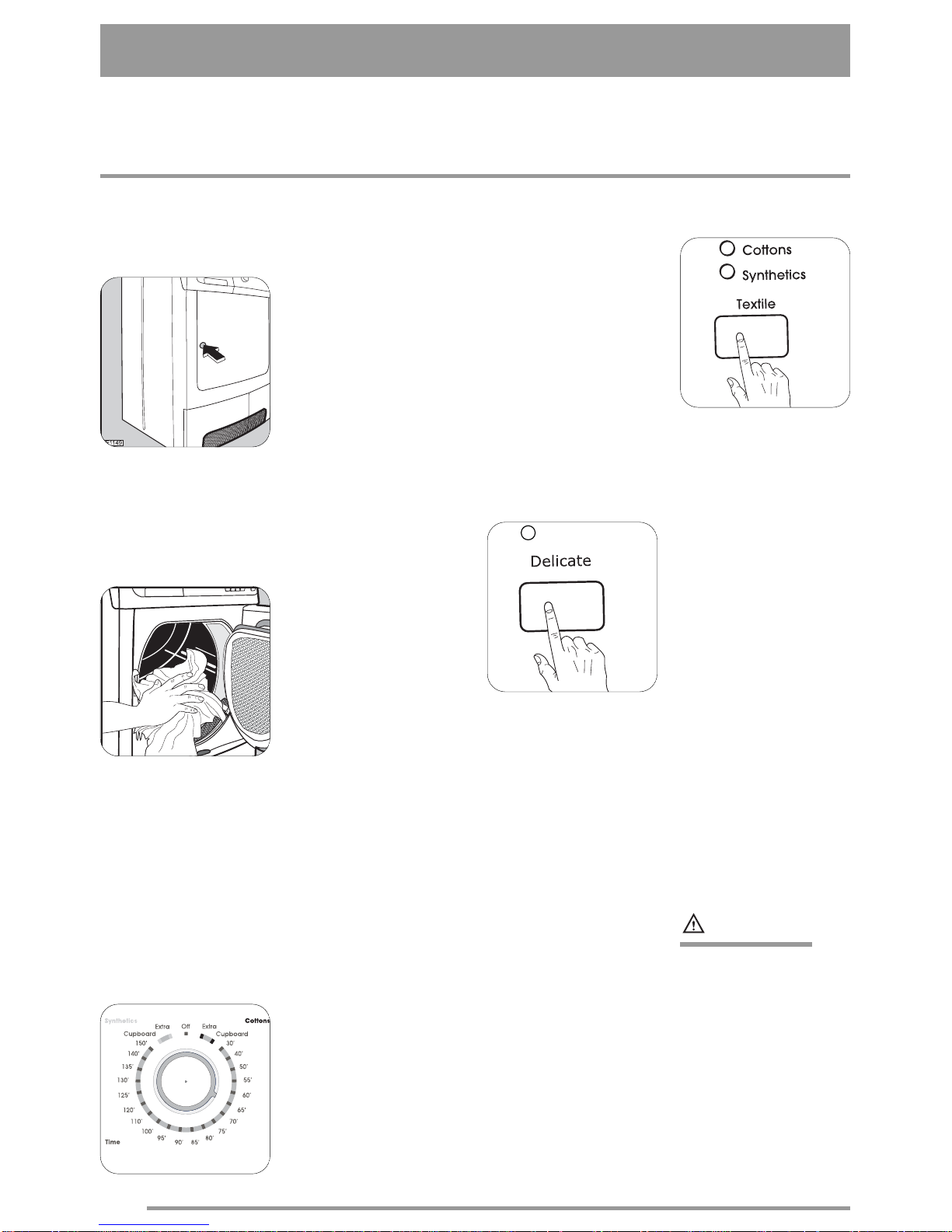

START/PAUSE button 1.Select programme.
2. Press the START/PAUSE button. The relevant light will stop
flashing.
TEXTILE button
1.Select programme. and press the TEXTILE button.
• You can select 2 different options:
- Cotton Cycle: to be used for cotton,
- Synthetics to be used for synthetic or delicate items.
3. Press the START/PAUSE button. The relevant light will stop flashing.
DELICATE button
1.Select programme.
2. Press the DELICATE button.The relevant light will light up.
3. Press the START/PAUSE button. The relevant light will stop flashing.
DELICATE is only suitable for use with loads of up to 3kg!
When the programme has finished the pilot lights End is on.
INDICATOR LIGHTS
• “Drying” light
• “Cooling” light
• “End/Anticrease” light
• “Filter” light
• “Empty Tank” light
• “Condenser” light
2
3
4
5
125986546.qxp 2008-01-23 10:32 Page 6

7
Programme Max load
kg Type of laundry Options Description of programme
Extra 6 Cottons Textile
-Cotton Drying thick or multi-layered textiles, e.g.
terry towelling items
Cupboard 6 Cottons Textile
-Cotton
Thorough drying of fabrics of even
thicknesses, e.g. terry towelling items,
knitted items, towels.
Extra 3 Synthetics Textile
-Synthetics Thorough drying of thick or multilayered
fabrics, e.g. pullovers, bedding, table linen.
Cupboard 3 Synthetics Textile
-Synthetics
For thin fabrics which are not ironed, e.g.
easy care shirts, table linen, baby clothes,
socks, lingerie with bones or wires.
Time
6
3
Cotton
Synthetics
Textile
-Synthetics
-Cotton
-Delicate
If the TIME programme has been
selected, programme duration time of 30
minutes up to 150 minutes can be set by
intervals of 5 minutes or 10 minutes.
Drying thick or multi-layered textiles, e.g.
terry towelling items.
Drying programmes
125986546.qxp 2008-01-23 10:32 Page 7

8
Before loading the laundry
Never tumble dry the following:
Particularly delicate items such as net cur-
tains, woollen, silk, fabrics with metal trim,
nylon tights, bulky materials such as anoraks,
blankets, eiderdowns, sleeping bags, feather
quilts and any items containing rubber foam
or materials similar to rubber foam.
• Always follow the instructions on garment
labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners
to prevent small laundry items getting tangled
inside them. Close press studs, zips and
hooks and tie belts and apron strings.
• Sort laundry according to type and degree on
drying required.
• Do not over-dry laundry, this avoids creasing
and saves energy.
• Avoid drying dark clothes with light coloured
fluffy items such as towels as they could
attract the fluff.
• The laundry must be thoroughly spun before
tumble drying.
•Easy-care items, too, e.g. shirts, should be
briefly pre-spun before drying (depending on
crease resistance approx. 30 seconds or
using the special brief spin programme on
your washing machine).
• Knitted textiles (knitted underwear) may
shrink a little during drying. Please do not
overdry items of this type. It is advisable to
allow for shrinkage when choosing the size of
new purchases.
• You can also put starched items into your
dryer. However, to achieve the desired
starched effect, choose the programme “iron
dry”. To remove any starch residues, wipe out
the internal drum after drying with a moist
cloth and then rub it dry.
• To avoid a static charge when drying is com-
pleted, use either a fabric softener when you
are washing the laundry or a fabric condition-
er specifically for tumble dryers.
• Remove the laundry when the dryer has fin-
ished drying.
• If individual items are still damp after drying,
Before the first use
Drying hints
Ensure that the electrical connections
comply with the installation instructions.
• Remove the polystryrene block and
any material from the drum.
• Before using your tumble dryer for the
first time, we recommend that you place
a few damp cloths inside the appliance
and dry for 30 minutes.
There may be dust inside a brand new
tumble dryer.
125986546.qxp 2008-01-23 10:32 Page 8

9
set a brief post-drying time, but at least 30
minutes. This will be necessary particularly
for multilayered items (e.g. collars, pockets,
etc.).
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins,
pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
To avoid laundry becoming tangled: close zips,
button up duvet covers and tie loose ties or
ribbons (e.g. of aprons).
Turn items with double-layered fabrics inside out
(e.g. with cotton lined anoraks, the cotton layer
should be outermost). These fabrics will then dry
better.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
Try to load to the maximum capacity of the
machine as small loads are uneconomical.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
125986546.qxp 2008-01-23 10:32 Page 9

10
1 Connect the appli-
ance.
2.Open the door.
3. Load the items
one at a time, shak-
ing them out loosely.
4. Close the door.
Please check the
laundry does not get
caught between the
door and filter.
5. Turn the pro-
gramme selector
dial to the required
programme.
The light Start/Pause
starts to flash.
The selector dial is
divided into following
sections:
-Cottons
-Synthetics
-Time
Allows you to select
electronically con-
trolled or time con-
trolled drying.
Turn the dial to the
required programme
or time.
Electronically con-
trolled drying (auto-
matic)
The appliance runs
these programmes
with the help of
probes which detect
the degree of damp-
ness of the laundry.
Simply select the pro-
gramme according to
the type of laundry
and degree of drying
required.
At the end of the pro-
gramme the selector
dial must be turned to
position O, to switch
the machine off.
6. Selecting addi-
tional functions
Depending on the
programme, different
functions can be com-
bined. These must be
selected after choos-
ing the desired pro-
gramme and before
depressing the
Start/Pause button.
7. Select Delicate
Pressing this button
allows drying to be
performed at a lower
temperature, for deli-
cate items.
The corresponding
pilot light comes on.
This option can also
be used for time con-
trolled drying.
DELICATE is only
suitable for use with
loads of up to 3kg!
When the programme
has finished the pilot
lights End is on.
8. Select the Textile
Press the Textile but-
ton repeatedly, to
select the desired
option. The relevant
light will light up.
You can select 2 dif-
ferent options:
Cotton Cycle: to be
used for cotton,
When the programme
has finished the pilot
lights End is on.
Synthetics to be
used for synthetic or
delicate items.
When the programme
has finished the pilot
lights End is on.
Information:
Press 'Delicate' and
'Textile' buttons
simultaneously to
deactivate the
buzzer.Press these
buttons again to reac-
tivate the buzzer.
Operating sequence

11
9. Select the
Start/Pause
Press this button to
start the dryer after
having selected the
programme and the
options.
The relevant light will
stop flashing. If the
programme selector
dial is turned to anoth-
er position, when the
machine is running,
the buzzer will sound
and the programme
phase indicator lights
will flash.
The drum turns alter-
nately in both direc-
tions during drying.
All drying pro-
grammes end with a
10 minute cooling
phase (light Cooling is
on).
You may remove the
laundry after this
phase.
The lights Empty Tank
and Filter illuminate
and the buzzer
sounds.
If the door of the
appliance or the small
door at the bottom is
opened while the pro-
gramme is running,
this button must be
pressed again after
closing the door in
order to restart the
programme from the
point at which it was
interrupted.
This button must be
depressed also after a
power failure and
after having reinserted
the water reservoir, if
it has been emptied in
the middle of a pro-
gramme after lighting
up of the light Empty
Tank.
In both cases the light
of the Start/Pause
button flashes to
remind you that the
start button needs to
be pressed again.
10. Indicator lights
These lights indicate
the following functions:
“Drying” light
This light indicates
that the appliance is
in the drying phase.
“Cooling” light
This light indicates
that the appliance is
in the cooling phase.
At the end of drying,
there is a 10 minute
cooling phase to cool
the laundry.
“End of programme”
light
This light is on at the
end of the cooling
phase, during the
anti-creasing phase
and at the end of the
programme.
“Filter cleaning”
light
This light illuminates
at the end of the pro-
gramme to remind
you that the filters
must be cleaned.
“Water reservoir
full” light
This light comes on at
the end of the pro-
gramme to remind
you that the water
reservoir must be
emptied out. If this
light illuminates during
a programme this
means that the water
reservoir is full. The
buzzer sounds, the
programme stops, the
light of the
Start/Pause button
flashes.
“Condenser clean-
ing” light
It comes on every 80
cycles to remind you
that the condenser
must be cleaned.
11. At the end of the
programme
All drying pro-
grammes end with a
10 minute cooling
phase.
You may remove the
laundry after this
phase. The lights
Filter and Empty Tank,
illuminate.
If the laundry is not
removed at the end of
the cycle, the dryer
performs an anti-
creasing phase (dura-
tion: 30 minutes maxi-
mum). If you do not
remove the laundry,
the dryer will stop
automatically at the
end of the anti-creas-
ing phase.
The Lights Filter and
The Empty Tank
remain lit and the
buzzer sounds for 2
minutes.
Turn the programme
selector dial to “Off” to
125986546.qxp 2008-01-23 10:33 Page 11

12
switch the machine
off. Remove the laun-
dry from the drum and
carefully check that
the drum is empty.
Turn the programme
selector dial to “Off”;
all the lights go out.
The appliance is
switched off.
12. Remove the
laundry.
If you open and then
close the door before
turning the selector
dial to“Off” all the
lights corresponding
to the phases making
up the performed pro-
gramme come on.
After each use
• Clean the filters.
• Empty the water
reservoir.
Modifying the pro-
gramme
To change a pro-
gramme which is run-
ning, first cancel it by
turning the pro-
gramme selector dial
to “Off”. Select the
new programme and
press the Start button.
125986546.qxp 2008-01-23 10:33 Page 12

13

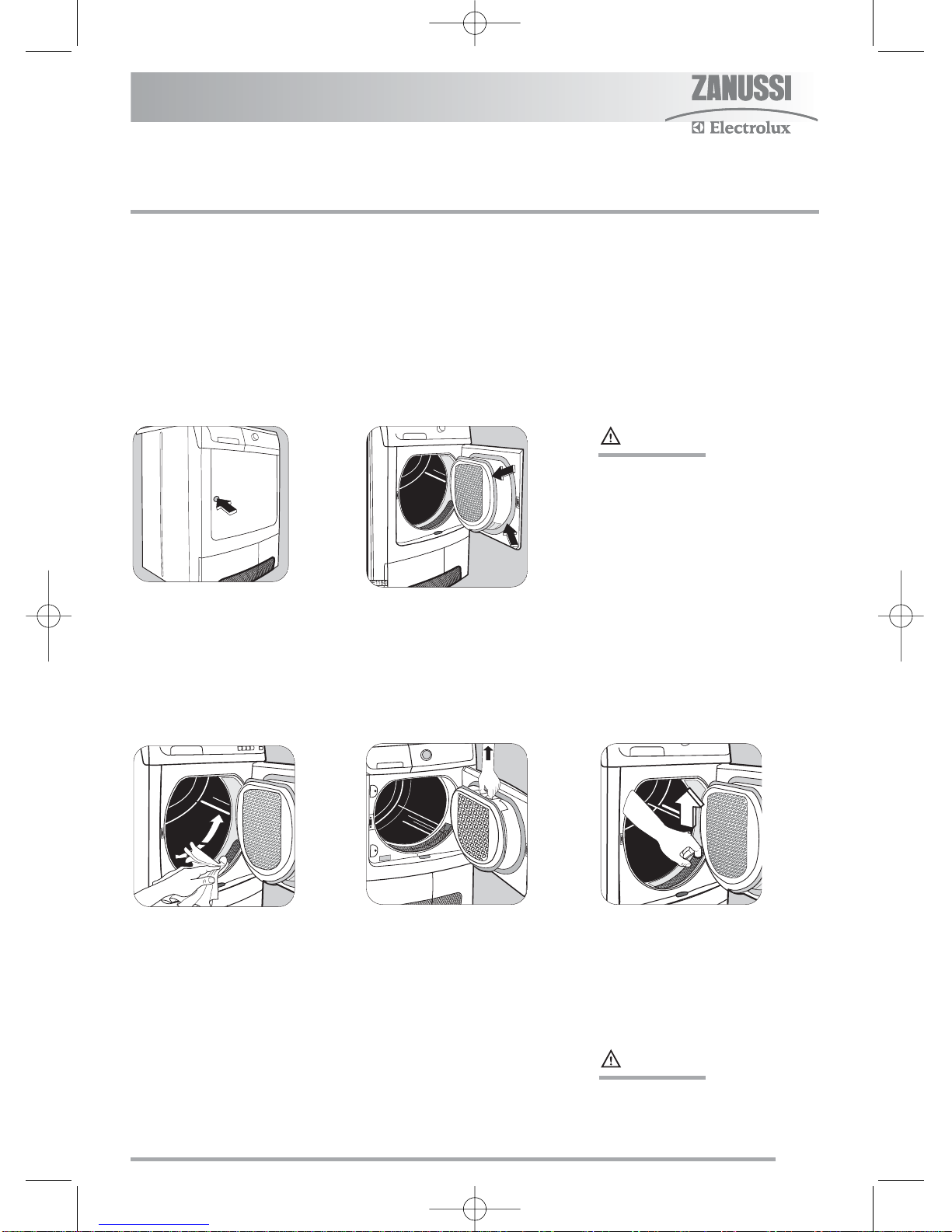

Care and cleaning
Cleanperiodicallytheinteriorpartof
thedoortoremoveanyflufffrom
thesealsaroundthefilter.Accurate
cleaningensurescorrectdrying.
Your dryer will only function well if
the filters are clean. The filters
collect all the fluff which accumu-
lates during drying and they
must therefore be cleaned at
the end of each programme,
before removing the laundry,
with a damp cloth. The filter
light is on to remind you of this
operation.
Thefilterintheinnerdoormaybe
removedforcleaning.Donotbe
alarmedbytheamountoffluff.Itis
notduetoexcessivewearcaused
bythedryer. Allfabriclosesfluff
whendryingbutitgoesun-noticed
intheair.Inatumbledryeritsimply
collectsinthefilter.Afterawhile,a
withish patina due to detergent
residue on laundry forms on
the filters.
Whenthisoccurs,cleanthefilters
withwarmwaterusingabrush.
Removethefilterinthedooropen-
ingasperpicture(itcanbeposi-
tionedwiththetoothfacingtothe
leftortotheright).
Important:
Do not use the appliance with-
out filters.
You must DISCONNECT the appliance from the electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
Open the door.
Cleaning the door
Important:
do not use methylated spirit,
thinners or similar product.
Cleaning the filters
125986546.qxp 2008-01-23 10:33 Page 13

14
1.Clean the condenser when the
light condenser comes on.
The condenser is situated at the
lower part of the cabinet behind a
small door. To open the door, push
the catch as per picture.
Duringthedrying cycleorat the end, it
isnormal for water to bepresent on the
surfaceof the condenser insertion.
2. To pull out the condenser, first
turn the two red stops downwards. 3. Then remove the condenser unit holding it at the handle.
Cleaning the condenser unit
4. Clean the rubber seal round the
condenser cabinet and in the inner
part of the small door with a damp
cloth.
Important:
Do not use pointed objects or
utensils to clean the spaces
between the plates, as this
could damage the condenser
and make it permeable.
Re-fit the condenser, turn the red
stops upwards and close the door.
Important:
Do not use this appliance if the
condenser has not been fitted.
Emptying the water reservoir
Important:
Water extracted from the laundry condenses inside the machine and is collected in a reservoir.
The reservoir must be emptied after each drying cycle to ensure efficient operation when the machine is
next used. The pilot light Empty Tank reminds you of this operation.
Proceed as follows:
125986546.qxp 2008-01-23 10:33 Page 14

15
Cleaning the air intake grille
Using a vacuum cleaner remove the fluff from the air
intake grille at the back of the appliance
Cleaning the drum
When your laundry does not reach the desired degree of
dryness, in other words, when it turns out either too dry
or too damp, we advise you to clean the inside of the
drum with a cloth soaked with vinegar.
This will eliminate the slight patina that has formed in
the drum (due to residues of detergent and softeners
used in the washing, and to the lime contained in the
water), which prevents the probes from detecting the
correct degree of dryness.
1.Open the small door at the lower
part of the cabinet.
2. Turn the yellow stop upwards.
2
1
3. Pull out the reservoir.
4. Open the small cover and let
water flow down.
• Close the small cover and re-
insert the reservoir correctly.
5. Push it until it clicks and turn the
yellow stop downwards ensure it is
firmly locked.
6. Close the small door and press
the START/PAUSE button again to
allow the programme to continue.
2
1
Important:
The reservoir must be re-insert-
ed correctly.
After emptying and inserting the
reservoir the START-button has to
be depressed again to allow the
programme to continue.
Handy tip: The condensed water
may be used in a steam iron or to
top up a car battery, etc. In this
case it must be filtered (e.g.
through a coffee filter).
125986546.qxp 2008-01-23 10:33 Page 15

16
Something not working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily
without calling out an engineer. Before contacting your local Service Centre, please carry out the
checks listed below.
During machine operation it is possible that the red Start/Pause pilot light flashes to indicate that the
machine is not working.
Once the problem has been eliminated, press the Start/Pause button to restart the programme. If
after all checks, the problem persists, contact your local Service Centre.
Malfunction Possible cause Solution
Dryer does not work.
●Mains plug is not plugged in or fuse
is not working correctly.
●Loading door is open.
●Have you pressed the START/
PAUSE button?
●Plug in at mains socket. Check fuse
in fuse box (domestic installation).
●Close loading door.
●Press the START/PAUSE button
again.
Drying results
unsatisfactory.
●Wrong programme selected.
●Lint filter clogged.
●Heatexchanger clogged withlint.
●Incorrect volume of laundry.
●Ventilationslots in baseareacovered up.
●Residue on inside surface of
drum or drum ribs.
●Conductance of water at installation
site differs from
standard setting of machine.
●Selectadifferent programmethe next
time you dry.
●Clean lint filter.
●Clean heat exchanger.
●Observe recommended loading
volumes.
●Uncoverventilation slots inbase area.
●Clean inside surface of drum and
drum ribs
●Re-programme standard setting for
degree of drying.
Loading door does not
close. ●Fine strainer not in place and/or large
mesh filter not locked in place. ●Install fine strainer and/or snap large mesh filter into place.
125986546.qxp 2008-01-23 10:33 Page 16

17

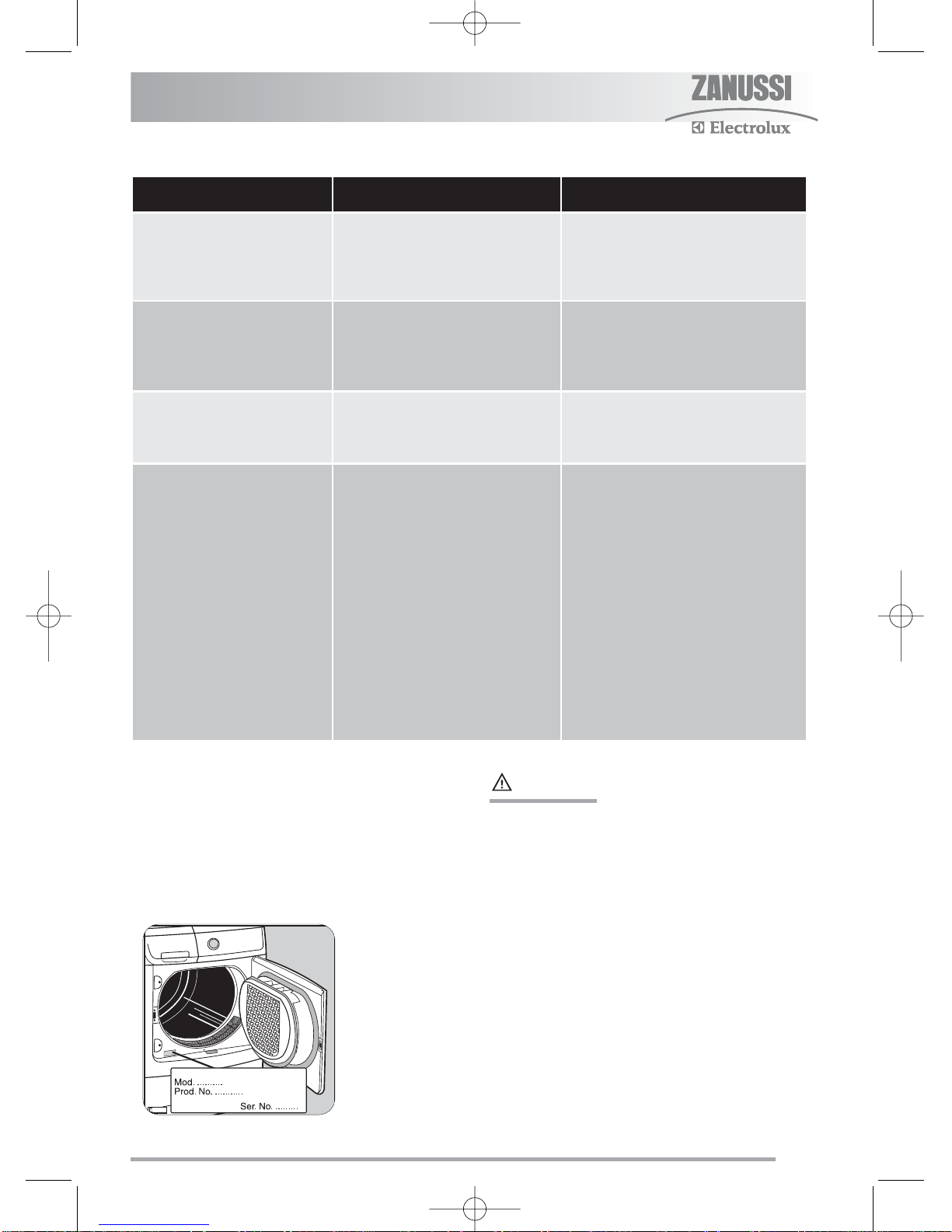

If you are unable to identify or solve the
problem, contact your local Service Centre.
Before telephoning, make a note of the model,
serial number and purchase date of your
machine: the Service Centre will require this
information.
1206
If you call out an engineer to a fault listed below,
or to repair a fault caused by incorrect use or
installation, a charge will be made even if the
appliance is under guarantee.
Malfunction Possible cause Solution
When pressing a button,
the corresponding
button flashes several
times.
●Washing protection.
After the start of the programme,
the option can no longer be set.
●Turn the programme knob to OFF. Set
the programme again
Drying cycle ends
shortly after programme starts.
END
light illuminated.
●Not enough washing loaded
or washing loaded is too
dry for selected programme.
●Select time programme or
higher drying level (e.g. EXTRADRY
instead of CUPBOARD).
Programme inactive,
Condenser
light illuminated. ●Condensate tank is full. ●Empty condensate tank, then start
programme with START/PAUSE
button.
Drying cycle lasts an
unusually long time.
Note:
After around 5 hours
the drying cycle ends
automatically (see
„Drying cycle complete“)
●Lint filter clogged.
●Heat exchanger clogged with lint.
●DELICATE button pressed and
load volume too big.
●Load volume too big.
●Laundry insufficiently predrained.
●Clean lint filter
●Clean heat exchanger.
●DELICATE is only suitable for use
with loads of up to 3 kg!
●Reduce load volume.
●Laundry must be adequately
pre-drained.
Important:
125986546.qxp 2008-01-23 10:33 Page 17

18
Technical data
Dimensions Width 60 cm
85 cm
58 cm
Height
Depth
Depth with loading door open 109 cm
Cotton
Synthetics
Maximum Load 6 kg
3 kg
Electrical connection Voltage -
Overall power - Fuse Information on the electrical connection is given on the rating plate on the inner edge of the appliance door
Use Domestic
+ 5°C + 35°C
The consumption values have been established
under standard conditions.
They may deviate when the machine is operated
in domestic circumstances.
1) Max Cottons load: 6 kg
2) Max Synthetics load: 3 kg
Consumption values
Programme Programme duration
(in minutes)
Energy
consumption
(in kWh)
Revolutions per
minute
Cottons Cupboard1) 115 3.8 1000
Cottons Cupboard1) 105 3.3 1400
Synthetics Cupboard2) 48 1.36 1200
Consumption values
125986546.qxp 2008-01-23 10:33 Page 18

19
It is dangerous to alter the specifica-
tions or attempt to modify this prod-
uct in any way.
Care must be taken to ensure that
the appliance does not stand on the
electrical supply cable.
Any electrical work required to install
this appliance should be carried out
by a qualified electrician or compe-
tent person.
Important:
The appliance must not bulit-in.
Unpacking
Slide out the polythene bag with the
polystyrene stuffing before using the appliance
Pull off adhesive strips from inside machine on
top of drum.
Should the appliance be moved, it must be
transported vertically.
The appliance must not be installed behind a
lockable door, a sliding door a door with a
hinge on the opposite side to that of the
appliance.
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean
place, where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation
grille or the air intake grilles at the back of the
machine.
To keep vibration and noise to a minimum when
the dryer is in use, it should be placed on a firm,
level surface.
Onceinits permanent operating position, check that
thedryeris absolutely level with the aid of a spirit level.
Ifitis not, raise or lower the feet until it is.
Thefeetmust never be removed. Do not restrict the
floorclearancethrough deeppile carpets, strips of
woodorsimilar.Thismightcauseheatbuild-upwhich
wouldinterferewith the operation of the appliance.
Important:
The hot air emitted by the tumble dryer can
reach temperatures of up to 60°C. The
appliance must therefore not be installed on
floors which are not resistant to high
temperatures.
Whenoperatingthe tumble dryer, the room
temperaturemustnot be lower than +5°C and higher
than+35°C,as it may affecttheperformanceofthe
appliance.
Installation
125986546.qxp 2008-01-23 10:33 Page 19

20

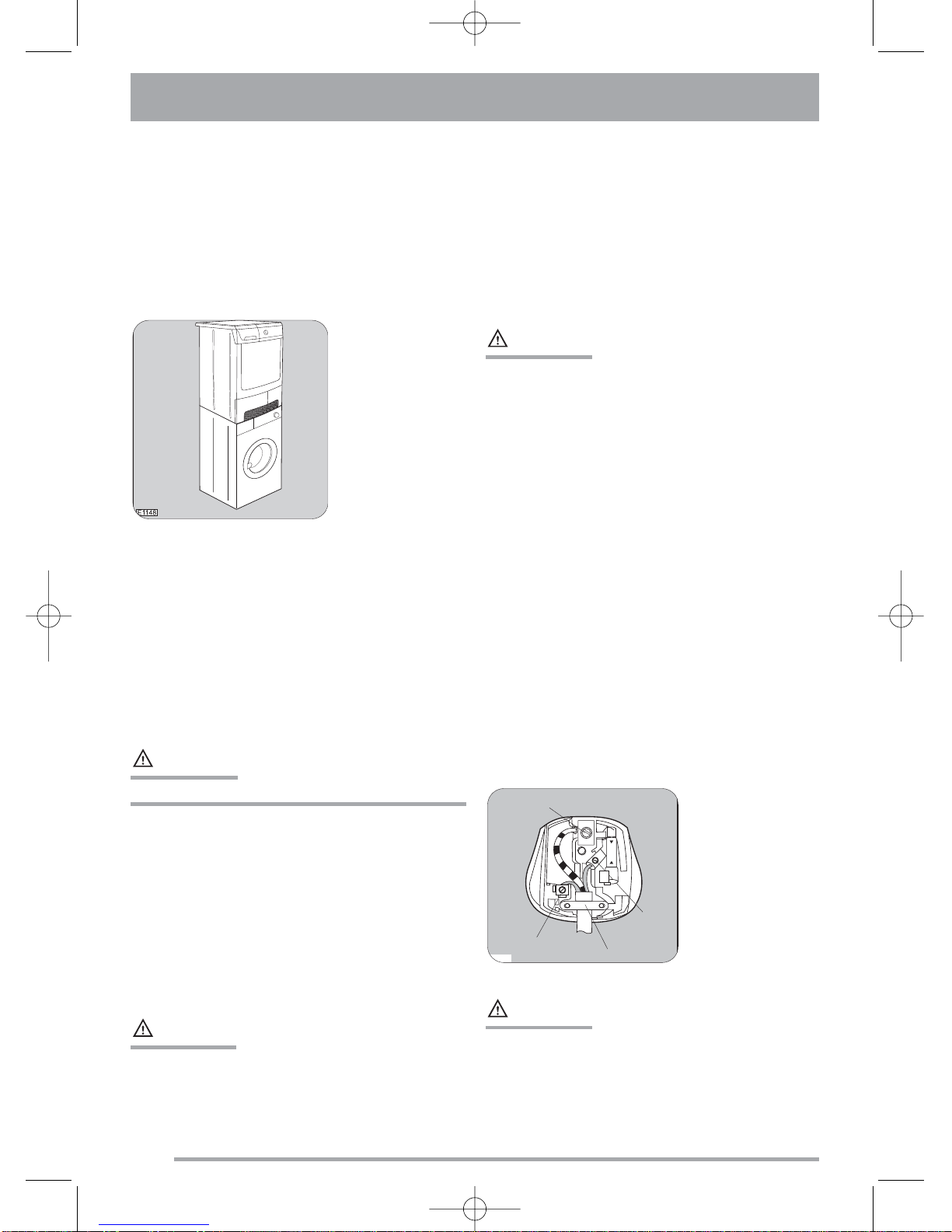

Stacking kit
Aspecial stacking kit is available through your
dealer, to enable the mounting of the dyer on top
of a front loading washing machine with cover’s
depth between 48 and 60 cm.
Read carefully the instructions supplied with the kit.
Door reversal
To make it easier to load or unload the laundry
the door can be reversed.
Reversing the door is not possible if installed
behind a door that opens in the opposite
direction.
Important:
This operation must be carried out by qualified
personnel.
Please contact the nearest Service Centre.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability
should this safety measure not be observed.
The manufacturer declines any responsibility
for damage or injury through failure to
comply with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this must be carried out
by our Service Centre.
Important:
Should the appliance power supply cable
need to be replaced, this must be .carried out
by our Service Center.
Before switching on, make sure the electricity
supply voltage is the same as that indicated on
the appliance’s rating plate.
The appliance is supplied with a 13amp plug
fitted.
In the event of having to change the fuse in the
plug supplied, a 13ampASTAapproved (BS1362)
fuse must be used.
Should the plug need to be replaced for any
reason, proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
Important:
The plug must be accessible after the
appliance has been installed.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13 A
P1041
E
N
L
Electrical connection
125986546.qxp 2008-01-23 10:33 Page 20
