SAFETY INFORMATION
Before beginning the installation and use of this appliance,
carefully read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result of
incorrect installation or usage. Always keep the instructions in a
safe and accessible location for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons with very
extensive and complex disabilities shall be kept away unless
continuously supervised.
•Children of less than 3 years of age should be kept away
unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when the door
is open.
•If the appliance has a child safety device, it should be activated.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
GENERAL SAFETY
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing machine, use the
stacking kit. The stacking kit, available from your authorized
vendor, can be used only with the appliance specified in the
2

instructions supplied with the accessory. Read it carefully
before installation (refer to the Installation leaflet).
•The appliance can be installed as freestanding or below a
kitchen counter with correct space (refer to the Installation
leaflet).
•Do not install the appliance behind a lockable door, a sliding
door or a door with a hinge on the opposite side, that would
prevent the appliance door from being fully open.
•The ventilation opening in the base must not be covered by a
carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
•Connect the mains plug to the mains socket only at the end of
the installation process. Make sure that the mains plug is
accessible after installation.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre or
similarly qualified persons to avoid an electrical hazard.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled with
industrial chemicals.
•Wipe away lint or packaging debris that has accumulated
around the appliance.
•Do not run the appliance without a filter. Clean the lint filter
before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in
the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in the
tumble dryer.
3

•Fabric softeners, or similar products, should only be used as
specified by the product manufacturer’s instructions.
•Remove all objects from items that could be a source of fire
ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
•Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
SAFETY INSTRUCTIONS
INSTALLATION
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with
the appliance.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Do not install or use the appliance where the
temperature can be lower than 5°C or higher
than 35°C.
• The floor area on which the appliance is to be
installed must be flat, stable, heat resistant and
clean.
• Make sure that there is air circulation between
the appliance and the floor.
• Always keep the appliance vertical when it is
being moved.
• The rear surface of the appliance must be put
against a wall.
• When the appliance is in its permanent position,
check if it is levelled correctly with the aid of a
spirit level. If it is not, adjust the feet accordingly.
ELECTRICAL CONNECTION
WARNING! Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension
cables.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug
with wet hands.
• This appliance complies with the E.E.C.
Directives.
USE
WARNING! Risk of injury, electric
shock, fire, burns or damage to the
appliance.
• This appliance is for household use only.
• Do not dry damaged (torn, frayed) items that
contain padding or fillings.
• Only dry fabrics which are suitable for drying in
a tumble dryer. Follow the instructions on the
fabric label.
• If you have washed your laundry with a stain
remover start an extra rinse cycle before you
start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It can cause
health problems to people and pets.
• Do not sit or stand on the open door of the
appliance.
• Do not dry dripping wet clothes in a tumble
dryer.
CARE AND CLEANING
WARNING! Risk of injury or damage
to the appliance.
• Do not use water spray and steam to clean the
appliance.
• Clean the appliance with a moist soft cloth. Only
use neutral detergents. Do not use any abrasive
products, abrasive cleaning pads, solvents or
metal objects.
4

DISPOSAL
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Remove the door catch to prevent children or
pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with
local requirements for the disposal of Waste
Electrical and Electronic Equipment (WEEE).
5

EASY START
PRODUCT DESCRIPTION
1 2
3
4
5
8
9
6
10
7
1Water container
2Control panel
3Appliance door
4Primary Filter
5Bottom cover with the airflow slots
WARNING! Do not put any object
on the bottom cover
6Buttons to open the bottom cover
7Adjustable feet
8Condenser door
9Locks for condenser door
10 Rating plate
For ease of loading laundry or ease of
installation the door is reversible. (see
separate leaflet).
CONTROL PANEL
1 2 3 4 5 6
8
7
1On / Off button
2Programme selection touchpad
3Dryness selection touchpad
4Options selection touchpad
5Start/Pause touchpad
6Child lock indicator
7Delay touchpad
8Indicators: Filter , Condenser , Tank
6

Press the touch buttons with your
finger in the area with the symbol or
name of the option. Do not wear
gloves when you operate the control
panel. Make sure that the control panel
is always clean and dry.
PROGRAMME TABLE
Programmes Type of load Load (max.)1) /
Fabric mark
2) Cottons
Eco
Cycle to be used to dry cotton with "cotton cupboard" dry-
ness level, with maximum energy saving. 7kg/
Cottons Cycle defined to dry all types of cotton ready to store (cup-
board dry). 7kg/
Synthetics Synthetic and mixed fabrics. 3,5kg/
Mix Cotton and synthetic fabrics. Low temperature programme.
Delicate programme with warm air. 3kg/
Easy Iron+
Easy care fabrics for which a minimum of ironing is neces-
sary. The drying results can be different from one type of
fabric to another. Shake the items before putting them in
the appliance. When the programme has ended, immediate-
ly remove the items and put them on a hanger.
1kg (or 5
shirts)/
Duvet Single or double duvets and pillows (with feather, down or
synthetic fillings). 3kg/
Refresh Refreshing textiles that were in storage. 1kg
Time 30 min Time programme to dry individual items of laundry. 1kg/
1) The maximum weight refers to dry items.
2) The Cottons Cupboard Dry ECO programme is the “Standard cotton programme” according to
Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the
most efficient programme in terms of energy consumption for drying wet cotton laundry.
OPTIONS
DRYNESS
This function helps to get the laundry more dried.
There are 4 possible selections:
• Extra Dry
• Strong Dry (for Cotton only)
•Cupboard Dry
• Iron Dry
ANTICREASE 90 MIN
Extends the anti-crease phase by 60 minutes at the
end of the drying cycle. This function reduces
creases. The laundry can be removed during the
anti-crease phase.
7

TIME 60 MIN
Extends of 30 minutes the Time 30 min programme.
DELICATE
With this option you can set a delicate drying
programme that has a low temperature. Use this
option with a fabrics that have the symbol on
the fabric label (e.g. acrylic, viscose).
OPTIONS TABLE
Programmes
Anticrease
90 min Time 60 min Delicate
Cottons
Eco ■■■
Cottons ■■■■■ ■
Synthetics ■■ ■ ■ ■
Mix ■■
Easy Iron+ ■■
Duvet ■■
Refresh ■
Time 30 min ■ ■ ■
SETTINGS
A B C D FE
A. On / Off button
B. Programme selection touchpad
C. Dryness selection touchpad
D. Options selection touchpad
E. Start/Pause touchpad
F. Delay touchpad
CHILD LOCK FUNCTION
This option prevents children to play with the
appliance while a programme operates. The
programme knob and the touchpads are locked.
Only the on/off button is unlocked.
Activating the child lock option:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold touchpads (C) and (D) at the
same time. The child lock indicator comes on.
The child lock indicator comes on.
It is possible to deactivate the child
lock option while a programme
operates. Press and hold the same
touchpads until the child lock indicator
goes off.
8

BUZZER ON/OFF
To deactivate or activate the acoustic signals, press
and hold for approximately 2 seconds touch
buttons (B) and (C) at the same time.
ADJUSTMENT OF THE REMAINING LAUNDRY
MOISTURE DEGREE
To change the default degree of the remaining
moisture of the laundry:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold buttons (B) and (D) at the same
time.
One of the these indicators comes on:
• Tank - the maximum dry laundry
• Filter - the more dry laundry
• Condenser - the standard dry laundry
4. Press the button (E) again and again until the
indicator of the correct level comes on.
5. To confirm the adjustment, press and hold
buttons (B) and (D) at the same time for
approximately 2 seconds.
BEFORE FIRST USE
Before you use the appliance for the first time:
• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour programme with moist laundry.
DAILY USE
START A PROGRAMME WITHOUT DELAY
START
1. Prepare the laundry and load the appliance.
CAUTION! Make sure that when
you close the door, the laundry
does not get caught between the
appliance door and the rubber
seal.
2. Press the on/off button to activate the
appliance.
3. Set the correct programme and options for the
type of load.
4. Press the Start/Pause touch button.
The programme starts.
STARTING THE PROGRAMME WITH DELAY
START
1. Set the correct programme and options for the
type of load.
2. Press the delay start button again and again as
necessary.
You can delay the start of a
programme by 3, 6 or 9 hours.
3. Press the Start/Pause button.
The LEDs (9H, 6H, 3H) change on each 3 hours.
CHANGE A PROGRAMME
1. Press the on/off button to deactivate appliance
2. Press the on/off button to activate the
appliance.
3. Set the programme.
AT THE END OF THE PROGRAMME
When the programme is completed:
• An intermittent acoustic signal operates.
• The indicators Filter and Tank comes on.
• The Start/Pause indicator is on.
The appliance continues to operate with the crease
guard phase for approximately other 30 minutes.
The crease guard phase prevents creases from
your laundry.
You can remove the laundry before the crease
guard phase is completed. We recommend, for
better results, that you remove the laundry when the
phase is almost completed.
When the crease guard phase is completed:
• The indicators Filter and Tank comes on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate the
appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Always clean the filter and empty the
water container when a programme is
completed.
STAND-BY FUNCTION
To decrease the energy consumption, this function
automatically deactivates the appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the programme.
9

HINTS AND TIPS
PREPARING THE LAUNDRY
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron
ribbons). Tie them before you start a
programme.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton
inside out. Cotton layer must be faced
outwards.
• Always set the programme suitable for the type
of laundry.
• Do not put light and dark colours together.
• Use suitable programme for cottons, jersey and
knitwear to reduce shrinkage.
• Do not exceed the maximum load stated in the
programmes chapter or shown on the display.
• Dry only the laundry that is suitable for tumble
drying. Refer to the fabric label on the items.
• Do not dry large and small items together. Small
items can be trapped inside the large items and
remain wet.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
CARE AND CLEANING

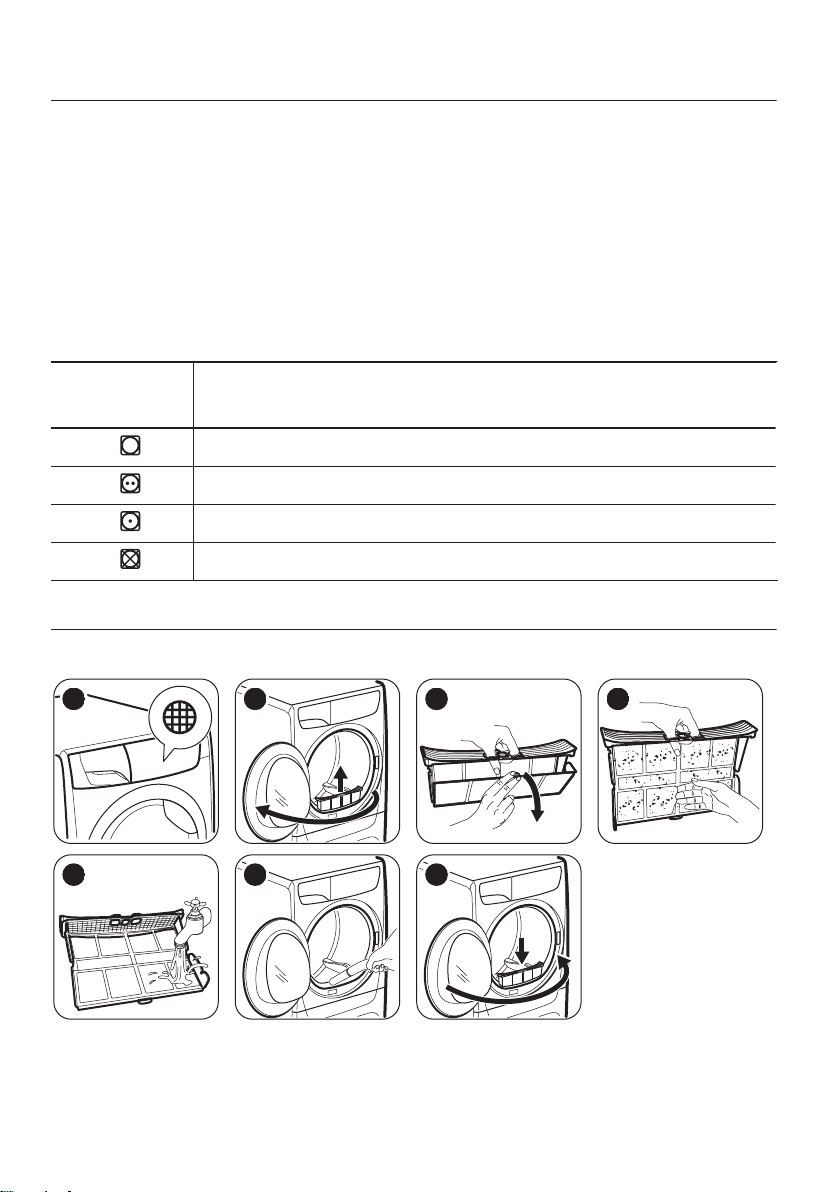

CLEANING THE FILTER
1
1
2
2 3 4
5 6
2
1
7
10

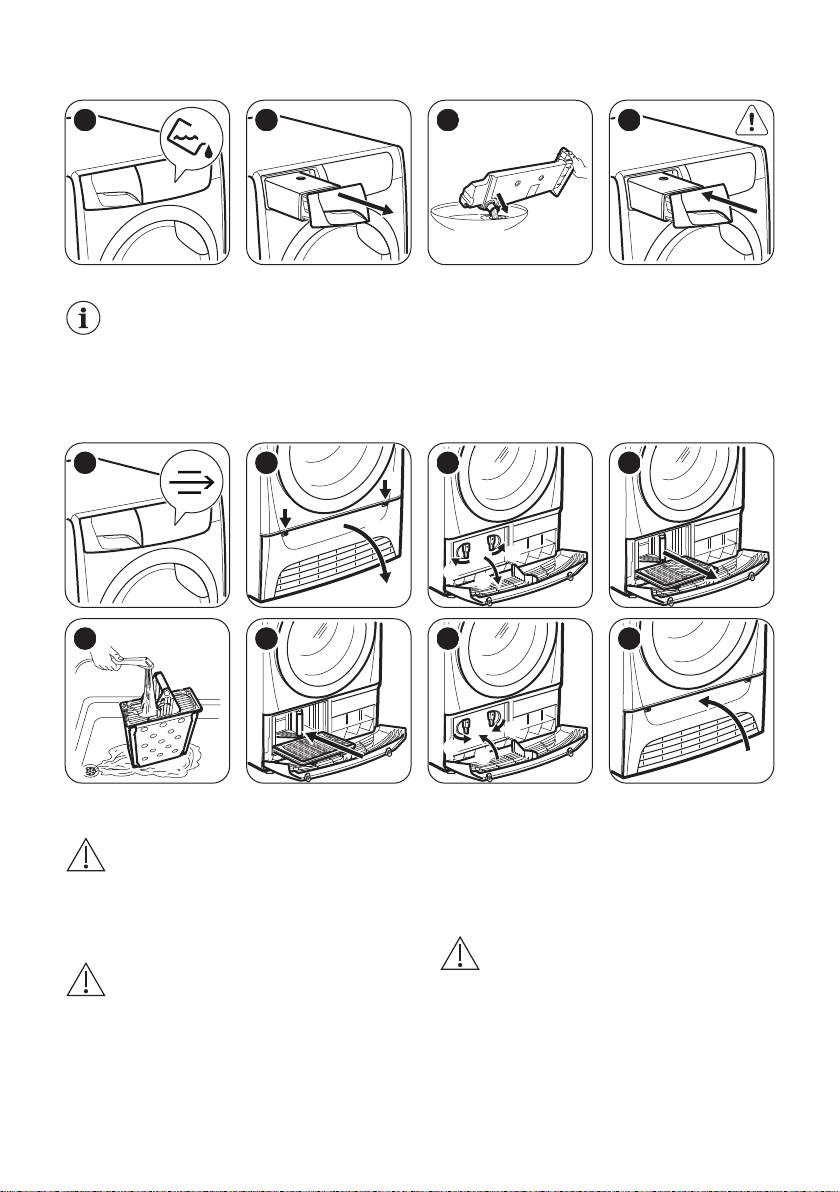

DRAINING THE WATER CONTAINER
1 2 3 4
You can use the water from the water
container as an alternative to distilled
water (e.g. for steam ironing). Before
you use the water, remove dirt
residues with a filter.
CLEANING THE CONDENSER
1
1
1
2
2
1
1
2
3 4
5 6
2
2
1
7 8
CLEANING THE DRUM
WARNING! Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to clean the
inner surface of the drum and drum lifters. Dry the
cleaned surfaces with a soft cloth.
CAUTION! Do not use abrasive
materials or steel wool to clean the
drum.
CLEANING THE CONTROL PANEL AND
HOUSING
Use a standard neutral soap detergent to clean the
control panel and housing.
Use a moist cloth to clean. Dry the cleaned
surfaces with a soft cloth.
CAUTION! Do not use furniture
cleaning agents or cleaning agents
which can cause corrosion.
CLEANING THE AIRFLOW SLOTS
Use a vacuum cleaner to remove fluff from the
airflow slots.
11

TROUBLESHOOTING
Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected to
the mains socket.
Check fuse in fuse box (domestic installation).
The programme does not start. Press Start/Pause.
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is cor-
rect.
Make sure that the laundry does not catch be-
tween the appliance door and the rubber seal.
The appliance stops during operation. Make sure that the water container is empty.
Press Start/Pause to start the programme again.
The cycle time is too long or unsatisfactory dry-
ing result.1)
Make sure that the weight of the laundry is appli-
cable to the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in the
washing machine again.
Ensure that the room temperature is higher than
+5°C and lower than +35°C. Optimal room tem-
perature is 19°C to 24°C.
Set the Time Drying or the Extra Dry pro-
gramme.2)
1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets ).
If the drying results are not satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The condenser is clogged.
• There was too much laundry in the appliance.
• The drum is dirty.
• Incorrect setting of the conductivity sensor
( See chapter "Settings - Adjustment of the
remaining laundry moisture degree " for better
setting).
• The airflow slots are clogged.
• Room temperature is too low or too high
( optimal room temperature 19°C to 24°C )
TECHNICAL DATA
Height x Width x Depth 850 x 600 x 540 mm (maximal 600 mm)
Max. depth with the appliance door open 1030 mm
Max. width with the appliance door open 950 mm
12

Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 104 l
Maximum load volume 7kg
Voltage 230-240 V
Frequency 50 Hz
Sound power level 67 dB
Necessary fuse 13 A
Total power 2800 W
Energy efficiency class B
Energy consumption on the standard cotton pro-
gramme with the full load. 1)
4,23 kWh
Energy consumption on the standard cotton pro-
gramme with the partial load. 2)
2,29 kWh
Annual energy consumption3) 503,5 kWh
Left-on mode power absorption 0,50 W
Off mode power absorption 0,50 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid parti-
cles and moisture ensured by the protective cov-
er, except where the low voltage equipment has
no protection against moisture
IPX4
1) With reference to EN 61121. 7 kg of cotton centrifuged at 1000 rpm.
2) With reference to EN 61121. 3,5 kg of cotton centrifuged at 1000 rpm.
3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at
full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle
will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
CONSUMPTION DATA
Programme Spun at / residual humidity Drying time1) Energy con-
sumption2)
Cottons Eco 7 kg
Cupboard Dry 1400 rpm / 50% 115 min. 3,63 kWh
1000 rpm / 60% 134 min. 4,23 kWh
Iron Dry 1400 rpm / 50% 85 min. 2,72 kWh
1000 rpm / 60% 102 min. 3,36 kWh
13

Programme Spun at / residual humidity Drying time1) Energy con-
sumption2)
Cottons Eco 3,5 kg
Cupboard Dry 1400 rpm / 50% 66 min. 1,96 kWh
1000 rpm / 60% 77 min. 2,29 kWh
Synthetics 3,5 kg
Cupboard Dry 1200 rpm / 40% 58 min. 1,57 kWh
800 rpm / 50% 70 min. 1,91 kWh
1) For partial loads, the cycle time is shorter and appliance uses less energy.
2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase
the energy consumption.
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it. Help
protect the environment and human health by
recycling waste of electrical and electronic
appliances. Do not dispose of appliances marked
with the symbol with the household waste.
Return the product to your local recycling facility or
contact your municipal office.
14
*

15

WWW.ZANUSSI.COM/SHOP
136955570-A-202018
