Zanussi MW155 Operating and safety instructions

Фа
INSTRUCTIONS
FOR
THE
USE
AND
CARE
OF
ZANUSSI
|.

It is most important that this instruction book should be retained
with the appliance for future reference. Should the appliance be
sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is supplied
with the appliance in order that the new owner can be acquainted
with the functioning of the appliance and the relevant warnings.

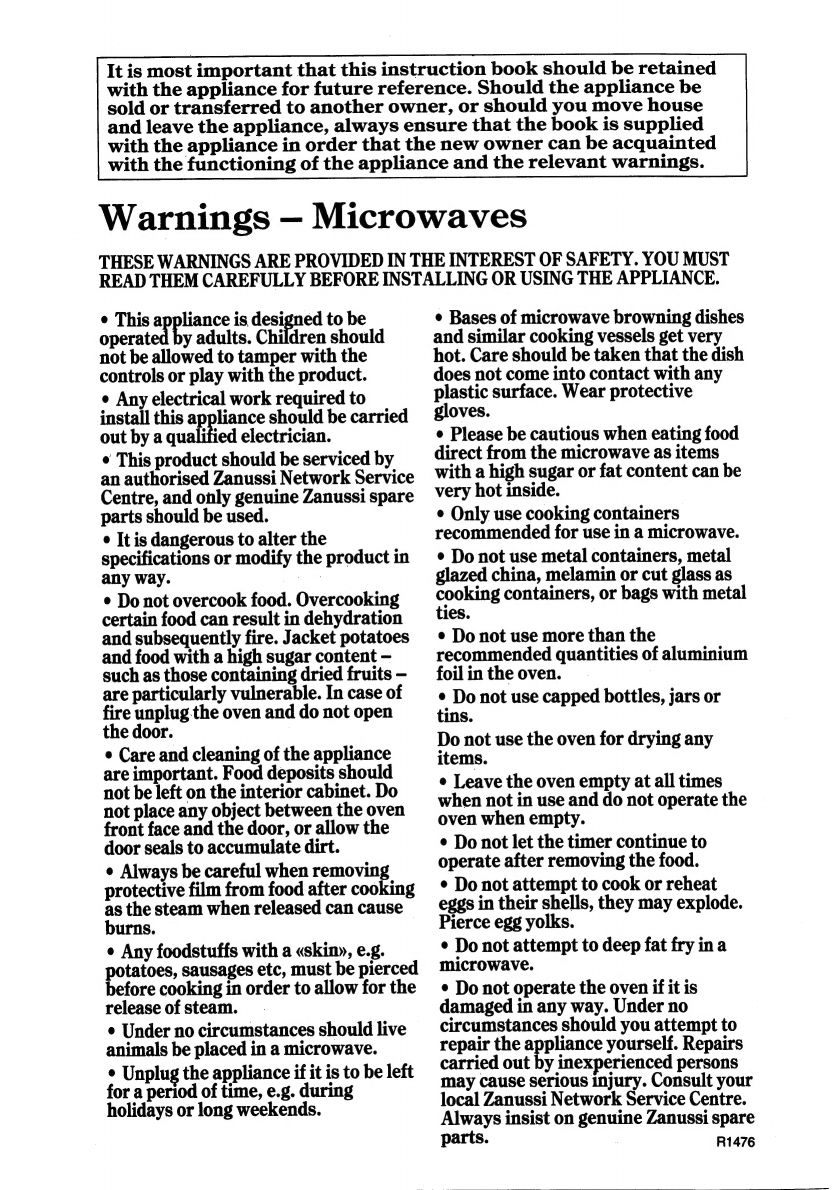

Warnings — Microwaves
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST
READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
е This be emer is qia to be
operated by adults. Children should
not be allowed to tamper with the
controls or play with the product.
е Any electrical work required to
install this appliance should be carried
out by a qualified electrician.
е This product should be serviced by
an authorised Zanussi Network Service
Centre, and only genuine Zanussi spare
parts should be used.
е [t is dangerous to alter Ше
specifications or modify the product in
any way. И
е Do not overcook food. Overcooking
certain food can result in dehydration
and subsequently fire. Jacket potatoes
and food with a high sugar content –
such as those containing dried fruits –
are particularly vulnerable. In case of
fire unplug the oven and do not open
the door.
е Care and cleaning of the appliance
are important. Food deposits should
not be left on the interior cabinet. Do
not place any object between the oven
front face and the door, or allow the
door seals to accumulate dirt.
е Always be careful when removing
protective film from food after cooking
as the steam when released can cause
burns.
е Any foodstuffs with a «skin», e.g.
potatoes, sausages etc, must be pierced
before cooking in order to allow for the
release of steam.
е Under no circumstances should live
animals be placed in a microwave.
* Unplug the appliance if it is to be left
for a period of time, e.g. during
holidays or long weekends.
е Bases of microwave browning dishes
and similar cooking vessels get very
hot. Care should be taken that the dish
does not come into contact with any
plastic surface. Wear protective
gloves.
е Please be cautious when eating food
direct from the microwave as items
with a high sugar or fat content can be
very hot inside.
е Only use cooking containers
recommended for use in a microwave.
* Do not use metal containers, metal
glazed china, melamin or cut glass as
cooking containers, or bags with metal
ties.
е Do not use more than the
recommended quantities of aluminium
foil in the oven.
е Do not use capped bottles, jars or
tins.
Do not use the oven for drying any
items.
е Leave the oven empty at all times
when not in use and do not operate the
oven when empty.
е Do not let the timer continue to
operate after removing the food.
е Do not attempt to cook or reheat
eggs in their shells, they may explode.
Pierce egg yolks.
е Do not attempt to deep fat fry in a
microwave.
е Do not operate the oven if it is
damaged in any way. Under no
circumstances should you attempt to
repair the appliance yourself. Repairs
carried out by inexperienced persons
may cause serious injury. Consult your
local Zanussi Network Service Centre.
Always insist on genuine Zanussi spare
parts. | R1476

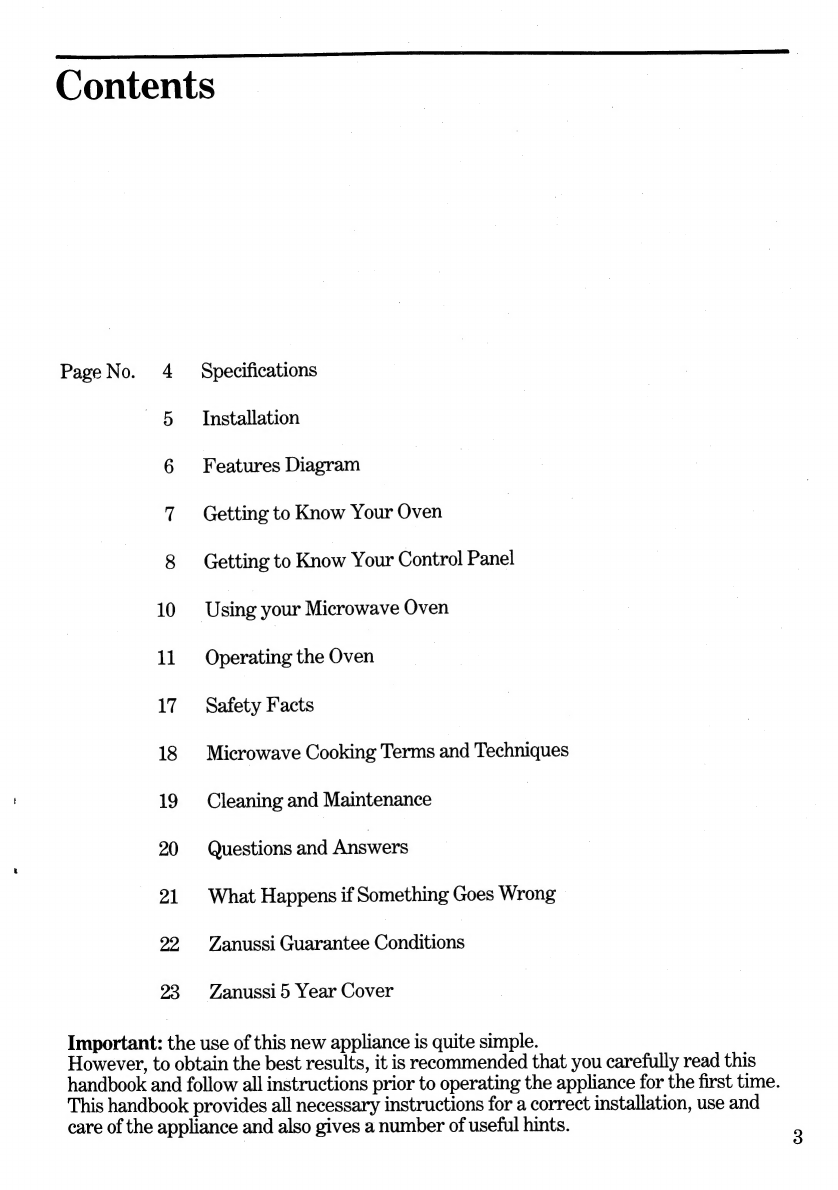

Contents
PageNo. 4 Specifications
5 Installation
6 Features Diagram
7 Getting to Know Your Oven
8
Getting
to
Know
Your
Control
Panel
10 Using your Microwave Oven

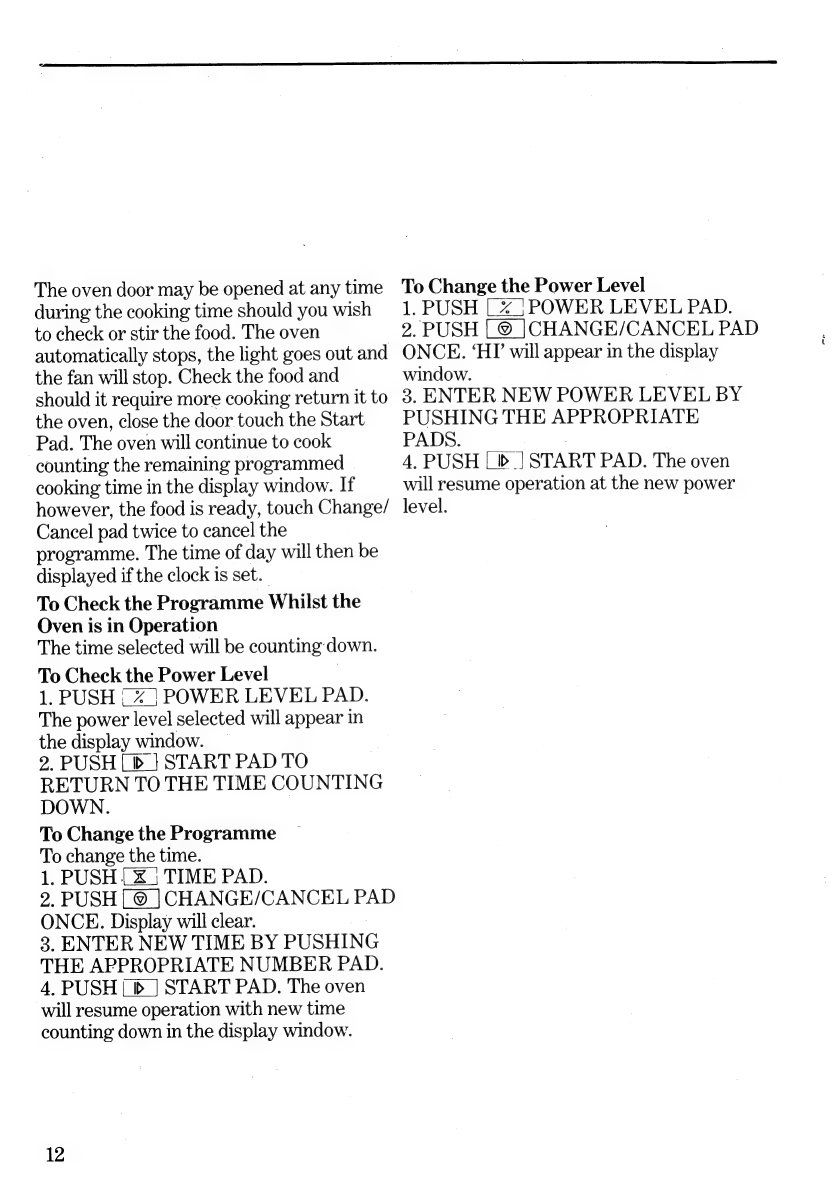

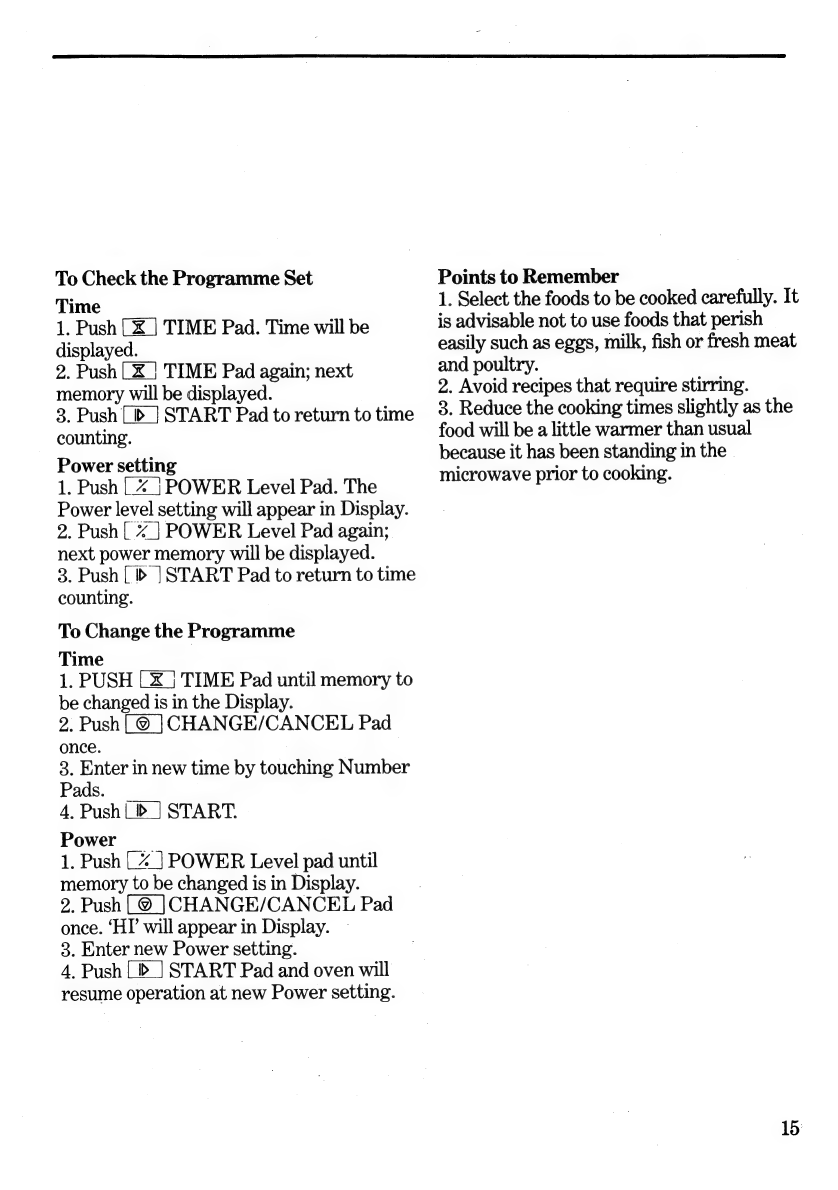

1 Operating Ше Oven

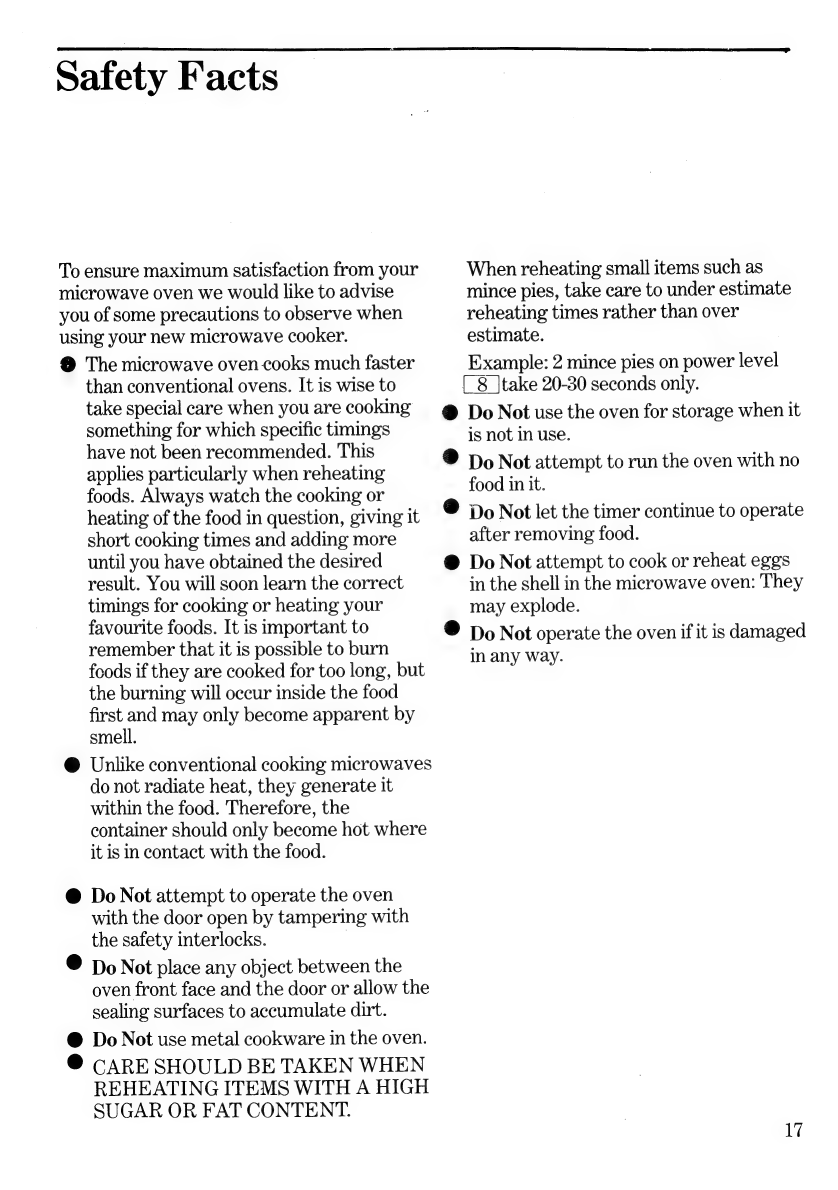

17 Safety Facts
18
Microwave
Cooking
Terms
and
Techniques

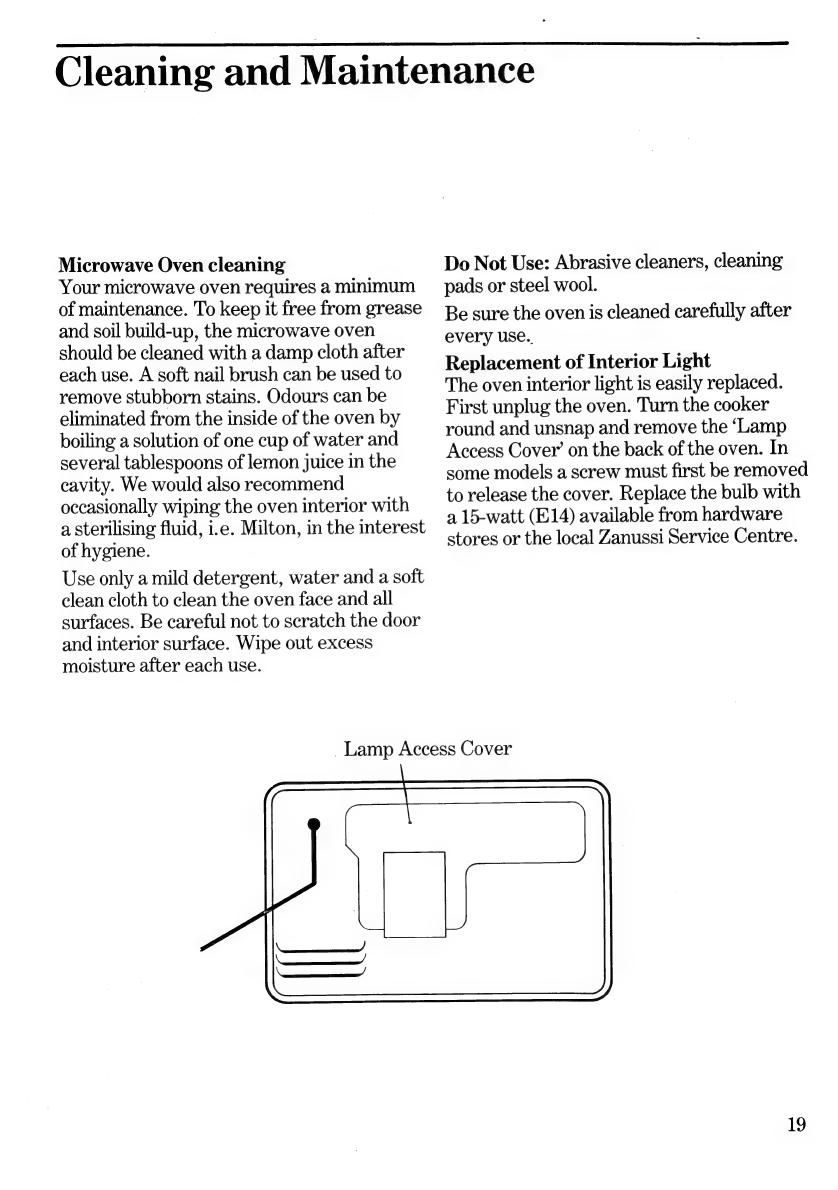

19 Cleaning and Maintenance
20 Questions and Answers
2]
What
Happens
if
Something
Goes
Wrong
-
22 Zanussi Guarantee Conditions
23 Zanussi5 Year Cover
Important: the use of this new appliance is quite simple.
However,
to
obtain
the
best
results,
it
is
recommended
that
you
carefully
read
this
handbook
and
follow
all
instructions
prior
to
operating
the
appliance
for
the
first
time.
This
handbook
provides
all
necessary
instructions
for
a
correct
installation,
use
and
care
of
the
appliance
and
also
gives
a
number
of
useful
hints.

Specifications
Power source:
Power consumption:
Oscillating frequency:
Exterior dimensions:
Interior dimensions:
Oven capacity:
Weight:
240 volts A.C. 50Hz
3 wire grounded circuit
1200 watts/input power
600 watts/output power
2450 MHz
Height: 24.1 em
Width: 46.7 em
Depth: 34.1 em
Height: 15.2 cm
Width: 31.1 em
Depth: 27.9 em
0.5 cubic ft
16.5 kg

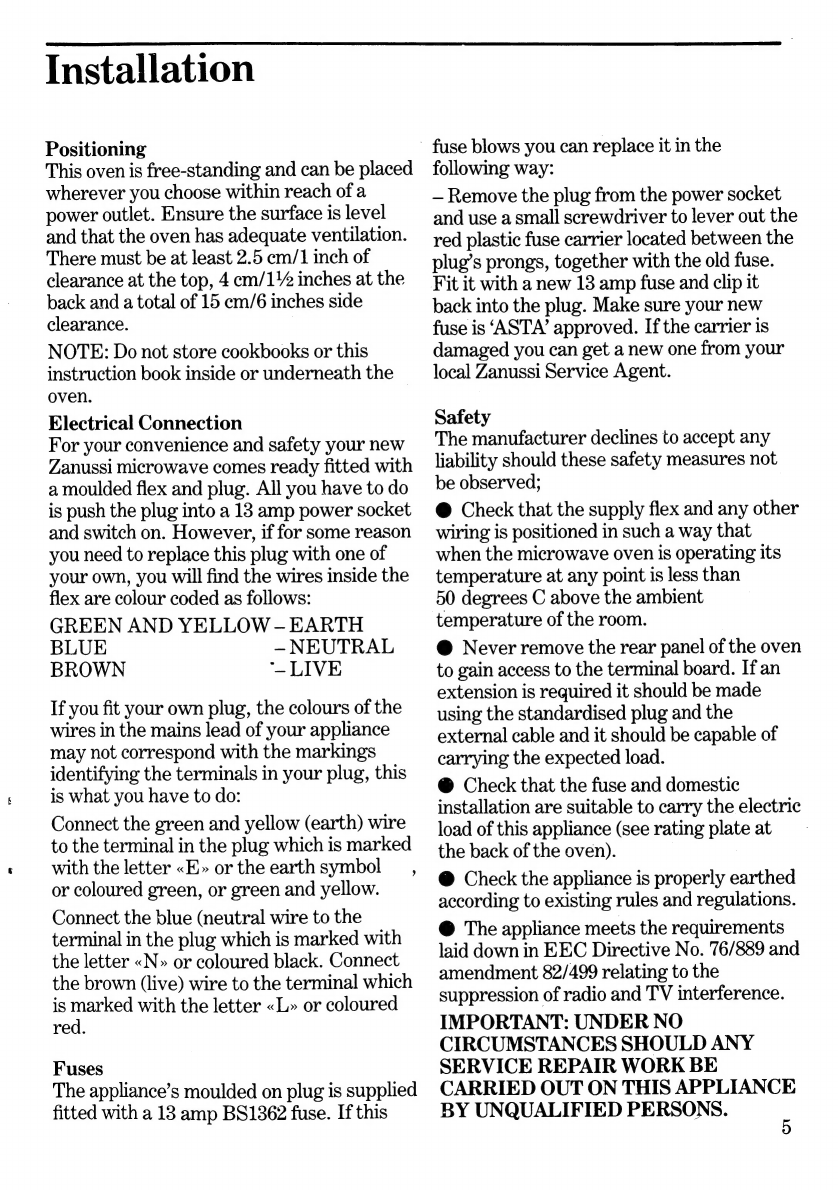

Installation
Positioning
This oven is free-standing and can be placed
wherever you ehoose within reach of a
power outlet. Ensure the surface is level
and that the oven has adequate ventilation.
There must be at least 2.5 em/1 inch of
clearance at the top, 4 em/11⁄2 inches at the
back and a total of 15 em/6 inches side
clearance.
NOTE: Do not store cookbooks or this
instruction book inside or underneath the |
oven.
Electrical Connection
For your convenience and safety your new
Zanussi microwave comes ready fitted with
a moulded flex and plug. All you have to do
is push the plug into a 13 amp power socket
and switch on. However, if for some reason
you need to replace this plug with one of
your own, you will find the wires inside the
flex are colour coded as follows:
GREEN AND YELLOW - EARTH
BLUE -NEUTRAL
BROWN — LIVE
If you fit your own plug, the colours of the
wires in the mains lead of your appliance
may not correspond with the markings
identifying the terminals in your plug, this
is what you have to do:
Connect the green and yellow (earth) wire
to the terminal in the plug which is marked
with the letter «E» or Ше earth symbol ,
or coloured green, or green and yellow.
Connect the blue (neutral wire to the
terminal in the plug which is marked with
the letter «N» or coloured black. Connect
the brown (live) wire to the terminal which
is marked with the letter «L» or coloured
red.
Fuses
The appliance's moulded on plug is supplied
fitted with a 13 amp BS1362 fuse. If this
` fuse blows you can replace it in the
following way:
— Remove the plug from the power socket
and use a small screwdriver to lever out the
red plastic fuse carrier located between the
plug's prongs, together with the old fuse.
Fit it with a new 13 amp fuse and clip it
back into the plug. Make sure your new
fuse is ‘ASTA’ approved. If Ше carrier is
damaged you can get a new one from your
local Zanussi Service Agent.
Safety
The manufacturer declines to accept any
liability should these safety measures not
be observed;
Ф Check that the supply flex and any other
wiring is positioned in such a way that
when the microwave oven is operating its
temperature at any point is less than
50 degrees C above the ambient
temperature of the room.
© Never remove the rear panel of the oven
to gain access to the terminal board. If an
extension is required it should be made
using the standardised plug and the
external cable and it should be capable of
carrying the expected load.
Ф Check that the fuse and domestic
installation are suitable to carry the electric
load of this appliance (see rating plate at
the back of the oven).
Ф Check the appliance is properly earthed
according to existing rules and regulations.
Ф The appliance meets the requirements
laid down in EEC Directive No. 76/889 and
amendment 82/499 relating to the
suppression of radio and TV interference.
IMPORTANT: UNDER NO
CIRCUMSTANCES SHOULD ANY
SERVICE REPAIR WORK BE
CARRIED OUT ON THIS APPLIANCE
BY UNQUALIFIED PERSONS.

Features
Q = 3 Z Q Z >
: Control Panel
: Sealed-in Oven Floor
: Safety Interlock System
: Door Handle
Door
: Stirrer Cover
: Light _

Getting to Know Your Oven
: Control Panel
: sealed-in Oven Floor
: Safety Interlock System
: Door Handle
Door
: Stirrer Cover
: Light
онннон >
A – Control Panel
This controls the programming of the
microwave oven. (See “Getting to Know
Your Control Рапе?).
B - Sealed-in Oven Floor
This sealed-in oven floor allows the food to
be penetrated from the base upwards. The
microwaves pass through the oven floor
and bounce off the metal base back into the |
oven cavity.
The oven floor is sealed-in for easy
cleaning.
C - Safety Interlock System
This ensures that the oven cannot operate -
with the door open. The oven automatically
switches off when the door is opened.
D - Door Handle
Lift the handle from the bottom to open the
door. As the door opens the interior light
comes on. To close the door, just push it
back into place until you hear a click.
~ E- Oven Door
The door has two skins sandwiching a metal
mesh. The mesh deflects the microwaves
back into the oven cavity. The door has also
been designed to give clear vision to the
inside of the oven.
Е -Stirrer Cover
This plastic cover protects the stirrer from
а build up of soil. The blade is designed to
distribute the microwaves evenly
throughout the oven cavity. The stirrer
cover should not be removed.
G - Light |
The light operates when the oven is in use
or the door is opened. It switches off at the
same time as the programme finishes.

Getting
to
Know
Your
Control
Panel

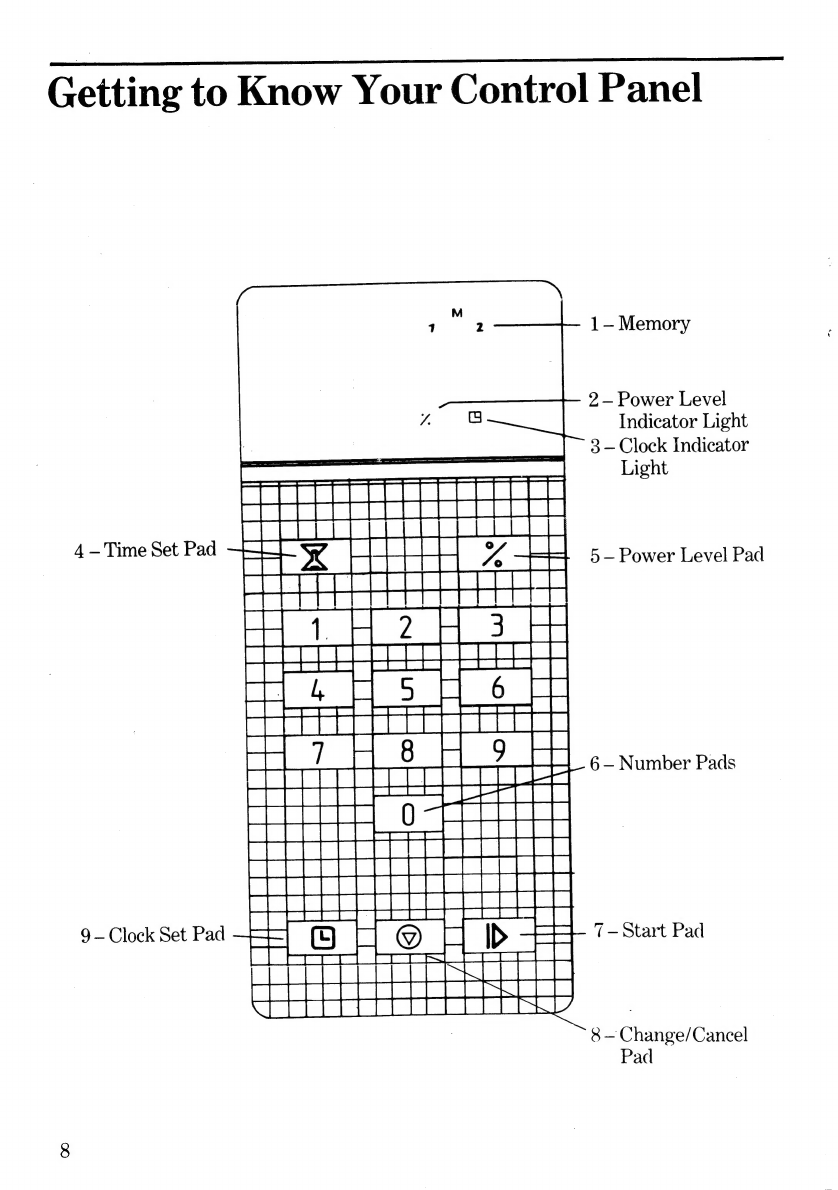

4 — Time Set Pad
9 — Clock Set Pad
ET
siwis
p
Emma
s
k=
Ex
Hen
X
HIHIH3
nhe
Ha
H
S
H
6
-ЕЕЕЕЕЕЕЕЕ-ЕЕЕЕН-
=ч "
т:
ЕР
Р CIE == = еа [gs gs: == gs Bl
gus
eue
weBHEEE
SE
wm
EIS
Es
HHH EEE
MNENEEWBBEENN
ea
eek
qo
Е
Еа
mi
G
sp
pedes
P
e
новина
EIL
а
Е
Е Е
ES
=
OH
@
Hb
=
SERRE
TITI
IP
I
[TI
I
+
I
j!
|
e
ucc
SE
SR
BEBBES
RI
EN
SS
ya
BE
Se,
1 — Memory
2 — Power Level
Indieator Light
3 — Clock Indicator
Light
5 — Power Level Pad
6 — Number Pads
7— Start Pad
8 — Change/Cancel
Pad

1 - Memory
2 — Power Level Indicator Light
3 — Clock Indicator Light
4 — Time Set Pad
5 — Power Level Pad
6 – Number Pads
7— Start Pad
8— Change/Cancel Pad
9 — Clock Set Pad

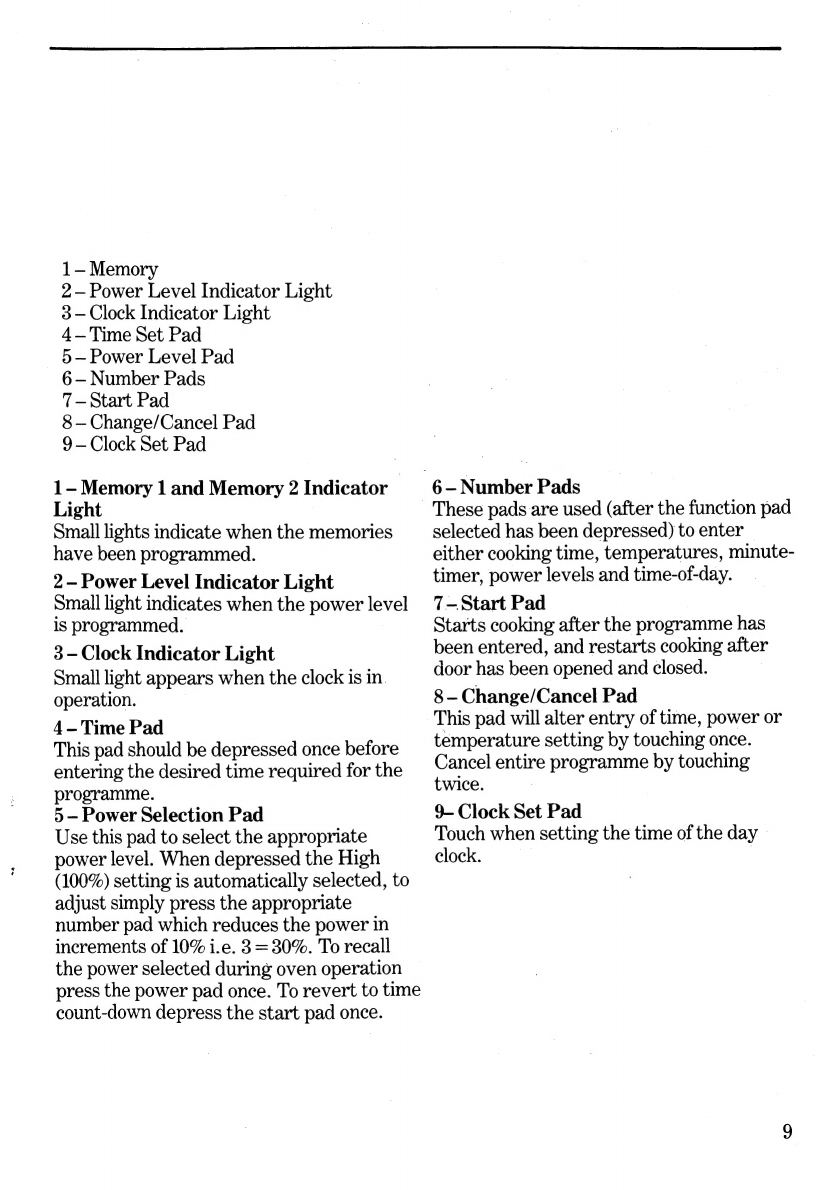

1 - Memory 1 and Memory 2 Indicator
Light
Small lights indicate when the memories
have been programmed.
2 - Power Level Indicator Light
Small light indicates when the power level
is programmed.
3 - Clock Indicator Light
Small light appears when the clock is in.
operation.
4 -Time Pad
This pad should be depressed once before
entering the desired time required for the
programme.

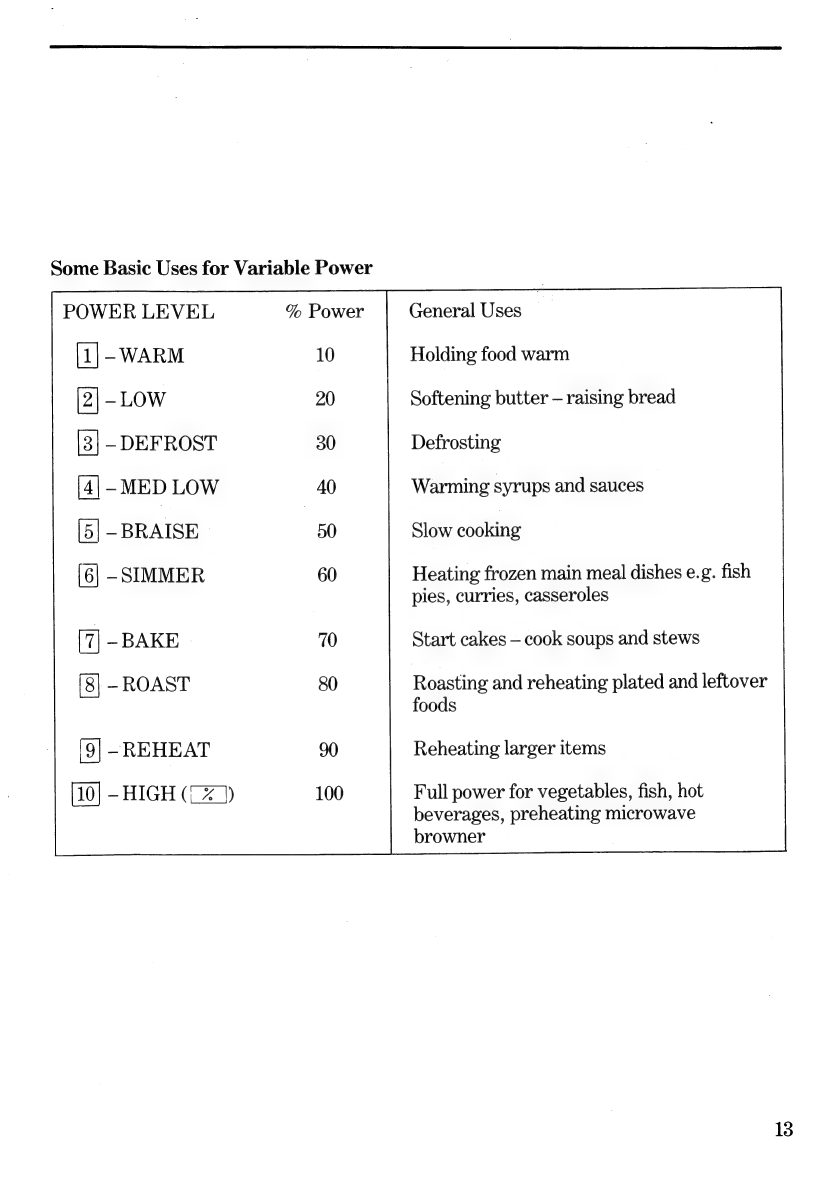

5 — Power Selection Pad
Use this pad to select the appropriate
power level. When depressed the High
(100%) setting is automatically selected, to
adjust simply press the appropriate
number pad which reduces the power in
increments of 10% i.e. 3 = 3090. To recall
the power selected during oven operation
press the power pad once. To revert to time
count-down depress the start pad once.
6 Number Pads
These pads are used (after the function pad
selected has been depressed) to enter |
either cooking time, temperatures, minute-
timer, power levels and time-of-day.
7 - Start Pad
Starts cooking after the programme has
been entered, and restarts cooking after
door has been opened and closed.
8 – Change/Cancel Pad
This pad will alter entry of time, power or
temperature setting by touching once.
Cancel entire programme by touching
twice.
9- Clock Set Pad
Touch when setting the time of the day `
clock.

Using
Your
Microwave
Oven
The Microwave Oven
Microwave cooking is very versatile. It
enables you to cook, reheat, roast, simmer,
hold-warm and even defrost with speed and
convenience.
As microwaving is such a new and fast way
of cooking, you must be prepared to
gradually become more adventurous as you
progress. |
Start with something easy; heat a cup of
coffee in a mug for two minutes, but open
the door at any time and check if the coffee
is as hot as you like it. Next try heating
leftovers on a plate. An average serving
takes about 2-3 minutes on power level 8.
Look for steam or test the food to see if it is
ready.
. Feel free to open the door at any time. If
additional time is needed, add time
gradually. It is better to under estimate
than over estimate.
Before using the microwave oven for the
first time, be sure all the packaging
materials from both the outside and inside
of the oven have been removed. Wipe out
the inside of the oven with a damp cloth.
The Time of the Day Clock
When the oven is plugged in the clock
display window will remain blank unless
you set the time of day.
Once set, the time of day is always. |
displayed when no other cooking function is
being used.
If time of day is not set, a colon will appear
in the display window for five minutes after
cooking is complete then the display
window will go blank.
10
The time of day ean be checked once a
programme has been set, by touching the
clock pad, the time will remain displayed
until the start pad is touched again. This
does not interrupt the running of the
programme.
After a power cut the display window will
be blank and you will have to re-set the
. clock.
Setting the Clock
The clock operates on a 24 hour cycle and
changes in one minute increments.
Setting the Clock for the First Time
1. PUSH THE [ 8 ] CLOCK PAD. The
clock indicator light will come on and will
always be on when the time of day is
displayed.
2. PUSH Г® ]CHANGE/CANCEL PAD
ONCE.
3. SET THE TIME OF DAY BY
PUSHING THE APPROPRIATE
NUMBER PADS. The time you have set
will appear in the display window.
4. PUSH [ lb | START PAD. The time of
day will now be activated.
Altering the Time of Day Clock
]. PUSH THE [5 | CLOCK PAD. No:
change will occur in the display window.
2. PUSH [© |CHANGE/CANCEL PAD.
The display window will clear leaving only
the clock indicator light.
3. Set the time of day as before and push
the | Ë | start pad.
