Zanussi ZOF35501 User manual

EN
User manual
Oven
ZOF35501

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Clock functions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Using the accessories _ _ _ _ _ _ _ _ _ _ _ _ 9
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ 10
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 15
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 20
GREAT BRITAIN & IRELAND - Guarantee/
Customer Service _ _ _ _ _ _ _ _ _ _ _ _ _ 20
European Guarantee _ _ _ _ _ _ _ _ _ _ _ _ 21
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance. Children under 3
years must not be left unsupervised in the vicinity of the appli-
ance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it oper-
ates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that
you activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
2
www.zanussi.com

General Safety
• Only a qualified person must install this appliance and replace
the cable.
• Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always use
oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
• To remove the shelf supports first pull the front of the shelf sup-
port and then the rear end away from the side walls. Install the
shelf supports in the opposite sequence.
• If the supply cord is damaged, it must be replaced by the manu-
facturer, an authorized Service or similarly qualified persons in
order to avoid a hazard.
• The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safe-
ty gloves.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed be-
low and adjacent safe structures.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay adja-
cent to appliances or to units with the same
height.
3
www.zanussi.com

Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact
the Service or an electrician to change a
damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
• The electrical installation must have an iso-
lation device which lets you disconnect the
appliance from the mains at all poles. The
isolation device must have a contact open-
ing width of minimum 3 mm.
Use
Warning! Risk of injury, burns or electric
shock or explosion.
• Use this appliance in a household environ-
ment.
• Do not change the specification of this ap-
pliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface
or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a mix-
ture of alcohol and air.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot ap-
pliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
4
www.zanussi.com

• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
Care and Cleaning
Warning! Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appli-
ance and disconnect the mains plug from
the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the Serv-
ice.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety in-
structions on the packaging.
• Do not clean the catalytic enamel (if appli-
cable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance, is only for household ap-
pliances. Do not use it for house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifica-
tions.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
5
www.zanussi.com

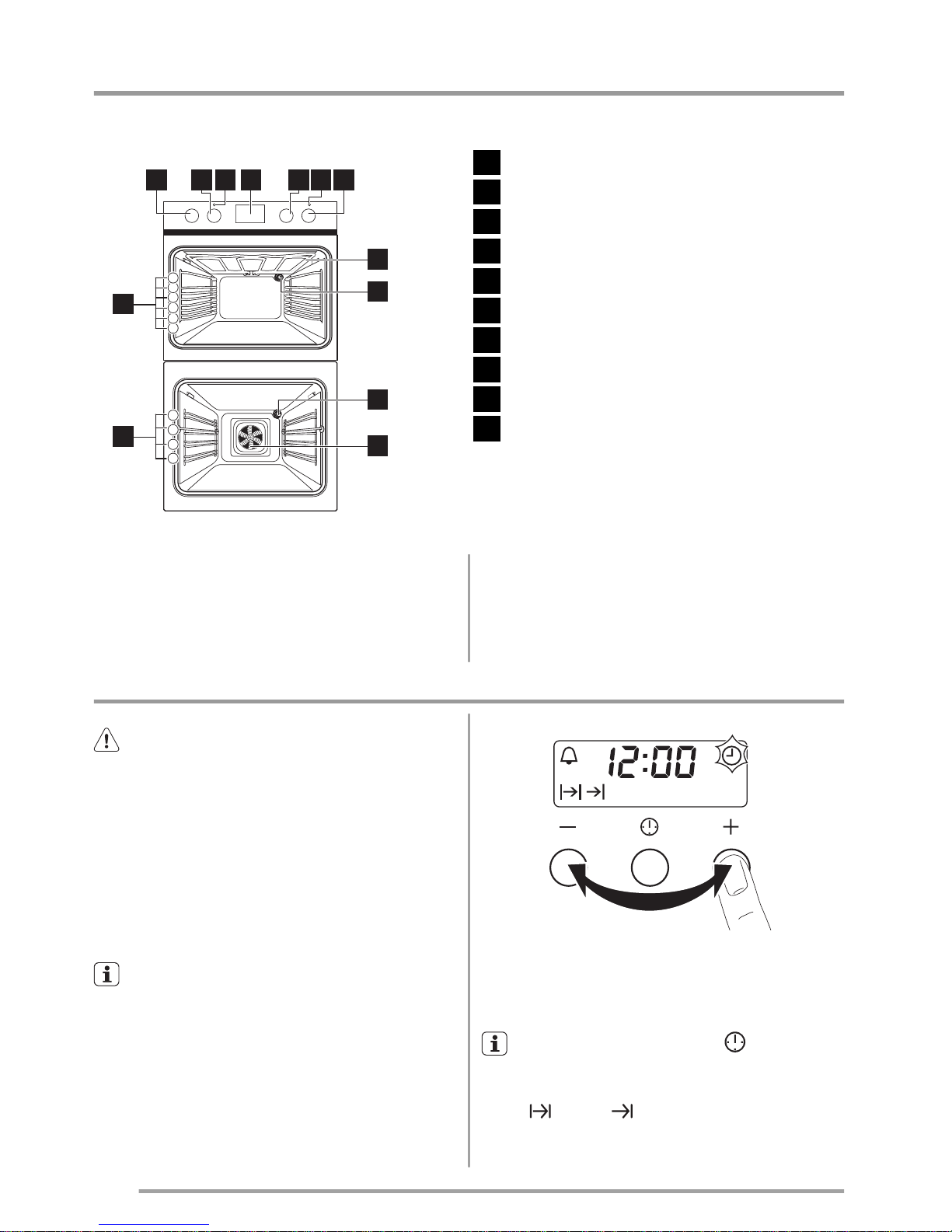

Product description
General overview
1
1 2 4 5 6
2
3
4
5
6
7
8
8
10
10
33
1
2
3
4
9
1Knob for the top oven functions
2Knob for the top oven temperature
3Temperature indicator
4Electronic programmer
5Knob for the main oven functions
6Knob for the main oven temperature
7Heating element
8Oven lamp
9Fan and heating element
10 Shelf positions
Accessories
•Oven shelf
For cookware, cake tins, roasts.
•Roasting pan grid
To put in the deep roasting pan.
•Deep roasting pan
To bake and roast or as a pan to collect fat.
Before first use
Warning! Refer to the Safety chapters.
Initial Cleaning
• Remove all accessories and removable shelf
supports (if applicable).
• Clean the appliance before first use.
Important! Refer to the chapter "Care and
cleaning".
Setting the time
You must set the time before you operate
the oven.
When you connect the appliance to the elec-
trical supply or after a power cut, the indicator
for the Time of Day function flashes.
Press the +or -button to set the correct time.
After approximately five seconds, the flashing
stops and the display shows the time of day
you set.
To change the time, press again and
again until the indicator for the Time of
Day function flashes. You must not set the Du-
ration or End function at the same time.
6
www.zanussi.com

Preheating
Preheat the empty appliance to burn off the re-
maining grease.
Preheat the two ovens. Heat up one oven at a
time.
Set the functions listed below, if applicable.
1. Set the function and the temperature
to 250°C.
2. Let the appliance operate for one hour.
3. Set the function and the temperature
to 250°C.
4. Let the appliance operate for ten minutes.
5. Set the function and the temperature
to 250°C.
6. Let the appliance operate for ten minutes.
Accessories can become hotter than usually.
The appliance can emit an odour and smoke.
This is normal. Make sure that the airflow is
sufficient.
Daily use
Warning! Refer to the Safety chapters.
Cooling fan
When the appliance operates, the cooling fan
switches on automatically. If you switch off the
appliance, the cooling fan continues to oper-
ate until the appliance cools down.
Activating and deactivating the top oven
1. Turn the knob for the top oven functions
to an oven function.
2. Turn the knob for the top oven tempera-
ture to a temperature.
The temperature indicator comes on while
the temperature in the appliance increa-
ses.
3. To deactivate the appliance, turn the knob
for the top oven functions and the knob
for the top oven temperature to the Off
position.
Activating and deactivating the main
oven
1. Turn the knob for the main oven functions
to an oven function.
2. Turn the knob for the main oven tempera-
ture to a temperature.
The temperature indicator comes on while
the temperature in the appliance increa-
ses.
3. To deactivate the appliance, turn the knob
for the main oven functions and the knob
for the main oven temperature to the Off
position.
Top oven functions
Oven function Application
OFF position The appliance is OFF.
Light To light up the oven interior.
Conventional Cooking To bake and roast on one level
Top Heat Tor brown bread, cakes and pastries and for bakes.
Bottom Heat To bake cakes with crispy or crusty bases and to preserve food.
7
www.zanussi.com

Oven function Application
Single Circuit Grill To grill flat food items in small quantities in the middle of the grill.
To make toast.
Dual Circuit Grill To grill flat food items in large quantities. To make toast.
Main oven functions
Oven function Application
OFF position The appliance is OFF.
Light To light up the oven interior.
Thermaflow® Roast or roast and bake food at the same cooking temperature on
different levels at the same time.
Defrost To defrost frozen food.
Clock functions
Electronic programmer
345
2 11
1Function indicators
2Time display
3Button +
4Selection button
5Button -
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set a countdown time. This function has no effect on the operation of
the oven.
Duration To set how long the appliance must operate.
8
www.zanussi.com

Clock function Application
End To set when the appliance must be deactivated.
You can use Duration and End at the
same time to set the time when the appli-
ance must be activated and then deactivated.
First set Duration, then End.
Setting the clock functions
1. For Duration and End , set an oven
function and temperature. This is not nec-
essary for the Minute Minder .
2. Press the Selection button again and
again until the indicator for the necessary
clock function flashes.
3. Press +or -to set the necessary clock
function.
The display shows the indicator for the
clock function you set. When the set time
ends, the indicator flashes and an acous-
tic signal sounds for two minutes.
With the Duration and End func-
tions, the appliance deactivates automati-
cally.
4. Press a button to stop the signal.
5. Turn the knob for the oven functions and
the knob for the temperature to the off po-
sition.
Cancelling the clock functions
1. Press the Selection button again and
again until the necessary function indica-
tor flashes.
2. Press and hold the button -.
The clock function goes out after some
seconds.
Using the accessories
Warning! Refer to the Safety chapters.
Inserting the oven accessories
Put in the slide-in accessories so that the dou-
ble side edges are at the back of the oven and
point down to the bottom. Push the slide-in
accessories between the guide-bars of one of
the oven levels.
The deep roasting pan and the oven shelf
have double side edges. These edges
and the shape of the guide-bars causes the
anti-tilt safety for the oven accessories.
Inserting the oven shelf and deep
roasting pan together
9
www.zanussi.com

Put the oven shelf on the deep roasting pan.
Push the deep roasting pan between the
guide-bars of one of the oven levels.

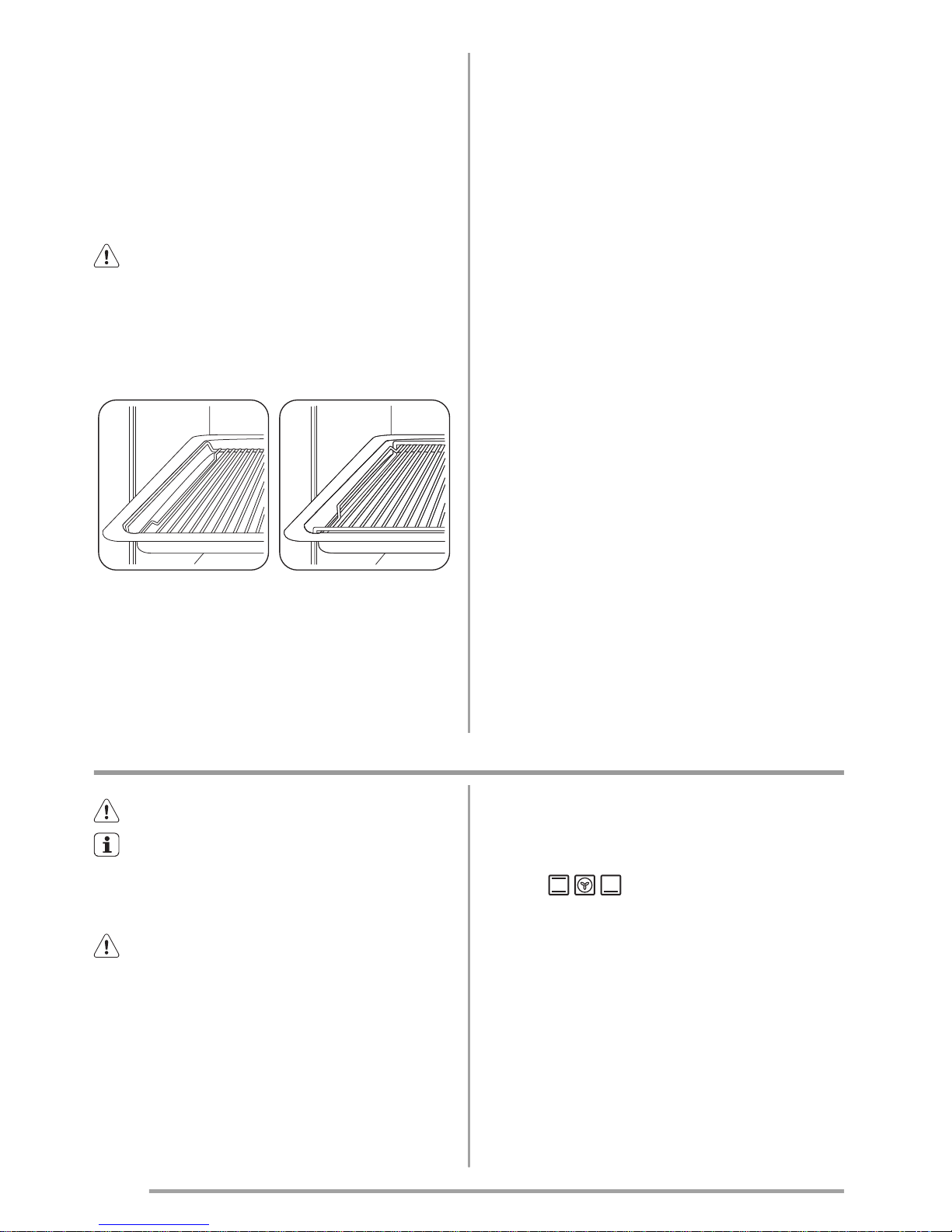

Grilling set
The grilling set includes the roasting pan grid
and the deep roasting pan. You can use the
roasting pan grid on the two sides.
Warning! Risk of burns when removing
the accessories from a hot oven.
You can use the grill-
ing set to roast larger
pieces of meat or
poultry on one level:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point up-
wards.
You can use the grill-
ing set to grill flat
dishes in large quan-
tities and to toast:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point
downwards.
Put the deep roasting pan in the oven at the
necessary level.
Helpful hints and tips
Warning! Refer to the Safety chapters.
The temperature and baking times in the
tables are guidelines only. They depend
on the recipes, quality and quantity of the in-
gredients used.
Caution! Use a deep baking tray for very
moist cakes. Fruit juices can cause
permanent stains on the enamel.
Top oven
The top oven is the smaller of the two ovens. It
has 6 shelf levels. Use is to cook smaller
quantities of food. It gives especially good re-
sults when used to cook fruitcakes, sweets
and savoury flants or quiche.
Main oven
The main oven is particularly suitable for cook-
ing larger quantities of food.
Baking
General instructions
• Your new oven may bake or roast differently
to the appliance you had before. Adapt your
usual settings (temperature, cooking times)
and shelf levels to the values in the tables.
• With longer baking times, the oven can be
switched off about 10 minutes before the
end of baking time, to use the residual heat.
When you use frozen food, the trays in
the oven can twist during baking. When
10
www.zanussi.com

the trays get cold again, the distortion
will be gone.
How to use the Baking Tables
• We recommend to use the lower tempera-
ture the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• Baking time can be extended by 10-15 mi-
nutes, if you bake cakes on more than one
level.
• Cakes and pastries at different heights do
not always brown equally at first. If this oc-
curs, do not change the temperature set-
ting. The differences equalize during the
baking procedure.
Tips on baking
Baking results Possible cause Remedy
The cake is not browned
sufficiently below
Incorrect oven level Put the cake on a lower oven level
The cake sinks (be-
comes soggy, lumpy,
streaky)
Oven temperature too high Use a lower setting
The cake sinks (be-
comes soggy, lumpy,
streaky)
Baking time is too short Set a longer baking time
Do not set higher temperatures to de-
crease baking times
The cake sinks (be-
comes soggy, lumpy,
streaky)
Too much liquid in the mixture Use less liquid. Look at the mixing times, spe-
cially when you use mixing machines
Cake is too dry Oven temperature too low Set a higher oven temperature
Cake is too dry Baking time too long Set a shorter baking time
Cake does not brown
equally
Oven temperature too high
and baking time too short
Set a lower oven temperature and a longer
baking time
Cake does not brown
equally
No equal mixture Put the mixture equally on the baking tray
Cake does not cook in
the baking time set
Temperature too low Use a slightly higher oven temperature setting
Top oven
Baking
Shelf Positions are not critical but ensure
that oven shelves are evenly spaced
when more than one is used (e.g. shelf posi-
tions 1 and 3)
Food Temperature
[°C]
Approx Cook Time
(mins) Shelf Position
Biscuits 170 - 190 10 - 20 1
Bread 200 - 220 30 - 35 1
Bread rolls/buns 200 - 220 10 - 15 1
Cakes:
- Small & Queen 170 - 180 18 - 25 1
11
www.zanussi.com

Food Temperature
[°C]
Approx Cook Time
(mins) Shelf Position
- Sponges 160 - 175 20 - 30 1
- Victoria Sandwich 160 - 170 18 - 25 1
- Madeira 140 - 150 75 - 90 1
- Rich Fruit 140 - 150 120 - 150 1
- Gingerbread 140 - 150 75 - 90 1
- Meringues 90 - 100 150 - 180 1
- Flapjack 160 - 170 25 - 30 1
- Shortbread 130 - 150 45 - 65 1
Casseroles:
- Beef/Lamb 150 - 170 150 - 180 1
- Chicken 160 - 180 75 - 90 1
Convenience Foods Follow manufacturer´s instructions.
Fish 170 - 190 20 - 30 1
Fish Pie (Potato Top-
ped) 190 - 200 20 - 30 1
Fruit Pies, Crumbles 190 - 200 30 - 50 1
Milk Puddings 150 - 170 90 - 120 1
Pasta Lasagne etc. 170 - 180 40 - 50 1
Pastry:
- Choux 180 - 190 30 - 40 1
- Eclairs, Profiteroles 180 - 190 30 - 40 1
- Flaky/Puff Pies 210 - 220 30 - 40 1
Shortcrust:
- Mince Pies 190 - 200 15 - 20 1
- Meat Pies 190 - 210 25 - 35 1
- Quiche, Tarts, Flans 180 - 200 25 - 50 1
Scones 220 - 230 8 - 12 1
Shepard´s Pie 190 - 200 30 - 40 1
Soufflés 180 - 190 20 - 30 1
Vegetables:
- Baked Jacket Potatoes 180 - 190 60 - 90 1
- Roast Potatoes 180 - 190 60- 90 1
Yorkshire Pudding:
- Large 200 - 210 25 - 40 1
- Individual 210 - 220 15 - 25 1
Roasting Meat, Poultry See roasting chart.
12
www.zanussi.com

Main oven
Baking
Shelf Positions are not critical but ensure
that oven shelves are evenly spaced
when more than one is used (e.g. shelf posi-
tions 1 and 3)
Food Temperature
[°C]
Approx Cook Time
(mins)
Biscuits 180 - 190 10 - 20
Bread 190 - 210 30 - 35
Cakes:
- Small & Queen 160 - 170 18 - 25
- Sponges 160 - 170 20 - 25
- Madeira 140 - 160 60 - 75
- Rich Fruit 130 - 140 120 - 150
- Christmas 130 - 140 180 - 270
Fish 160 - 180 20 - 30
Fruit Pies, Crumbles 170 - 180 30 - 50
Milk Puddings 140 - 160 60 - 90
Pastry:
- Choux 180 - 190 30 - 40
- Shortcrust 180 - 190 25 - 35
- Flaky 180 - 190 30 - 40 depends on size
- Puff Follow manufacturer´s instructions; Reduce the temperature for Fan
oven by 20°C
Plate Tarts 180 - 190 25 - 45
Quiches/Flans 170 - 180 25 - 45
Scones 210 - 230 8 - 12
Roasting: Meat and Poultry 160 - 180 see Roasting Chart
13
www.zanussi.com

Roasting
Roasting dishes
• Use heat-resistant ovenware to roast
(please read the instructions of the manu-
facturer).
• Large roasting joints can be roasted directly
in the deep roasting pan or on the oven
shelf above the deep roasting pan. (If
present)
• Roast lean meats in a roasting tin with a lid.
This well keep the meat more succulent.
• All types of meat, that can be browned or
have crackling, can be roasted in the roast-
ing tin without the lid.
Main oven
Roasting
Meat Temperature [°C] Cooking Time
Beef/ Beef boned 160 - 180 20-35 minutes per ½ kg (1lb)
and 20-35 minutes over
Mutton/ Lamb 160 - 180 20-35 minutes per ½ kg (1lb)
and 20-35 minutes over
Pork/ Veal/ Ham 160 - 180 30-40 minutes per ½ kg (1lb)
and 30-40 minutes over
Chicken 160 - 180 15-20 minutes per ½ kg (1lb)
and 20 minutes over
Turkey/ Goose 160 - 180 15-20 minutes per ½ kg (1lb)
and 20 minutes over
Duck 160 - 180 25-35 minutes per ½ kg (1lb)
and 25-30 minutes over
Pheasant 160 - 180 35-40 minutes per ½ kg (1lb)
and 35-40 minutes over
Rabbit 160 - 180 20 minutes per ½ kg (1lb) and 20
minutes over
Grilling
Always use the grilling function with
maximum temperature setting
Important! Always grill with the oven door
closed
Always pre-heat the empty oven with the
grill functions for 5 minutes.
• Set the shelf in the shelf level as recommen-
ded in the grilling table.
• Always set the pan to collect the fat into the
first shelf level.
• Grill only flat pieces of meat or fish.
Grilling
Adjust shelf position and grill pan grid to
suit different thicknesses of food
Food Grill Time
(mins in total)
Bacon Rashers 5- 6
Beefburgers 10 - 20
14
www.zanussi.com

Food Grill Time
(mins in total)
Chicken Joints 20 - 40
Chops
- Lamb 15 - 25
- Pork 20 - 25
Fish - Whole
Trout/ Makarel 10 -12
Fillets - Plaice/Cod 4 - 6
Kebabs 12 - 18
Kidneys - Lamb/Pig 6 - 10
Sausages 20 - 30
Steaks
- Rare 4 - 6
- Medium 6 - 8
- Well Done 12 - 15
Toasted Sandwiches 3 - 4
Defrosting
• Put the food out of the packaging and set it
on a plate on the oven shelf.
• Do not cover with a plate or bowl. This can
extend the time to defrost very much.
• Put the oven shelf in the first shelf level from
the bottom.
Care and cleaning
Warning! Refer to the Safety chapters.
• Clean the front of the appliance with a soft
cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual clean-
ing agent
• Clean the oven interior after each use. Thus
you can remove dirt more easily and it does
not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft cloth
with warm water and cleaning agent) after
each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It can
destroy nonstick coating!
Stainless steel or aluminium appli-
ances:
Clean the oven door with a wet sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids or abrasive mate-
rials as they can damage the oven surface.
Clean the oven control panel with the same
precautions
Catalytic walls
The walls with a catalytic coating are self-
cleaning. They absorb fat which collects on
walls while the oven operates.
To support this self-cleaning process
heat the oven without any food regularly:
1. Open the oven door.
2. Remove all accessories from the oven.
3. Close the door.
15
www.zanussi.com

4. Set the oven temperature to 250°C and
let the oven operate for 1 hour.
5. Clean the oven cavity with a soft and
damp sponge.
Caution! Do not attempt to clean
catalytic surfaces with oven sprays,
abrasive cleaners, soap or other cleaning
agents. This may damage the catalytic surface.
Discolouration of the catalytic surface has
no effect on catalytic properties.
Shelf Support Rails
You can remove the shelf support rails to
clean the side walls.
Removing the shelf support rails
1
Pull the front of
the shelf support rail
away from the side
wall.
1
2
2
Pull the rear shelf
support rail away
from the side wall
and remove it.
Installing the shelf support rails
Install the shelf support rails in opposite se-
quence.
The rounded ends of the shelf support
rails must point to the front.
Oven door and glass panels
To clean the oven door remove it.
Caution! Be careful when you remove
the door from the appliance. The door is
heavy!
Removing the oven door
1. Open the oven door as far as it goes.
2. Lift up clamping levers (A) on the two
door hinges fully.
A
A
3. Close the oven door until the first position
(angle approx. 45°).
45°
4. Hold of the oven door with one hand on
each side and pull it away from the oven
at an upwards angle.
Put the oven door with the outer side
down on a soft and level surface to pre-
vent scratches.
5. Now you can remove the inner glass pan-
els and clean them.
To install the door follow the procedure in
reverse.
The oven door has 2, 3 or 4 panels of
glass (depends on the model)
Removing and cleaning the door glasses
1. Hold the door trim (B) on the top edge of
the door at the two sides and push in-
wards to release the clip seal.
B
2. Pull the door trim to the front to remove it.
16
www.zanussi.com

3. Hold the door glass panels on their top
edge one by one and pull them upwards
out of the guide
4. Clean the door glass panels.
To install panels follow the procedure in
reverse. Insert the smaller panel first, then
the larger.
Oven lamp
Warning! There is a danger of electrical
shock!
Before you change the oven lamp:
• Switch off the oven.
• Remove the fuses in the fuse box or switch
off the circuit breaker.
Put a cloth on the bottom of the oven for
protection of the oven light and glass
cover.
Replacing the oven lamp
1. You can find the lamp glass cover at the
back of the cavity.
Turn the lamp glass cover counterclock-
wise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with applicable
300°C heat-resistant oven lamp.
Important! Use the same oven lamp type.
4. Install the glass cover.
What to do if…
Warning! Refer to the Safety chapters.
Problem Possible cause Remedy
The cooking zones do not oper-
ate.
Refer to the operating instructions for the built-in cooking surface.
The appliance does not heat up. The appliance is deactivated. Activate the appliance.
The appliance does not heat up. The clock is not set. Set the clock.
The appliance does not heat up. The necessary settings are not
set.
Control the settings.
The appliance does not heat up. The fuse is released. Make sure that the fuse is the
cause of the malfunction. If the
fuse releases again and again,
contact a qualified electrician.
The amp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation settle
on the food and in the appliance
cavity.
You left the dish in the appliance
for too long.
Do not leave the dishes in the ap-
pliance for longer than 15 - 20
minutes after the cooking process
ends.
The display shows “12.00”. A power cut. Reset the clock.
17
www.zanussi.com

If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
Warning! Refer to the Safety chapters.
Important! The built-in unit must meet the
stability requirements of DIN 68930.
2x
16x
2x
18
www.zanussi.com

100
7
8
715
594
547 21
538
708
600-605
20
550
720
8
2x 3,5x16
Drill with drilling machine at high revolu-
tion and lowest torque.
Electrical Installation
• Enquiries regarding the installation of the
cooker point, if required, should be made to
your Regional Electricity Company to ensure
compliance with their regulations.
• The appliance socket switch should be out-
side the cabinet but within 2m of the appli-
ance to make it accessible to switch off the
appliance in case of an emergency.
• To protect the hands, wear gloves when lift-
ing the oven into its housing.
Important! HOUSE CIRCUIT
Earth leakage and continuity tests must be
carried out before the appliance is connected
to the mains supply and re-checked after
fitting.
GETTING THINGS READY CHOICE OF
ELECTRICAL CONNECTION
There are three possible ways to connect your
appliance. In each case the appliance should
be operated using at least 6mm² twin core
19
www.zanussi.com

and earth PVC insulated multicore cable.
Please choose from the most appropriate after
reading the different methods :
a) By connecting to a cooker point (having a
double pole isolating switch with at least
3mm contact separation in all poles and
neutral) and protected with a fuse or minia-
ture circuit breaker at your mains fuse box.
b) By connecting the appliance together with
a hob directly to a cooker point(s). Having
a double pole isolating switch with at least
3mm contact separation in all poles and
neutral.
c) If you wish to connect an oven and a hob
to a cooker point you can by connecting
the oven and hob separately to the cooker
point. Oven and hob units should be sepa-
rately connected to a cooker point. (See
Picture)
A
CB
A) Cooker Point
B) Hob
C) Oven
It is good practice to :
– Fit an Earth Leakage Circuit Breaker to your
house wiring.
– Wire your appliance to the latest IEE regula-
tions.
Environment concerns
Recycle the materials with the symbol . Put
the packaging in applicable containers to
recycle it.
Help protect the environment and human
health and to recycle waste of electrical and
electronic appliances. Do not dispose
appliances marked with the symbol with the
household waste. Return the product to your
local recycling facility or contact your
municipal office.
Packaging material
The packaging material is environmental-
ly-friendly and recyclable. Plastic parts are
marked with international abbreviations such
as PE, PS, etc. Dispose of the packaging ma-
terial in the containers provided for this pur-
pose at your local waste management facility.
GB
IE
GREAT BRITAIN & IRELAND - Guarantee/Customer
Service
Standard guarantee conditions:
We, Electrolux, undertake that if within 12
months of the date of the purchase this Elec-
trolux appliance or any part thereof is proved
to be defective by reason only of faulty work-
manship or materials, we will, at our option re-
pair or replace the same FREE OF CHARGE
for labour, materials or carriage on condition
that:
20
www.zanussi.com
