Zanussi UKUD7140LSP User manual

UKUD7140LSP
User Manual
EN
Refrigerator

CONTENTS
Safety information 2
Safety instructions 3
Operation 4
First use 5
Daily use 5
Hints and tips 6
Care and cleaning 7
Troubleshooting 8
Installation 10
Technical information 11
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and
other working environments
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
2

•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by
the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
3

electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING! Risk of injury,
burns, electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
Internal light
• The type of lamp used for this appliance
is not suitable for household room
illumination
Care and cleaning
WARNING! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
OPERATION
Switching on
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
4

Switching off
To turn off the appliance, turn the
temperature regulator to the "O" position.
Temperature regulation
The temperature is regulated automatically.
A medium setting is generally
the most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature inside
the appliance depends on:
• room temperature,
• how often the door is
opened,
• the quantity of food stored,
• the location of the appliance.
1. Turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
2. Turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
CAUTION! If the ambient
temperature is high or the
appliance is fully loaded, and the
appliance is set to the lowest
temperatures, it may run
continuously causing frost to
form on the rear wall. In this
case the dial must be set to a
higher temperature to allow
automatic defrosting and
therefore reduced energy
consumption.
FIRST USE
Cleaning the interior
Before using the appliance for the first time,
the interior and all internal accessories
should be washed with lukewarm water
and some neutral soap to remove the
typical smell of a brand-new product, then
dried thoroughly.
CAUTION! Do not use
detergents or abrasive powders,
as these will damage the finish.
DAILY USE
WARNING! Refer to Safety
chapters.
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer and
the bottle shelf to ensure correct
air circulation.
5

Positioning the door shelves
The model is equipped with a variable
storage box which is fitted under a door
shelf compartment and can be slide
sideways.
For more thorough cleaning, the top and
bottom door shelves can be easily removed
and refitted in position
HINTS AND TIPS
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from
coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation (a
natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches
on or off.
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity
consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed
on any shelf.
6

• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as possible.
• Bottles: these need a cap and should be
stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic, if
not packed, must not be kept in the
refrigerator.
CARE AND CLEANING
WARNING! Refer to Safety
chapters.
General warnings
CAUTION! Unplug the
appliance before carrying out
any maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
The accessories and parts of
the appliance are not suitable for
washing in a dishwasher.
Periodic cleaning
CAUTION! Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION! Take care of not to
damage the cooling system.
CAUTION! When moving the
cabinet, lift it by the front edge
to avoid scratching the floor.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean and
free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and save
electricity consumption.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole (F) situated under
the salad drawers to prevent the water
overflowing and dripping onto the food
inside. Use the special cleaner provided (P),
which you will find already inserted into the
drain hole.
PF
Cleaning the air channels
1. Remove the plinth (A), then the
ventilation grid (B).
7

C AB
2. Clean the ventilation grid. (Refer to
"Cleaning the ventilation filter ". )
3. Carefully pull the air deflector out (C),
checking that there is no water left from
the defrosting.
4. Clean the lower part of the appliance
with a vacuum cleaner.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
WARNING! If the cabinet will be
kept on, ask somebody to
check it once in a while to
prevent the food inside from
spoiling in case of a power
failure.
TROUBLESHOOTING
WARNING! Refer to Safety
chapters.
What to do if...
Problem Possible cause Solution
The appliance does not oper-
ate.
The appliance is switched off. Switch on the appliance.
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock-
et. Contact a qualified electri-
cian.
The appliance is noisy. The appliance is not suppor-
ted properly.
Check if the appliance stands
stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the
lamp".
The compressor operates
continually.
Temperature is set incorrect-
ly.
Refer to "Operation" chapter.
8

Problem Possible cause Solution
Many food products to be
frozen were put in at the
same time.
Wait some hours and then
check the temperature again.
The room temperature is too
high.
Refer to climate class chart
on the rating plate.
Food products placed in the
appliance were too warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed cor-
rectly.
Refer to "Closing the door".
Water flows on the rear plate
of the refrigerator.
During the automatic defrost-
ing process, frost melts on
the rear plate.
This is correct.
Water flows into the refrigera-
tor.
The water outlet is clogged. Clean the water outlet.
Food products prevent that
water flows into the water
collector.
Make sure that food prod-
ucts do not touch the rear
plate.
Water flows on the floor. The melting water outlet is
not connected to the evapo-
rative tray above the com-
pressor.
Attach the melting water out-
let to the evaporative tray.
The temperature in the appli-
ance is too low/too high.
The temperature regulator is
not set correctly.
Set a higher/lower tempera-
ture.
The door is not closed cor-
rectly.
Refer to "Closing the door".
The food products' tempera-
ture is too high.
Let the food products tem-
perature decrease to room
temperature before storage.
Many food products are stor-
ed at the same time.
Store less food products at
the same time.
The door has been opened
often.
Open the door only if neces-
sary.
There is no cold air circula-
tion in the appliance.
Make sure that there is cold
air circulation in the appli-
ance.
9

If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.

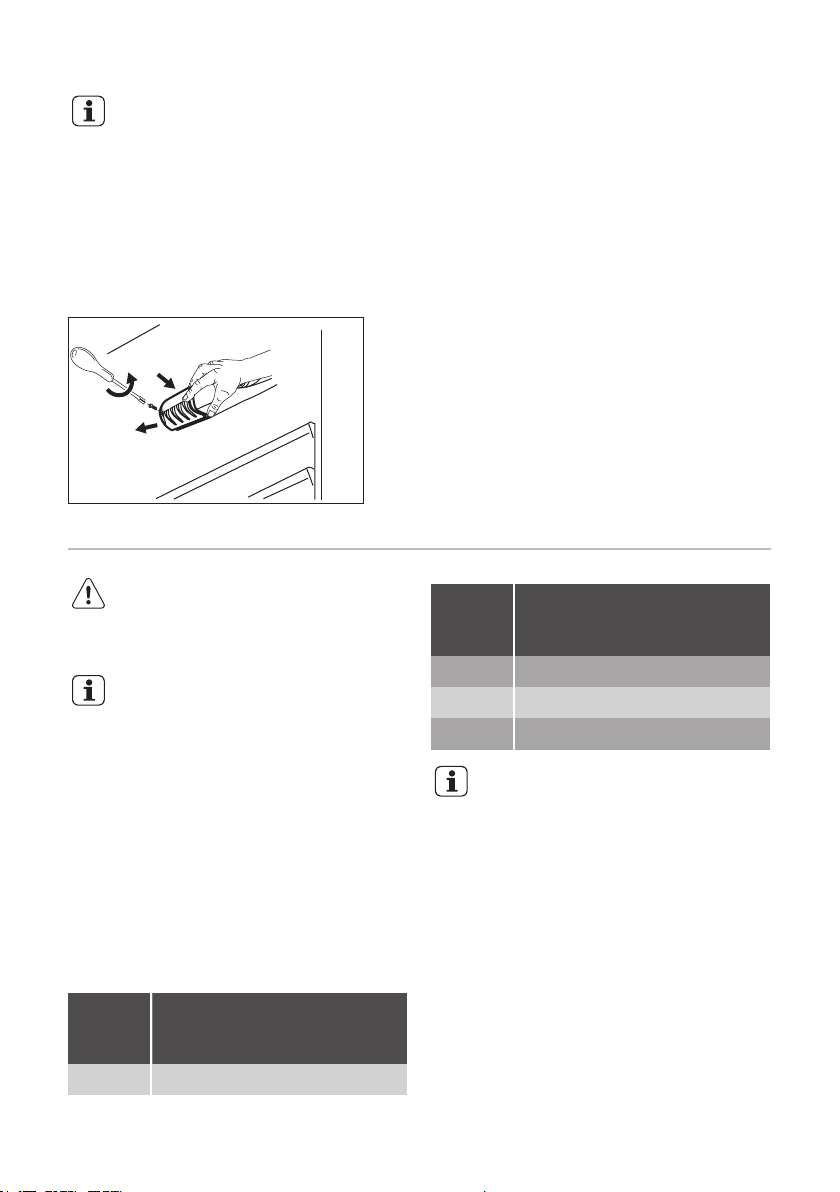

Replacing the lamp
Disconnect the plug from the mains socket.
1. Remove the screw from the lamp cover.
2. Remove the lamp cover (refer to the
illustration).
3. Replace the used lamp with a new lamp
of the same power and specifically
designed for household appliances (the
maximum power is shown on the lamp
cover).
4. Install the lamp cover.
5. Tighten the screw to the lamp cover.
6. Connect the plug to the mains socket.
7. Open the door.
Make sure that the light comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective door
gaskets. Contact the Authorised
Service Centre.
INSTALLATION
WARNING! Refer to Safety
chapters.
Location
Refer to the assembly
instructions for the installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate freely
around the back of the cabinet.
Positioning
This appliance can be installed in a dry, well
ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Cli-
mate
class
Ambient temperature
SN +10°C to + 32°C
Cli-
mate
class
Ambient temperature
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation
can only be guaranteed within
the specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer service
or to the nearest Authorised
Service Centre.
10

Electrical Connection
CAUTION! Any electrical work
required to install this appliance
should be carried out by a
qualified electrician or
competent person.
WARNING! This appliance must
be earthed.
The manufacturer declines any
liability should these safety
measures not be observed.

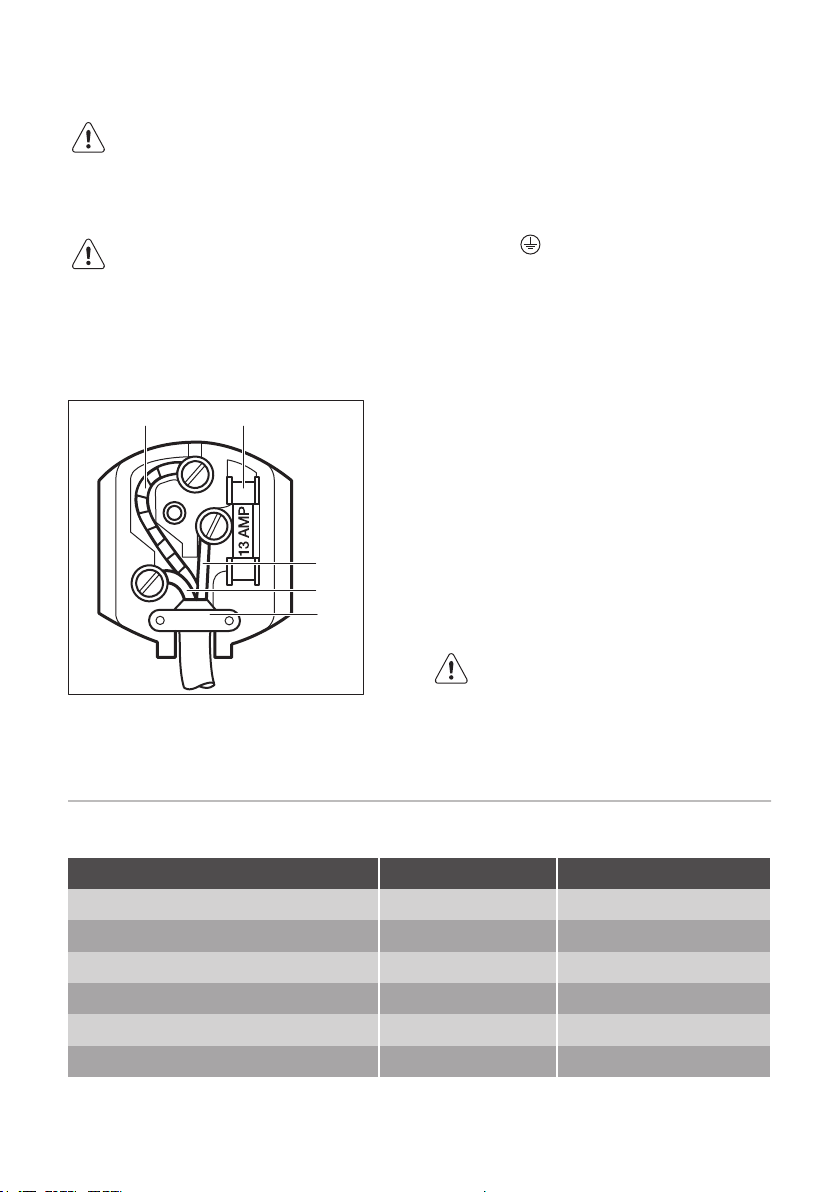

The wires in the mains lead are coloured in
accordance with the following code:
A B
C
D
E
•A - green and yellow: Earth
•C - brown: Live
•D - blue: Neutral
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth
symbol or coloured green and
yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp (E) is
secure over the outer sheath.
Make sure the electricity supply voltage
is the same as that indicated on the
appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp
fuse (B). In the event of having to change
the fuse in the plug supplied, a 13 amp
ASTA approved (BS 1362) fuse must be
used.
WARNING! A cut off plug
inserted into a 13 amp socket is
a serious safety (shock) hazard.
Ensure that it is disposed of
safely.
TECHNICAL INFORMATION
Technical data
Dimensions of the recess
Height mm 815
Width mm 596
Depth mm 550
Voltage Volts 230 - 240
Frequency Hz 50
11

The technical information are situated in the
rating plate, on the external or internal side
of the appliance and in the energy label.
ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
12
*

13

14

15

211622648-A-102015
