Zanussi ZC345 User manual

FRIGORIFICO
REFRIGERATOR
ZC345
ZC345R
ZC395
ZC395R
INSTRUCCIONES DE USO
INSTRUCTION BOOKLET 8181455--01/8

11
Zanussi 818 14 55-01/8
Safety instructions GB
Your new fridge may have other functions compared to your previous one.
Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction
booklet. It will come in handy if you later sell the cabinet or give it to somebody else.
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using the appliance. Your safety is of paramount importance. If you are insure about any of the
meanings or warnings contact the Customer Care Department.
For the User
·The cabinet is intended for keeping foodstuff in a
normal household as explained in this instruction
booklet.
·Do not keep explosive gases or liquids in the
refrigerator or freezer compartment. They may
explode and cause injury and material damage.
·Do not let sharp objects come into contact with
the refrigerating system on the back of and inside
the cabinet. If the refrigerating system is
punctured, the cabinet will be damaged and
foodstuff inside may spoil.
·Do not keep carbonised drinks or bottles in the
freezer compartment. The glass bottles may
break.
·The cabinet is heavy. The edges and projecting
parts of the cabinet may be sharp. Be careful
when moving the cabinet and always use gloves.
Child Safety
·Pay attention so that small children do not gain
access to the operating controls or the inside of
the cabinet.
Scrapping old cabinets
When discarding the cabinet, hand it over to a
recycling station. For more information, call your
local city office or your dealer.
Contents GB
Safety instructions 11.................
Scrapping old cabinets 11.......................
Contents 11..........................
Description of the Apliance 12.........
Control Panel 12..............................
Before use 13.........................
Using fridge 13.......................
To start the fridge and set the correct temperature 13.
Temperature inside the fridge 13.................
Measuring the temperature 14...................
Switching off 14..............................
Cabinet interior 14............................
Hints and Tips 15.....................
Saving energy 15.............................
Food Storage 15..............................
Protect the environment 15......................
Maintenance and Cleaning 15..........
Removing the ventilation grille 15................
Defrosting the fridge 15........................
Cleaning 16..................................
To Change the Light Bulb 16....................
When the appliance is not in use 16...............
Something Not Working 17............
Guarantee Conditions 17.......................
Technical specification 18.............
Installation 18........................
Unpacking 18................................
Before installing the cabinet 18..................
Cleaning 18..................................
Remove the transport supports 19................
Installing the cabinet 19........................
Electrical connection 19........................
Door Reversal 20.............................

12
Zanussi 818 14 55-01/8
Description of the
A
pliance GB
1
2
3
6
7
8
Model ZC395, ZC395R
1. Wire shelf
2. Glass shelf
3. Vegitable drawer
4. Egg tray
5. Dairy compartment + butter box
6. Ventilation grille
7. Door shelf
8. Bottle shelf
1
1
1
1
4
5
3
3
7
7
8
Model ZC345, ZC345R
1. Wire shelf
2. Glass shelf
3. Vegitable drawer
4. Egg tray
5. Dairy compartment + butter box
6. Ventilation grille
7. Door shelf
8. Bottle shelf
1
2
3
6
7
8
1
1
1
4
5
3
3
7
8
Control Panel
AB
A. Green indicator lamp
Lights when the fridge is operating.
B. Thermostat control
Usetoswitchonandsetthedesiredtemperaturein
the fridge.

13
Zanussi 818 14 55-01/8
Before use GB
Position and clean the cabinet as explained in the
section "Installation".
Check that the drain hose at the rear of the cabinet
discharges into the drip tray.
Before inserting the power plug into the
outlet and switching on the cabinet for
the first time, leave it standing upright
for about 30 minutes, or for 4 hours if it
was transported horizontally. Otherwise
the compressor may sustain damage.
This time will allow the oil sufficient
time to return to the compressor.
Using fridge GB
To start the fridge and set the
correct temperature
Turn the thermostat control to the desired position.
1:
The lowest position of the thermostat control results
in the highest temperature inside the cabinet.
6:
The highest position of the thermostat control results
in the lowest temperature inside the cabinet.
0:
Switched off.
Allow the cabinet to run for a period of 24 hours
whenever the temperature setting is changed. This
will allow the temperature to stabilise inside the
cabinet.
Temperature inside the fridge
A suitable temperature inside the fridge is approx.
+5°C. If the thermostat control is set to a too cold
temperature, food with a high water content may
start to freeze if it has been placed in the coldest
places in the fridge. The picture shows the coldest
and warmest places inside the fridge.
(+ warm, - cold)
Meat, fish and milk should be put in the coldest part
of the cabinet.
The temperature will be affecteed by:
·How often the door is opened
·How much food is stored
·Position of the appliance (See chapter
Installation)
+
+
--
--
--
--
--
++
--

14
Zanussi 818 14 55-01/8

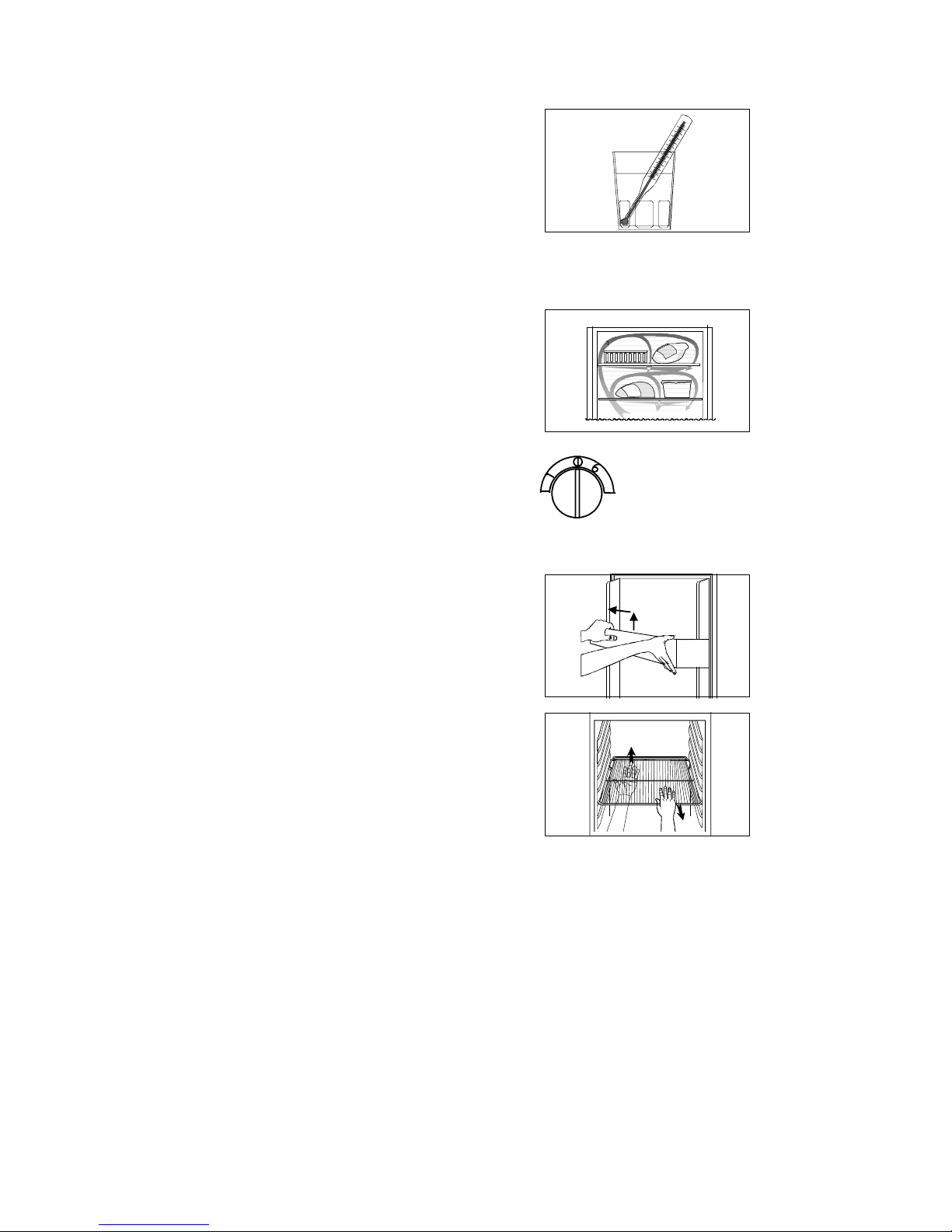

Measuring the temperature
If the temperature is measured using a standard,
single thermometer, this should be put in a glass of
water centrally placed inside the cabinet. This will
reflect the temperature inside the food products. Do
not place the thermometer hanging or lying directly
on the shelf.
Hints:
·Distribute foodstuffs to allow cold air to
circulate freely between the products.
·Do not place food products directly against the
cooling plate on the rear wall since they may
freeze in this case.
·Also never put warm products into the cabinet.
Wait until they have cooled down.
·Cover all foods properly to avoid odours and
flavours from tainting other food.
Switching off
Set the thermostat control to the "0" position.
Unplug the power supply plug from the wall socket
or, alternatively, remove the fuse.
Cabinet interior
The shelves and door compartments are removable
and can easily be re-arranged.
Certain shelves must be lifted up by the rear edge to
enable them to be removed.
The lower door compartment and the glass shelf
above the vegetable drawer must not be moved.
They are required for proper air circulation inside the
cabinet.
Shelves with a raised edge should be placed with the
raised edge facing the rear wall of the cabinet, and
thus prevent food products from touching the
cooling plate.

15
Zanussi 818 14 55-01/8
Hints and Tips GB
Saving energy
·Pay careful attention to where the cabinet is
placed. See the section "Installation". When
installed correctly, the cabinet will consume less
energy.
·Try to avoid keeping the door open for long
periods, or opening the door to frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
·Ensure there are no obstructions prevending the
door from cloosing properly.
·Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refridgeration unit
·It is advisable to periodically clean the
refrigeration systemat the back of the appliance
with a duster or vacuum cleaner.
·Always leave warm food to cool down to room
temperature before placing in the fridge.
·Make sure the door gasket is complete and
always clean.
Food Storage
·To obtain the best results from your appliance,
neither hot foods nor liquids which may evaporate,
should be placed in the larder compartment.
·Avoid buying frozen food if you can not store it
straight away. The use of an isulated container is
advisable. When you arrive home place the frozen
food in the freezer immediately.
·Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food is
consumed at its best.
Remove suspect food from you refrigerator and
clean, refer to cleaning and maintenance.
Protect the environment
·Hand over the cabinet packaging and discarded
fridges and freezers to a recycling station.
Contact your local city office or your closest
dealer for more information.
·Keep foodstuff in re-usable containers. Cut down
on disposable material as much as possible.
·When cleaning the cabinet, use a mild
washing-up detergent.
·Follow the advice in the section "Saving energy"
·The door gasket and coolant used in this
cabinet will not harm the ozone layer.
·All parts in the packaging can be recycled.
·The cabinet has been designed for easy
dismantling and subsequent recycling.
Maintenance and Cleaning GB
Removing the ventilation grille
The ventilation grille can be removed, e.g. to wash
the grille.
Make sure the door is open when removing the
ventilation grille. Unsnap the upper edge of the grille
by pulling outward/downward. Then pull the grille
straight out to completely remove it.
Model ZV345, ZV395
Unsnap the ventilation grille by pulling it toward
you.
Defrosting the fridge
The fridge is defrosted automatically every time the
compressor stops. Frost formation can be prevented
by:
·not putting warm foodstuff inside the cabinet.
·avoiding frequently opening the door or keeping
it open too long.
·do not place foodstuffs directly against the cold
cooling plate.

16
Zanussi 818 14 55-01/8
Cleaning
Clean the cabinet at regular intervals.
Do nt use detergents, abrasive powers,
high perfumed cleaning products, wax
polishes or cleaning products
containing bleach or alcohol when
cleaning the product
Disconnect the appliance from electricity supply.
Internal Cleaning
Clean the inside and accossories with warm wather
and bicarbonate of soda (5ml to 0,5 liter water) Rise
and dry thoroughly.
Regularly check the door seals and wipe clean to
ensur they are clean and free from debris.
Clean out the drip channel inside the fridge at
regular intervals and ensure that the drip channel is
clear att all times. If bocked carefully clear using a
piece of flexible curtain wire inserted into the drain
outlet to remove the blockage.
External Cleaning
Wash the outer cabinet with warm sopy water.
Remove the ventilation grille (see the section
"Removing the ventilation grille") and vacuum-clean
under the cabinet. Twice a year pull out the cabinet
from the wall and vacuum-clean the backside of the
cabinet, the refrigerating system and the compressor.
When moving the cabinet, lift it by
the front edge to avoid scratching the
floor.
To Change the Light Bulb
The light is switched on automatically when the
door is opened. Before replacing the light bulb,
disconnect the power plug from the outlet.
To replace the lamp in the chiller compartment (only
cabinets with two doors), first unscrew the lamp
grille with a screwdriver.
Use a bulb of the same type, E14 socket, maximum
ratingof25W.
When the appliance is not in use
Disconnect the appliance from electricity supply.
Empty all foods and clean the appliance, leaving the
doors ajar to prevent unpleasant smells.

17
Zanussi 818 14 55-01/8
Something Not Working GB
Before contacting your local Service Force Center check the following point:
Problem Possible cause / Remedy
It is too warm inside the refrigerator. Set a lower temperature.
Put food products in the right place inside the refrigerator. See
the chapter "Temperature inside the refrigerator".
Distribute the food products to allow cold air to circulate
around them.
Make sure that the door is completely closed and that the
insulating strip is complete and clean.
It is too cold inside the refrigerator. Set a higher temperature.
Vegetables and other products that are easily frozen have been
placed on a "too cold" shelf. See the chapter "Temperature
inside the refrigerator".
There is water on the cooling plate inside
the refrigerator.
This is normal. During automatic defrosting, frost thaws on the
cooling plate.
Water is running inside the refrigerator. Clean the water drain and drain hole inside the refrigerator
using e.g. cotton swabs or a bottle cleaner brush.
Some food products could have been placed causing the water
from running into the drain.
Water comes out on the floor. Place the drain hose at the back of the cabinet above the drain
bowl. See the chapter "Before using the cabinet the first time".
The compressor operates continuously. Set a higher temperature.
Make sure that the door is completely closed and that the
insulating strip is complete and clean.
The cabinet does not operate at all.
Cooling or interior light does not
operate. No indicator lamps light.
The power plug is not properly connected.
The fuse has blown.
The cabinet is not switched on.
Power does not reach the cabinet. (Try connecting another
electrical device to the power outlet.)
Sound level in cabinet is too high. The refrigerating system will always produce some sounds. A
pulsing sound is heard when coolant is pumped inside the
cooling pipes. A ticking sound from the thermostat can be
heard when the compressor switches on and off. The sound
level varies depending on the operation of the cabinet.
If you feel the sound level is incorrect:
Make sure the pipes at the back of the cabinet not touch each
other. Carefully bend them if they do.
If the cushion spacers (between the cabinet wall and pipes)
come loose, put them back in place again.
Carefully follow the instructions in the chapter "Installing the
cabinet".
Guarantee Conditions
See Guarantee Conditions on the Registration Card.

18
Zanussi 818 14 55-01/8
Technical specification GB
Model ZC345R ZC345 ZC395R ZC395
net volume 328 l 328 l 386 l 328 l
Width 595 mm 595 mm 595 mm 595 mm
Height 1600 mm 1600 mm 1800 mm 1800 mm
Depth 600 mm 600 mm 600 mm 600 mm
Energy consumption 230 kwh/year 230 kwh/year 248 kwh/year 248 kwh/year
Energy class B B B B
Rated power 110 110 110 110
Weight 61 kg 63 kg 66 kg 69 kg
Number of compressors 1 1 1 1
Installation GB
Unpacking
Unpack the cabinet and check that it is in good
condition and free of any transport damage. Notify
the dealer immediately of any damage. Hand the
packaging over for recycling. For more information,
contact your local city office or the dealer.
Do not allow children to play with the
packaging. The plastic film can cause
suffocation.
Before installing the cabinet
Affix the supplied plastic peaces at the rear of the
cabinet.
Decord panels
It is possible to have the door decorated with a
panel.
The panel and the frames for assembling can be
ordered separately from Your dealer.
Cleaning
Wash the inside of the cabinet using lukewarm
water, a mild washing-up detergent and a soft cloth.

19
Zanussi 818 14 55-01/8
Remove the transport supports
Remove the tape and the transport supports from
·the door sides
·inside the door hinges
·the shelves
Remove the transport support on the glass shelf by
pushing the support forward along the edge of the
shelf until it stops at the protuberance of the shelf.
Take hold of the rear edge of the glass shelf and pull
the shelf and transport support forward until the
shelf tilts and the transport support can be removed.
Some models are fitted with a silencing pad under
the cabinet. Do not remove this pad.
Installing the cabinet
To otain the best performance from the cabinet, ensure
:
·the cabinet is placed in a dry, cool place and
is not exposed to direct sunlight.
·the cabinet is not placed close to a source of
heat, e.g. a cooker or dishwasher.
·the room in which the cabinet is placed
has a temperature of +16Cto+32C.
·the cabinet is level.The cabinet should not lean
against any wall. If necessary adjust the
feet using the supplied adjustment spanner.
·there is good air circulation around the cabinet
and that the air channels below and behind
the cabinet are not blocked. The ventilation
space above the cabinet and any
grocery/top cabinet must be at least 200 cm@.
The ventilation space can either be
a) directly above the cabinet, or
b) behind and above the top cabinet. In this case,
the space behind the cabinet must be at least
50 mm deep.
If the cabinet is placed in a corner and the side with
the hinges faces the wall, the distance between the
wall and the cabinet must be at least 10 mm to allow
the door to open enough so that the shelves can be
removed.
50mm
a) b)
Electrical connection
Connect the cabinet to a grounded electrical outlet.
Voltage: 230 V.
Fuse: 10 A.
Refer to the rating plate on the left inside the
cabinet.

20
Zanussi 818 14 55-01/8
Door Reversal
)
1. Close the cabinet and pull out the plug from the
electrical outlet.
2. Remove the ventilation grille. There is a part on
the grille that can be removed. Remove it and put it
on the other side.
3. Put the cabinet on a wooden board when it is laid
down. Later, when raising the cabinet, it will be
easier to grip under the cabinet thanks to the board.
4. On the upper part of the cabinet. Put the hinge pin
on the other side.
5. On the lower part of the cabinet. Unscrew the
hinge. Move the hinge pin and plastic cover. Secure
the hinge on the other side.
Raise the cabinet and replace the ventilation grille.
6. Unscrew the handle. Carefully press in the plastic
plugs on the opposite side using a drift. Secure the
handle in the plug holes. Then press the supplied
plastic plugs into the holes to which the handle was
previously fitted.
7. Put the cabinet in position. Check that it stands
straight. See the section "Positioning the cabinet".
1
2
3
4
6

MARIESTAD DD--AV
